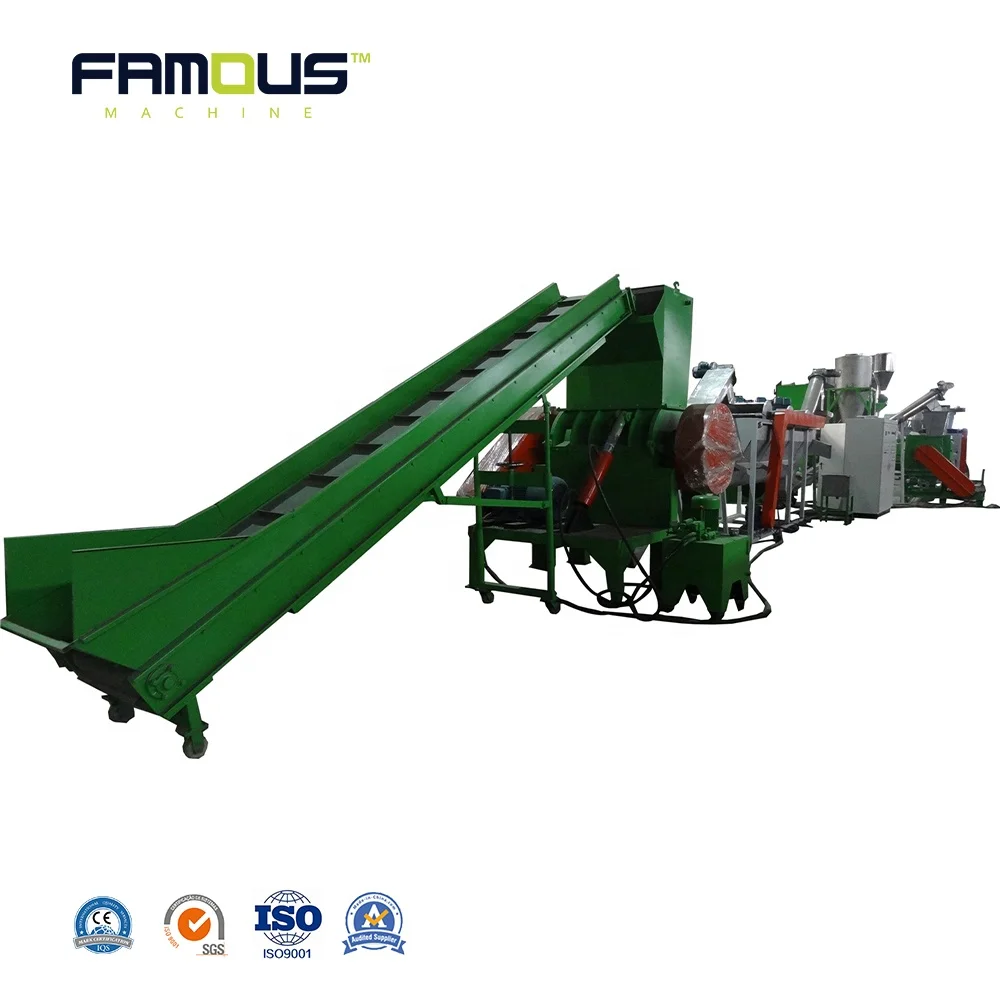

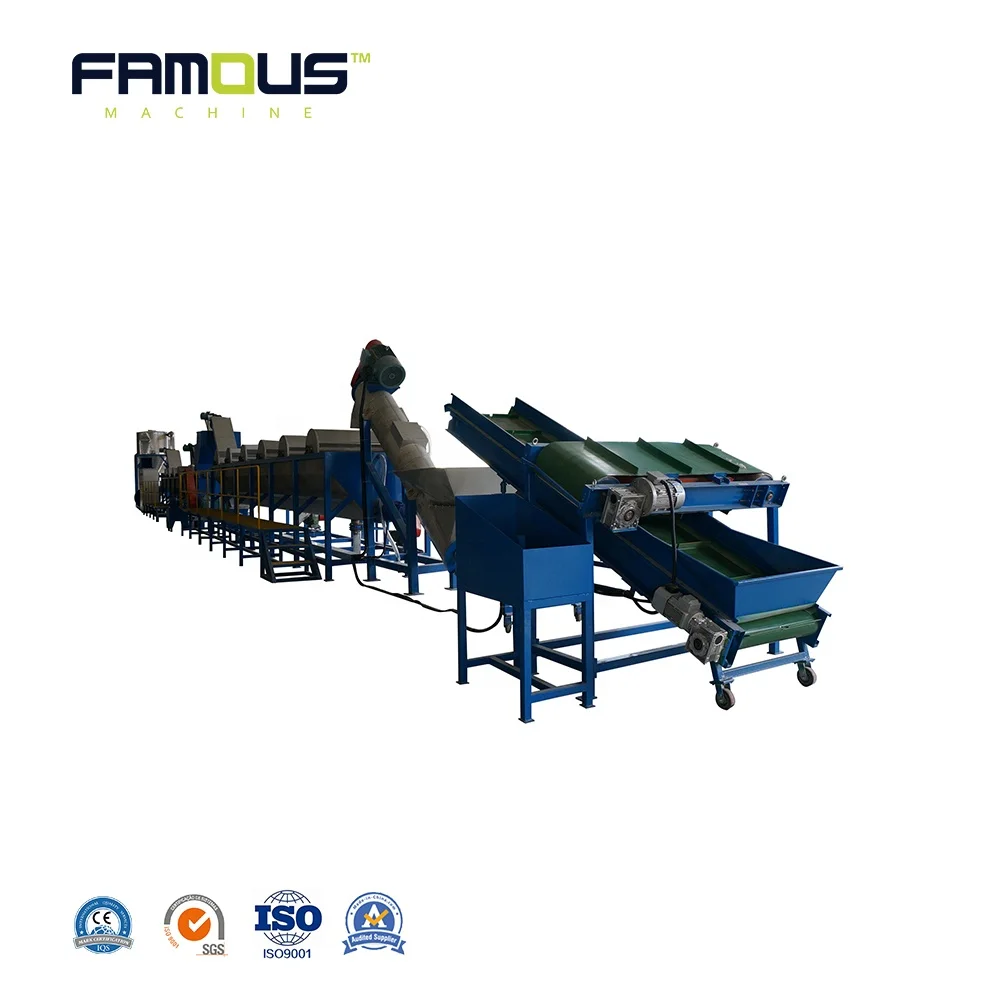

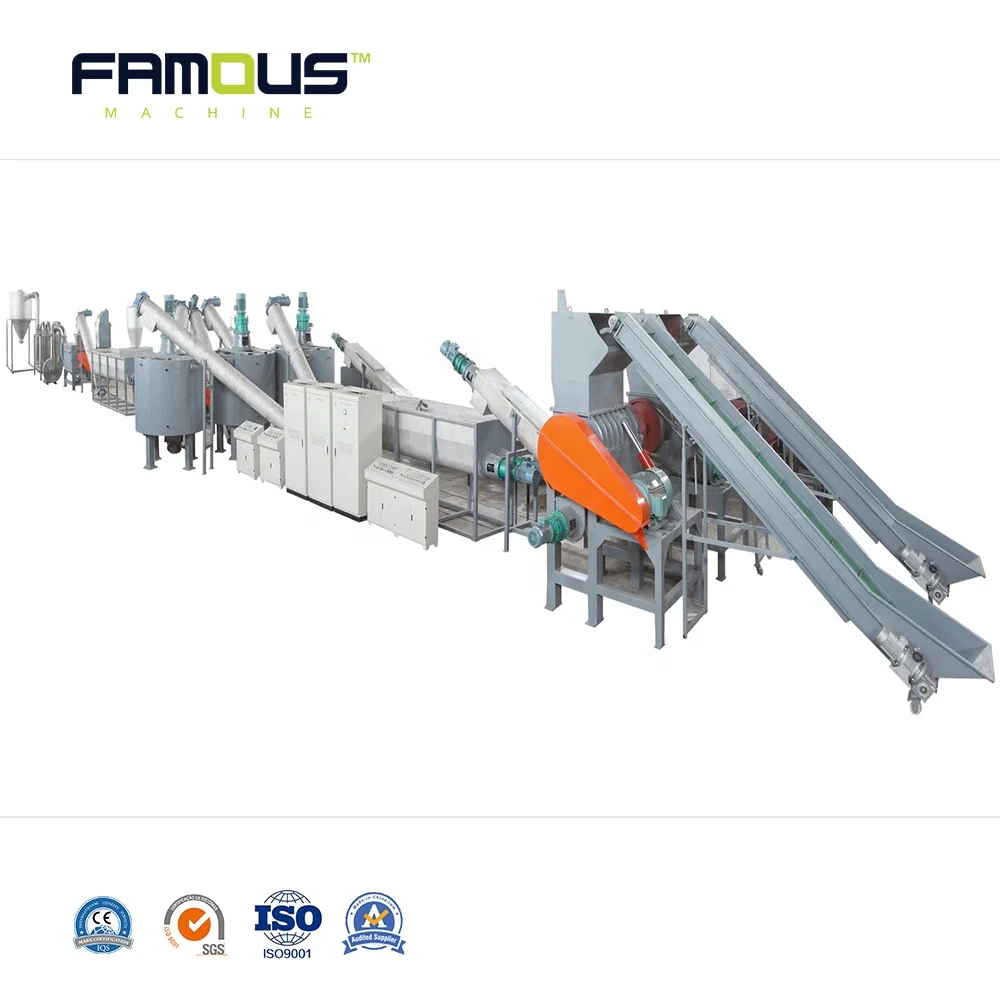

Hot Sales PET Bottle Washing Line PP PE Washing Line Recycled Plastic Washing Line
- Category: >>>
- Supplier: Suzhou Famous Machinery Co. Ltd.
Share on (1600436880496):
Product Overview
Description
Product Image
Final Flakes Size | 16mm (rigid Materials)80x150mm(soft Materials)or Customized |
Color | Customer choice |
After Warranty Service | Video technical support, Online support, Free spare parts, Field installation, commissioning and Trainning, Field Maintenance and Repair Service |
Local Service Location | India, Mexico, Algeria,Dubai,Russia,Greece,Libya,Syria,Sudan,South Africa,Malaysia,Ethiopia, Uzbekistan |
Certification | CE,ISO,SGS |
Transport Package | Wooden Case |
Trademark | FAMOUS |
Origin | China |
HS Code | 84778000 |
Supply Ability | 30Sets/Year |
Products Description

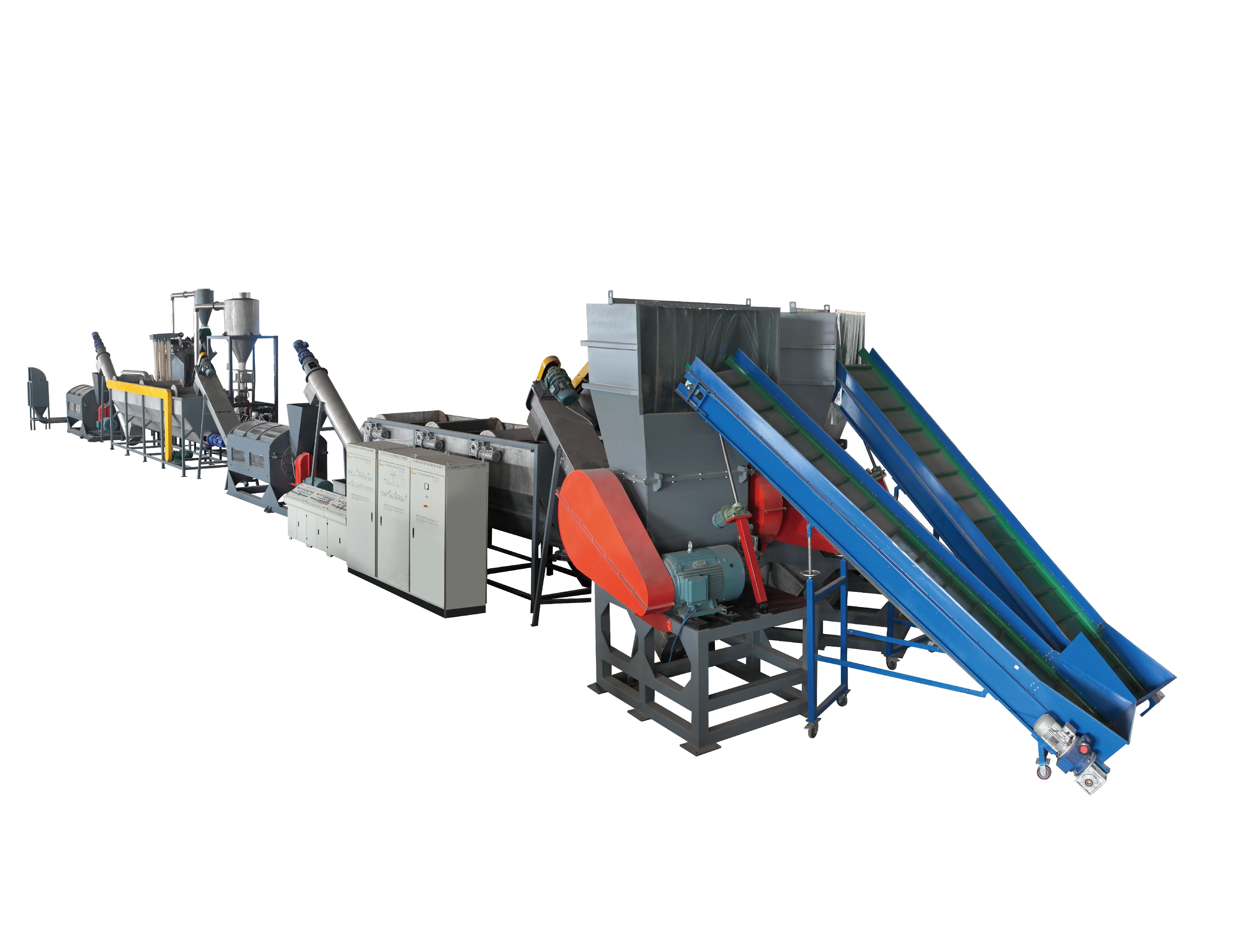

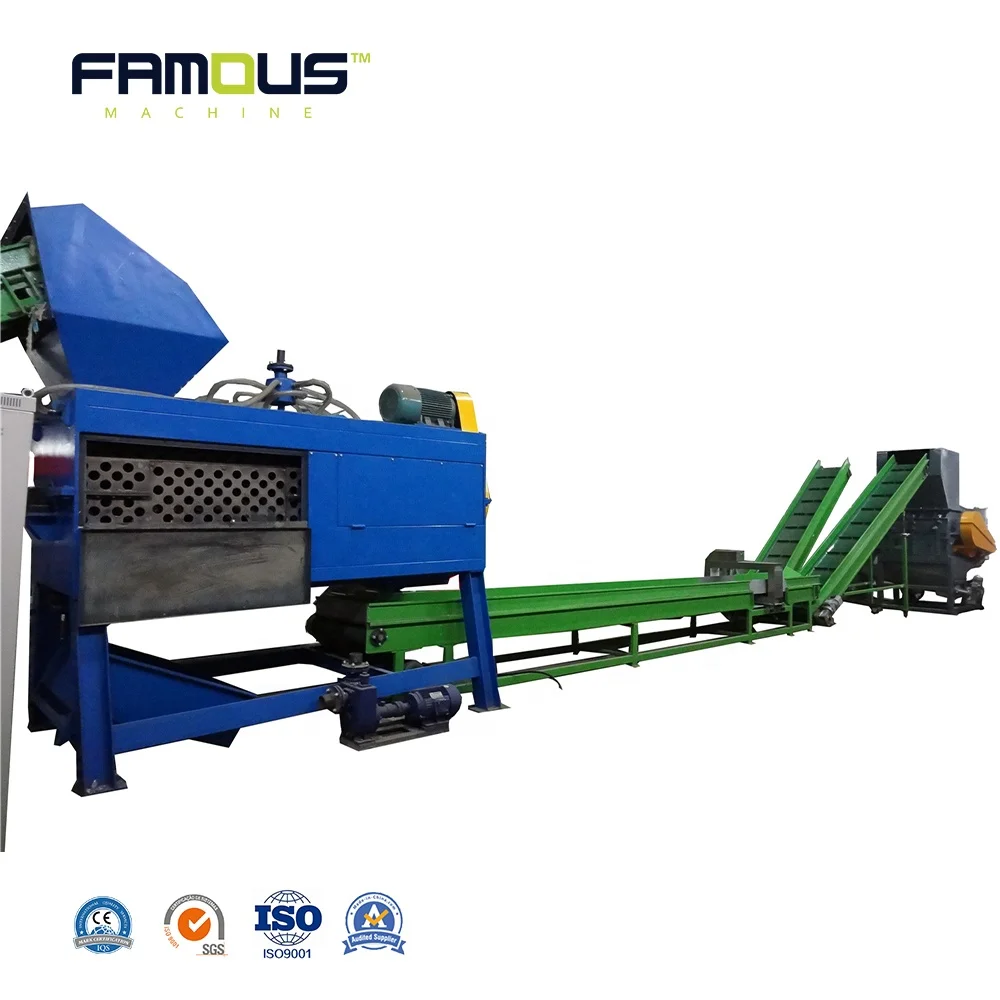

PET Bottles Washing Line Machine
Product Description:
This series PET flake recycling machine is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers. The Recycled waste cola bottle PET recycling machine can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes. All your requirements of the Recycled waste cola bottle PET recycling machine will be customized.
Recyclable Plastics Include:
* LLDPE/LDPE/HDPE film, crushed material
* PP/OPP/BOPP/CPP film, woven bags, jumbo bags, non-woven fabric (melt blown)
* PA66 fishing net, carpet
* PET/BOPET bottle flakes, film, waste cloth, foam, optical film
* EPS/XPS/EPE/PU/PVC crushed material, cold briquetting foam, hot melt foam, compacted foam, insulation board
* HIPS/PS/ABS home appliance housing, electronic waste, factory plastic
* LLDPE/LDPE/HDPE film, crushed material
* PP/OPP/BOPP/CPP film, woven bags, jumbo bags, non-woven fabric (melt blown)
* PA66 fishing net, carpet
* PET/BOPET bottle flakes, film, waste cloth, foam, optical film
* EPS/XPS/EPE/PU/PVC crushed material, cold briquetting foam, hot melt foam, compacted foam, insulation board
* HIPS/PS/ABS home appliance housing, electronic waste, factory plastic
Product Parameters:
Fiber Grade Pet Bottle Washing Line | ||||||||||||||
Model | Capacity | Consumption Power | Steam Use | Detergent | Water Supply | Manpower | Area Required | |||||||
FMST-500 | 500 kg/hr | 70 kw/h | 300kg/h | 10kg/h | 4-5 m3/hr | 2-3 Person | 50*5*6 m | |||||||
FMST-1000 | 1000 kg/hr | 140 kw/h | 500kg/h | 12kg/h | 5-7 m3/hr | 8-10 Person | 70*5*6 m | |||||||
FMST-2000 | 2000 kg/hr | 280 kw/h | 800kg/h | 15kg/h | 10-15 m3/hr | 10-12 Person | 80*8*6 m | |||||||
FMST-3000 | 3000 kg/hr | 350 kw/h | 1000kg/h | 25kg/h | 20-30 m3/hr | 12-16 Person | 100*8*10 m | |||||||
Suitable Products:

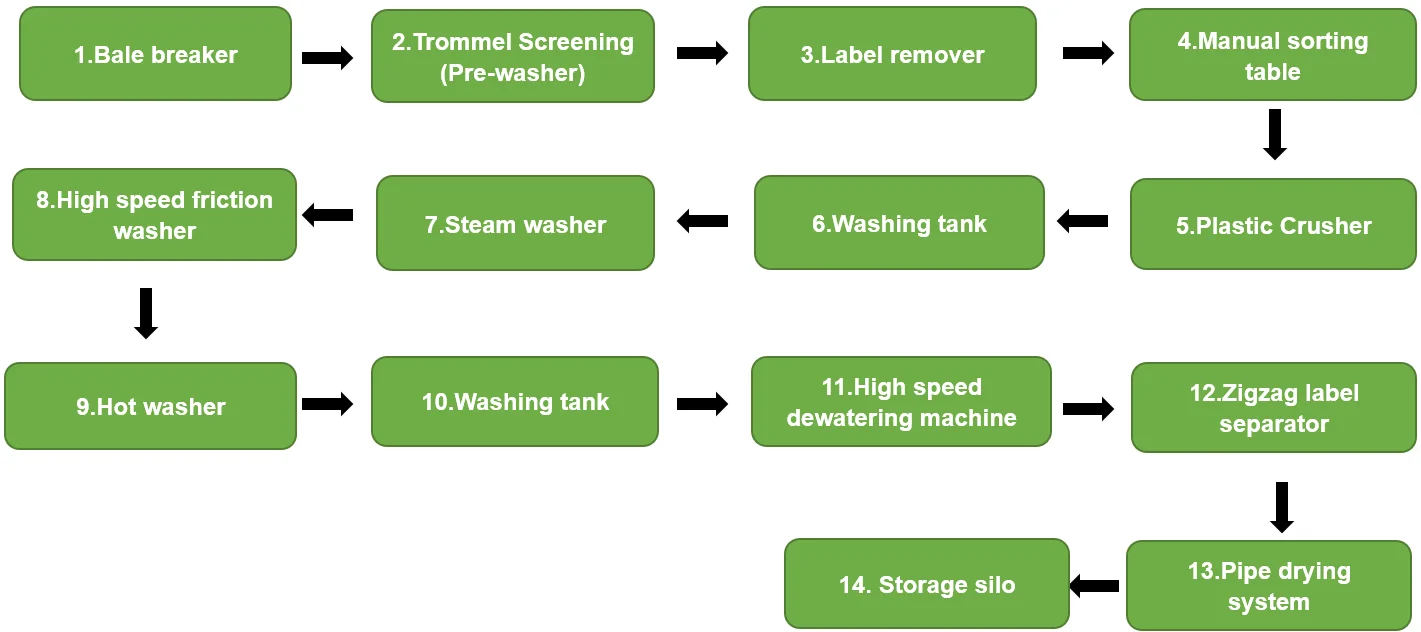

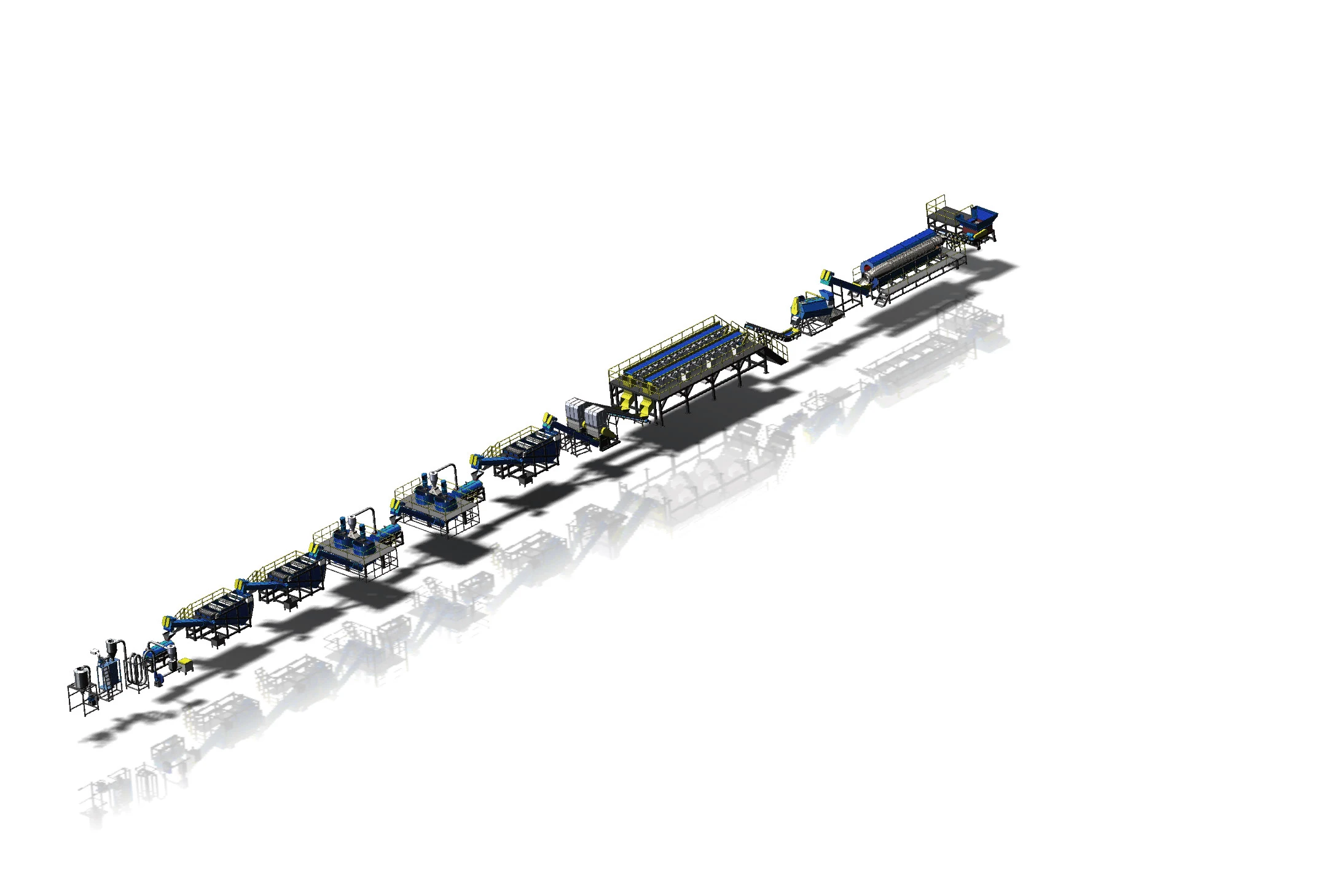

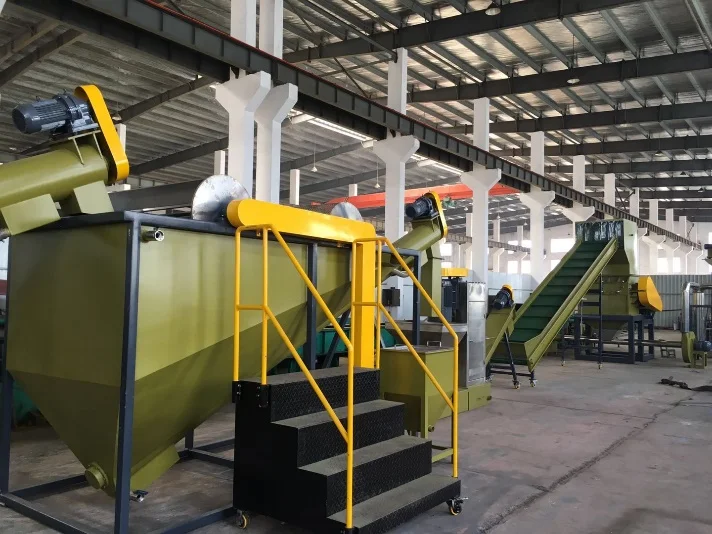

Plastic Bottle Recycling Washing Line Work Process:
Product Details

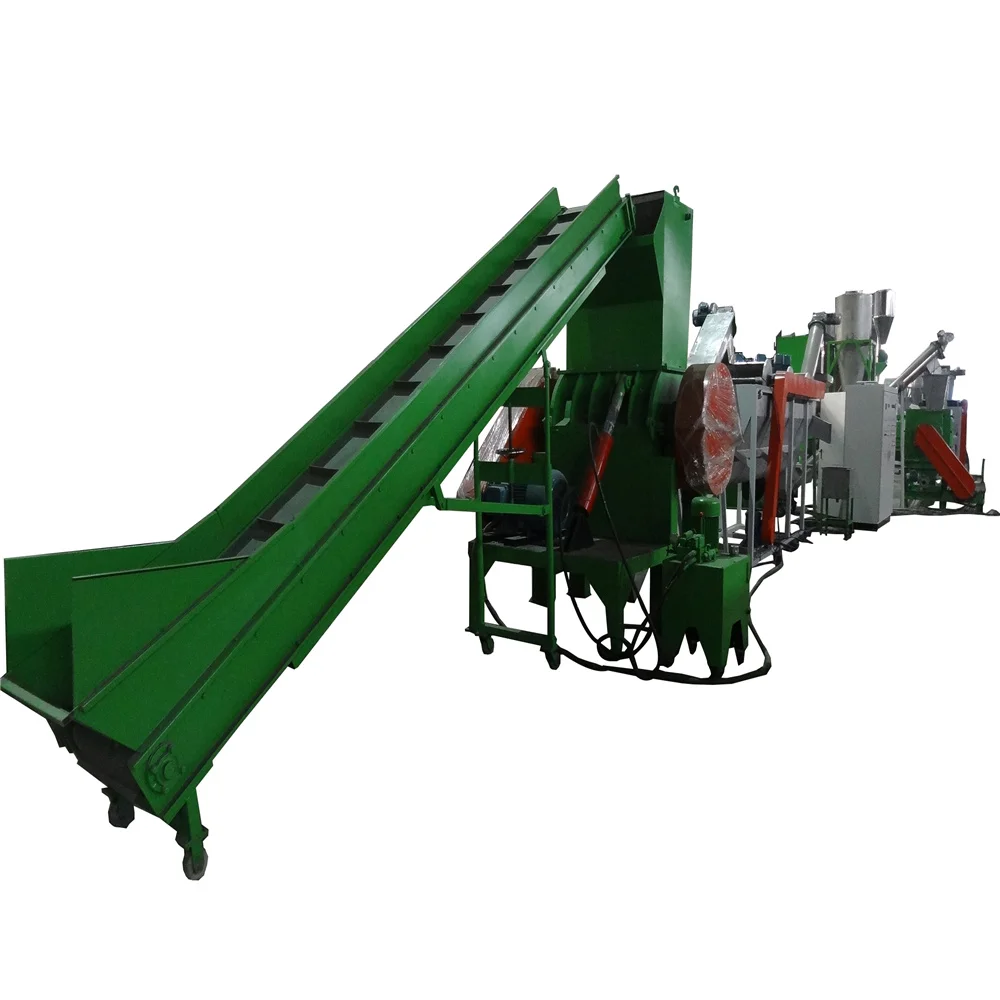

Belt conveyor is as a standard feeding device for plastic film, raffia, filament, woven bag, bottles, etc.

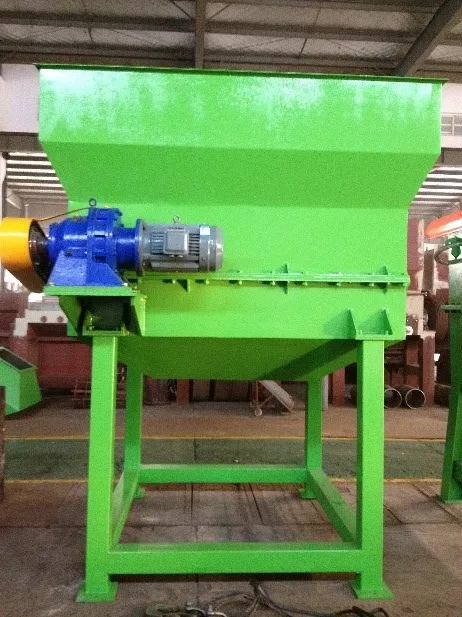

Open the compressed bale, frequency control

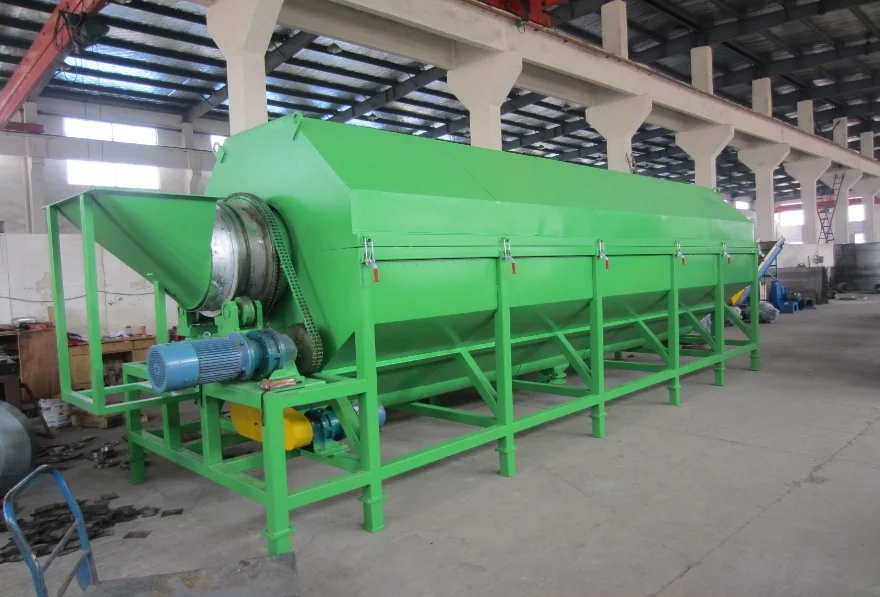

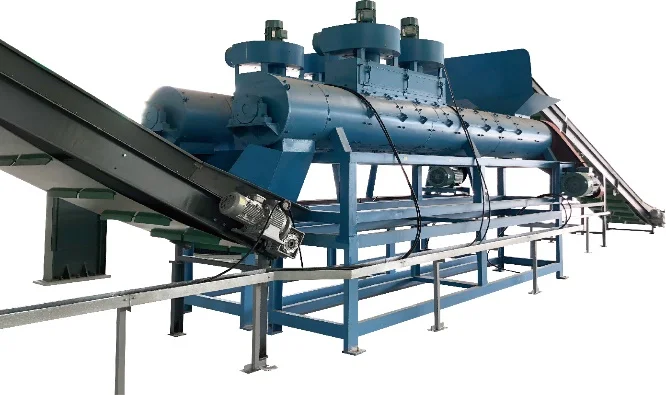

Pre-washer
Label Remover
Used to separate small impurities
such as, bottle labels, soil, sand, etc.
To crush material into small sizes. With water to clean material and cool blades during crushing.
Make remaining label, caps and other impurity
float and separate from PET flakes,
With washing function for PET flakes.
float and separate from PET flakes,
With washing function for PET flakes.

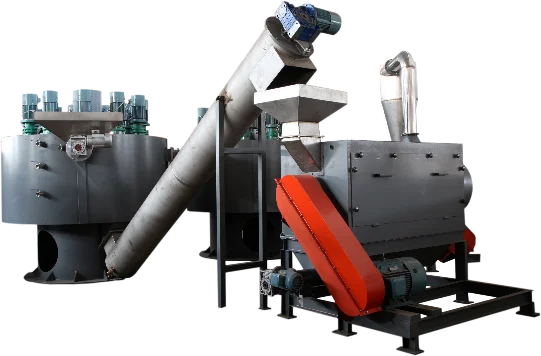

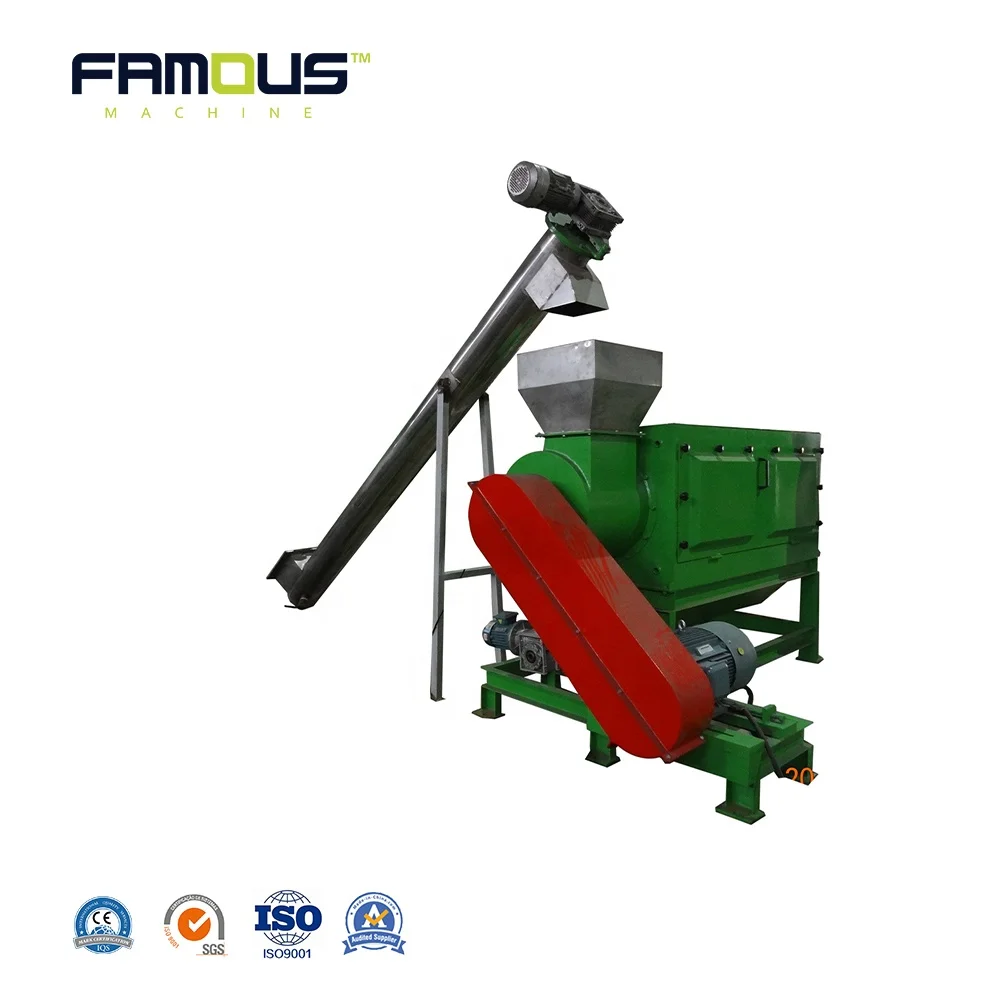

To wash the bottle flakes by steam(hot water) and clean more fully by high speed friction washer.

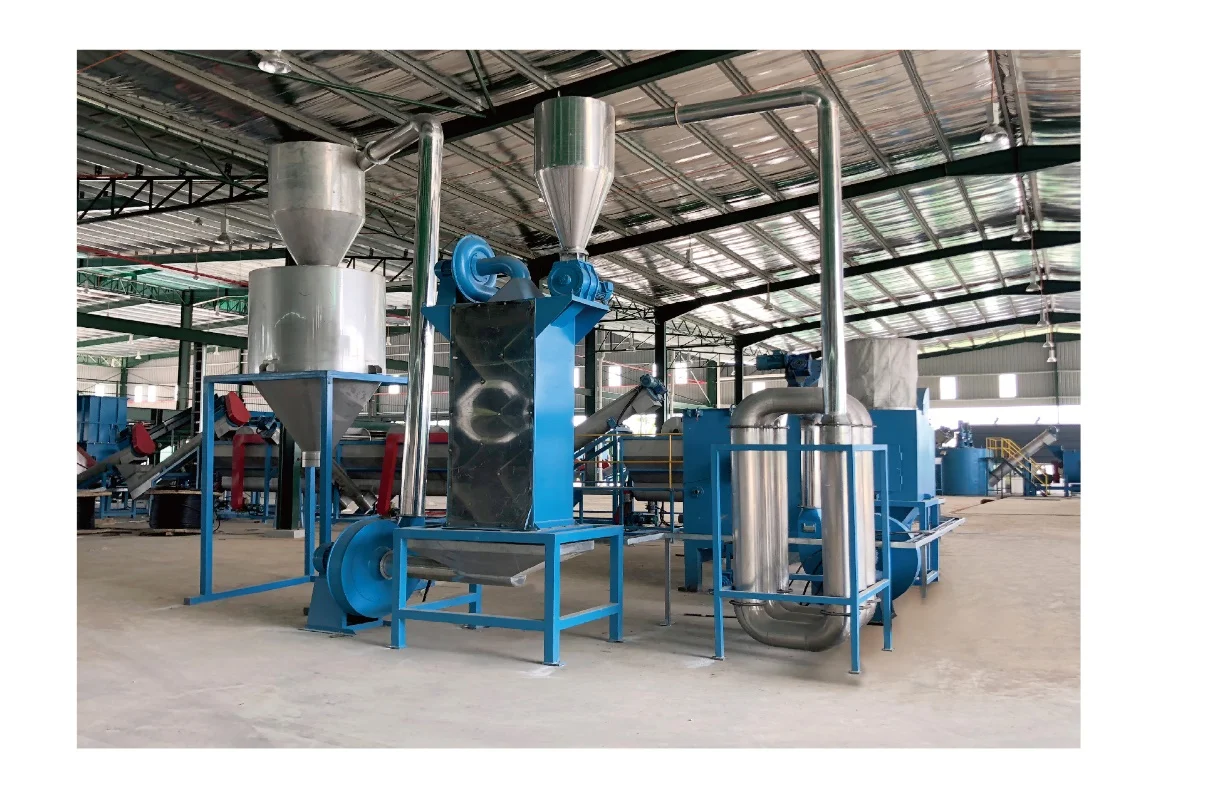

Zigzag label separator
The vertical Z-shaped zigzag air separator can
effectively separate the labels and impurities
with high separation accuracy.

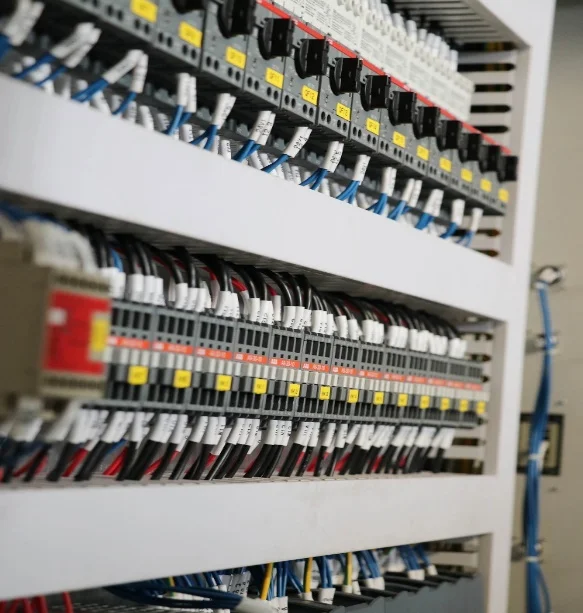

With CE/TUV/SGS/ISO standard, all parameters can be set on the touch screen. 1.Electric control component: (Siemens), e.g. Circuit-breaker, AC contact, press button, pilot lamp. 2.For electric control of the whole line. 3.All electrical units: Siemens, Schneider, ABB, Omron

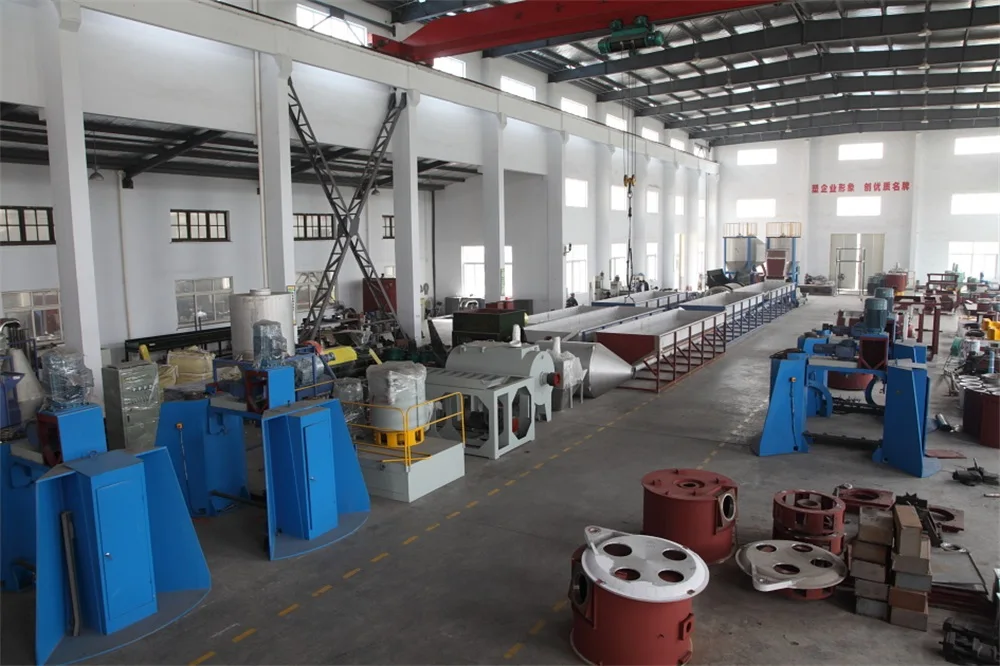

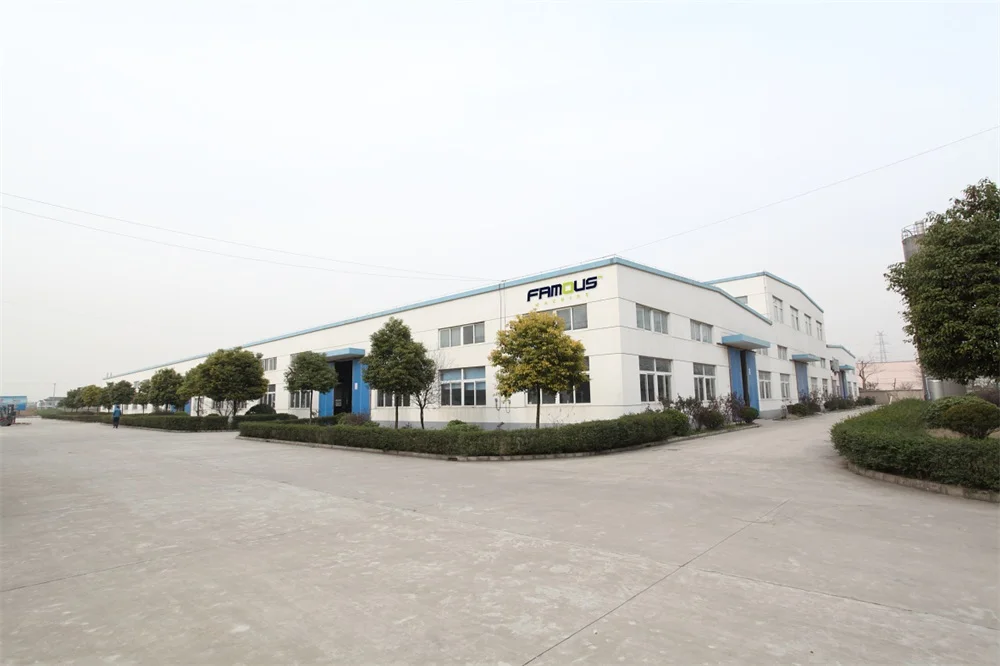

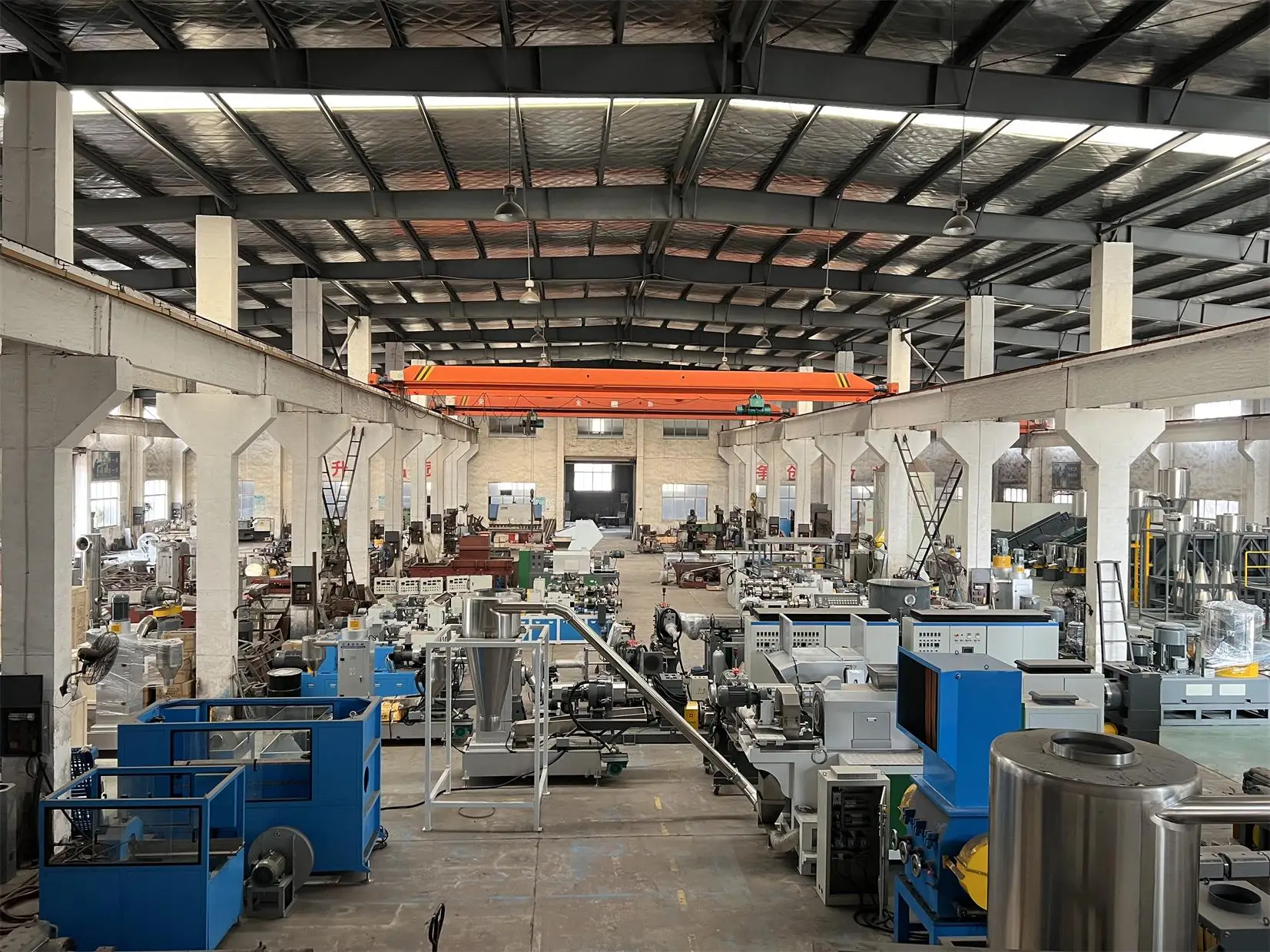

Company Profile
SUZHOU FAMOUS MACHINERY CO.,LTD. is located in the national civilized city—Zhangjiagang, it's near the golden waterway of Yangtze River, only 2 hours from Shanghai Pudong airport by car. It covers an area of 10000 square meters, with two machinery workshop. It’s a modernized manufacturing enterprise with machinery, product and technology together. FAMOUS MACHINERY COMPANY held the mission “turn plastic waste into profit, and make it industrialization”, vigorously develop circular economy, We are dedicated to developing and manufacturing the high technology plastic recycling machinery. Our factory has a history of 20 years of equipment processing and experienced engineers which will ensure the quality for you; Our main products machinery are at below: 1- Waste PET Recycling Line used to washing the waste PET bottles into clean PET flakes complete line; 2- Waste Plastic Film, Woven bags/Jumbo bags recycling washing line; 3- Plastic granulator line with different model can used for the waste plastic Film, PP woven bags, Jumbo bags, waste PSF/POY textile and fabric, Nylon and for hard plastics such as PE, PP, PET, PS, ABS, EPS, XPS, etc. 4- Plastic Shredder Machinery include the Single Shaft Shredder Machine, Double/Four Shaft Shredder Machine, Twin Roller Shredder Machine; 5-Plastic Crushers: PET bottle crusher, PPPE film crusher, PIPE crusher. 6- Milling Machine: PVC milling machine, PE milling machine, WOOD milling machine. 7- Plastic Mixer: PVC mixer, PE mixer, Wood Plastic Mixer; 8- EPS Foam material recycling machine which includes EPS hot melting machine, EPS compacting machine, EPS crusher. 9- Auxiliary Machine: Agglomeration Machine, Plastic Film Squeezer, Plastic film squeezing pelletizer machine, etc.
Our Partners
Our Certificates
Exhibition
Our Service
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea. After delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea. After delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. Free insurance for goods
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.

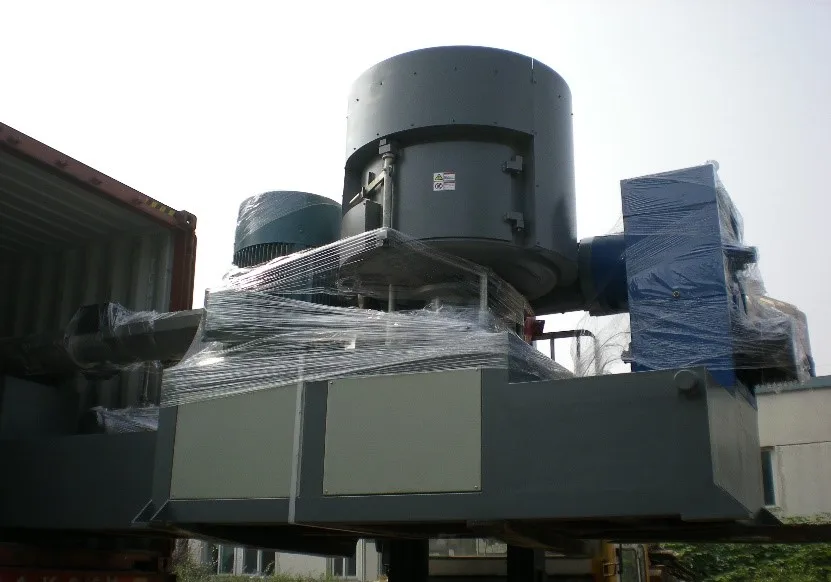

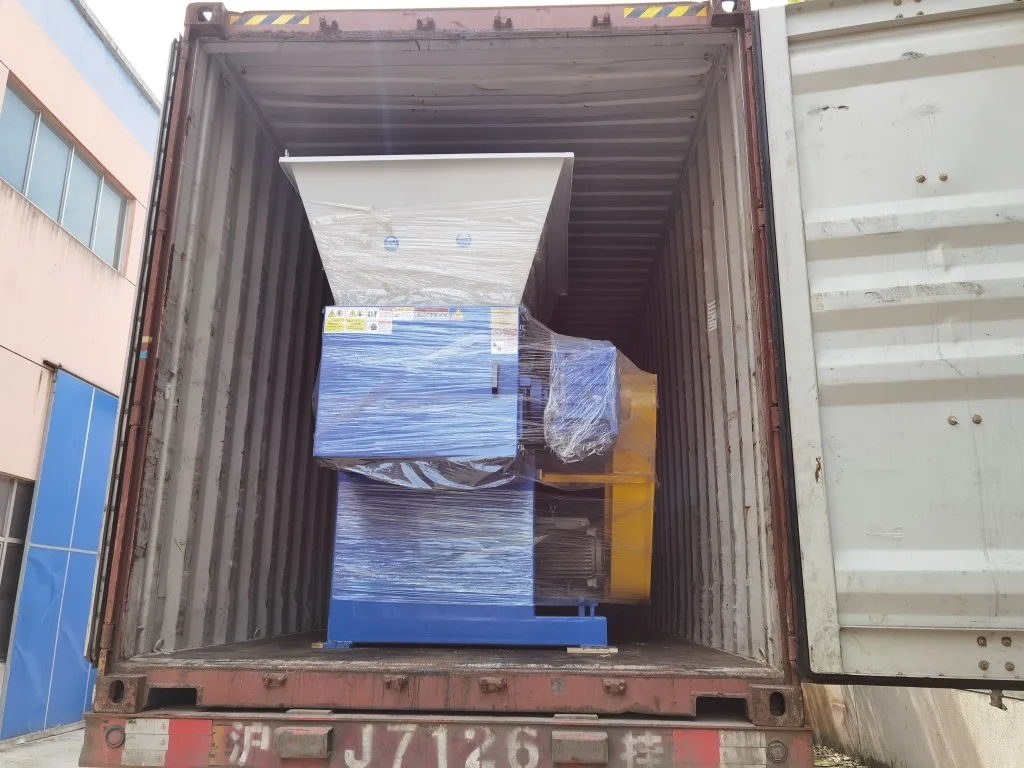

Package & Delivery
FAQ
Q: Are you a factory or a trading company? |
A: As a professional manufacturer, we have been in plastic recycling machine industry for more than 20 years, our factory is in Zhangjiagang city which is near shanghai and wuxi. |
Q: Do you have any certifications? |
A: Yes, we have ISO, CE, SGS. |
Q: What’s your guarantee or the warranty of the quality if we buy your machines? |
A: We offer you high quality machines with 1 year guarantee and supply life-long technical support. |
Q: When can I get my machine after I paid? |
A: Normally production time is around 45-75days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port. |
Q: How to install my machines when it arrives? how much the cost? |
A: We will send the instruction manual and videos to you, your workers can install the machine according to it. If you still have problems in installing it and need our engineer to help, we will arrange our engineer to debugging the machine for you. At same time our engineer will give training lessons to workers in your factory. Customer pay for visa, round air tickets, accommodation and USD100/day/person. |
Q:How long time for installation? |
A:According your machines order, we will send one or two engineers to your plant, it will take about 15 days to 30 days. |
Q: How about the spare parts? |
A: We will send one year enough easy broken spare parts together with the machines, shipping together. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If it is caused by your incorrect operations, we will provide the spare parts at cost price. |
