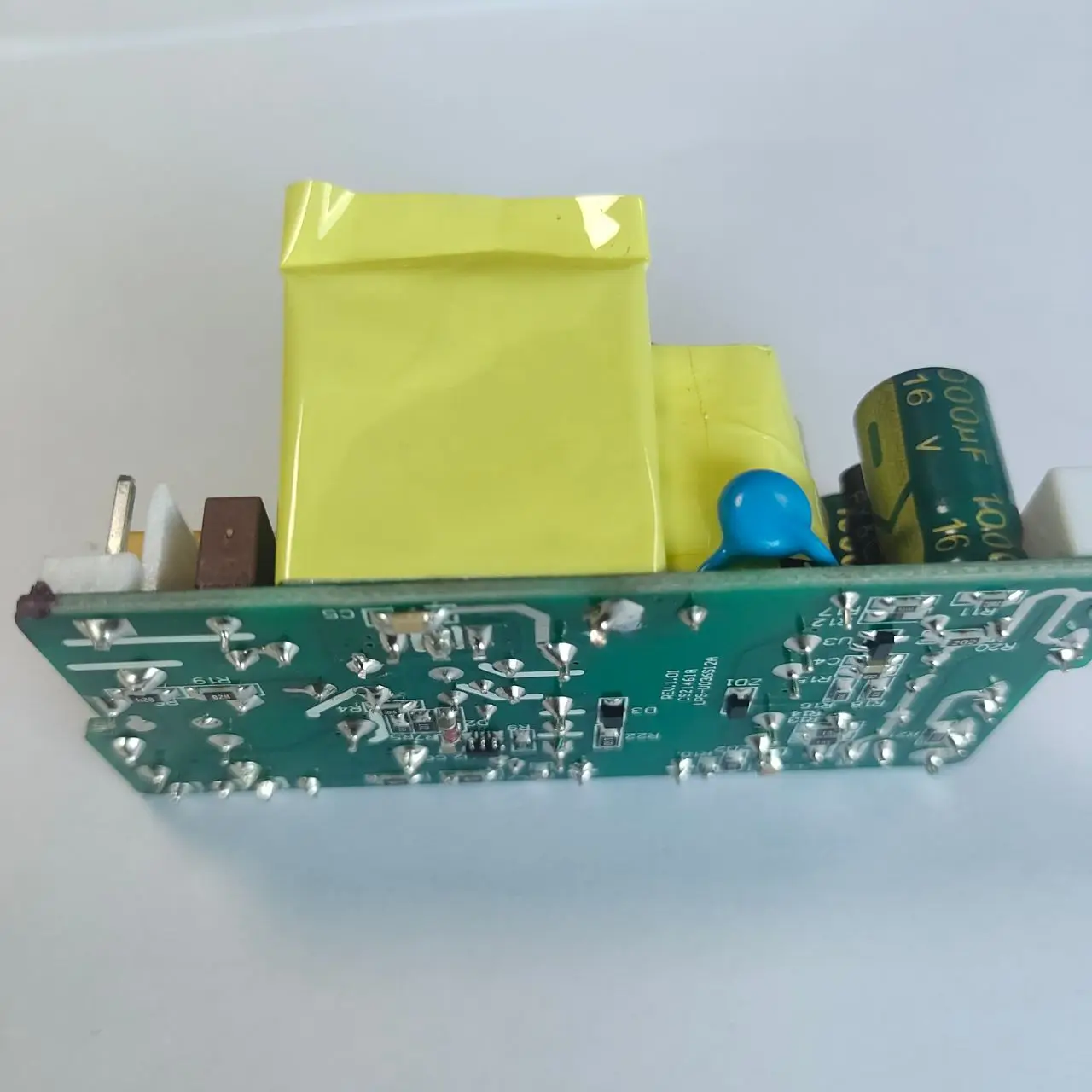

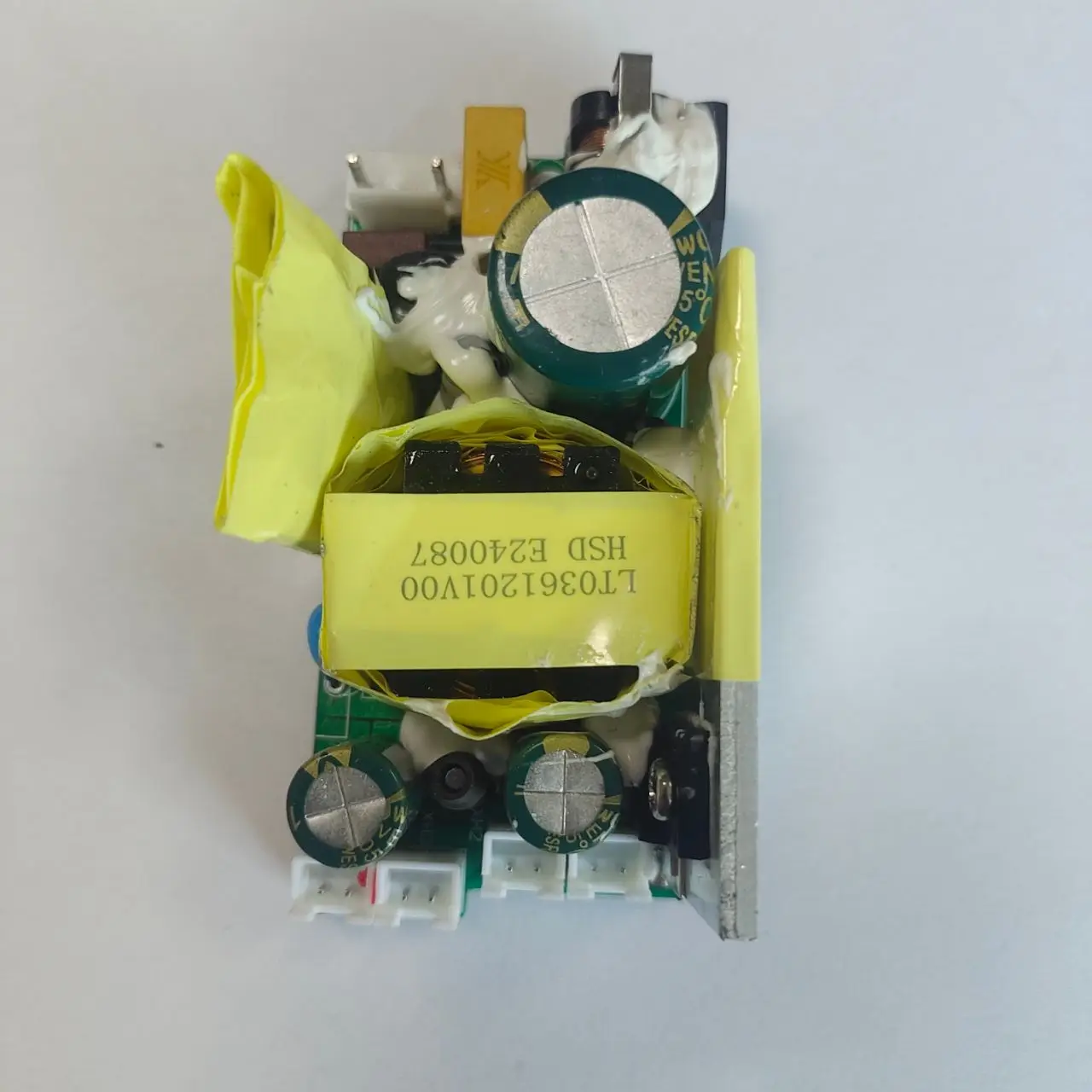

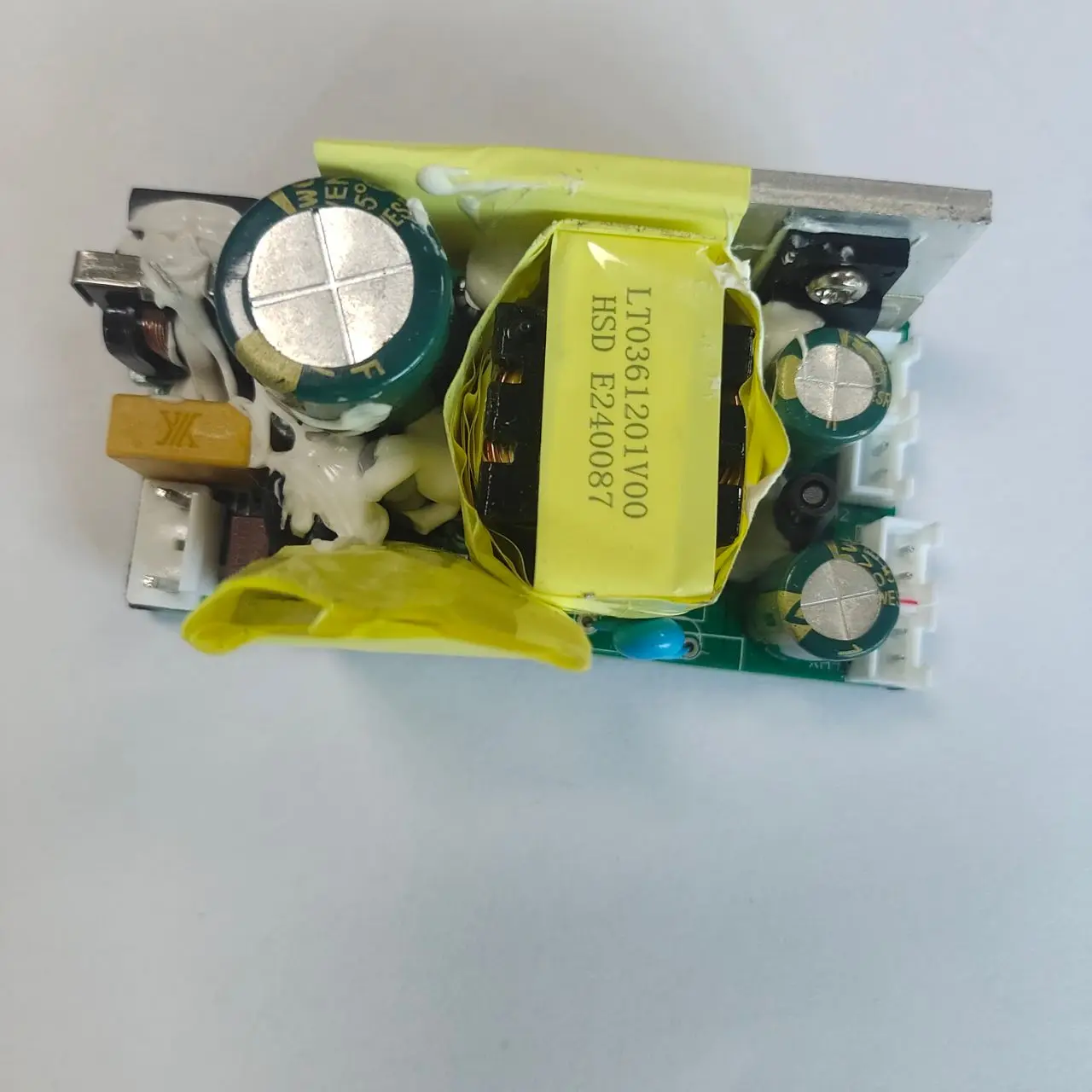

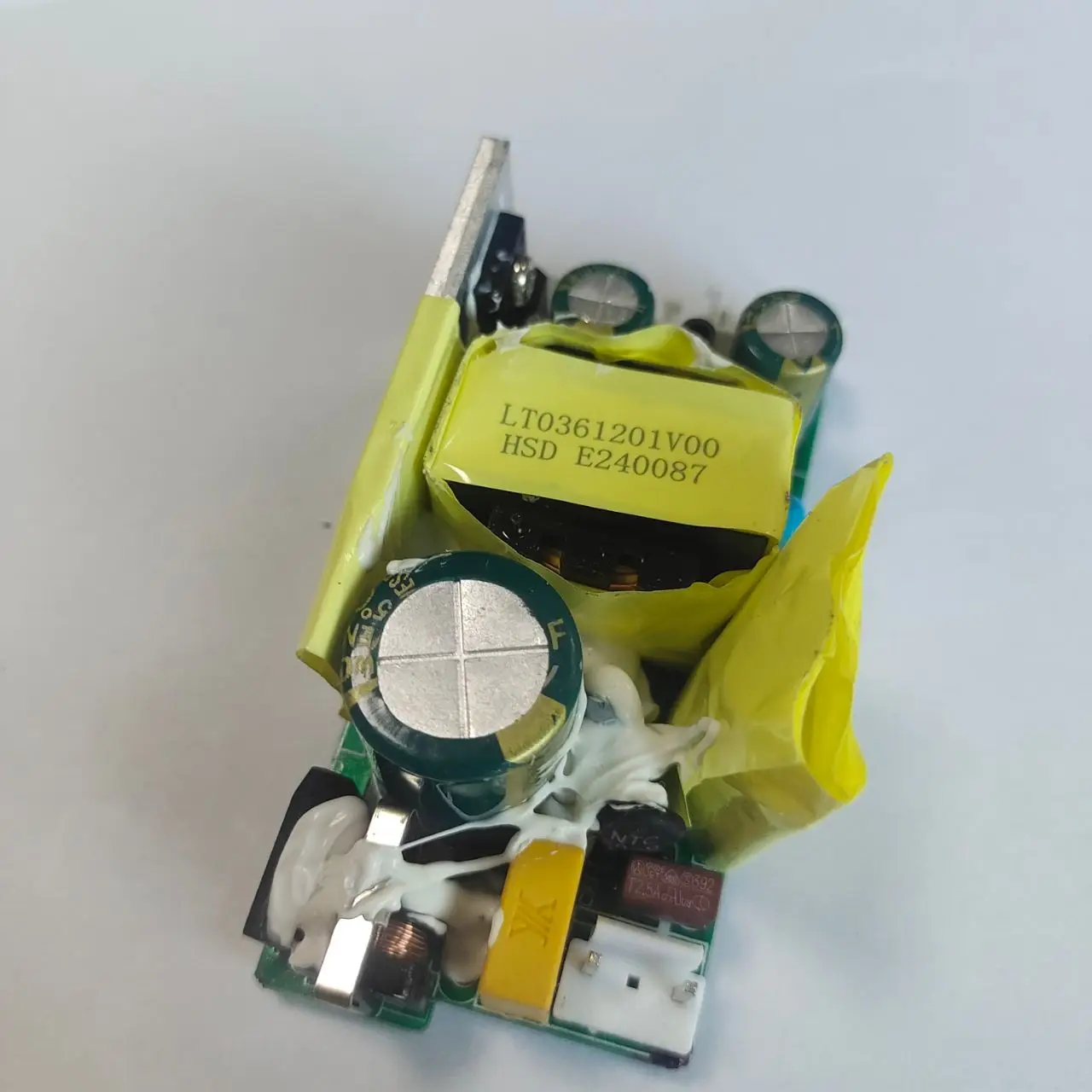

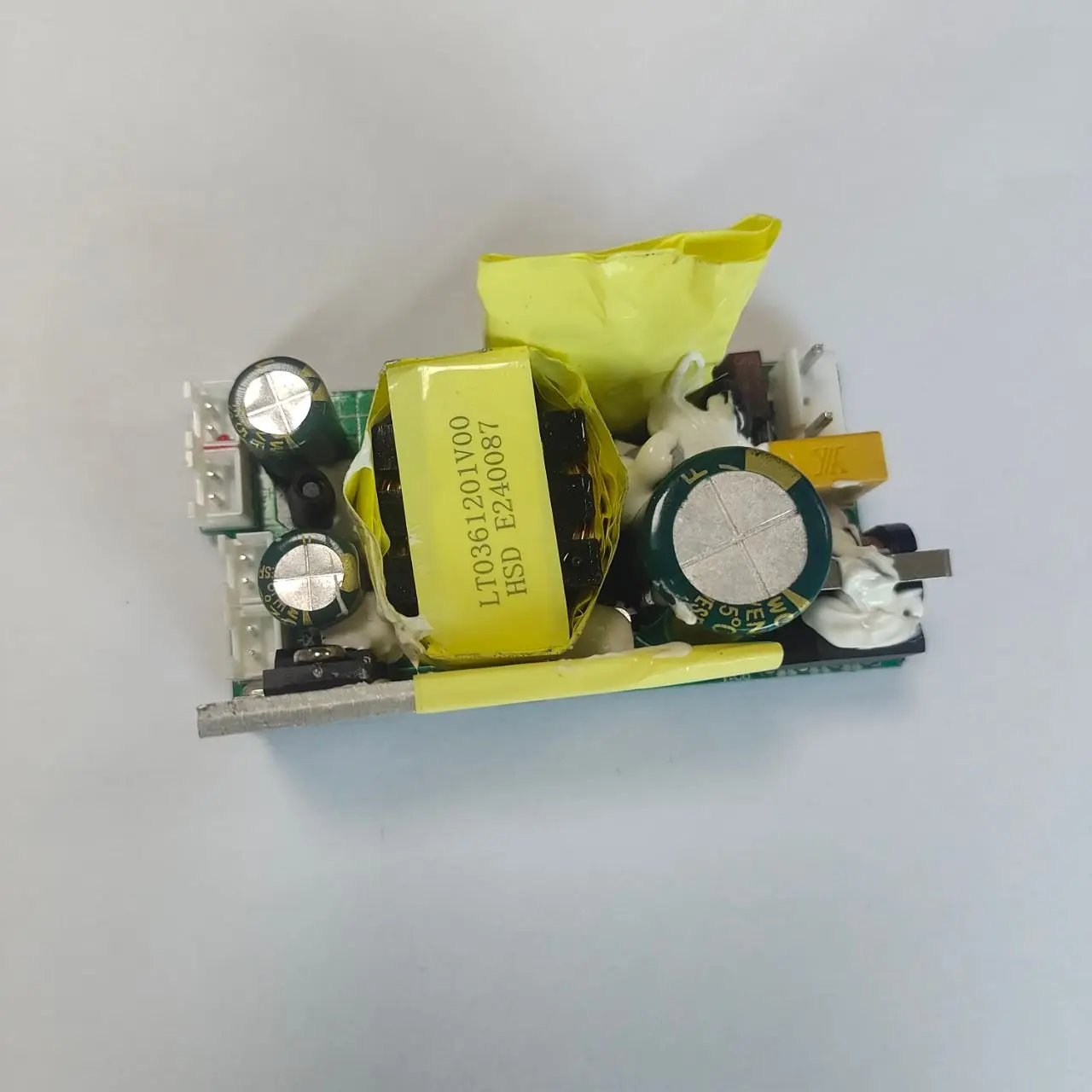

single output Open frame small size MEAN WELL 12V 3A 36W open frame power supply/SMPS

Product Overview

Description





Featurer:



1.MOQ: 100PCS, sample order is available

2.Production Capacity: 800pcs/day  , 3000pcs/week

3.Payment:T/T, Western Union, Paypal, Escromer ...

4.Lead time: 3-7days for sample, 15-20days for mass production

5.Warranty:2 years warranty

6.Shipping method:DHL,UPS,FEDEX,TNT,EMS,Hongkong/china post, by air,by sea etc

7.Package: OPP bag or poly bag, white box, artistic bag, by customer' requirement.



Model		LPS-U036S05A	LPS-U036S12A	LPS-U036S18A	LPS-U036S24A
Input	Input Voltage(V)	100~240vac
	Input Current (A)	0.4A Max
	Frequency (Hz)	47Hz–63Hz
	Efficiency	88% Typ(230VAC Full Load)
	Inrush current(A)	Cold star <40A/230VAC
	Leakage current(mA)	<0.75mA/240VAC
Output	Output Voltage(V)	+5Vdc	+12Vdc	+18Vdc	+24Vdc
	Voltage Regulation	4%	3%	3%	3%
	Output Current(A)	5A	3	2A	1.5A
	Rated Power(W)	25W	36W	36W	36W
	Start time, hold-up time(ms)	Ton≤1200ms,Td≥100ms @230Vac Full Load
	Rise time(ms)	Typ:30ms @230Vac Full Load
	Ripple/Noise(mVp-p)	100mVp-p	120mVp-p	150mVp-p	200mVp-p
Environment	working Temperature (℃)	0℃ - +45℃
	Storage Temperature(℃)	-20℃ - +80℃
	Humidity(%)	20% - 90% RH non condensing
Safety/   EMC	Withstand voltage(VAC)	I/P-O/P:3KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min
Protection	Over voltage Protection	>115%-150% hiccup mode,Auto recovery
	Over Current Protection	N/A
	Over load Protection	>105%-150% hiccup mode,Auto recovery
	Short circuit Protection	Latched
	Over Temperature Protection	Auto reboot
Others	MTBF	≥200K hrs 25℃
	Dimension     L*W*H(mm)	95*40*32mm
	Weight     g/pcs	0.15kg/pcs,



1.Products Series Offer: Enclosed type power supply,open frame power boards, power adapter( wall plug & desktop) led driver etc

2.Ouput voltage:5v 12v 15v 18v 20v 24v 36v 48v....

3.Power:open frame power supply 3w-400w, enclosed type 12w-600w is available

4.Input: 100-240vac, 90-264vac, 110vac,220vac, 230vac....

5.Widely use: it could be used in Home application,Laptop, Mobile phone ,communication,industrial, automation control, led light, state light, LCD ,CCTV ,Monitor.Printer,TV ,air condition....



 Tips: Take example for this model ,other model products and OEM service is welcomed



1.Good and High efficiency Team:our company have sales team,R&D team,purchase team,PMT team,production team and quality team etc.Our teams works hard together with highefficiency,and our teams have the same target--Excellent quality,the highest service !

2.OEM&ODM Services: Our company have professional engineers,so we cancustomize products ccording to your  detailed requirements,your samples or your ideas.









3.High efficiency automatic SMT machine and production process:it is fast,high-efficient and standard.Professional surface-mounting and trough-hole soldering technology.our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in  module--Pass wave-soldering (Auto solder)-Angle  cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing --Quality department spot-check goods--Packing--Shipping out.

























  Certificate









 Why us



 1.Experience: ETOP is A professional factory that specialized in power supplies&adapter more than 10 years.have strong R&D team to support OEM service

 2.Capable:ETOP is capable to manufacture different kinds of power supplies by customer' requirement, could be used in many field and exploring customers to win the market.

3.Quality :ETOP Factory have machine and complete production line for SMT sodering , high quality components to assembly power pcb board,100% burn in test, AOI test,

4.Protect your interest: ETOP will update new products and price list for promotion, 3 years warranty, make best solution of power. Turkirish angent to help you order.





Any question, send us feedback
