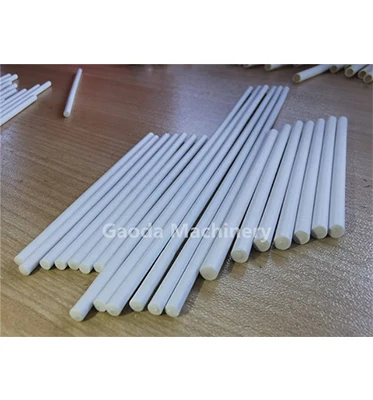

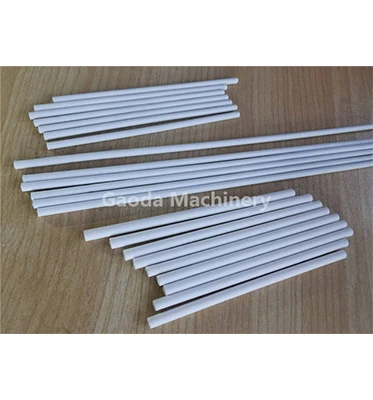

Gaoda Paper Stick Making Machine For cotton swabs Coffee stirring bar lollipop shaft cake sticks aroma testing sticks
- Category: Straw Making Machines >>>
- Supplier: Wenzhou Gaoda Paper Tube Machinery Co. Ltd.
Share on (1600436958129):
Product Overview
Description
Product Description

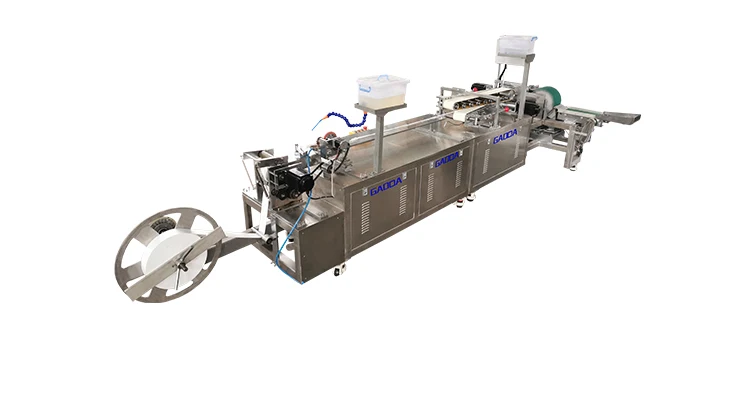

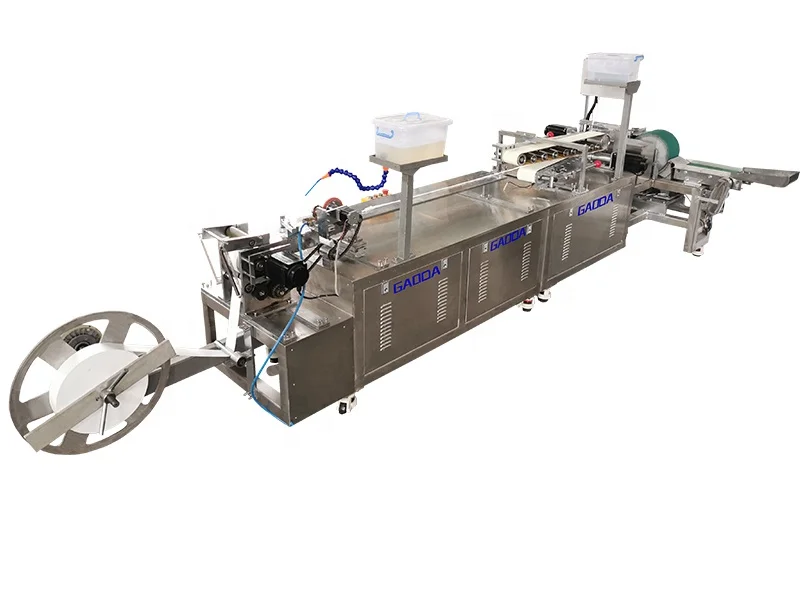

Working principle of GD-S950 paper stick forming machine：
The paper stick forming machine consists of a paper feeding mechanism, a looping and twisting mechanism, and a gluing mechanism.Forming mechanism, and conveyor belt feeding mechanism.

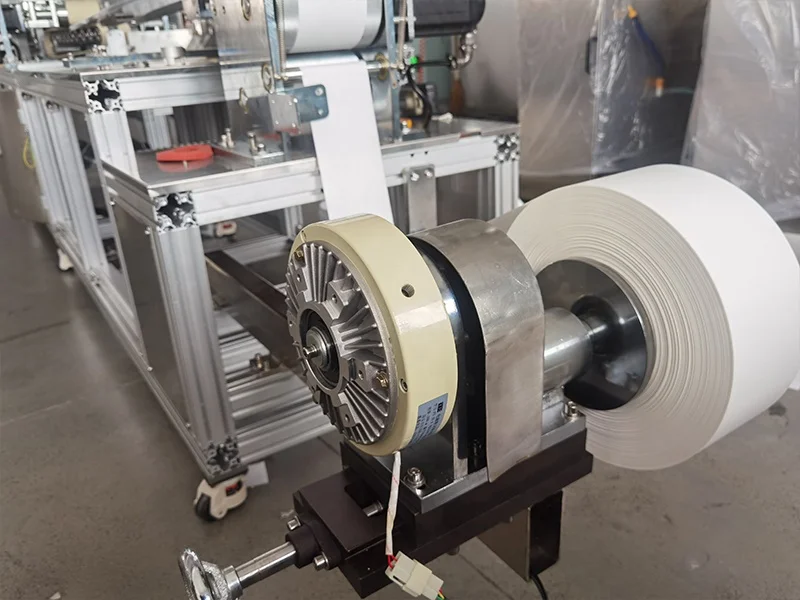

1.paper feeding mechanism：The paper roll fixing mode is divided into two types: built-in type and outer frame type according to the diameter of the paper roll. Magnetic powder tension controller is a device to ensure that the paper has enough tension to ensure that the paper stick forming belt.
2.Paper cutting machanism：the paper cutting roller will automatically cut the formed paper stick according to the set length. Note: The thickness of the paper determines the diameter of the paper stick, so you must tell the thickness of the paper before ordering. The thickness of the regular paper: thin axis paper stick: φ1.4-2.0mm, 30-50 grams of paper is used (gram weight per square meter) Thick-axis paper stick: φ2.0-3.0mm, use 50-70 grams of paper (gram weight per square meter).
2.Paper cutting machanism：the paper cutting roller will automatically cut the formed paper stick according to the set length. Note: The thickness of the paper determines the diameter of the paper stick, so you must tell the thickness of the paper before ordering. The thickness of the regular paper: thin axis paper stick: φ1.4-2.0mm, 30-50 grams of paper is used (gram weight per square meter) Thick-axis paper stick: φ2.0-3.0mm, use 50-70 grams of paper (gram weight per square meter).

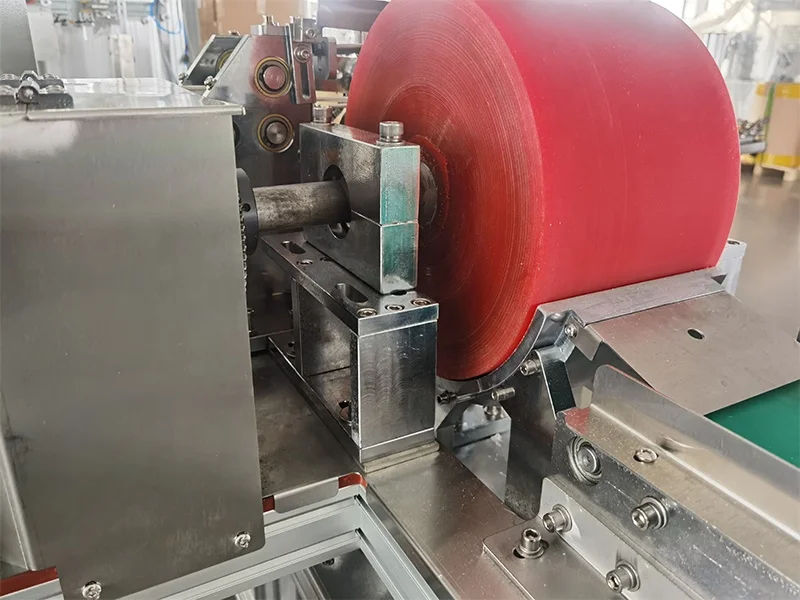

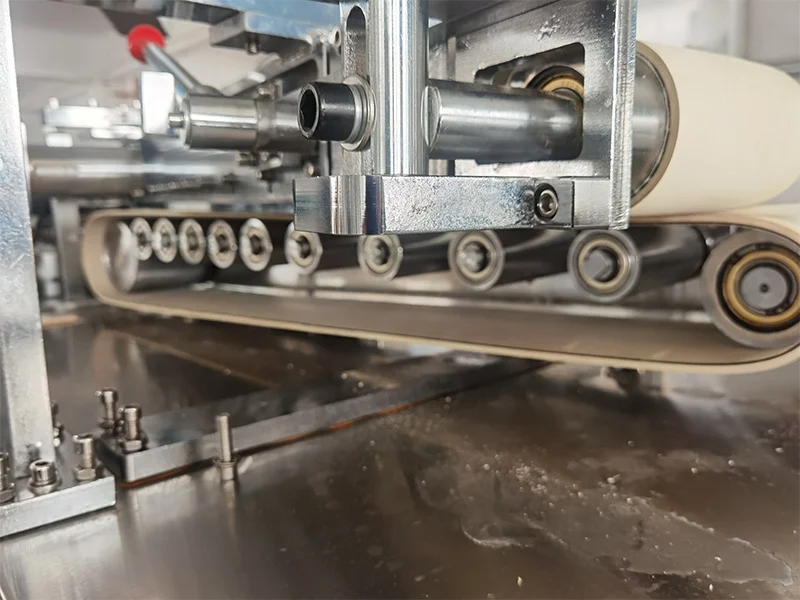

3.Paper stick forming mechanism：The rubber presses the cut shaped paper stick tightly on the shaping template and twist the paper stick into a predetermined diameter, the formed paper stick is sent out through the receiving conveyor belt.
4.Gluing mechanism：the glue coating wheel completes the glue application, and the amount of glue is adjusted and controlled by the glue motor. Note: glue and making Generally, polyvinyl alcohol powder is added to water to melt and can be adjusted into paper stick machine glue. Making method: add one part of polyvinyl alcohol powder to two parts of water, stir evenly, heat to melt into syrup, then when using, you can take one part of the melted glue and add ten parts of water and mix it evenly, because polyvinyl alcohol is a kind of sugar,so the paper stick made belongs to the environmental protection paper stick, which can be used as lollipops and other foods. The end cutting is completed by the matching machine, and the cutting knife is installed on the knife holder according to the required size of each manufacturer and then driven by the rubber wheel,rotate the paper stick and cut off both ends smoothly.

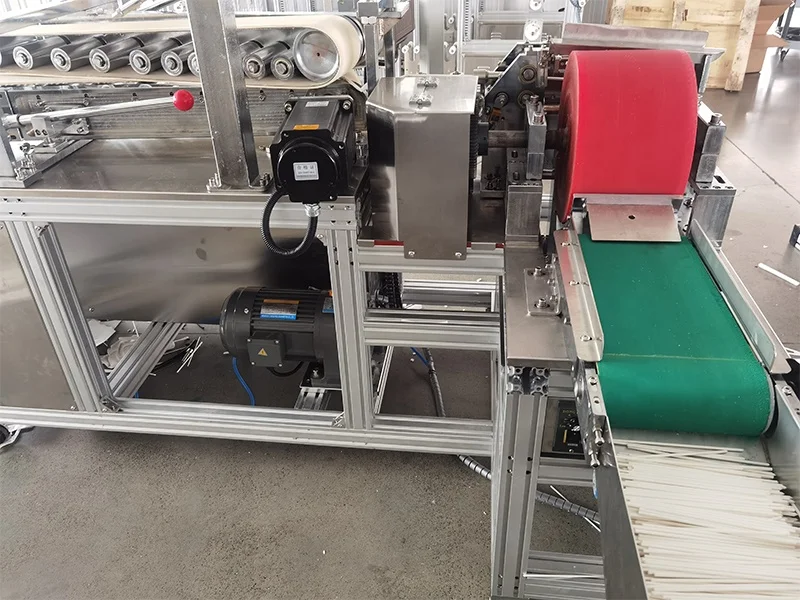

5. Conveyor belt feedingmechanism：the paper stickshave been cut the end fall on the conveyor belt installed at the lower part,and are sent out to the box-shaped platform smoothly, waiting to be collected.
4.Gluing mechanism：the glue coating wheel completes the glue application, and the amount of glue is adjusted and controlled by the glue motor. Note: glue and making Generally, polyvinyl alcohol powder is added to water to melt and can be adjusted into paper stick machine glue. Making method: add one part of polyvinyl alcohol powder to two parts of water, stir evenly, heat to melt into syrup, then when using, you can take one part of the melted glue and add ten parts of water and mix it evenly, because polyvinyl alcohol is a kind of sugar,so the paper stick made belongs to the environmental protection paper stick, which can be used as lollipops and other foods. The end cutting is completed by the matching machine, and the cutting knife is installed on the knife holder according to the required size of each manufacturer and then driven by the rubber wheel,rotate the paper stick and cut off both ends smoothly.
5. Conveyor belt feedingmechanism：the paper stickshave been cut the end fall on the conveyor belt installed at the lower part,and are sent out to the box-shaped platform smoothly, waiting to be collected.
Product feature：
1.Adopt PLC and touch screen man-machine interface control, with stable pneumatic speed and overload protection function.
2.The microcomputer automatically adjusts the speed, which can accurately control the amount of glue required for the paper stick roll and paste.
3.Putting material adopts automatic magnetic powder tension control to ensure stable paper feeding force.
4.Equipped with a flexible manual deviation correction device, which can quickly adjust the deviation of the paper strip feeding.
2.The microcomputer automatically adjusts the speed, which can accurately control the amount of glue required for the paper stick roll and paste.
3.Putting material adopts automatic magnetic powder tension control to ensure stable paper feeding force.
4.Equipped with a flexible manual deviation correction device, which can quickly adjust the deviation of the paper strip feeding.
Specification
Place of Origin | China |
Zhejiang | |
Brand Name | GAODA |
Condition | New |
Model number | GD-S950 |
Electrical configuration | DELIXI ELECTRIC, Siemens PLC |
Voltage | 380V/50Hz |
Power consumpiton | 1.5Kw |
Production speed | 70meter/minute，different paper stick diameter and length got different production speed. |
Paper stick diameter | 1.5mm-3.0mm |
1.5mm-3.0mm | 68-150mm Can be specified |
Dimension | L*W*H 3900mm*1500mm*1550mm |
Weight | 900kg |
Floor area | 10 square |
