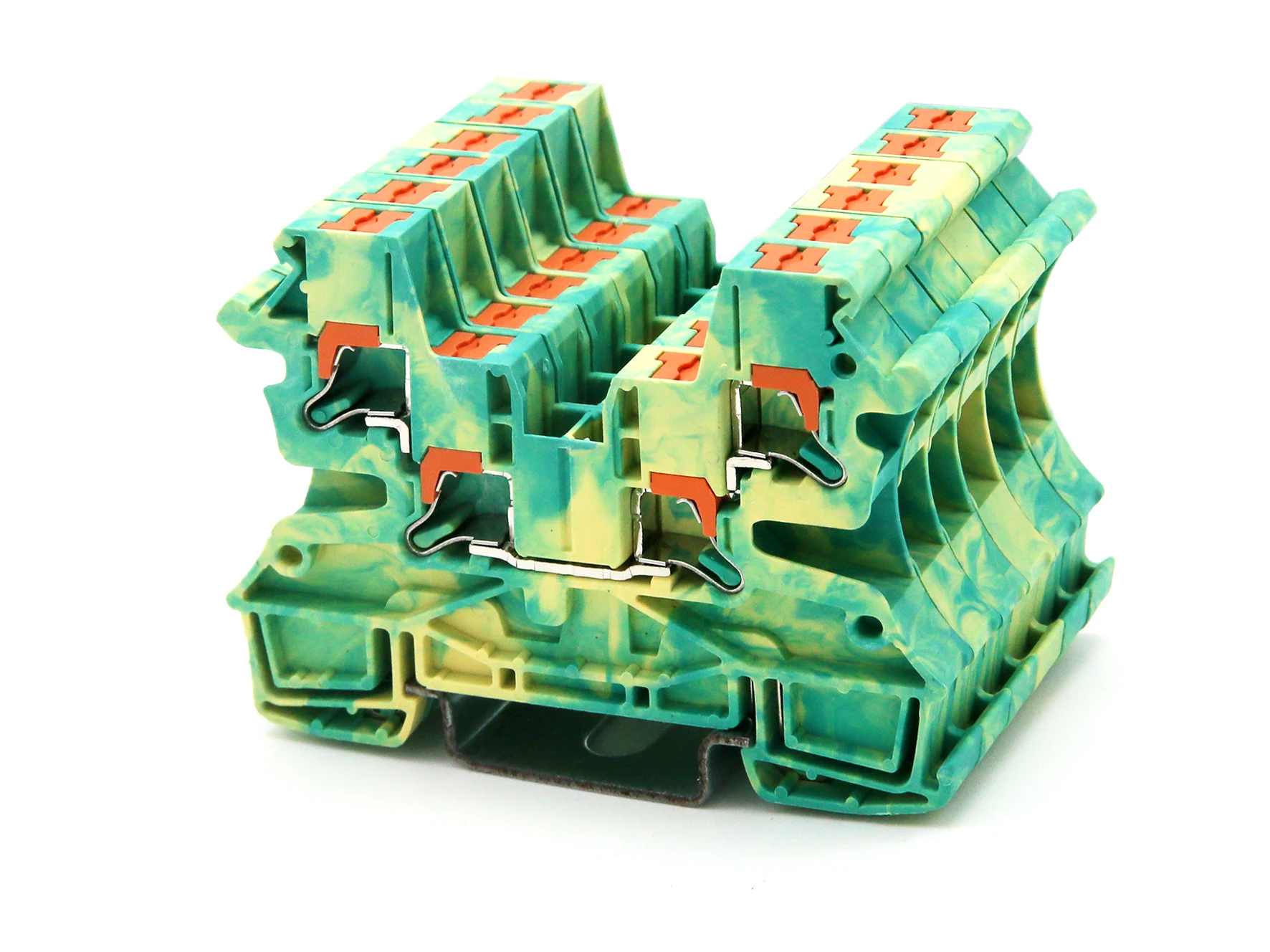

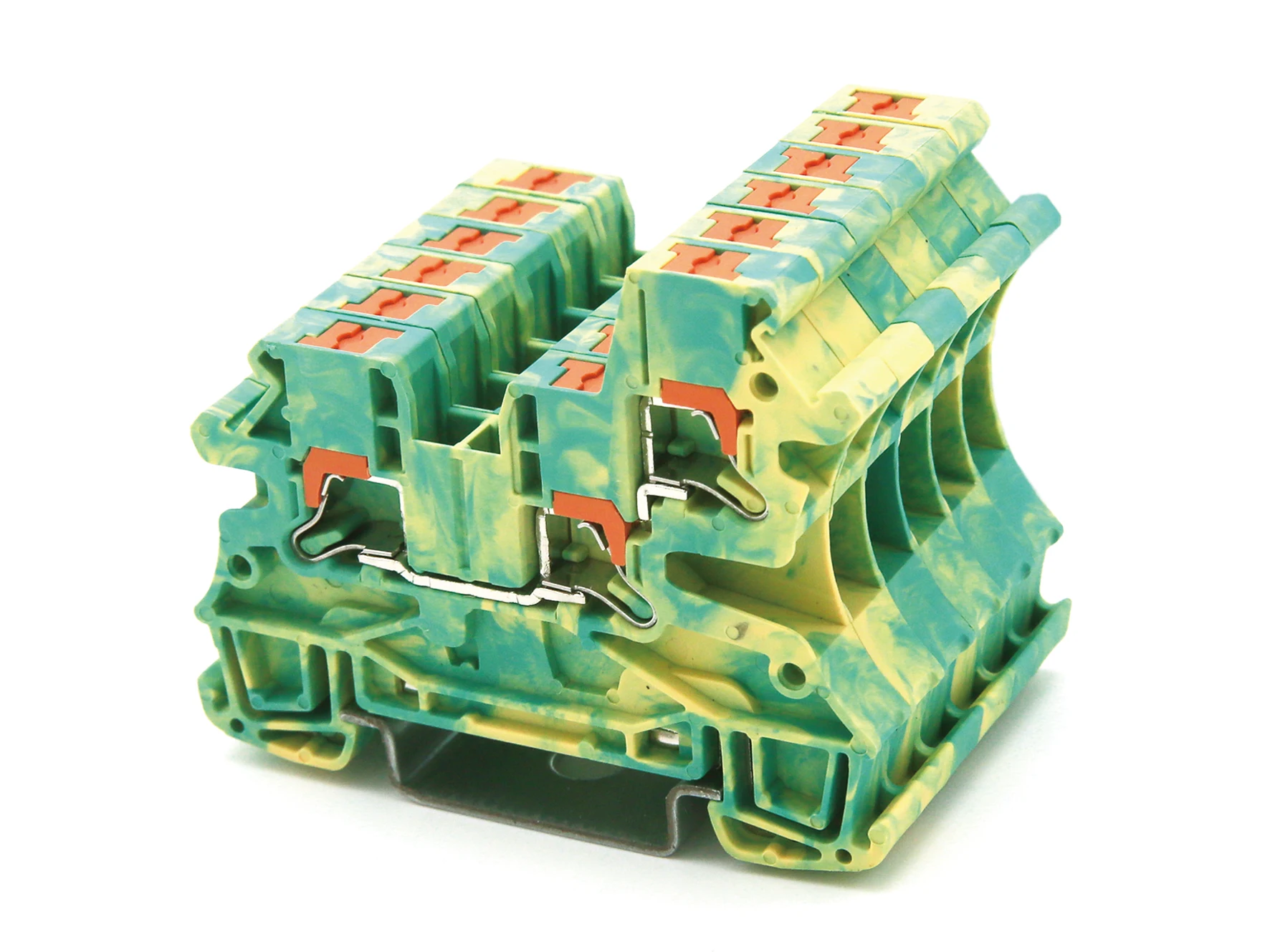

push in terminal block 2.5mm din rail terminal block
- Category: >>>
- Supplier: Jiangxi Huntec Electrical Technology Co. Ltd.
Share on (1600436967929):
Product Overview
Description
Product Description

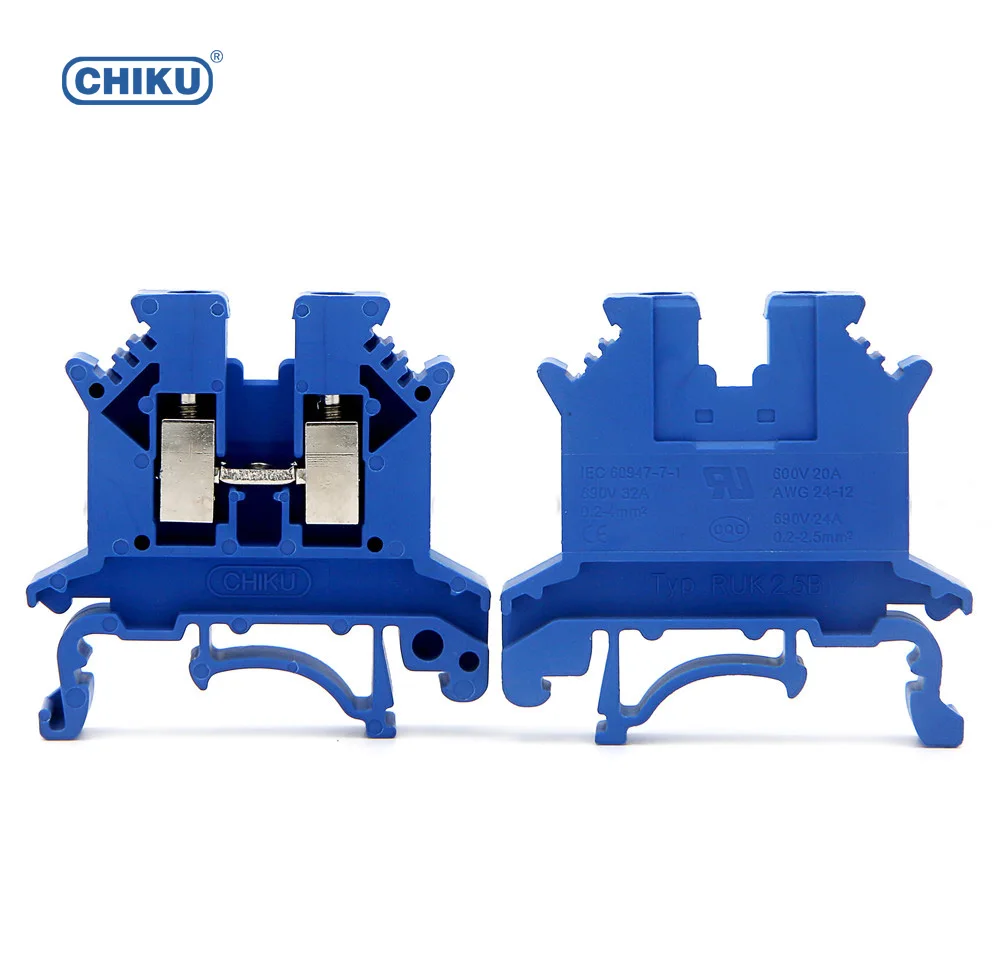

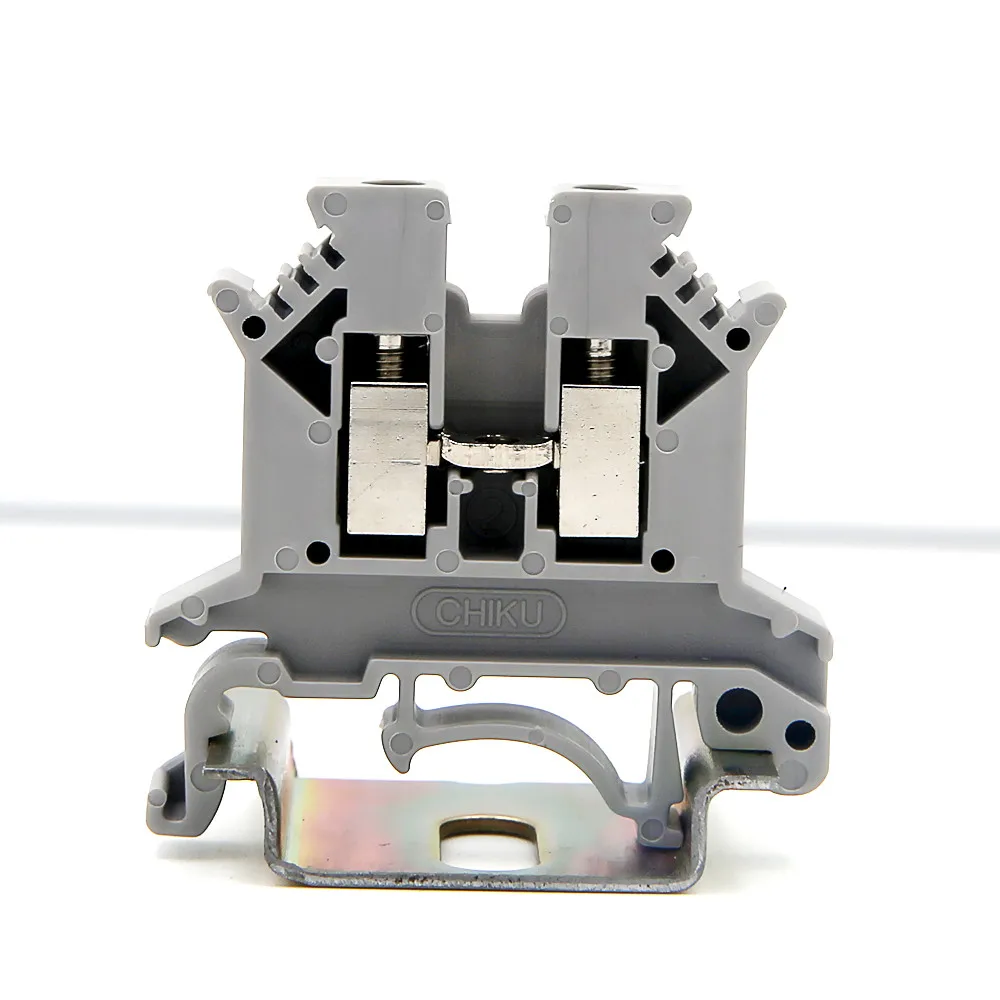

UK 2.5B U/L approved electric screw wire cable terminals, 2.5mm din rail terminal block
OEM FOR HONEYWELL OVER 7 YEARS
TIER ONE SUPPLIER OF HUAWEI
DESIGNATED SUPPLIER BY STATE GRID OF CHINA
| RUK 2.5B | |
General
| |
| Number of levels | 1 |
| Number of connections | 2 |
| Nominal cross section | 4mm² |
| Color | Gray, red, blue, and yellow |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8Kv |
| Degree of pollution | 3 |
| Connection in acc. with standard | GB30847/IEC 60947-7-1 |
| Rated operational current | 24A |
| Rated operational voltage | 690V |
| Rated current max. | 32A |
| Rated voltage max. | 690V |
| Temperature index | 130RTI/120TI |
Dimensions
| |
| Thickness | 6.2mm |
| Width | 42.5mm |
| Plate thickness | 1.5mm |
| Height U7.5 | 42mm |
| Height U10 | 44.5mm |
| Height U15 | 49.5mm |
| Height G | 47mm |
Connection Data
| |
| Conductor cross section solid min. | Screw connection |
| Conductor cross section solid max. | 0.2mm² |
| Conductor cross section flexible min. | 4.0mm² |
| Conductor cross section flexible max. | 0.2mm² |
| Conductor cross section solid when using side plug | 2.5mm² |
| Conductor cross section flexible when using side plug | 4mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 2.5mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 0.25mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 2.5mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 0.25mm² |
| 2 conductors with same cross section solid min. | 2.5mm² |
| 2 conductors with same cross section solid max. | 0.2mm² |
| 2 conductors with same cross section flexible min. | 1.5mm² |
| 2 conductors with same cross section flexible max. | 0.25mm² |
| Conductor with same cross section flexible,with ferrule without plastic sleeve min. | 1.5mm² |
| Conductor with same cross section flexible,with ferrule without plastic sleeve max. | 0.25mm² |
| Conductor with same cross section flexible,with twin ferrule with plastic sleeve min. | 1.5mm² |
| Conductor with same cross section flexible,with twin ferrule with plastic sleeve max. | 0.5mm² |
| Stripping length | 1.5mm² |
| Conductor cross section solid min. | 7mm |
| Screw Type | M3 |
| Tightening torque min. | 0.6Nm |
| Tightening torque max. | 0.8Nm |
| In acc. with standard GB14048.7-1998/IEC947-7-1-1989/EN50019 | |
Packaging & Shipping
Company Information
FAQ
A1:Our company is verified by ISO9001,ISO14001,OHSAS 18001 CE,UL, ROSH, CQC,EX and etc, and we have more than 20 Patents
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF
Q4. How about your delivery time?
A: Generally, it will take 3 to 7 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
