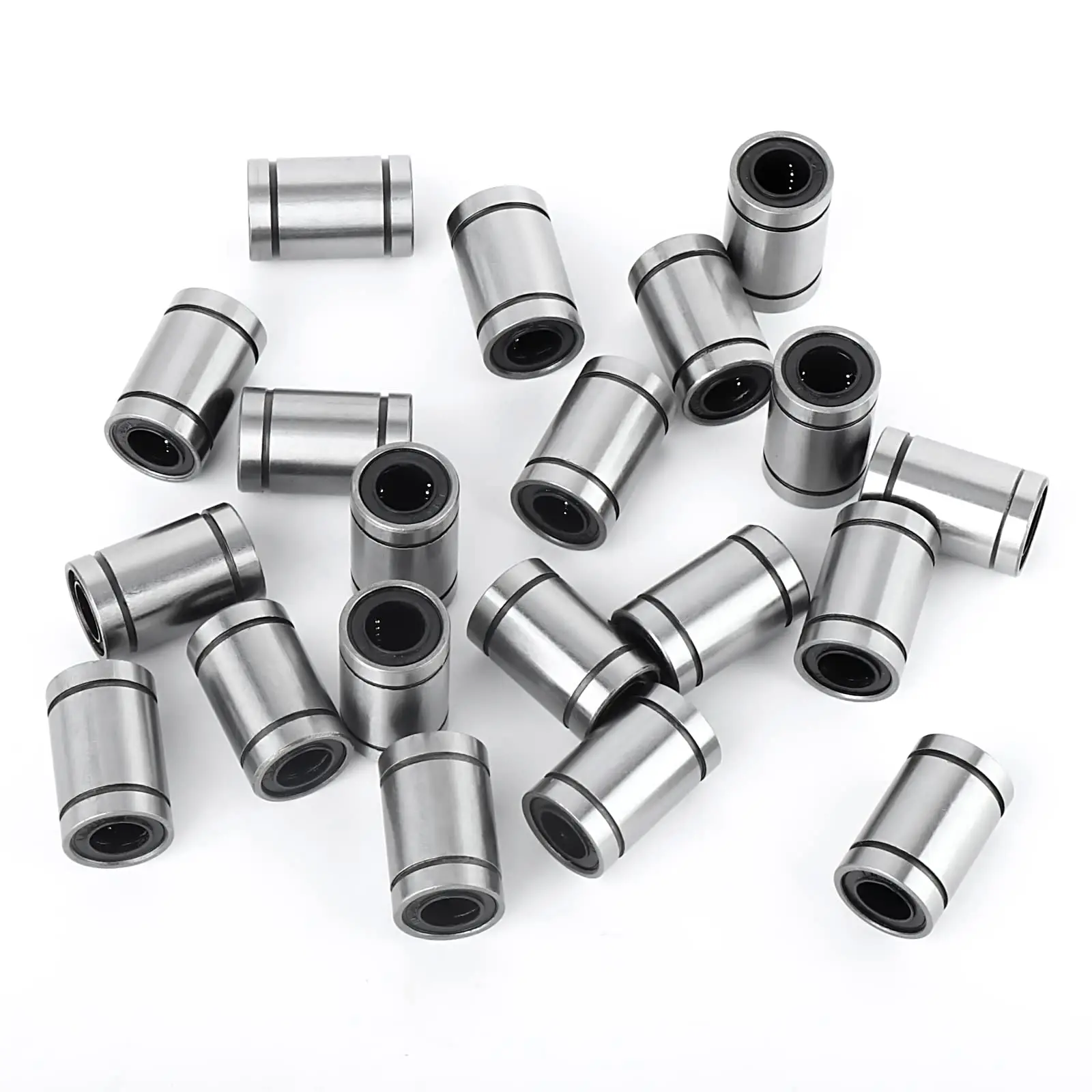

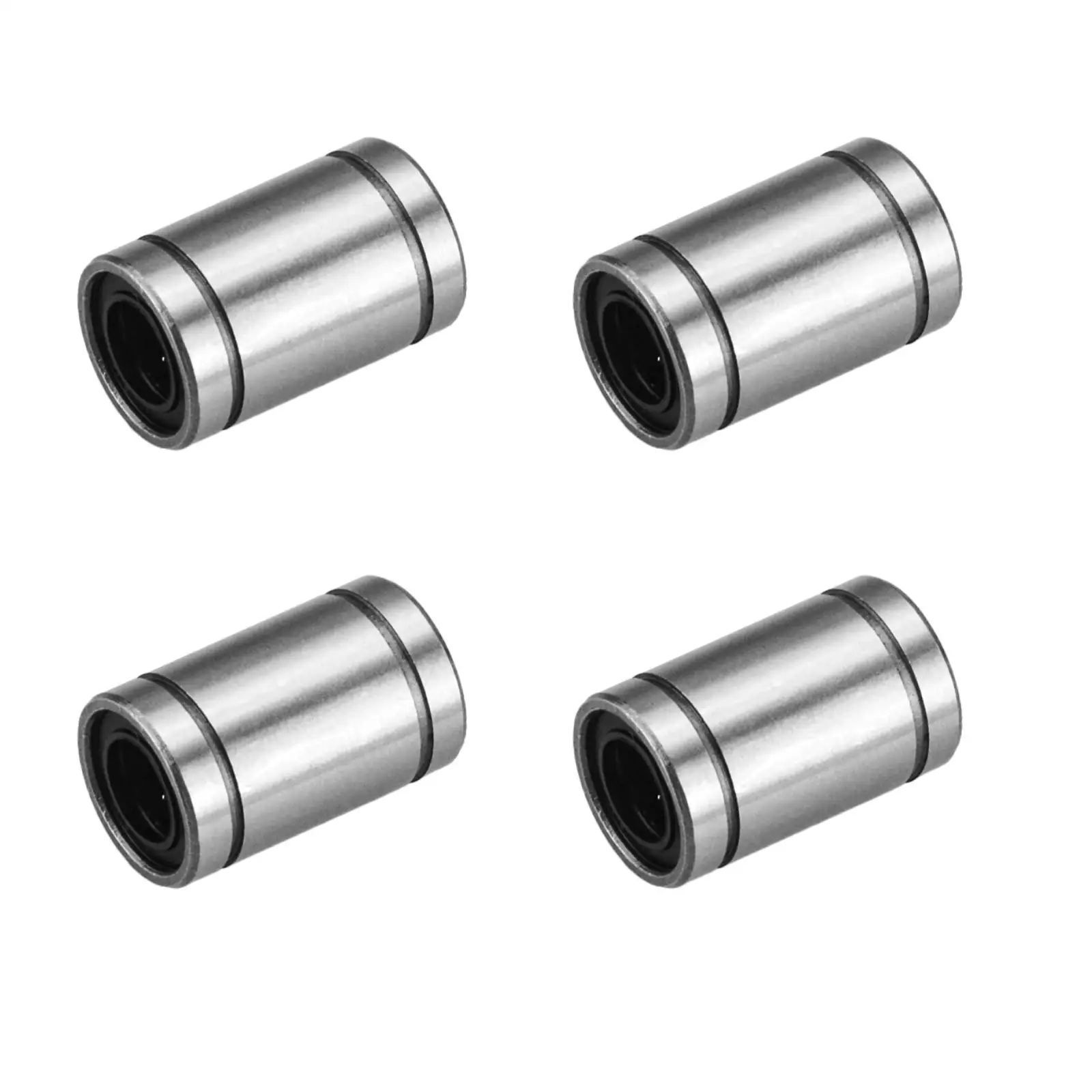

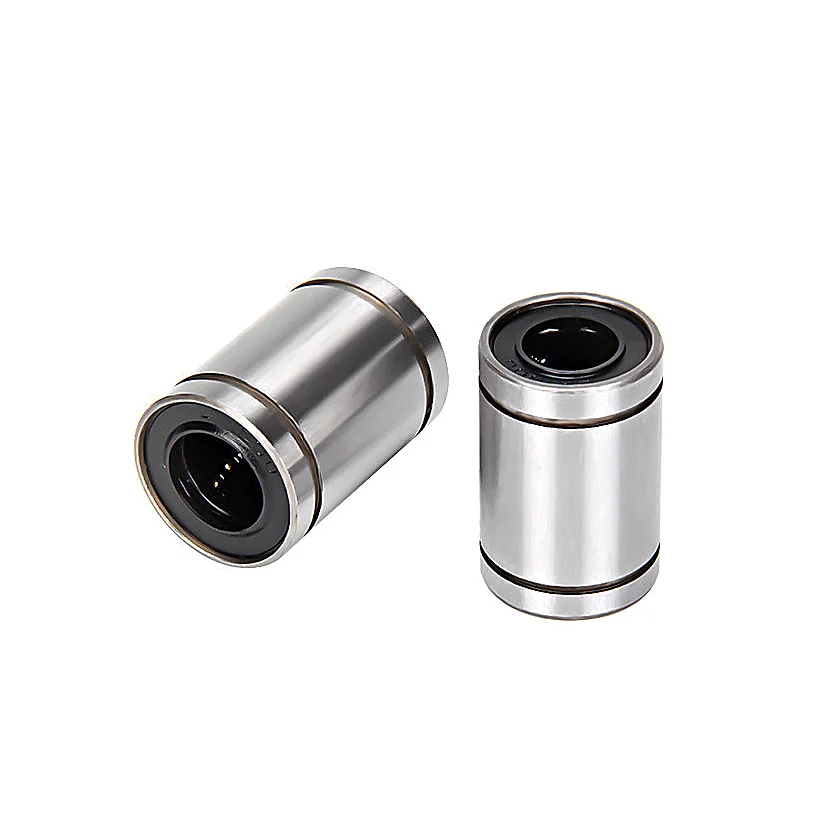

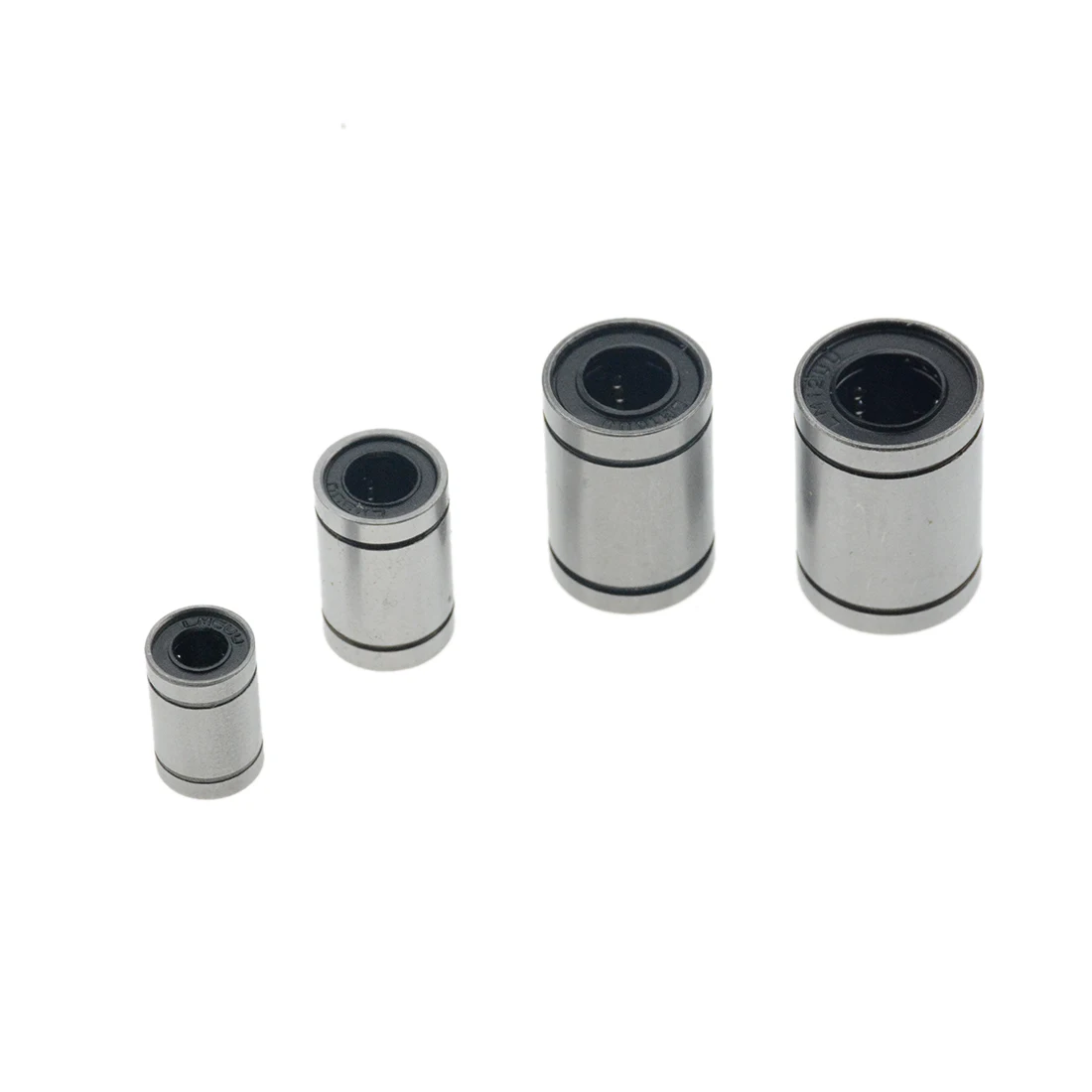

lm8 linear motion bearing lm8uu lm10uu lm12uu lm16uu lm20uu stainless steel linear ball bearing for 3D Printer Rolamento
- Category: >>>
- Supplier: Wanyi International Trade (shanghai) Co. Ltd.
Share on (1600436979922):
Product Overview
Description
Product Description
Linear Motion Ball Bearing：

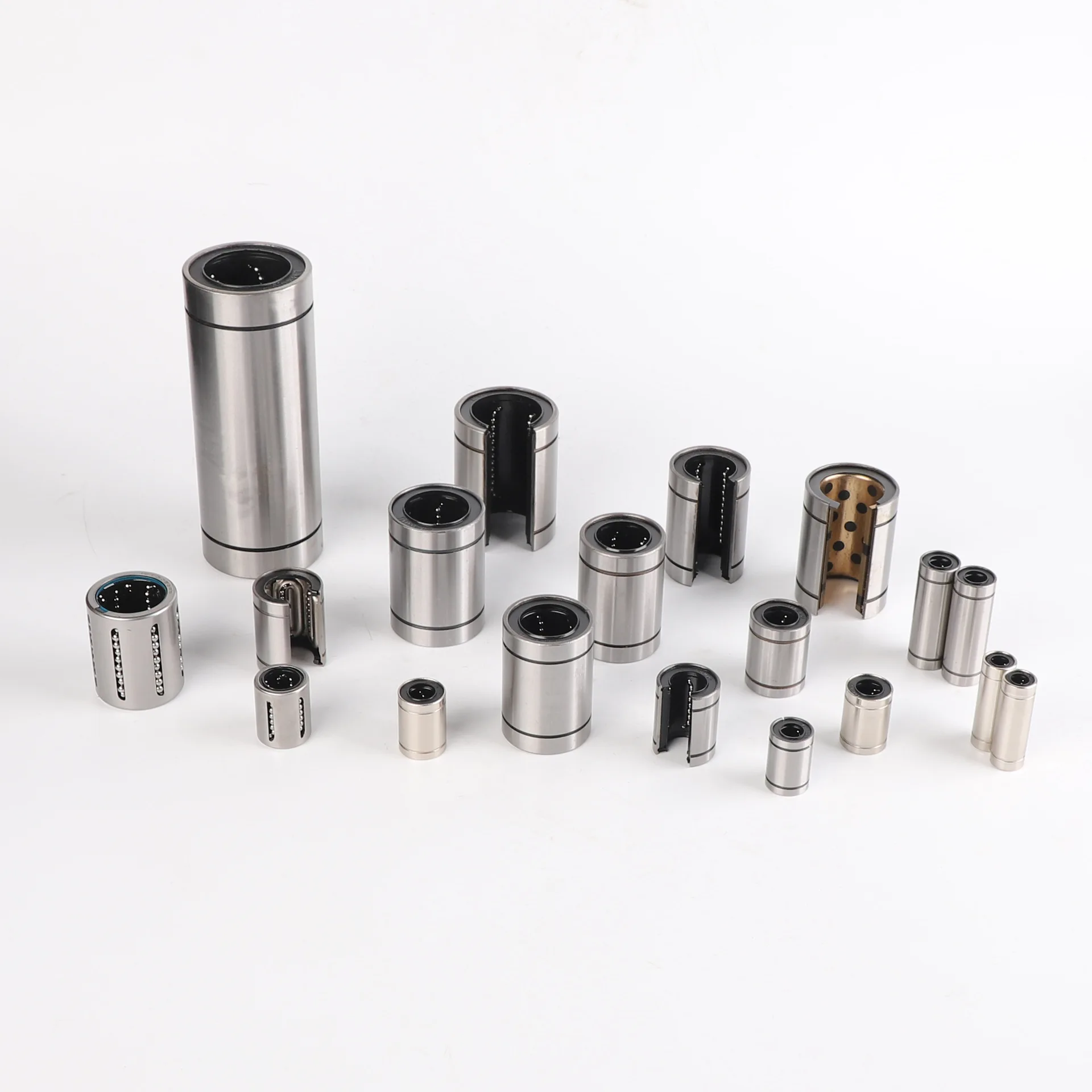

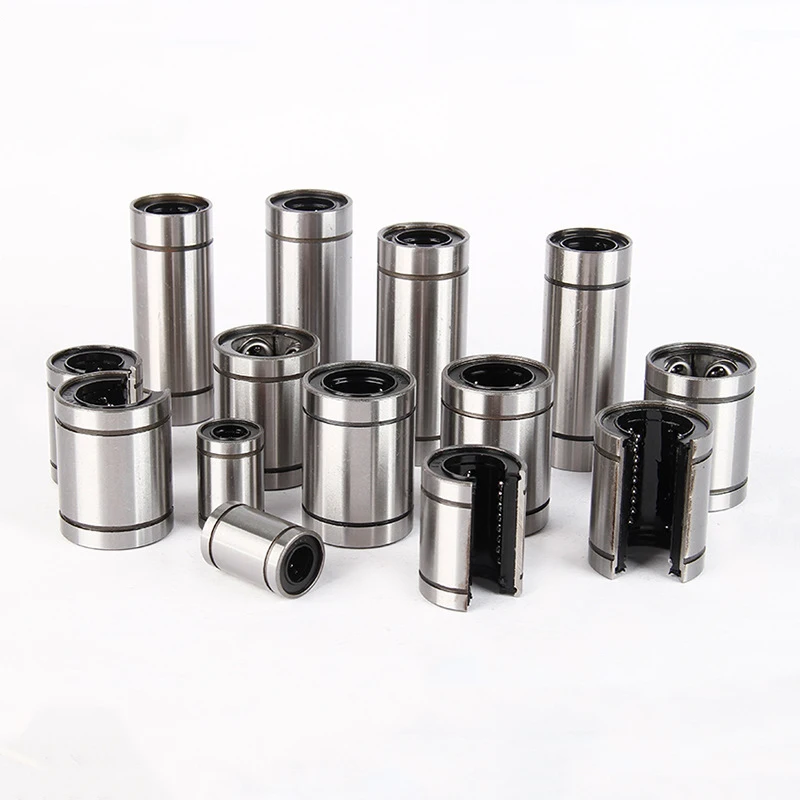

This series we have：
LM...UU series,LM...GA series,LME...UU
series,LME...GA series,LM...L series
,LME...L series,LM...LGA series, LME...LGA series,LMB series,LMB...L series.
Retainer:We supply nylon resin retainer and high-temperature resistant retainer.
(Zinc alloy retainer)
All models can be done with nickle plated according to customer's requirements,with function of rust-proof.

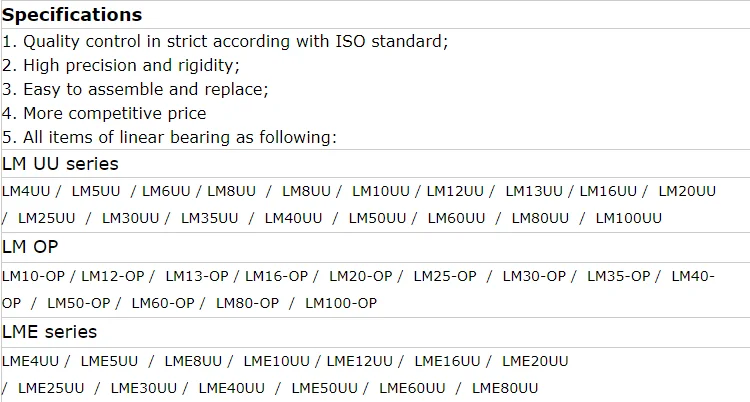

Specification
Place of origin | Shanghai China |
Product brand | Waye/oem |
Product model | LM6UU,LM8UU,LM10UU,LM12UU,LM14UU,LM16UU,LM20UU(LM UU Series/LM OP Series/LME Series) |
Product name | Linear motion ball bearing |
Applications | CNC, 3D Printer ect. |
Sample |

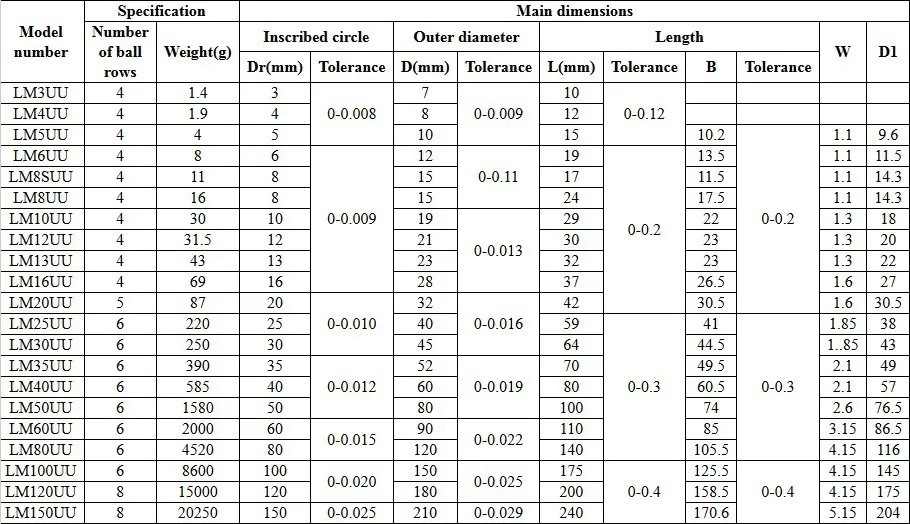

Model number | Nominal shaft diameter(mm) | Ball circuit | Weight(g) | |||
LM5GA | 5 | 4 | 5.5 | |||
LM6GA | 6 | 4 | 8.9 | |||
LM8GA | 8 | 4 | 17.3 | |||
LM6GA-AJ | 6 | 4 | 8.8 | |||
LM8GA-AJ | 8 | 4 | 17 | |||
LM10GA-AJ | 10 | 4 | 31.5 | |||
LM10GA-OP | 10 | 3 | 24 | |||
LM12GA-OP | 12 | 3 | 27.5 | |||
LM13GA-OP | 13 | 3 | 37.5 | |||
LME3 | 3 | 4 | 1.35 | |||
LME4 | 4 | 4 | 1.9 | |||
LME5UU | 5 | 4 | 11 | |||
LME8UU | 8 | 4 | 20 | |||
LME10UU | 10 | 4 | 29.5 | |||
LME12UU | 12 | 4 | 41 | |||
LME16UU | 16 | 5 | 57 | |||
LME20UU | 20 | 5 | 91 | |||
LME5UU-AJ | 5 | 4 | 10 | |||
LME10UU-AJ | 10 | 4 | 29 | |||
LME10UU-OP | 10 | 3 | 23 | |||
LME12UU-OP | 12 | 3 | 32 | |||
LME16UU-OP | 16 | 4 | 44 | |||
LME8GA | 8 | 4 | 25.2 | |||
LME10GA | 10 | 4 | 32 | |||
LME12GA | 12 | 4 | 52.9 | |||
LME16GA | 16 | 5 | 73.5 | |||
LME20GA | 20 | 5 | 120.3 | |||

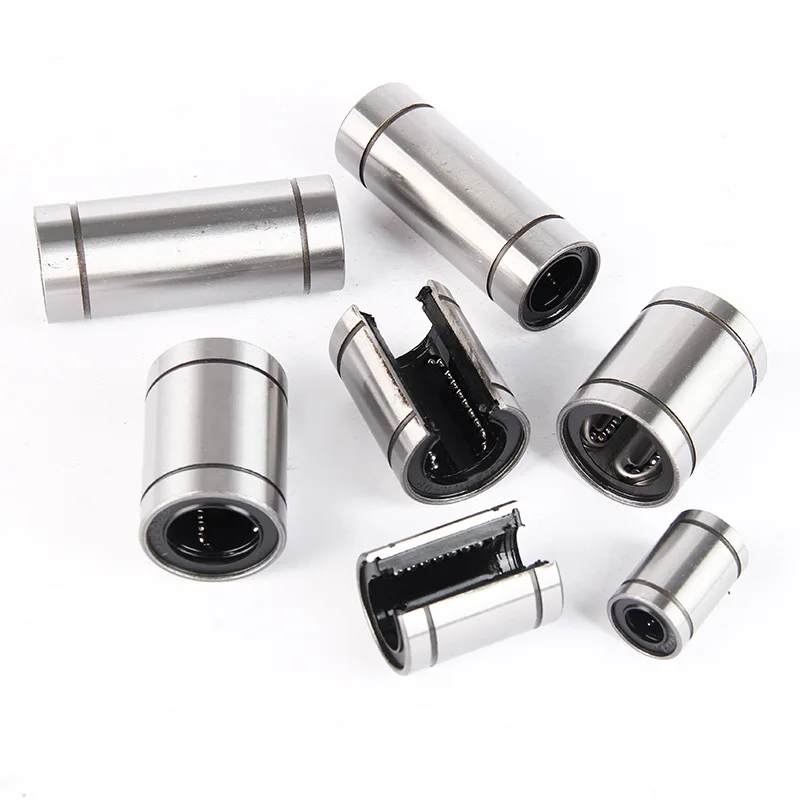

LM...UU Series
LM...UU-AJ Series
LM...UU-OP Series

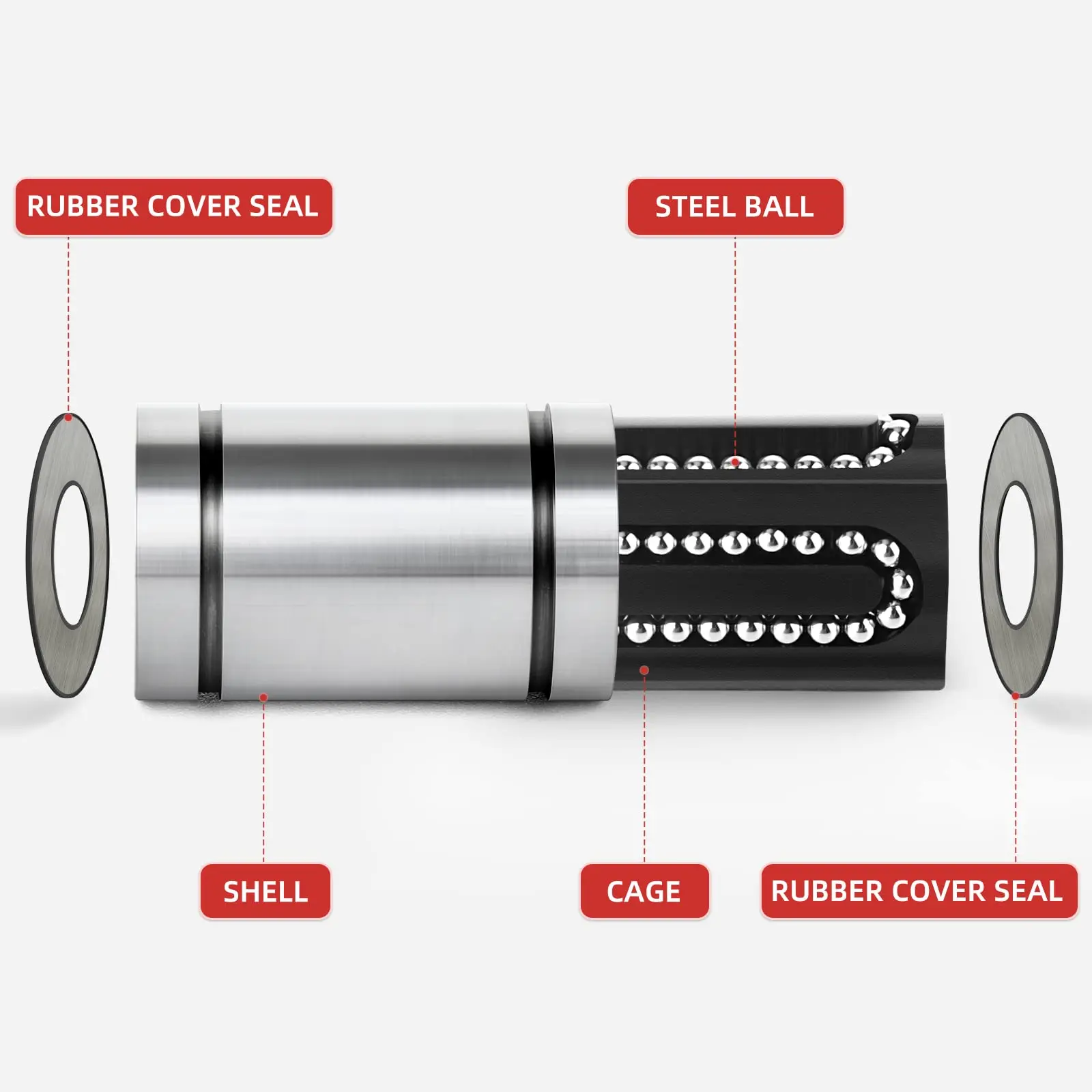

+ Using a nylon separator,turn low dynamic inertia,low starting torque,low noise,and even more operation stable.
+ Double-sided rubber dust seal to prevent foreign matter from entering.Extended service life.
+ Excellent rotation accuracy
Due to sliding contact,the starting frictional resistance and the dynamic frictional resistance are extremely small.
Ordinary linear bearings can be installed in any direction and can only be used for support.
Mounting surfaces are also easy to machined while working.
Because of the linear bearing size and its high machining accuracy, each bearing is interchangeable.
Easy to replace bearings.Application:
Linear bearing is widely used in electronic equipment, tensile testing machine and digital 3D coordinate measuring equipment.
