Instruction manual of small embedded PIR motion sensor switch

     DC12~24V Reed output

1. Product features:

This product uses imported PIR sensor to detect human movement. When people or larger animals enter the sensing range, the switch will automatically turn on. If there is activity in the sensing range when the person does not leave, the switch will continue to turn on; after the person leaves or remains in the static state, the switch will automatically close after delay. This product has high sensitivity, strong reliability, energy saving and environmental protection, low static power consumption, strong anti-interference ability, the lamp lights up when people arrive, and lights out when people leave. It is widely used because it is easy to install.

The dual-power electronic switch with fire protection function is mainly used for multi-story, high-rise building stairs and fire protection passage. The three-line product does not have a fire line, and some fire line products can work normally without connecting the fire line.

2. Electrical parameters:

Working voltage: DC12~24V.

Adjustable sensing distance: default 5~8m, 3~12m adjustable.

Adjustable sensitivity: default  5LUX , 5LUX~5000LUX adjustable.

Adjustable delay time: default 2s, adjustable from 2 ~ 480s.

Induction angle: 110~140 degrees.



3. Scope of application:

Corridor, corridor, bathroom, basement, warehouse, garage and other places with automatic lighting, automatic exhaust fan and automatic control of other electrical appliances and other functions, can also be used for anti-theft and other purposes.

4. Installation wiring diagram:

The installation is shown below. Remember to turn off the power before installation, it must be installed by professionals. Connect the power supply and rated load to the induction switch according to the wiring diagram.

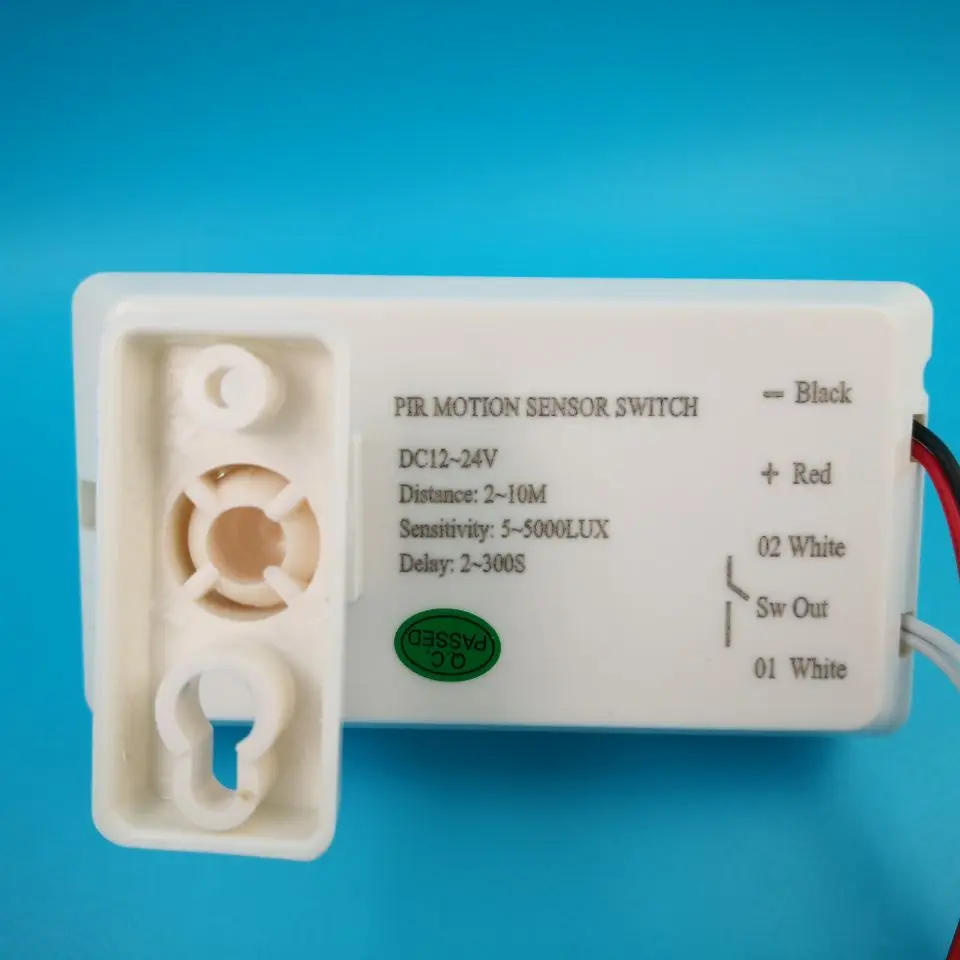

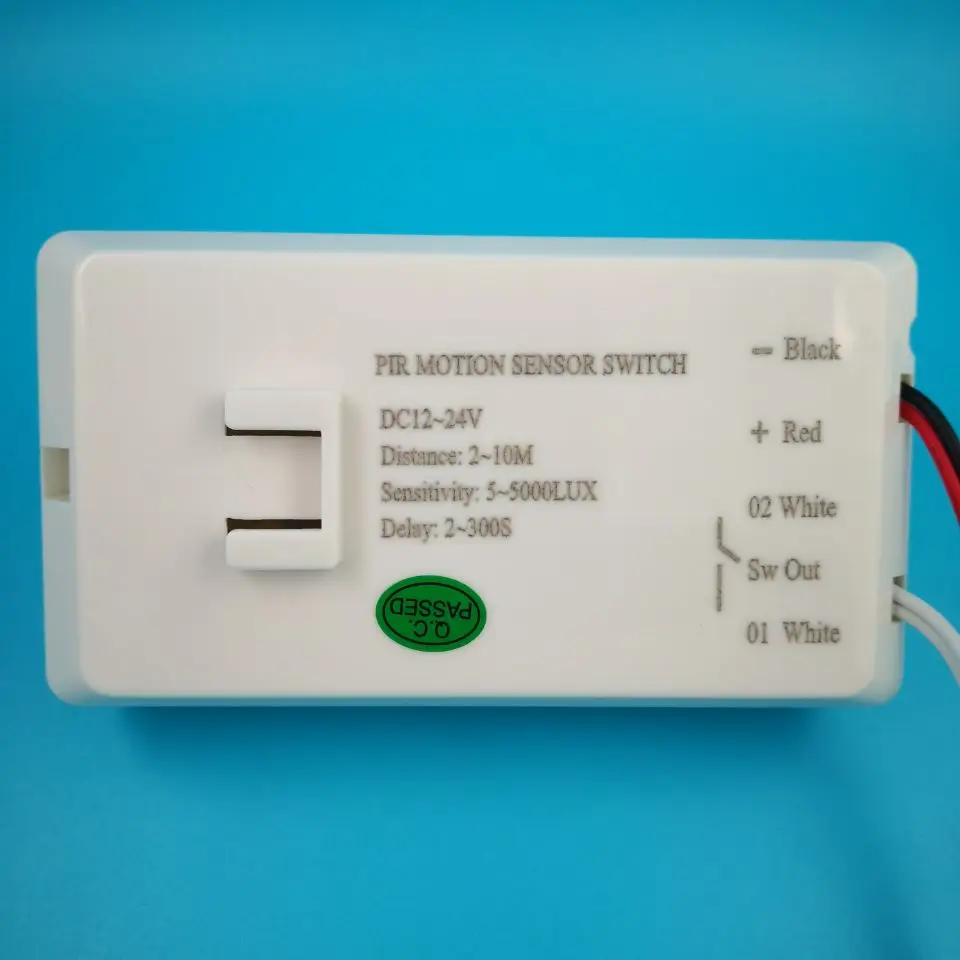

Connection diagram:





5. Matters needing attention:

1. Remember to turn off the power when installing, it must be installed by professionals.

2. It takes 60 seconds for this switch to work normally when it is powered on. This is the warm-up time of the infrared sensor.

3. Do not overload.
