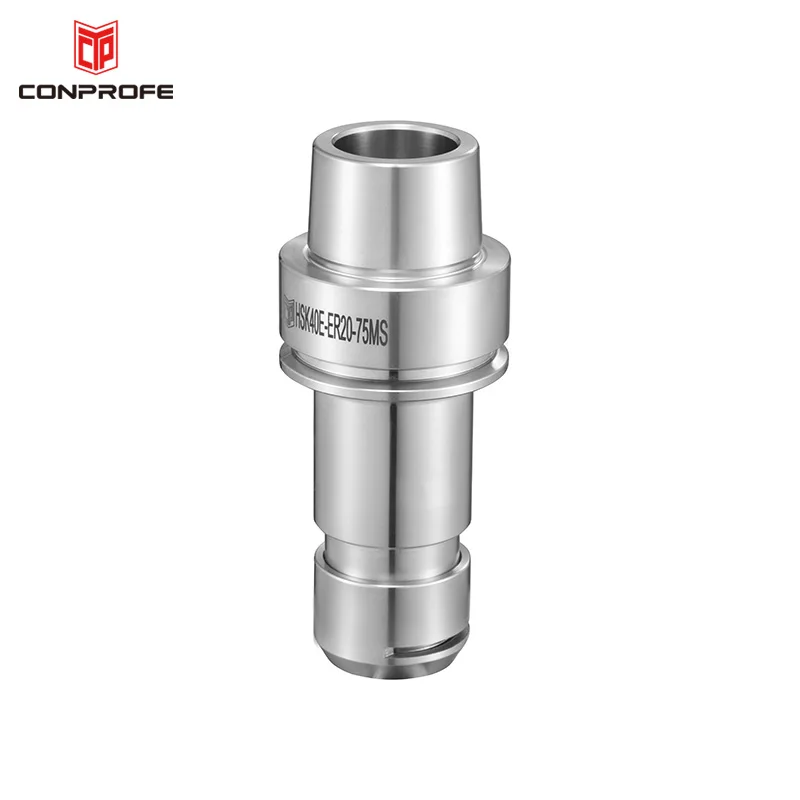

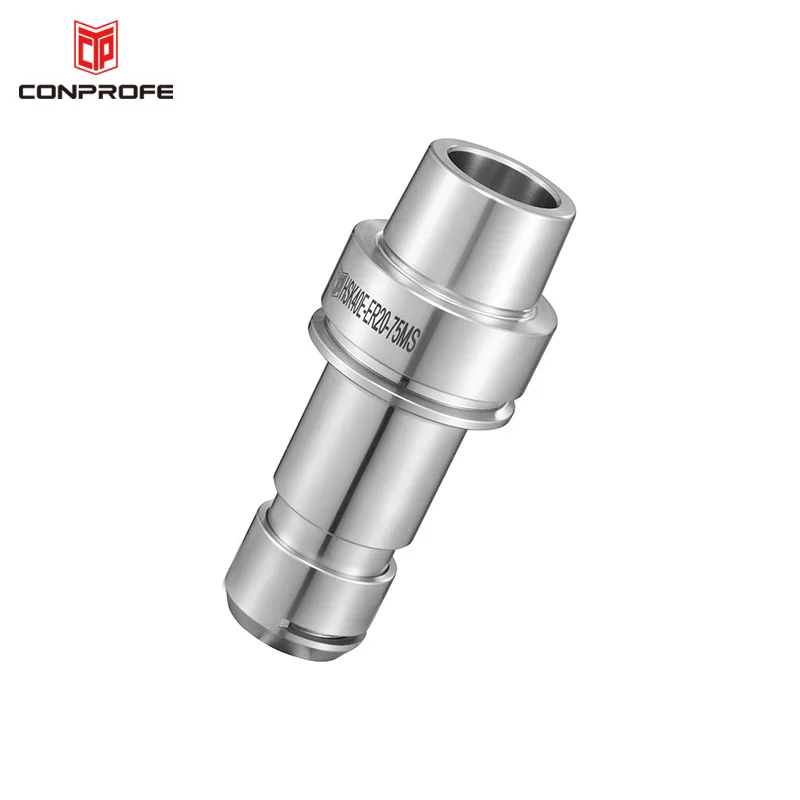

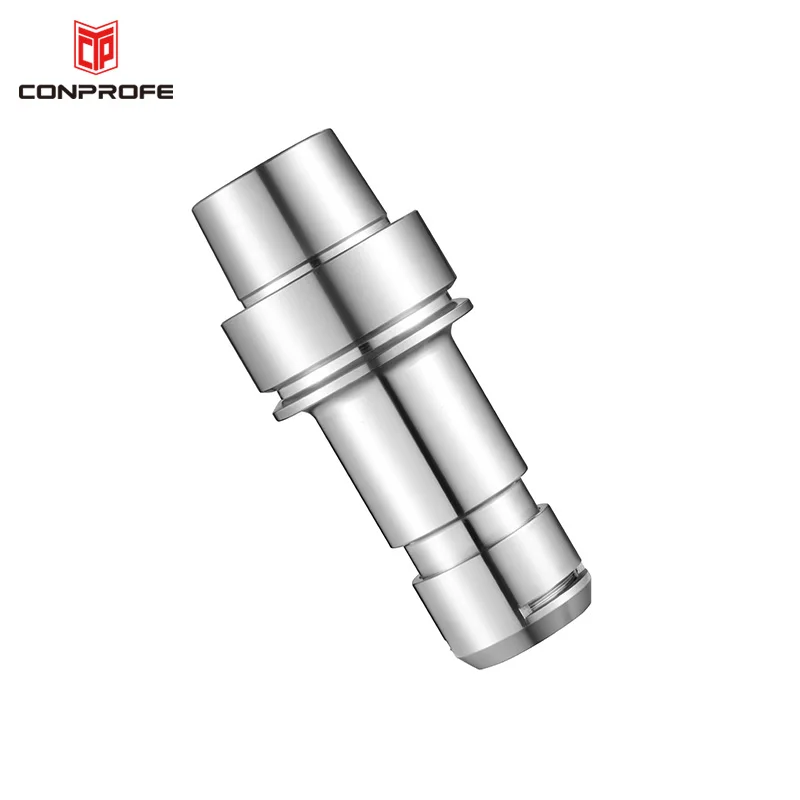

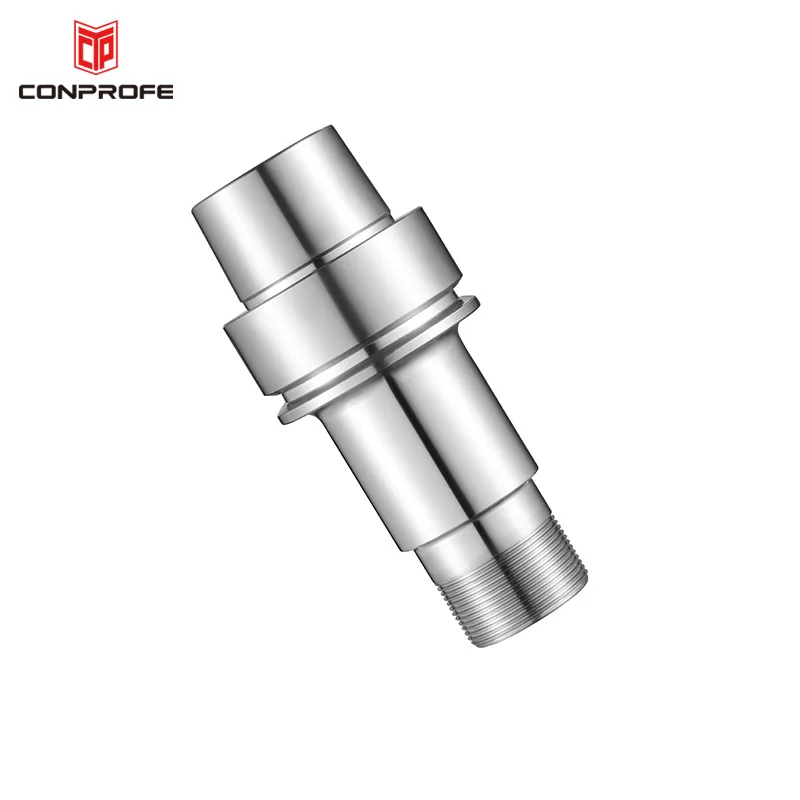

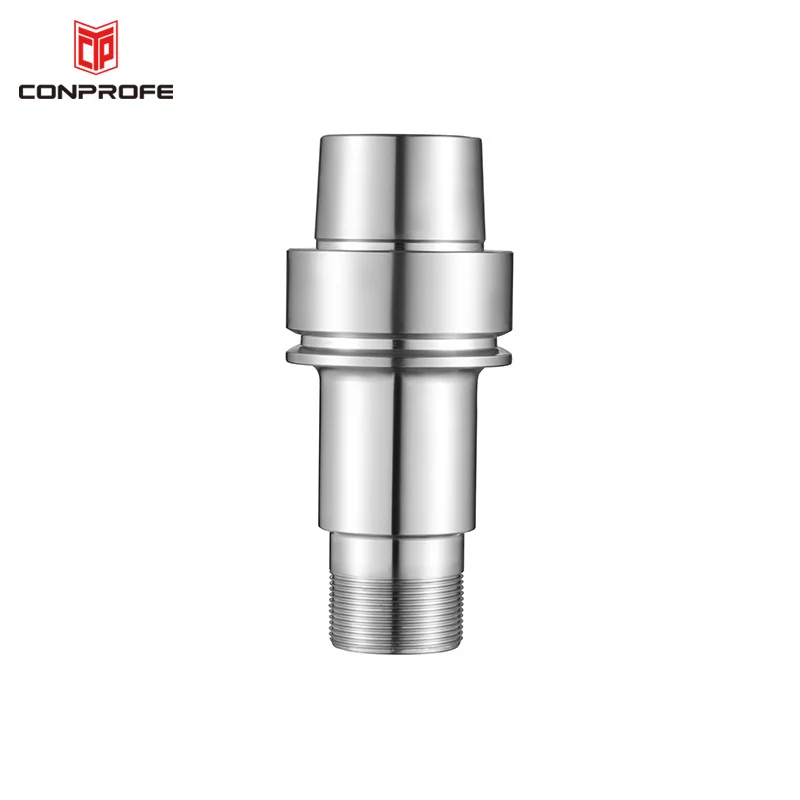

China Manufacturer CNC Machine Tool Accessories HSK40E Collet Chuck Holder
Product Description
| Product Name | Spring Collet Chuck Holder |
| Item No. | HSK40E-ER20-75MS |
| Clamping Diameter (mm) | 1~13 |
| D (mm) | 28 |
| D1 (mm) | 24 |
| L (mm) | 75 |
| L1 (mm) | 52 |
| G | M24*1 |
| Spindle | HSK40E |
| Nut | ER20 |
| Collet | ER20 |
| Net Weight (kg) | 0.39 |
| Warranty (Months) | 12 |
| Advantage | High speed precision tool holder |

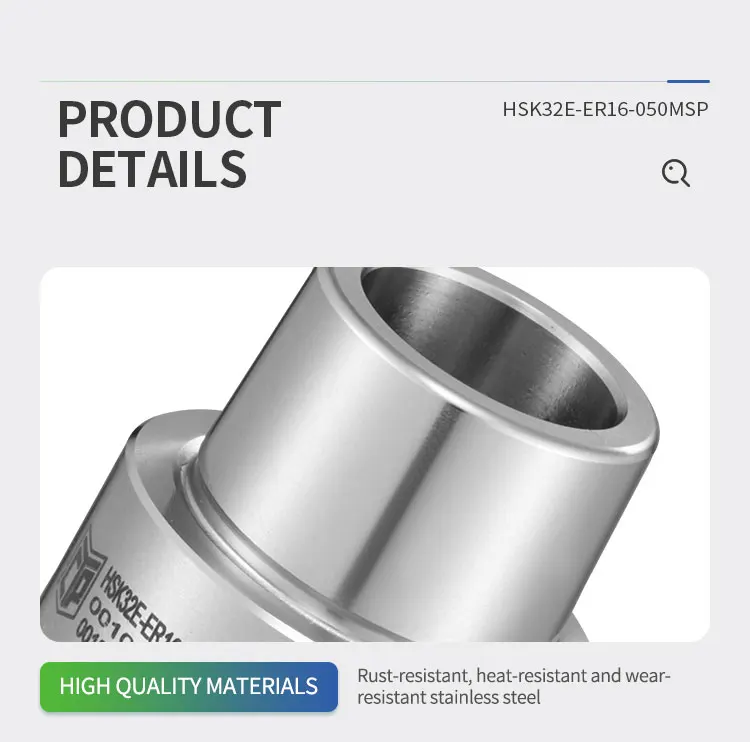

| Rust-resistant, wear-resistant and high-strength stainless steel structure | |

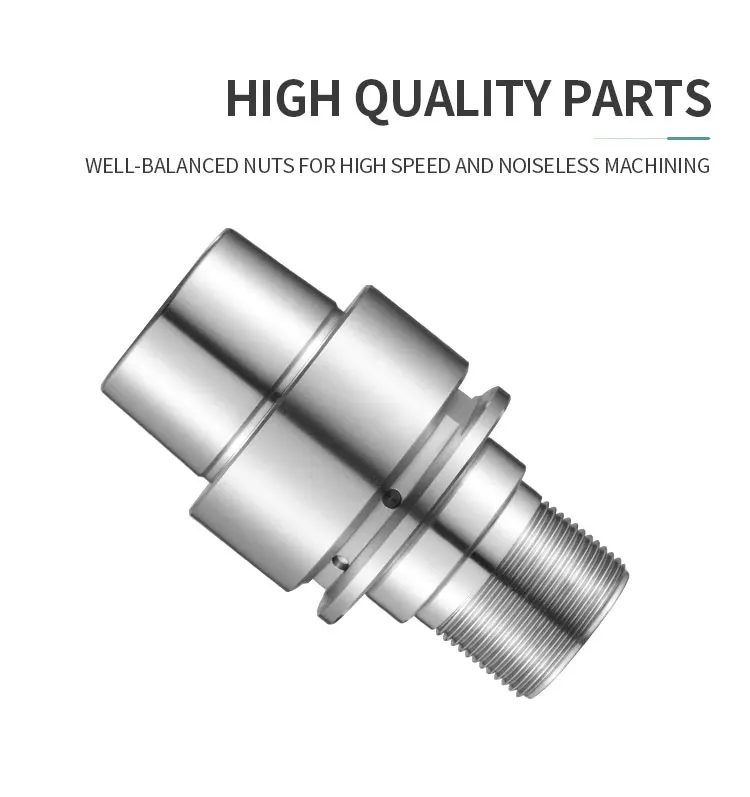

| Noise-free and high speed machining ensured by balanced nuts | |

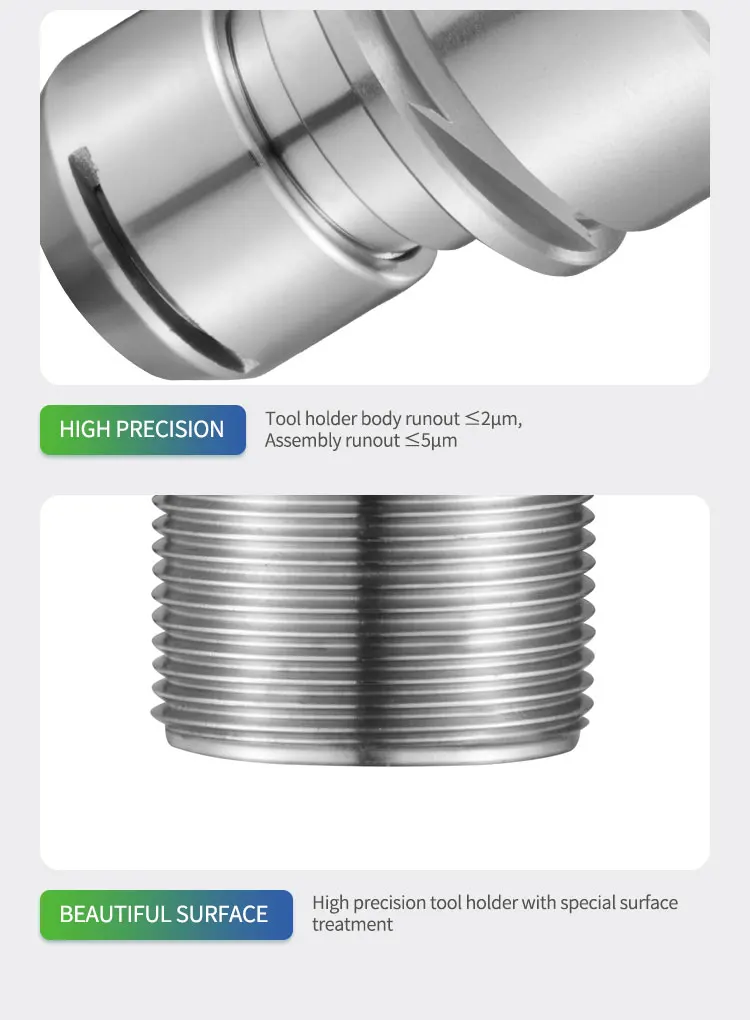

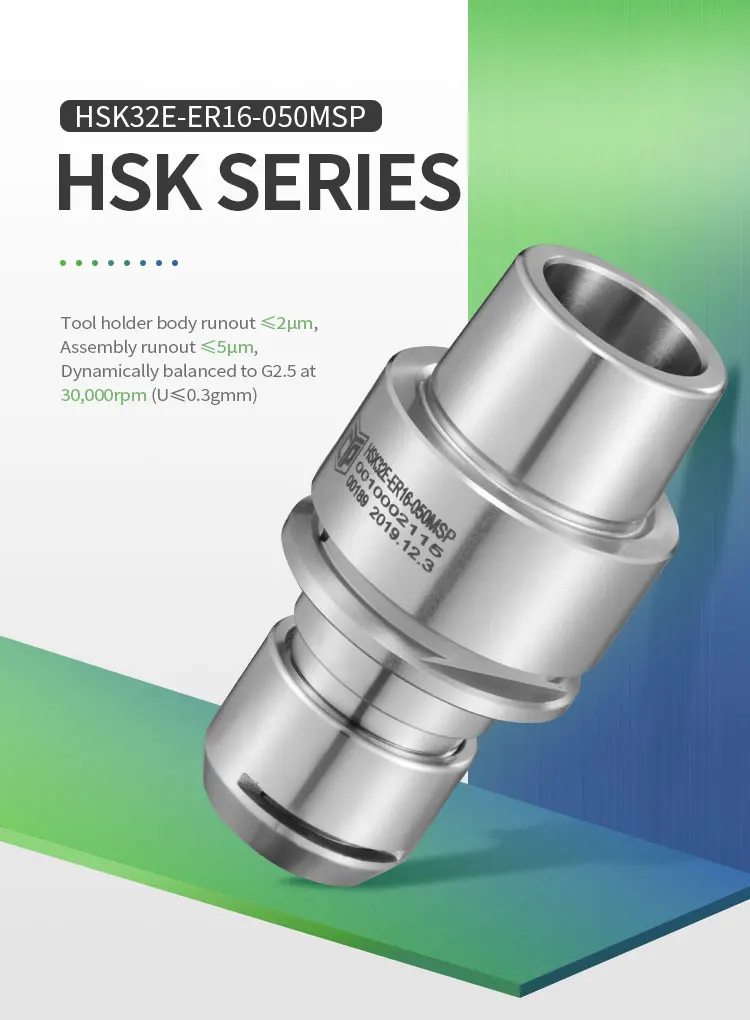

| Accuracy of the tool holder body≤2μm, run-out accuracy ≤5μm | |

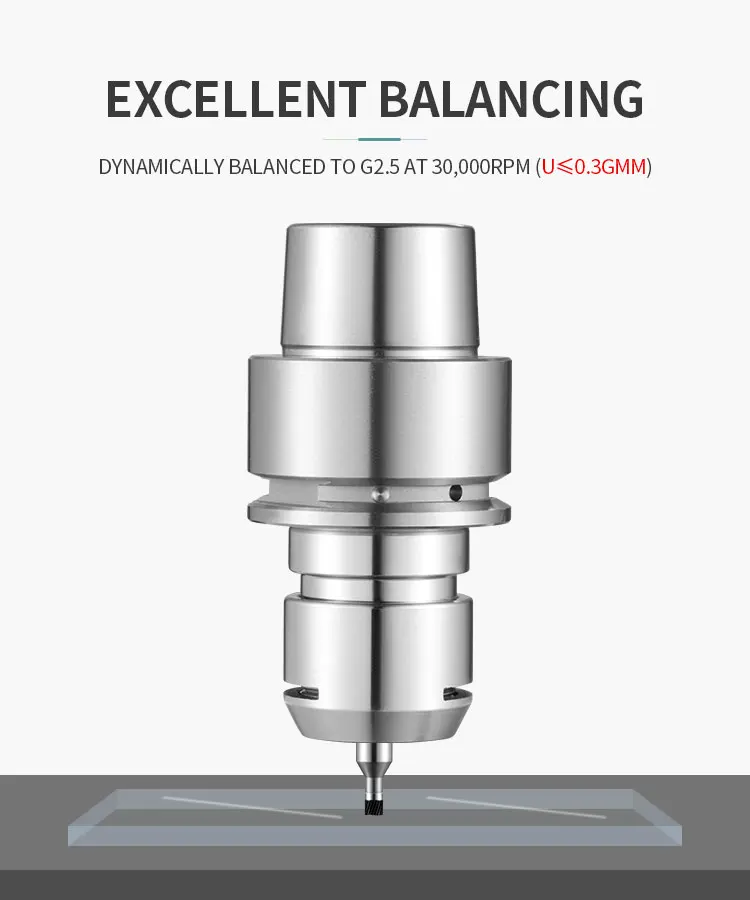

| Dynamically balanced to G2.5 at 30000rpm (U≤0.3gmm) | |

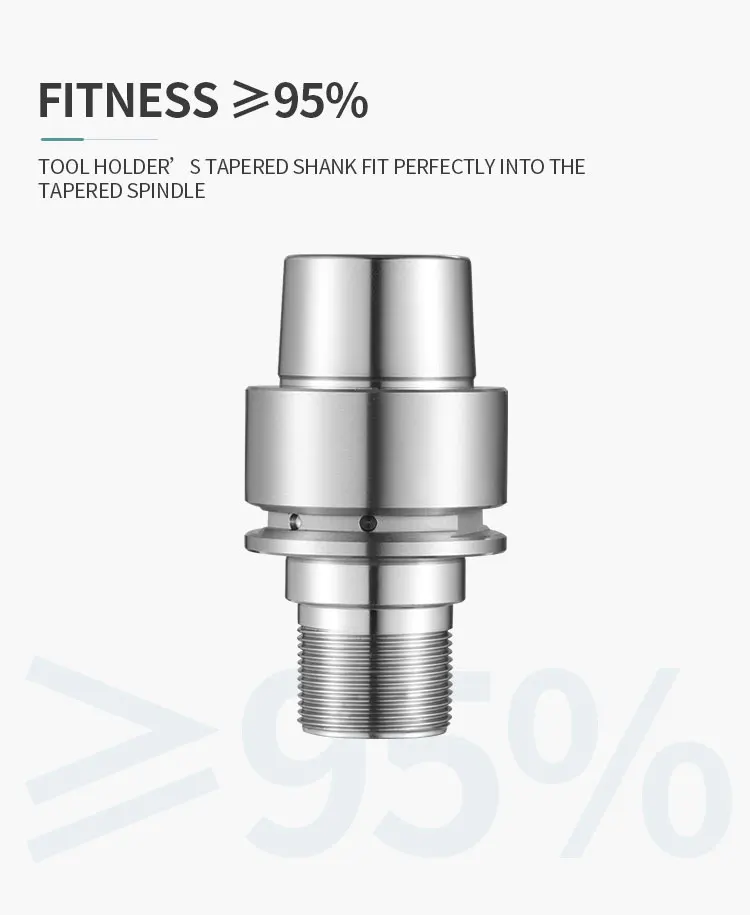

| Taper fitness ≥95% | |
| Beautiful surface provided by special treatment |
