Product Overview
Description
Product Description
* For fastening and binding rope. Simply take out the Clevis Pin from The Rigging Screw Fork by removing the Split Ring.
* Polished Finish 304 or AISI 316 Marine Grade A4 Stainless Steel Closed Body Rigging Screws with a Jaw and Jaw or Fork and Fork,
superior rust resistance.
* Each end has open jaw with pin and safety wire for easy, secure connections.
* Perfect equipment for adjusting tension on ropes, cables and lines.
* Material:316 Stainless Steel. Size:M6.
* Polished Finish 304 or AISI 316 Marine Grade A4 Stainless Steel Closed Body Rigging Screws with a Jaw and Jaw or Fork and Fork,
superior rust resistance.
* Each end has open jaw with pin and safety wire for easy, secure connections.
* Perfect equipment for adjusting tension on ropes, cables and lines.
* Material:316 Stainless Steel. Size:M6.
We have many size and different material , if you need please feel free contact with us .
We also can supply OEM

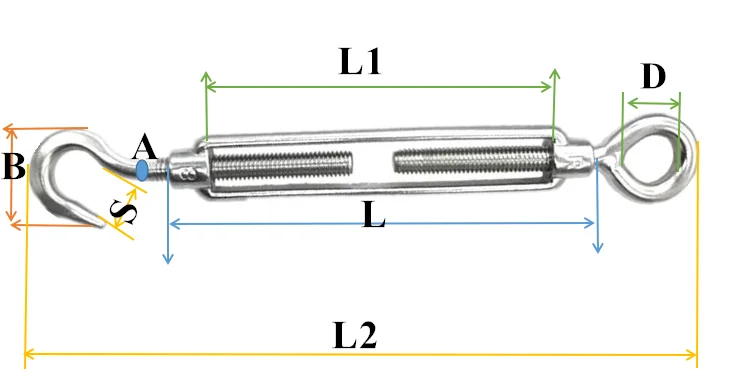

Type | A(mm) | D(mm) | L1(mm) | L(mm) | L2（mm) | B（mm) | S(mm) |
M5 | 5(3/16") | 8 | 52 | 70 | 120 | 13 | 9 |
M6 | 6(1/4") | 10 | 78 | 100 | 160 | 16 | 10 |
M8 | 8（5/16“） | 14 | 95 | 120 | 200 | 20 | 11 |
M10 | 10（3/8”） | 16 | 120 | 150 | 240 | 28 | 12 |
M12 | 12（1/2“） | 18 | 168 | 200 | 300 | 36 | 14 |
M16 | 16（5/8”） | 26 | 210 | 250 | 390 | 40 | 16 |
M20 | 20（3/4“） | 36 | 250 | 300 | 440 | 50 | 18 |
