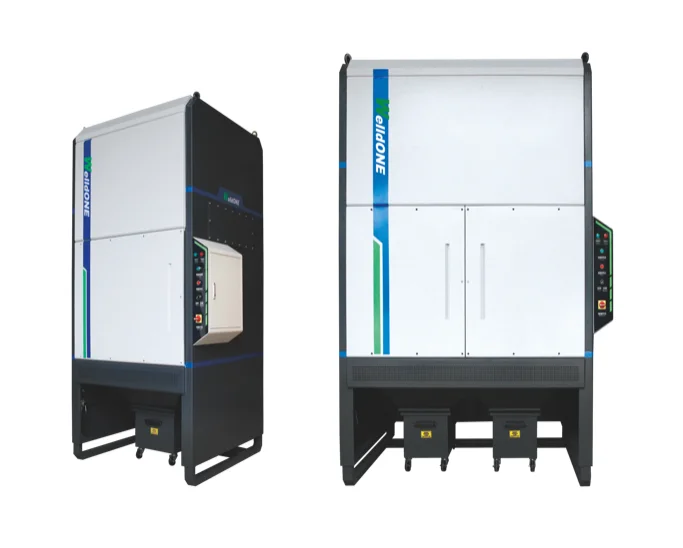

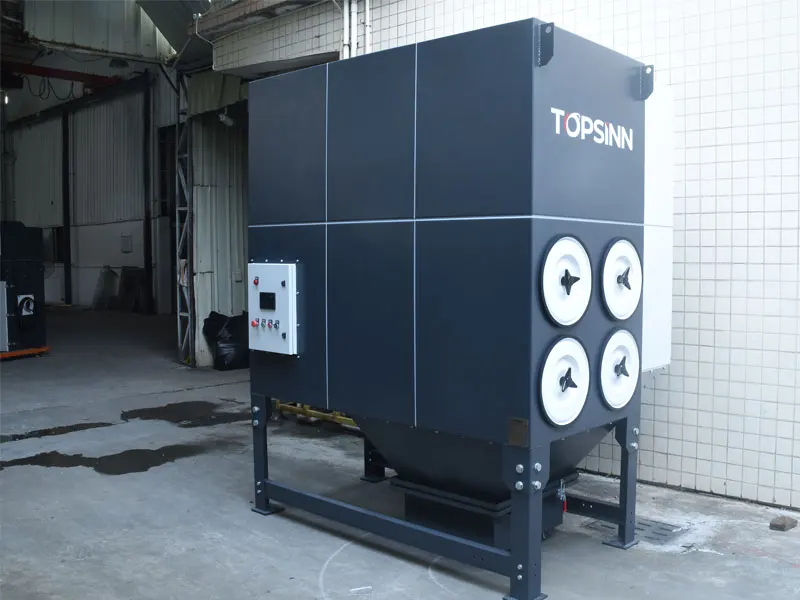

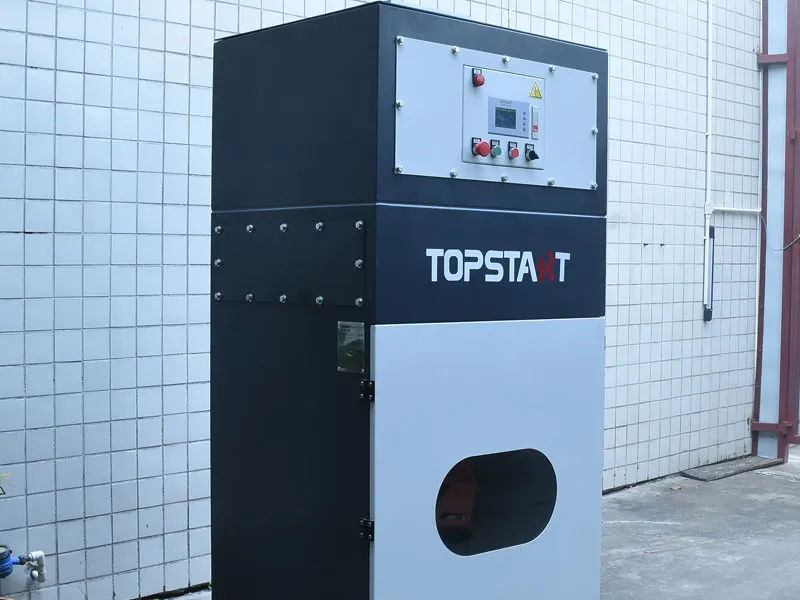

Dust removal equipment Dust removal system industrial Exhaust Filters dust collector
- Category: >>>
- Supplier: Wuxi Cylion Technology Co. Ltd.
Share on (1600437121955):
Product Overview
Description
Product Information
CNC control language
Besides English, we have professional Russian, Spanish,German language, we can also support local agent to translate any language in need.
Laser power option
IPG: 1kw, 2kw, 3kw, 4kw, 6kw, 8kw, 10kw, 12kw, 15kw, 20kw
Raycus: 1kw, 2kw, 3kw, 4kw, 6kw, 8kw, 10kw, 12kw,
Machine size: 3015, 4015, 4020, 6015, 6020. 6023, 6025, 6525, 8020, 8025, 9520, 12025, 13030…..We customize as your metal sheet size.
Machine type: Single table, auto feeding shuttle table,
Besides English, we have professional Russian, Spanish,German language, we can also support local agent to translate any language in need.
Laser power option
IPG: 1kw, 2kw, 3kw, 4kw, 6kw, 8kw, 10kw, 12kw, 15kw, 20kw
Raycus: 1kw, 2kw, 3kw, 4kw, 6kw, 8kw, 10kw, 12kw,
Machine size: 3015, 4015, 4020, 6015, 6020. 6023, 6025, 6525, 8020, 8025, 9520, 12025, 13030…..We customize as your metal sheet size.
Machine type: Single table, auto feeding shuttle table,
Enclosed table, open table all available,

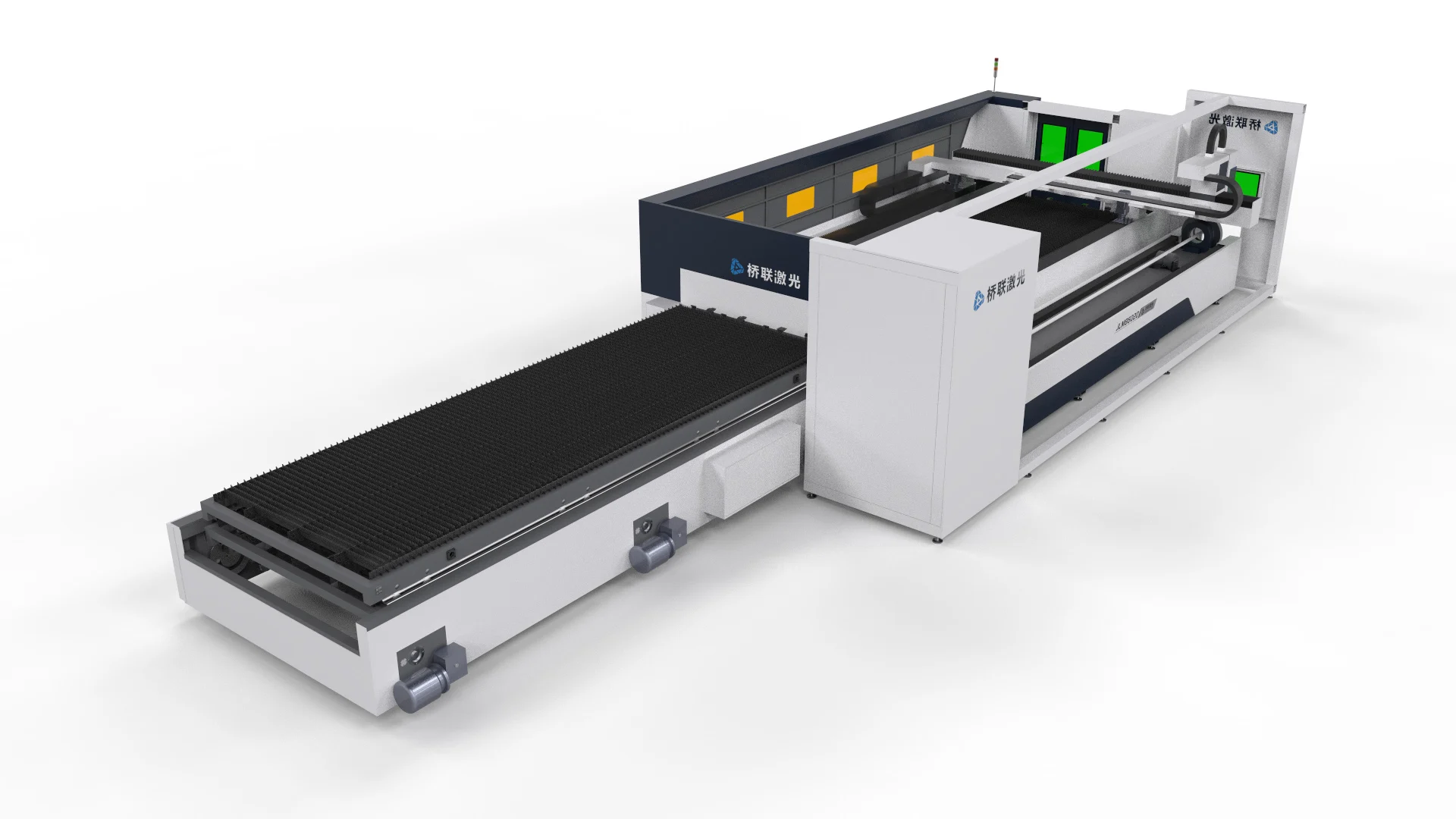

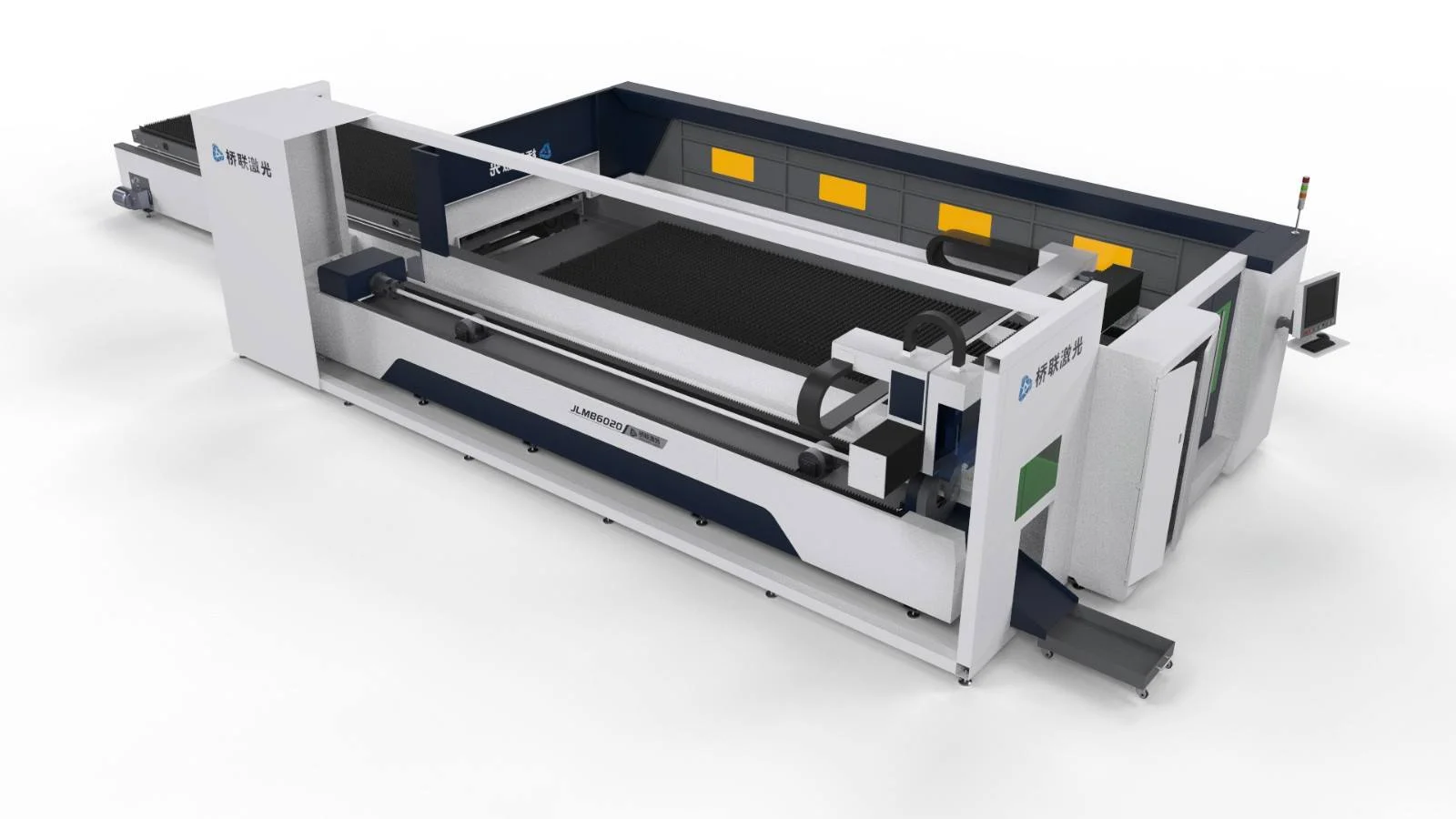

Plate and tube cutting table, tube cutting machine available,

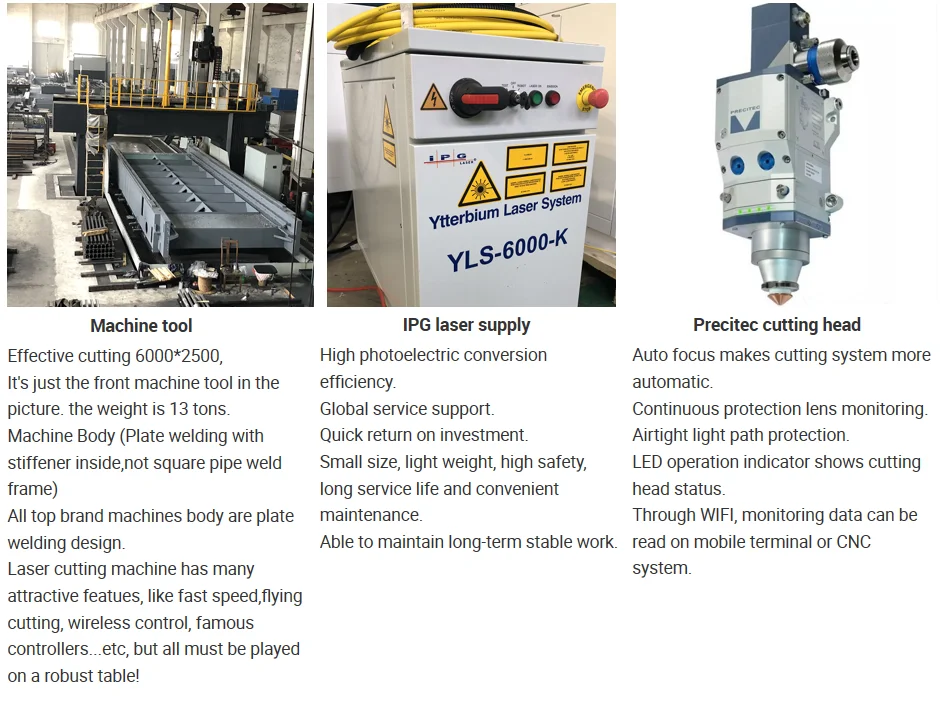

Main parts
Product parameters
Item | Model | Model | |||||||
JLMT3015 | JLMT4020 | JLMT6020 | JLMT6025 | ||||||
Effective stroke | X axis(mm) | 3050 | 4050 | 6050 | 6050 | ||||
Y axis(mm) | 1520 | 2050 | 2050 | 2550 | |||||
Z axis(mm) | 100 | 100 | 100 | 100 | |||||
Position accuracy | X axis(mm/m) | ±0.03 | ±0.04 | ±0.06 | ±0.06 | ||||
Y axis(mm/m) | ±0.03 | ±0.03 | ±0.06 | ±0.06 | |||||
Z axis(mm/m) | ±0.01 | ±0.01 | ±0.01 | ±0.01 | |||||
Repeated accuracy | X axis(mm) | ±0.02 | ±0.02 | ±0.04 | ±0.04 | ||||
Y axis(mm) | ±0.02 | ±0.02 | ±0.04 | ±0.04 | |||||
Z axis(mm) | ±0.005 | ±0.005 | ±0.005 | ±0.005 | |||||
Max position speed( m/min) | 120-180m/min | 120-180m/min | |||||||
Acceleration (G) | 2.0G | 2.0G | |||||||
Work table bearing(kg) | 3000kg(adjustable) | 3000kg(adjustable) | |||||||
Worktable exchange time | 16-35s (adjustable) | 16-35s (adjustable) | |||||||
Max Cutting thickness | 25-45 mm/CS ,20-45mm/SS | 25-45 mm/CS , 20-45mm/SS | |||||||
High quality cutting thickness | 16-30 mm/CS ,10-30mm/SS | ||||||||
Power consumption | 65.5 kw/h | 55.5 kw/h | |||||||
Protection level | IP54 | IP54 | |||||||
Machine weight（Ton） | 11.5 | 16.5 | 24.5 | 25.5 | |||||
Size L*W*H(mm) | 8610x3160x2106 | 10610x3165x2106 | 14510x3165x2106 | 14510×3765×2106 | |||||
Machine Configuration
Item | Brand | Note | ||
Machine cutting table | Qiaolian | China | ||

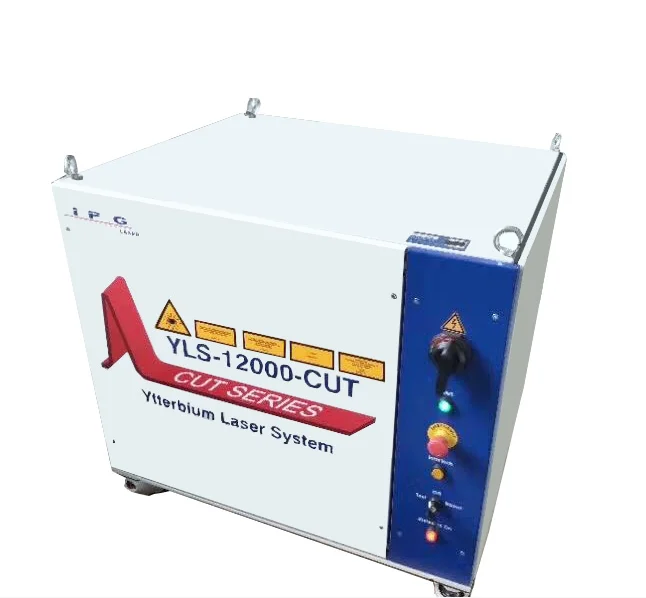

laser power | IPG/Trumpf | Germany | ||
Laser head | Precitec | Germany | ||
Chiller | Hans | China | ||

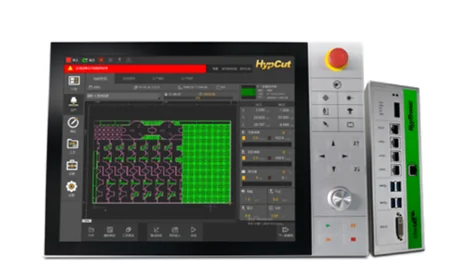

CNC controller | Hypcut8000(EtherCAT and BC-LINK) | China | ||

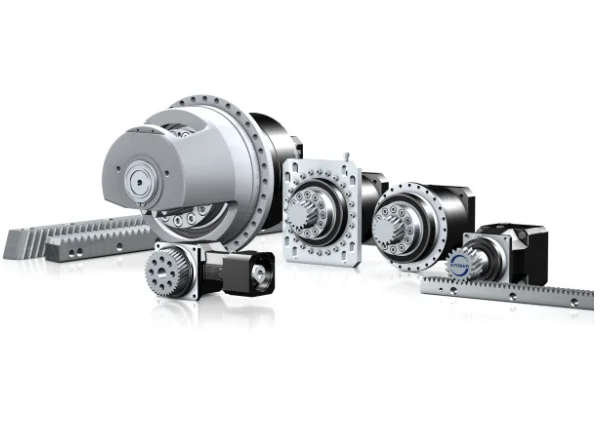

Gearbox and rack | Alpha | Germany | ||
Servo | Stobber | Germany | ||
Rail guide | Bosch Rexroth | Germany | ||
Hydraulic system for auto feeding | HIJACK | China | ||
Air/N2 valve | Laney | Germany | ||
High pressure valve | Parker | Germany | ||
Other valves | SMC/Parker | Japan/Germany | ||
Cable chain | Igus | Germany | ||
Wireless control | Hypcut BCS100E | China | ||
Recovery dedusting | Qiaolian | China | ||
Relay | Schneider | France | ||
Auto lubrication, laser power stabilizer included | ||||

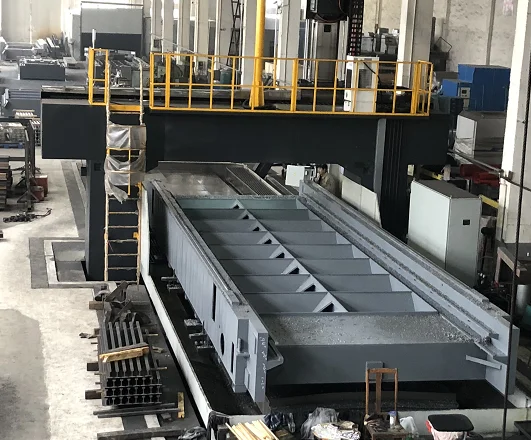

Machine body and details
Machine Body (Plate welding with stiffener inside,not square pipe weld frame)
Square pipe welding frame table looks robust, but Pipe always has distortion along with time goes. That’s why top brand machines body all are plate welding design.

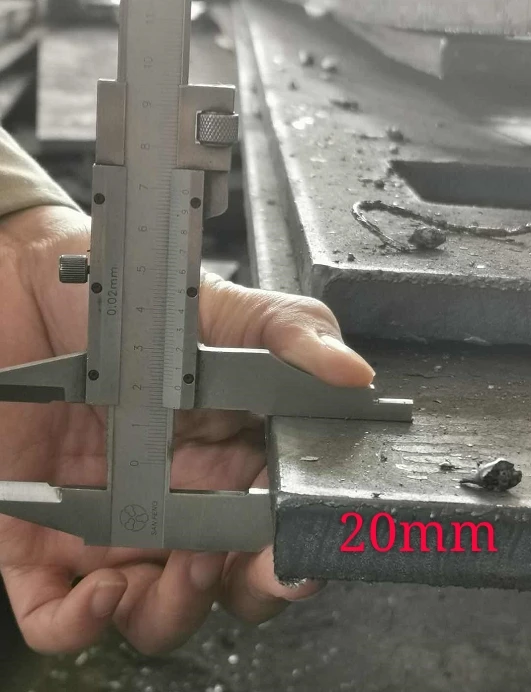

Machines over 6 meters are welded with 16mm and 20mm steel plates. We promise that our customers' machine tools will not deform in ten years, and the quality is the best advertisement.
Square pipe welding frame table looks robust, but Pipe always has distortion along with time goes. That’s why top brand machines body all are plate welding design.
Machines over 6 meters are welded with 16mm and 20mm steel plates. We promise that our customers' machine tools will not deform in ten years, and the quality is the best advertisement.

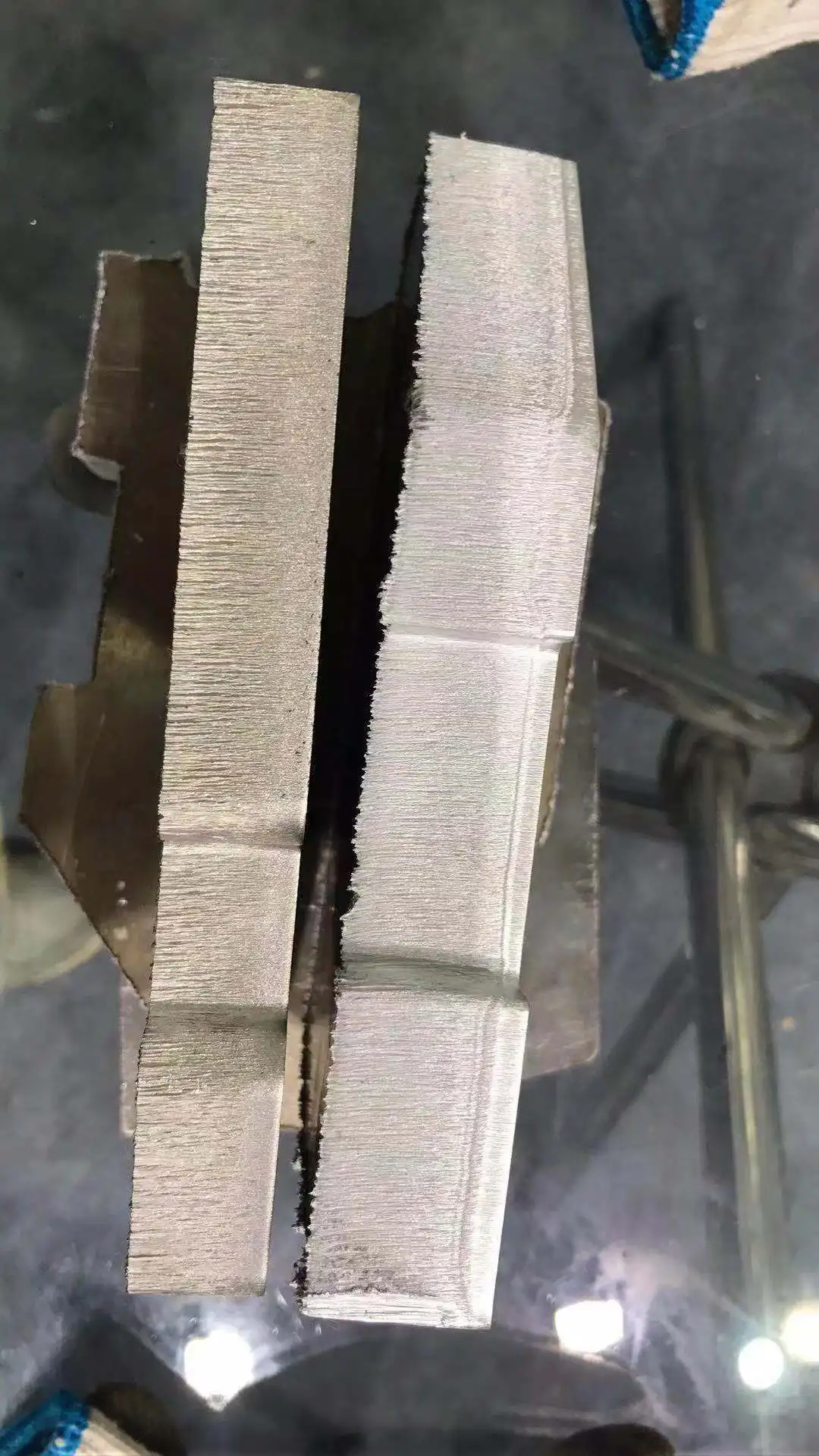

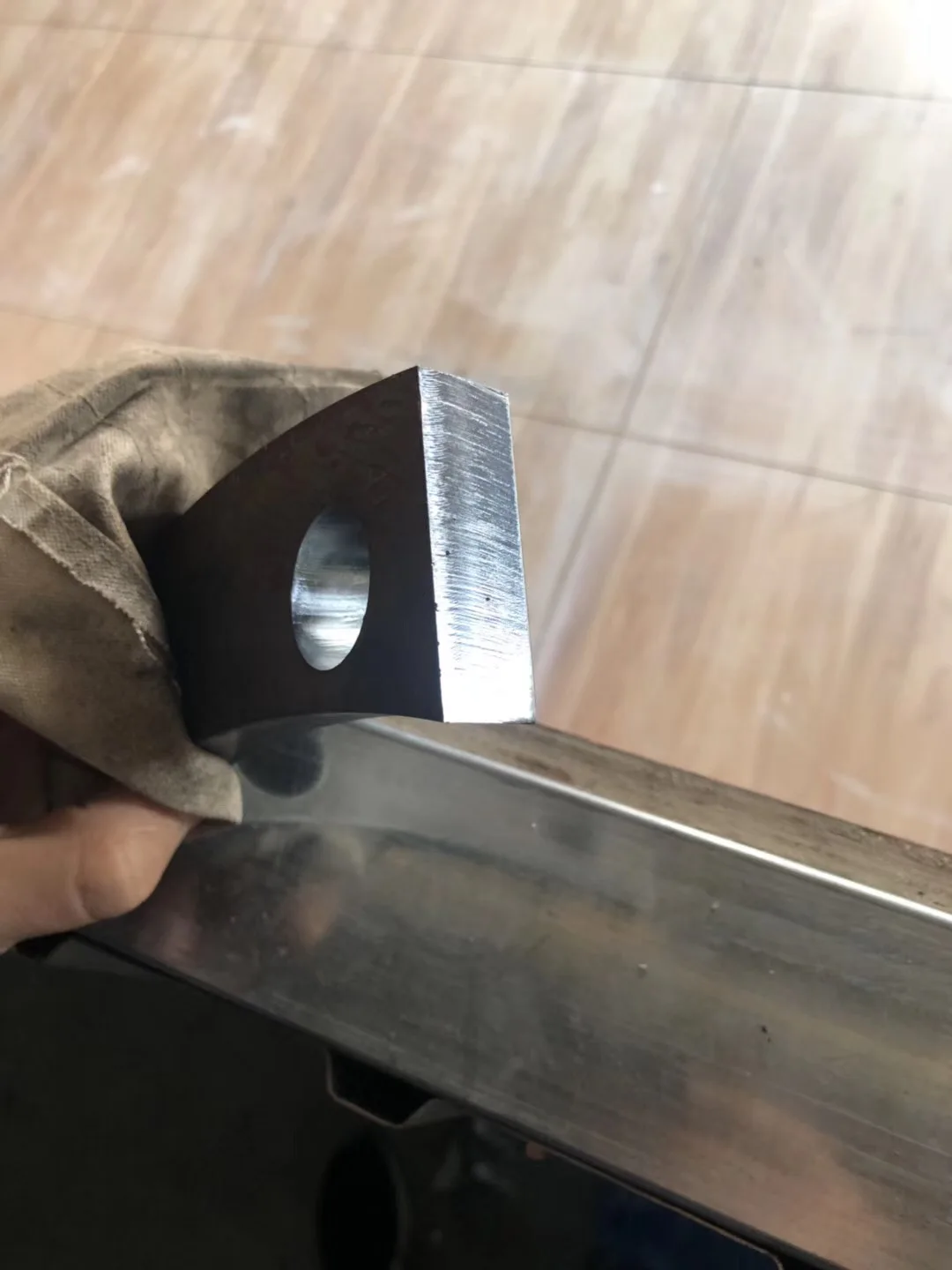

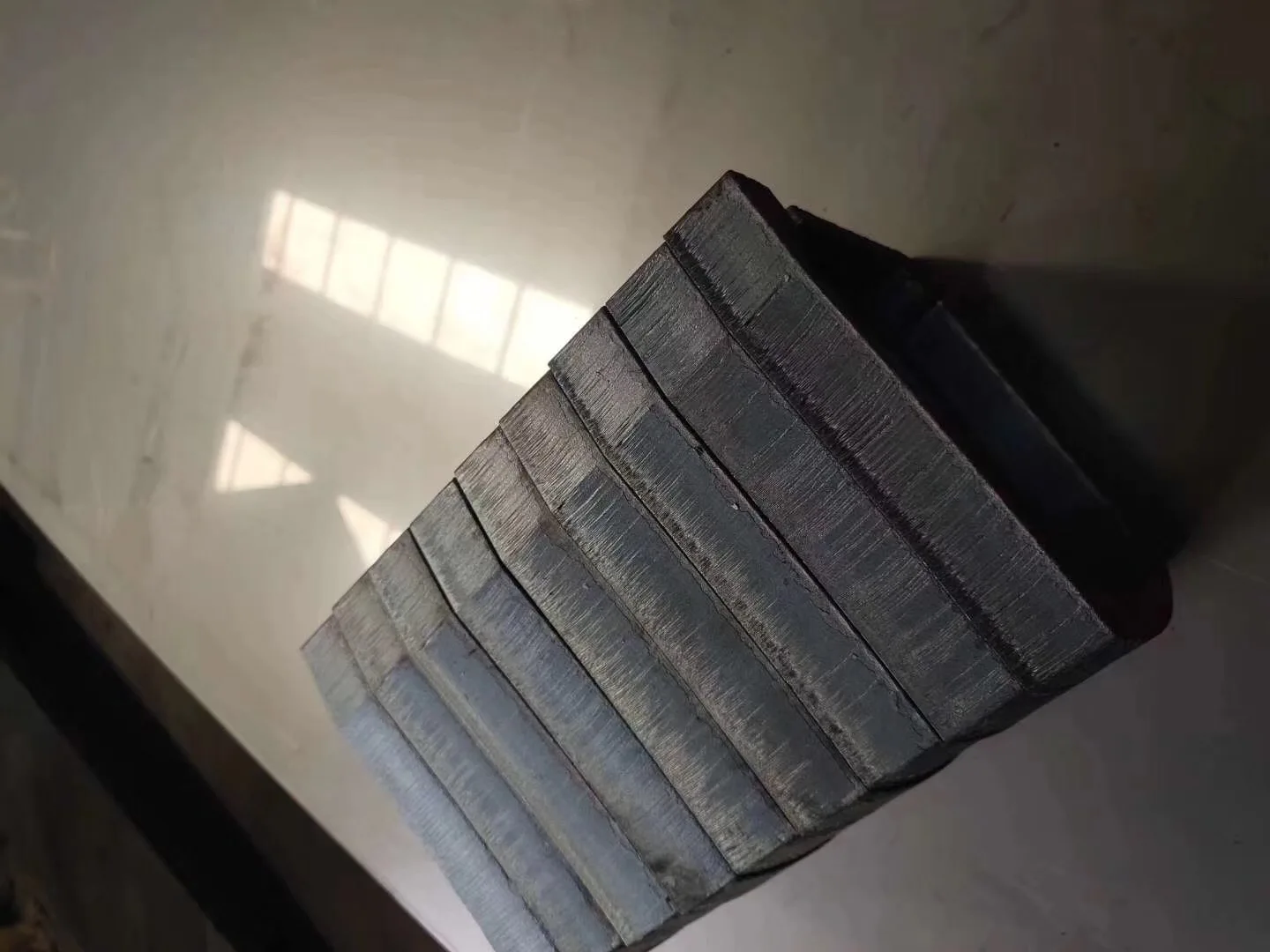

Cutting sample
Packing

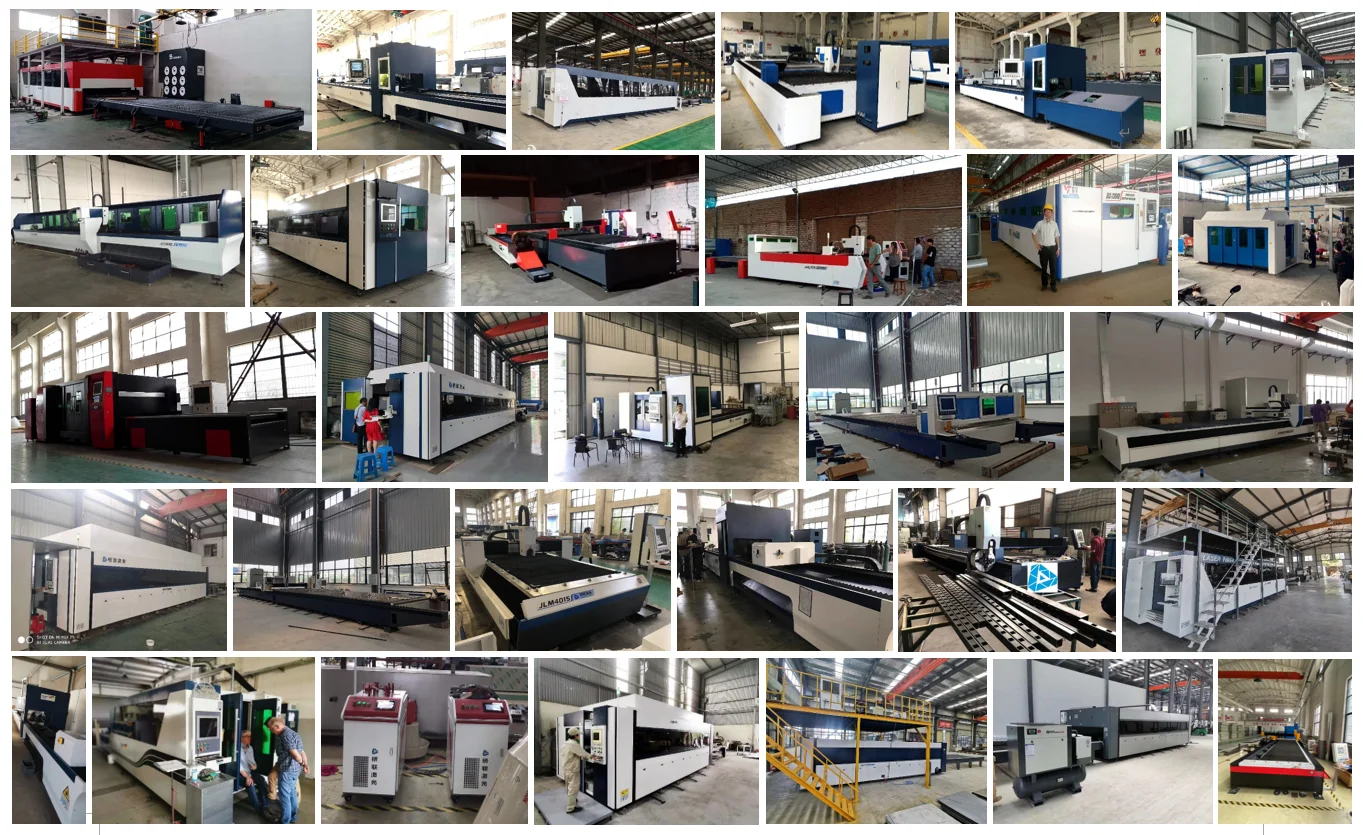

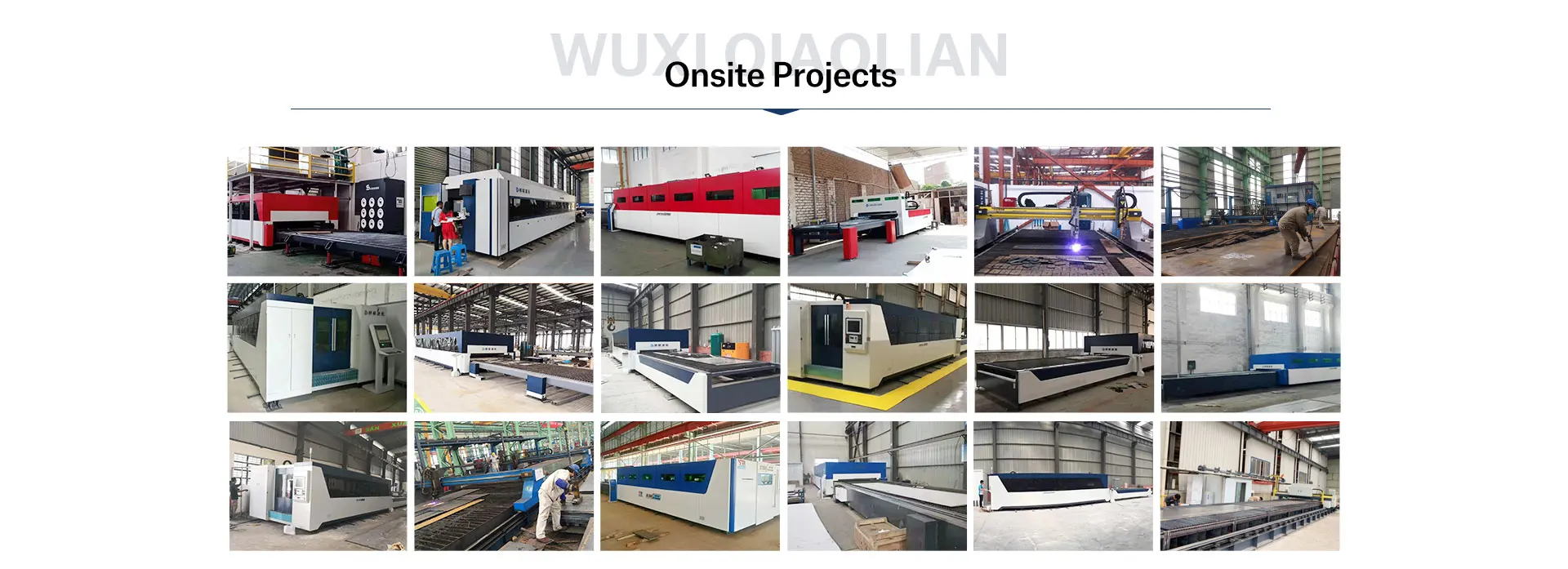

Customer sites from all over the world!
FAQ
Q1: Why your machine price is higher, we have much cheaper offerfrom Jinan factories?
Qiaolian machine feature is robust table design like Europen brand machine with complete plate-welded structure, and heaviest inChina. You will check it out by real shipping weight! We always try to make high level machines that few factories can copy,because we have experienced engineers which are limited source in this field. So if you don’t have much cutting work, our machineis not cost-effective to you.
Q2: Can you produce the machine faster ?
As we need the machine urgently, High level machine is not simply assemble parts together and deliver it to customer. We don’t dofast production. Long-termmachine stability depends on strict quality control. Inspection and testing work needs enough time ifyou wish to get long-time stable work machine. We mainly rely on old customers recommend our machines to others to expandbusiness. The machines we produced are best advertisement for us.
Q3: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions
andsuggestions.
Q4:How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?What kind of materials
mainly?Cutting/engraving, Max thickness for cutting?How big working area you need?
Q5: When I got this machine, but I don’t know how to use it. What should I do?
We will send an English manual with the equipment, and arrange a colleague to connect and install it with you alone. If you
haveany questions, we can also arrange for a maintenance person to come to commission and install it.
Q6: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life
longafter-sales service. So any doubts, just let us know, we will give you solutions.
Q7:How can I get some samples?
We are honored to offer you samples.
If you are interested in this machine,Pls contact with us in any time,Thank you!
Q2: Can you produce the machine faster ?
As we need the machine urgently, High level machine is not simply assemble parts together and deliver it to customer. We don’t dofast production. Long-termmachine stability depends on strict quality control. Inspection and testing work needs enough time ifyou wish to get long-time stable work machine. We mainly rely on old customers recommend our machines to others to expandbusiness. The machines we produced are best advertisement for us.
Q3: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions
andsuggestions.
Q4:How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?What kind of materials
mainly?Cutting/engraving, Max thickness for cutting?How big working area you need?
Q5: When I got this machine, but I don’t know how to use it. What should I do?
We will send an English manual with the equipment, and arrange a colleague to connect and install it with you alone. If you
haveany questions, we can also arrange for a maintenance person to come to commission and install it.
Q6: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life
longafter-sales service. So any doubts, just let us know, we will give you solutions.
Q7:How can I get some samples?
We are honored to offer you samples.
If you are interested in this machine,Pls contact with us in any time,Thank you!
