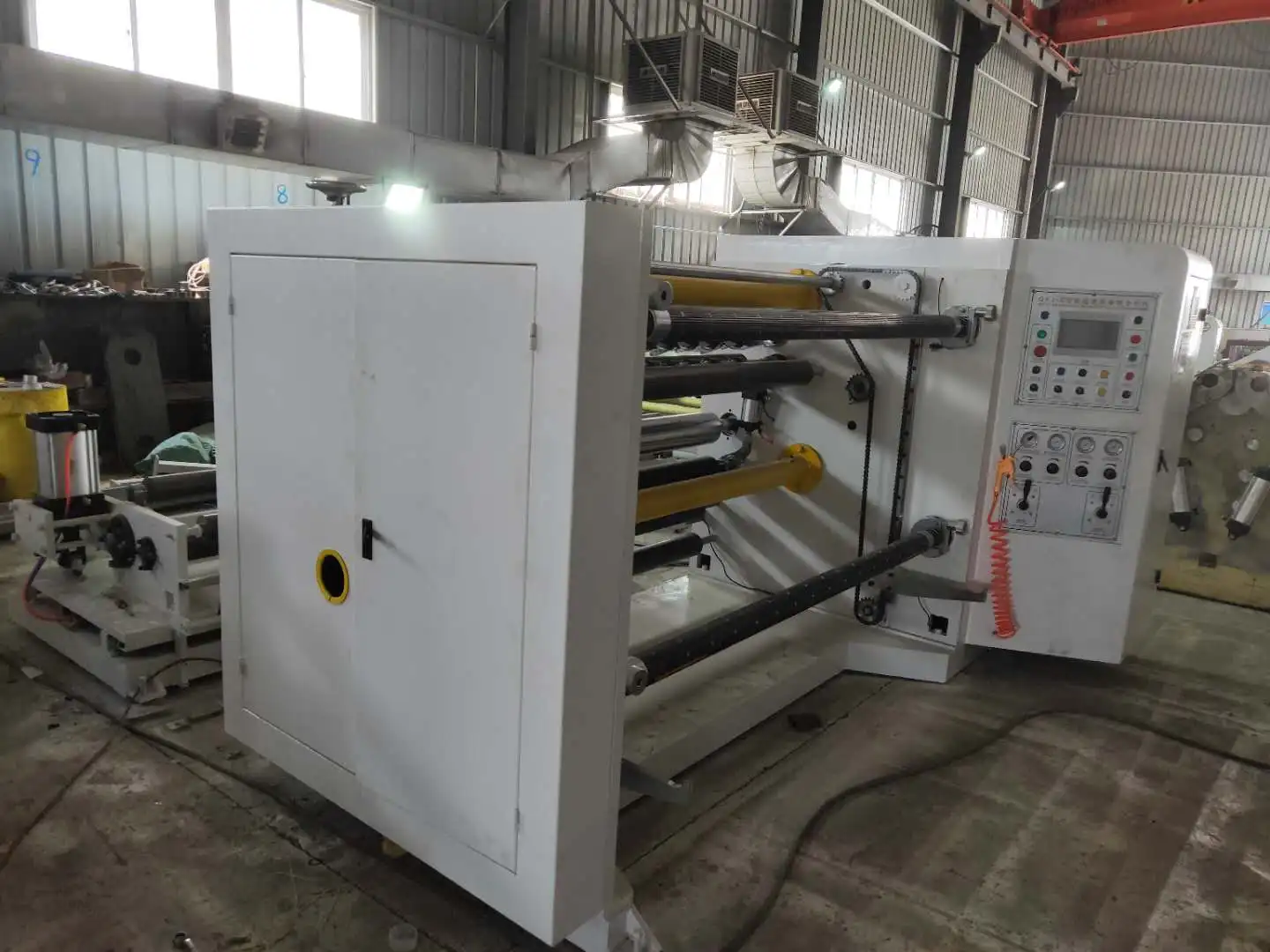

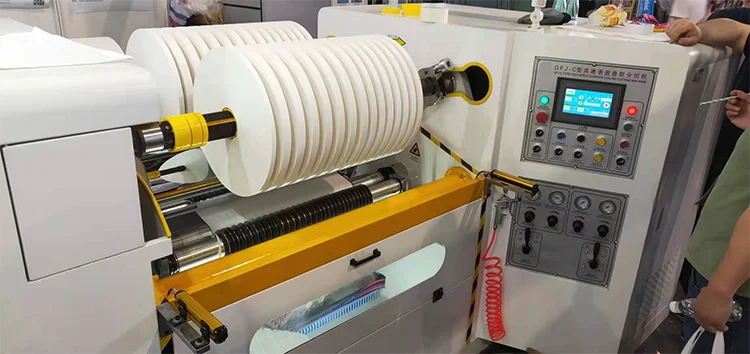

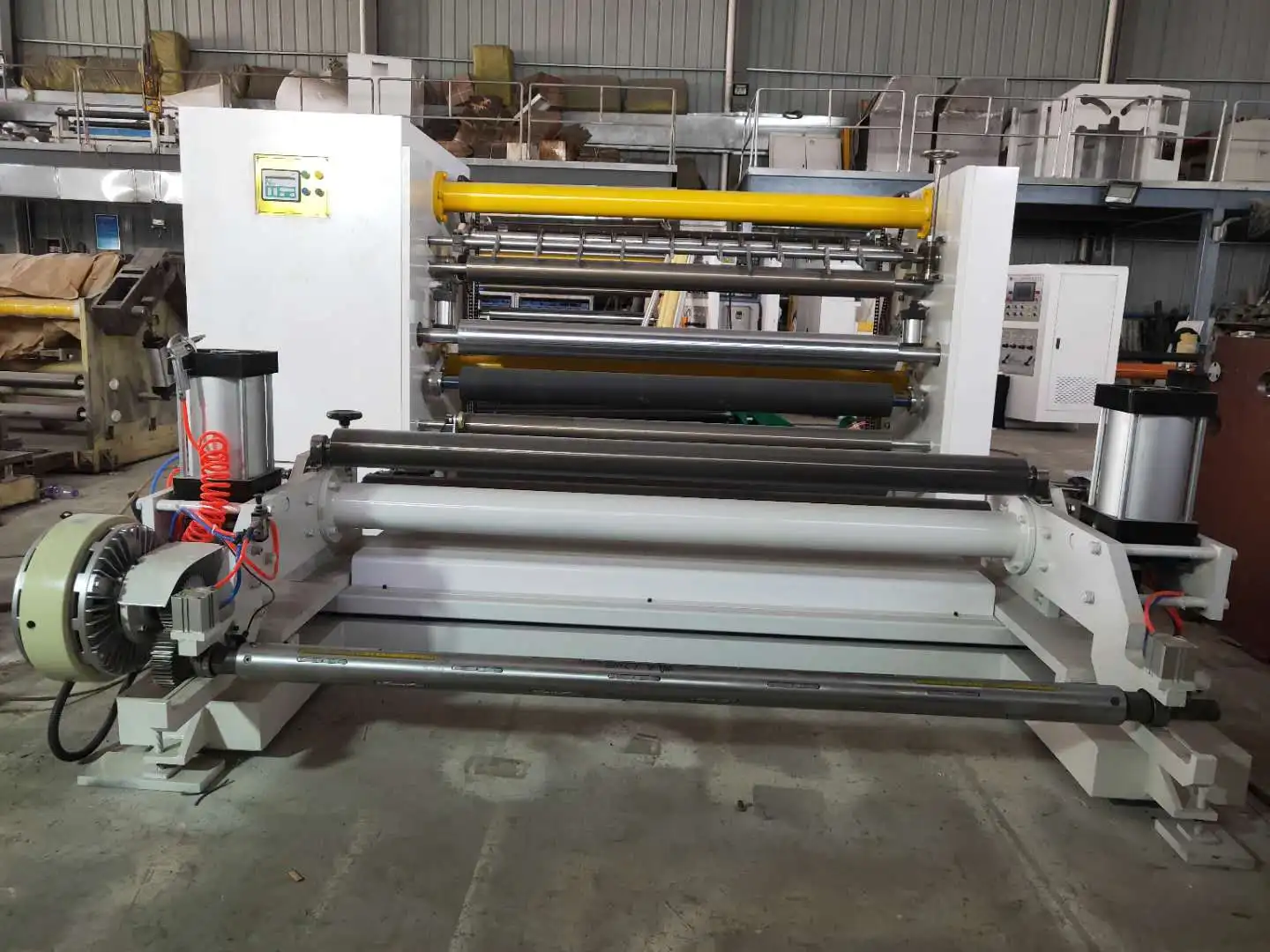

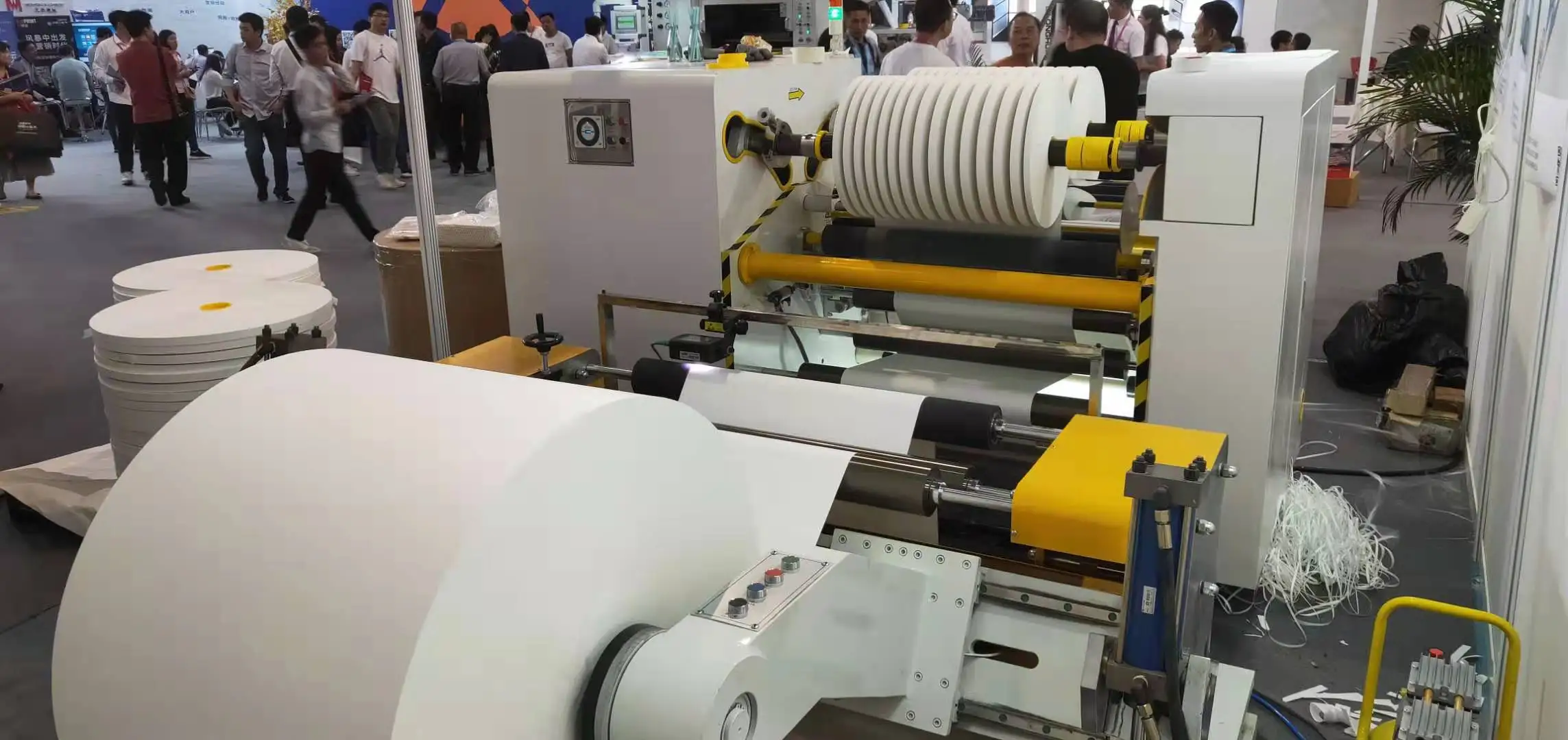

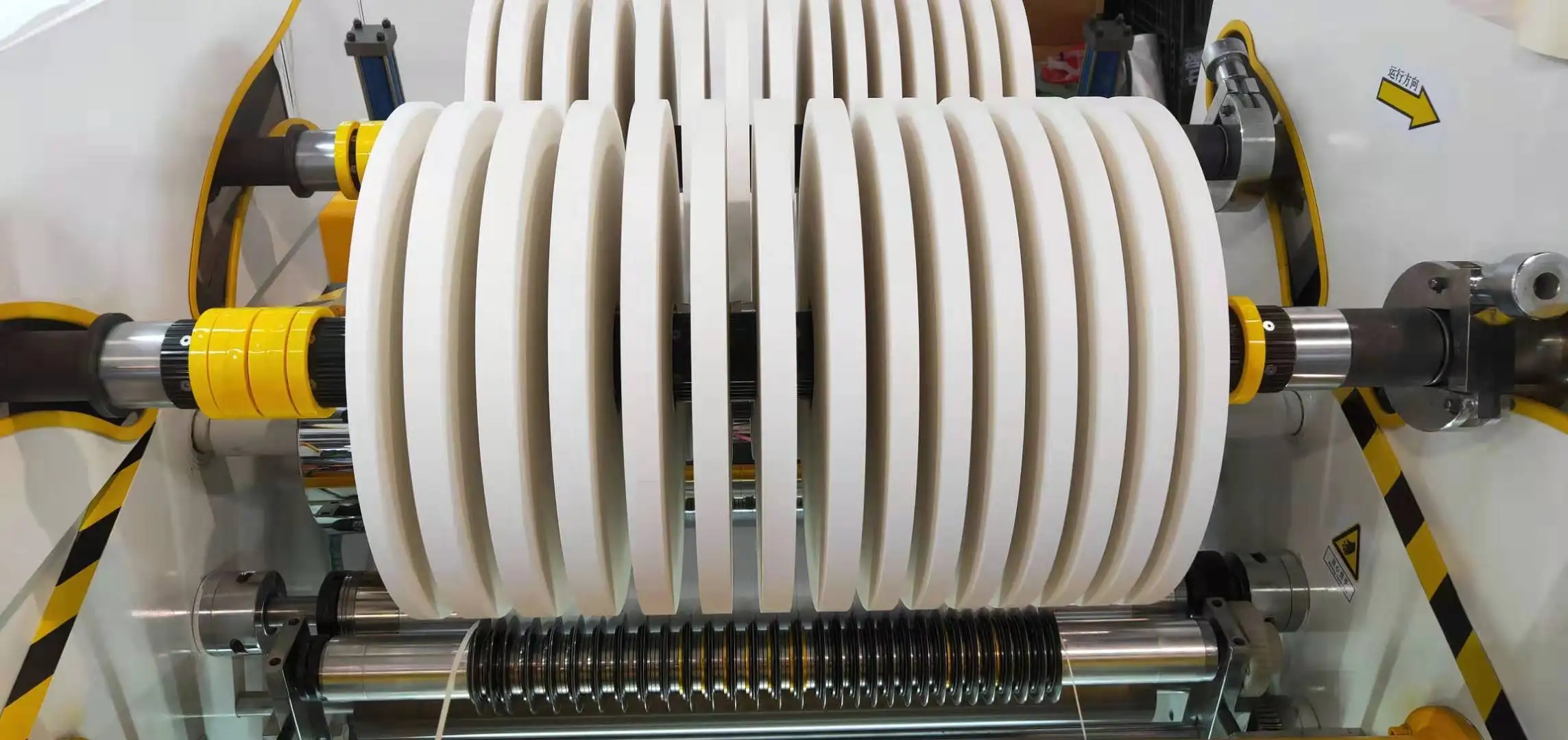

HERO bopp ribbon kraft paper roll label slitting machine cortadora de papel paper slitting and rewinding machine
- Category: >>>
- Supplier: Wenzhou Hero International Trade Co. Ltd.
Share on (1600437124725):
Product Overview
Description
bopp ribbon kraft paper roll label slitting machine cortadora de papel paper slitting and rewinding machine
Products Description
Brief Introduction
The slitting machine is mainly used to cut a large roll of paper, film, non-woven fabric,aluminum foil, mica tape and other thin materials into small rolls of different widths before and after printing. It also has the function of checking product quality.
Main Features
1. Air shaft for unwinding, it is much convenient to change shaft and centering correctly.
2. Magnetic powder brake unwind,automatic constant tension.
3. Unwind shaft is installed in the rolling bearing to reduce the mechanical resistance to minimum.
4.Error correction system takes automatic photoelectric tracking method.
Main Technical Parameter
1.Suitable Slitting Materials: BOPP/PET/PVC/Paper/Complex Film/Laminated Aluminum Film
2.Thickness of Material :0.012~0.15mm
3.Max. Mechanical Speed: 180m/min
4. Max. Slitting and Rewinding Speed: 160m/min
4. Max. Slitting and Rewinding Speed: 160m/min
Type | HRFQ-700A | HRFQ-1100A | HRFQ-1300A |
Max.Width of Mother Roll | 700mm | 1100mm | 1300mm |
MAX.Diameter of Mother Roll | Φ600mm | Φ600mm | Φ600mm |
Width of Final Roll | 30-600mm | 30-600mm | 30-600mm |
Slitting and Rewinging Speed | 5-160m/min | 5-160m/min | 5-160m/min |
Tolerance of EPC | <±0.5mm | <±0.5mm | <±0.5mm |
Total Power | 2.7kw | 3.5kw | 3.5kw |
Weight of Machine | 1200kg | 1500kg | 1800kg |
Overall Dimension | 2000×1110×1400mm | 2400×1110×1400mm | 2600×1110×1400mm |
The above specifications are not all, we accept your customization

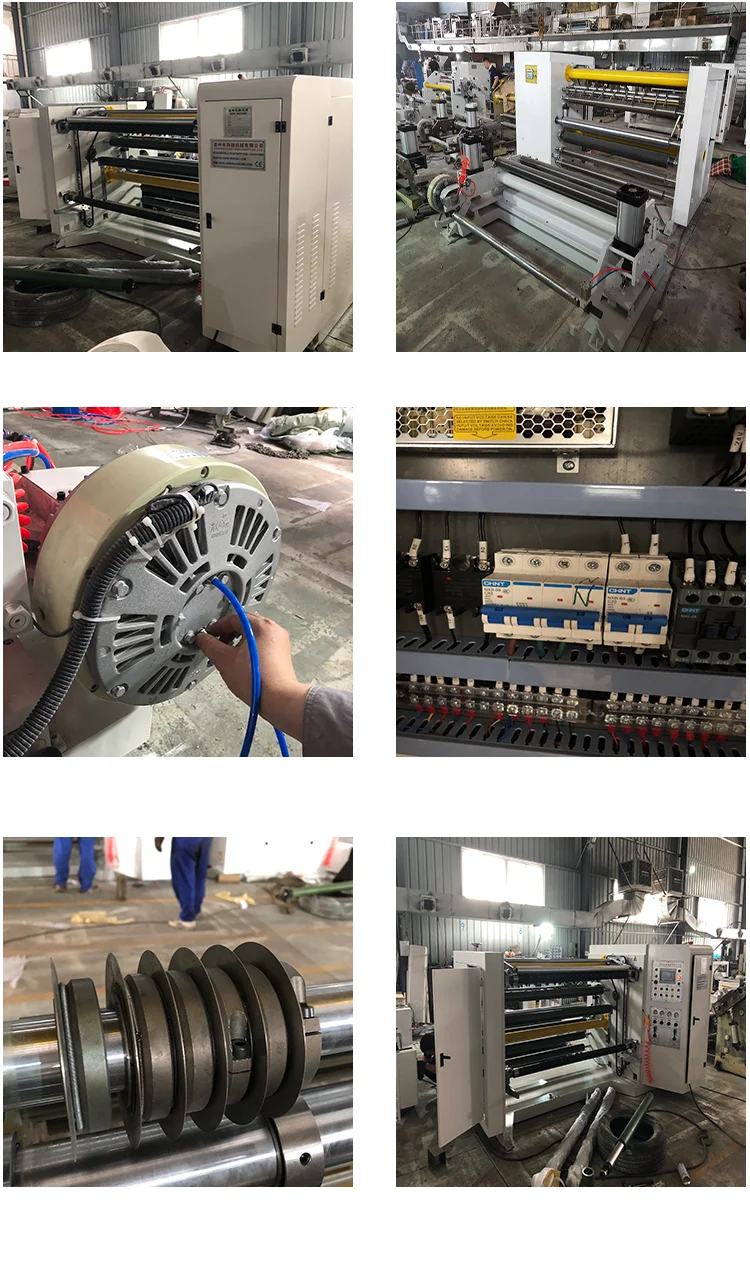

Details Images
We provide you with a complete plastic product production line
Company Profile
FAQ
Q1:Are you a factory or trading company?
A1: We are established in 1985, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Rui'an City, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Which industries are widely used in of your machine?
A3: Those are mainly used in making plastic bags and labels in the maket. Examples of stand up pouch, zipper pouch, plastic bag for dialy necessities and food, plastic label for drink bottle, Foil yogurt cup, Medical pouch, laminated film or soft carboard, etc.
Q4: How about the payment term?
A4: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q5: What about your main market?
A5: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas
market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q6: How does your factory do regarding quality control?
A6: Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very
beginning to the very end. Our factory has passed ISO and CE certification.
beginning to the very end. Our factory has passed ISO and CE certification.
Q7:What about warranty and do the engineers available to overseas?
A7: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q8:What about the service after sale?
A8: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the
machines. We will reply to you with 12hours and help you to slove the problem.
machines. We will reply to you with 12hours and help you to slove the problem.
