Clip-on genset for used reefer container for sale in dubai
US $5.00-$15.00

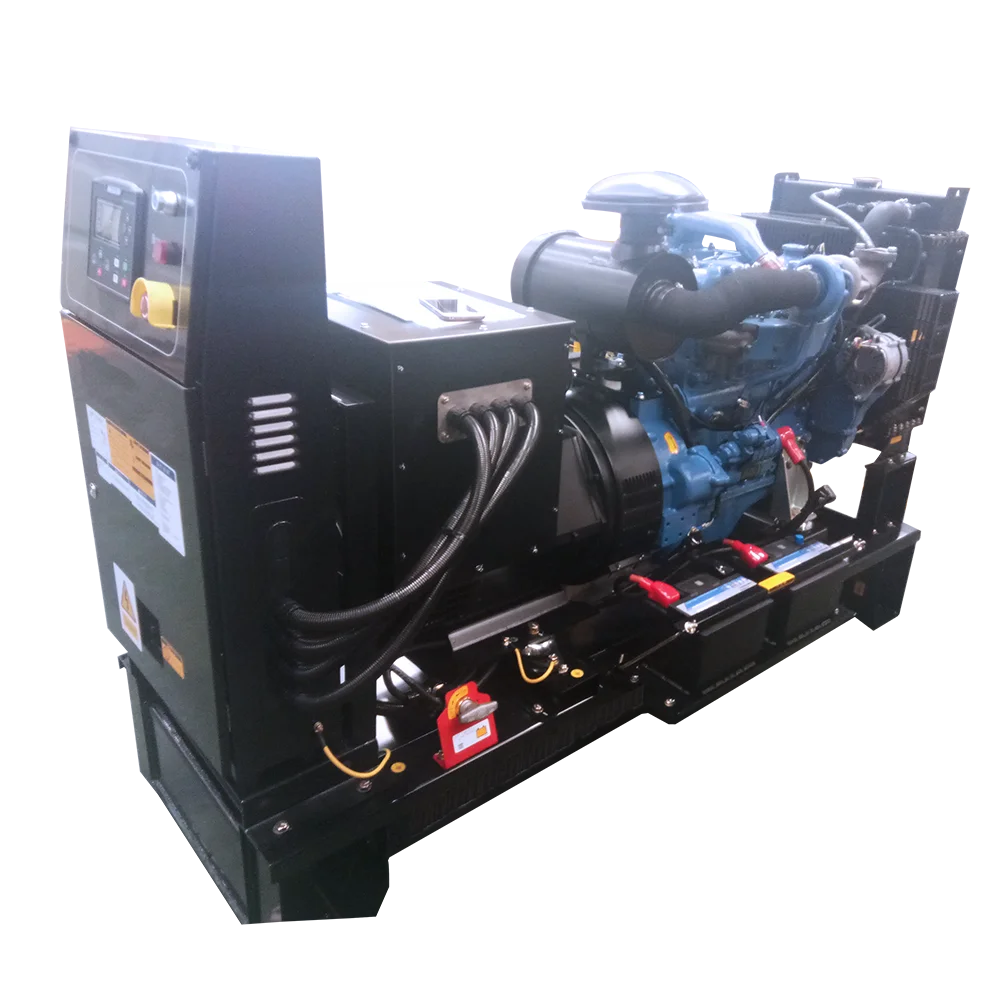

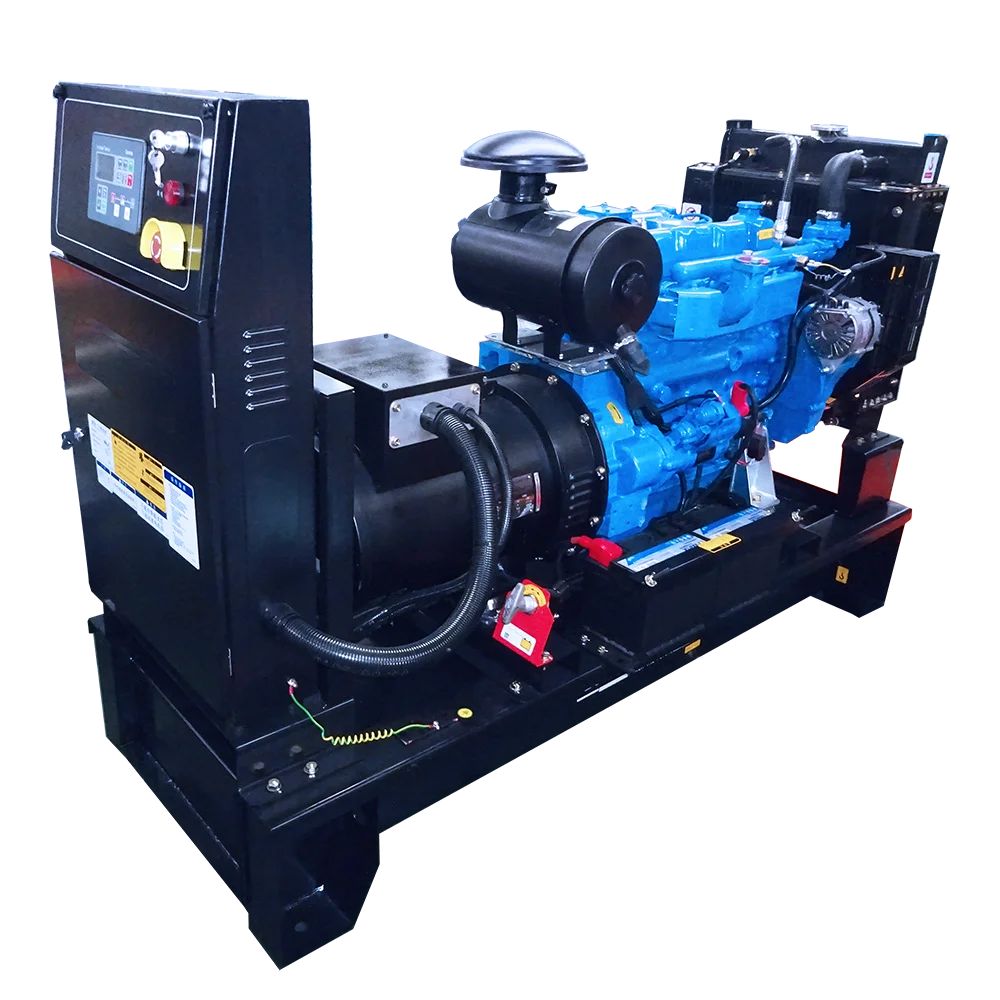

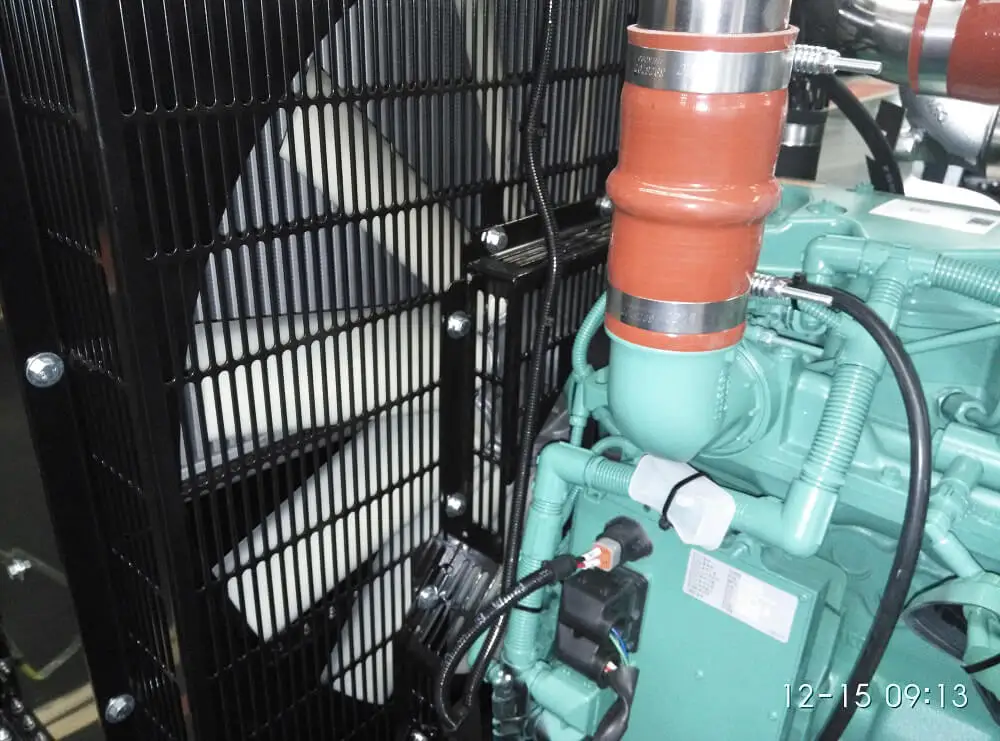

China Supplier 50kw diesel generator for sale in cheap price
- Category: Generators >>>
- Supplier: Agg (china) Energy Technology Co. Ltd.
Share on (1600437125480):
Product Overview
Description
Features & Tech Info
>> Designed and manufactured with German standards; tested as per latest industrial international norms.
>> User friendly control system for easy operation.
>> Equipped with branded maintenance-free & quick start battery.
>> Compact design, elegant appearance, made with craftsman technology.
>> Low fuel consumption & low maintenance cost.
>> Low noise, green, clean and eco-friendly with minimum emissions.
>> User friendly control system for easy operation.
>> Equipped with branded maintenance-free & quick start battery.
>> Standardized design, parts with great universality, easy installation and maintenance.
>> Designed & supplied with intelligent paralleling function to suit larger demands.
>> High performance damping system and heavy duty fabricated steel base frame achieving better vibration absorbing effect.
>> Tailored design available for customer needs and environmental characteristics, such as featured cooling system, fuel supply and return system, parallel operation and grid-connected system, intelligent communication system and load PLC management system, etc.
Environmental Operating Conditions | Fuel Consumption | ||||||
Installation place | Outdoors or indoors (well ventilated) | 100% load with fan (L/h) | 20.0 (ESP) | 17.6 (PRP) | |||
Ambient temperature | -25℃~45℃ (Coolant heater is required when <5℃) | 75% load with fan (L/h) | 13.2 (ESP) | 13.2 (PRP) | |||
Humidity | Less than 80% | 50% load with fan (L/h) | 9.1 (ESP) | 9.1 (PRP) | |||
Altitude | <1000 meters | 25% load with fan (L/h) | 5.3 (ESP) | 5.3 (PRP) | |||
Engine Data | AC Alternator Data | ||||||
Manufacturer | CUMMINS | Manufacturer | Marathon | ||||
Model | 4BTA3.9-G11 | Model | MP-50-4 | ||||
Output power (ESP/PRP) | 80 KW/70 KW | Voltage control | Electronic, self- regulating, +/- 1% | ||||
Number of cylinders / Cylinder configuration | 4/L | Short circuit capability | 3 * nominal current/10s | ||||
Bore / Stroke–mm | 102 /120 | Pole | 4 | ||||
Displacement | 3.9L | Radio interference | EN 55011 Class B, Group 1 | ||||
Compression ratio | 17.3:1 | IP class | IP 23 | ||||
Governor type | Electronic | Insulation class | H | ||||
Injection system | Direct injection | Temperature rise class | H | ||||
Cooling mode | Water cooling | Generator efficiency @ 100% load | 86.3% | ||||
Supply Scope

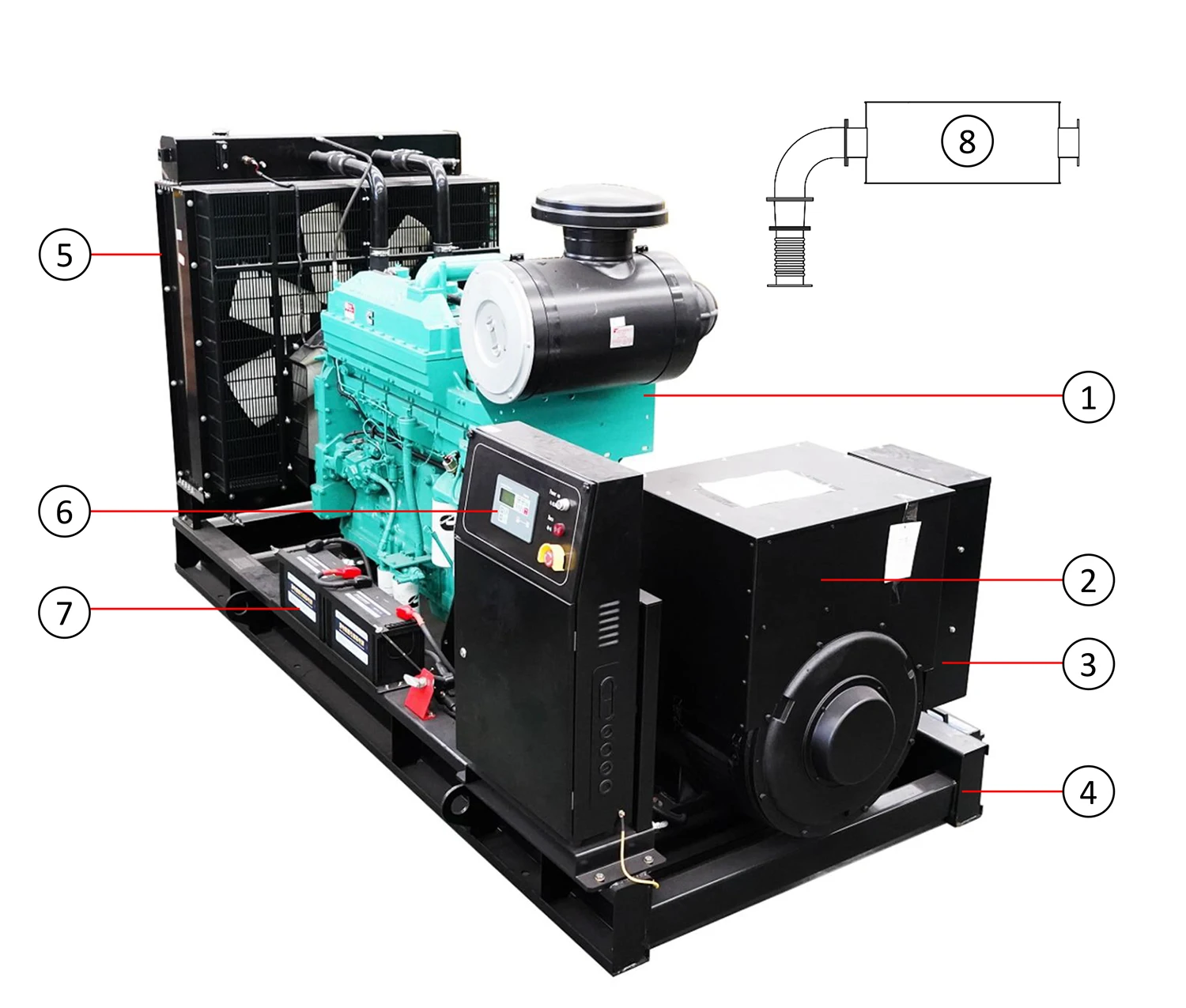

Standard Supply Scope:
① Diesel engine
② Synchronous AC alternator
③ Main circuit breaker
④ Heavy duty fabricated steel base frame
⑤ Water cooling radiator
⑥ Auto controller DSE 6020
⑦ Maintenance-free battery
⑧ SUS bellows expansion joint & flue silencer
⑨ Soundproof canopy (for silent type only)
Note: Please consult for following optional supply scope: | ||||||||
>> Automatic transfer switch | >> Synchronization system | |||||||
>> Coolant heater | >> Lubricant oil heater | |||||||
>> Fuel & water separator | >> External day-use fuel tank | |||||||
>> Anti condensation heater | >> Special-purpose silencer | |||||||
>> Other specific requirements | ||||||||
AGG Open Type Genset Supply Range:
>> Frequency: 50 & 60 Hz;
>> Capacity: 9 ~ 4000 KVA;
>> Fuel type: diesel, gas;
>> Voltage: 110V ~ 10 KV.
AGG Silent Type Genset Supply Range:
>> Frequency: 50 & 60 Hz;
>> Capacity: 9 ~ 3250 kVA;
>> Soundproof canopy type:
① ≤700 kVA: with standard canopy;
② >700 kVA: with containerized canopy;
>> Voltage: 110V ~ 10 kV.
AGG Soundproof Silent Generator set:
① Fresh Air inlet
② Emergency stop button
③ Steel base frame
② Emergency stop button
③ Steel base frame
④ Control cabinet
AGG Soundproof Silent Generator set:
⑤ Power cable outlet
⑥ Forklift slot
⑦ Drain outlet
⑧ Maintenance door
⑨ Drag hole
⑥ Forklift slot
⑦ Drain outlet
⑧ Maintenance door
⑨ Drag hole
Why Choose Us
>> Genuinely originates from Germany.
>> Over-five-decade experience for generator sets design & supply.

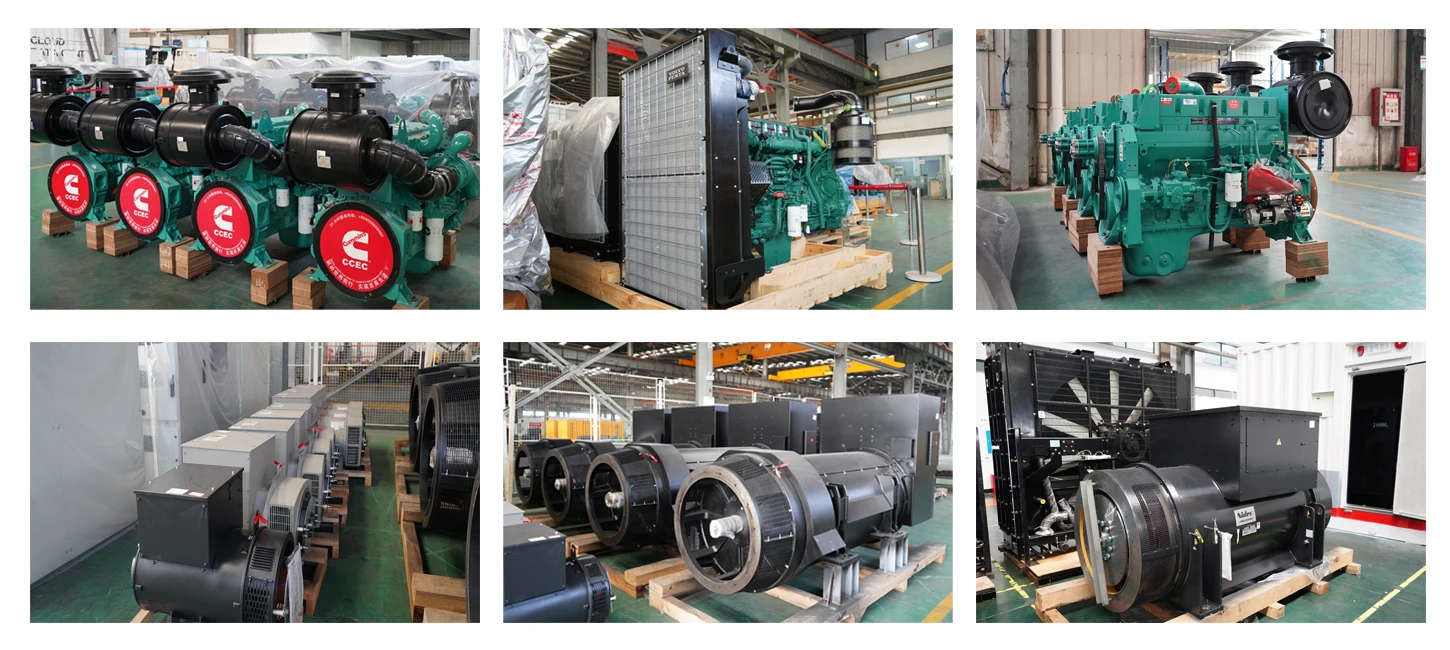

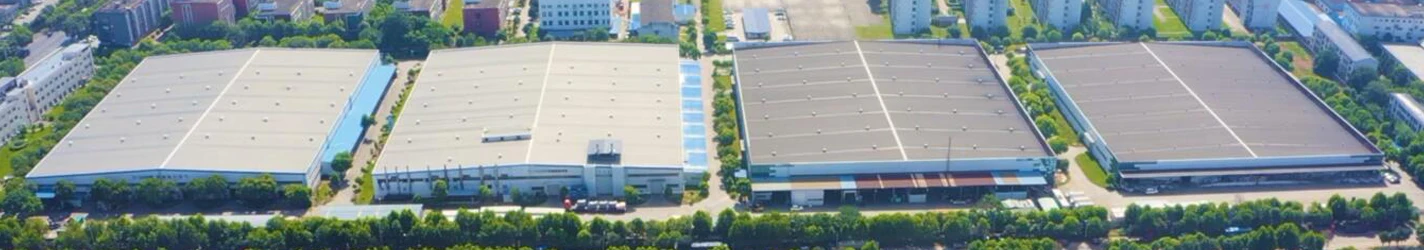

>> Genset manufacturing factory covers more than 30,000 square meters.
>> Specialize in the design & manufacture of generator set powered by diesel & gas engine, gas & steam turbine, and all kinds of internal combustion power unit.
>> Only work with famed engines, alternators and parts & components.
>> Have serviced large amount of world-renowned projects: Shanghai Tower, Shanghai World Financial Center, China Construction Bank (Beijing), Iraq Rumaila power plant, Colón Panama power plant, Dubai photovoltaic solar power plant, German Federal Railways, Xinjiang Karamay oilfield, and more.
Certificates & Partners
FAQ
Q: What is the power range of your generator sets?
A: We can provide 10 KVA to 7500KVA, with a voltage range of 110V~15000V and frequencies of 50Hz and 60Hz.
Q: What is the difference between prime power and standby power?
A: Prime power is applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
Standby power is applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings.
A: We can provide 10 KVA to 7500KVA, with a voltage range of 110V~15000V and frequencies of 50Hz and 60Hz.
Q: What is the difference between prime power and standby power?
A: Prime power is applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
Standby power is applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings.
Q: What is the difference between kW and kVA?
A: Generators are sized in both kW and kVA; where the kW is the real and actual power available and the kVA is the maximum apparent power that the generator is designed to handle.
A: Generators are sized in both kW and kVA; where the kW is the real and actual power available and the kVA is the maximum apparent power that the generator is designed to handle.
Q: How much fuel does a diesel generator use and how is it stored?
A: Different engines have different efficiencies but as a very rough rule of thumb a modern engine uses around 210 litres per hour per 1000kVA. Each generator (up to 800kVA) has an internal fuel tank with various sizes. If you need additional bulk storage tanks, please feel free to consult.
A: Different engines have different efficiencies but as a very rough rule of thumb a modern engine uses around 210 litres per hour per 1000kVA. Each generator (up to 800kVA) has an internal fuel tank with various sizes. If you need additional bulk storage tanks, please feel free to consult.
Q: What is the supply scope of your generator set?
A: For our open type generator set, the supply scope is generator set, radiator tank, control & switch cabinet (for the generator set only), starting battery, SUS bellows expansion joint, flue silencer.
A: For our open type generator set, the supply scope is generator set, radiator tank, control & switch cabinet (for the generator set only), starting battery, SUS bellows expansion joint, flue silencer.
Packing & Shipping
>> Ready-in-stock models can be delivered soon after payment is made; for customized or not ready models, lead time is normally within one month for one set.
>> Incoterms accepted by us are EXW, FCA, FAS, FOB, CFR, and CIF. For other terms, please feel free to consult.
>> For shipping, we normally deliver ordered gensets from port of Shanghai either by LCL or FCL.
>> Standard way of packaging is to wrap up the generator set with foam, plastic wrap or bubble film, such way is cost-effective, convenient, and efficient.

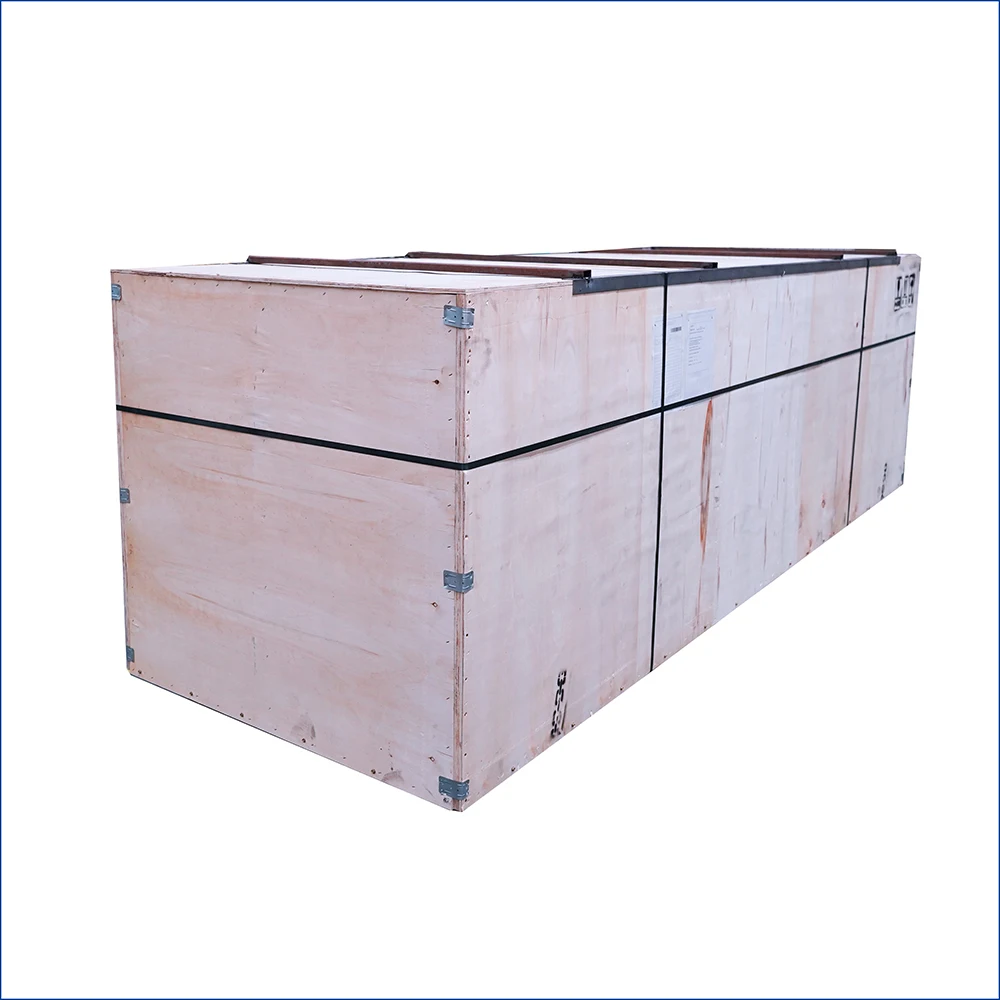

>> To provide better protection, we can also provide fumigation free plywood case or iron packing. Other packing methods are upon request.
