GOBEL EVE 3.2V 230Ah LiFePO4 LF230 Rechargeable Prismatic Cell 200ah 230ah LiFePO4 Lithium Ion Batteries
- Category: >>>
- Supplier: Shenzhen Good Leader Technology Co. Ltd.
Share on (1600437130905):
Product Overview
Description
Full Capacity Grade A EVE 3.2V 200Ah 230Ah LiFePO4 Battery Cell
Model No.: EVE LF230
Gurrantee:
1. All our LiFePO4 cells are brand new
2. All cells are in good condition
3. All cells capacity are tested

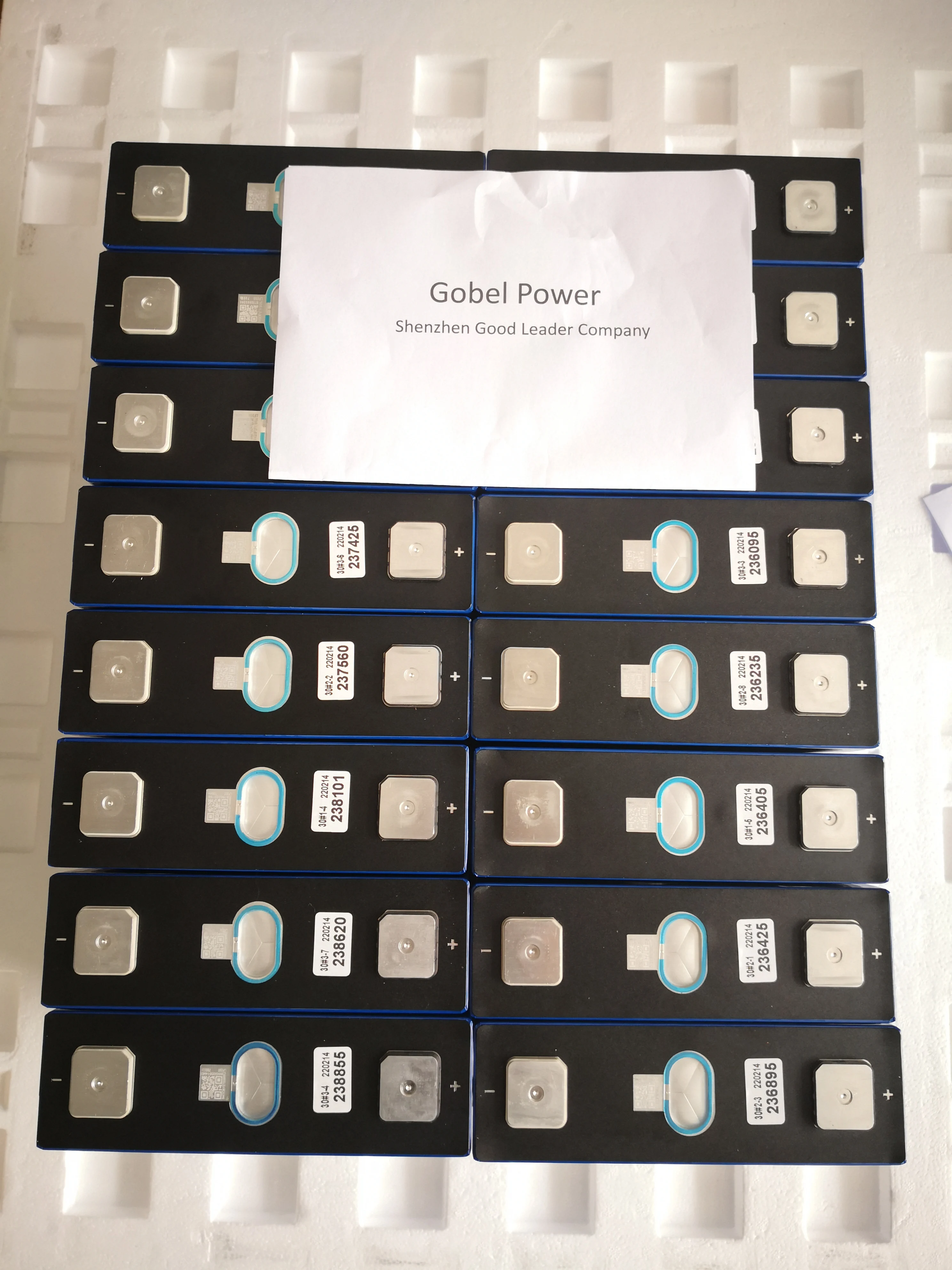

4. All cell are balanced
5. Free replacement if our cells have quality problem. (Except damage by misuse)

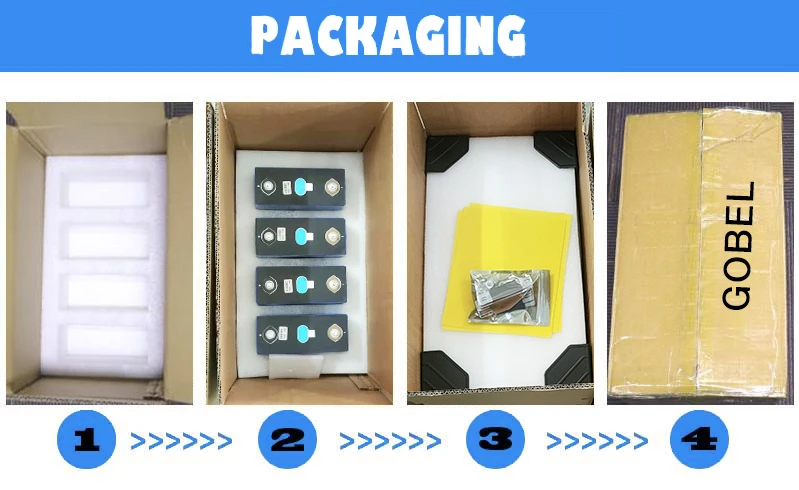

What is in the package:

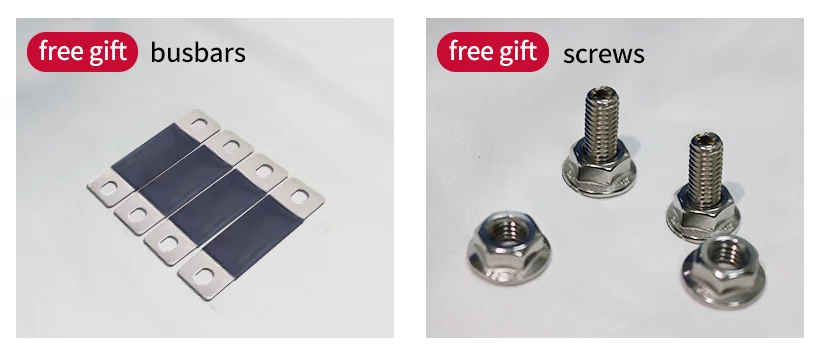

1. LF230 cells (with studs to connect with barsbars)
2. Barsbars
3. Bolts
4. Fiberglass plates
Shipping:
By sea freight. Package will be delivered to your door. We have paid import tax for you. You do not need to do anything during shipping, we handle all processes for you.
It usually takes about 30-60 days to be delivered.
Contact Gobel Power Team

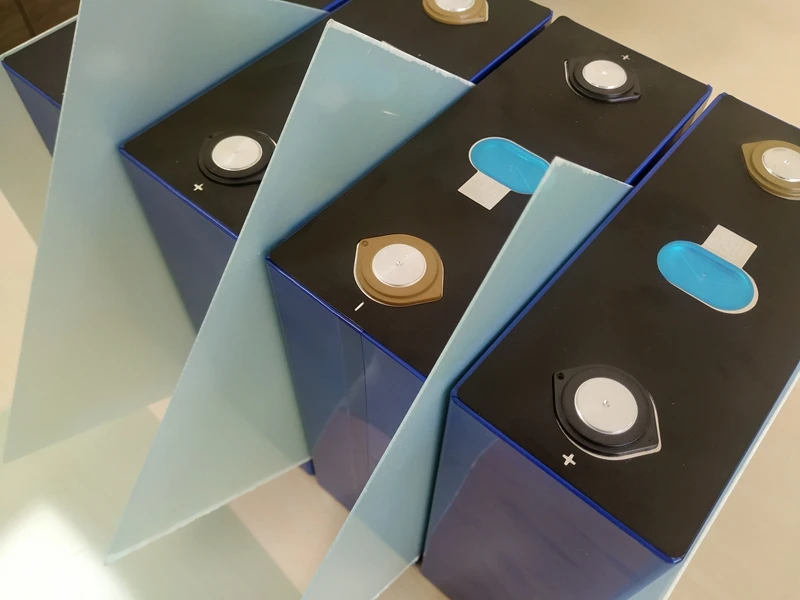

Why Fiberglass Plated Needed
Electric Insulation: LiFePO4 cell body is covered by blue film, if blue film broken, exposed metal shell will cause short curcuit. Fiberglass plate has very good electric insulating property.
Fireproof: Fiberglass plate can stop heat transmition between cells. If one cell overheated, it will not affcet other cells.
Fastening: Fiberglass has high stiffness, it can hold all cells together to avoild short or broken circut.

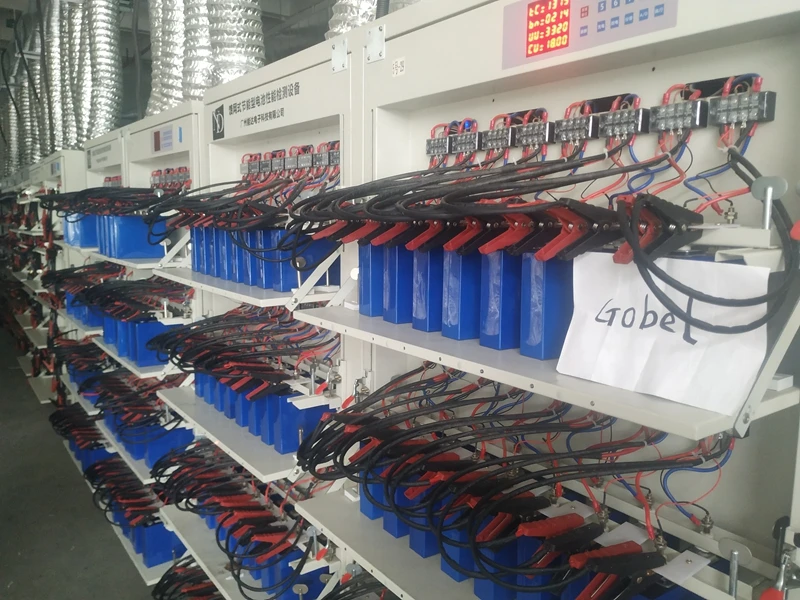

Matching Capacity and Balancing Process
Each cell will be professionally capacity tested before shipping. We make sure voltage, internal resistence and capacity c
onsistent with offical data sheet.
onsistent with offical data sheet.

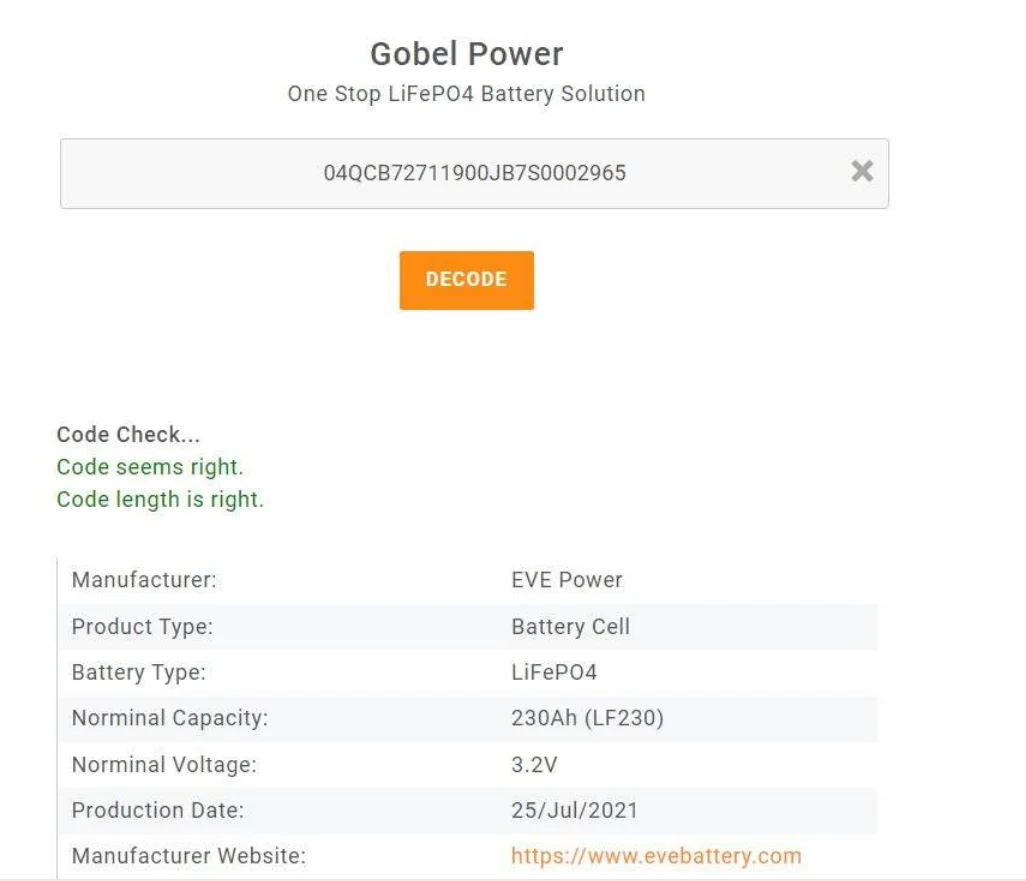

QR DECODER
The decoder algorithm is based on "Battery Coding Standards" issued by China Government. Any codes following this standard can be
decoded by Gobel Power developped Battery QR Decoder, such as LiFePO4, Ternary, LTO cells, modules and packs.
decoded by Gobel Power developped Battery QR Decoder, such as LiFePO4, Ternary, LTO cells, modules and packs.
Manufacture | EVE |
Distributor | Gobel Power |
Country of Origin | China |
Model Name | LF230 |
Typical Voltage | 3.2V |
Typical Capacity | 230Ah |

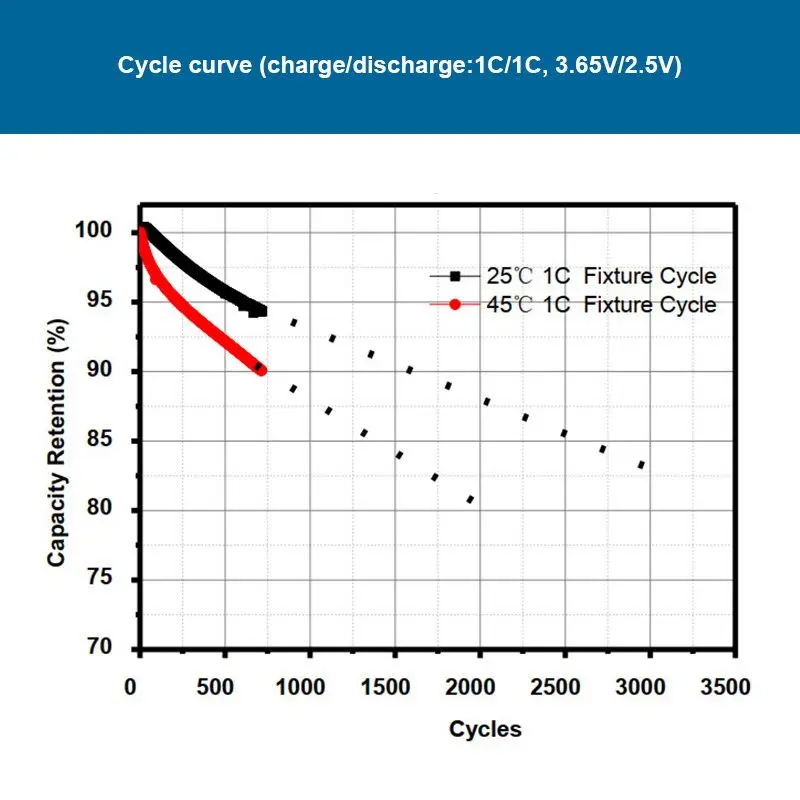

Cycle Life | 6000 |
AC Impedance Resistance | ≤0.25mΩ |
Standard Charge Current | 0.5C |
Standard Discharge Current | 0.5C |
Standard Charge Cut-off Voltage | 3.65V |
Standard Discharge Cut-off Voltage | 2.5V |
Continuous ChargeCurrent | 1C |
Continuous Discharge Current | 1C |
Pulse Charge Current（60s） | 1C |
Pulse Discharge Current（60s） | 2C |
Recommended SOC Window | 10%～90% |
Charging Working Temperature | 0℃～60℃ |
Discharging Working Temperature | -30℃～60℃ |
Short Term Storage Temperature (≤ 1 Month) | -20℃～45℃ |
Long Term Storage Temperature (≤ 1 Year) | 0℃～35℃ |
Storage Moisture | <95% |
Self Discharging Rate | ≤3% per Month |
Screw Size | M6 |
Copper Bar Size | 86*15*2mm |
Cell Dimension | 207.5*72*173.7mm |
Cell Weight | 4.6kg |
Certification | MSDS, UN38.3, CE |
