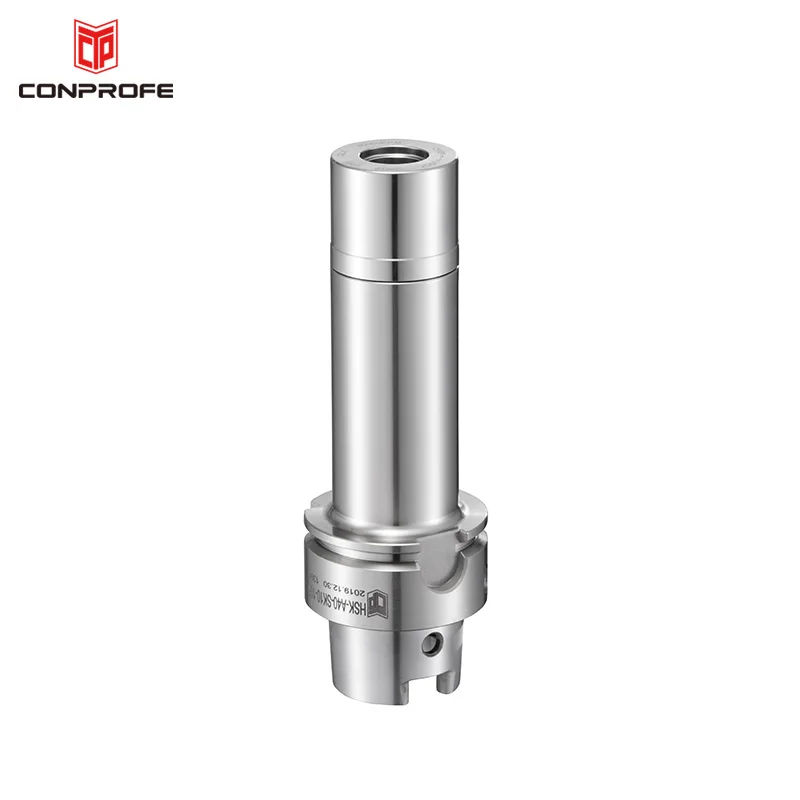

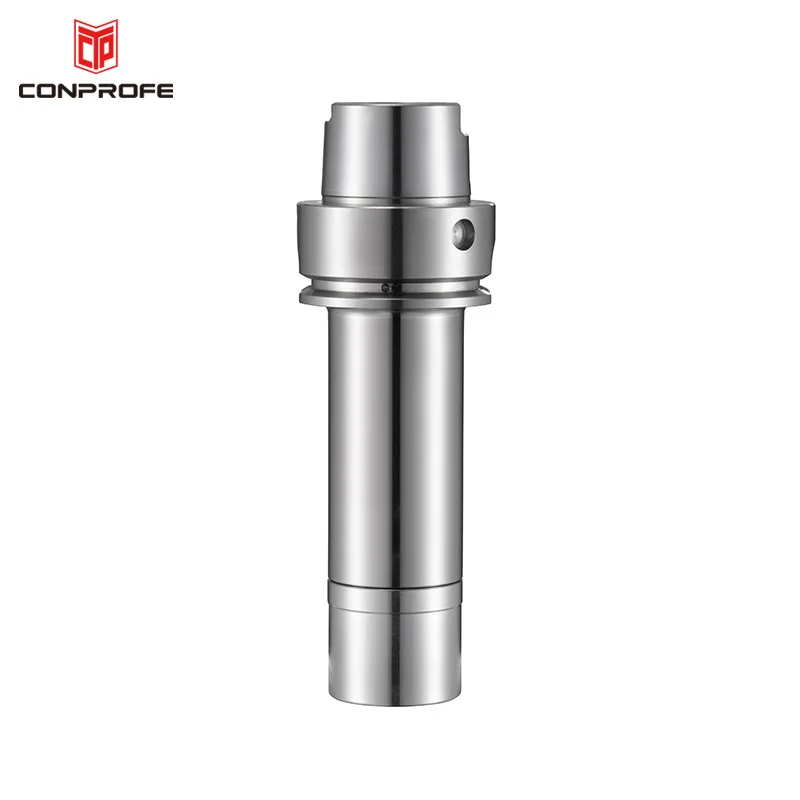

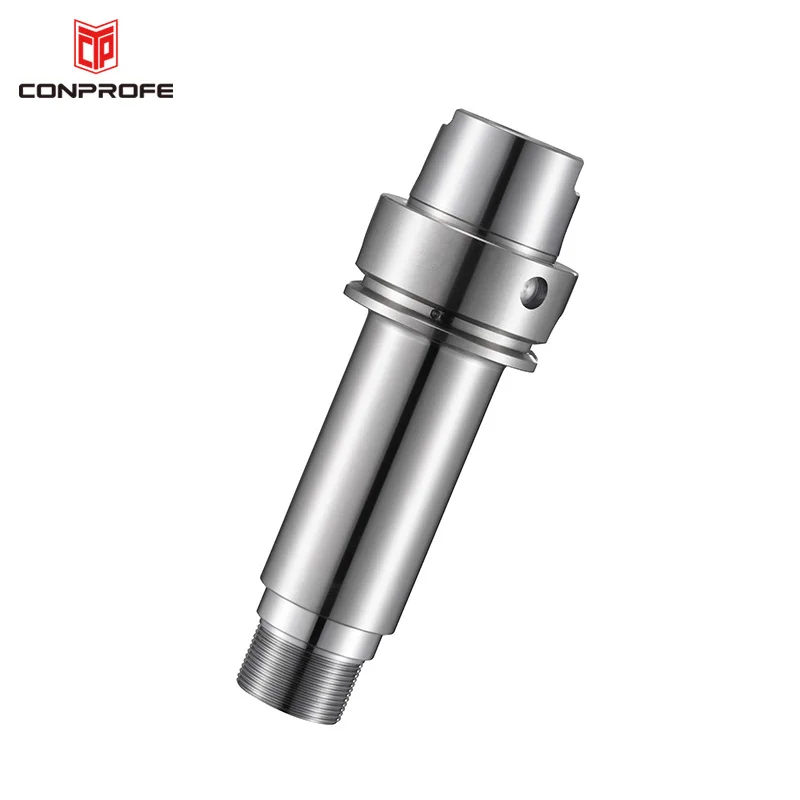

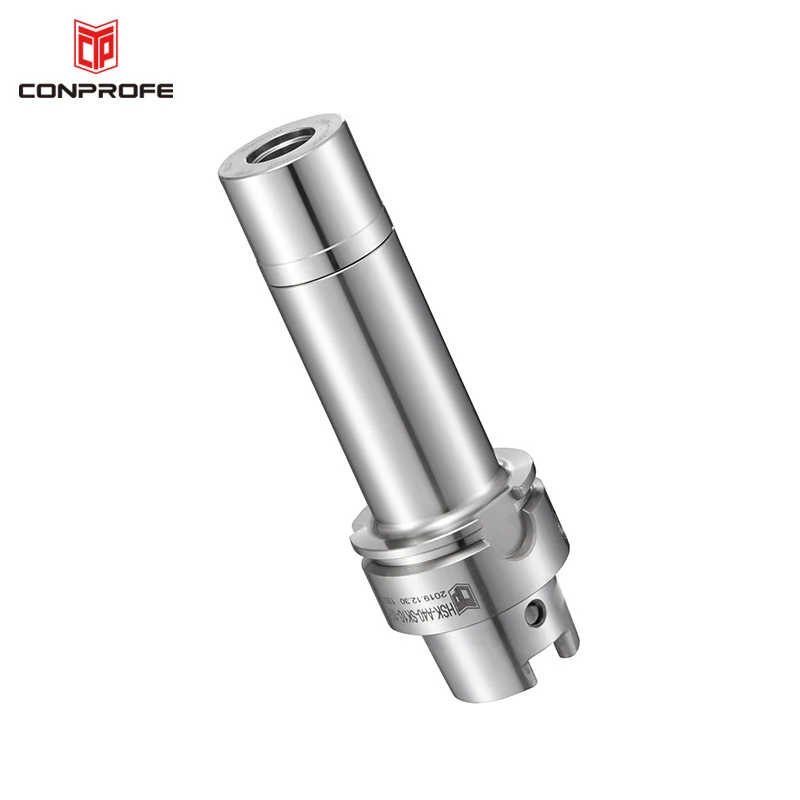

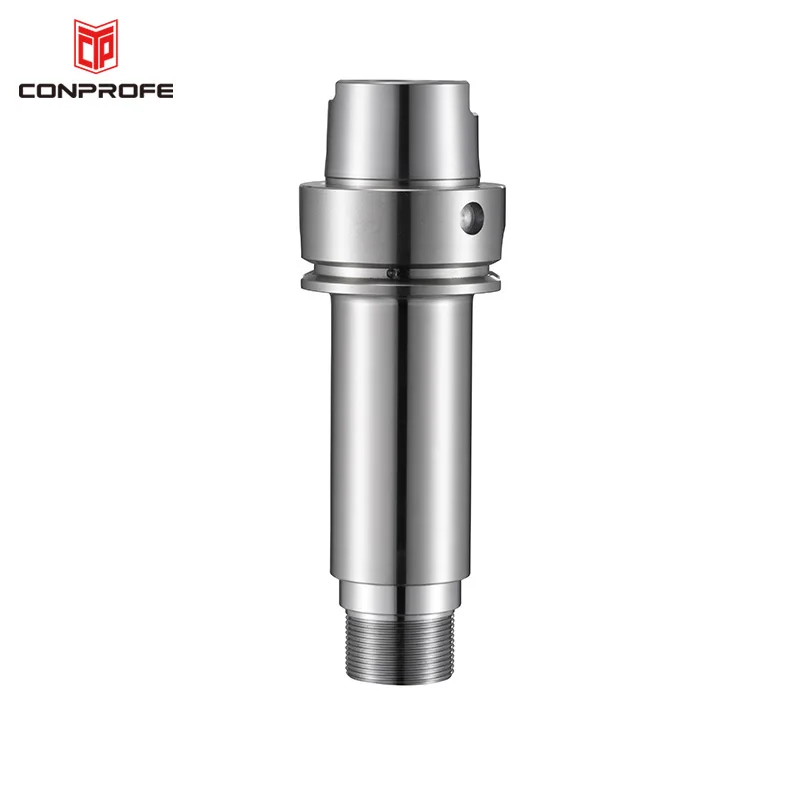

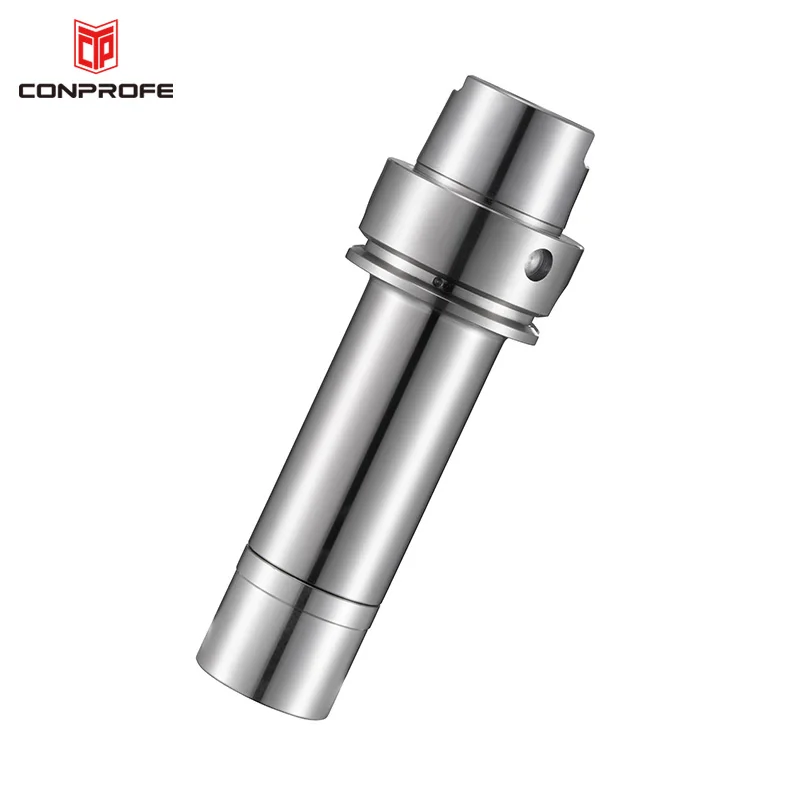

High speed precision 95% Taper fitness HSK40A SK10 Spring Collet Chuck Holder
- Category: >>>
- Supplier: Conprofe Technology Group Co. Ltd.
Share on (1600437131444):
Product Overview
Description
High speed precision 95% Taper fitness HSK40A SK10 Spring Collet Chuck Holder
Product Description
| Product Name | Spring Collet Chuck Holder |
| Item No. | HSK-A40-SK10-105 |
| Clamping Diameter (mm) | 1~10 |
| D (mm) | 22 |
| D1 (mm) | 19 |
| L (mm) | 105 |
| L1 (mm) | 80 |
| G | M19*1 |
| Spindle | HSK40A |
| Nut | SK10 |
| Collet | SK10 |
| Net Weight (kg) | 0.8 |
| Warranty (Months) | 12 |
High speed precision tool holder
Rust-resistant, wear-resistant and high-strength stainless steel structure
Noise-free and high speed machining ensured by balanced nuts
Accuracy of the tool holder ≤2μm, run-out accuracy ≤5μm
Dynamically balanced to G2.5 at 30000rpm (U≤0.3gmm)
Taper fitness ≥95%
Beautiful surface provided by special treatment
