Product Overview
Description

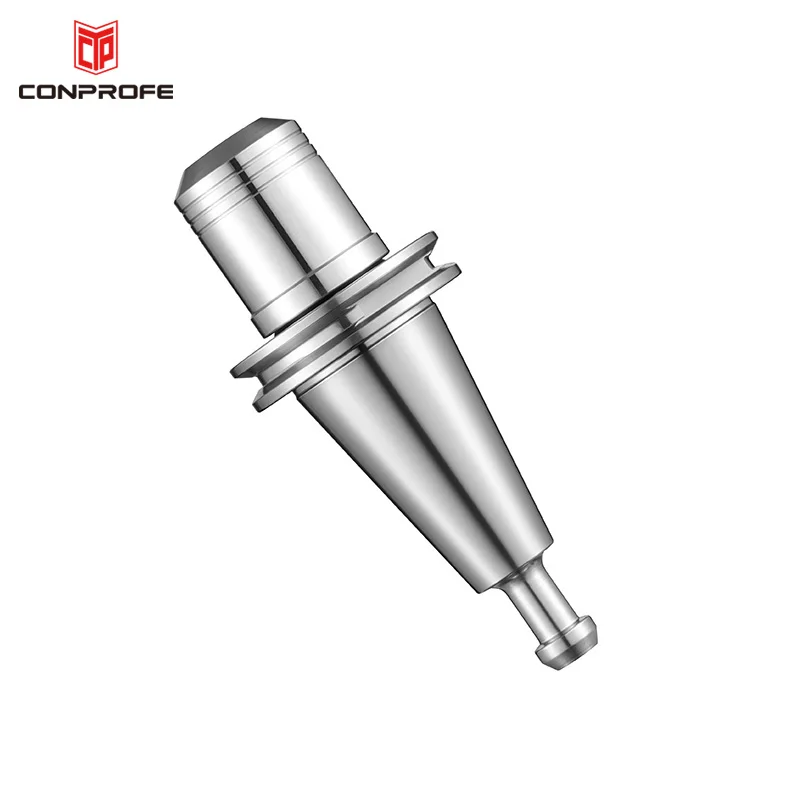

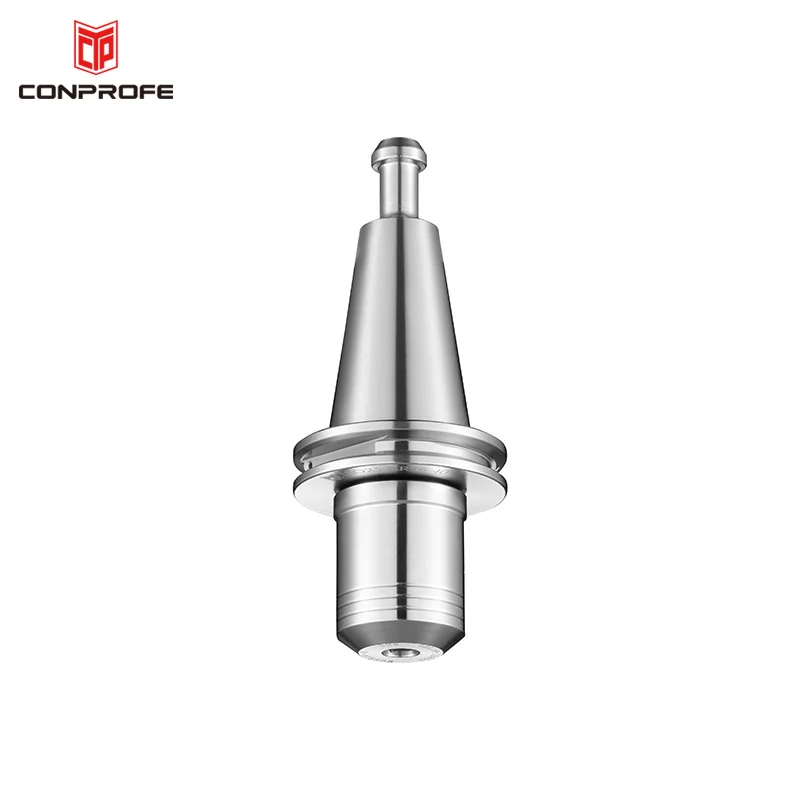

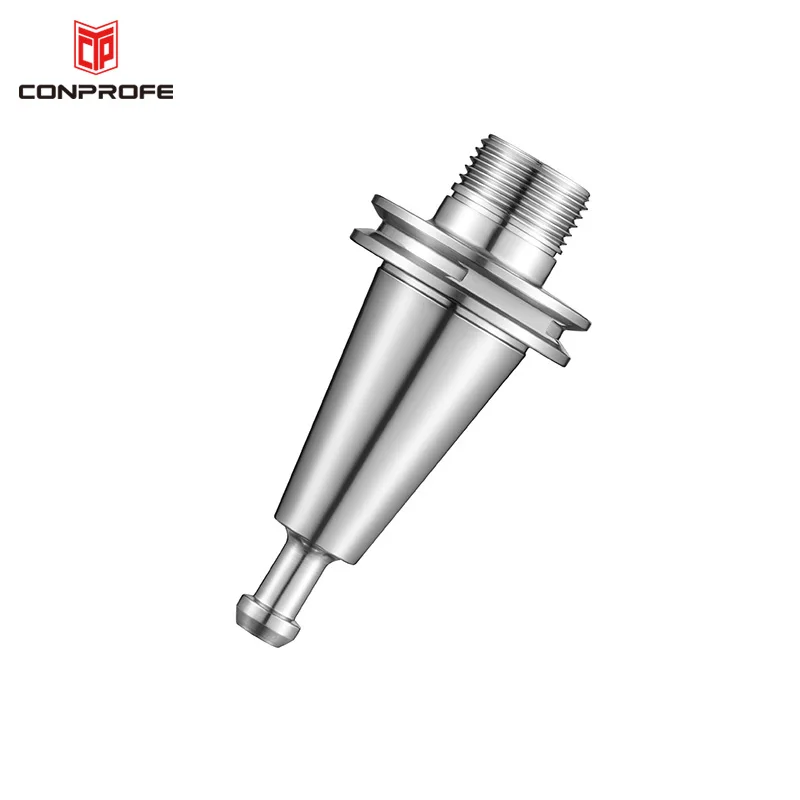

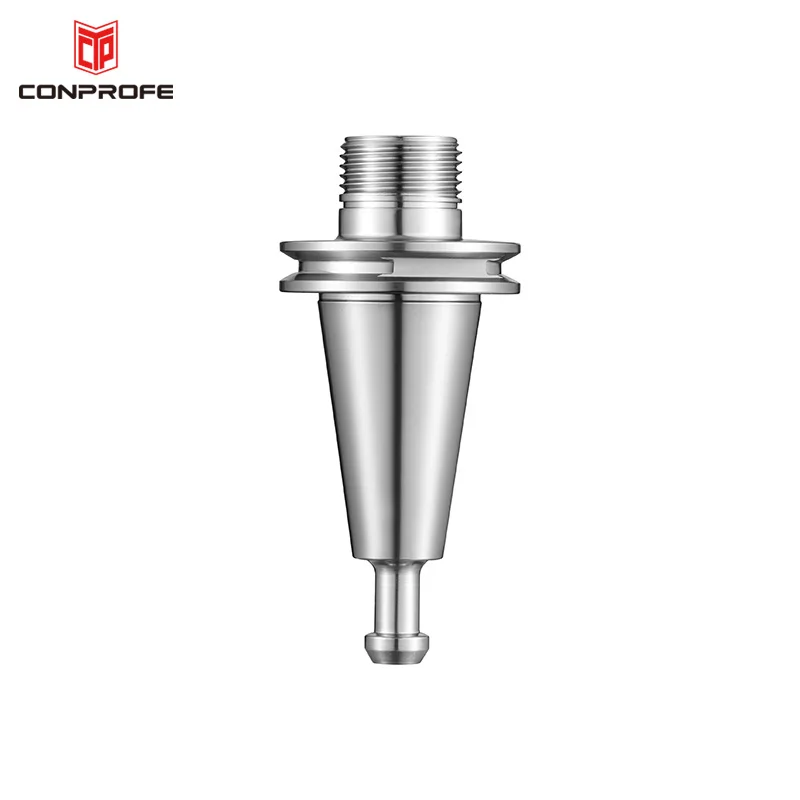

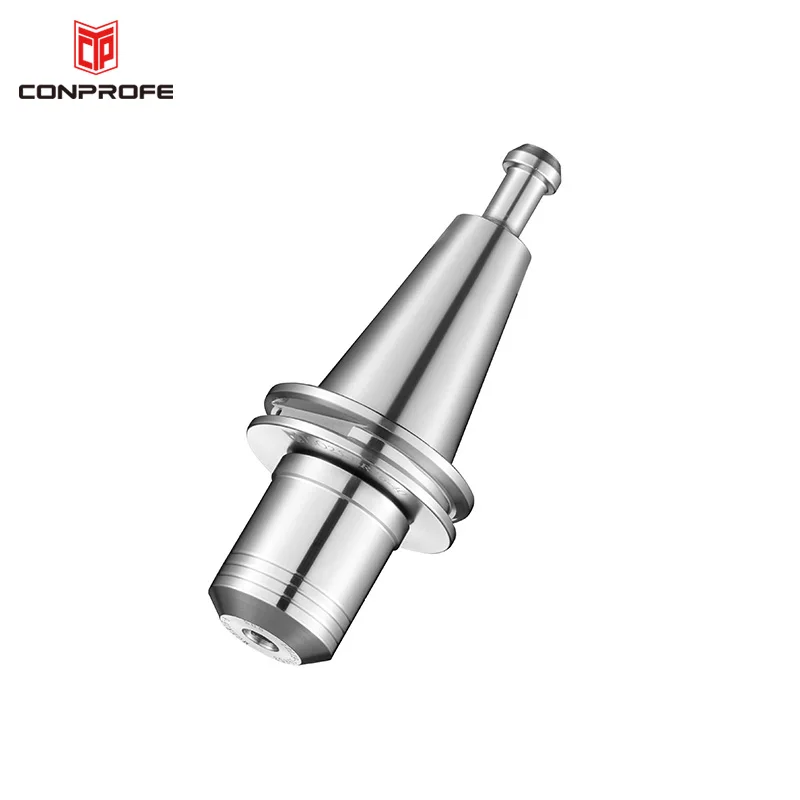

CNC Machine Tools ISO25 ER16 Lathe High Speed Collet Chuck Tool Holder
Product Description

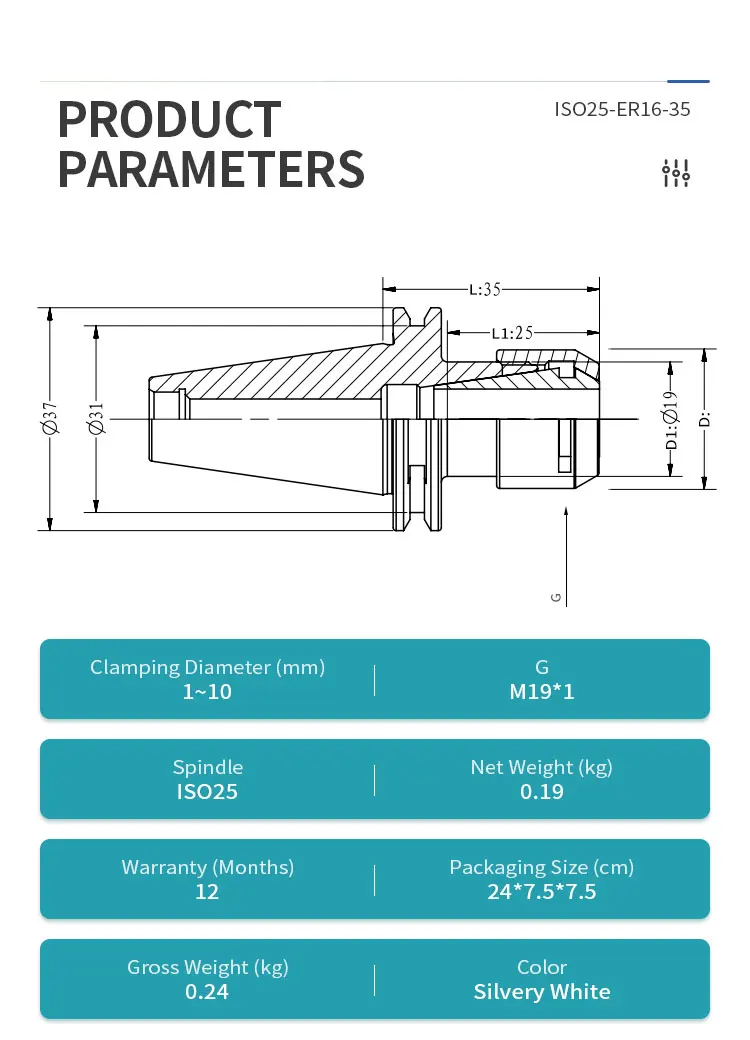

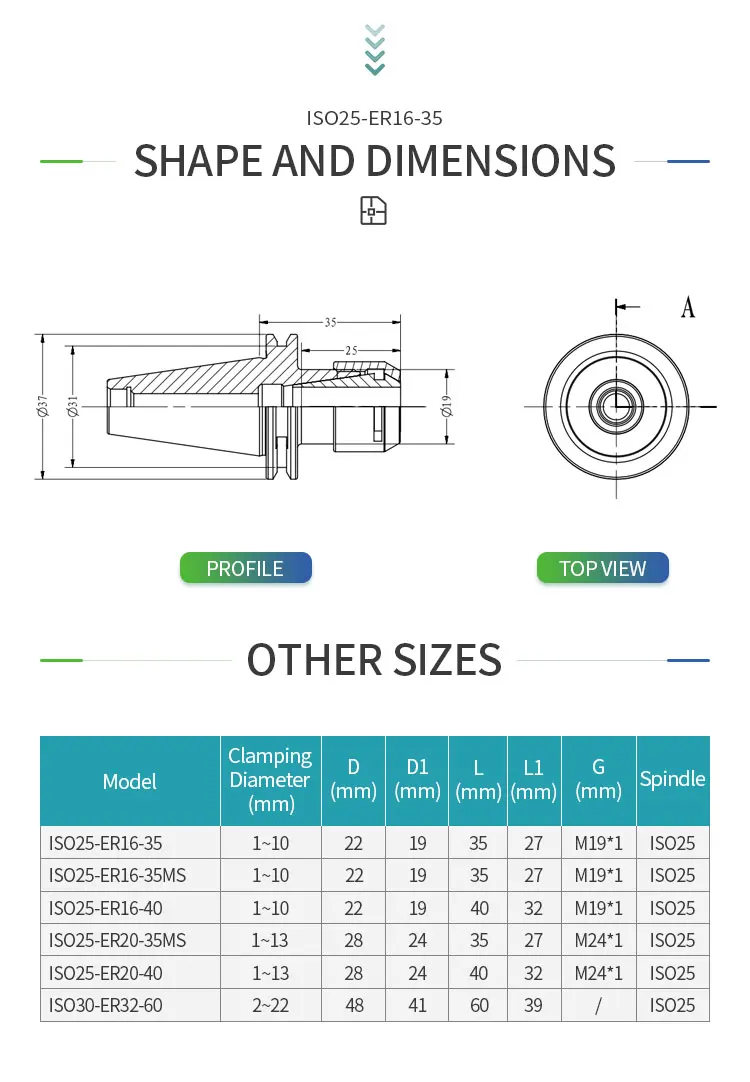

| Product Name | Spring Collet Chuck Holder |
| Item No. | ISO25-ER16-40 |
| Clamping Diameter (mm) | 1~10 |
| D (mm) | 22 |
| D1 (mm) | 19 |
| L (mm) | 40 |
| L1 (mm) | 32 |
| G | M19*1 |
| Spindle | ISO25 |
| Nut | ER16 |
| Collet | ER16 |
| Net Weight (kg) | 0.2 |
| Warranty (Months) | 12 |
| Advantage | High speed precision tool holder |

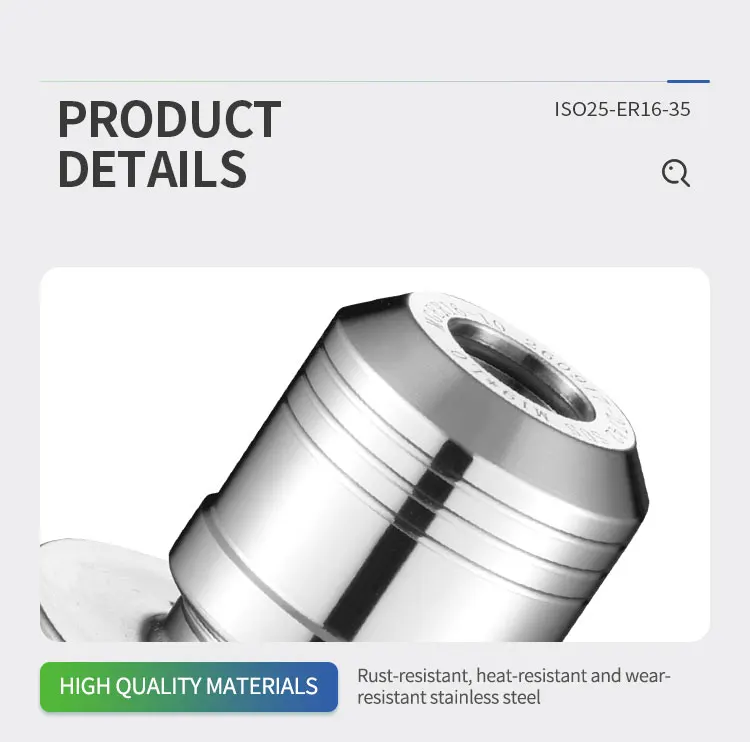

| Rust-resistant, wear-resistant and high-strength stainless steel structure | |

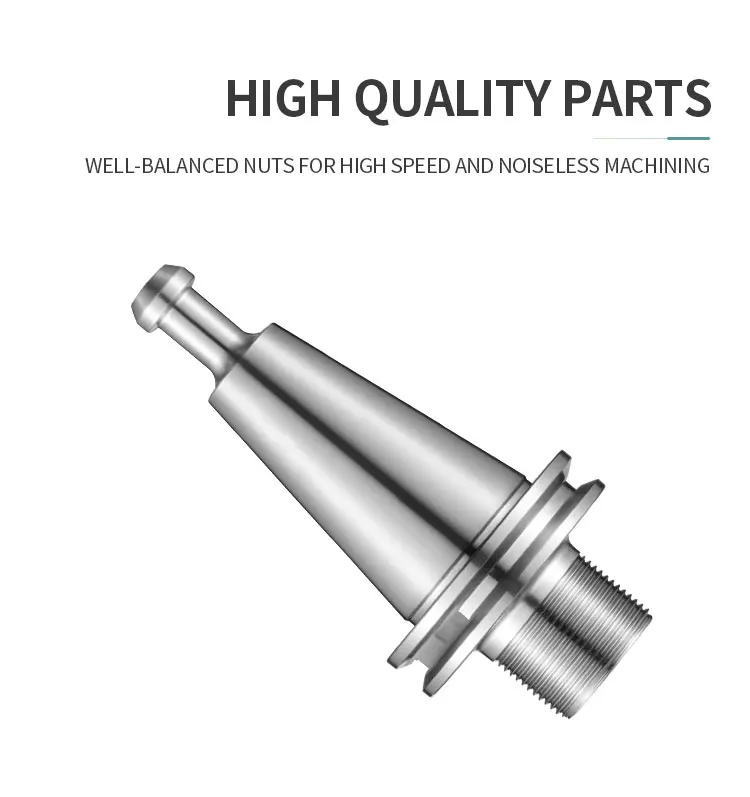

| Noise-free machining ensured by balanced nuts | |

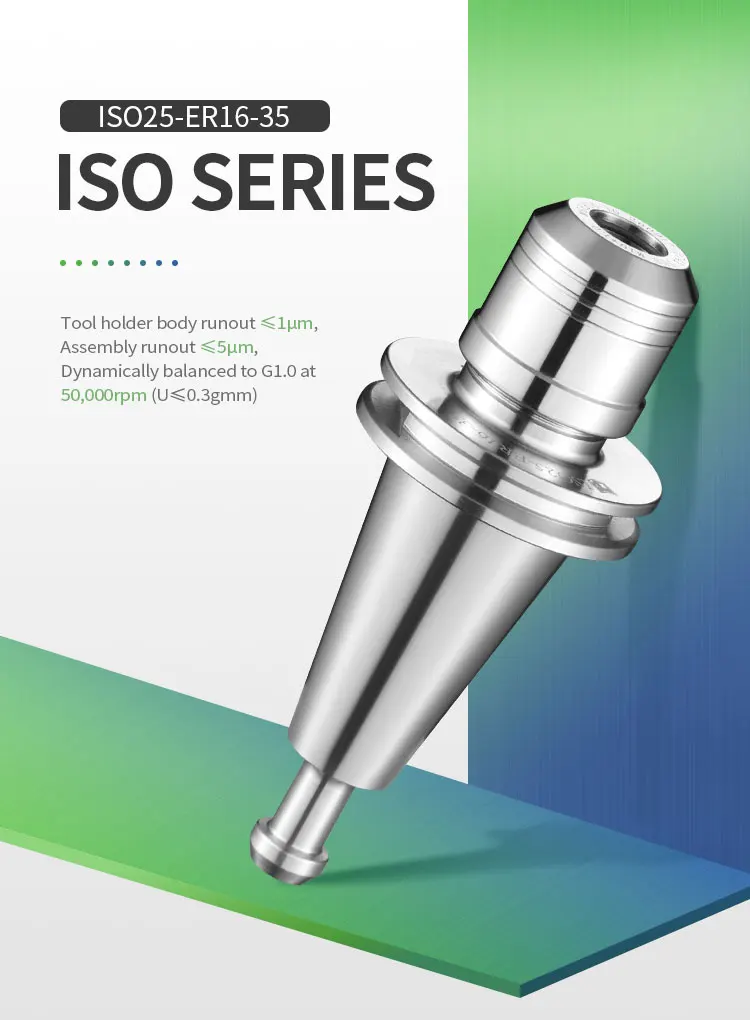

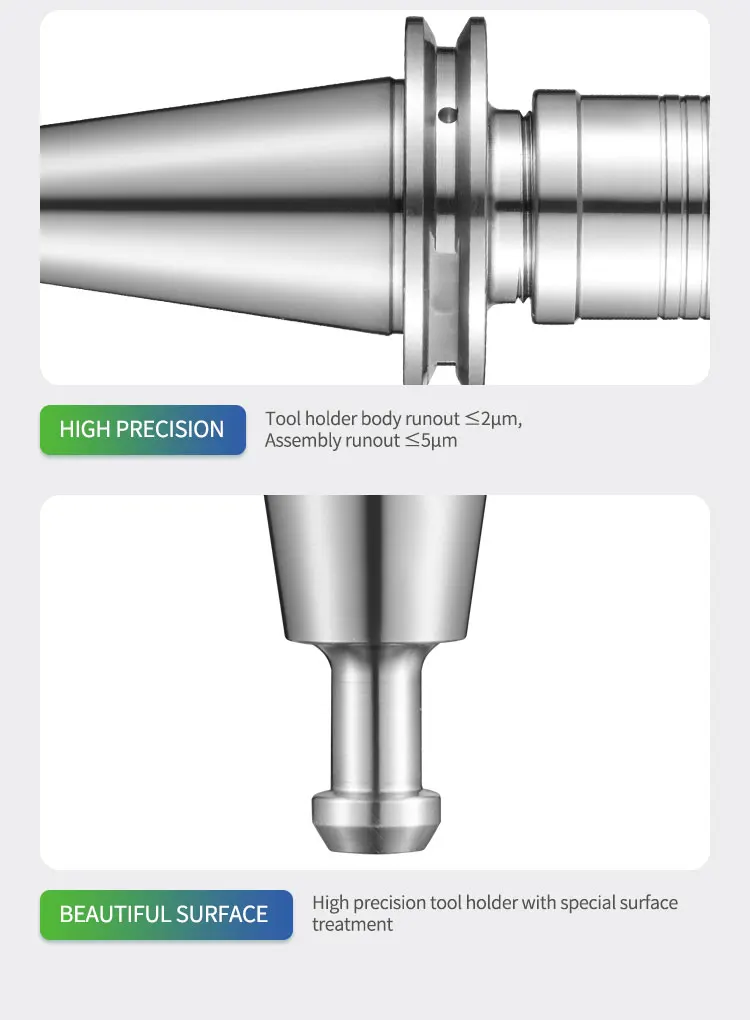

| Accuracy of the tool holder body≤1μm, run-out accuracy ≤5μm | |

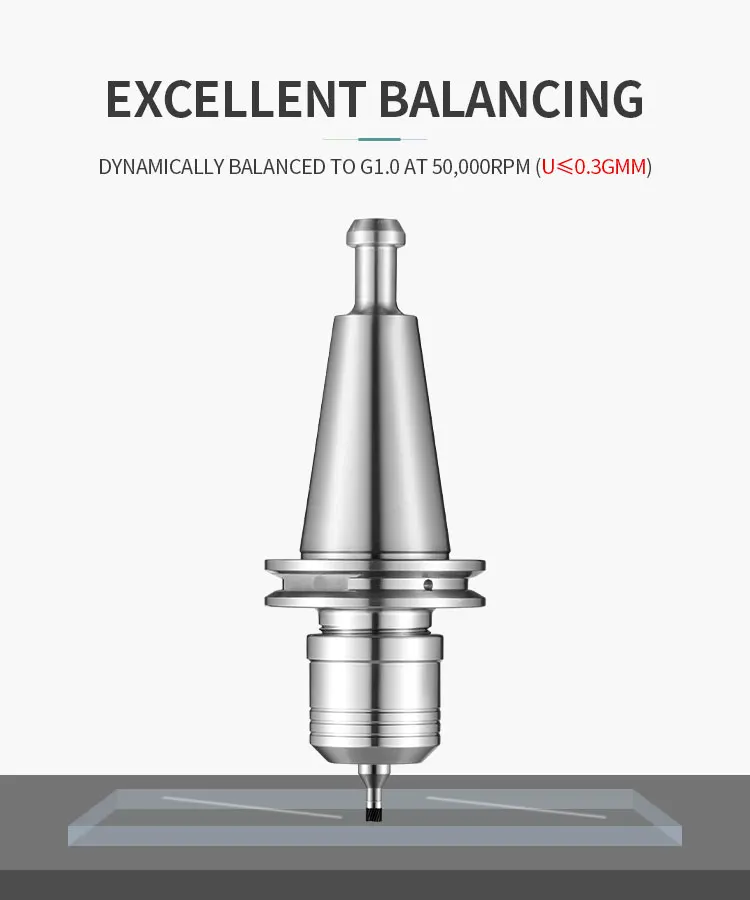

| Dynamically balanced to G1.0 at 50000rpm (U≤0.3gmm) | |

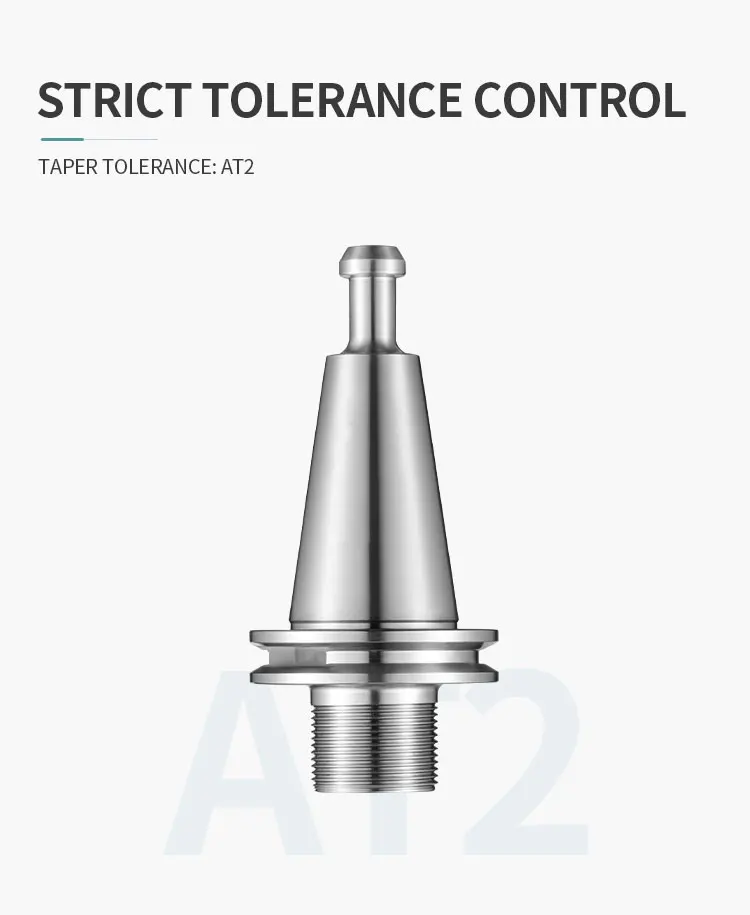

| Taper tolerance: AT2 | |
| Beautiful surface provided by special treatment |
