Mechanical Shaft Seal HQQE HQQV GLF PUMP Mechanical Seal For Pump Mechanical Seal
- Category: >>>
- Supplier: Liuzhou Xiaori Machanical Equipment Co. Ltd.
Share on (1600437140933):
Product Overview
Description
Mechanical Shaft Seal HQQE HQQV GLF PUMP Mechanical Seal For Pump Mechanical Seal
Product Overviews
| Product Information | ||
| Product Name | Mechanical Seal | |
| Type | GLF | |
| Operating limits | Standard | DIN24960 |
| Pressure | ≤1.0MPa | |
| Temperature | -20-180℃ | |
| Speed | ≤15m/s | |
| Medium | Water, Sewage, Sea water, Oil, Acid, Organic solvent, Crystalline acid, Amorphous acid, Alkali, Salt, Corrosive liquid, Non-corrosive liquid, etc. | |

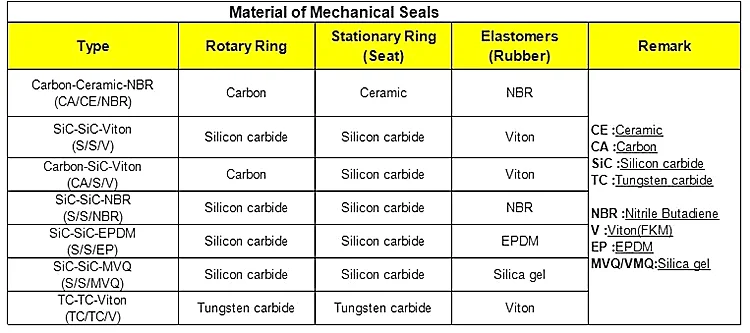

| Material |
Stationary Face Material | Ca (Carbon graphite) |
| Sic (Silicon carbide) | ||
| Cer (Ceramic) | ||
| TC (Tungsten carbide) | ||
Rotary Face Material | Ca (Carbon graphite) | |
| Sic (Silicon carbide) | ||
| Cer (Ceramic) | ||
| TC (Tungsten carbide) | ||
Secondary Seal Material | NBR | |
| FKM(VT) | ||
| EPDM | ||
| PTFE | ||
| Metal Component | ss304 | |
| ss316 | ||

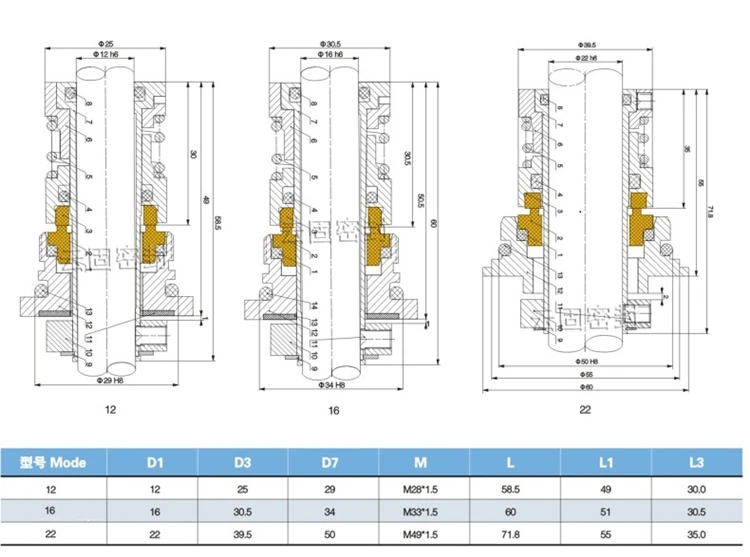

| Specification | 12/16/22
| |
Related Products
Technology
Company Information
FAQ
Q 1. What's the payment term? A: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, West Union,VISA,Paypal is also accepted.
Q 2. What is the normal lead time for product orders? A: Generally it is 1-2 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.
Q 3. What is your standard packing? A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.
Q 4. Could you please tell us the month capacity of your products ? A: It depends on which model, we produce more than 2500 tons rubber materials per month.
Q 5. what kind of certificates you have ? A1: We have been ISO9001:2008 and ISO14001:2004 certified by S G S since 2015. A2: We have various rubber compounds approved by NSF, ROHS and REACH.
Q 6: How to check the quality of the bulk order? A1: We provide preproduction samples before mass production for all customers if needed. A2: We accept third party inspection such as TUV, INTERTEK, BV, etc.
Q 7: Do you use any international standards for the rubber products? A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, tolerances as per ISO3302, ISO2768, etc.
Q 8: What materials are available to produce from your side? A: NBR, EPDM, SILICONE, FPM(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.
Q 9: Does NUOANKE Rubber provide maintenance on tooling? A: NUOANKE Rubber maintains all tooling and will replace as needed.
Q 10: How many empolyees you have? A: We have 325 empolyees at time of December 2016. |
