Automatic 19Litre 20Liter 20L Bucket Bottled production Line Pail Drum Jar 5 Gallon Water Filling Machine
- Category: >>>
- Supplier: Zhangjiagang Crown Machinery Co. ltd
Share on (1600437177060):
Product Overview
Description
Product Description

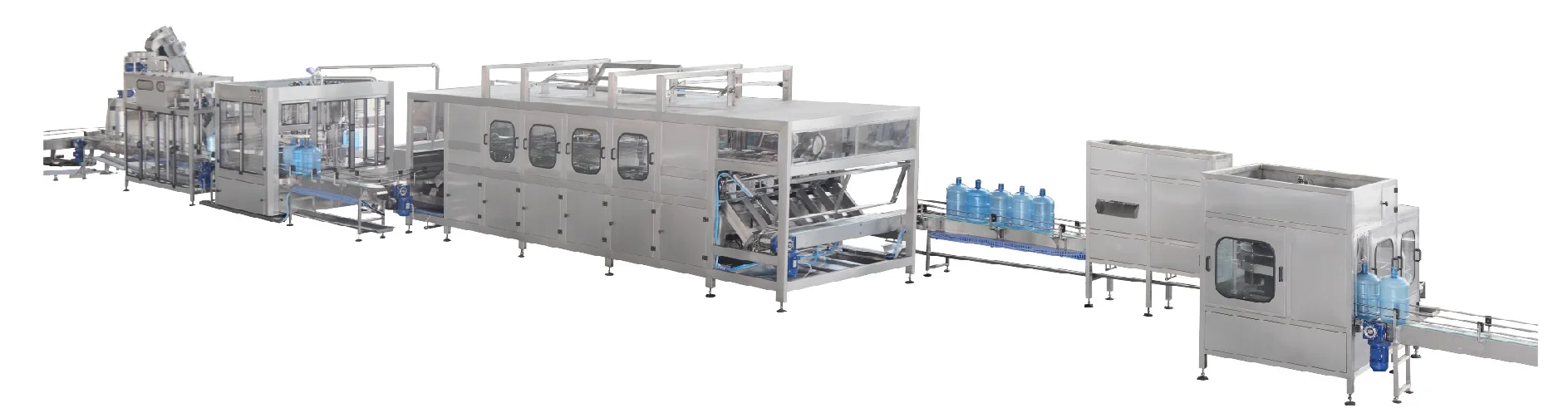

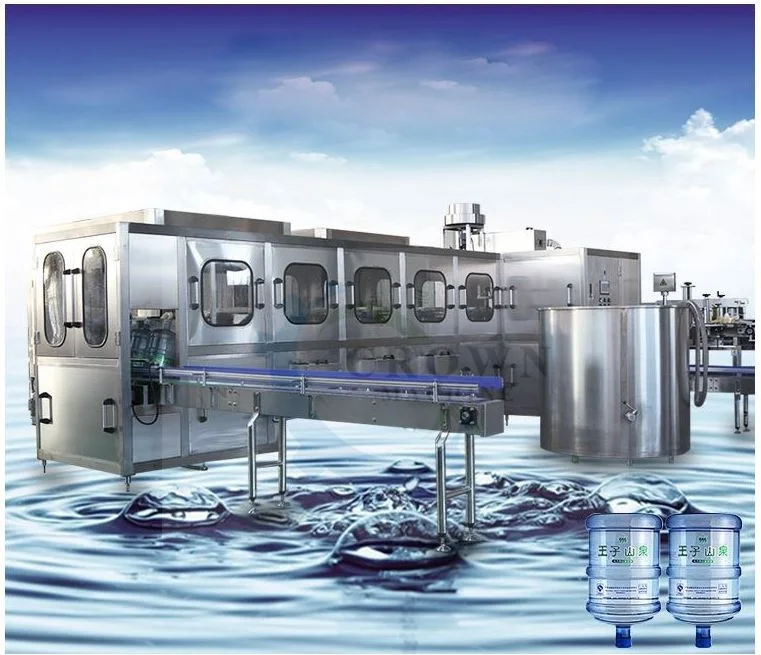

5 Gallon Water Filling Production Line
Main Features
QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with the brand of SIEMENS and OMRON. Pneumatic parts adopt products with the brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.
Containers and Specifications | ||||||
Project Name: Full Automatic Complete 60-1200BPH 3-5 Gallon Barrel Filling Production Line | Mineral Water Pure Water | |||||
Material | Shape | Filling Volume | Filling Type | |||
PC / PET | Round / Square | 3 - 5 Gallon | Gravity filling Normal temperature | |||
Adjustable Specifications of Bottle Type | Size of Barrel : ф276×490mm | |||||
Customers need to buy additional change-over parts for the different bottles | ||||||
Container Label | Sticker Label / Shrink Wrap Label / Prinetr Label | |||||
User Ambient Conditions | Temperature: 10~40℃ Humidity: No dew | |||||
User Electrical Supply Specification | Voltage: 380V±5% 3 Phase Frequency: 50HZ±1% | |||||
3-5 Gallons Barreled Water Production Line Benefits
(1) QGF series automatic production line is specialized for production of 3-5
Gallon barrel
(2) The machine consists of washing, filling and sealing in one
(3) The bottle washer adopts multi-channel washing liquid injection and disinfectant injection for the purpose of washing sterilization.The disinfectant is recyclable
(4) The sealing machine can start sealing automatically and the bottle conveying port is equipped with a sanitation device to ensure the sanitation of cap
(5) Washing, disinfection, filling, gland, counting and discharging is automatic
(6) The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON
(7) This production line is an ideal choice for mineral water, distilled water and purified water with impact structure, small occupation of land and high automation
(2) The machine consists of washing, filling and sealing in one
(3) The bottle washer adopts multi-channel washing liquid injection and disinfectant injection for the purpose of washing sterilization.The disinfectant is recyclable
(4) The sealing machine can start sealing automatically and the bottle conveying port is equipped with a sanitation device to ensure the sanitation of cap
(5) Washing, disinfection, filling, gland, counting and discharging is automatic
(6) The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON
(7) This production line is an ideal choice for mineral water, distilled water and purified water with impact structure, small occupation of land and high automation
Photo Show of Each Machine
Name: De-capping machine
The QGB series automatic de-capper is the professional equipment for 5 gallon water filling line, especially the filling line that use recycle barrel. It enhances work efficiency remarkably, reduce secondary pollution from manual de-capping greatly and lower labor intensity. The machine is made of stainless steel which is corrosion resistant and easy cleaning.
Name: External barrel brushing machine
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the
settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is
made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.
settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is
made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.
Name: Bottle feeding machine
The device employs key components of electrical appliances and metal materials manufactured by name brand factories from home and abroad. It is not only with the advanced technology, high automatization, easy operation and reliable performances as the genuine device from abroad, but also features with small size, small weight and beautiful appearance, anti-corrodibility.
Name: Washing-filling-capping machine
The machine consists of washing, filling and sealing in one. The bottle washer adopts multi-channel washing liquid injection and disinfectant injection for the purpose of washing sterilization.The disinfectant is recyclable. The sealing machine can start sealing automatically and the bottle conveying port is equipped with a sanitation device to ensure the sanitation of cap.
Name:Cap elevator
Function advantage----Supporting with the capping machine,automatic cap-sender,automaticstopping,automatic control
Stepless speed regulation----According to production requirement can realize balance the cap-sending speed
Name:Lamp checker
It is usually used tar production checking after filling, eyes check the product by light pass the qualified product and eliminate the debris
Name:Conveyor
(1) With circular chain transit between each chain, better convey effect
(2) Beautiful appearance, convenient adjustment
(3) Chain plate made by standard 304 stainless steel chain products
(4) Homemade stainless steel fittings, stainless steel flat pillar
(3) Chain plate made by standard 304 stainless steel chain products
(4) Homemade stainless steel fittings, stainless steel flat pillar
The Washing-Filling-Capping Machine

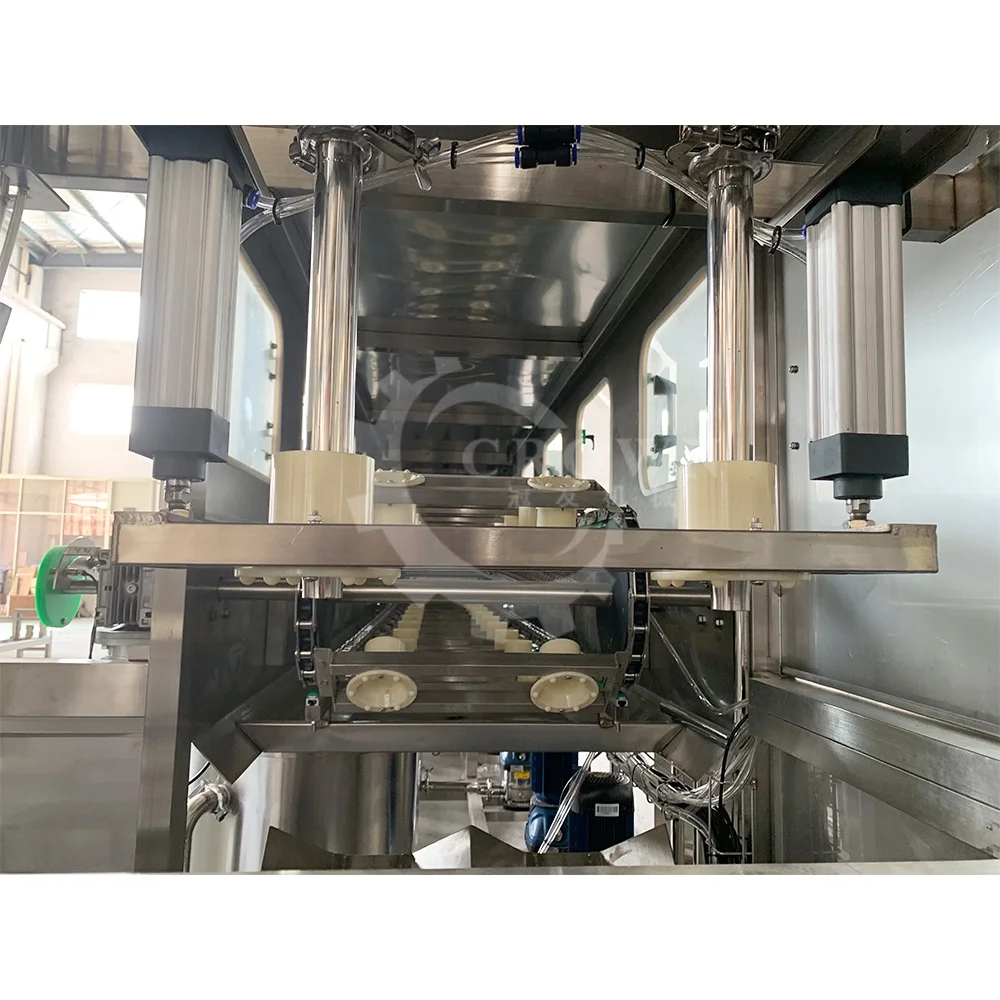

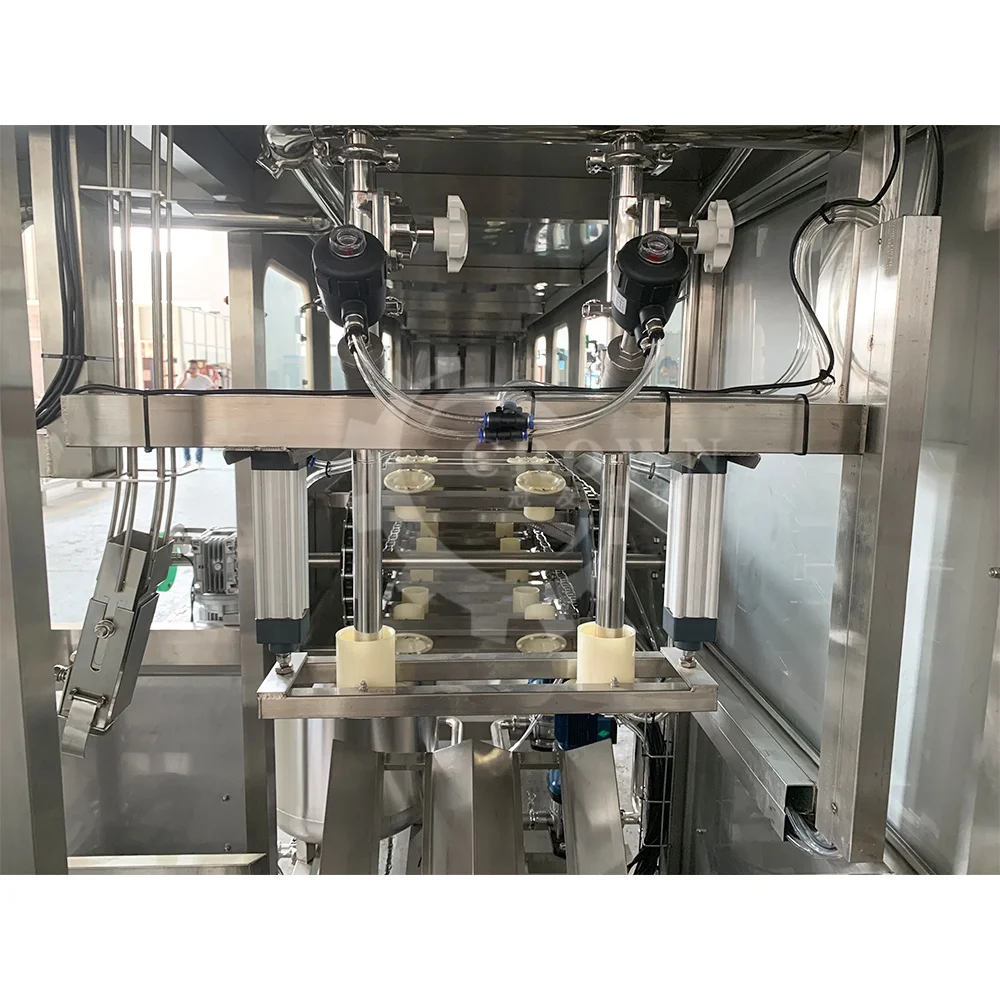

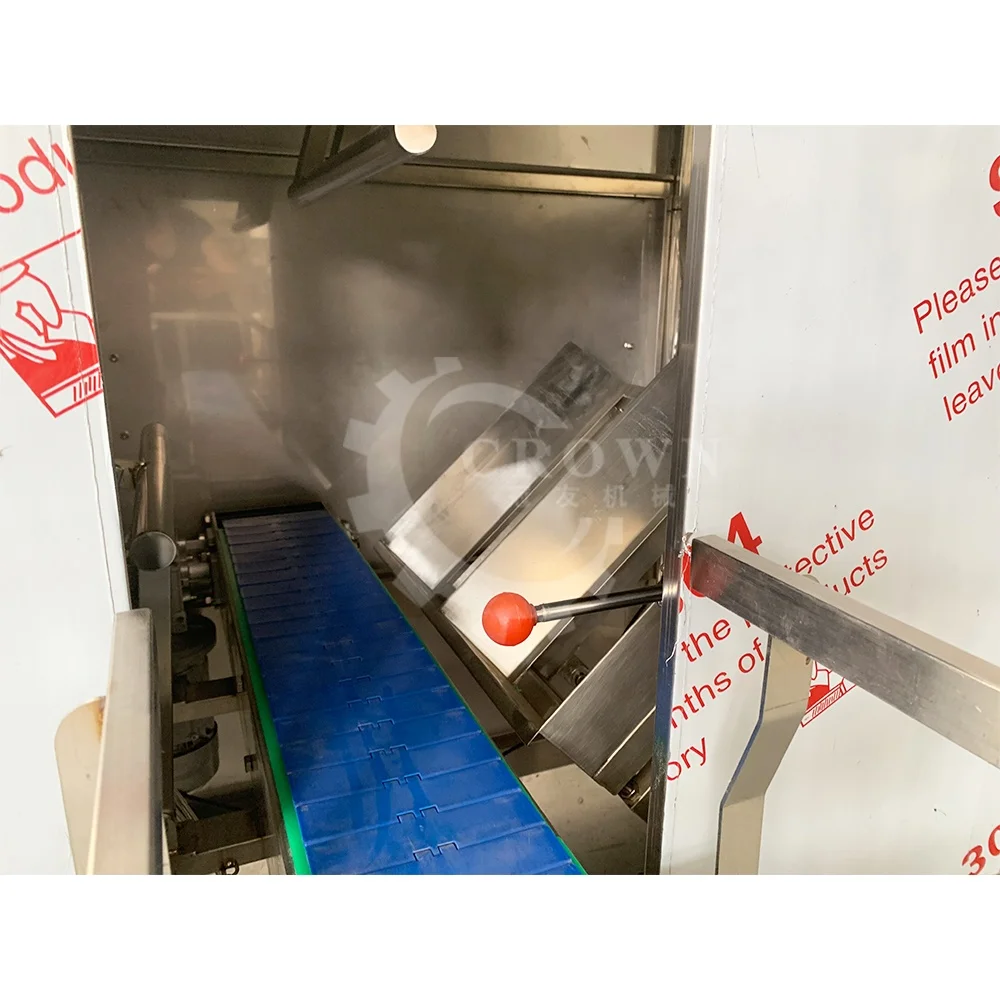

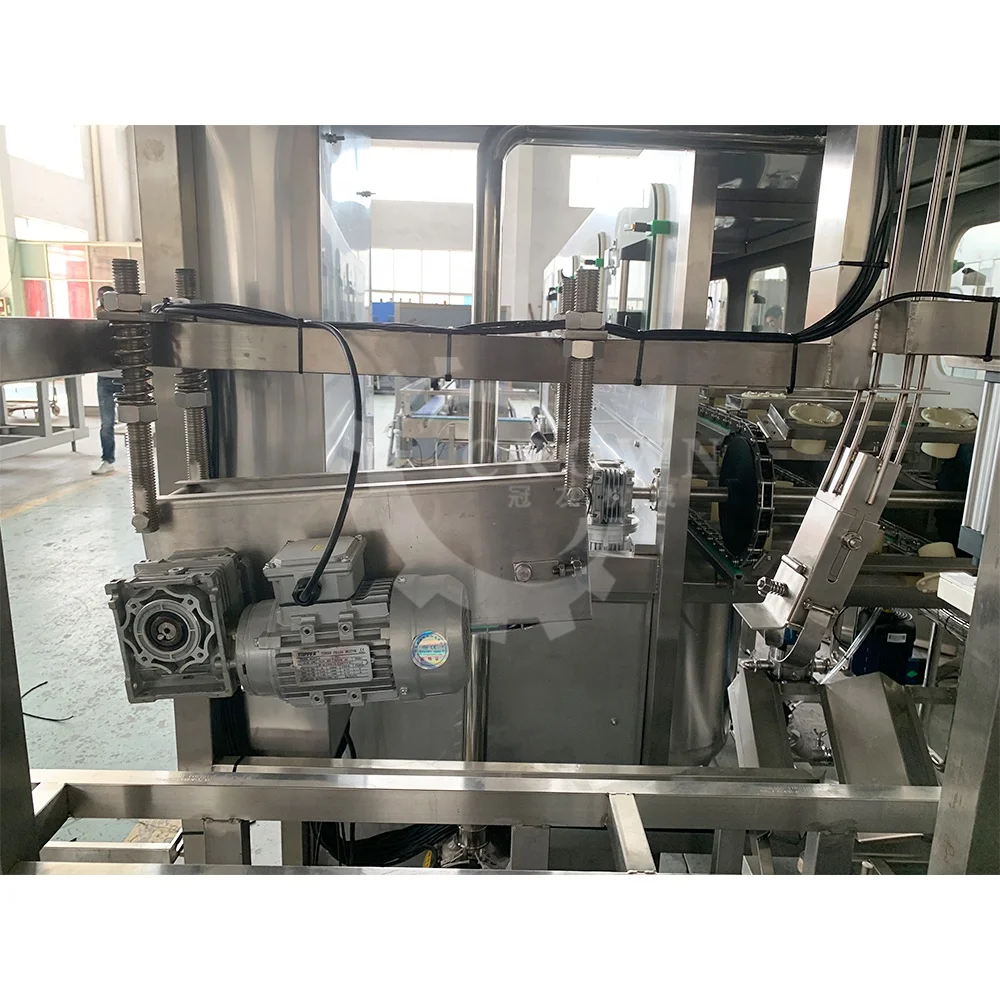

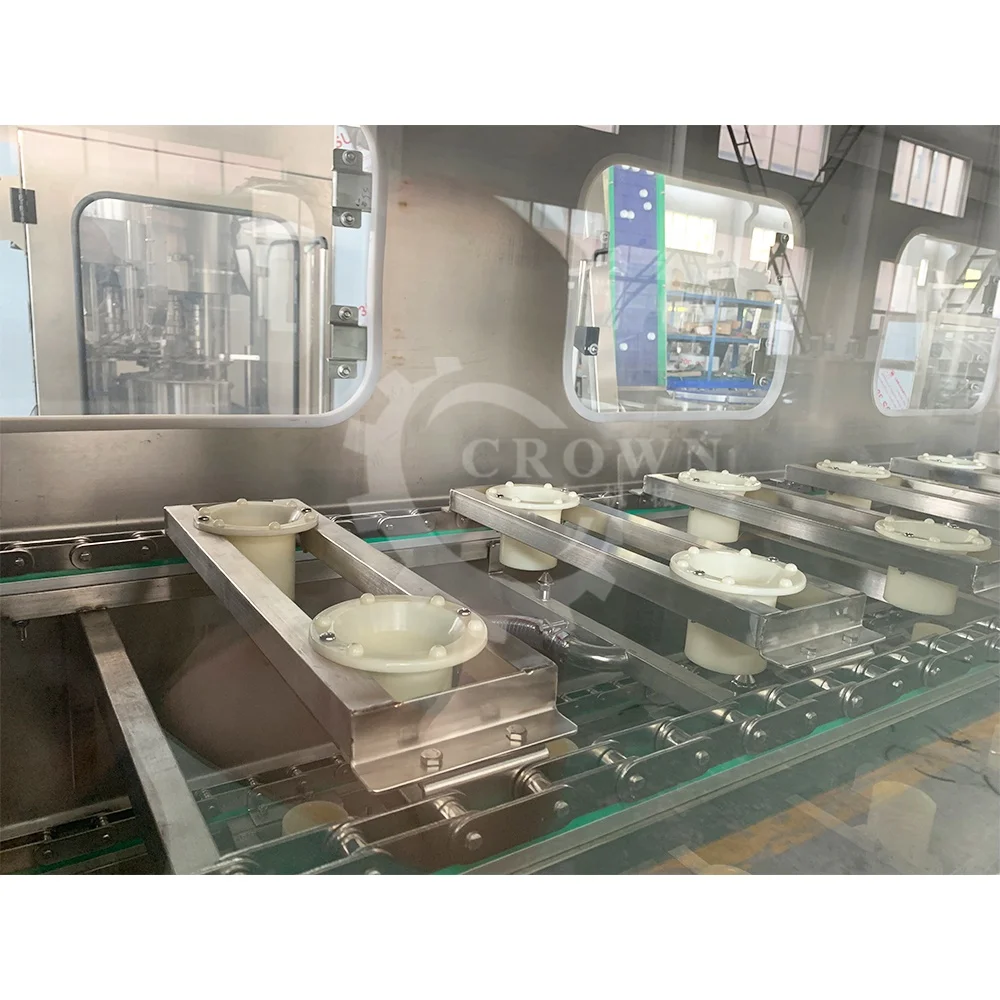

The Detail Photos
Filling Part Features
(1) Uploading and dropping barrels changed from 45 degree to translatory which is more stable
(2) Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid
Capping Parts
(1) Liquid level difference is controlled in 1cm
(2) Machine is equipped with Cap Sterilization system, which is 1.2m. The system
make products more clean and safe by using sterilization and finished water
(3) Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component
make products more clean and safe by using sterilization and finished water
(3) Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component
Drinking Water Market
Bottled water refers to the drinking water packaged in bottles (barrels) for sale.
There are various sources of drinking water, including groundwater, spring water, well water, tap water,etc.
At present,the bottled water industry is one of the largest industries Its annual output is far ahead of other sub industries, such as Nongfu mountain spring and so on.
At present, the main sales channels of bottled water include supermarkets, convenience stores,e-commerce, hotels, entertainment places, etc.Bottled drinking water industry can achieve such a huge growth, mainly due to the foundation of water for human survival and the gradual deepening of consumers' awareness of healthy drinking water.
First of all, water is the most basic element of human survival, which determines that the consumption of bottled water belongs to the basic type of consumption, which opens up space for the growth of bottled drinking water market; secondly, bottled drinking water is superior to tap water or other direct drinking water has higher safety, which meets the upgrading trend of the consumers' health consumption; moreover, bottled water has more price advantages for other soft drinks, and ordinary consumers have higher tolerance for bottled water consumption; in addition, economic growth, urbanization, increase of disposable income and portability and accessibility of bottled drinking water are also promoted the world bottled water market is growing rapidly.
Bottled water refers to the drinking water packaged in bottles (barrels) for sale.
There are various sources of drinking water, including groundwater, spring water, well water, tap water,etc.
At present,the bottled water industry is one of the largest industries Its annual output is far ahead of other sub industries, such as Nongfu mountain spring and so on.
At present, the main sales channels of bottled water include supermarkets, convenience stores,e-commerce, hotels, entertainment places, etc.Bottled drinking water industry can achieve such a huge growth, mainly due to the foundation of water for human survival and the gradual deepening of consumers' awareness of healthy drinking water.
First of all, water is the most basic element of human survival, which determines that the consumption of bottled water belongs to the basic type of consumption, which opens up space for the growth of bottled drinking water market; secondly, bottled drinking water is superior to tap water or other direct drinking water has higher safety, which meets the upgrading trend of the consumers' health consumption; moreover, bottled water has more price advantages for other soft drinks, and ordinary consumers have higher tolerance for bottled water consumption; in addition, economic growth, urbanization, increase of disposable income and portability and accessibility of bottled drinking water are also promoted the world bottled water market is growing rapidly.
Whole Line Products
The Flow Chart of Water Filling Machine Production Line
The Whole Water Filling Machine Production Line Products
The water filling machine production line mainly consists of 6 parts below. They are respective:
The Water Treatment
The Plastic PET Preform Bottle Blowing Machine
3-in-1 Washing-Filling-Capping Machine
The Bottle Blow Dryer Machine
Auto-sleeve Shrinking Label Machine
PE Film Shrink Wrapping Packaging Machine
That is to say, this line is from the water treatment to the bottled water packaging , is a completely automatic production line, it can well meet customer needs. We also design a reasonable plan for you to achieve higher production efficiency.
