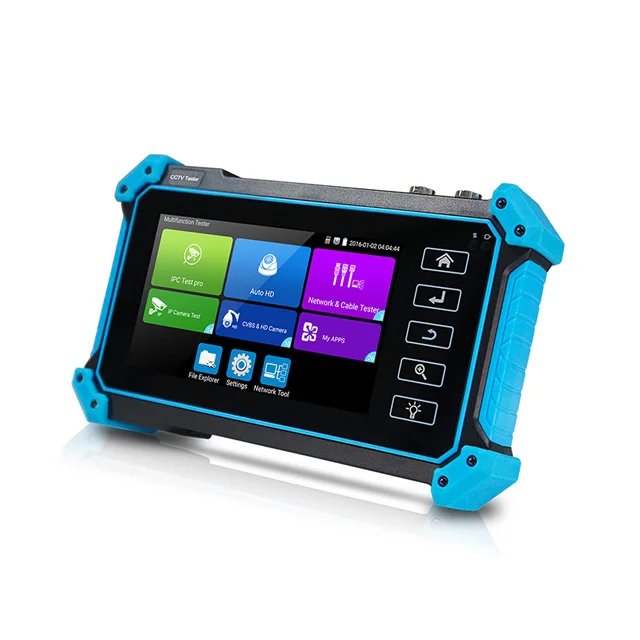

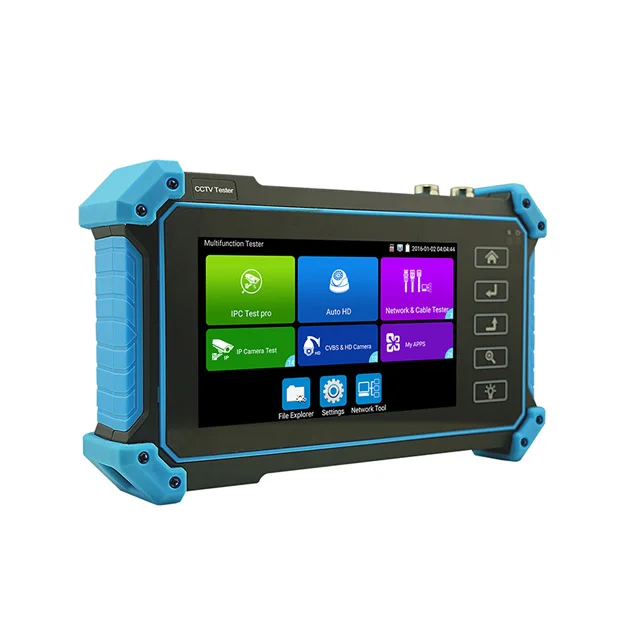

Factory All in one Full HD IP camera ipc cctv RJ45 cable tester with 5 inch IPS touch monitor
- Category: >>>
- Supplier: Guangzhou Wanglu Technology Co. Ltd.
Share on (1600437188764):
Product Overview
Description
Factory All in one Full HD IP camera ipc cctv RJ45 cable tester with 5 inch IPS touch monitor
Tester model: IPC-5200 Plus
Product Description
Item series | IPC-5200 Plus | ||

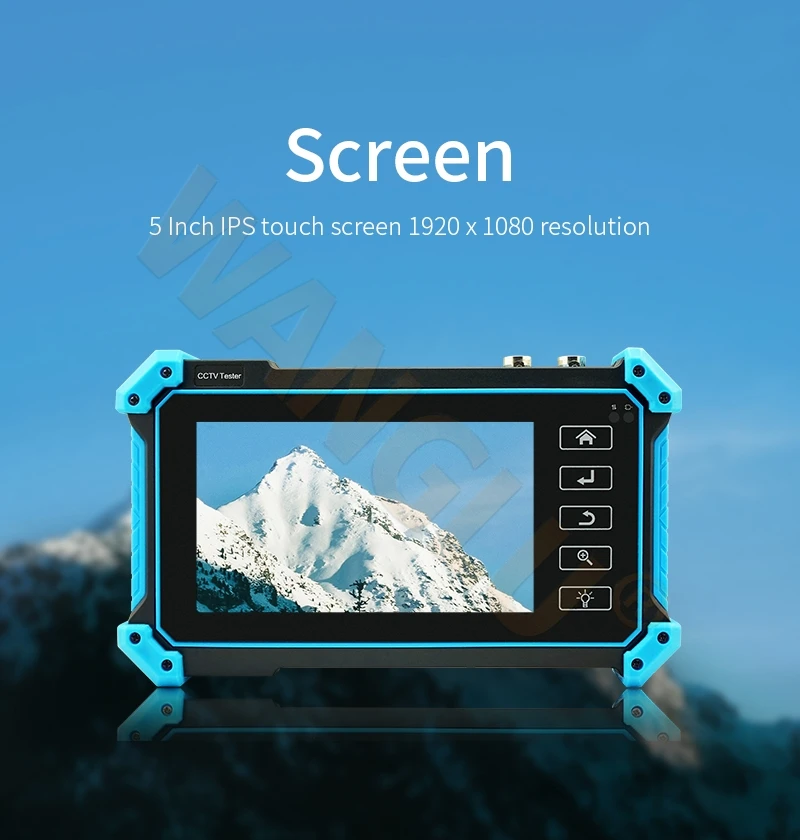

Display | New 5 inch IPS touch screen, 1920x1080 resolution | ||
Video Mode | CVBS | 1 channel BNC input, NTSC/PAL (Auto adapt) | |
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |||

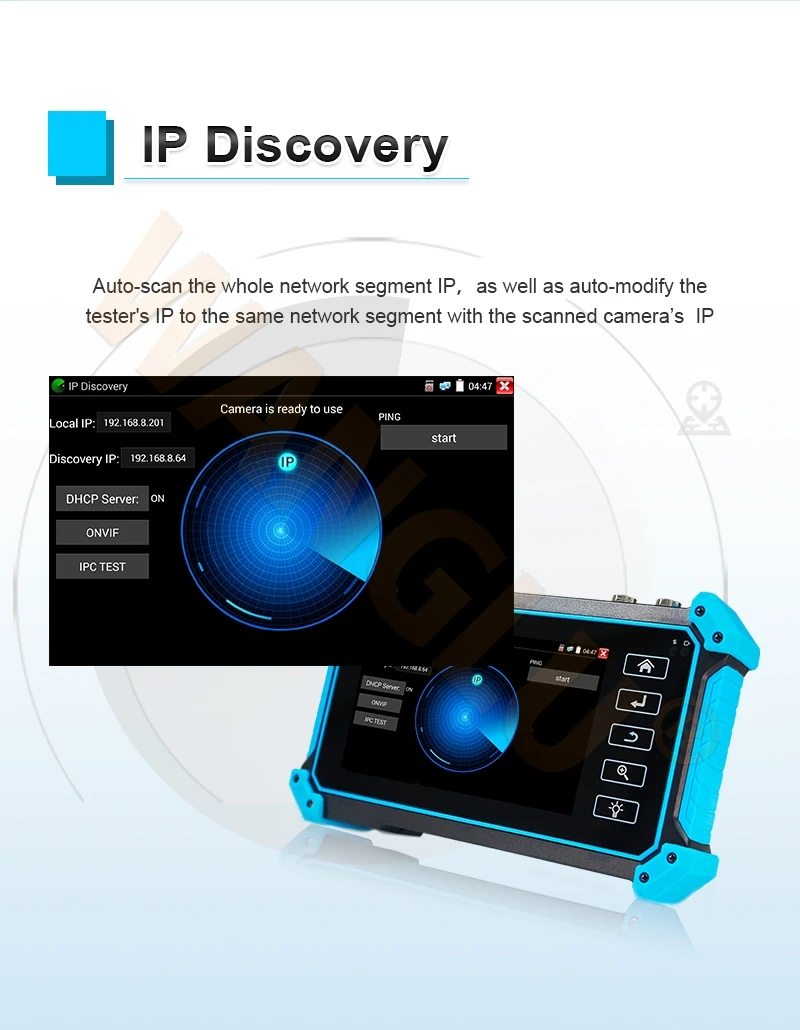

IP camera test 4k/H.265/H.264 | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK | ||
Rapid Video | Auto view the video, create testing report | ||
HIK test tool | support batch activate HIK cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc. | ||
DH test tool | support batch activate DH cameras and modify IP address,username and password. Self-defined modify channel name. | ||
HD Coaxial test | 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu | ||
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu | |||
8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu | |||
8MP EX-SDI, HD-SDI, 3G-SDI, UTC control / call OSD menu | |||
Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu | |||

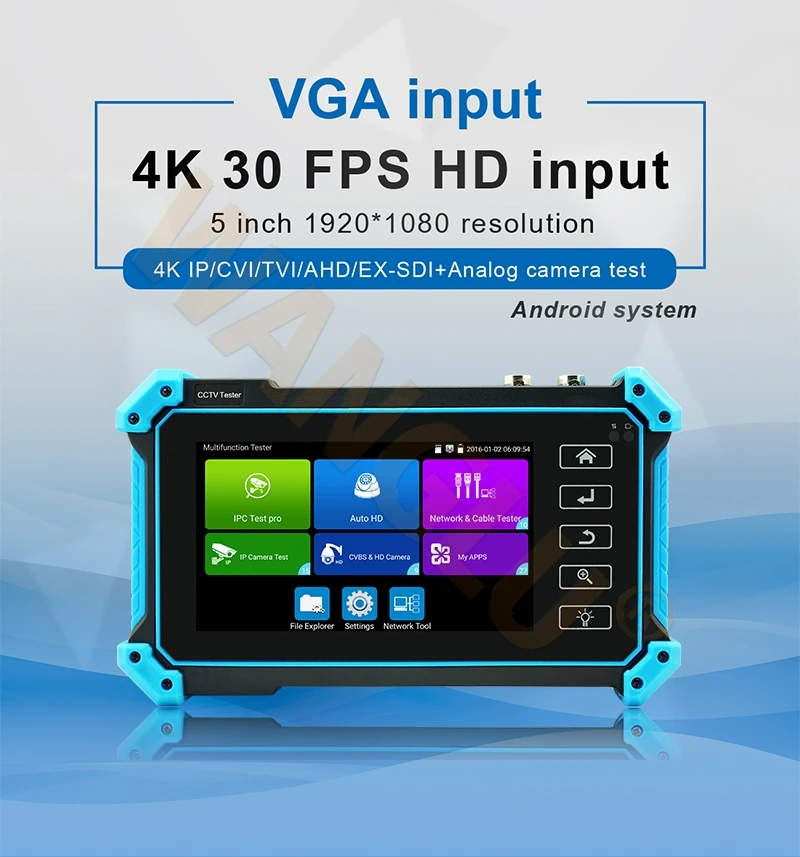

HD input | 1 channel HD input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/ 1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc | ||
VGA input | 1 channel VGA input, support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS /1792×1344P 60FPS /1680x 1050P 60FPS/(1600x1200P/900P 60FPS)/1440x900P 60FPS/1360x768P 60FPS/(1280x1024/960/800/768/720P 60FPS)/1152x870P 60FPS/1024x768P 60FPS/800x600P 60FPS/600x480P 60FPS. | ||
Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back | ||
Power output | 12V/3A power | Output DC12V/3A power out, supply temporarily power for the camera | |
PoE power output | 48V PoE power output, max power 25.5W | ||
UTP cable test | Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head. | ||
RJ45 TDR cable test | Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M. | ||
Tester Play | screen projection:Tester, mobile phone and PC display at the same time (For android version mobile phone) | ||
Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test | ||
Wi-Fi | Built in WIFI, speeds 150M, display wireless camera image | ||
Audio test | 1 channel audio signal input, test whether sound normal. | ||
Power management | Display DC 12V input & output voltage and power in real time | ||
Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | ||
External power supply | DC 12V 2A | ||
Battery | Built-in 7.4V Lithium polymer battery, 3350mAh | ||
Rechargeable | After charging 3-4 hours, normal working time 5 hours | ||
Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish Portuguese, Czech etc | ||
Auto off | 1-30 (mins) | ||
Working Temperature | -10℃---+50℃ | ||
Working Humidity | 30%-90% | ||
Dimension/Weight | 183mm x 110mm x 36.5mm /0.32kg | ||
