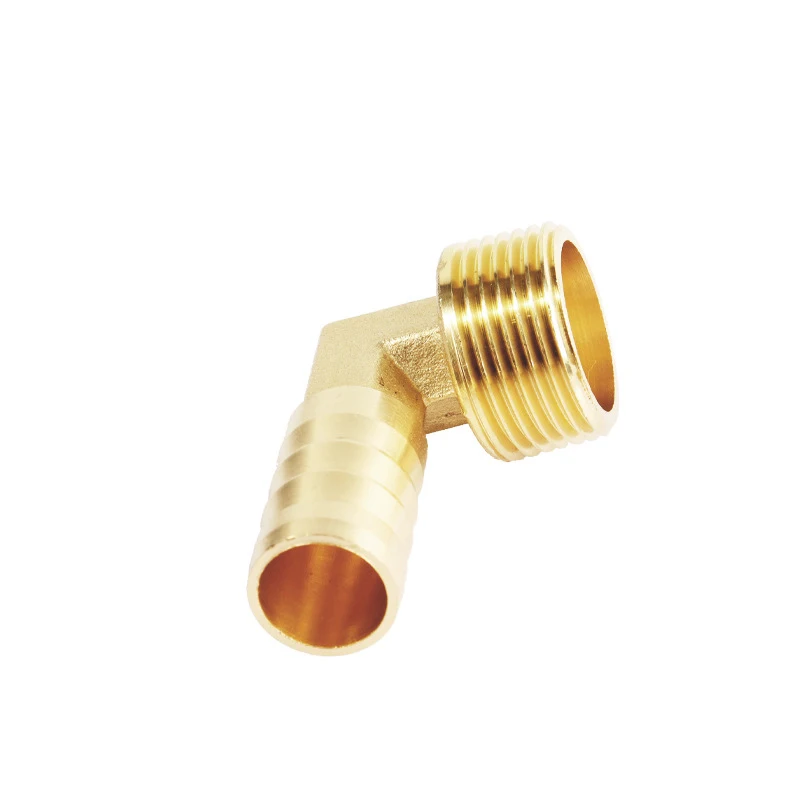

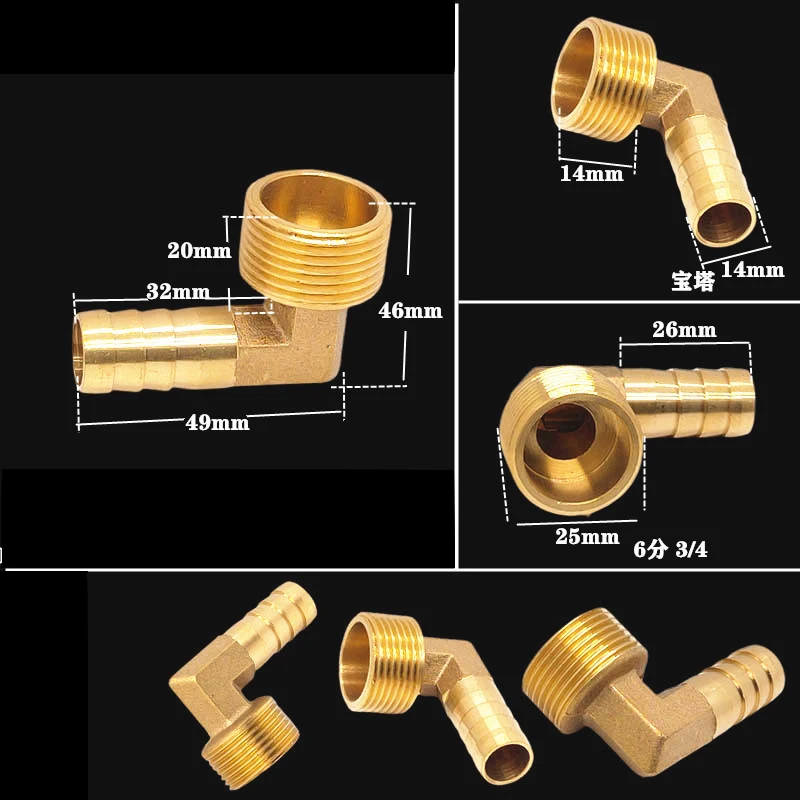

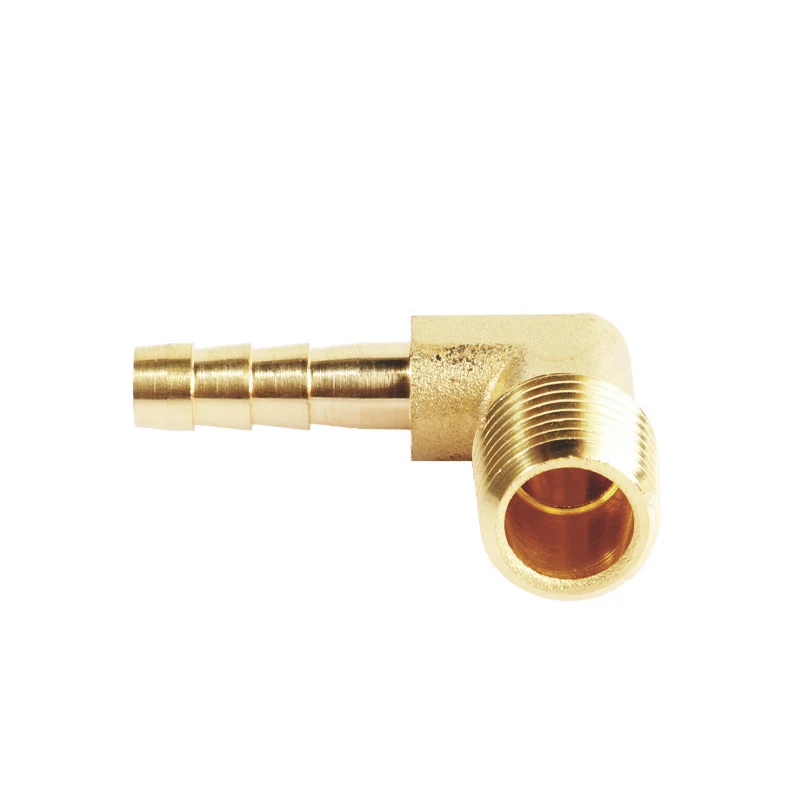

Right angle fittings SAE straight thread brass hose barb 90 elbow to male pipe
- Category: >>>
- Supplier: Zhuji Chenyi Technology Co. Ltd.
Share on (1600437214856):
Product Overview
Description

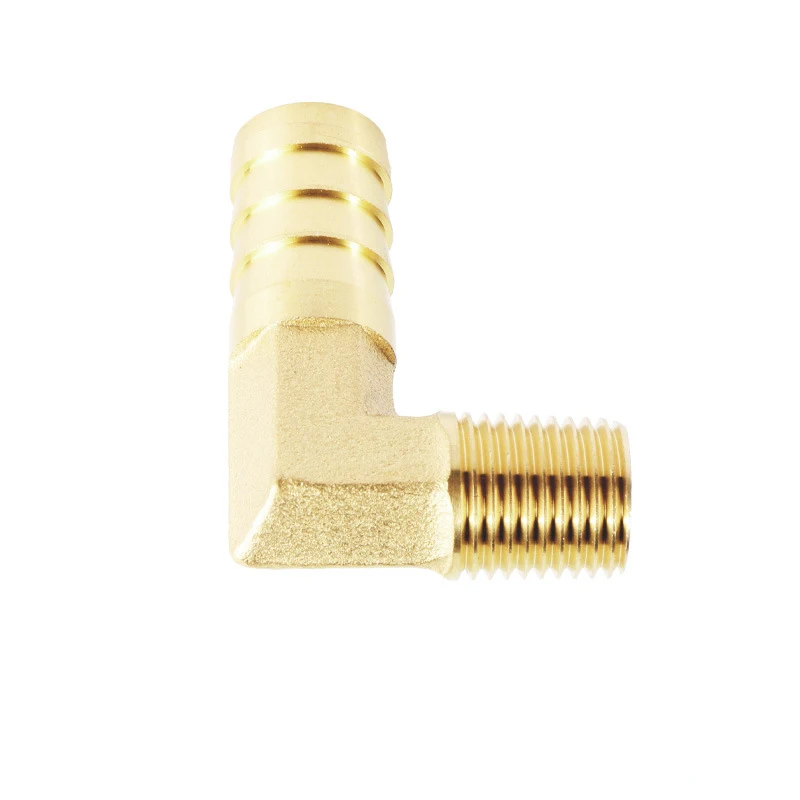

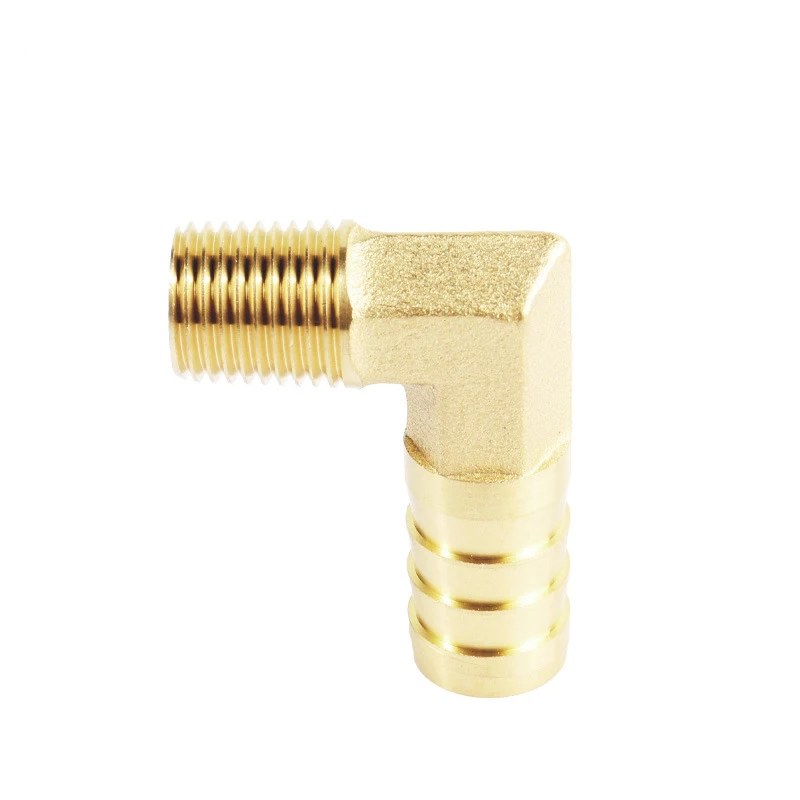

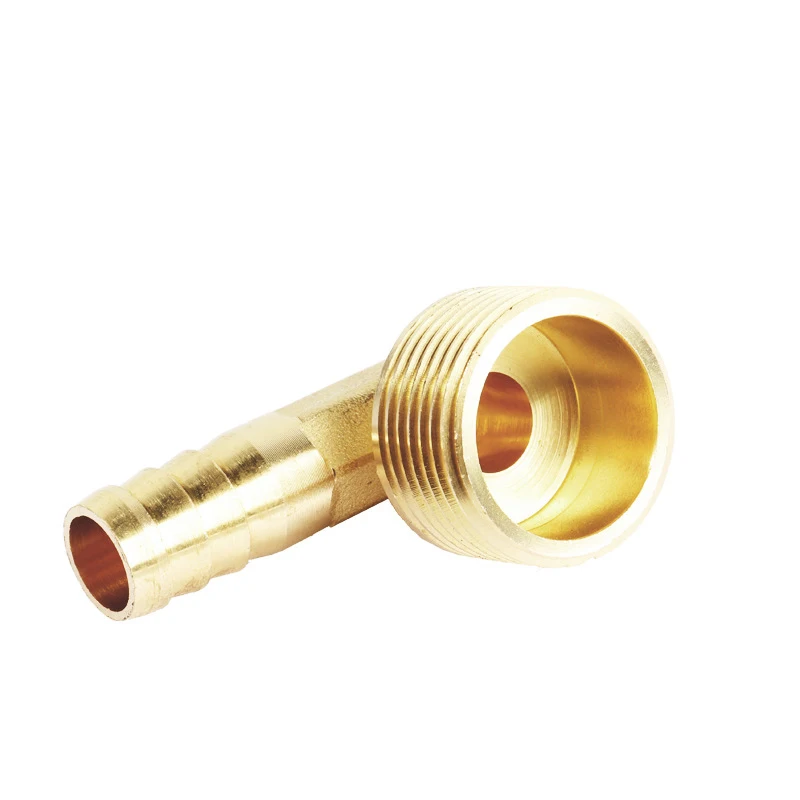

HOSE BARB 90° ELBOW TO MALE PIPE
We professional production and sales of a full range of copper accessories.
Product Name | Right angle fittings SAE straight thread brass hose barb 90 elbow to male pipe |
Raw Material | CA 360 Brass for Barstock fitting; CA 377 Brass for forged fittings. |
Processing Method | CNC; |
Operating Pressure | Will withstand burst pressures of plastic tubing. |
Temperature Range | -40℉ to +160℉. |
Conformance | Meets specification and standards of ASA, ASME and SAE. |
Compatible Tubing | Rubber Hose; GPH Hose. |
Markets | Industrial; Construction; Heavy duty truck; Mobile. |
Typical Application | Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems. |
Vibration | Excellent resistance. |
Product Features:
1. All brass construction;
2. Fluorocarbon O-rings;
3. NPTF, SAE straight thread, metric thread ends;
4. Reusable;
5. Clamp required.

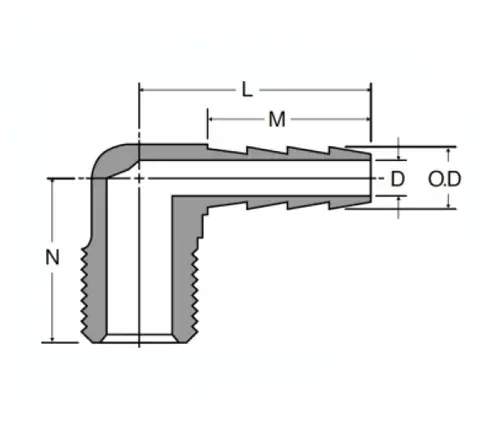

Hose I.D. * MALE NPTF | D | N | M | L |
3/16*1/8 | .125 | .84 | .84 | 1.18 |
1/4*1/8 | .187 | .66 | .76 | 1.04 |
1/4*1/4 | .187 | .86 | .76 | 1.10 |
1/4*3/8 | .187 | .97 | .97 | 1.58 |
5/16*1/8 | .250 | .81 | .76 | 1.01 |
5/16*1/4 | .250 | .86 | .76 | 1.04 |
5/16*3/8 | .250 | .94 | .97 | 1.58 |
3/8*1/8 | .281 | .81 | .78 | 1.12 |
3/8*1/4 | .281 | .84 | .78 | 1.13 |
3/8*3/8 | .281 | .95 | .78 | 1.25 |
3/8*1/2 | .281 | 1.13 | .78 | 1.35 |
1/2*1/4 | .415 | 1.00 | .78 | 1.17 |
1/2*3/8 | .415 | 1.00 | .78 | 1.17 |
1/2*1/2 | .415 | 1.13 | .79 | 1.36 |
5/8*3/8 | .530 | / | .87 | 1.31 |
5/8*1/2 | .530 | / | .87 | 1.36 |
3/4*1/2 | .790 | / | .87 | 1.36 |
3/4*3/4 | .790 | / | .91 | 1.46 |
