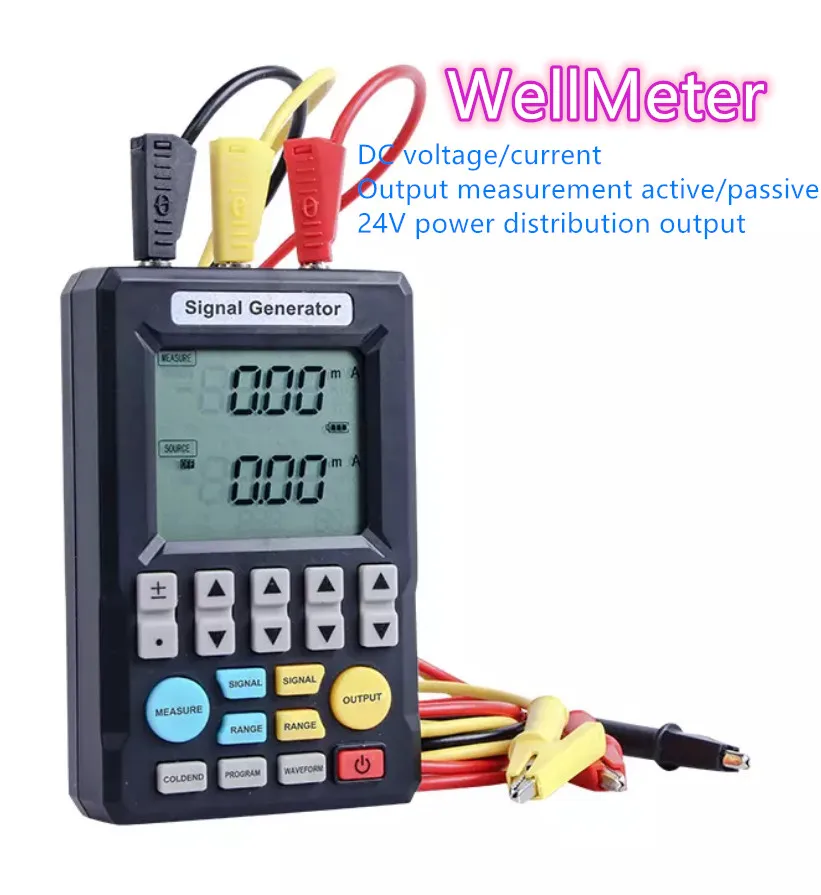

cheap price 4 to 20 ma signal generator 4 20mA output with 24v output Multifunction Process Calibrator

Product Overview

Description

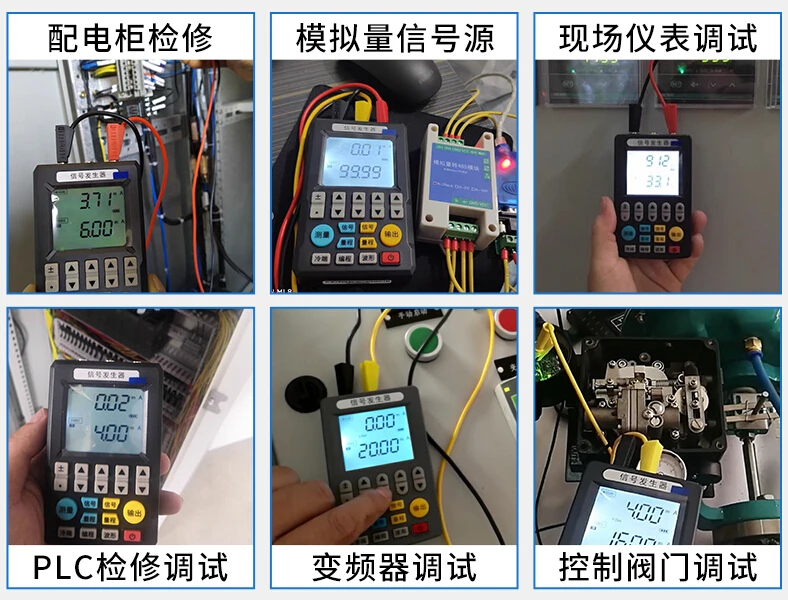

This signal generator has a variety of signal measurement and output functions, including voltage, current, and thermocouple signals. It adopts high-definition LCD screen and silica gel buttons with distinct functions. It has clear display, simple operation, long standby time, high precision and Programmable output function. It is widely used in the debugging of PLC and process instruments, electric valves, etc. in laboratories and industrial sites.

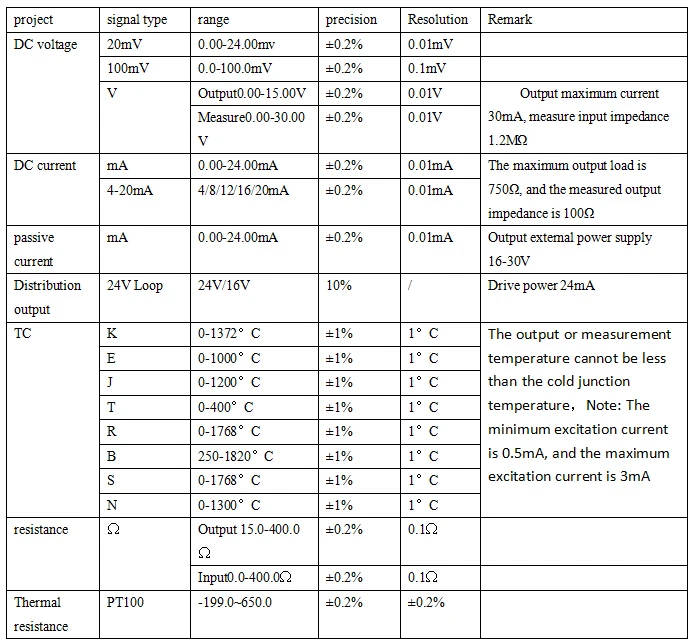

Voltage signal: 0-30V, 0-24mV, 0-100mV output and measurement.

(where the output V is 15V max)

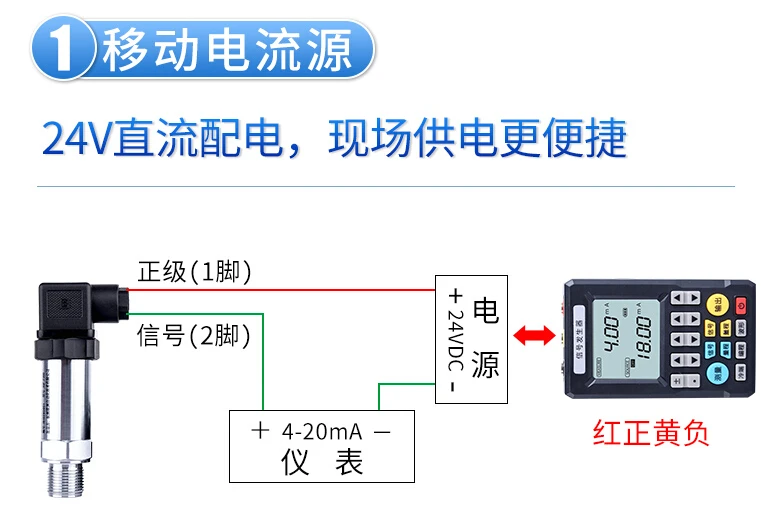

Current signal: active and passive 0-24mA, 4-20mA output and measurement



Working temperature and humidity: -10~55℃, 20~80%RH (no condensation)

Storage temperature: -20~70℃

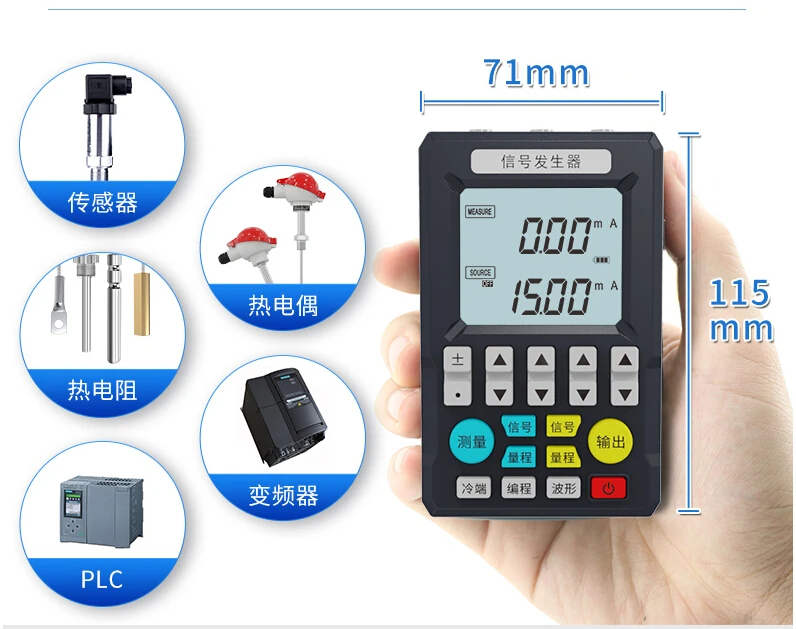

Dimensions: 115*71*30(mm)

Weight: 300g

Power supply: 4 AAA batteries or external 5V/1A, powered by adapter

Power consumption and battery consumption: about 200mA, when powered by 4 AAA batteries (nominal capacity of a single cell is 1100mAh), it can be used continuously for 4 hours under full load, and the special machine can be used continuously for 17 hours

Reverse connection and overcurrent protection: 30V
