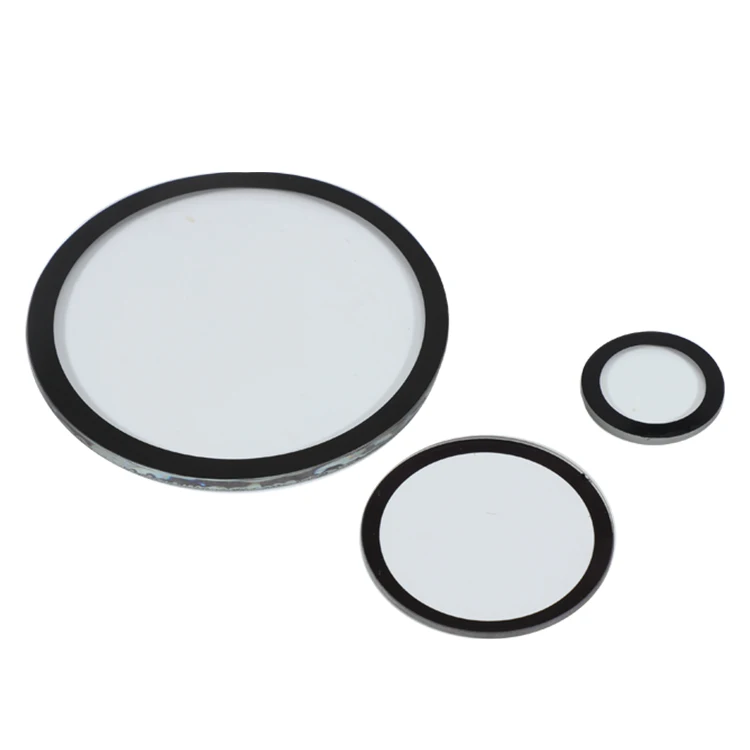

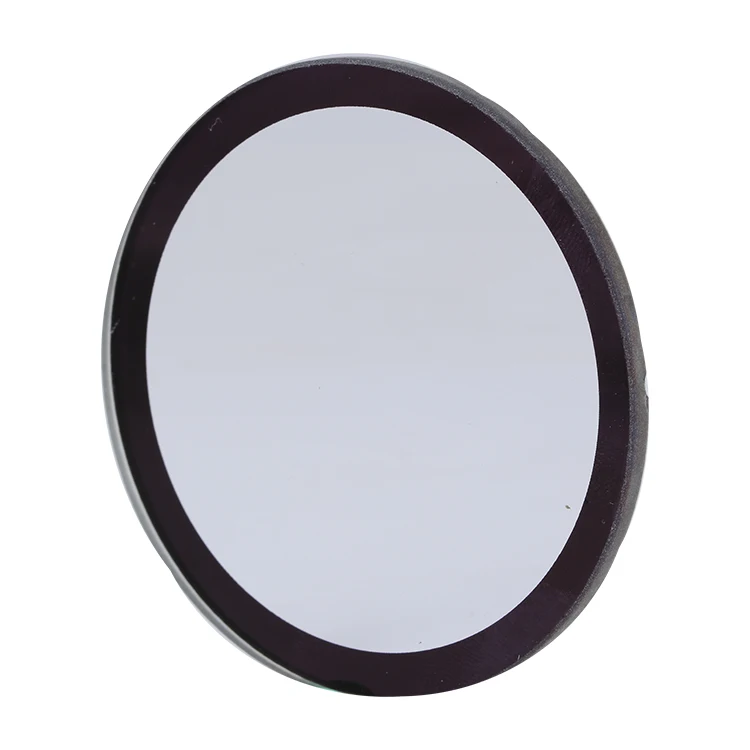

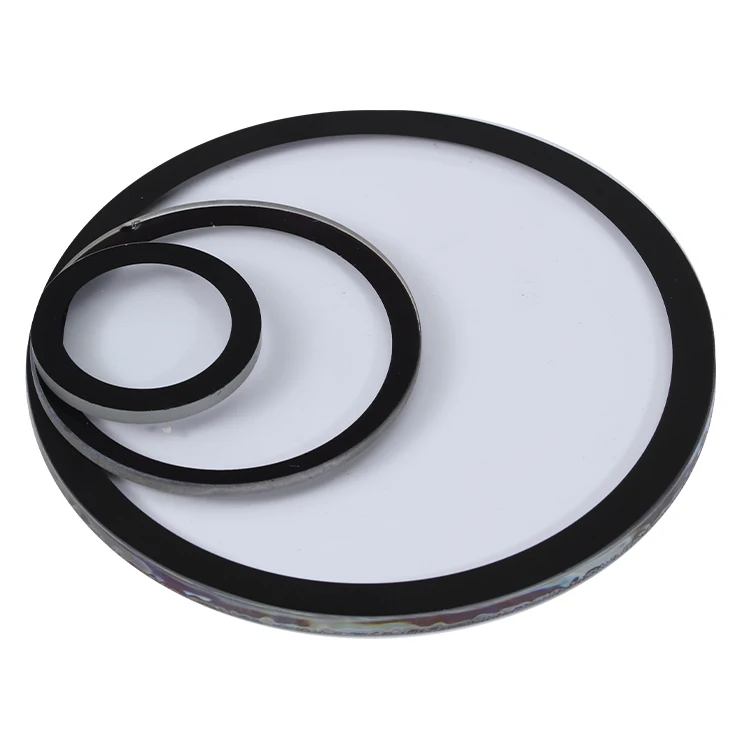

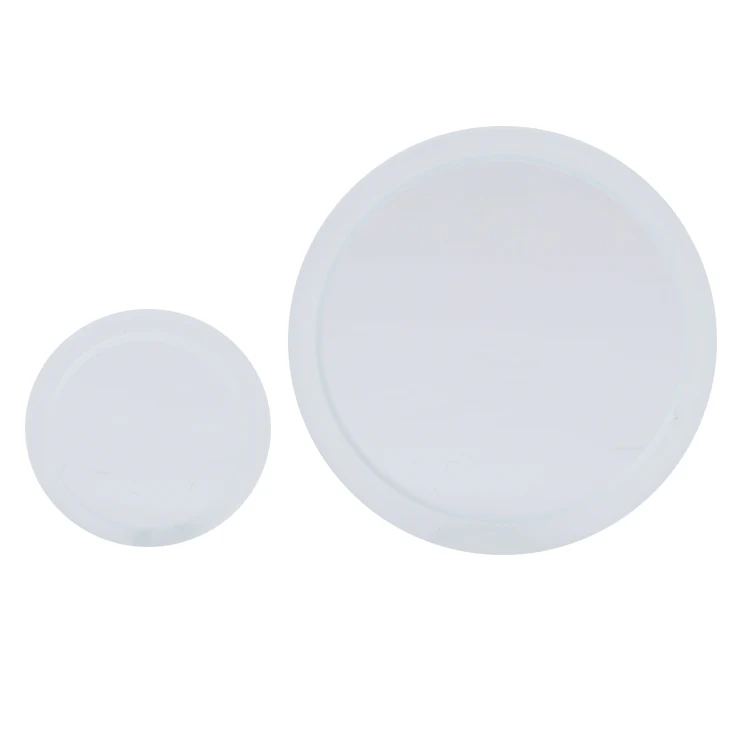

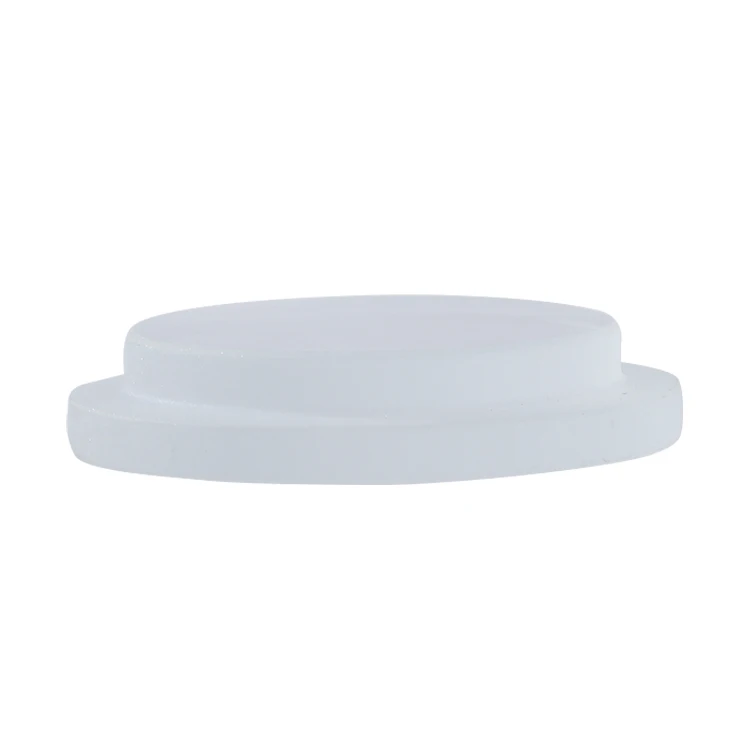

Factory Wholesale Price Clear Ar Coating Anti Reflective Glass
- Category: >>>
- Supplier: Hangzhou Jingyu Optoelec Technology Co. Ltd.
Share on (1600437229902):
Product Overview
Description
Product information
Available materials | Crystal, White glass,Blue glass, Corning glass, Sapphire and other material |
Diameter Tolerance | +0.0/-0.05mm, customized | ||||||
Center Thickness Tolerance | ±0.05 mm, customized | ||||||
Surface Quality | 80/50,60/40, 40/20 or customized | ||||||
Clear Aperture | >90% | ||||||
Centering | <3 arc min | ||||||
Coating | AR coating or customized | ||||||
Bevel | Protective bevel as needed | ||||||
AR glass adopts the principle of optical thin film interference, and a nano-optical multilayer film with a certain film structure is deposited on the glass substrate by the vertical vacuum magnetron sputtering method, which increases the visible light transmittance of the glass from 89% to more than 98% , The surface reflected light is reduced from 8% to less than 1%.
For example, the four-layer AR film is coated on both sides, the light transmittance can be as high as 98%, and the reflectivity can be reduced to less than 1%. Under outdoor strong light, it has high transmittance and no reflection, anti-glare, and greatly improves the flat panel display in strong light. Contrast and clarity in the environment, while partially improving the brightness of the display, with high-definition eye-relief function.
Application:
custom touch switch panel, display lens of electronic device, touch screens/digitizers, housings, indicator in the public place, optical lens, screen touch panel, visible cover/panels in front of medical equipment, smart household, LCD display panel, lens on the decorative function machine or operating system, autos, mobiles, aeroplane, military on so on.
custom touch switch panel, display lens of electronic device, touch screens/digitizers, housings, indicator in the public place, optical lens, screen touch panel, visible cover/panels in front of medical equipment, smart household, LCD display panel, lens on the decorative function machine or operating system, autos, mobiles, aeroplane, military on so on.
Products recommended
Company information
Why choose us
● 20 years of factory direct sales.
●Professional customization, Some are in stock.
●Imported top coating equipment.
●High-heat laser dot experiment, no explosion when heated.
●Using vacuum deposition coating process.
●Standard cleaning room.
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are factory.
2.Q:What is the MOQ?
A:Our MOQ is 1 piece except customized order.
3.Q:Do you provide free samples?
A:Yes!Free samples are available. For more details, please contact the customer service.
4.Q:What is the lead time?
A:Usually it will take 3 days if we have them in stock.Customized order will take 7-30days.
5.Q: What's the material of your products ?
A: Crystal, for Schott glass,for AGC glass, Corning glass,Sapphire and other material
6.Q:How to choose suitable model?
A:Please provide a photo of the product you used before or advise us your needs, we will give suggestion.
2.Q:What is the MOQ?
A:Our MOQ is 1 piece except customized order.
3.Q:Do you provide free samples?
A:Yes!Free samples are available. For more details, please contact the customer service.
4.Q:What is the lead time?
A:Usually it will take 3 days if we have them in stock.Customized order will take 7-30days.
5.Q: What's the material of your products ?
A: Crystal, for Schott glass,for AGC glass, Corning glass,Sapphire and other material
6.Q:How to choose suitable model?
A:Please provide a photo of the product you used before or advise us your needs, we will give suggestion.
