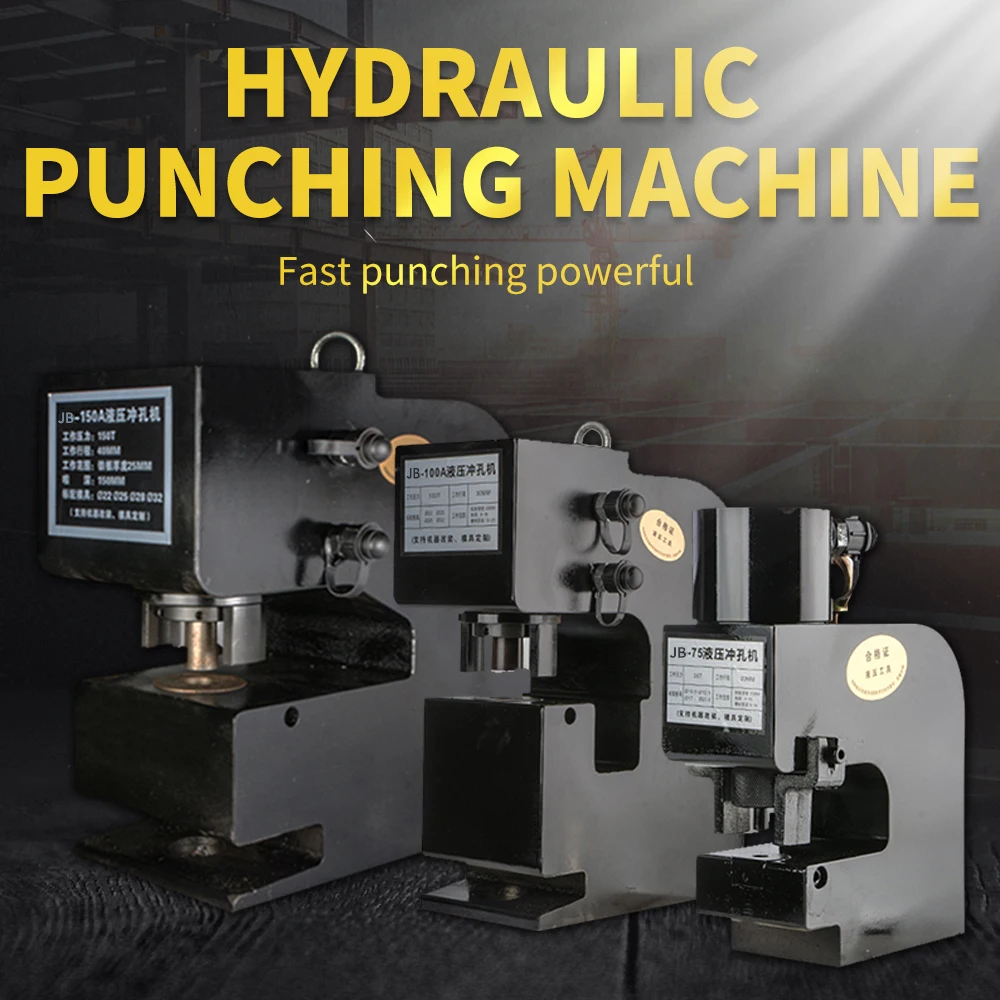

50t Ch 80a/JB 80a Ch 100/JB 100 Hydraulic Knockout Punch Hole Puncher Manual Punching

50t Ch 80a/JB 80a Ch 100/JB 100 Hydraulic Knockout Punch Hole Puncher Manual Punching

Price:

Quantity:

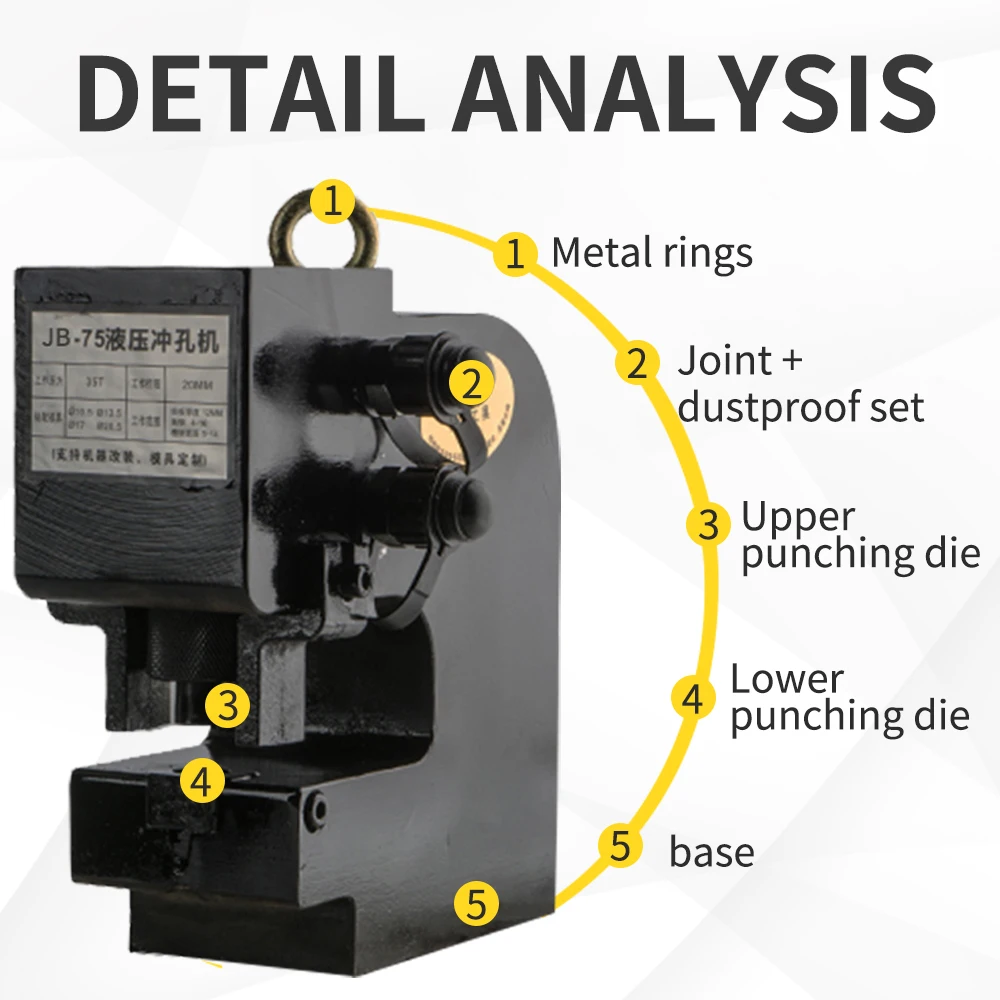

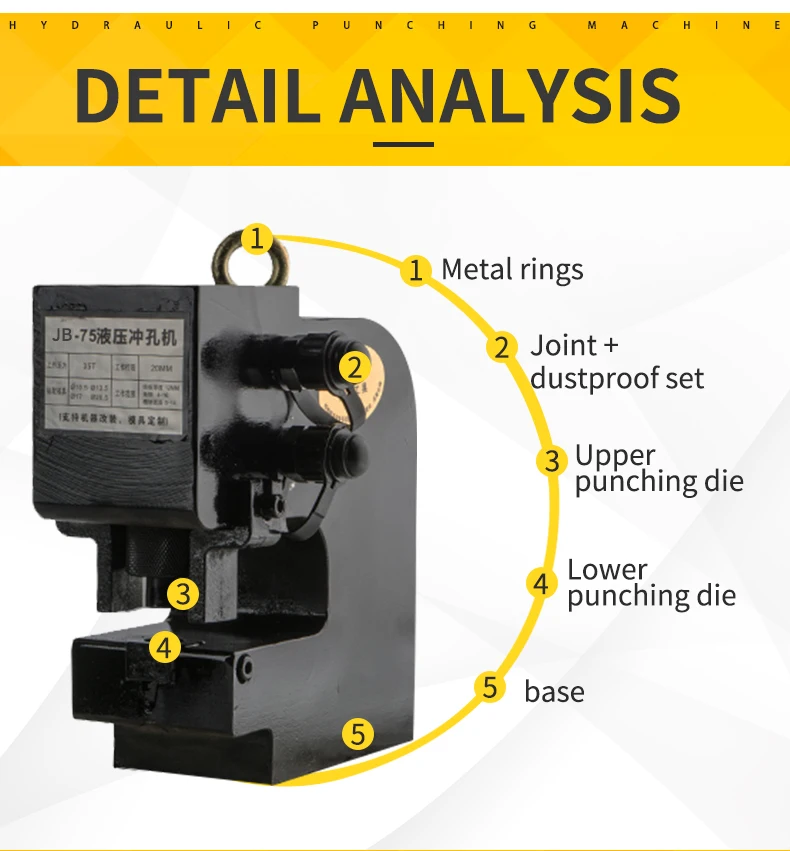

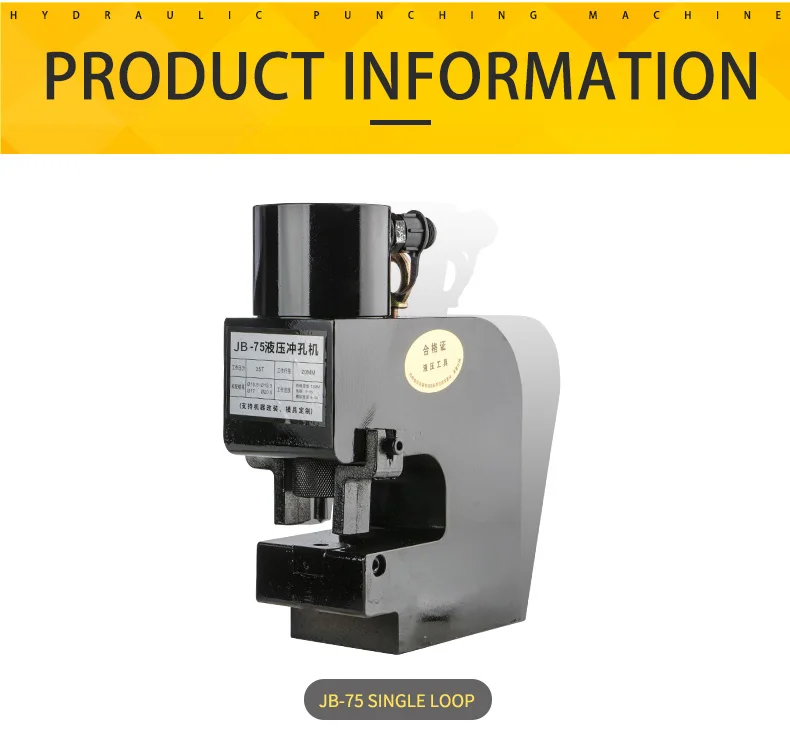

MODEL	JB-75 SINGLE LOOP	PRESSURE	35T
STROKE	25mm	SIZE	high 265mm*long240mm
DEPTH OF THROAT	85mm	CRIMPING DIE	φ10.5 φ13.5 φ17 φ20.5mm
SCOPE OF USE	Iron plate thickness 12mm, angle steel 4-12, channel steel wide surface 8-16

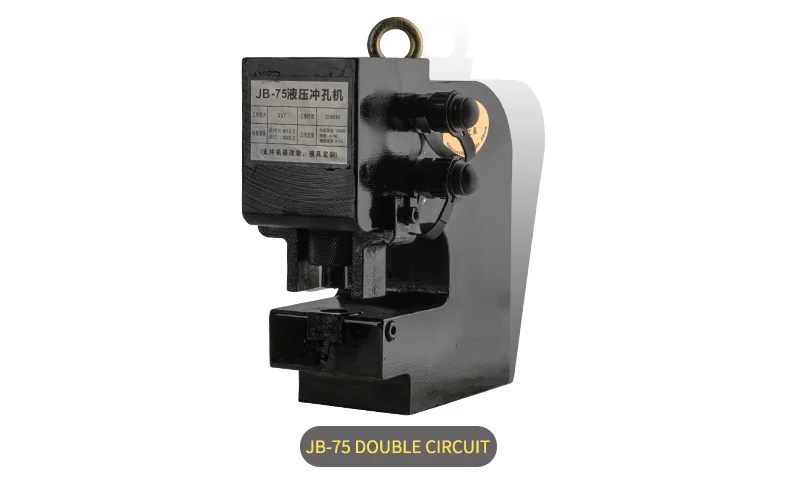

MODEL	JB-75 DOUBLE CIRCUIT	PRESSURE	35T
STROKE	20mm	SIZE	high 265mm*long240mm
DEPTH OF THROAT	85mm	CRIMPING DIE	φ12 φ14 φ16 φ18mm
SCOPE OF USE	Iron plate thickness 12mm, angle steel 4-12, channel steel wide surface 8-16

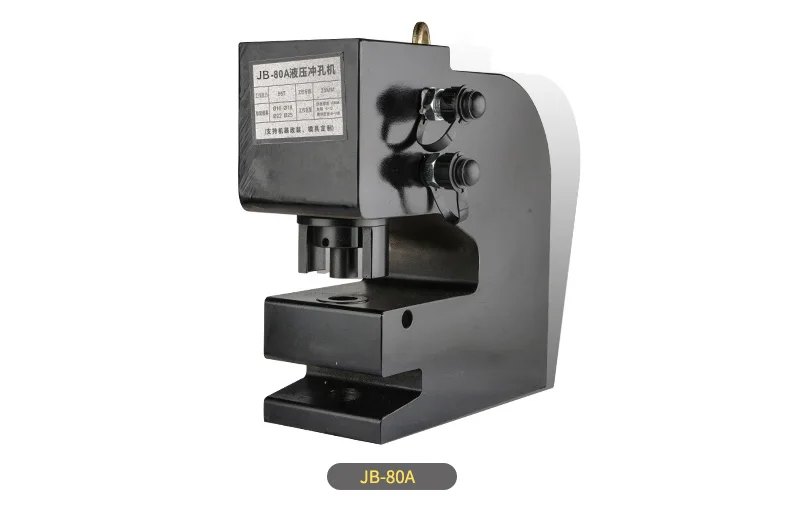

MODEL	JB-80A	PRESSURE	50T
STROKE	25mm	SIZE	high 300mm*long320mm
DEPTH OF THROAT	118mm	CRIMPING DIE	φ16 φ18 φ22φ25mm
SCOPE OF USE	Iron plate thickness 16mm, angle steel 6-16, channel steel wide surface 8-15

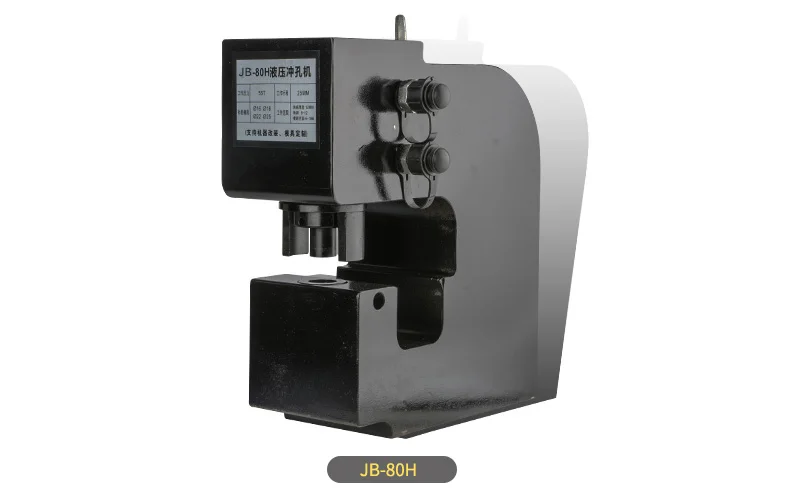

MODEL	JB-80H	PRESSURE	50T
STROKE	25mm	SIZE	high 330mm*long320mm
DEPTH OF THROAT	118mm	CRIMPING DIE	φ16 φ18 φ22φ25mm
SCOPE OF USE	Iron plate thickness 16mm, angle steel 6-16, channel steel wide surface 8-15

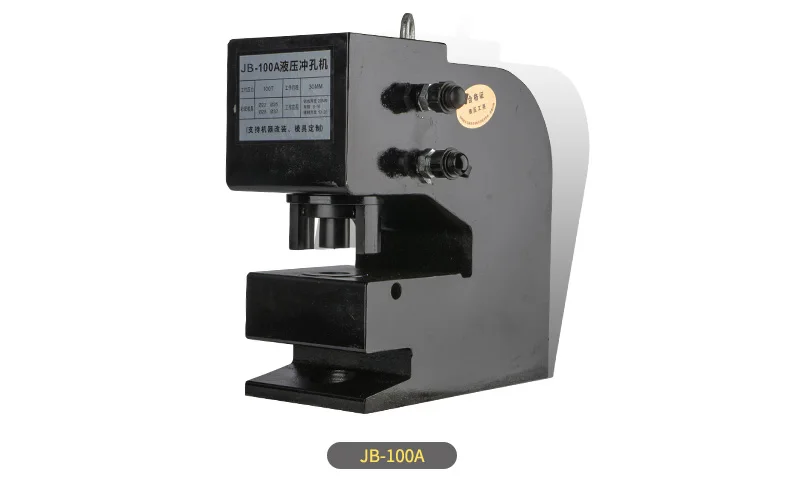

MODEL	JB-100A	PRESSURE	100T
STROKE	25mm	SIZE	high 370mm*long370mm
DEPTH OF THROAT	135mm	CRIMPING DIE	φ22 φ25 φ28φ32mm
SCOPE OF USE	Iron plate thickness 20mm, angle steel 8-15, channel steel wide surface 10-15

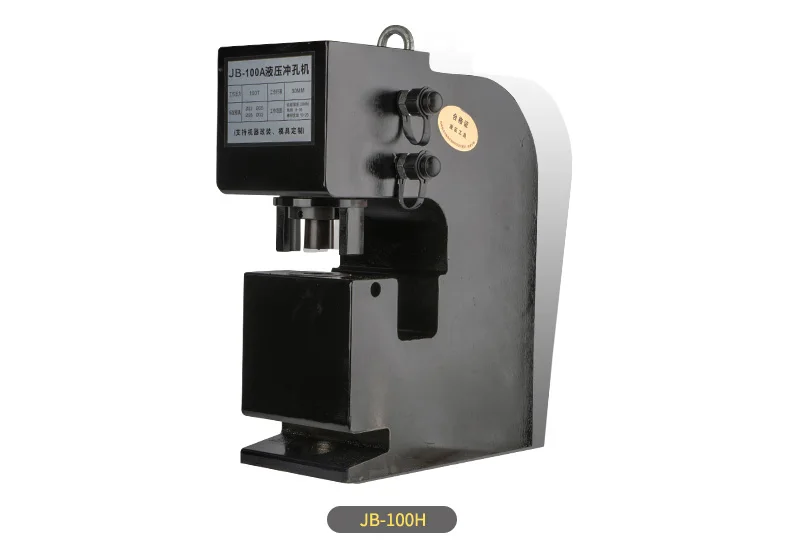

MODEL	JB-100H	PRESSURE	100T
STROKE	30mm	SIZE	high 450mm*long370mm
DEPTH OF THROAT	120mm	CRIMPING DIE	φ22 φ25 φ28φ32mm
SCOPE OF USE	Iron plate thickness 20mm, angle steel 8-15, channel steel wide surface 10-15, H-beam 8 to 15
