BLE5.2 module dual-core nrf5340 module bluetooth module for sweeping robert

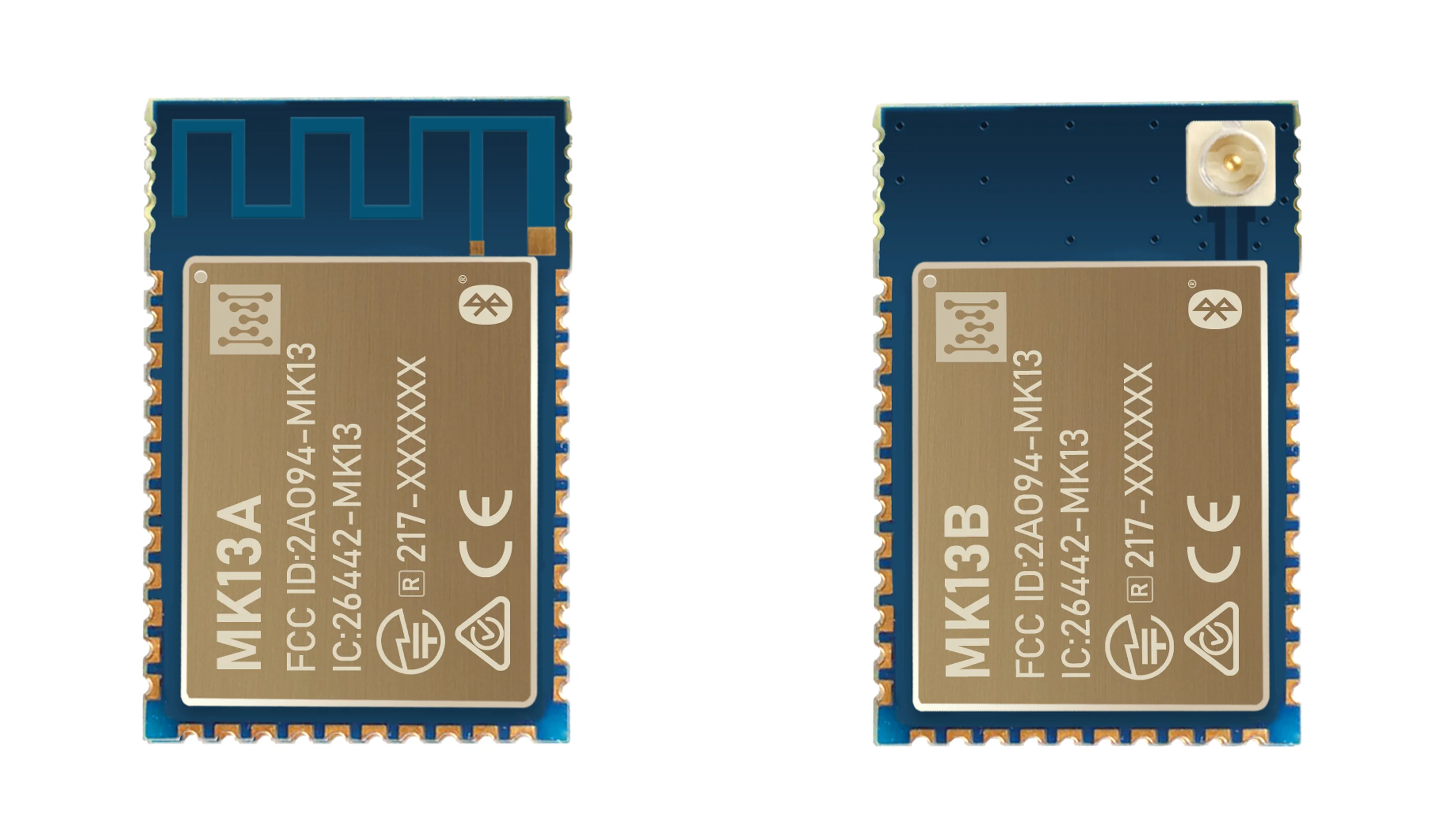

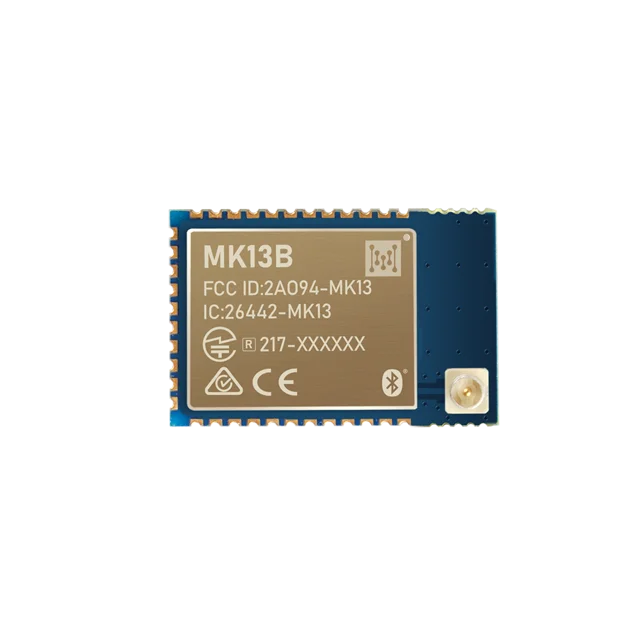

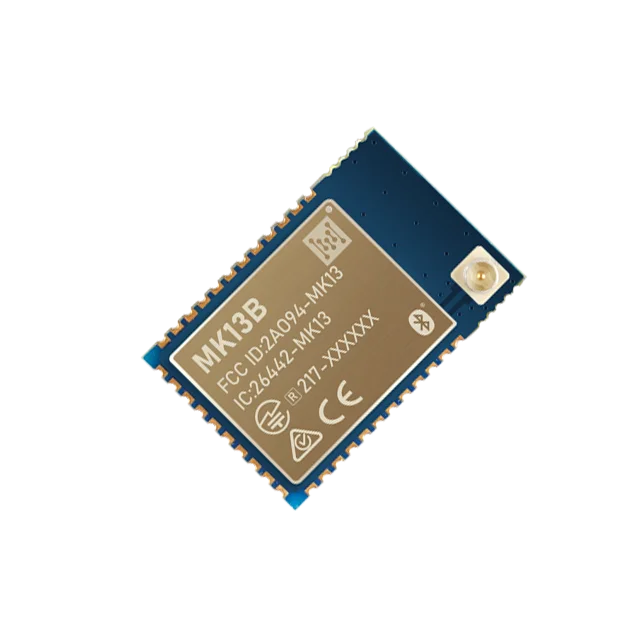

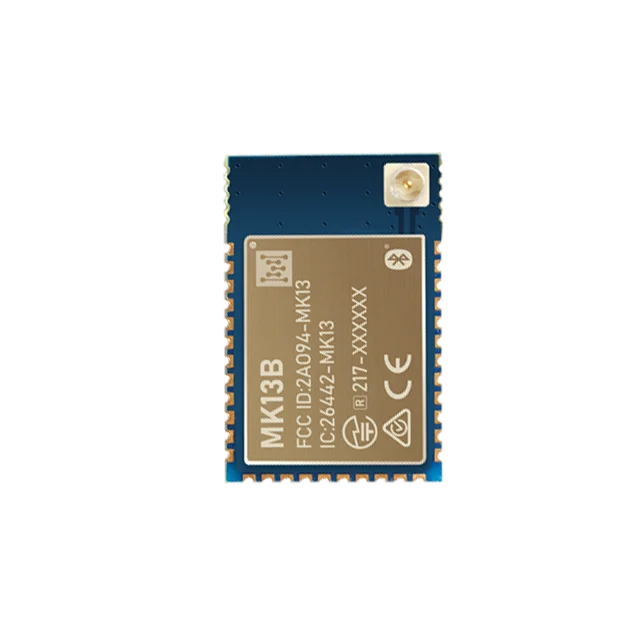

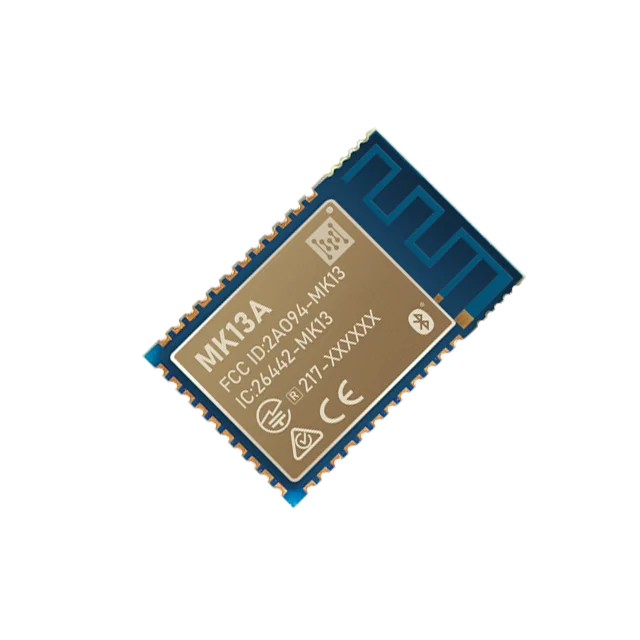

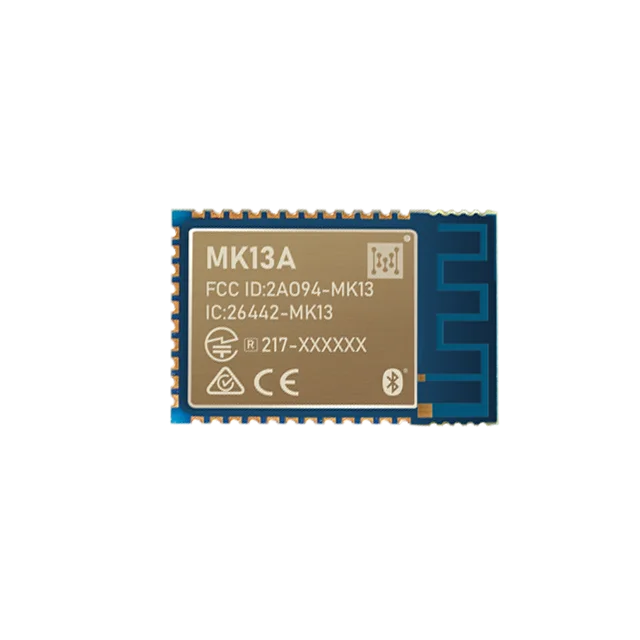

MK13 series is a powerful and highly flexible Bluetooth® 5.2 module based on Nordic® Semiconductor nRF5340 which is the world’s first wireless SoC with two Arm® Cortex®-M33 processors. The combination of two flexible processors, the advanced feature set, and an operating temperature up to 105 °C, make MK13 the ideal choice for LE Audio, professional lighting, advanced wearables, and other complex IoT applications.


Product Description


The MK13 module supports an extensive range of wireless protocols. It supports Bluetooth Low Energy and is capable of all angle-of-arrival (AoA) and angle-of-departure (AoD) roles in Bluetooth Direction Finding. In addition it supports LE Audio, high-throughput 2 Mbps, Advertising Extensions and Long Range. Mesh protocols like Bluetooth mesh, Thread and Zigbee can be run concurrently
with Bluetooth LE, enabling smartphones to provision, commission, configure and control mesh nodes. NFC, ANT, 802.15.4 and 2.4 GHz proprietary protocols are also supported.
MK13 series modules will be programmed default MOKO MKBN series firmware and custom firmware can be programmed too.
After you choose MK13 series module, MOKOSmart will provide technical support for your development or even help you to complete all hardware and firmware design. We can power demanding applications, while simplifying designs and reducing BOM costs.




MK13 Series BLE module features
Dimension

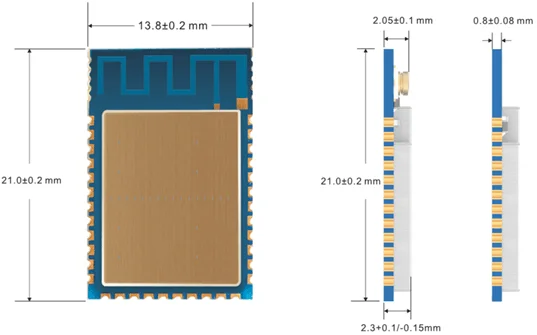

21*13.8*2.3mm（with shield）
Flash/RAM
1MB/512KB
Interface
SPI, TWI, UART, PDM, PWM, QDEC
Power Supply
1.7-5.5 V
Operating temp
-40 to +85°C
BLE5.0/5.1 Specification
Direction Finding, 2Mbps, CSA#2, Advertising Extensions, Long Range
Cover
Metal shielding with marking
BLE Standard
BLE 5.2
46GPIOs
46
Antenna Type
PCB antenna/u.FL Connector
32.768K Crystal Oscillator
Built inside
Pad package
Land Grid Array (LGA) +Plated Half-hole
Other Feature
Thread, Zigbee


Module Size

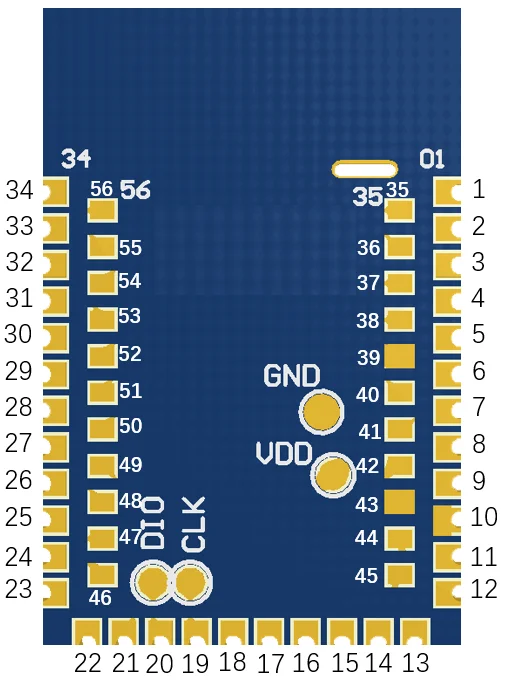

Pin Description




Pin No.
Name
Type
Description
1
P0.23
Digital I/O
General purpose I/O
2
P0.22
Digital I/O
General purpose I/O
3
P0.12
Digital I/O
General purpose I/O
TRACECLK
Trace clock
Trace buffer clock
4
P0.30
Digital I/O
General purpose I/O
5
P0.31
Digital I/O
General purpose I/O
6
P0.07
Digital I/O
General purpose I/O
AIN3
Analog input
Analog input
7
P0.05
Digital I/O
General purpose I/O
AIN1
Analog input
Analog input
8
P0.04
Digital I/O
General purpose I/O
AIN0
Analog input
Analog input
9
VDD_nRF
Power
Power supply
10
GND
Power
Ground
11
P0.02
Digital I/O
General purpose I/O
NFC1
NFC input
NFC antenna connection
12
P0.03
Digital I/O
General purpose I/O
NFC2
NFC input
NFC antenna connection
13
P0.06
Digital I/O
General purpose I/O
AIN2
Analog input
Analog input
14
P0.08
Digital I/O
General purpose I/O
TRACEDATA3
Trace data
Trace buffer TRACEDATA
15
P0.09
Digital I/O
General purpose I/O
TRACEDATA2
Trace data
Trace buffer TRACEDATA [2]
16
P0.10
Digital I/O
General purpose I/O
TRACEDATA1
Trace data
Trace buffer TRACEDATA [1]
17
P0.11
Digital I/O
General purpose I/O
TRACEDATA0
Trace data
Trace buffer TRACEDATA [0]
18
P0.13
Digital I/O
General purpose I/O
IO0
IO0 for QSPI
Dedicated pin for Quad SPI
19
SWDCLK
Debug
Serial wire debug clock input for debug and programming
20
SWDIO
Debug
Serial wire debug I/O for debug and programming
21
P0.14
Digital I/O
General purpose I/O
IO1
IO1 for QSPI
Dedicated pin for Quad SPI
22
P0.16
Digital I/O
General purpose I/O
IO3
IO3 for QSPI
Dedicated pin for Quad SPI
23
P0.15
Digital I/O
General purpose I/O
IO2
IO2 for QSPI
Dedicated pin for Quad SPI
24
P0.17
Digital I/O
General purpose I/O
SCK
SCK for QSPI
Dedicated pin for Quad SPI
25
P0.18
Digital I/O
General purpose I/O
CSN
CSN for QSPI
Dedicated pin for Quad SPI
26
P0.19
Digital I/O
General purpose I/O
27
P0.20
Digital I/O
General purpose I/O
28
P0.21
Digital I/O
General purpose I/O
29
P0.24
Digital I/O
General purpose I/O
30
P0.25
Digital I/O
General purpose I/O
AIN4
Analog input
Analog input
31
P0.26
Digital I/O
General purpose I/O
AIN5
Analog input
Analog input
32
P0.27
Digital I/O
General purpose I/O
AIN6
Analog input
Analog input
33
P0.28
Digital I/O
General purpose I/O
AIN7
Analog input
Analog input
34
P0.29
Digital I/O
General purpose I/O
35
P1.12
Digital I/O
General purpose I/O
36
P1.11
Digital I/O
General purpose I/O
37
P1.15
Digital I/O
General purpose I/O
38
P1.14
Digital I/O
General purpose I/O
39
P1.13
Digital I/O
General purpose I/O
40
P1.01
Digital I/O
General purpose I/O
41
P1.00
Digital I/O
General purpose I/O
42
VDDH
Power
Power supply
43
USB_D+
USB
USB_D+
44
USB_D-
USB
USB_D-
45
VBUS
Power
5 V input for USB 3.3 V regulator
46
P1.02
Digital I/O
General purpose I/O
TWI
TWI 1 Mbps
High-speed pin for 1 Mbps TWI
47
P1.03
Digital I/O
General purpose I/O
TWI
TWI 1 Mbps
High-speed pin for 1 Mbps TWI
48
P1.04
Digital I/O
General purpose I/O
49
P1.05
Digital I/O
General purpose I/O
50
P1.06
Digital I/O
General purpose I/O
51
P1.07
Digital I/O
General purpose I/O
52
P1.08
Digital I/O
General purpose I/O
53
P1.09
Digital I/O
General purpose I/O
54
P1.10
Digital I/O
General purpose I/O
55
RESET
Reset
Pin RESET with internal pull-up resistor
56
GND
Power
Ground
