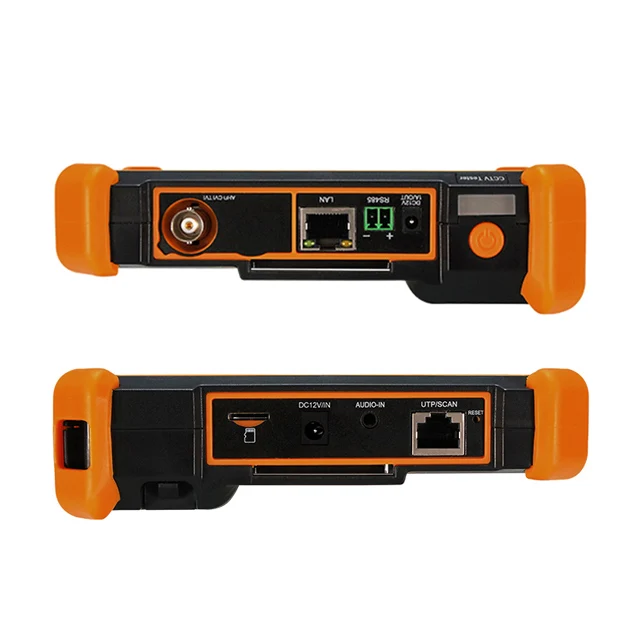

4 inch touch screen 960*640 resolution 8K IP/ 8MP TVI CVI AHD 5 in 1 All in one CCTV IPC Tester
- Category: >>>
- Supplier: Guangzhou Wanglu Technology Co. Ltd.
Share on (1600437279486):
Product Overview
Description
4 inch 960*640 resulotion 8K IP/ 8MP TVI CVI AHD 5-in-1 All in one CCTV IPC Tester

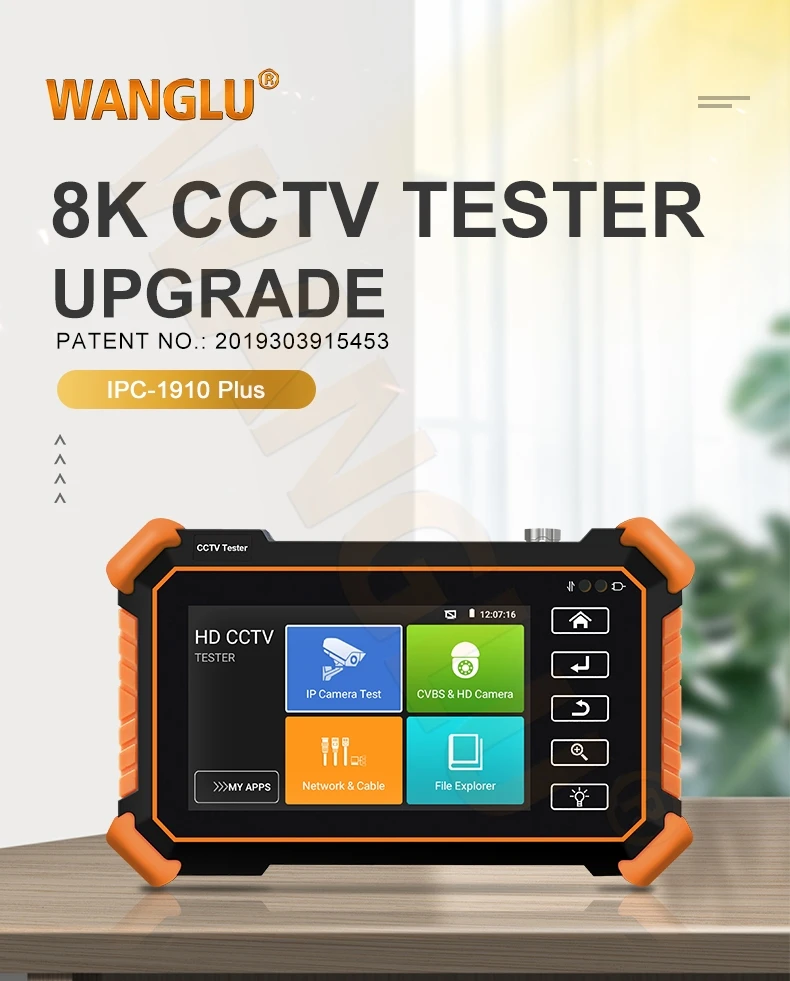

Model: IPC-1910 Plus
- 4 inch IPS touch screen, 960 x 640 resolution
- 8K H.265 video display via mainstream
- DC12V 3A, 48V PoE 25.5W power output
- 8MP AHD CVI TVI camera test
- Create the test report and modify IP address
- High brightness LED light
- UTP cable test, detect the near-end, mid-end and far-end fault point
of the RJ45 cable plug
Feature:
Item series | IPC-1910 Plus | ||
Display | New 4 inch IPS touch screen, 960*640 resolution | ||
Video Mode | CVBS | 1 channel BNC input, NTSC/PAL (Auto adapt) | |
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |||

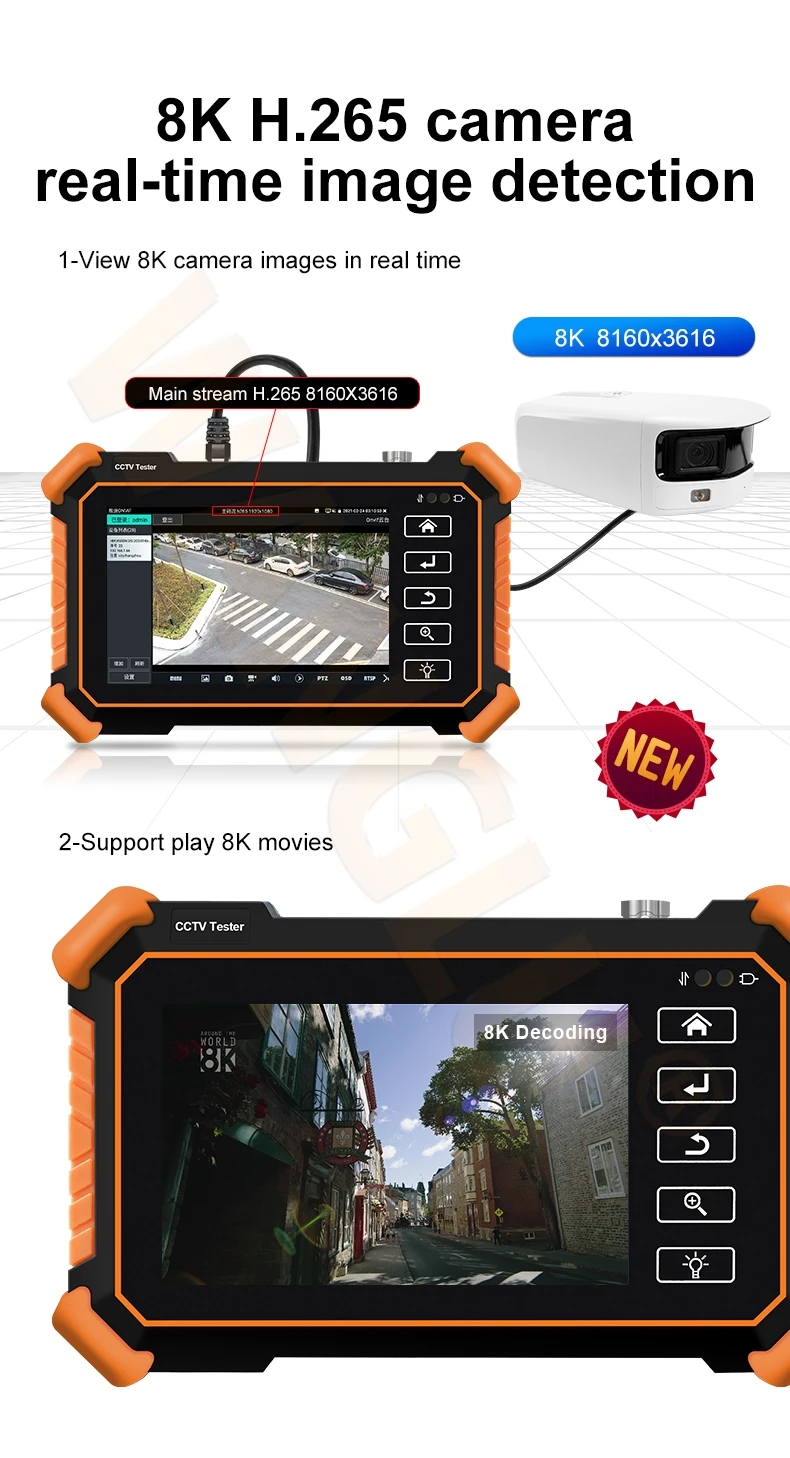

IP camera test 8K H.265/4K H.264 | IP Discovery/PC test /RTSP play /Client APK | ||
Rapid Video | Auto view the video, create testing report | ||

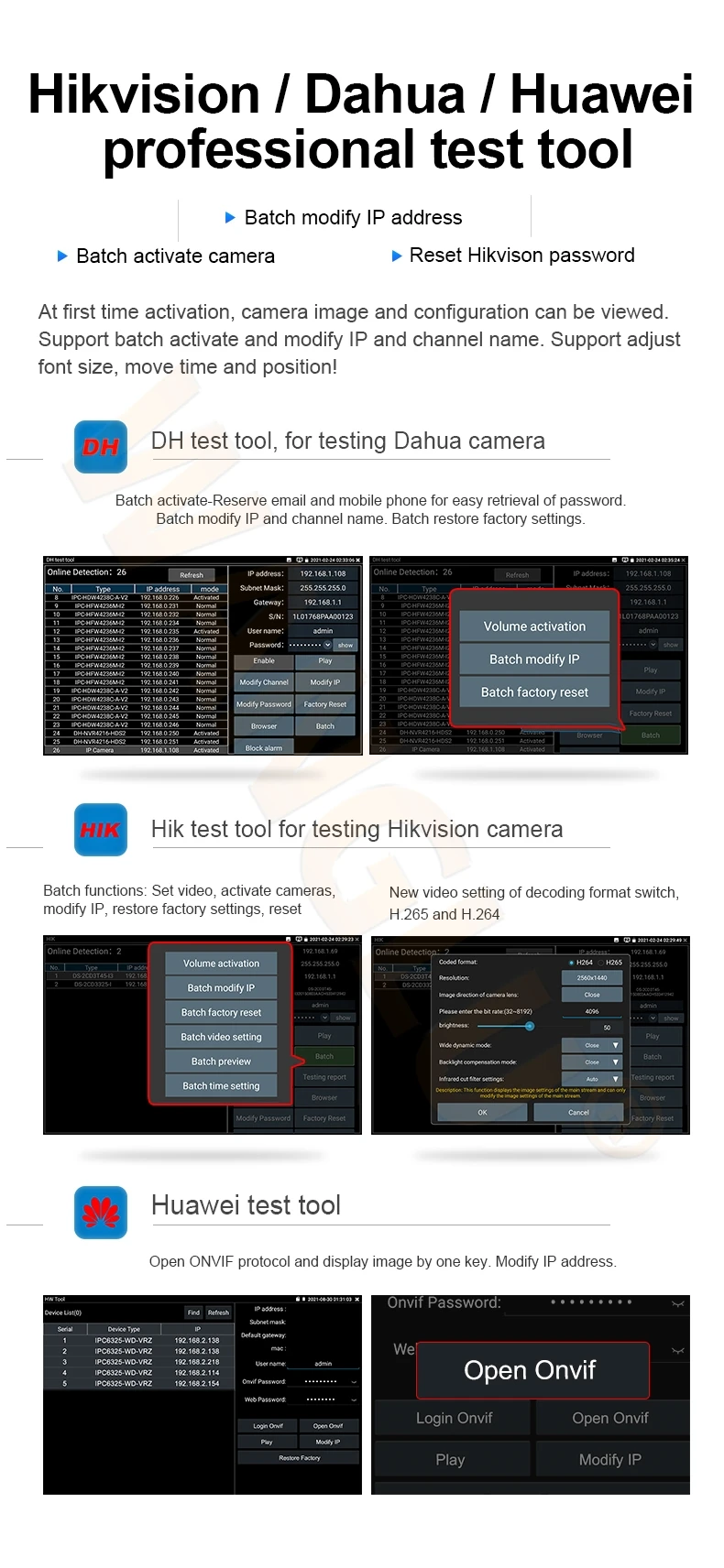

HIK test tool | Support batch activate HIKcameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc. Support reset password and set video occlusion alarm of HIK cameras. | ||
DH test tool | Support batch activate DH cameras and modify IP address, username and password. Self-defined modify channel name. | ||
HD Coaxial test | 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu | ||
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu | |||
8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu | |||

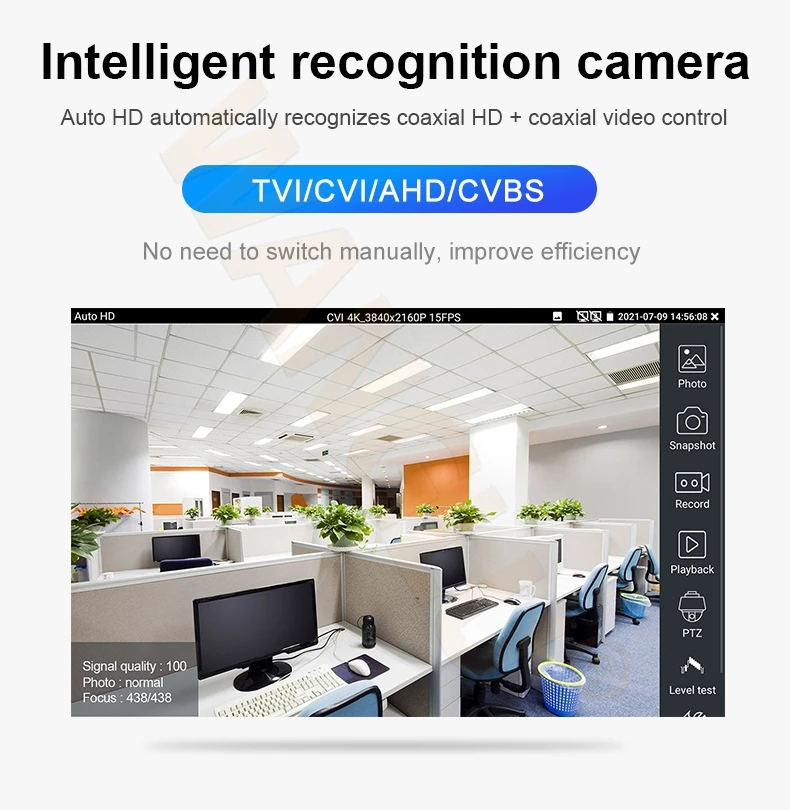

Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu | |||
Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back | ||

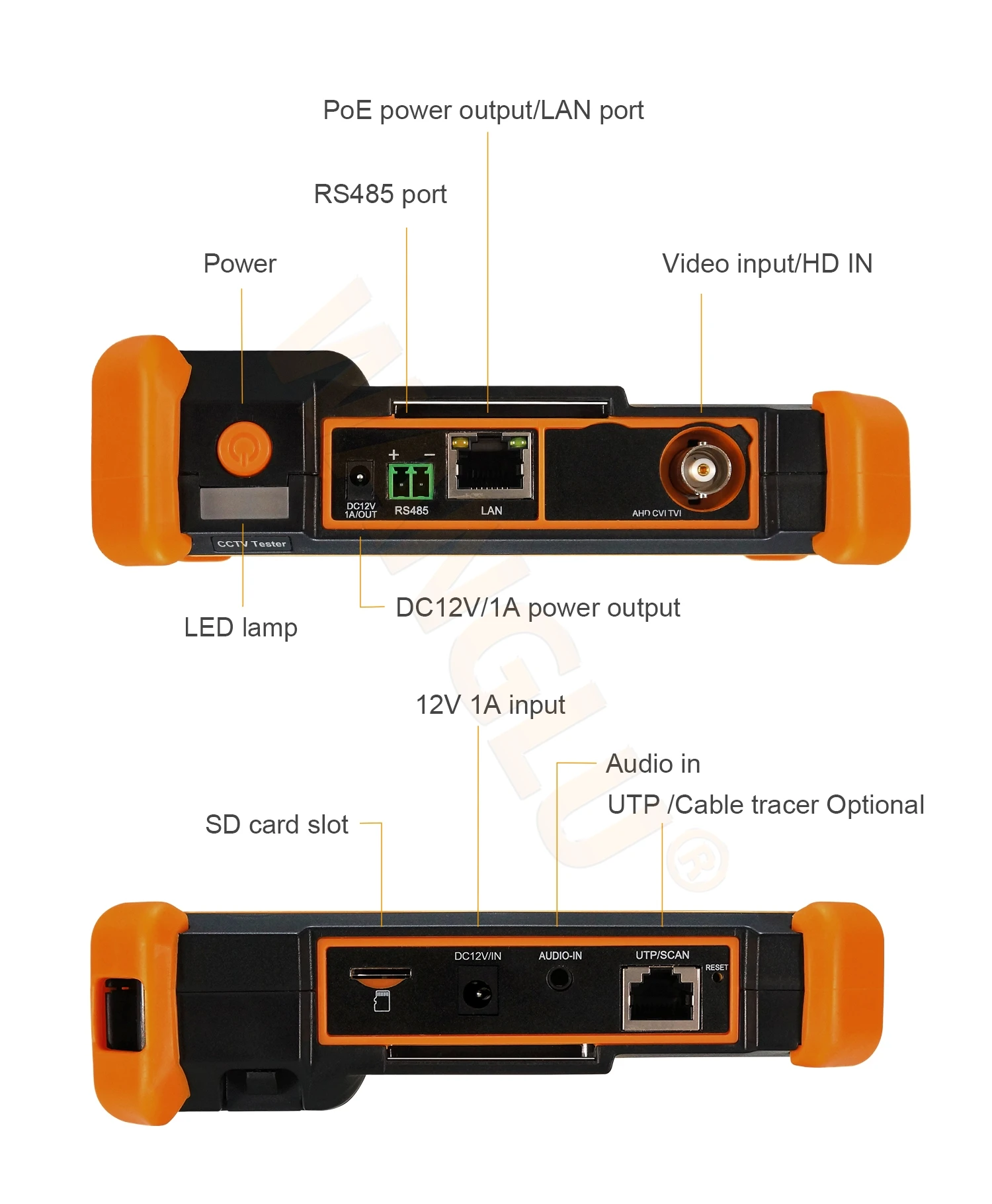

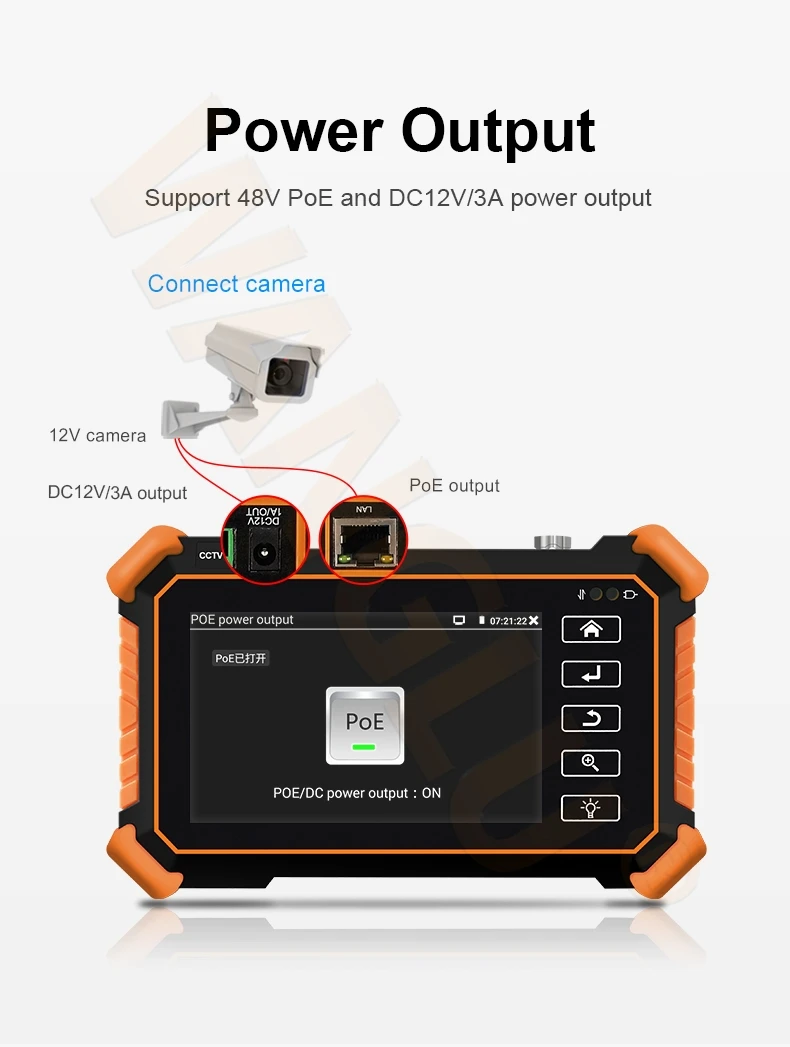

12V/3A power | Output DC12V/3A power out, supply temporarily power for the camera | ||
| PoE power output | 48V PoE power output, max power 25.5W | |

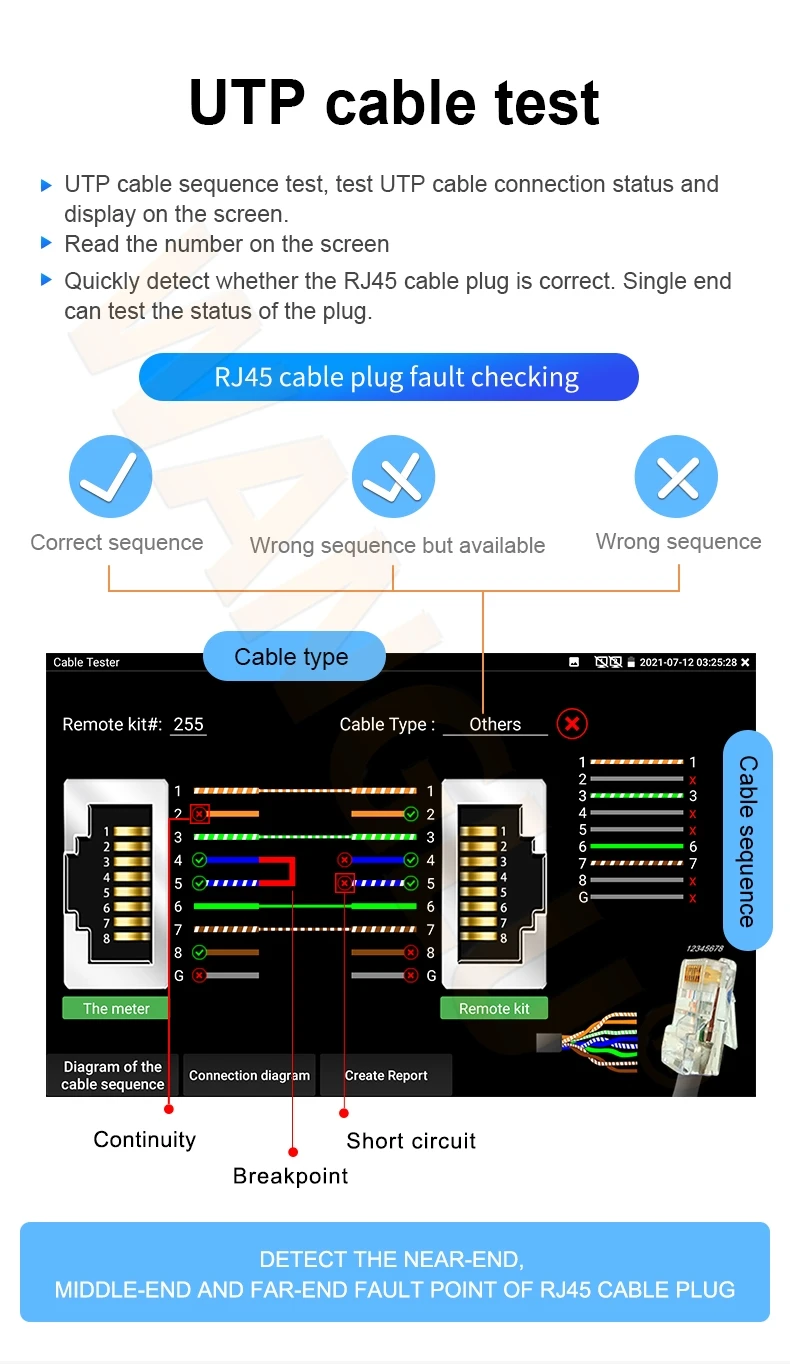

Cable test | UTP cable test | Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. | |
Tester Play | Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone) | ||

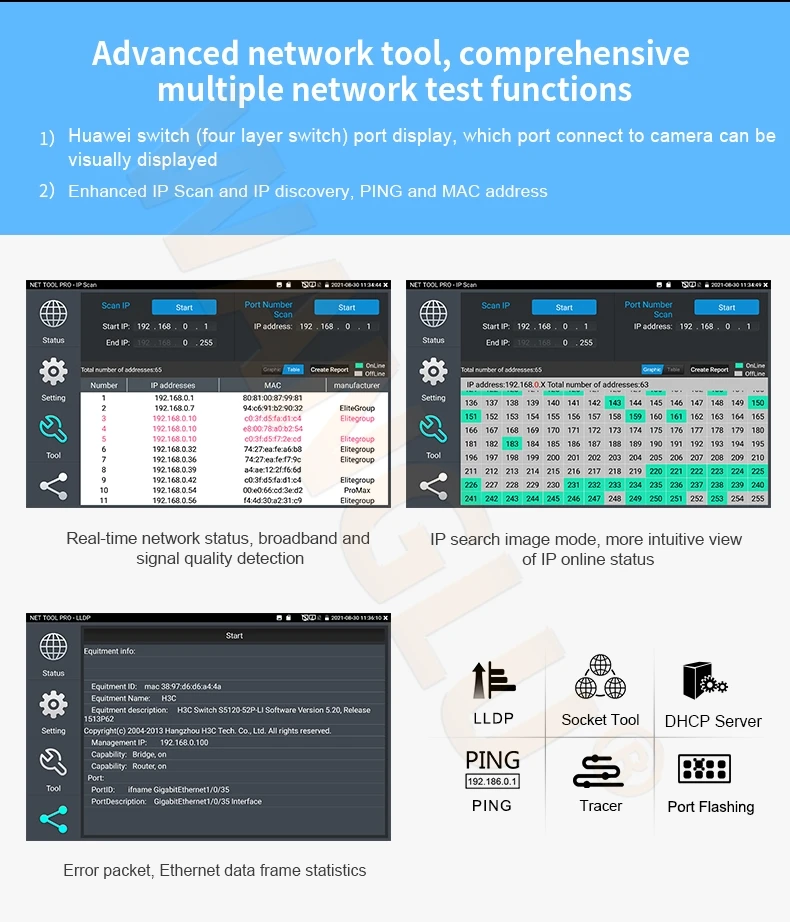

Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test | ||

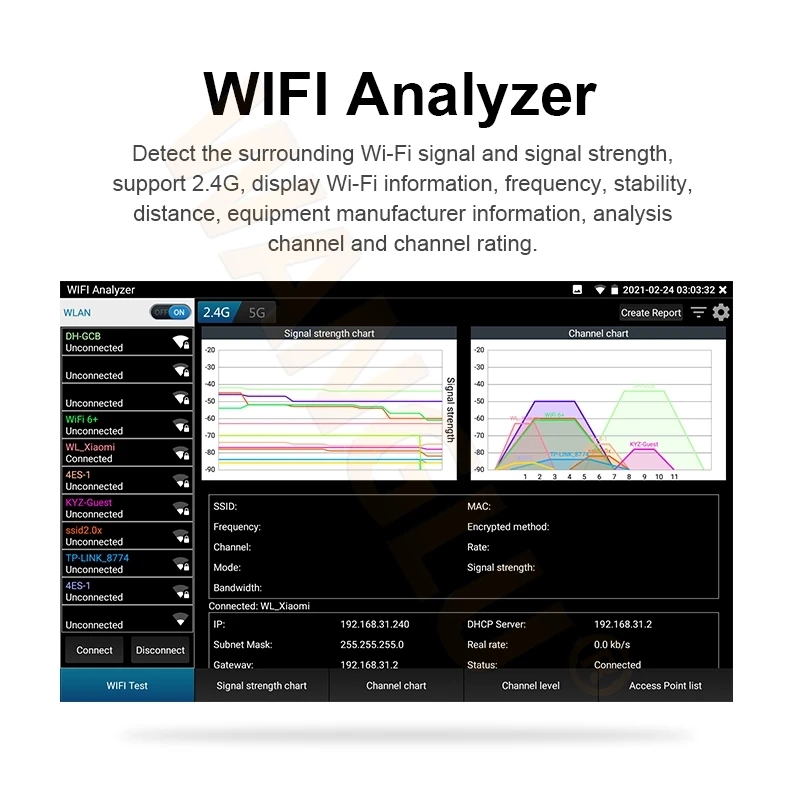

Wi-Fi | Built in WIFI, speeds 150M, display wireless camera image | ||

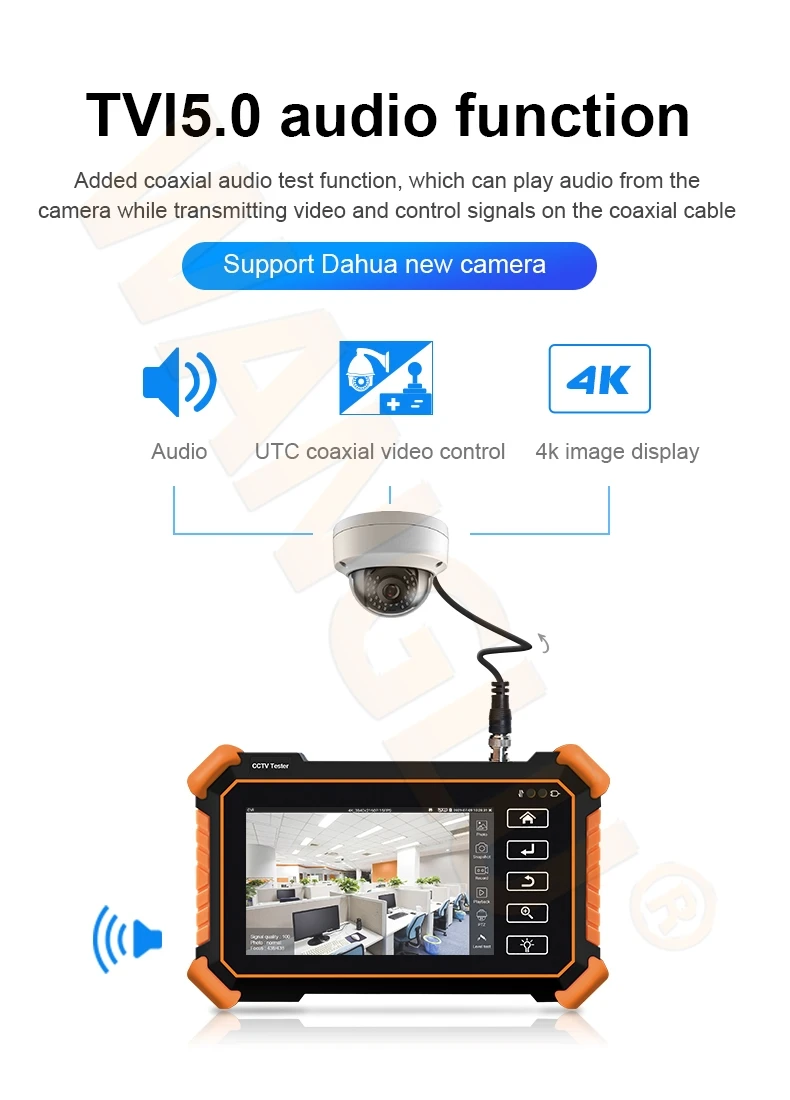

Audio test | 1 channel audio signal input, test whether sound normal. | ||
Power management | Display DC 12V input & output voltage and power in real time | ||
Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | ||
External power supply | DC 12V 1A | ||

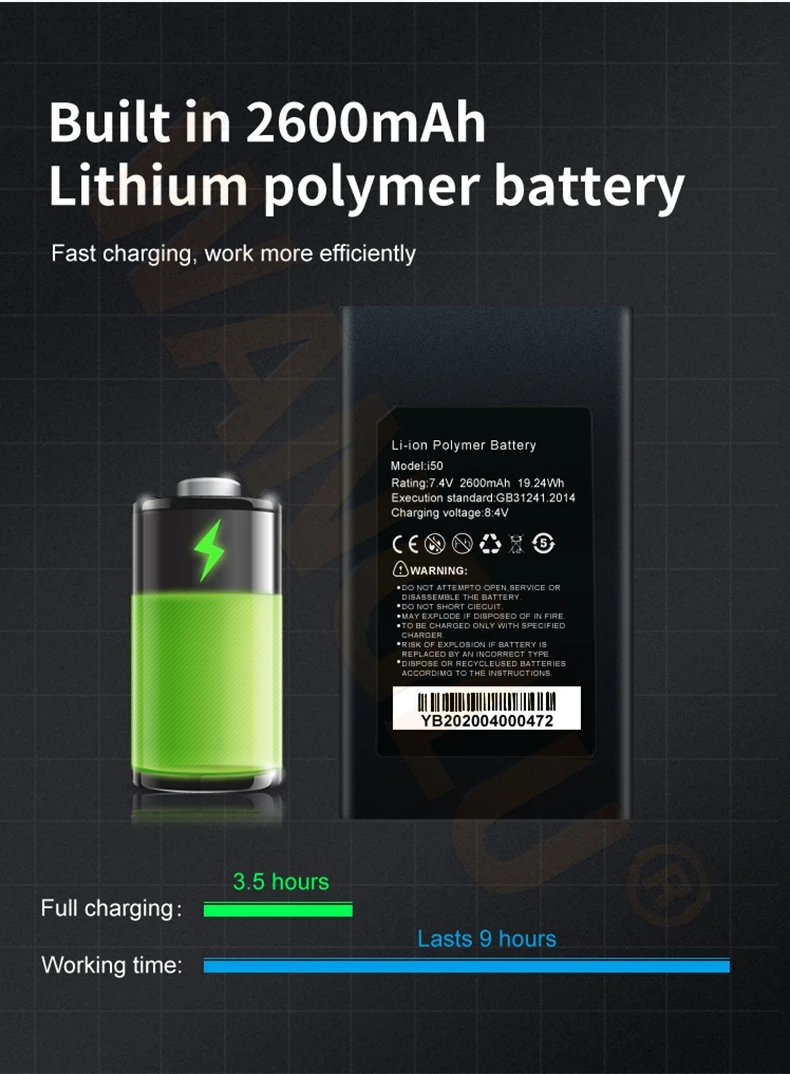

Battery | Built-in Lithium ion battery 7.4 V / 2600mAh | ||
Rechargeable | After charging 3-4 hours, normal working time 9 hours | ||
Operation setting | OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbian, Czech, Vietnamese etc | ||
Auto off | 1-30 (mins) | ||
Working Temperature | -10℃---+50℃ | ||
Working Humidity | 30%-90% | ||
Dimension/Weight | 160mm x 100mm x 45mm / 0.36kg | ||
