Heavy duty selective pallet rack frame and beam for pallet storage
- Category: >>>
- Supplier: Jiangsu Xinzhongya Intelligent Logistics Equipment Manufacturing Co. Ltd.
Share on (1600437283851):
Product Overview
Description
Heavy duty selective pallet rack frame and beam for pallet storage
Product Description
Pallet Rack is mainly consist of frame, beam, row spacer, frame protector, upright
protector, wire decking, steel panel, pallet support etc. It is adjustable and suitable for forklift working. There
are two kinds of aisles can be chosen. One is normal aisle about 3000mm, the other is about 1700mm which
require special forklift to fetch.
Customized
| Loading capacity | Length | Depth | Height |
| 500-4500kg per level | 1200-4000mm | 470-1500mm | 1000-11,000mm |
| Special storage requirement are also available | |||
| Upright | 80*60*2.0, 90*60*2.0, 90*70*2.0, 100*67*2.0, 100*75*2.0, 120*75*2.0 etc | ||
| Beam | 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5, 130*50*1.5, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0 etc | ||
| Surface Treatment | Powder Coating or Galvanised | ||
| Color | As your requirement | ||
Tips
♠ The max loading capacity of upright frame is related to the height between two beams, The gap of beam is
more narrow, upright frame is stronger
♠ When the width of rack is larger than 1200mm, three post style should be used.

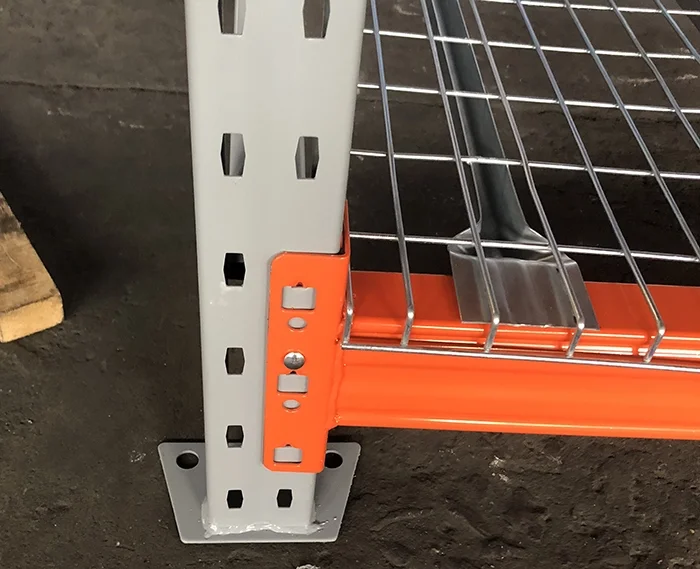

Beam connect with upright

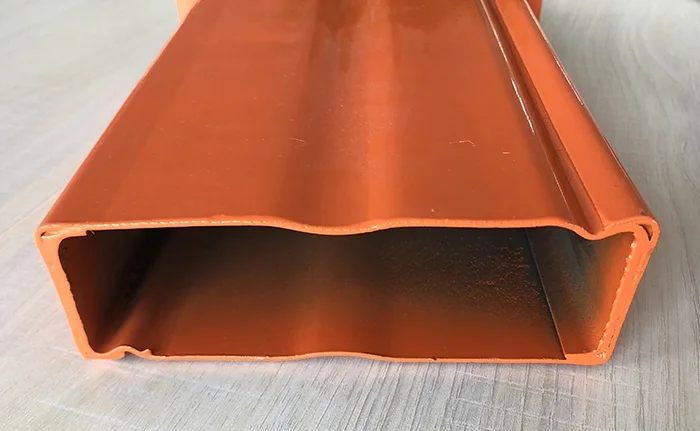

Box Beam

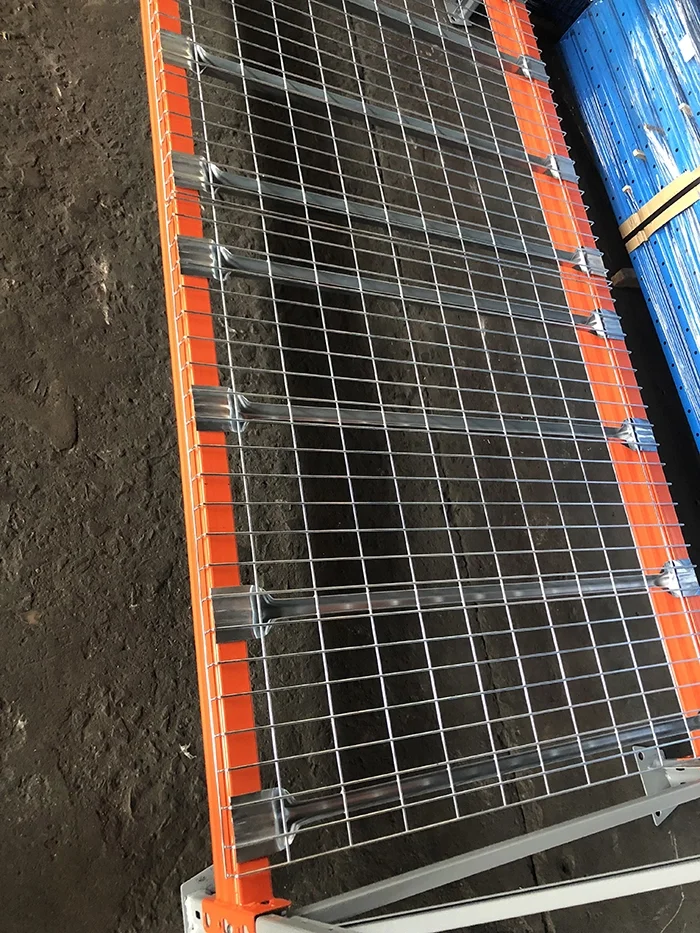

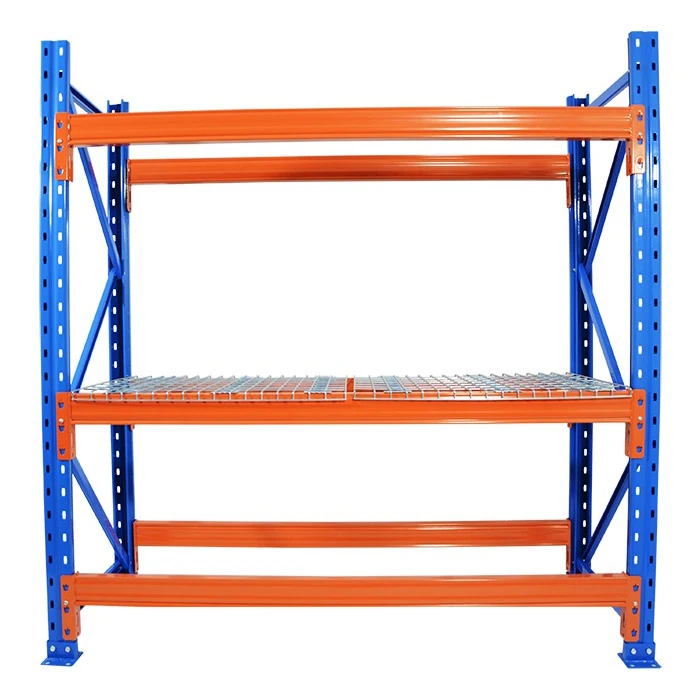

Pallet Rack with Decking

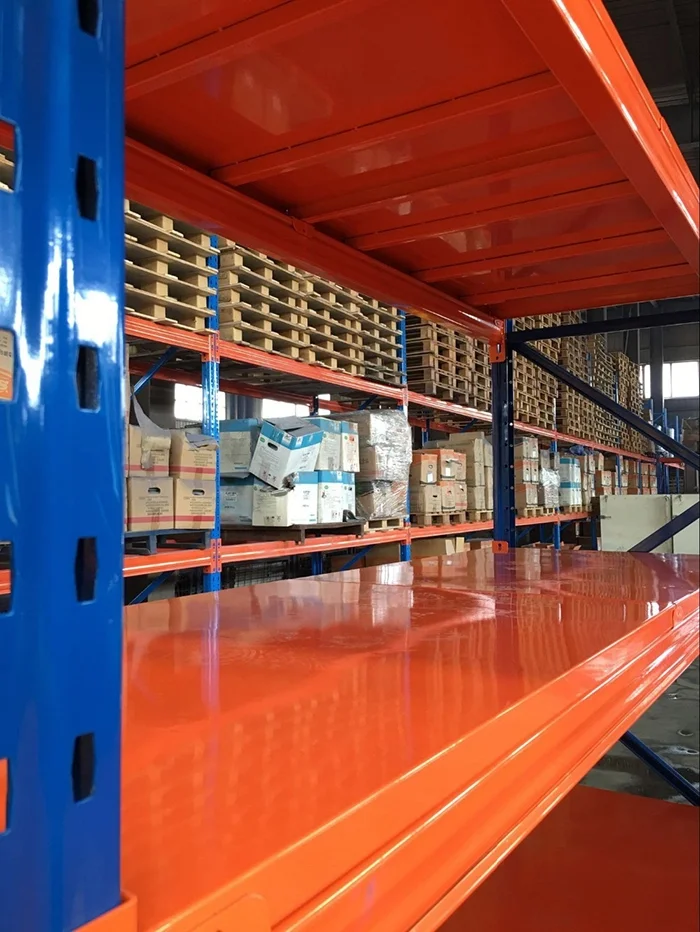

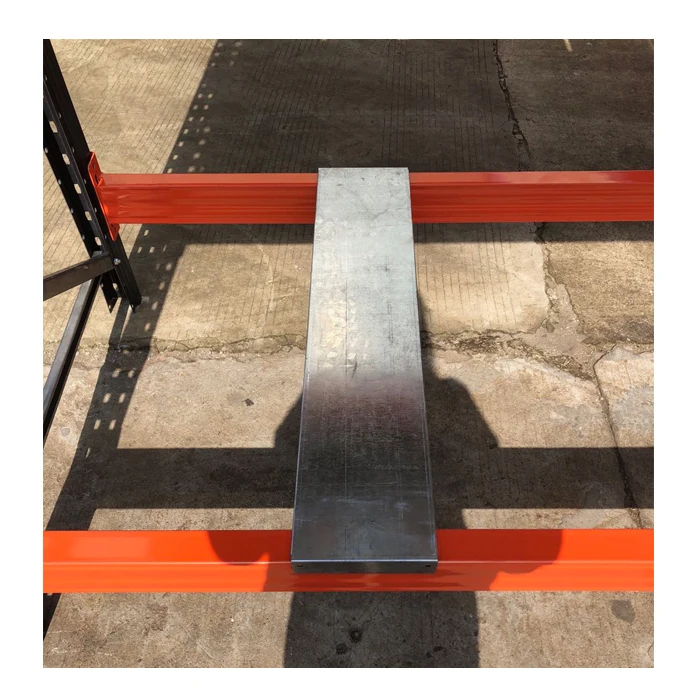

Pallet Rack with Steel Panel

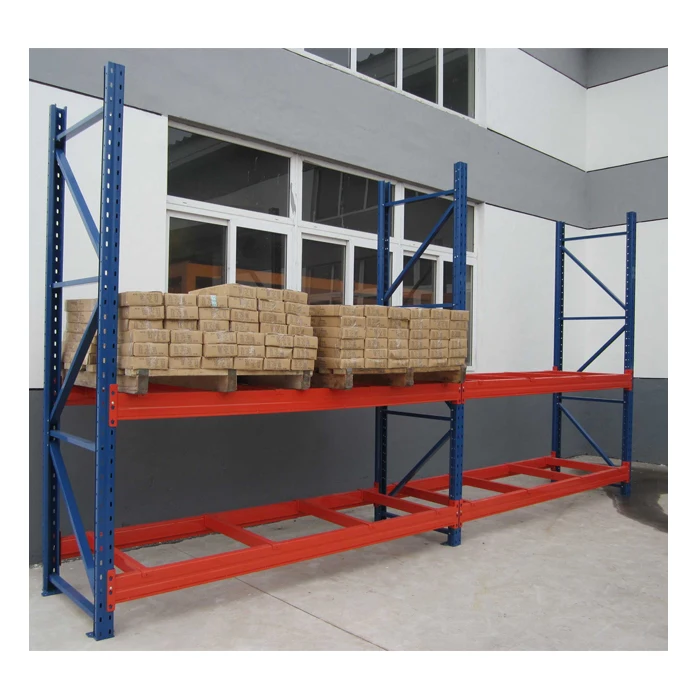

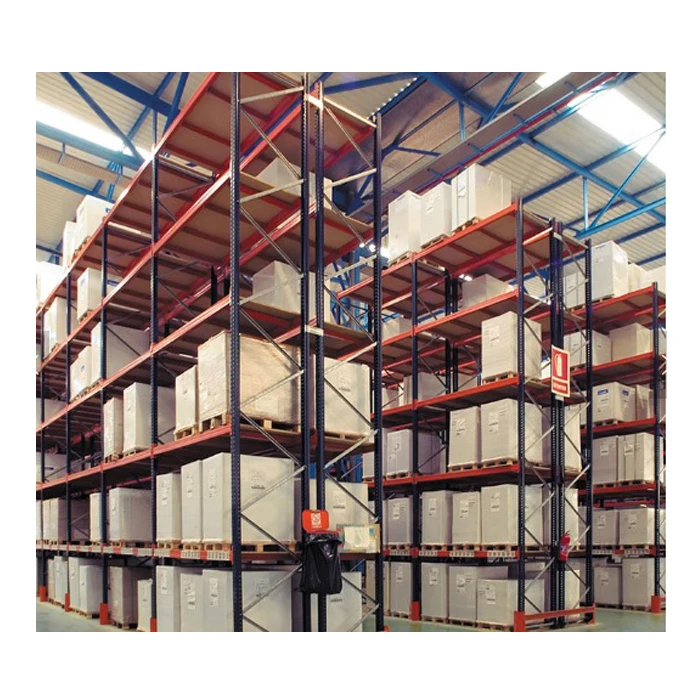

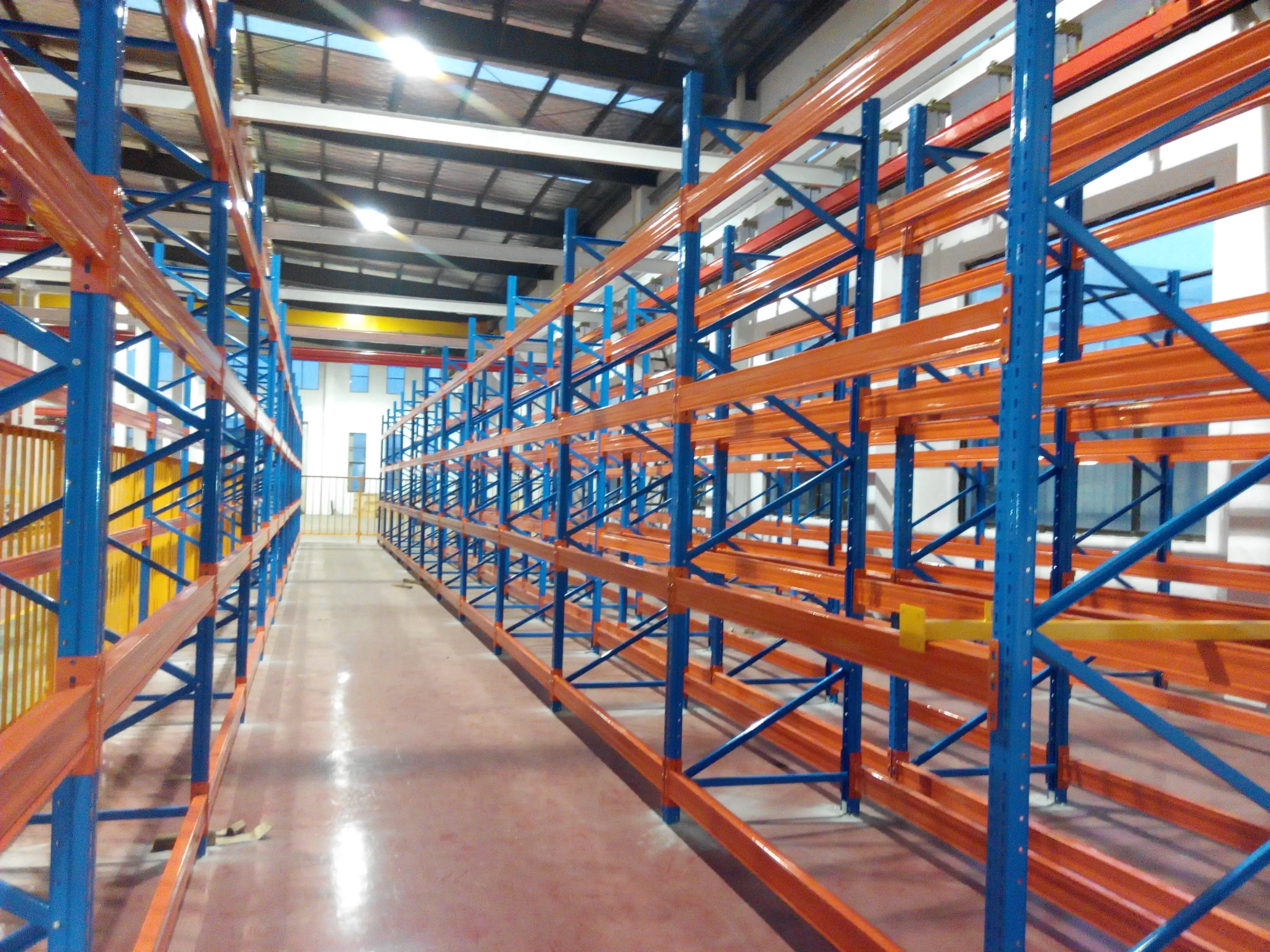

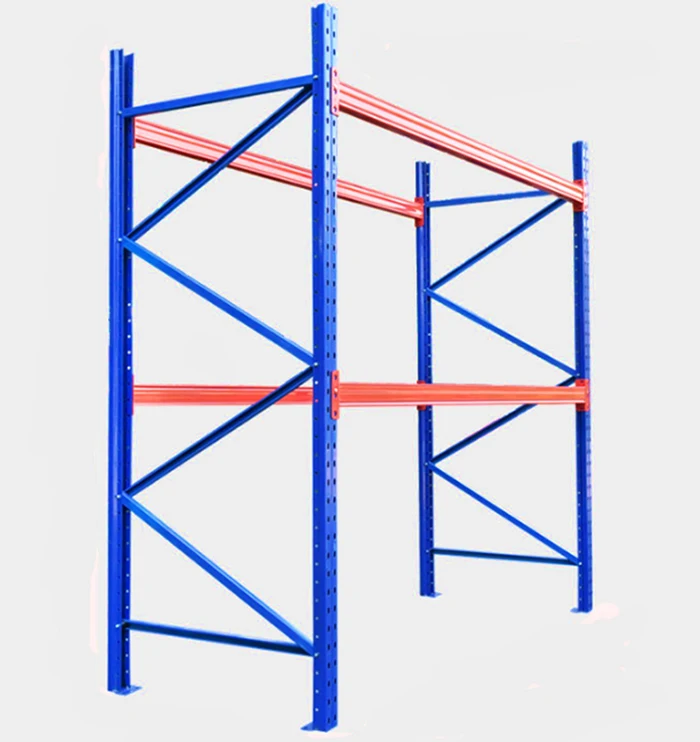

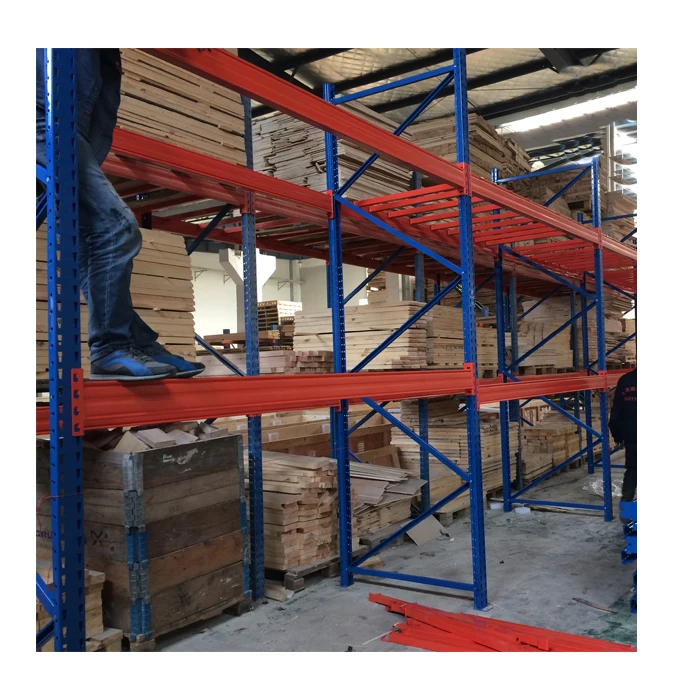

Common Pallet Rack

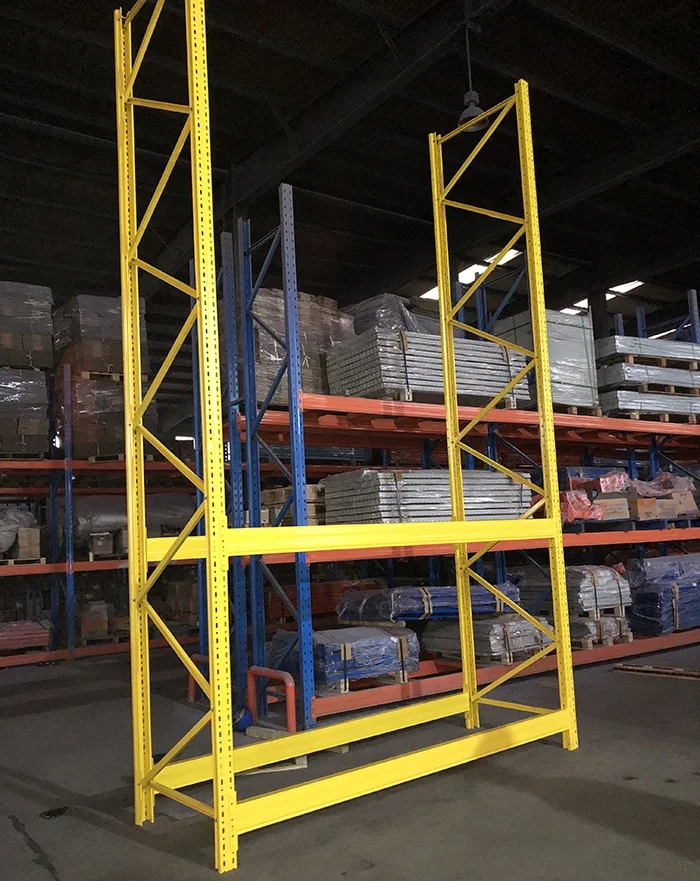

Pallet Rack with Galvanised Panel

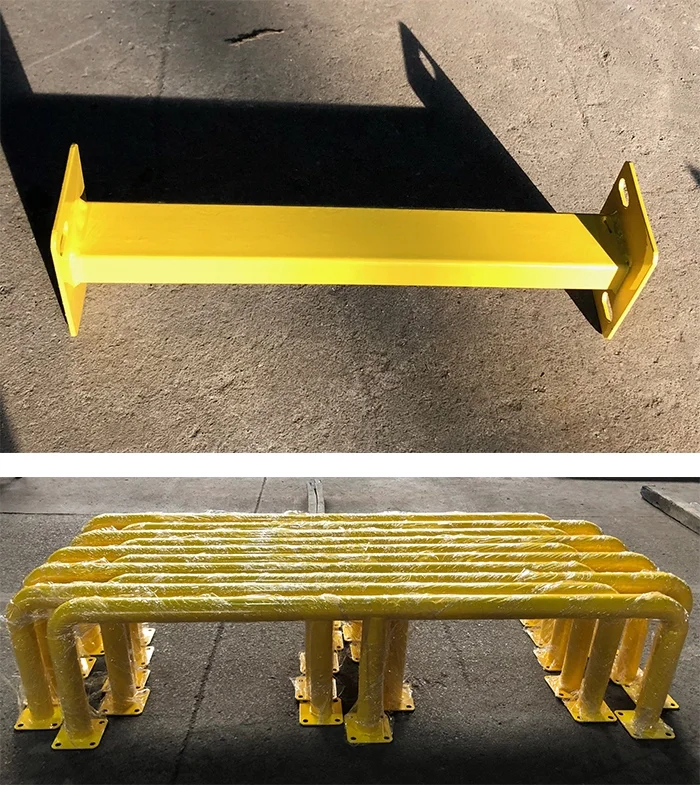

Row Spacer & Frame Protector
Features:
♠ Q235B steel use special section to increase loading capacity
♠ Beams can be adjusted by every 75mm up and down
♠ Frame can be assemble and disassemble
♠ Can be equipped with post protector, row spacer, pallet support, side board, back mesh etc
For Quotation
| Length | Depth | Height | Loading capacity |
| ? | ? | ? | ? |

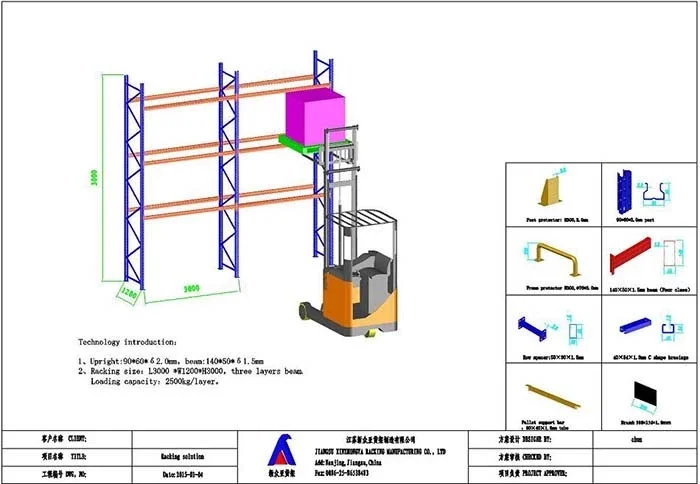

CAD Drawing
Click for Teardrop Pallet Rack
Packaging & Shipping
Beam Small Packages

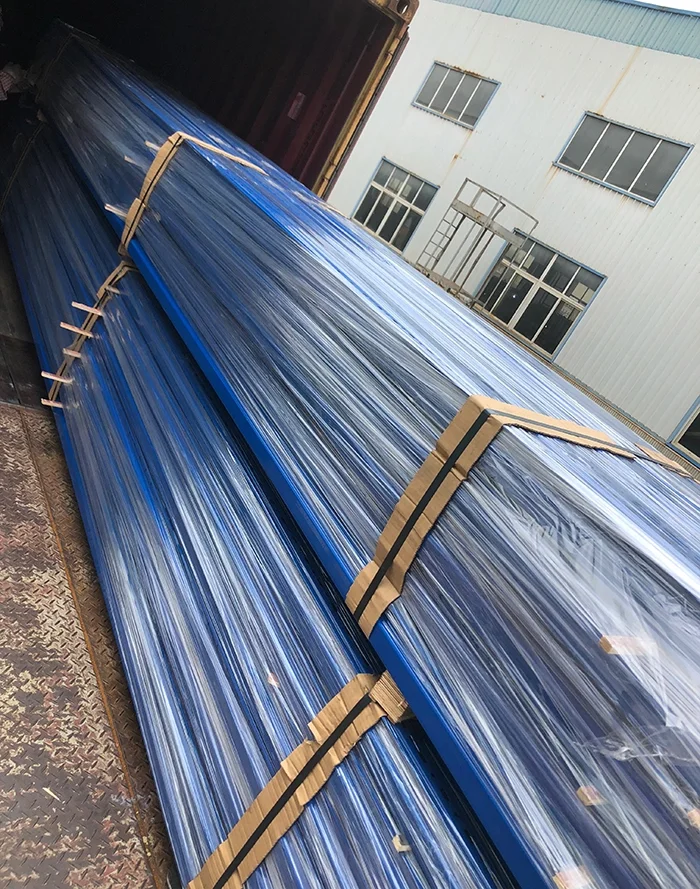

Upright Packages

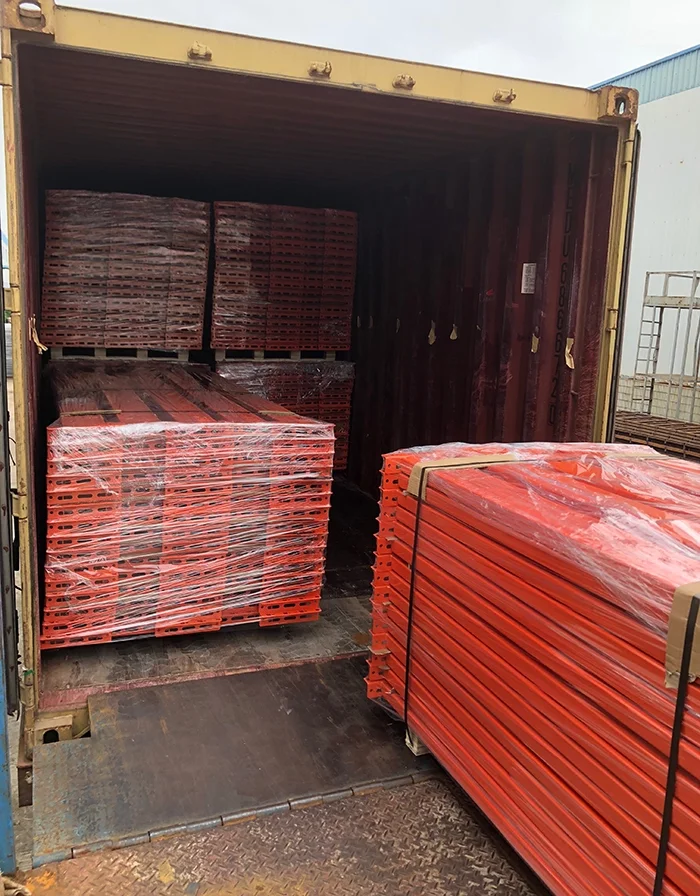

Container Loading
Our Service
Our Service
♠ Sample section is available
♠ Free CAD drawing, solution designing is available
♠ Installation instructions are also available
Other Hotselling Products
 |  |  |
| Stacking Rack | Pallet Rack | Drive In Rack |
Contact Info
| Contact | Zora Zhang |
| zora0526 | |
| 1292523914 |
FAQ
1. Are you a factory or trade company?
We are the factory since 1999, with four big workshop and one office building
2. How about the loading capacity of the rack?
Our rack can be customized for clients, for Pallet rack, regular is around 500kg-4500kg per level
3. How about the surface treatment of the rack?
As your like, both powder coating and galvanised is available
4. Where is your factory?
We are in nanjing city, near to shanghai, you can take the plane to Nanjing Lukou Airport or take train to
Nanjing South Station, we will received you at there.
