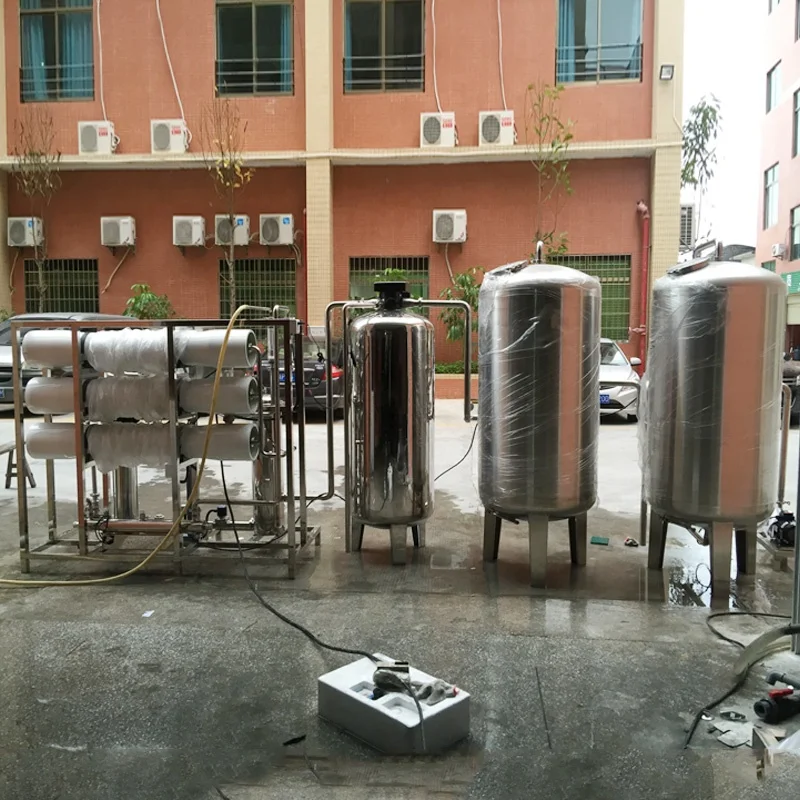

Stainless Steel Osmosis Inversa 3000 planta de purificador de agua Water Purifier Industrial Ro Water Machine For Bottled Water
- Category: >>>
- Supplier: Guangzhou Kaiyuan Water Treatment Equipment Co. Ltd.
Share on (1600437287169):
Product Overview
Description
Company Profile
Guangzhou KaiYuan Water Treatment Equipment Co. Ltd. is located in Guangzhou, China, has
been engaged in water treatment equipment since 2006. Our company is ISO9001:2008 certified company and our products are approved CE and SGS. We are specialized in manufacturing reverse osmosis pure water machines, industrial pure water equipment, ultra pure water equipment, underground water treatment equipment, brackish water treatment systems, EDI systems, water softener, ultrafiltration(UF) and sea water desalination equipment
been engaged in water treatment equipment since 2006. Our company is ISO9001:2008 certified company and our products are approved CE and SGS. We are specialized in manufacturing reverse osmosis pure water machines, industrial pure water equipment, ultra pure water equipment, underground water treatment equipment, brackish water treatment systems, EDI systems, water softener, ultrafiltration(UF) and sea water desalination equipment
Exhibition

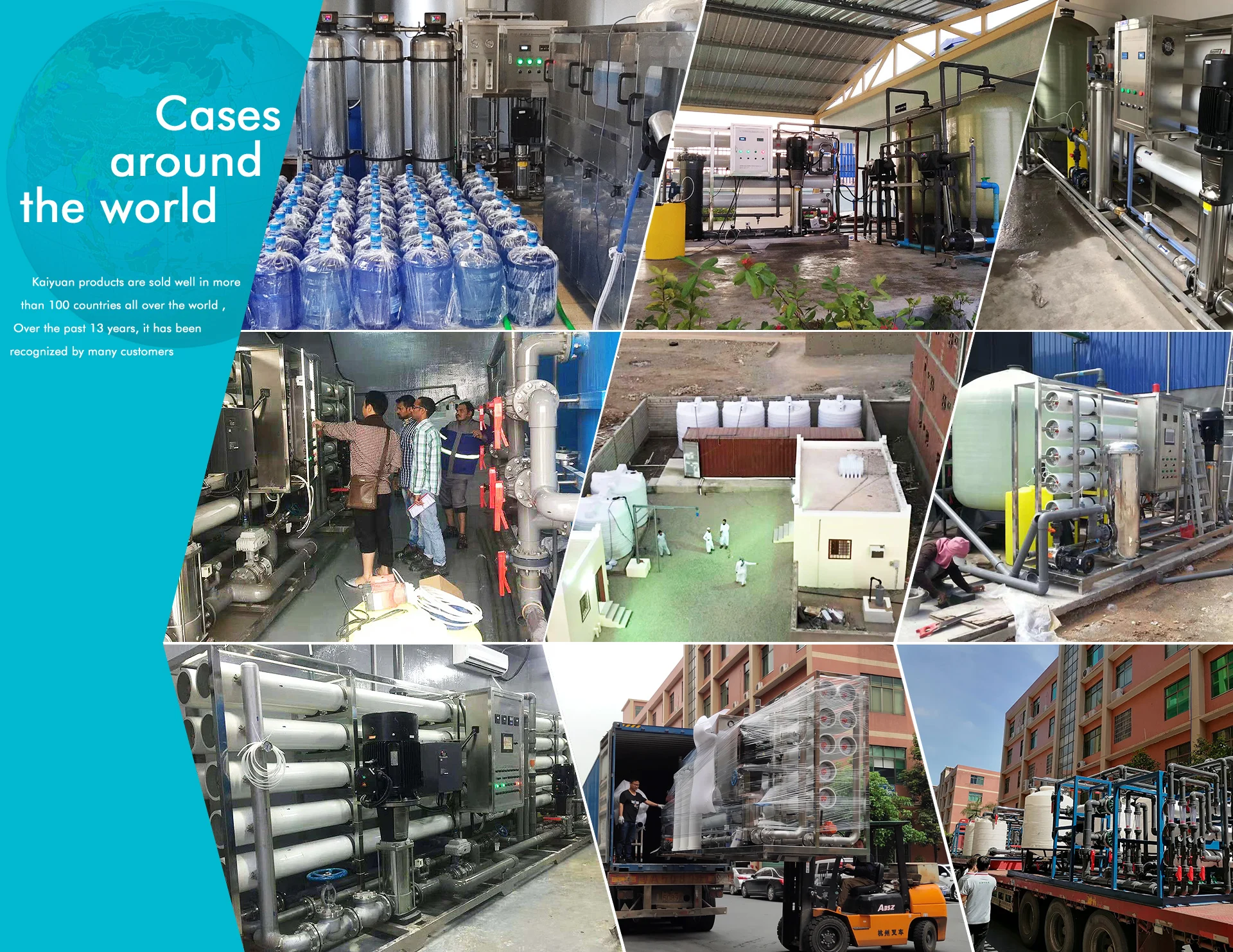

Our products are exported to more than 90 countries in the world
Certifications
UseStainless Steel Osmosis Inversa 3000 planta de purificador de agua Water Purifier Industrial Ro Water Machine For Bottled Water
Product Paramenters
Model | KYRO-3000 |
Production capacity | 3000L/H(793Gallon/hour) |
Power | About 5.0KW |
RO membrane | USA RO membrane; BW30-400IG;3PCS |
Power supply | AC 380V 50Hz 3phase or 220V 50hz single phase |
Membrane housing | FRP, 8040, 3pcs |
Raw water pump | Nanfang pump |
Quartz sand filter Activated carbon filter Control valve | SUS304; Quartz sand SUS304; Activated carbon SUS304; Water softener Manual control valve+Auto control valve |
Security filter | 30″×5μm , 7pcs |
High pressure pump | Nanfang pump |
Desalination rate | 97% - 99% |
Recovery rate | 50%-75% |
Size (mm) | main machine: 2400X650X1900 |
Material | FRP+SUS304+PVC |
Certificate | CE&ISO9001 |
Warranty | One year |

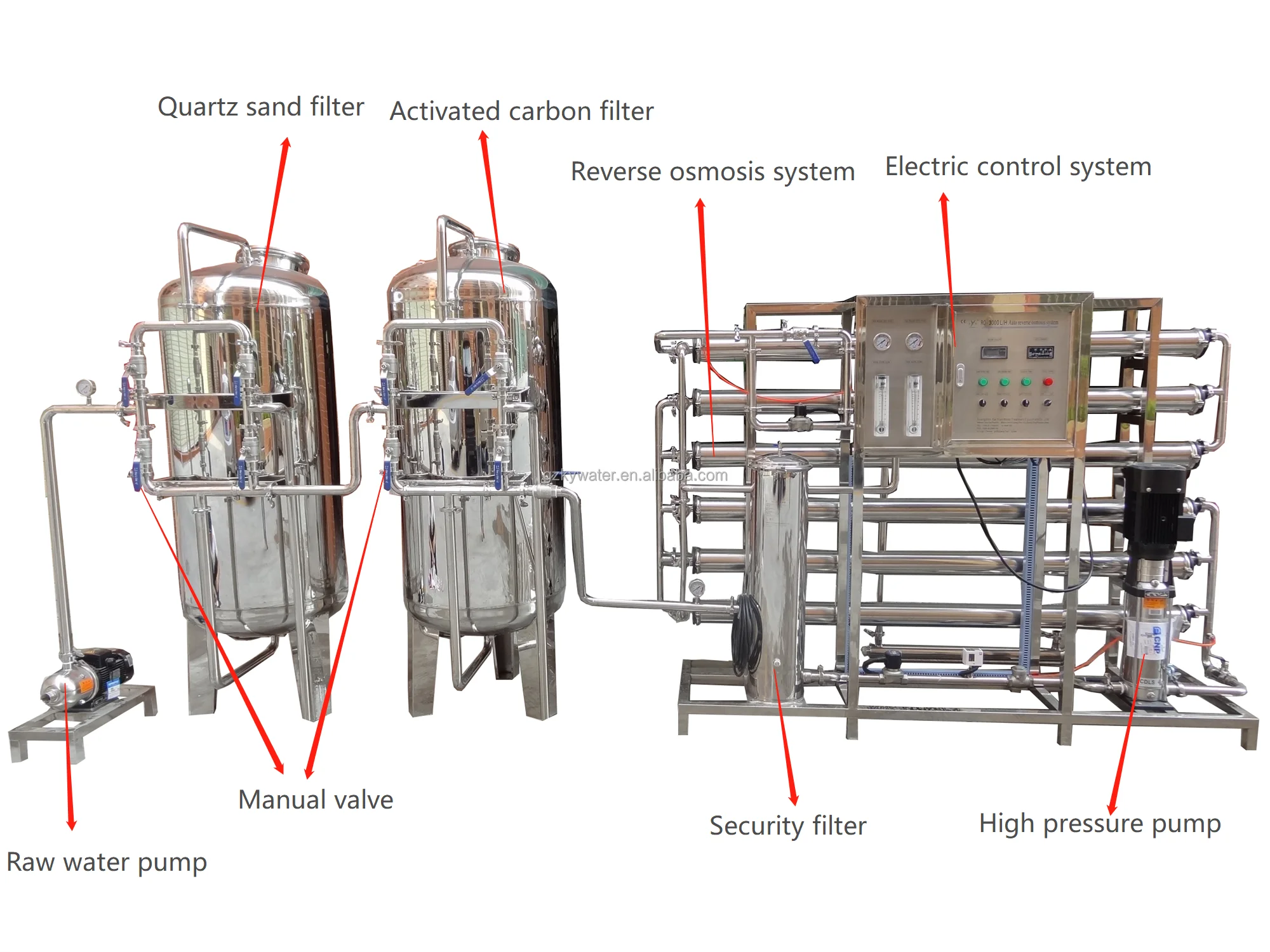

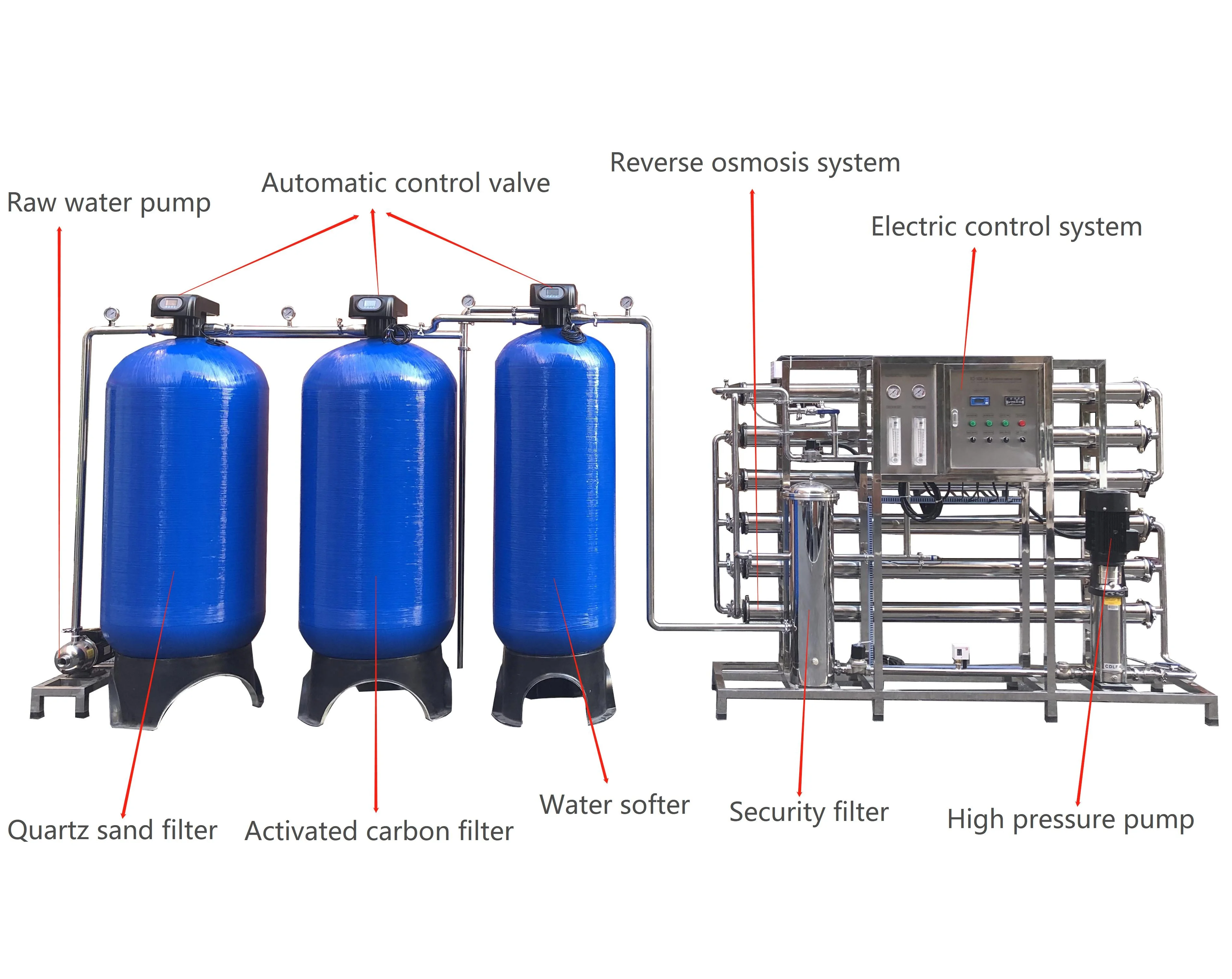

S/N. | Commodity name | Application | Remark |
1 | Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system | Customer provide for themselves, because big size will result in expensive freight |
2 | Raw water pump or called booster pump | Provide needed pressure for every pretreatment filter | We can provide CNP pumps or Grundfos pumps |
3 | Mechanical filter or called quartz sand filter or sand filter | We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. | We use China brand or WAVE CYBER brand |
4 | Activated carbon filter | We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual,chlorine and organics substances. | We use China brand or WAVE CYBER brand |
5 | Water softener, demineralizer, or called Na+ exchanger(optional) | Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling | We use China brand or WAVE CYBER brand |
6 | Antiscalant dosing system or PH regulating system | Dosing antiscalant into feed water, prevent the ro membranes from blocking, prolong the lifetime of RO membranes. Regulating PH to suitable range. | Italy SEKO dosing pump or German Prominent |
7 | Security filter or pp filter, or called PP sediment filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm, | Stainless steel housing or PVC housing |
8 | High pressure pump | Provide needed working pressure for RO system, ensure production capacity of pure water. | CNP pump, Grundfos optional |
9 | RO(reverse osmosis) system | Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. | RO membranes USA Brand; Domestic well-known brand VONTRON. |
10 | CIP cleaning system(optional) | Cleaning RO membranes with chemicals | CNP pumps |
11 | Sterilizing device(optional) | UV sterilizer or ozone generator | DAHUAN ozone , ClearUV UV Lamp |
Contact US
Products Description

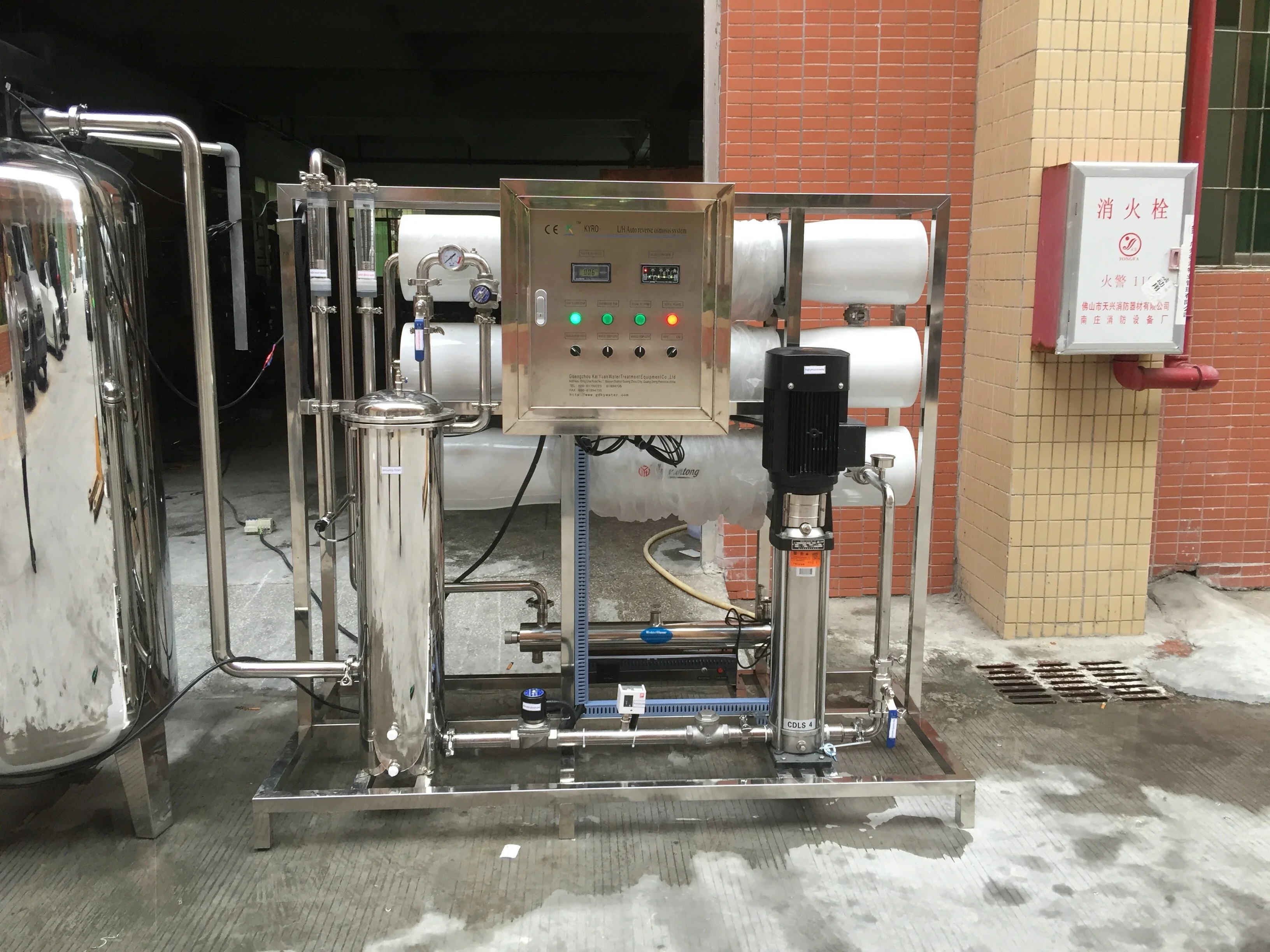

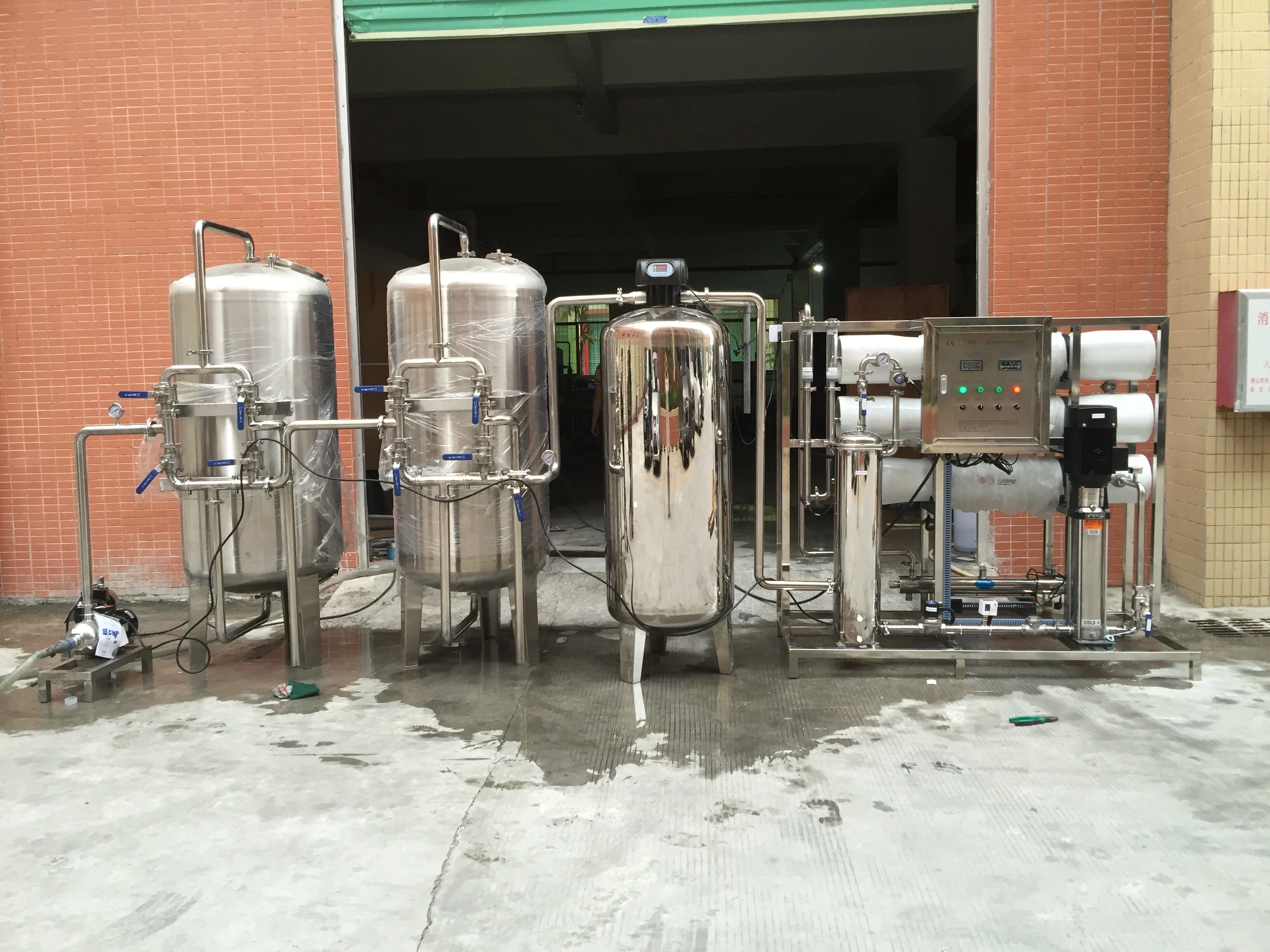

RO reverse osmosis system

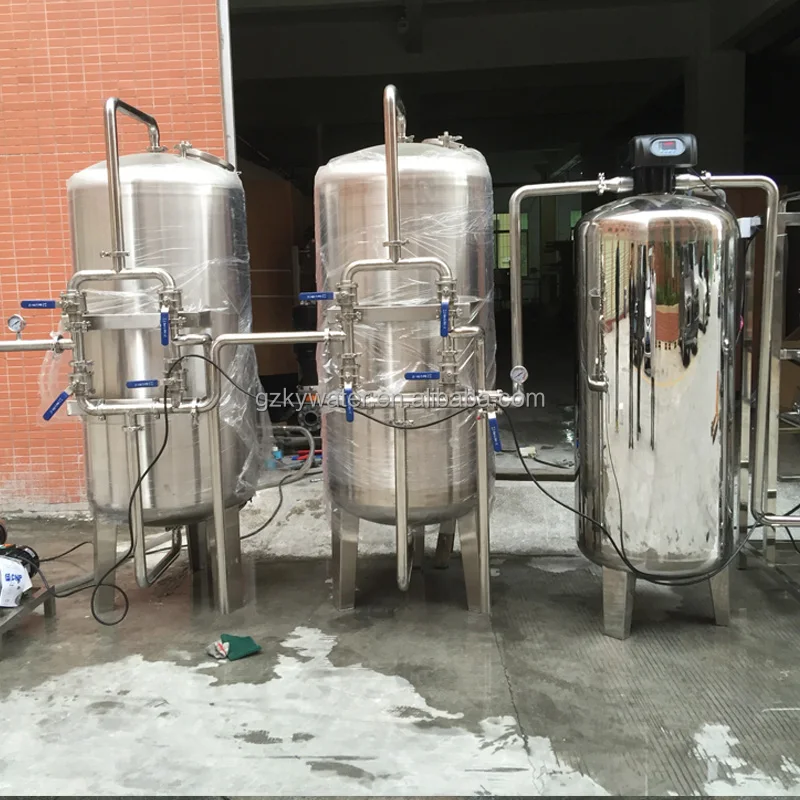

Kaiyuan reverse osmosis water treatment equipment uses pretreatment device (quartz sand filter,
activated carbon, water softener, security filter) With RO reverse osmosis system multiple filtration
and separation of water ion technology, the salt removal rate can reach 97%-99%, The recovery rate reaches 50-75%.
activated carbon, water softener, security filter) With RO reverse osmosis system multiple filtration
and separation of water ion technology, the salt removal rate can reach 97%-99%, The recovery rate reaches 50-75%.

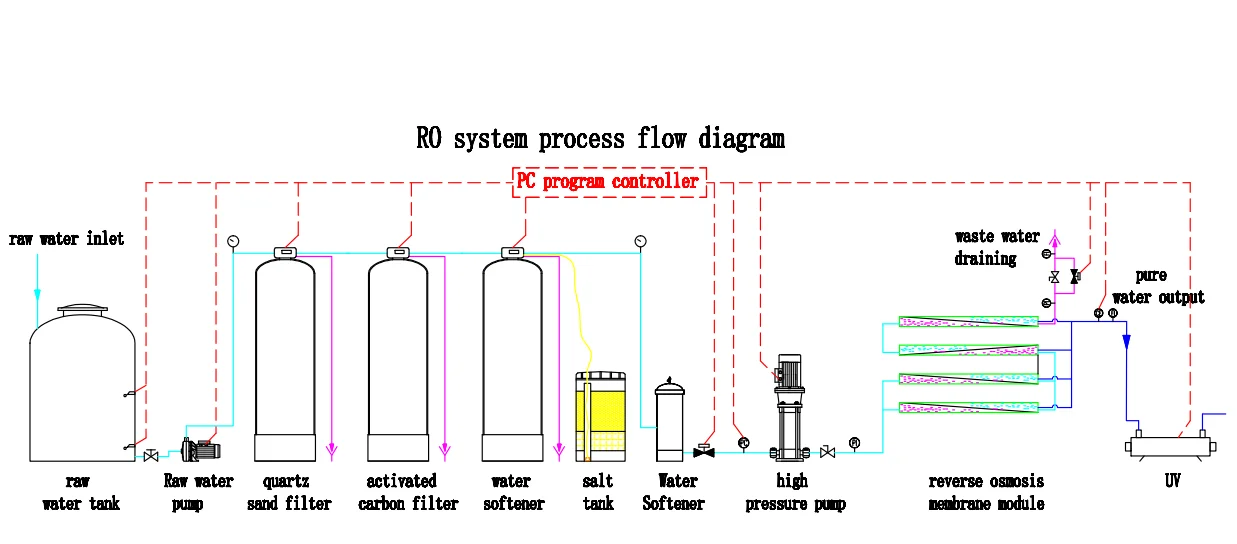

Working Process Chart:
Raw water pump→ Mechanical filter(Quartz sand filter)→ Activated carbon filter→ Sodium-ion exchanger(Water softener)→ Security filter→ High pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer).

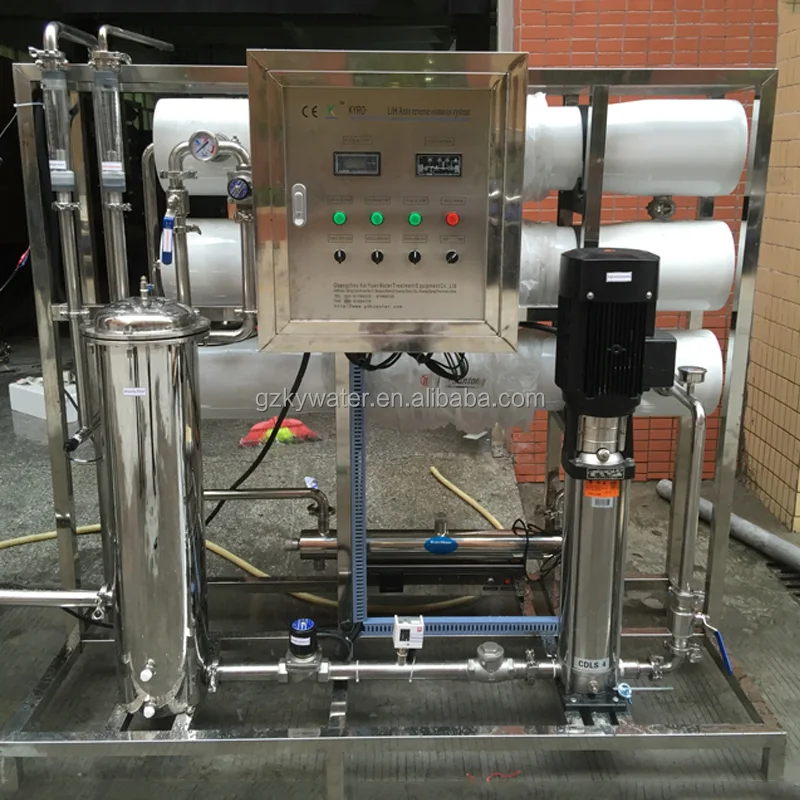

Laser engraving to customize your logo company and language, Simple operation, real-time display of data, monitoring of equipment working conditions
Label each wire and synchronize engineering drawings for easy operation, 4 independent air switches + 2 fuses, 6-fold safety protection, the equipment is more durable
High pressure pump CNP pump, The famous pump brand in China.It is to provide the pressure for water into ro membrane.It is the improtant part in the system
Laser engraving to customize your logo company and language，MOQ 1set, Our craft, Single-sided welding, double-sided molding，no dead -angle, won't leak water and grow bacteria
How long the consumables should be replaced?
All the consumable replace period will be depend on the feed water quality.
PP filter cartridge
Advice Replacement time: every month
Quartz sand
Advice Replacement time: Every 15 - 18 months
Activated Carbon
Advice Replacement time: Every 15 - 18 months
Resin
Advice Replacement time: Every 15 - 18 months
RO membrane (LCLE4040)
Advice Replacement time:
Every 2 years
Every 2 years
UV lamp
Advice Replacement time:
9000 hours
9000 hours

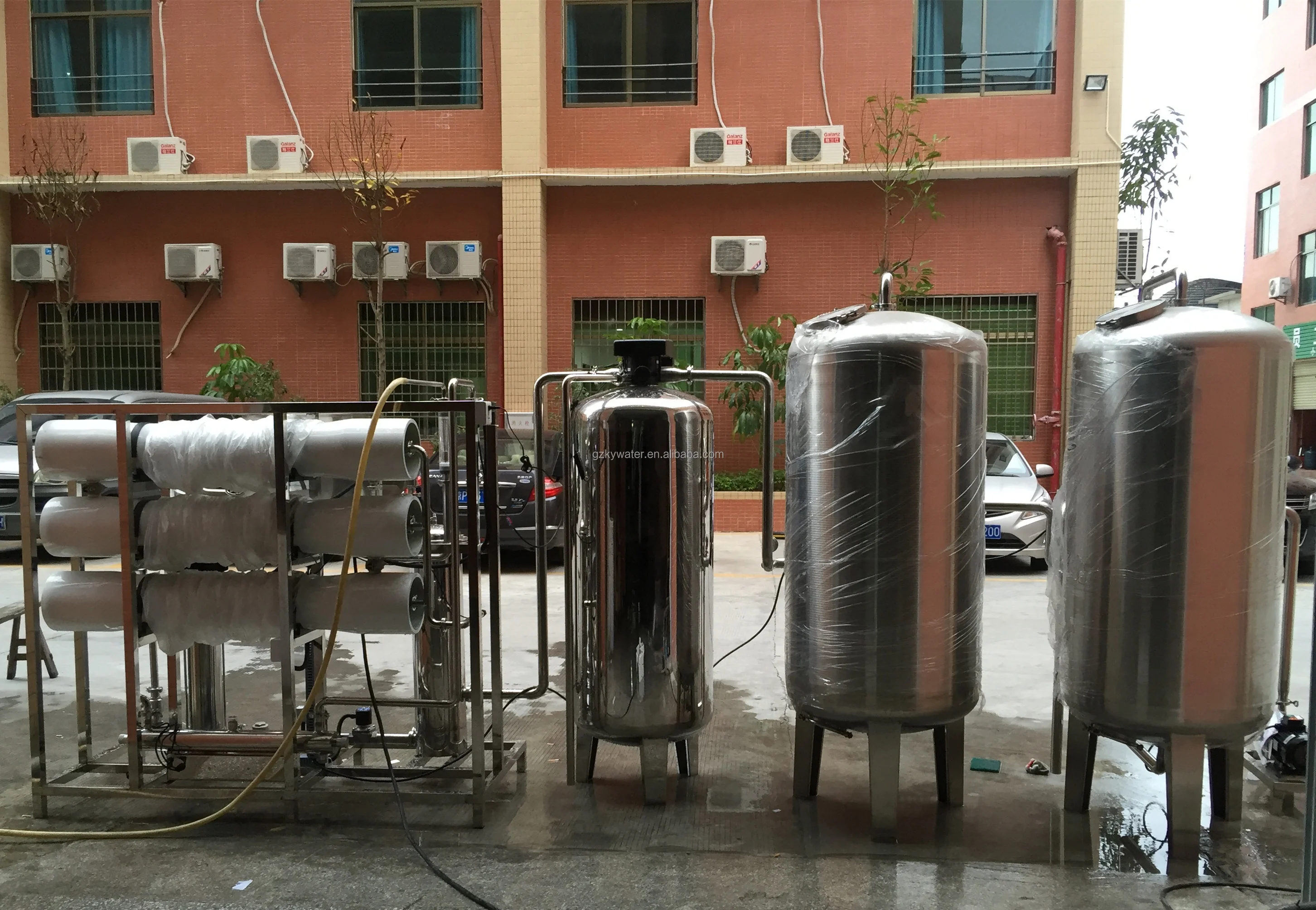

Packing and delivery
How to place order?
Thank you so much for your value time. Any questions please send us inquiry or chat now!
wechat/phone/whatsapp:+86 15815854510
Mail: gzky03@kywater12.com Skype:.cid.23a442bc70361d44
We will reply you within 24hours.
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…).
Mail: gzky03@kywater12.com Skype:.cid.23a442bc70361d44
We will reply you within 24hours.
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…).
