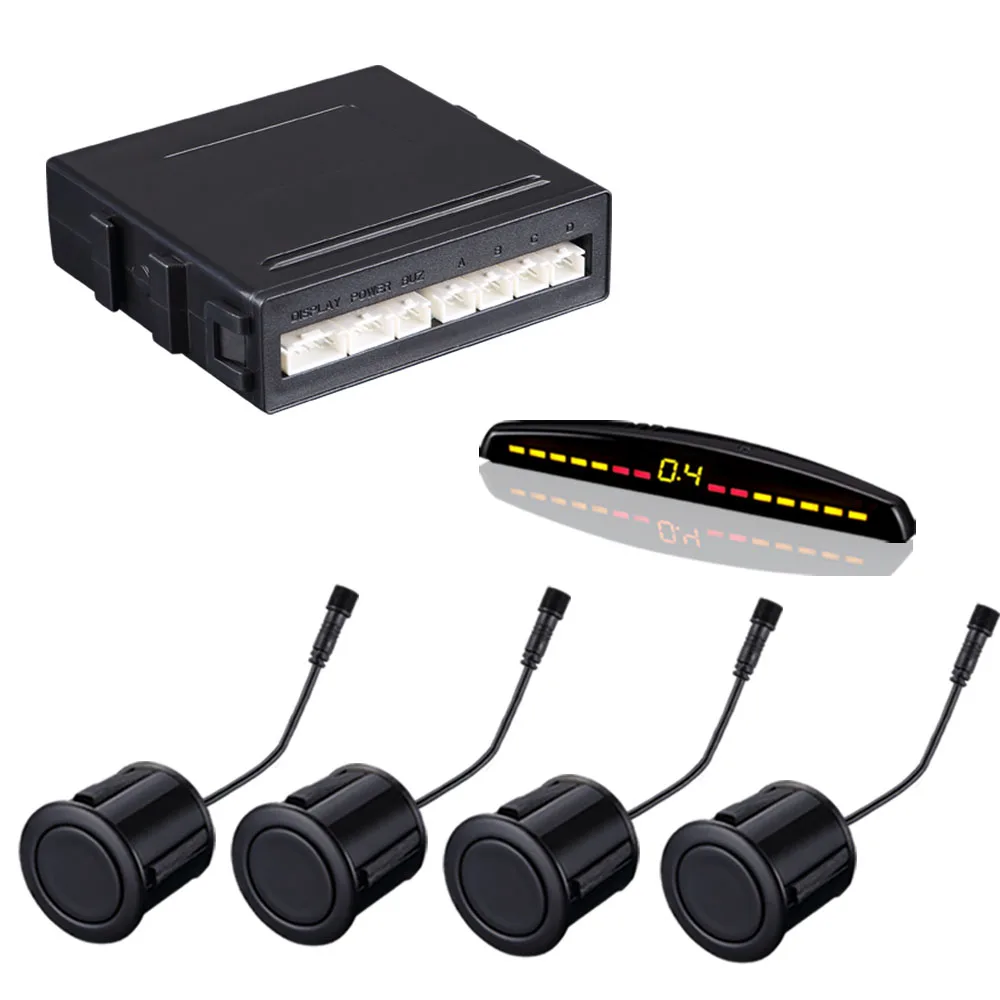

Voice reversing radar Car Parking Sensor Kit With 4 Sensor Front/Backup Radar Parking System Reverse Assistance

Product Overview

Description





Advantage:



1. Professional parking sensor manufacturer with CE, FCC, RoHS and naq certification

2. Strict product quality control from IQC to PQC and FQC

3. Automatically engages as soon as you place your car into reverse.

4. 1-2 years aftersales warranty for different series parking systems

5. Replaceable sensor design optional

6. Sample is available

7. Fast delivery







Product Parameter:





Description	Min	Type	Max	Unit
Power voltage for S series	10	24	35	V  DC
Power voltage for H&E series	9.6	12	15	V  DC
Operating current			150	mA
Operating temperature	-20		80	°C
Operating frequency	39.3	40	40.7	KHz
Horizontal detection angle		120		°
Vertical detection angle		60		°
Distance detection accuracy		10		cm
Detection range	0.05	0.9	2.5	m
Buzzer sound volume	75		105	dB
RF Frequency		433		MHz











Technical Specification:

 Model No.: KB01-4-MF0
1)Front or Rear 4 Parking Sensor System, fit for all 12V vehicle;
2)Front sensor detection range: 0-1.2m, rear range: 0-2.5m;
3) Front display range: 0-1.2m, rear display range: 0cm-1.5m; DSPS3 Rotatable installation
4)Front buzzer range: 0-70cm, rear buzzer range: 0-1.5m;
5) Sensitivity adjustable by switching knob;
6)Ignore tow bar/ spare tire function, automatically omit 20cm;
7) Advanced self- diagnosis with error indication;
8) Applied with double angle sensor; 9) All weather design,plastic housing 10)4*TM3,18.8mm plastic flat,15cm+2.5m cable,With 0°, 4°, 10°spacers
11)Power input: 9.6- 15Vdc;
12)Two year warranty
