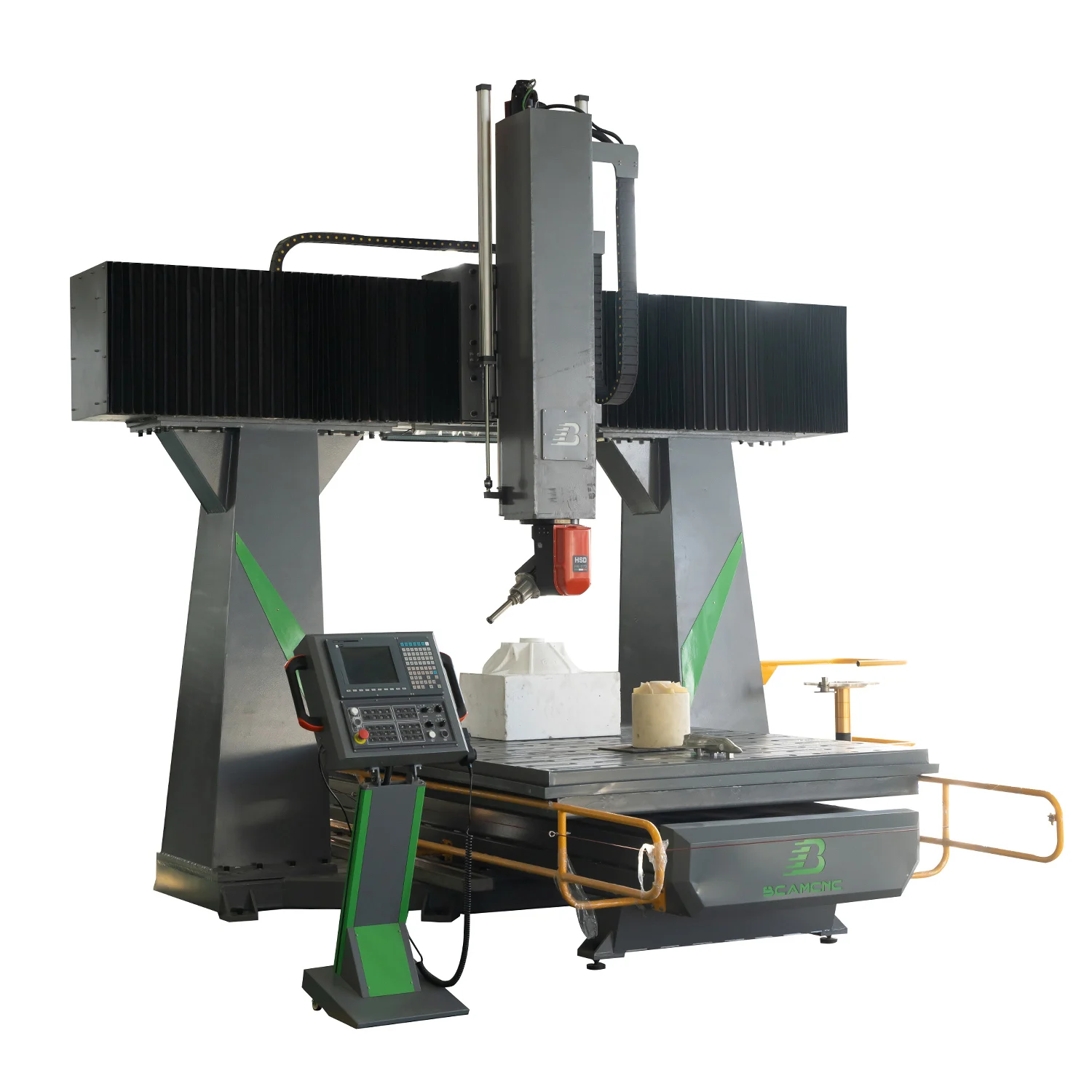

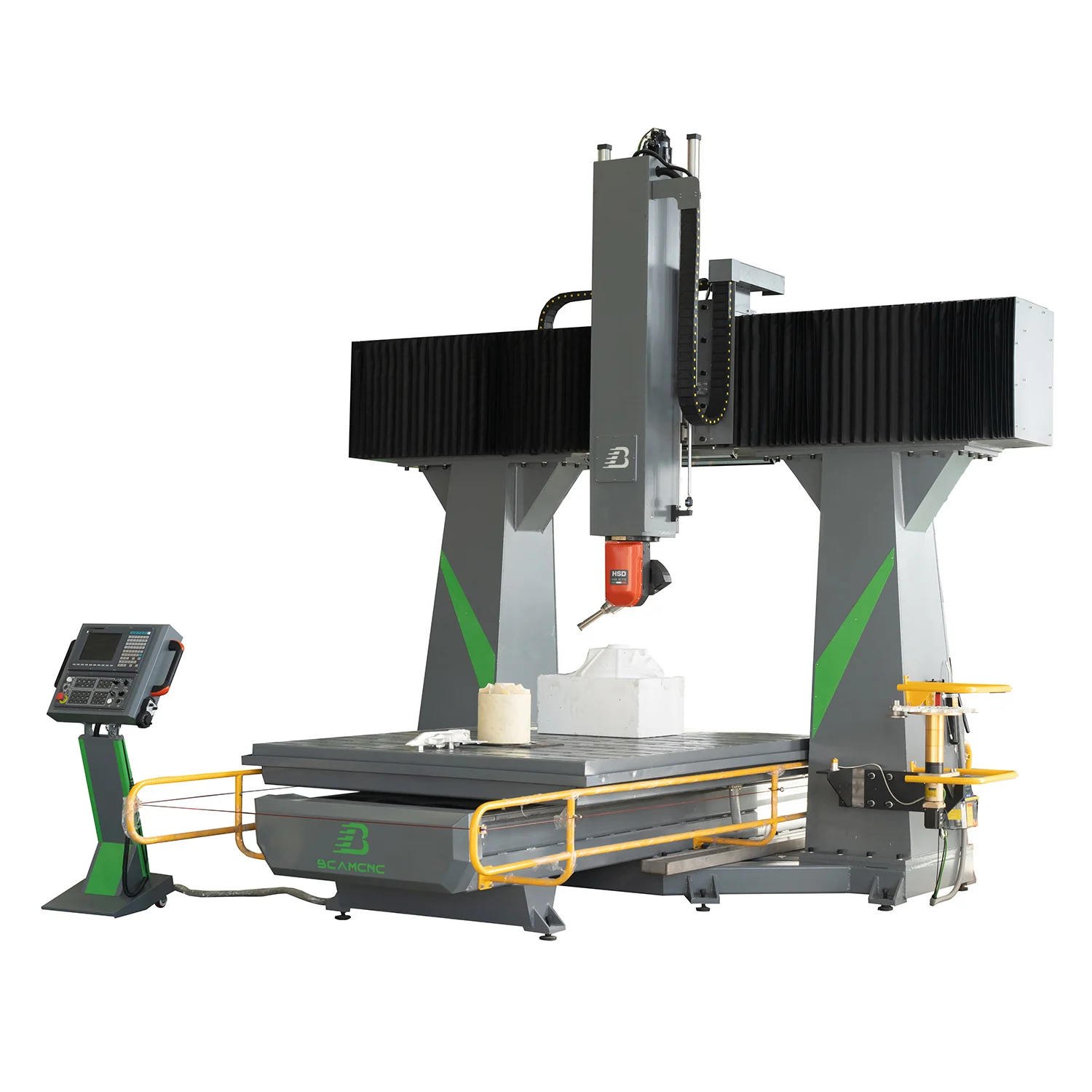

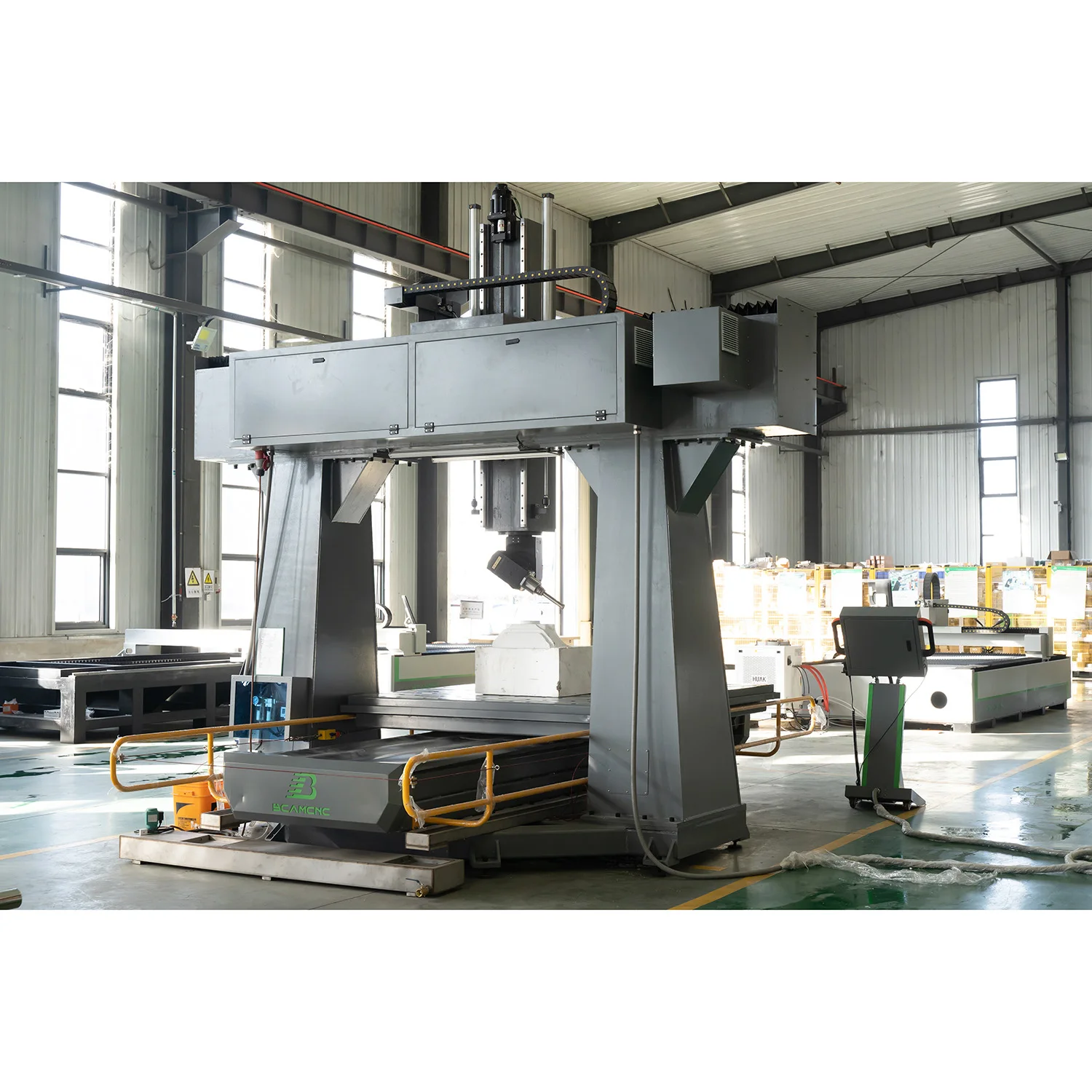

gantry milling 5 axis machining atc cnc router machine for wood ship automotive foam mold 3D
- Category: >>>
- Supplier: Spower Machinery Technology Co. Ltd. (jinan)
Share on (1600437306104):
Product Overview
Description
Product Description
1.Constant Tip Speed Machining – Automatically varies the machine feed speed to allow the tip of tool to maintain a constant speed. This feature synchronizes the linear and rotary movements ensuring a constant and smooth cutting motion.
2. Volumetric 3D Laser Compensation – This procedure is standard on all machines prior to shipment to our customers. This feature compensates for position errors within the three dimensional working envelope of the machine.
3.Linear Compensation – This procedure is standard on all machines during the construction phase and compensates for inherent variances in components during machine construction.
2. Volumetric 3D Laser Compensation – This procedure is standard on all machines prior to shipment to our customers. This feature compensates for position errors within the three dimensional working envelope of the machine.
3.Linear Compensation – This procedure is standard on all machines during the construction phase and compensates for inherent variances in components during machine construction.
PRODUCT NAME | 5 AXIS CNC MILLING CENTOR MACHINE |
WORKING AREA | 1300mm*2500mm(6060/6090/1212/1313) |
Cutting speed | 80m/min |
Cutting Thickness | According to your material |
Spindle Power | Italy HSD12/13.5/18kw Air cooling spindle |
Control system | Syntec/Siemens |
Running Environment | Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
details
The control system of BCAM1325S-5 AXIS adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis, 4, 5, 6, 8axis. The Syntec system can work online and WiFi links, greatly increasing the intelligence of the device.
Italian HSD 9.5KW(12HP) Electrospindle with 12-position Automatic Tool Changer(ISO30).
Feed Rate:
X Axis 3150ipm(80mpm) Y Axis 3150ipm(80mpm)
Z Axis 735ipm(18.7mpm) Y Axis 3150ipm(80mpm)
A and C Axes 82.5 degree/sec
Acc/Dec 205in/sec2

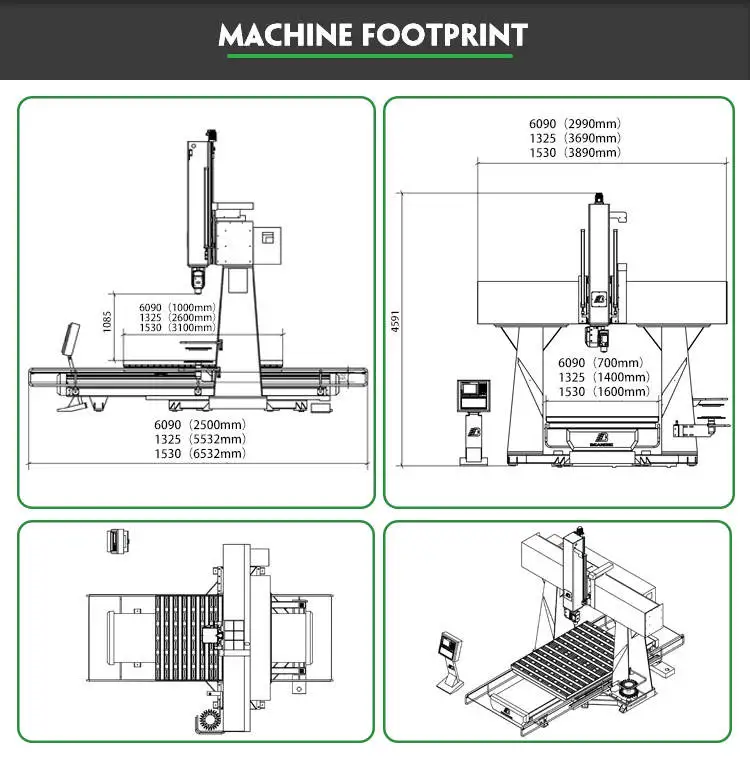

Axis Travel BCM1530 5 AXIS 1500*3000*800MM
A Axis ±120° C Axis ±213°
Feed Rate:
X Axis 3150ipm(80mpm) Y Axis 3150ipm(80mpm)
Z Axis 735ipm(18.7mpm) Y Axis 3150ipm(80mpm)
A and C Axes 82.5 degree/sec
Acc/Dec 205in/sec2
Axis Travel BCM1530 5 AXIS 1500*3000*800MM
A Axis ±120° C Axis ±213°
Aviation aluminum vacuum countertop/cast iron countertop are available for optional ,Support customization of special tooling fixtures according to processed products
Tool Changer
Max Quantity 15 tools
Max Diameter 3.25" (82mm) positions full; 6.5" (165mm) adjacent positions empty
Max Weight 12 lbs each / 96 lbs total (5.4kg / 43.5kg)
Max Length 11" (280mm)
Max Quantity 15 tools
Max Diameter 3.25" (82mm) positions full; 6.5" (165mm) adjacent positions empty
Max Weight 12 lbs each / 96 lbs total (5.4kg / 43.5kg)
Max Length 11" (280mm)
Auto lubricating system
one touch can finish periodic maintenance easily.Panel Loading system
with scissor lift and automatic panel alignment. The system ease of use ensures long term reliability .also Moving the panel with dynamic vacuum sunction cup loading system , A solution that adats to all sureface types.

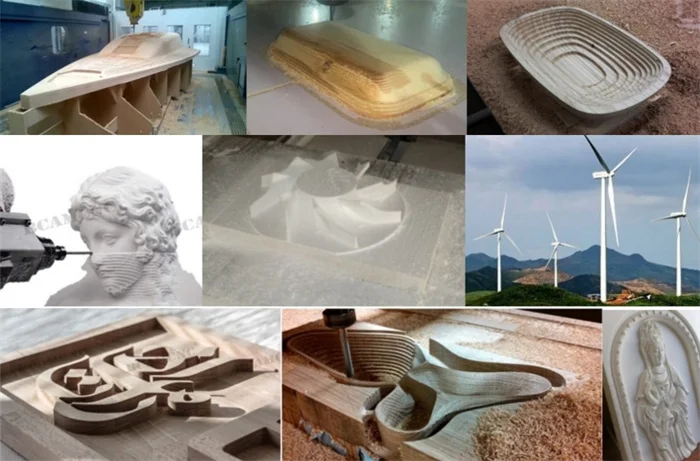

Application&Sample
Application :
Mould industry, decoration industry, furniture industry,Large metalloid moulds, building model,automotive foam mold, wooden ship model, rail wooden mold ,wooden model aviation, and wooden mold train
Praise and certificate
Company information

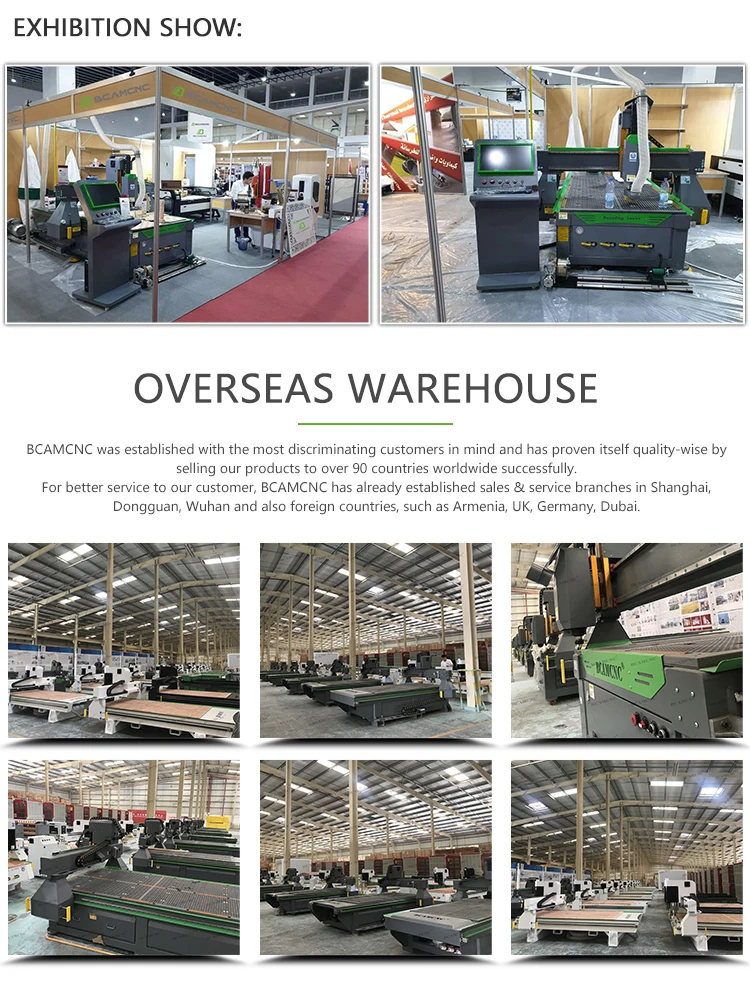

Jinan BCAMCNC Machinery Co., Ltd., established in 2002, specializing in CNC machinery with rich experience!The company has two factories: CNC Router and laser machine factories and plants.
BCAMCNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficienct CNC machines worldwide. With a strong staff team, "Brand BCAMCNC" gained success in woodworking engraving machine,advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
"BCAMCNC Products are widely used in the fields of advertising, furniture, jewelry pieces, gifts, packaging etc., materials of metal, wood, stone, leather etc."BCAMCNC"is wellknown not only in China, but also in Russia, Southeast Asia, Middle East, Africa, the Americas, India and other foreign countries.
BCAMCNC has already established branches in Shanghai , Dongguan, as well as foreign countries, such as Armenia , UK and Georgia. This year, BCAMCNC established long-term cooperative relationship with internationally renowned company, Shanghai Bcamtech CO.,LTD
. In addition, we have established long-term cooperative relations in the field of laser machines with BCMTECH to develop CNC solution .
BCAMCNC always adhere to the principle --- First class reputation, first-class service and excellent products.
BCAMCNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficienct CNC machines worldwide. With a strong staff team, "Brand BCAMCNC" gained success in woodworking engraving machine,advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
"BCAMCNC Products are widely used in the fields of advertising, furniture, jewelry pieces, gifts, packaging etc., materials of metal, wood, stone, leather etc."BCAMCNC"is wellknown not only in China, but also in Russia, Southeast Asia, Middle East, Africa, the Americas, India and other foreign countries.
BCAMCNC has already established branches in Shanghai , Dongguan, as well as foreign countries, such as Armenia , UK and Georgia. This year, BCAMCNC established long-term cooperative relationship with internationally renowned company, Shanghai Bcamtech CO.,LTD
. In addition, we have established long-term cooperative relations in the field of laser machines with BCMTECH to develop CNC solution .
BCAMCNC always adhere to the principle --- First class reputation, first-class service and excellent products.
By Global High-Tech CNC Equipment Supplier---BCAMCNC
About US
1. All machine will be tested before shipment.
2. 24 months warranty except man-made fault.

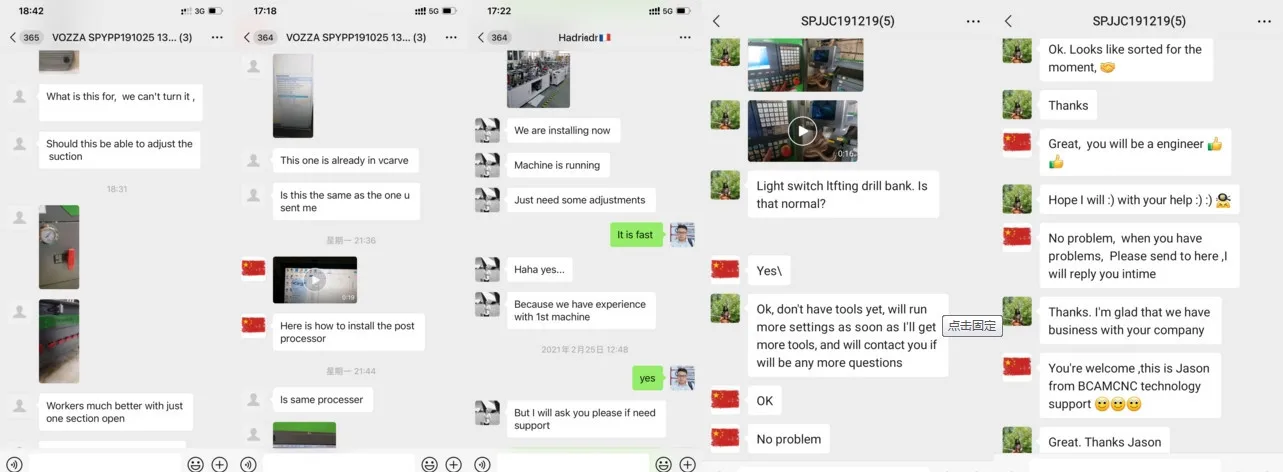

3. 24 hours technical support by email, telephone or video online.
4. During the warranty , if Large size foam cnc 4 axis router 1530 with 3 years warranty with CE is broken due to the quality,we can do free maintenance and provide the needed spare parts until it's good to working.
5. We provide long time technical support ,online and telephone service ..
Related Product
Packing & Delivery
1.How is the packing?
1) packaged with Standard plywood case, its compressive strength and bearing quality is better. 2).the board area is bit, the soil structure is good, it is better in leakproofness and waterproof. 3).when importing, the plywood case is with fumigation-free, the procedure is simple.
1) packaged with Standard plywood case, its compressive strength and bearing quality is better. 2).the board area is bit, the soil structure is good, it is better in leakproofness and waterproof. 3).when importing, the plywood case is with fumigation-free, the procedure is simple.
2.How long is the delivery time?
For standard machine, it would be 7-10 working days; For non-standard and customized machines
，it would be 15-30 working days.
，it would be 15-30 working days.
FAQ
1. After receiving the machine, how to install and operate our machine?
100% paremeters been set correctly before shipping ,95% of customer can run machine after saw our 100mins "operation
vidoes",24thx7 online support avilable.
2.What's accessories are included for 3-year warranty?
3-year warranty is free replacement of the main parts of the machine
3. What picking with your machine, it can protect machine well?
3-4cm wooden boxes picking can protect machine well.
4.What is delivery time?
7-10 working days for standard machine, 20-25 working days for not standard machine.
5. What are your machine advantages?
8mm-12mm heavy machine thickness;Europe design and standard,36 hours running testing, high accuracy,all standard famous parts can purchase in the world.
6.What is your payment method? How much is the deposit? How to pay the balance?
TT /LC Paypal /Credit card ,50% deposit and 50% balance before shipping
7.Can you do OEM service?
100% do OEM for Agent because we are manufacture
100% paremeters been set correctly before shipping ,95% of customer can run machine after saw our 100mins "operation
vidoes",24thx7 online support avilable.
2.What's accessories are included for 3-year warranty?
3-year warranty is free replacement of the main parts of the machine
3. What picking with your machine, it can protect machine well?
3-4cm wooden boxes picking can protect machine well.
4.What is delivery time?
7-10 working days for standard machine, 20-25 working days for not standard machine.
5. What are your machine advantages?
8mm-12mm heavy machine thickness;Europe design and standard,36 hours running testing, high accuracy,all standard famous parts can purchase in the world.
6.What is your payment method? How much is the deposit? How to pay the balance?
TT /LC Paypal /Credit card ,50% deposit and 50% balance before shipping
7.Can you do OEM service?
100% do OEM for Agent because we are manufacture
