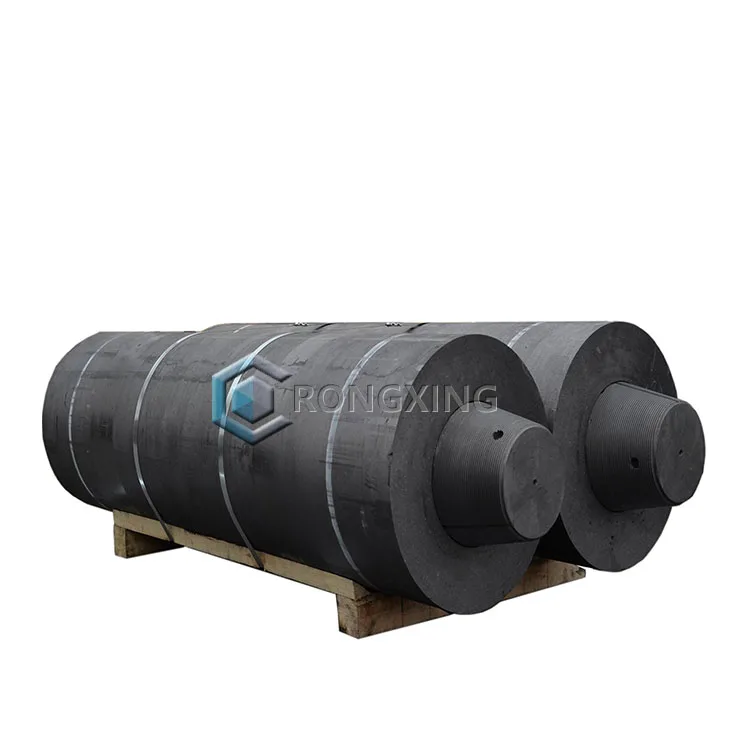

HP 600X2100mm Graphite Electrodes for Steel Melting
- Category: >>>
- Supplier: Henan Rongxing Carbon Products Co. Ltd.
Share on (1600437364598):
Product Overview
Description

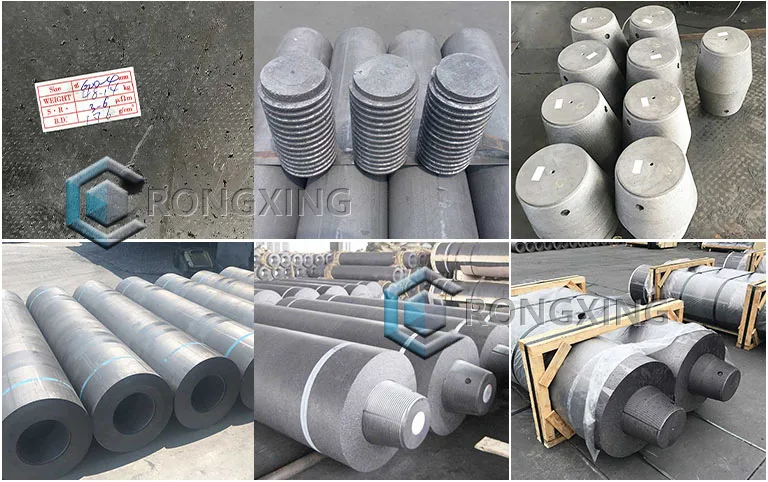

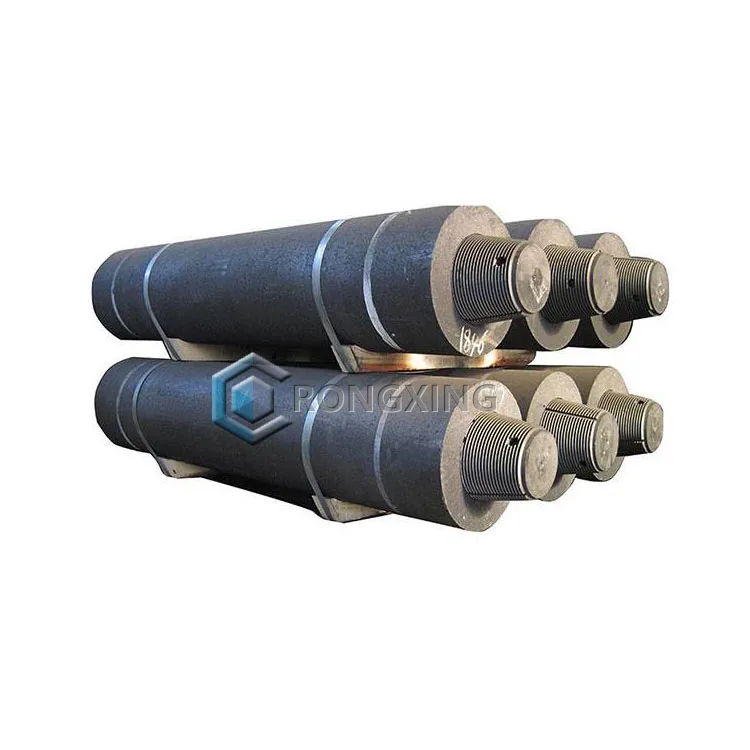

HP600 Graphite Electrode
Product Parameters
| HP600 | |||||||
| Item | Unit | Item | Unit | ||||
| Resistivity | Electrode | μΩm | 5.8-6.6 | Bulk Density | Electrode | g/cm3 | 1.64-1.68 |
| Nipple | 3.5-4.0 | Nipple | 1.75-1.80 | ||||
| Modulus of Rupture | Electrode | Mpa | 10.0-13.0 | CTE (100-600℃) | Electrode | 10-6/℃ | 1.6-1.9 |
| Nipple | 20.0-23.0 | Nipple | 1.1-1.4 | ||||
| Young's Modulus | Electrode | Gpa | 8.0-12.0 | Current Load | A | 44000-67000 | |
| Nipple | 14.0-16.0 | Current Density | A/cm3 | 15-23 | |||
| Ash | % | 0.2 | Moment | N.m | 4200 | ||
| Nominal Diameter | Actual Diameter | Nominal Length(mm) | |||
| mm | Inch | Max(mm) | Min(mm) | Min.Crust Diameter(mm) | |
| 150 | 6 | 154 | 149 | 146 | 1500-1800 |
| 200 | 8 | 205 | 200 | 197 | 1500-1800 |
| 250 | 10 | 256 | 251 | 248 | 1500-2100 |
| 300 | 12 | 307 | 302 | 299 | 1500-2100 |
| 350 | 14 | 357 | 352 | 349 | 1500-2400 |
| 400 | 16 | 409 | 403 | 400 | 1500-2400 |
| 450 | 18 | 460 | 454 | 451 | 1500-2400 |
| 500 | 20 | 511 | 505 | 502 | 1800-2700 |
| 550 | 22 | 562 | 556 | 553 | 1800-2700 |
| 600 | 24 | 613 | 607 | 604 | 2100-2700 |
| 650 | 26 | 663 | 657 | 654 | 2100-2700 |
| 700 | 28 | 714 | 708 | 705 | 2100-2700 |
| 750 | 30 | 765 | 759 | 756 | 2400-2700 |
| 800 | 32 | 816 | 810 | 807 | 2400-2700 |
Superior Quality
One-Stop Service to ensure superior quality.
All of our technicians are trained engineers and know all of the EAF, Ladle, and Foundry applications throughout China and Middleast Countries.
We offer an all-round support to the customers for taking our UHP graphite electrodes into operation. Check and analyse the customers’ furnace conditions in order to achieve an optimal performance of the graphite electrodes and a decrease of the specific electrode consumption.
We also offer other services including train employees,performance analysis, storage in our warehouses, inspection of accessories, and monitoring the furnace.
All of our technicians are trained engineers and know all of the EAF, Ladle, and Foundry applications throughout China and Middleast Countries.
We offer an all-round support to the customers for taking our UHP graphite electrodes into operation. Check and analyse the customers’ furnace conditions in order to achieve an optimal performance of the graphite electrodes and a decrease of the specific electrode consumption.
We also offer other services including train employees,performance analysis, storage in our warehouses, inspection of accessories, and monitoring the furnace.
Product Description
Graphite electrode, mainly petroleum coke, needle coke as raw material, coal pitch as binder, calcination, ingredients, kneading,molding, baking and graphitization, machining and made, which is released in electric arc furnace in the form of arc conductor of electricity to heat melting furnace charge, with low resistivity, good conductivity, low ash, uniform and compact structure, good oxidation resistance, high mechanical strength, etc.
Product Advantage
* Full range of carbon materials, graphite materials, refactories and water treatment materials products and solutions;

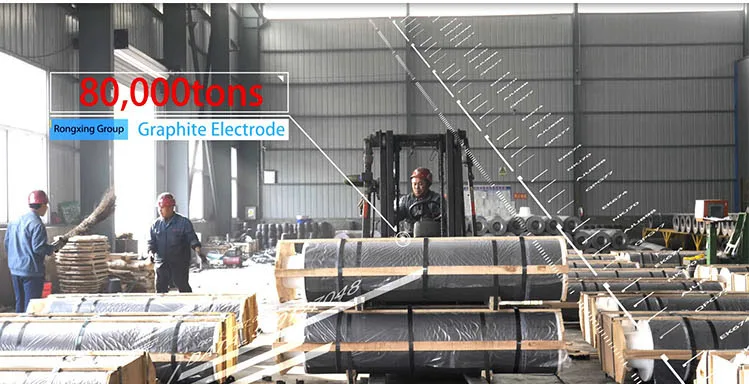

* High output, with an annual output of 80,000 tons, timely delivery; guarantee delivery date
* Low resistivity
* High temperature strength
* Good thermal conductivity and electrical conductivity
* Low thermal expansion coefficient
* Low ash,Its ash content is controlled within 3%.
* Dense and equal structure,Low graphite electrode consumption.
* Good oxidation resistance
* High mechanical strength
* Needle coke content accounts for 80%, raw materials imported from Japan and South Korea
* Low resistivity
* High temperature strength
* Good thermal conductivity and electrical conductivity
* Low thermal expansion coefficient
* Low ash,Its ash content is controlled within 3%.
* Dense and equal structure,Low graphite electrode consumption.
* Good oxidation resistance
* High mechanical strength
* Needle coke content accounts for 80%, raw materials imported from Japan and South Korea
Application

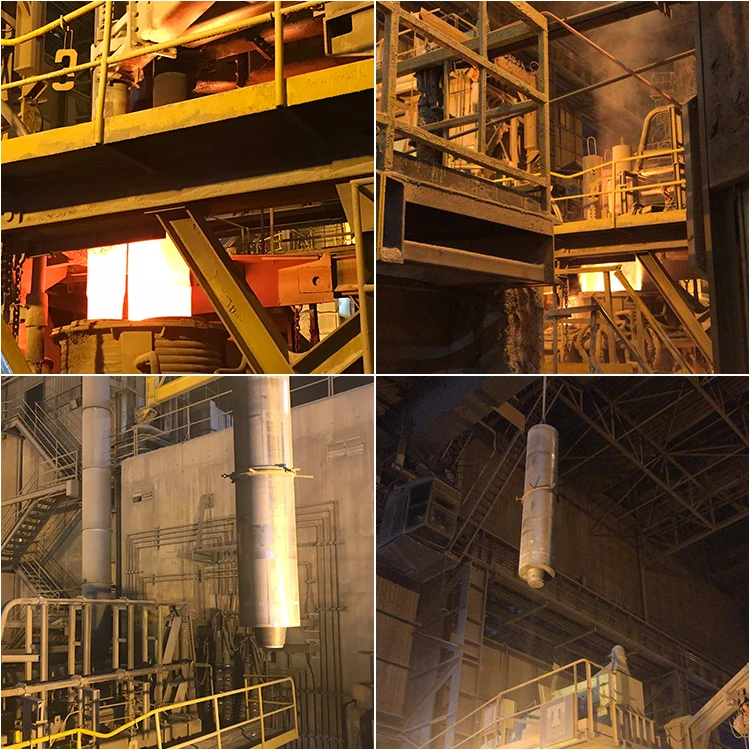

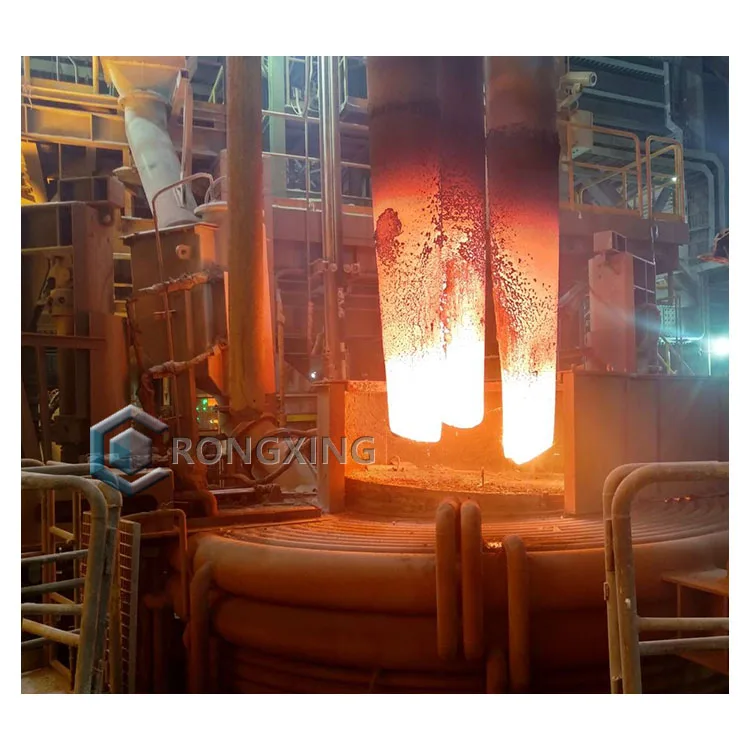

1. Electric arc steelmaking furnace.
1. Electric arc steelmaking furnace.
2. Ore-heating furnaces.
3. Resistance furnaces.
3. Resistance furnaces.

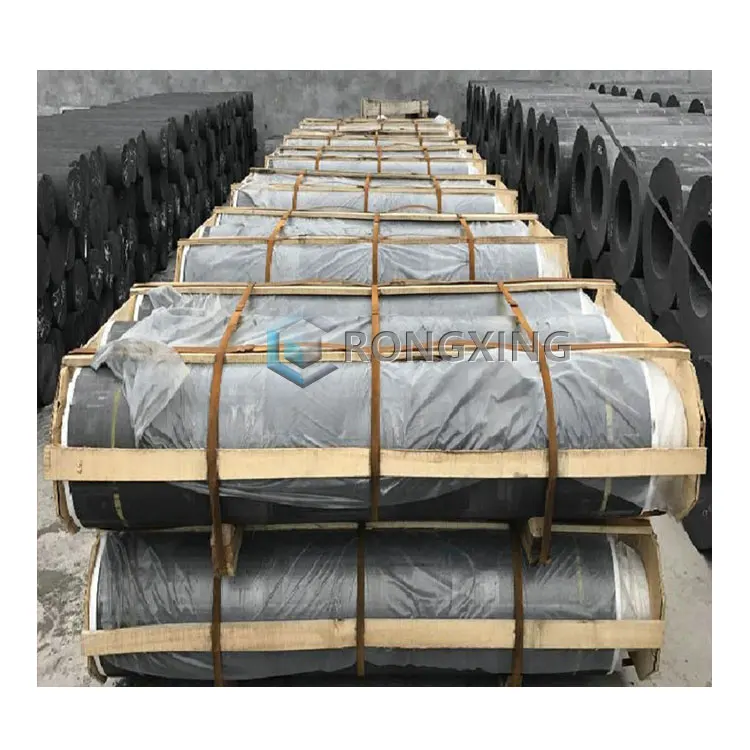

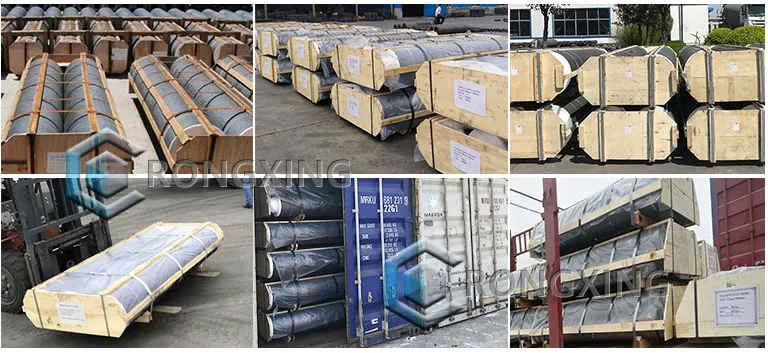

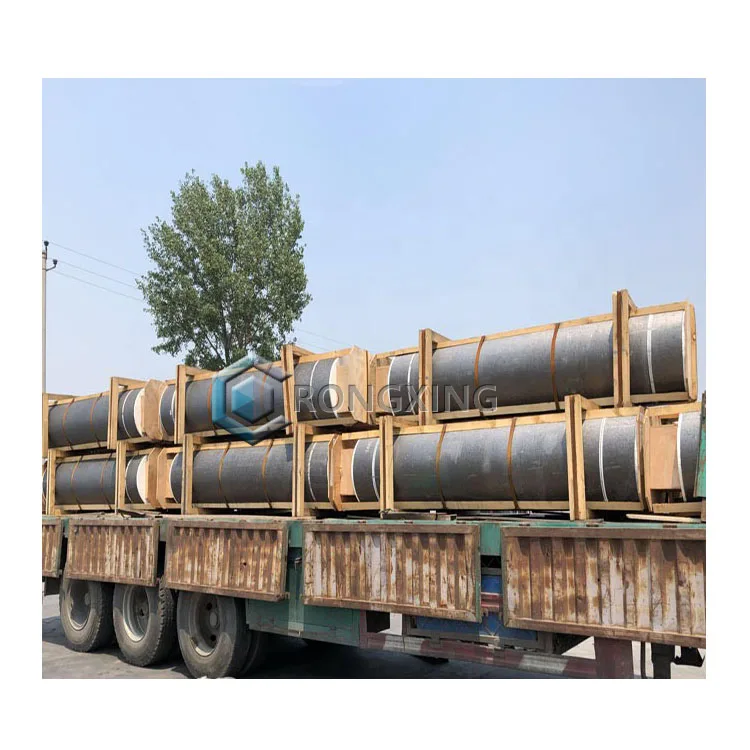

Packaging & Shipping
Related Product
 |  |  |

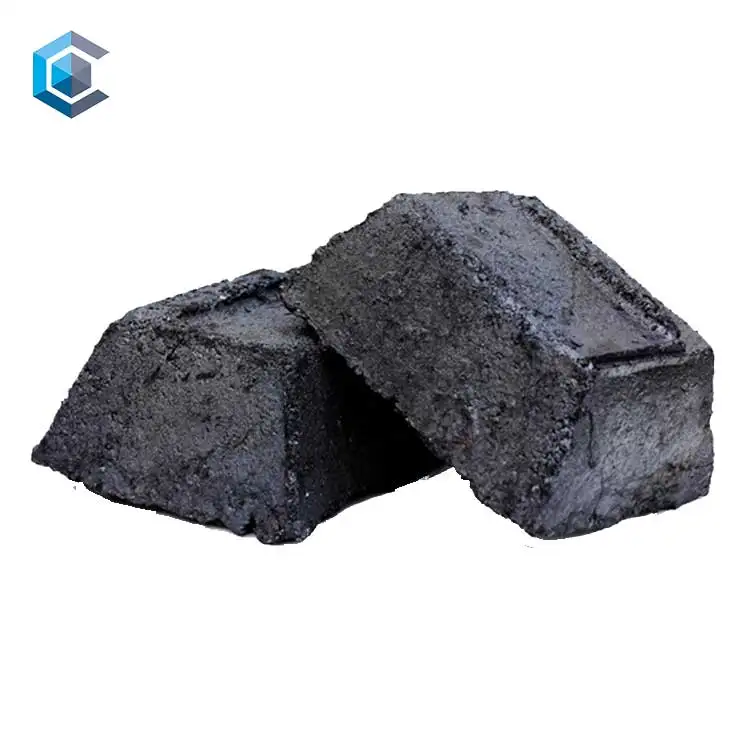

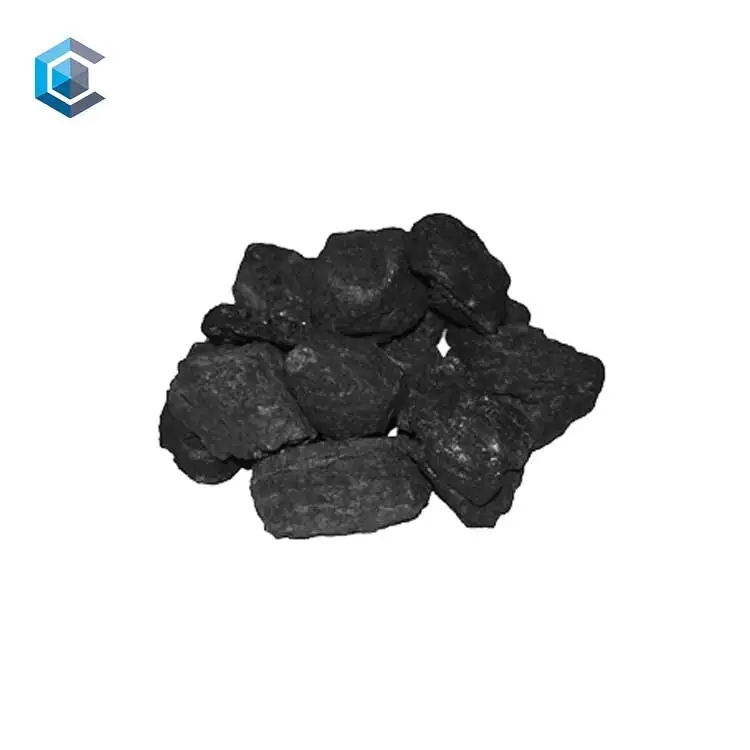

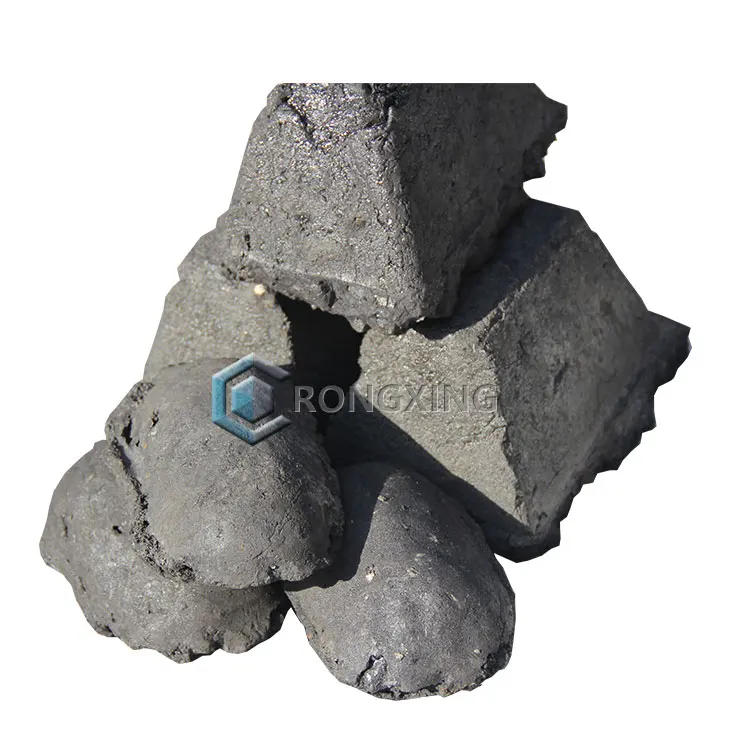

| Electrode Paste | CPC/GPC | Semi Coke |
 |  |  |

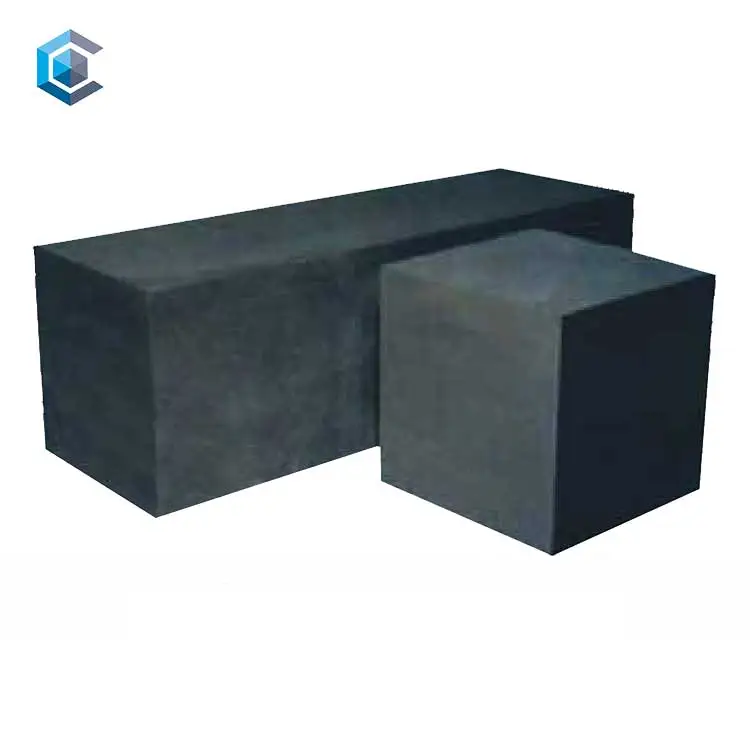

| Cold Ramming Paste | Graphite Block | Graphite Electrode |
For fast quotation, Please send inquiry now.
Customers

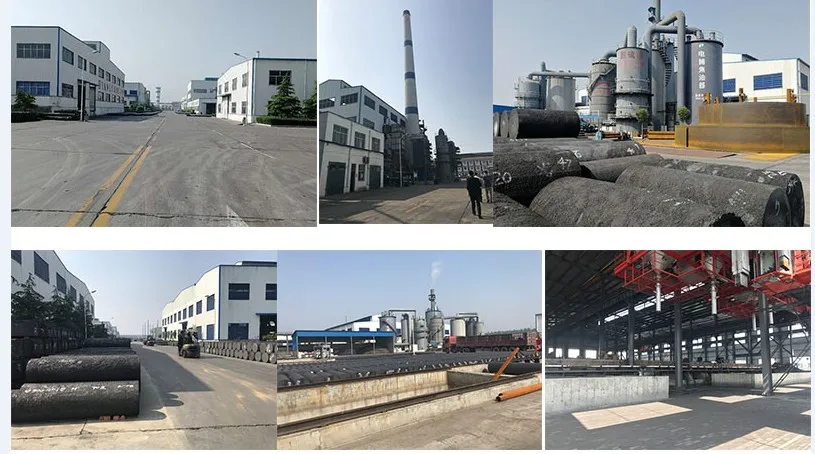

Company Information
Rongxing’s corporate headquarters is currently located in the Zhengzhou in central part of China. Possessing sophisticated production lines and inspection equipments, providing diverse lines of carbon metallurgical products backed by expert R&D technical support, we develop closer customer relationships and taking on a larger role in the total supply and manufacturing chain.
As an experienced manufacturer, we now offer everything from RP, HP to UHP graphite electrode and trapezodial, oval, cylinder electrode paste in the world. The diverse products include carbon materials and graphite materials.Our products have been exported to Europe, Asia, Africa, South America and Middle Eastern countries, which enjoys good reputation.
As an experienced manufacturer, we now offer everything from RP, HP to UHP graphite electrode and trapezodial, oval, cylinder electrode paste in the world. The diverse products include carbon materials and graphite materials.Our products have been exported to Europe, Asia, Africa, South America and Middle Eastern countries, which enjoys good reputation.
FAQ
1. Are you Factory or Trading?
We are factory with ISO 9001:2015 certified
6. What is your payment service?
Accepted Delivery Terms: FOB, CFR, CIF, EXW;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
We are factory with ISO 9001:2015 certified
2. How about the Capacity?
High output, with an annual output of 80,000 tons, timely delivery; guarantee delivery date.
High output, with an annual output of 80,000 tons, timely delivery; guarantee delivery date.
3. How to guarantee quality?

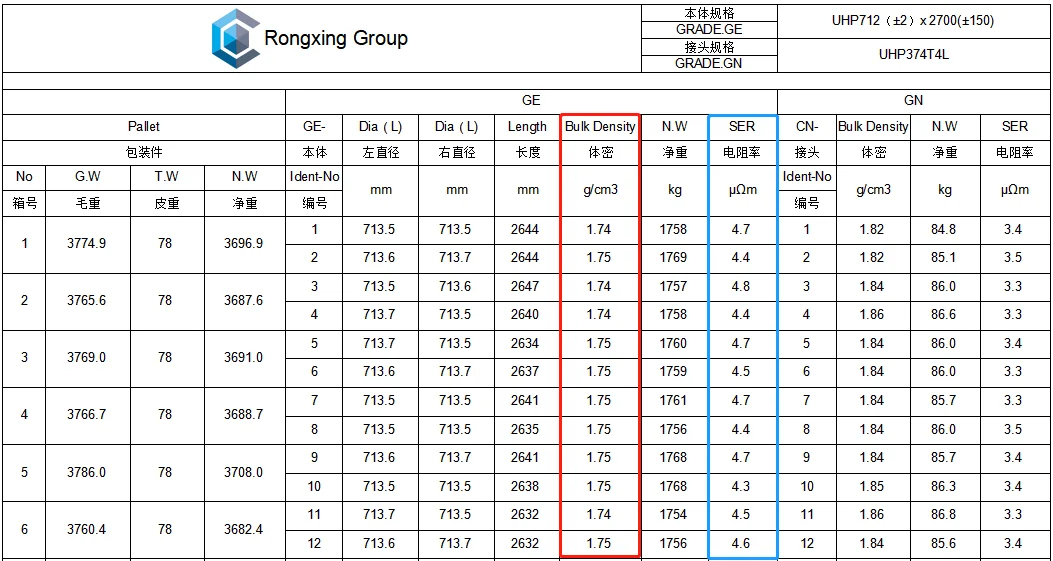

Always a pre-production sample before mass production; Always final Inspection before shipment;
4.What can we buy from you?
Graphite electrode,electrode paste,carbon raiser,carbon product, and other graphite products.
5. How to confirm the grade of graphite electrode?
Please send inquiry to us, our sales manager will confirm the details and price for you.
5. How to confirm the grade of graphite electrode?
Please send inquiry to us, our sales manager will confirm the details and price for you.
Customers will be asked to provide electric arc furnace parameters and specifications and sizes of electrode.
6. What is your payment service?
Accepted Delivery Terms: FOB, CFR, CIF, EXW;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
