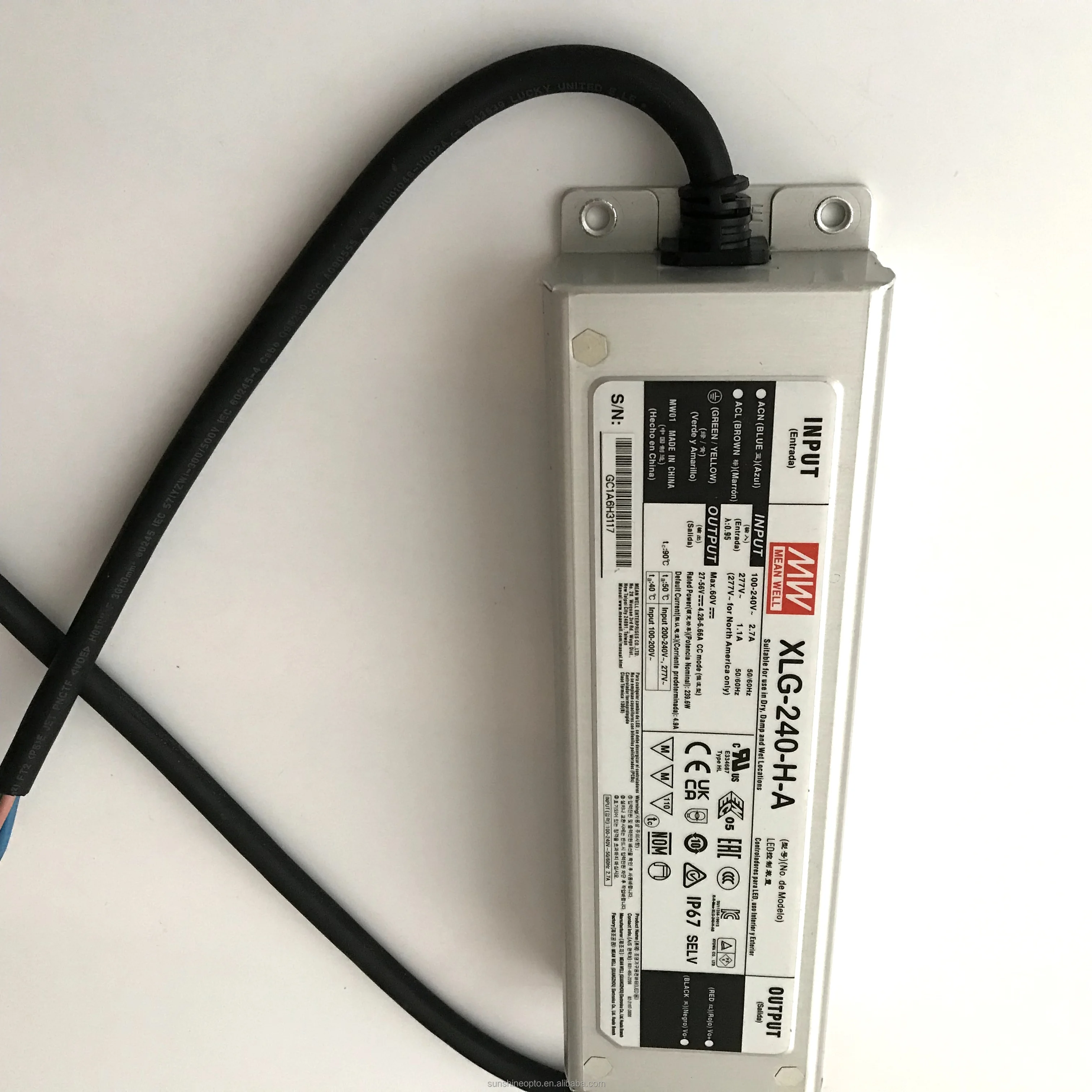

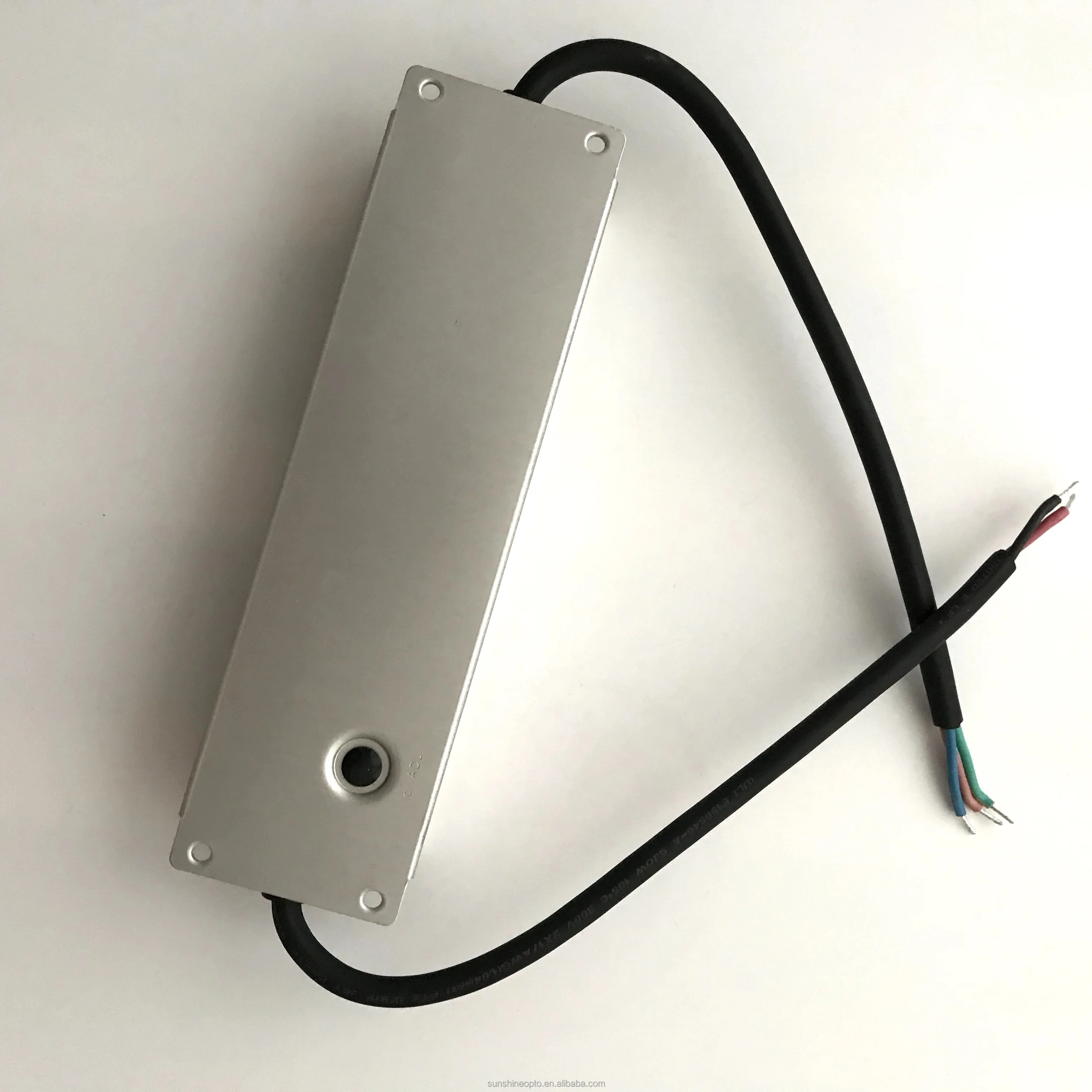

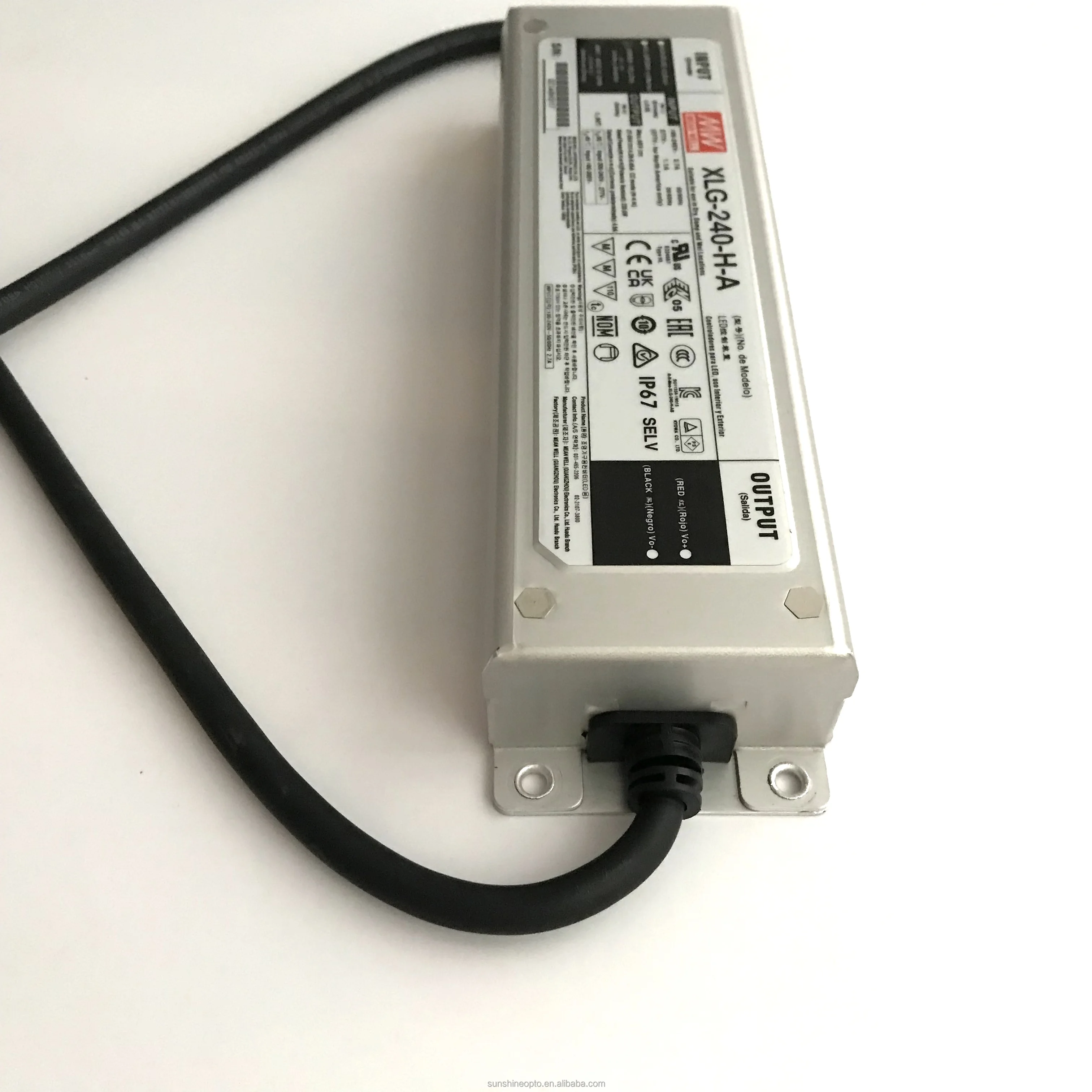

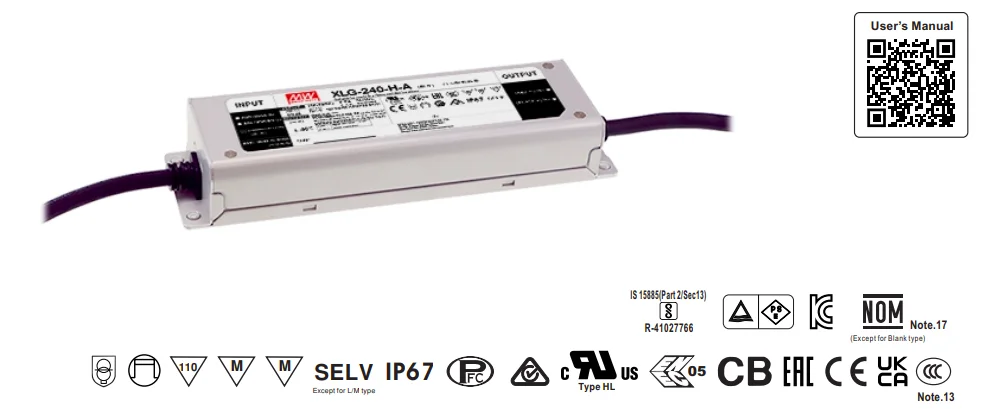

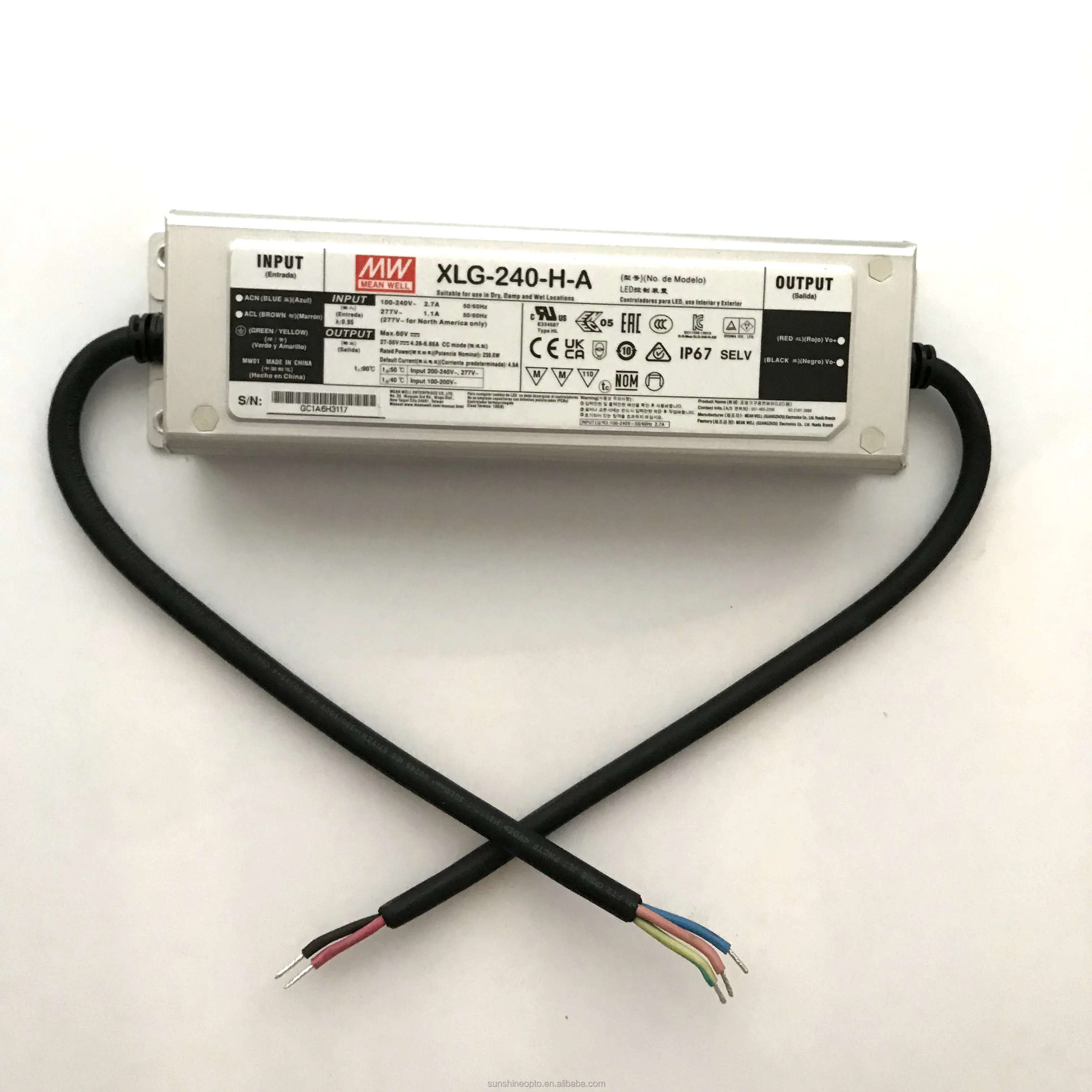

Taiwan Mean Well XLG 240 H A Street Light 200W 240W 48V 36 Volt 52 Volt Tunable Led Driver
- Category: >>>
- Supplier: Shenzhen Sunshine Opto-Electronics Technology Ltd.
Share on (1600437368597):
Product Overview
Description

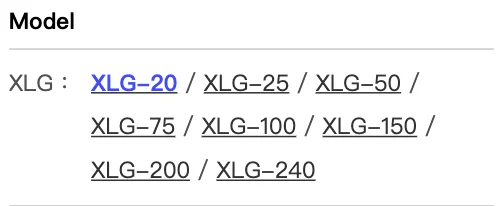

MODEL NO.: | XLG-20/25/50/75/100/150/200/240-H/L/M-A |
POWER: | 20-240W |
INPUT VOLTAGE | 100~305VAC |
APPLICATIONS: | Street lighting, bay lighting, flood lighting, architectural lighting |
Wattage :
20W~240W
20W~240W
Features :
1, Wide input range 100~305VAC (90~305VAC for XLG-20)
2, Constant power mode with adjustable output current (Constant current mode for XLG-20)
3, Built-in active PFC function and Efficiency up to 90%
4, Dimming functions with 3 in 1
5, Protections: Short circuit/ Over voltage/ Over temperature
6, Surge protection with 6KV(L/N-FG)/4KV(L-N); 4KV(L/N-FG)/2KV(L-N) for XLG-20
7, 5 years warranty
1, Wide input range 100~305VAC (90~305VAC for XLG-20)
2, Constant power mode with adjustable output current (Constant current mode for XLG-20)
3, Built-in active PFC function and Efficiency up to 90%
4, Dimming functions with 3 in 1
5, Protections: Short circuit/ Over voltage/ Over temperature
6, Surge protection with 6KV(L/N-FG)/4KV(L-N); 4KV(L/N-FG)/2KV(L-N) for XLG-20
7, 5 years warranty
Product details
Model No. | XLG-240-H-A |
Rated Current | 4.9A |
Constant current region | 27-56V |
Rated Power | 100VAC-305VAV/ 150W |
Current ADJ. RANGE | 2400-6660mA |
Dimensions and weight | 219*63*35.5MM, 1kg/set |
Package | 16PCS/CARTON, WEIGHT 16KG. |
