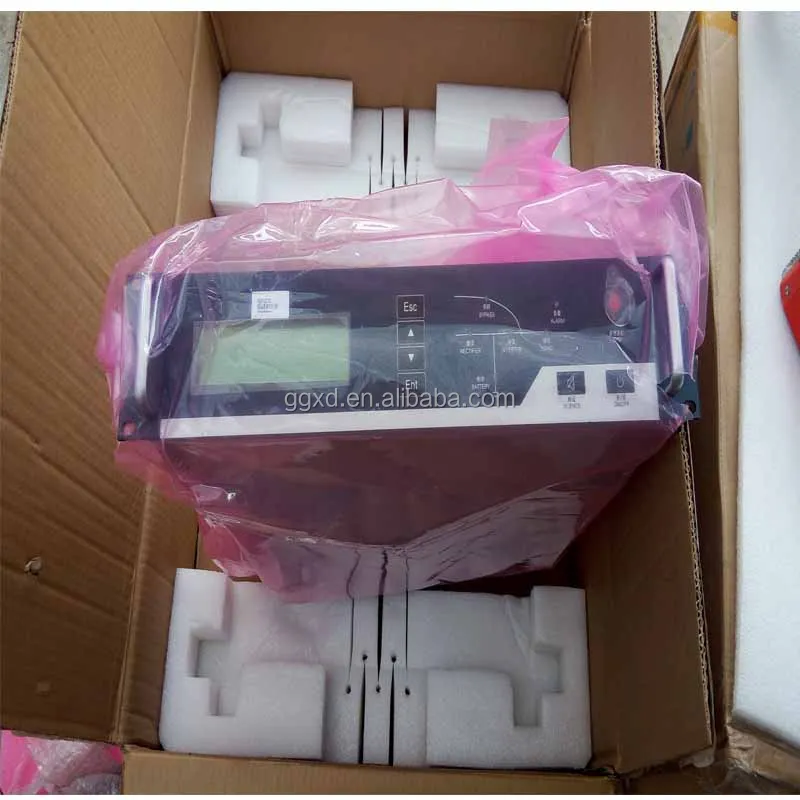

New Original Packaging ZTE ZXUPSE T080 UPS Monitoring Module

Product Overview

Description

ZTE zxupset080 series modules:
T080 Series modular UPS is a system composed of 10KVA UPS modules. T080 UPS perfectly combines high reliability, high energy efficiency and high reliability
The advantages of expansibility and easy maintenance meet the power supply and management needs of different application levels of small and medium-sized IDC rooms.
Modular n + X redundancy design, geometric progression improvement of reliability
The power unit, bypass unit and monitoring unit are modular design, and the power module is n + X redundant, which significantly improves the system availability.
Innovative energy-saving technology, with efficiency of 96%, self consumption reduction of 50% and system energy saving of 14%
Multi dimensional efficiency improvement technology: "high efficiency conversion + module sleep technology + low sleep power consumption + multiple operation modes", and the high efficiency can reach 96% (dual conversion mode)
The self consumption is reduced by 50%, and the system has high energy saving up to 14%.
On demand, flexible construction
The modular design makes the system highly scalable, truly realizes the smooth expansion of the system, and gradually expands the capacity according to the development needs of the business
Solve the pressure of excessive one-time investment.
Humanized design, turn complexity into simplicity
The power module and monitoring module can realize online hot plug, and UPS maintenance is as simple as combined power supply, which can greatly reduce power consumption while improving system availability
Low maintenance difficulty.
Reduce TCO comprehensively, capex can be reduced by 65% and OPEX can be reduced by 16%
Modular redundancy replaces system redundancy + additional 20% charging power: comprehensively reduce equipment configuration cost by 60%; Lightweight fuselage + easy installation and debugging
Total: reduce deployment cost by 60%? 14% efficiency improvement + 30% land occupation reduction: comprehensively reduce operating costs by 15%? Plug and play "easy dimension" design
+MTTR = 0, comprehensively reducing maintenance cost by 80%.

parameter
describe
ZXUPSE T080
V1. 0R02
V1. 0R04
model
ZXUPSE T080 V1. 0R03
80kVA
system capacity
Power module
authentication
40kVA
120kVA
10KVA / module. Size: 88mm * 483mm * 508mm (height * width * depth), 16.7kg
CE, TLC, meeting the requirements of RoHS and WEEE, and passing the grade 9 seismic intensity test.
Dimensions (h * w * d)

weight

138kg
2000*600*800mm
