Hot Sale Skyworth 86 Inch Infrared Touch Screen Interactive Boards For Schools
- Category: >>>
- Supplier: Kozoni Education Technology (Shenzhen) Co. Ltd.
Share on (1600437389279):
Product Overview
Description
Product Description

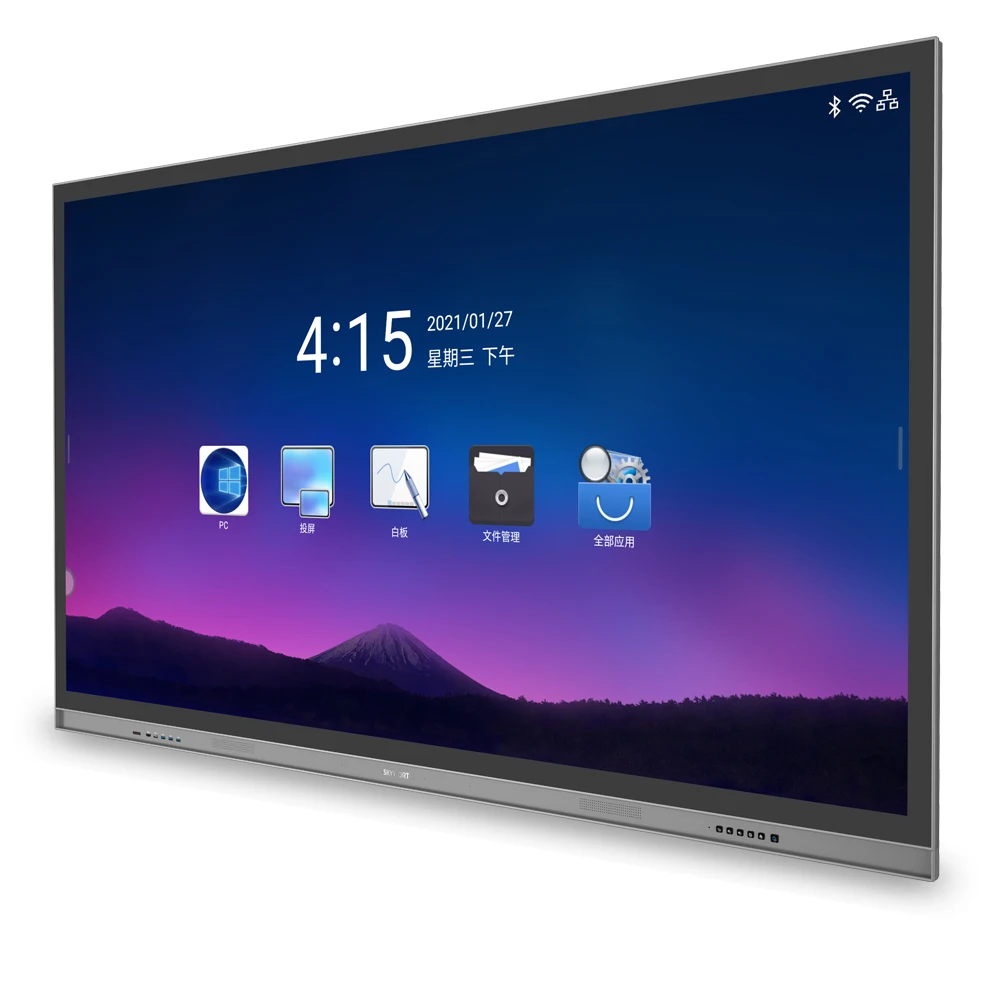

T series Interactive flat panel
T series is a new generation of Skyworth multimedia interactive all-in-one machine,integrating whiteboard writing, wireless screen projection and audio and video, using the latest In-cell capacitive touch control,built-in camera and microphone,.Suitable for deployment in classrooms, training rooms, open office area, management office and
other places.
other places.
More details please don't hesitate to contact us. We are always ready to serve you.
Specification
More Details
Place of Origin | Guangdong,China | ||
Brand Name | Skyworth | ||
PHYSICAL SPECIFICATIONS | Model Number | 86E99UD-T | |
Display Size | 86" | ||
Active Area (mm) | 1895.04*1065.9 (88.56’’) | ||
Display Ratio | 16:9 | ||
Brightness | 400 cd/m2 | ||
Physical Dimension | 1975*1200*94.5mm | ||
Packing Size | 2115*1348*223 mm | ||
NW | 85kgs | ||
GW | 95kgs | ||
DISPLAY | Resolution | 4K UHD (3840*2160 @ 60 Hz) | |
Display Colors | 10 Bit + FRC (1.07 Billion) | ||
Response Time | 5 ms | ||
Panel Refresh Rate | 60 Hz | ||
LED Lifespan | 50,000 hours | ||
LCD Viewing Angle | 178 ̊ | ||
Contrast Ratio | 4000:01:00 | ||
Ambient Light Sensord | Yes | ||
Glass Hardness | 9H (Pencil), 7 (Mohs) | ||
Glass Type | 3mm Heat-tempered, Anti-Glare | ||
INTERACTIVITY | Touch Technology | LG in-cell touch | |
Continuous Touch Points | Up to 20 Points | ||
Console Buttons | Power, Source, Menu, VOL,CH, PC,Enter, Home | ||
Touch Resolution | 32768*32768 px | ||
Response Time | ≤ 5 ms | ||
Touch Accuracy | 1 mm | ||
Tracking Rate | 6 m/s | ||
Scan Rate | 200 Hz | ||
Gestures and Edge Swipes | Windows® Supported | ||
Pen Type | Battery-less Pen | ||
Pen Tip Diameter | 3 mm | ||
Palm Detection | Yes | ||
Annotation Over Any Source | Yes | ||
CAMERA AND MIC | Color bit | 24 bit | |
4K Resolution | 3840*2160 /Opt. 20fps | ||
Image format | YUV2, MJPG | ||
Viewing angle | Fixed-focus 94° | ||
MIC QTY | 4 | ||
Sampling res. | 16/24 bit | ||
Sampling rate | 16KHz – 48KHz | ||
AEC Algorithm sampling rate | 4 GB | ||
COMPUTING | Operating System | Android™ 8.0 | |
RAM | 2 GB | ||
Internal Storage | 16 GB | ||
CPU | Quad Core: 2*ARM Cortex A73, 2*ARM Cortex A53 | ||
CONNECTIVITY | Front | HDMI® 2.0 In*1, USB 2.0*2, USB TOUCH*1 | |
Rear | Wi-Fi®*1, RJ45*1, HDMI® 2.0*1, VGA In*1, Audio In*1, RS232*1, SD Card*1, YPbPr*1, HeadPhone Out*1, AV In*1, AV Out*1, SPDIF Out*1, USB 2.0*1, USB TOUCH*1, USB 3.0*1 | ||
Wireless, 2*2 | Included | ||
Bluetooth® 4.2 | Included | ||
OPS Slot | 1 | ||
AUDIO | Dual Front Facing Speakers | 2*20 Watts | |
Audio Stereo | Balance, Auto Volume Control, Surround Sound | ||
ENVIRONMENTAL | Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
Storage Temperature | -15°C to 55°C (-5°F to 131°F) | ||
Operating Humidity | 20% to 80% non-condensing humidity | ||
Storage Humidity | 20% to 90% non-condensing humidity | ||
PACKED CONTENTS | 1*WizPanel | ||
1*2M Length HDMI Cable | |||
1*1.5M Length USB Cable (A-B) | |||
1*1.8M Regional Power Cable | |||
1*Remote Controller | |||
2*Wzipanel Pens | |||
1*VESA mount screws (M6) | |||
1*Wall Mount | |||
2*Antenna | |||
1*Quick Install Guide | |||
Certifications
