Product Description

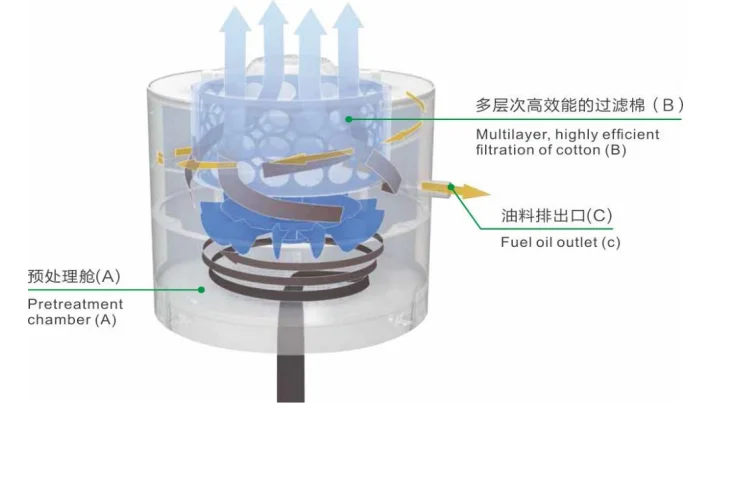

Operating principle
Centrifugal oil mist collector and household washing machine have similar principle. The use of centrifugal device, remove the oil mist particles , oil mist gas is handled by centrifugal, and then secondary filtrate through the filter element.

Centrifugal products: High cost performance

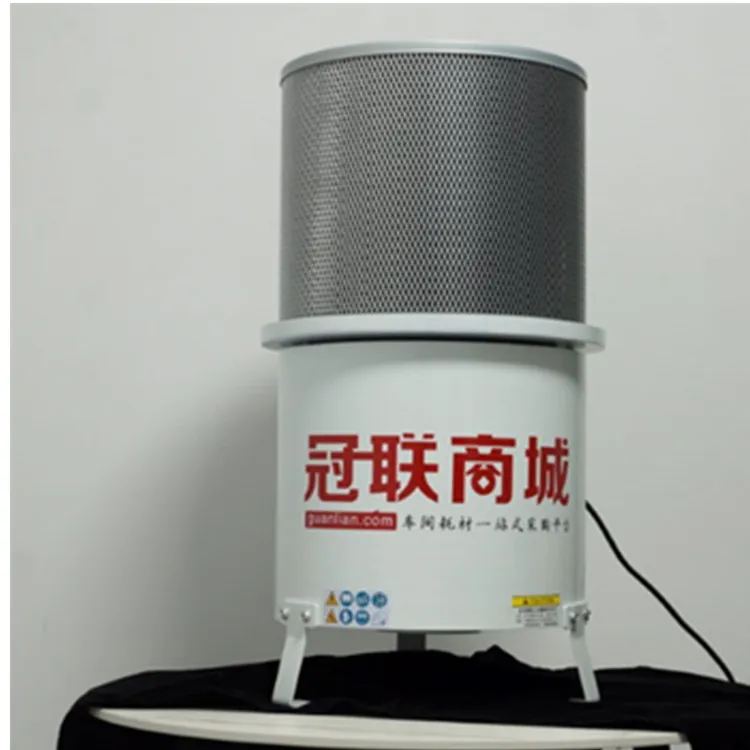

Product introduction
Oil mist collector is a kind of industrial environmental protection equipment. The oil mist in the processing

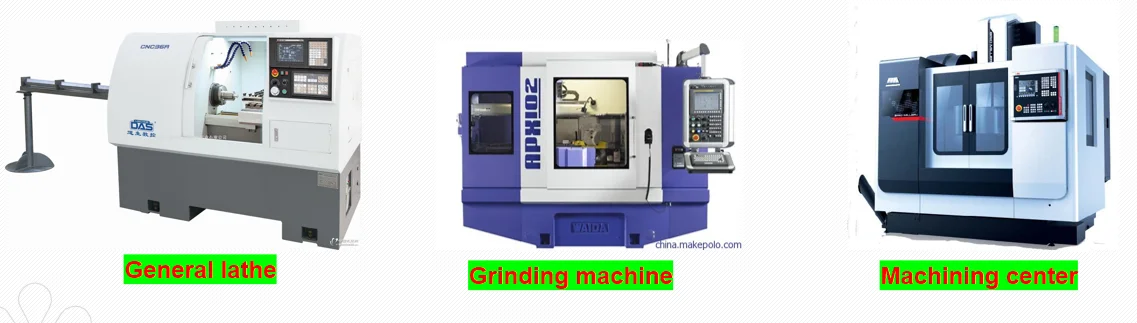

equipment can be inhaled, fresh air discharged, and the oil can be recycled. Processing oil mist can not be discharged to the workshop air, so that the workshop away from trouble of the oil mist. The applicable equipment is walking machine, lathe, grinding machine, processing center, etc.




Product Advantage
The difference between guanlian oil mist collector and other brand products: The training product is Guanlian centrifugal oil mist collector, and mechanical and electrostatic type will be added later according to the demand.




More than 99% filtering effect
A large number of pollutants are trapped through turbine centrifugation, and the high-efficiency multi-layer filter cotton is used to capture small pollution molecules, which has a longer life than similar products.
High efficiency air collector
Imported rear cartridge filter device, effectively filter micro fog, steam and smog.

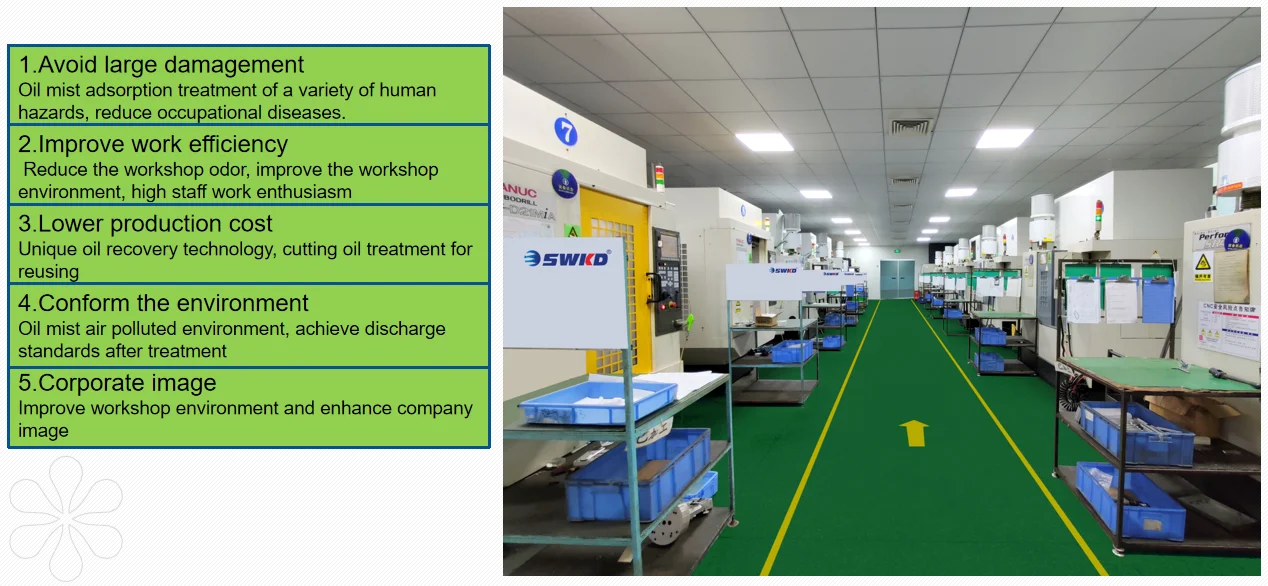

Benefits of using oil mist collector




Product model and parameters


Model list of Centrifugal Oil Mist Collector
Model
Voltage/
Frequency
Power
  (KW)
Rotations
   (rpm)
Air Volume
 （m³/h）
Suction Diameter
       （mm）
Weight
（kg）
Size D*H
（mm）
GLT-250P
Three-Phase 220V/380V50HZ
0.25
2850
650
φ125
22
390*720
GLT-370P
Three-Phase 220V/380V50HZ
0.37
2850
980
φ150
34
440*850
GLT-750P
Three-Phase 220V/380V50HZ
0.75
2850
1300
φ150
38
480*850
GLT-1100P
Three-Phase 220V/380V50HZ
1.1
2850
2000
φ150
50
540*1050
GLT-250A
Three-Phase 220V/380V50HZ
0.25
2850
650
φ125
23
390*820
GLT-370A
Three-Phase 220V/380V50HZ
0.37
2850
980
φ150
36
440*950
GLT-750A
Three-Phase 220V/380V50HZ
0.75
2850
1350
φ150
40
480*950
GLT-1100A
Three-Phase 220V/380V50HZ
1.1
2850
2000
φ150
52
540*1150

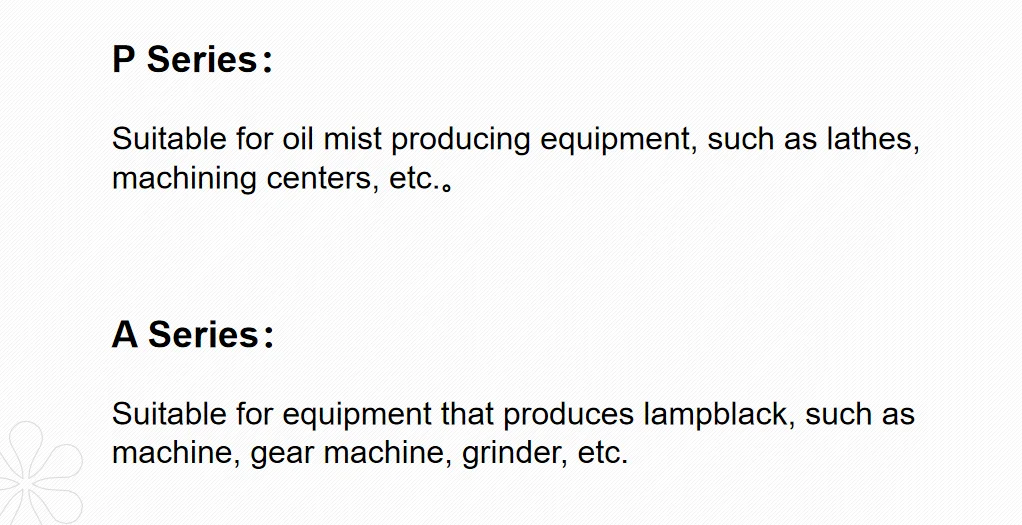

Selection standard of Guan Lian centrifugal oil mist collector
Serial number
Model
Applicable models


1


GLT-250P
36/46/6-inch Chuck Lathe (water-based cutting fluid)
Model 20 walking machine (oil, smokeless)
Machining center below 500 stroke (water-based cutting fluid)
Machining center below 500 stroke (water-based cutting fluid)

2

GLT-250A
type 20 walking machine (oil, smoke); Model 36 Lathe (oil, small smoke)
650/540 Engraving and milling machine (oil, smoke)

3

GLT-370P
46/52/8-inch Chuck lathe (water-based cutting fluid)
500-1 m stroke machining center (water-based cutting fluid)
500-1 meter stroke processing center (oil, smokeless)

4

GLT-370A
36/46 lathe (oil, smoke)
500-850 Stroke processing center (oil, small smoke)

5

GLT-750P
10-12 inch Chuck lathe (water-based cutting fluid)
850-1600 stroke machining center (water-based cutting fluid)

6

GLT-750A
46/52 lathe (oil, smoke); Type 26/32 moving machine (oil, smoke)
850-1200 Stroke processing center (oil, smoke)
