Electronic Lab Testing Sieve Analysis Equipment Price For Seed Soil
- Category: >>>
- Supplier: Henan Yuanzhen Machinery Equipment Co. Ltd.
Share on (1600437530883):
Product Overview
Description
Products Description

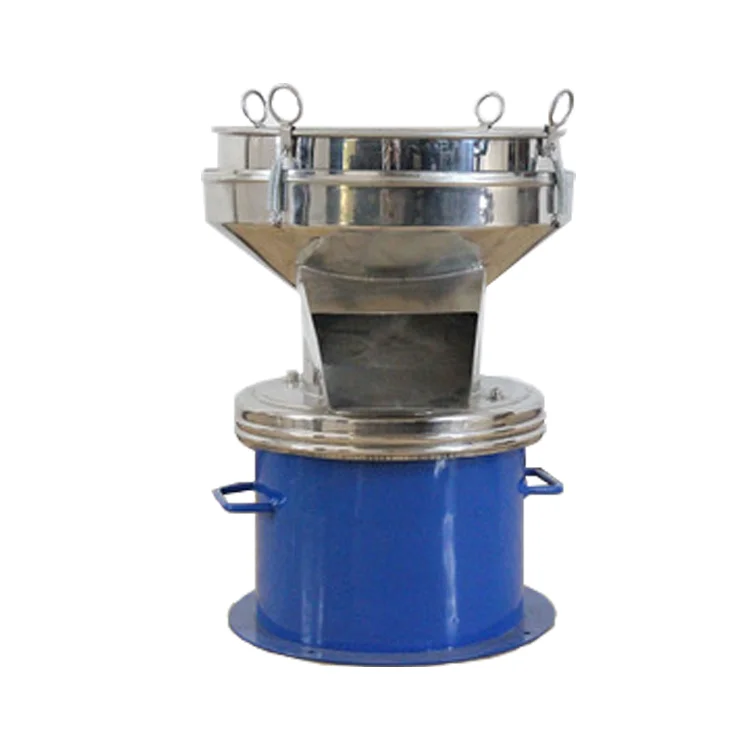

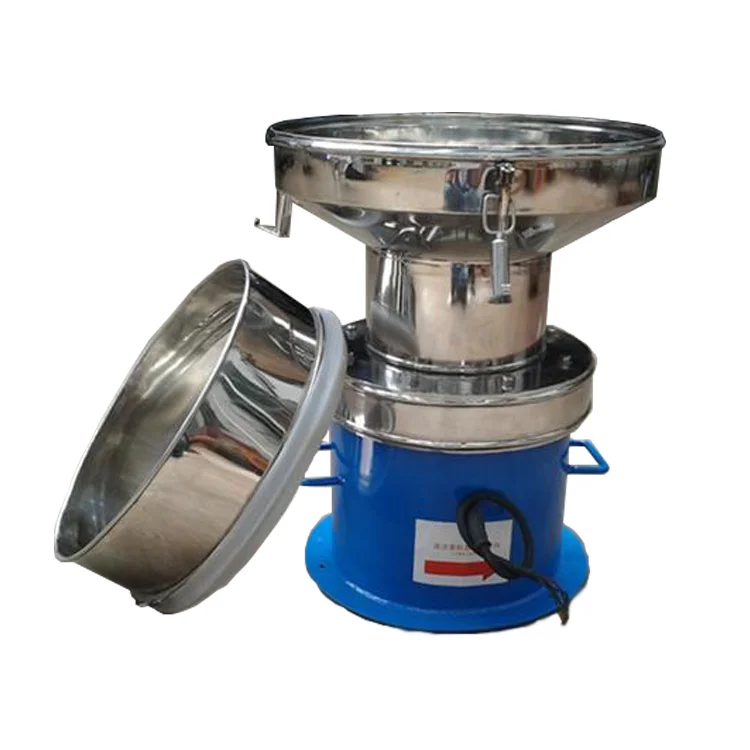

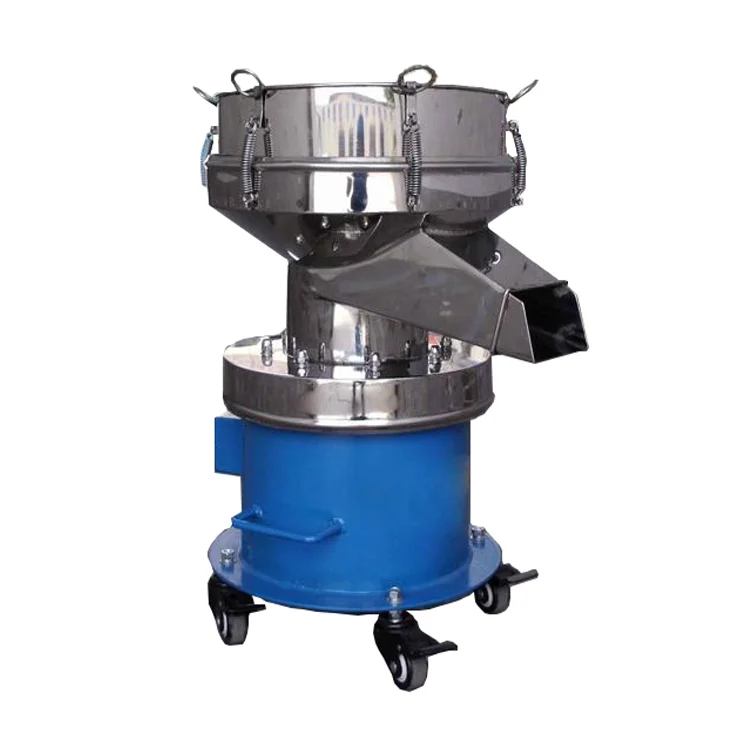

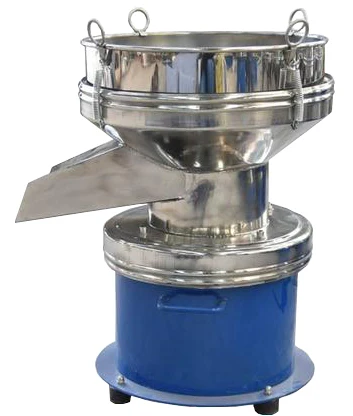

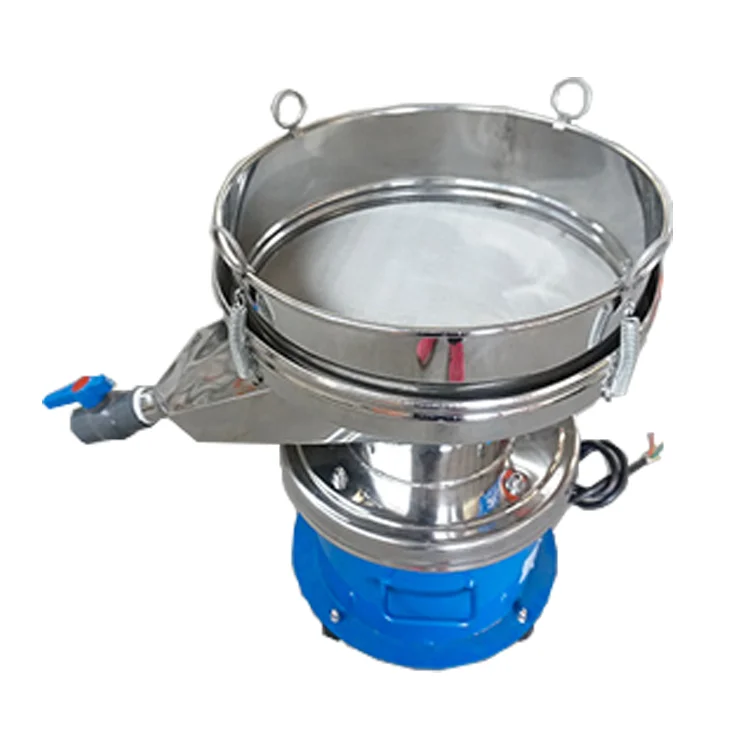

Small screening equipment suitable for laboratory use - Standard test sieve
Standard test sieve is a standard analysis sieve integrating powder particle classification and liquid filtration; it is suitable for precise analysis of particle size structure of granule and powder materials in laboratory and quality inspection room, and testing and analysis of liquid solid content and amount of debris. It has the characteristics of low noise, high efficiency and high precision.
The use of new power generator, produce multi-far high-frequency vibration, efficient sieving samples; standard sieve body, to ensure high precision sample analysis; electronic time delay, can be set according to the need for the same material equal sieving time, to ensure the uniformity of the sample analysis data, to reduce the inspection error to a very low degree, so that product quality data accurate.
If it is ultra-fine powder material, ultrasonic system can be installed.
The use of new power generator, produce multi-far high-frequency vibration, efficient sieving samples; standard sieve body, to ensure high precision sample analysis; electronic time delay, can be set according to the need for the same material equal sieving time, to ensure the uniformity of the sample analysis data, to reduce the inspection error to a very low degree, so that product quality data accurate.
If it is ultra-fine powder material, ultrasonic system can be installed.
Structural principle
Standard test sieve is a vertical vibration motor as the whole machine vibration source, through the vibration motor drives the upper vibration plate vibration, and then through the vibration plate conduction to placed in the upper vibration plate sieve frame, and then by the need to detect the mesh sieve frame, the material particles smaller than the screen aperture sieve to the lower layer of the sieve frame.
So layer by layer screening, so that each layer of the test sieve only leave the same size of material, to achieve the separation of different size and determine the size of this material composition, so that the material in the sieve frame can be very effective for the purpose of filtration, classification, sieving.
Product Features
1.With optimized integrated circuit control, full function and simple operation.
2.The material can be precisely divided into 2-9 particle segments.
3.It can be used for analysis of fineness and trash content of slurry material.
4.Low noise, light weight, easy to operate, no need to fix.
5.Synchronous adjustment of vibration frequency, mode and amplitude can be made at any time.
6.Free to adjust the sieving time.
2.The material can be precisely divided into 2-9 particle segments.
3.It can be used for analysis of fineness and trash content of slurry material.
4.Low noise, light weight, easy to operate, no need to fix.
5.Synchronous adjustment of vibration frequency, mode and amplitude can be made at any time.
6.Free to adjust the sieving time.
Common Model
Model | YZ-75 | YZ-100 | YZ-200 | |||
Nominal diameter(mm) | Φ75 | Φ100 | Φ200 | |||
Screening size(mm) | 0.038-3 | 0.038-3 | 0.038-3 | |||
Noise(dB) | ≤50 | ≤50 | ≤50 | |||
Feeding amount (one-time)(g) | ≤200 | ≤200 | ≤200 | |||
Amplitude(mm) | ≤5 | ≤5 | ≤5 | |||
Voltage(V) | 220V（Or as required） | 220V | 220V | |||
Power(Kw) | 0.125 | 0.125 | 0.125 | |||
Dimensions(mm) | 360*300*736 | 360*300*736 | 360*300*736 | |||
How to select the right type?
Attention:
The selection of screening equipment and your use of demand has a lot to do with the following information you need to provide.
Ⅰ.If you have ever used the screen machine
Kindly please tell us its DIAMETER,LAYERS,MESH SIZES,MATERIALS.
Ⅱ. If never use the machine until now
Please offer us the info about material as below:
1.the name of the material.
2.Material characteristics (e.g. specific gravity, bulk density, water content, fluidity, adhesion, electrostatic properties, etc.)
3.the purpose of use (sieving / debris / liquid filtration / media separation)
4.How many layers do you need? Mesh size of each layer?
5.expected processing capacity per hour (Kg/h)
In this way,we can precisely choose the matching model for you to meet your use requirements.
6.Voltage(V),Frequency(Hz),Phase(P)
Ⅰ.If you have ever used the screen machine
Kindly please tell us its DIAMETER,LAYERS,MESH SIZES,MATERIALS.
Ⅱ. If never use the machine until now
Please offer us the info about material as below:
1.the name of the material.
2.Material characteristics (e.g. specific gravity, bulk density, water content, fluidity, adhesion, electrostatic properties, etc.)
3.the purpose of use (sieving / debris / liquid filtration / media separation)
4.How many layers do you need? Mesh size of each layer?
5.expected processing capacity per hour (Kg/h)
In this way,we can precisely choose the matching model for you to meet your use requirements.
6.Voltage(V),Frequency(Hz),Phase(P)
---------------------------------------------------------------------------------------------------------
In order to make it more convenient for you, you can compare the following table to clear your machine configuration
（You can also click this link to contact us directly）
General requirements | Diameter Size（mm） | 75/100/200 | ||||
Number of Layers（L） | 1-8 | |||||
Main Material | Stainless Steel（304/316L） | |||||
Screen Mesh Number | 2-500 | |||||
Sealing Strip | Silica gel / Rubber | |||||
Special requirements | Overall height of the fuselage | Please communicate specifically | ||||
Internal spray（mm） | PTFE / ePTFE / WC / Al2O3 | |||||
Equipment surface treatment | Polishing / Sandblasting | |||||
Body metal material requirements | For example: require no Cu and Zn (except electrical parts) | |||||
Vibration motor | Ordinary motor / Explosion-proof motor | |||||
other | ||||||
Show Details
Product Show
We provide you with quality products and services.
---------------------------------------------------------------------------------------------------------
Please click on the pictures below to learn about related products
Application
Application Scenario Description
This is a kind of micro-size screening equipment, generally used in laboratories, research institutes, and schools to classify the particle size of materials to facilitate research. Generally, standard models are available for purchase.
Common screening materials are:
Common screening materials are:
Chemical industry: resin, coating, industrial goods, cosmetics, paint, Chinese medicine powder.
Food industry: sugar, starch, salt powder, rice powder, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
Food industry: sugar, starch, salt powder, rice powder, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
Metallurgical industry: aluminum powder, lead powder, ore, copper powder, kaolin, alumina, quartz sand, etc.
Public hazard treatment: waste oil, waste water, activated carbon, etc.
Public hazard treatment: waste oil, waste water, activated carbon, etc.
Why Choose Us
What can I do for you？
1.Rich production experience
2.Numerous industry application cases
3.Provide suitable design solutions according to user requirements
4.Reliable quality and cost-effective price
5.Perfect service
6.International sales route
2.Numerous industry application cases
3.Provide suitable design solutions according to user requirements
4.Reliable quality and cost-effective price
5.Perfect service
6.International sales route
Factory Display
Creating a trustworthy factory
About Yuanzhen
Henan Yuanzhen Machinery Equipment Co., Ltd. is an enterprise integrating production, technology research and development, and trade. Our main products are screening equipment and conveying equipment, and we can also provide design, production and installation of other related equipment.
Yuanzhen’s sales network has penetrated the whole China, and many products have gone to the world through other foreign trade companies. Now it is necessary to build a more complete sales network so that users in more countries can use our products and feel our dedicated service.
Yuanzhen sincerely treat every customer, hope to make friends with people from all over the world, and very looking forward to establishing a long-term win-win partnership with you.
Yuanzhen’s sales network has penetrated the whole China, and many products have gone to the world through other foreign trade companies. Now it is necessary to build a more complete sales network so that users in more countries can use our products and feel our dedicated service.
Yuanzhen sincerely treat every customer, hope to make friends with people from all over the world, and very looking forward to establishing a long-term win-win partnership with you.
Our Team & Service
Basis service
1.Your sample material can be free analysis in our laboratory.
2.24 hours a week online & quick response within 12 hours.
3.Production lead time and delivery time guaranteed.
Customized services
1.Professional R & D team to develop the new products as you requirements.
2.Help customers to develop the local market
3.All packing and shipping can customized as per your requirements.
After-sale services
After customers received the goods,if have any questions or quality problems, Our customer service Dept. will
be always available.
be always available.
Packaging & Shipping
FAQ
Q:What is the quality of the product?
A:We have complete quality control system. We have team leader, section leader and quality control manager to control the quality by each step. Welcome to our factory for cooperation!
Q:What factors I need to get a quotation?
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage Frequency(Hz).
Q:How about price?
A:We are a factory, we provide you with quality and reliable products while giving you better prices, "high cost performance" - that's what we are.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q:Service and Payment Terms?
A:We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery;
We take pictures of finished products before delivery.
A:We have complete quality control system. We have team leader, section leader and quality control manager to control the quality by each step. Welcome to our factory for cooperation!
Q:What factors I need to get a quotation?
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage Frequency(Hz).
Q:How about price?
A:We are a factory, we provide you with quality and reliable products while giving you better prices, "high cost performance" - that's what we are.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q:Service and Payment Terms?
A:We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery;
We take pictures of finished products before delivery.
---------------------------------------------------------------------------------------------------------
