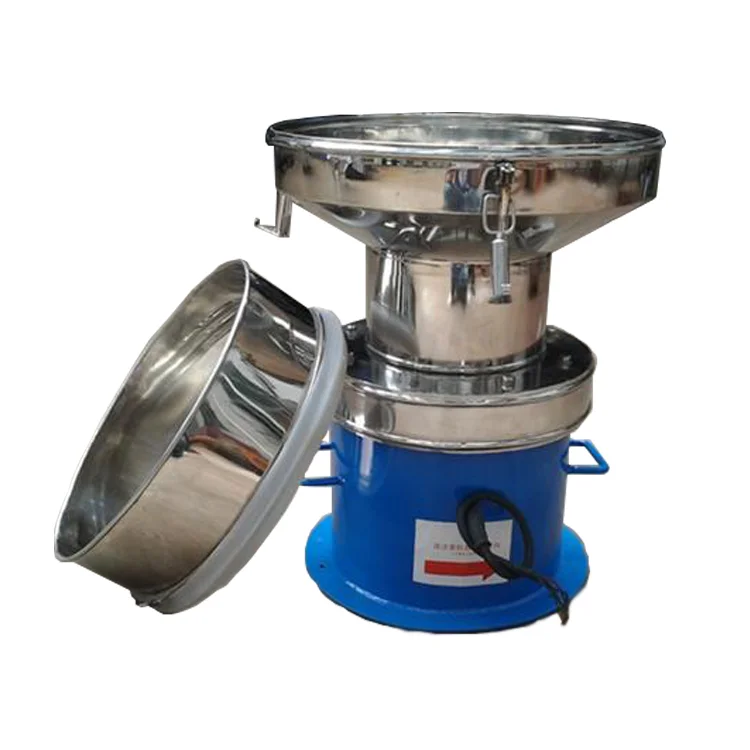

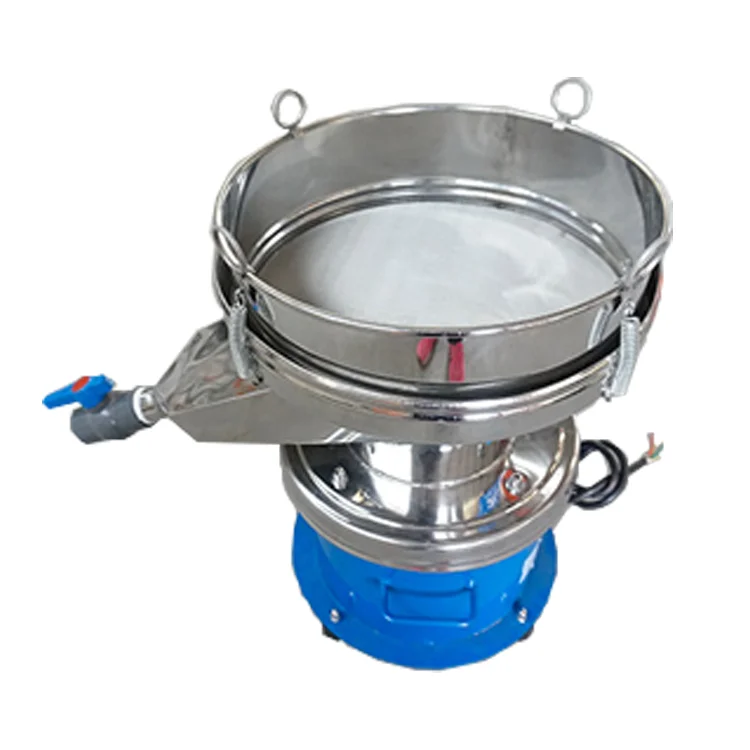

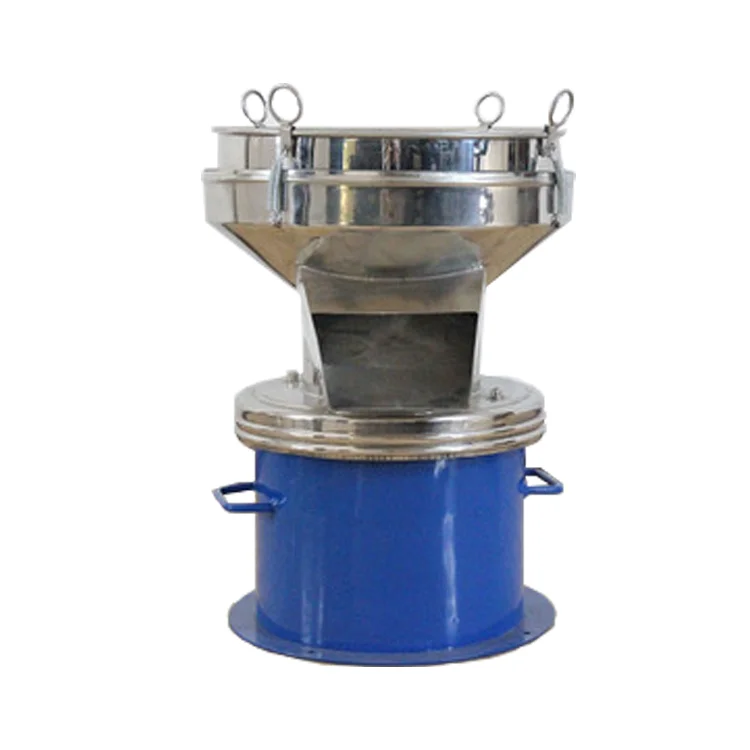

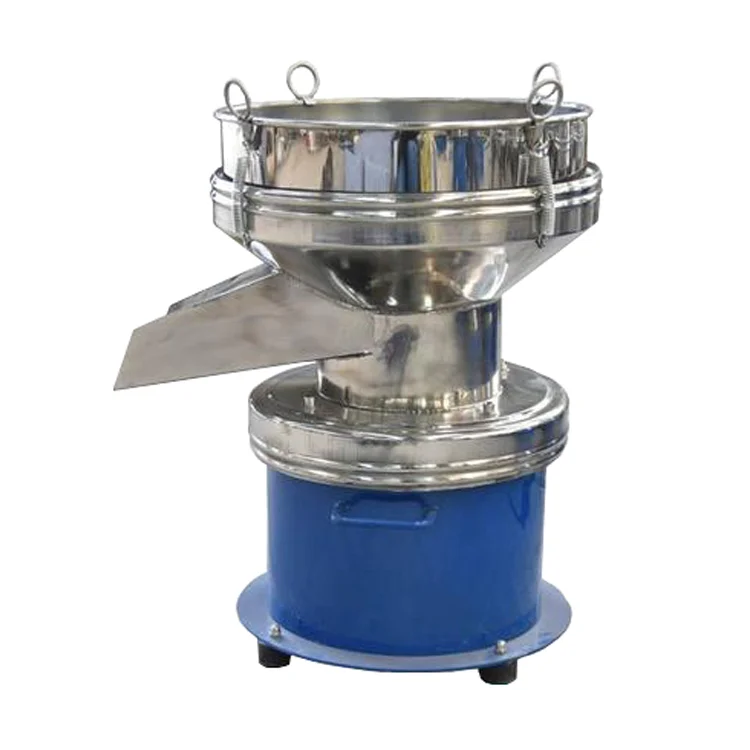

Low noise stainless steel 450 type vibro screening filter separator machine for solid liquid
- Category: >>>
- Supplier: Henan Yuanzhen Machinery Equipment Co. Ltd.
Share on (1600437608872):
Product Overview
Description
Products Description
Often used for glaze filtering - 450 Type Liquid Filter
Model 450 high efficiency filter sieve is a low noise, high efficiency, easy to move small vibrating sieving and filtering machine, is a single layer vibrating sieve that integrates powder and particle classification and liquid filtration. Suitable for single-layer sieving and filtering for manufacturers in various industries, handling materials with little production or impurities.
For example: 1, large particle content of powder sieving and slurry filtration; 2, 325 mesh filtering specific gravity 1.1 spray paint material, up to 1200 liters per hour; 3, 30 mesh sieving flour can handle 700 kg per hour.
Stainless steel (304) material, small model, light weight, can be moved at will, does not occupy space.
Round vibration machinery is a professional manufacturer of ultrasonic vibrating screen, according to the specific needs of customers to customize the design and production of equipment.
For example: 1, large particle content of powder sieving and slurry filtration; 2, 325 mesh filtering specific gravity 1.1 spray paint material, up to 1200 liters per hour; 3, 30 mesh sieving flour can handle 700 kg per hour.
Stainless steel (304) material, small model, light weight, can be moved at will, does not occupy space.
Round vibration machinery is a professional manufacturer of ultrasonic vibrating screen, according to the specific needs of customers to customize the design and production of equipment.

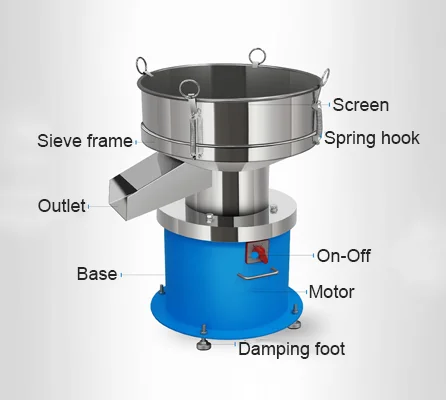

Structural principle
450 high efficiency filter sieve with high efficiency, small amplitude and high screening frequency. Different from the principle of ordinary screening equipment, due to the use of high frequency, the use of cylinder-type eccentric shaft exciter and eccentric block to adjust the amplitude, the role of unbalanced weight on the exciter centrifugal inertia force, so that the sieve box vibration, material sieve drip line is long, screening specifications, on the one hand, the destruction of the tension on the surface of the pulp and the high-speed oscillation of fine-grained materials on the screen surface, accelerating the large density of useful minerals and precipitation, increasing the less than the separation The probability of contact between the particle size material and the sieve hole is increased.
This causes better separation conditions, so that the materials smaller than the separation size, especially the specific grains and slurry together through the screen hole to become the product under the screen. Using the resonance principle, the double mass critical resonance state work, the driving power required is small, no large starting current at the start, low noise. It has the advantages of high efficiency, small amplitude and high screening frequency.
Product Features
1. Plus edge and wide mouth two designs, to prevent the slurry splash, the liquid does not leak
2.Large processing capacity, low water content of online materials and smooth slag discharge, fine filtration
3.Can be all kinds of slurry in the non-soluble solids quickly removed, continuous operation
4.High power motor with waterproof and dustproof device, long service life
5.The machine is highly reliable, one-time investment is less, low energy consumption, high output, energy-saving effect is obvious
6.Can be designed as fixed or mobile according to customer requirements and other requirements
2.Large processing capacity, low water content of online materials and smooth slag discharge, fine filtration
3.Can be all kinds of slurry in the non-soluble solids quickly removed, continuous operation
4.High power motor with waterproof and dustproof device, long service life
5.The machine is highly reliable, one-time investment is less, low energy consumption, high output, energy-saving effect is obvious
6.Can be designed as fixed or mobile according to customer requirements and other requirements
Common Model
Model | YZ-450 | YZ-450S (With moving wheels) | ||
Overall size(mm) | 500*500*600 | 500*500*1000 | ||
Screen body size (diameter * height) (mm) | 488*135 | 488*135 | ||
weight(Kg) | 40 | 48 | ||
Power(Kw) | 0.18 | 0.18 | ||
How to select the right type?
Attention:
The selection of screening equipment and your use of demand has a lot to do with the following information you need to provide.
Ⅰ.If you have ever used the screen machine
Kindly please tell us its DIAMETER,LAYERS,MESH SIZES,MATERIALS.
Ⅱ. If never use the machine until now
Please offer us the info about material as below:
1.the name of the material.
2.Material characteristics (e.g. specific gravity, bulk density, water content, fluidity, adhesion, electrostatic properties, etc.)
3.the purpose of use (sieving / debris / liquid filtration / media separation)
4.How many layers do you need? Mesh size of each layer?
5.expected processing capacity per hour (Kg/h)
In this way,we can precisely choose the matching model for you to meet your use requirements.
6.Voltage(V),Frequency(Hz),Phase(P)
Ⅰ.If you have ever used the screen machine
Kindly please tell us its DIAMETER,LAYERS,MESH SIZES,MATERIALS.
Ⅱ. If never use the machine until now
Please offer us the info about material as below:
1.the name of the material.
2.Material characteristics (e.g. specific gravity, bulk density, water content, fluidity, adhesion, electrostatic properties, etc.)
3.the purpose of use (sieving / debris / liquid filtration / media separation)
4.How many layers do you need? Mesh size of each layer?
5.expected processing capacity per hour (Kg/h)
In this way,we can precisely choose the matching model for you to meet your use requirements.
6.Voltage(V),Frequency(Hz),Phase(P)
---------------------------------------------------------------------------------------------------------
In order to make it more convenient for you, you can compare the following table to clear your machine configuration
（You can also click this link to contact us directly）
General requirements | Model | 450 / 450S | ||||
Number of Layers（L） | 1-2 | |||||
Main Material | Stainless Steel（304/316L） | |||||
Screen Mesh Number | 2-500 | |||||
Sealing Strip | Silica gel / Rubber | |||||
Special requirements | Overall height of the fuselage | Please communicate specifically | ||||
Inlet | Angle / Size and so on | |||||
Outlet | Angle / Size /Add valve | |||||
Observation port | Silicone cover / Rubber cover / Glass cover | |||||
Internal spray（mm） | PTFE / ePTFE / WC / Al2O3 | |||||
Equipment surface treatment | Polishing / Sandblasting | |||||
Body metal material requirements | For example: require no Cu and Zn (except electrical parts) | |||||
Vibration motor | Ordinary motor / Explosion-proof motor | |||||
other | ||||||
Show Details

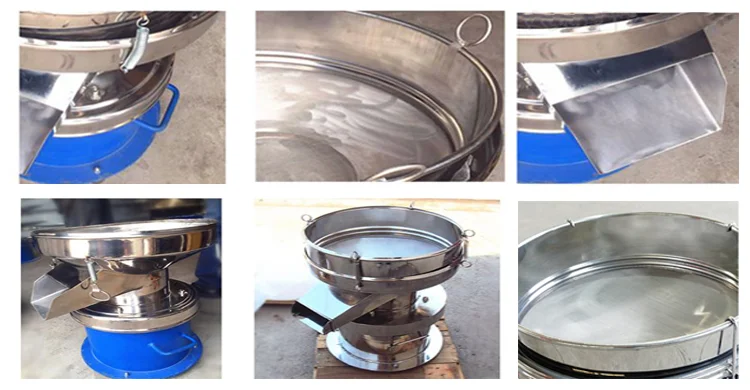

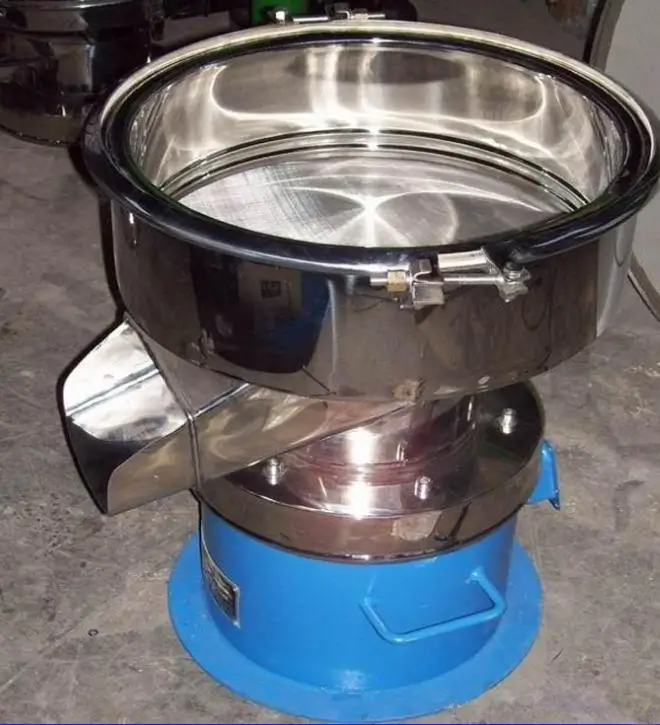

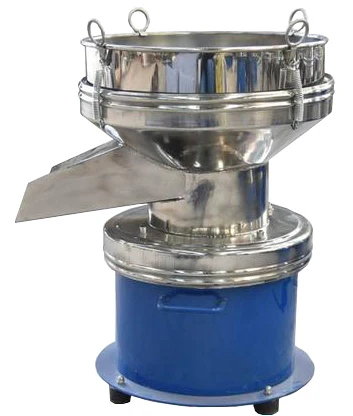

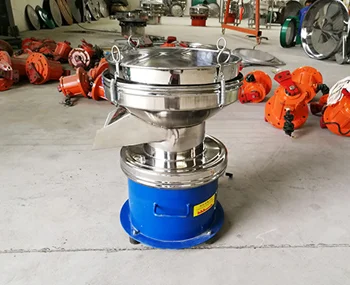

Product Show
We provide you with quality products and services.
---------------------------------------------------------------------------------------------------------
Please click on the pictures below to learn about related products
Application
Application Scenario Description
It is often used for the filtration of glaze, but it can also screen/remove powder and granular materials. A movable wheel can be installed at the bottom (convenient for unfixed work stations).
Common screening materials are:
Common screening materials are:
Chemical industry: resin, coating, industrial goods, cosmetics, paint, Chinese medicine powder.
Food industry: sugar, starch, salt powder, rice powder, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
Metallurgical industry: aluminum powder, lead powder, ore, copper powder, kaolin, alumina, quartz sand, etc.
Public hazard treatment: waste oil, waste water, activated carbon, etc.
Food industry: sugar, starch, salt powder, rice powder, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
Metallurgical industry: aluminum powder, lead powder, ore, copper powder, kaolin, alumina, quartz sand, etc.
Public hazard treatment: waste oil, waste water, activated carbon, etc.

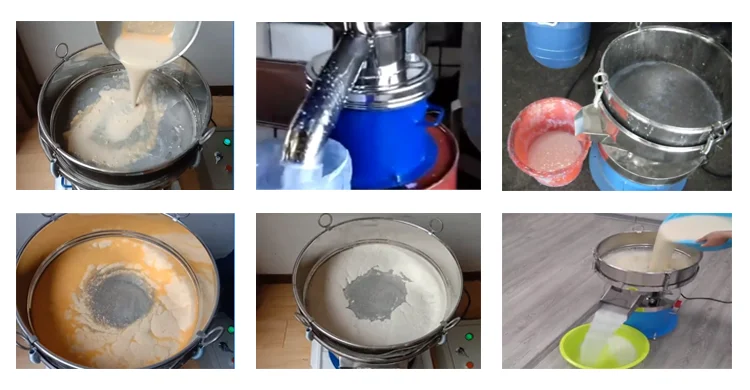

Customer Case
Why Choose Us
What can I do for you？
1.Rich production experience
2.Numerous industry application cases
3.Provide suitable design solutions according to user requirements
4.Reliable quality and cost-effective price
5.Perfect service
6.International sales route
2.Numerous industry application cases
3.Provide suitable design solutions according to user requirements
4.Reliable quality and cost-effective price
5.Perfect service
6.International sales route
Factory Display
Creating a trustworthy factory
About Yuanzhen
Henan Yuanzhen Machinery Equipment Co., Ltd. is an enterprise integrating production, technology research and development, and trade. Our main products are screening equipment and conveying equipment, and we can also provide design, production and installation of other related equipment.
Yuanzhen’s sales network has penetrated the whole China, and many products have gone to the world through other foreign trade companies. Now it is necessary to build a more complete sales network so that users in more countries can use our products and feel our dedicated service.
Yuanzhen sincerely treat every customer, hope to make friends with people from all over the world, and very looking forward to establishing a long-term win-win partnership with you.
Yuanzhen’s sales network has penetrated the whole China, and many products have gone to the world through other foreign trade companies. Now it is necessary to build a more complete sales network so that users in more countries can use our products and feel our dedicated service.
Yuanzhen sincerely treat every customer, hope to make friends with people from all over the world, and very looking forward to establishing a long-term win-win partnership with you.
Our Team & Service
Basis service
1.Your sample material can be free analysis in our laboratory.
2.24 hours a week online & quick response within 12 hours.
3.Production lead time and delivery time guaranteed.
Customized services
1.Professional R & D team to develop the new products as you requirements.
2.Help customers to develop the local market
3.All packing and shipping can customized as per your requirements.
After-sale services
After customers received the goods,if have any questions or quality problems, Our customer service Dept. will
be always available.
be always available.
Packaging & Shipping
FAQ
Q:What is the quality of the product?
A:We have complete quality control system. We have team leader, section leader and quality control manager to control the quality by each step. Welcome to our factory for cooperation!
Q:What factors I need to get a quotation?
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage Frequency(Hz).
Q:How about price?
A:We are a factory, we provide you with quality and reliable products while giving you better prices, "high cost performance" - that's what we are.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q:Service and Payment Terms?
A:We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery;
We take pictures of finished products before delivery.
A:We have complete quality control system. We have team leader, section leader and quality control manager to control the quality by each step. Welcome to our factory for cooperation!
Q:What factors I need to get a quotation?
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage Frequency(Hz).
Q:How about price?
A:We are a factory, we provide you with quality and reliable products while giving you better prices, "high cost performance" - that's what we are.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q:Service and Payment Terms?
A:We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery;
We take pictures of finished products before delivery.
---------------------------------------------------------------------------------------------------------
