QYLink5004 WiFi 4G Lora Rs485 Ethernet Modbus Rtu IoT Gateway support remote maintenance
- Category: >>>
- Supplier: Zhejiang Qiyang Intelligent Technology Co. Ltd.
Share on (1600437625803):
Product Overview
Description
Products Description
Industrial Computer wireless IoT Gateway with WiFi, gigabit ethernet for industrial Data acquisition

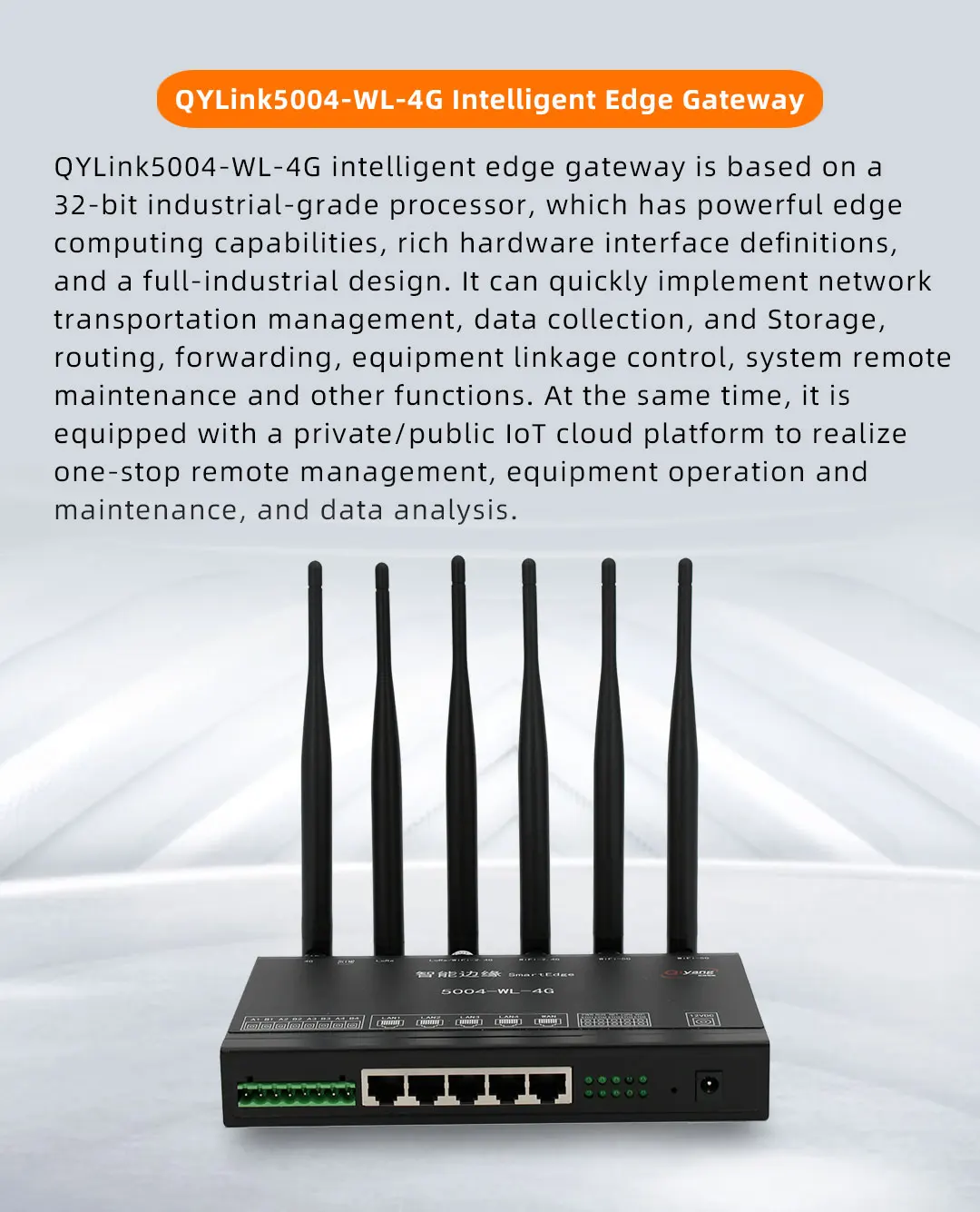

QYLink5004-WL-4G intelligent edge gateway is based on a 32-bitindustrial-grade processor，which has powerful edge computing capabilities，rich hardware interface definitions and afull-industrial design.
Product Paramenters
Specification | Parameter | Description |
Product Name | QYLink 5004-WL-4G | V1 |
The network system | 4G full netcom | Select different modules according to user requirements, and support different network systems |
Power supply | 12V/1.5A DC | DC-005 Power Plus |
Work consumption | 3W | |
Hardware parameters | 32bits industrial grade CPU | MIPS 2x880MHz |
RAM | 512M DDR3 | |
Flash | 256M Nand | |
Communicati-on Interface | Gigabit WAN | 1*10/100/1000M（RJ45） |
Gigabit LAN | 4*10/100/1000M（RJ45） | |
2.4G/5.8G dual mode wireless Wi-Fi | Support IEEE802.11b/g/n/ac，2*2 MIMO（2.4G 300M、5.8G 900M），support AP、Station、Mesh | |
Industrial serial port | 4*RS485 | |
Wireless LoRa | 2*LoRa @ 470MHz(Large Power) | |
Other Port | UART’s connector | 8 Pin 5.08mmwire terminal |
SIM Card | Standard drawer type，sipport 1.8V/3V SIM/UIM card | |
Antenna | 50Ω/SMA N-Female | |
Reset Button | Support “Reset” button to restore factory setting | |
Power interface | DC-005 Power plug | |
Other | MTBF | >100000 hours |
Operating temperature range | -40℃ ~ 70℃ | |
Storage temperature | -45℃ ~ 85℃ | |
Working humidity | ≤95%RH（No-condensation） | |

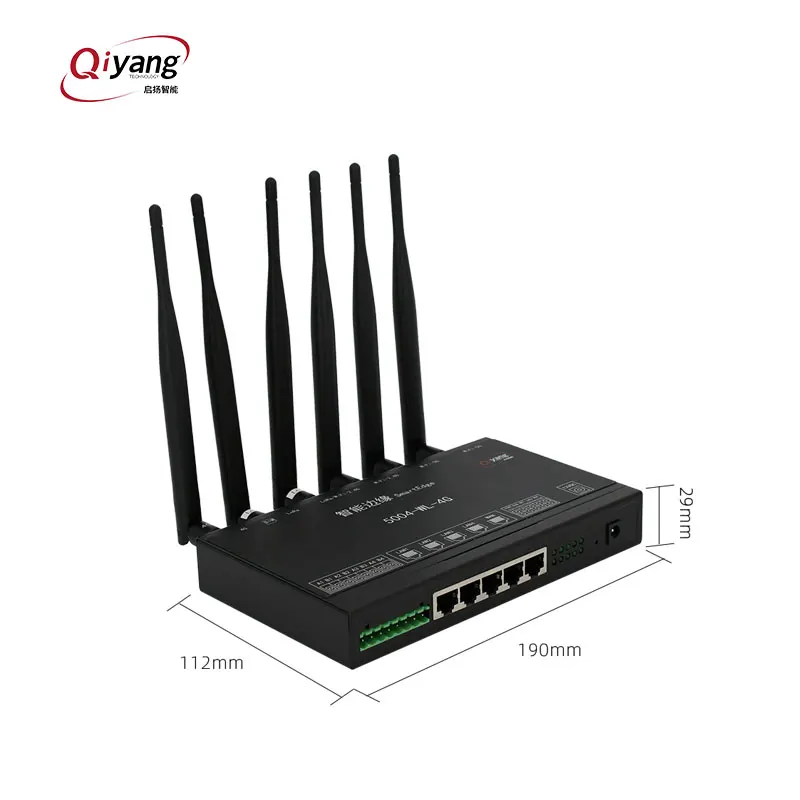

Size（without bracket ） | 190mm×112mm×29mm |
