18mm White Polyester Veneered Block Board
US $480.00
Good quality electrical insulation laminated wood sheet plywood transformer
- Category: Laminated Wood Boards \/ Blockboards >>>
- Supplier: Hangzhou Giantway Import &export Co. Ltd.
Share on (1600437626365):
Product Overview
Description
Products Description
Description
It's a press laminated wood veneer in crosswise direction, based on high quality and selected birch veneers, stick together with Electrical thermosetting synthetic resins under high pressure and temperature.
It's a press laminated wood veneer in crosswise direction, based on high quality and selected birch veneers, stick together with Electrical thermosetting synthetic resins under high pressure and temperature.
Property
Good Electrical properties
Excellent absorption of transformer oil
High mechanical strength
Low and high temperature resistance
Good resistance to the abrasion and wear
Good Electrical properties
Excellent absorption of transformer oil
High mechanical strength
Low and high temperature resistance
Good resistance to the abrasion and wear
Application

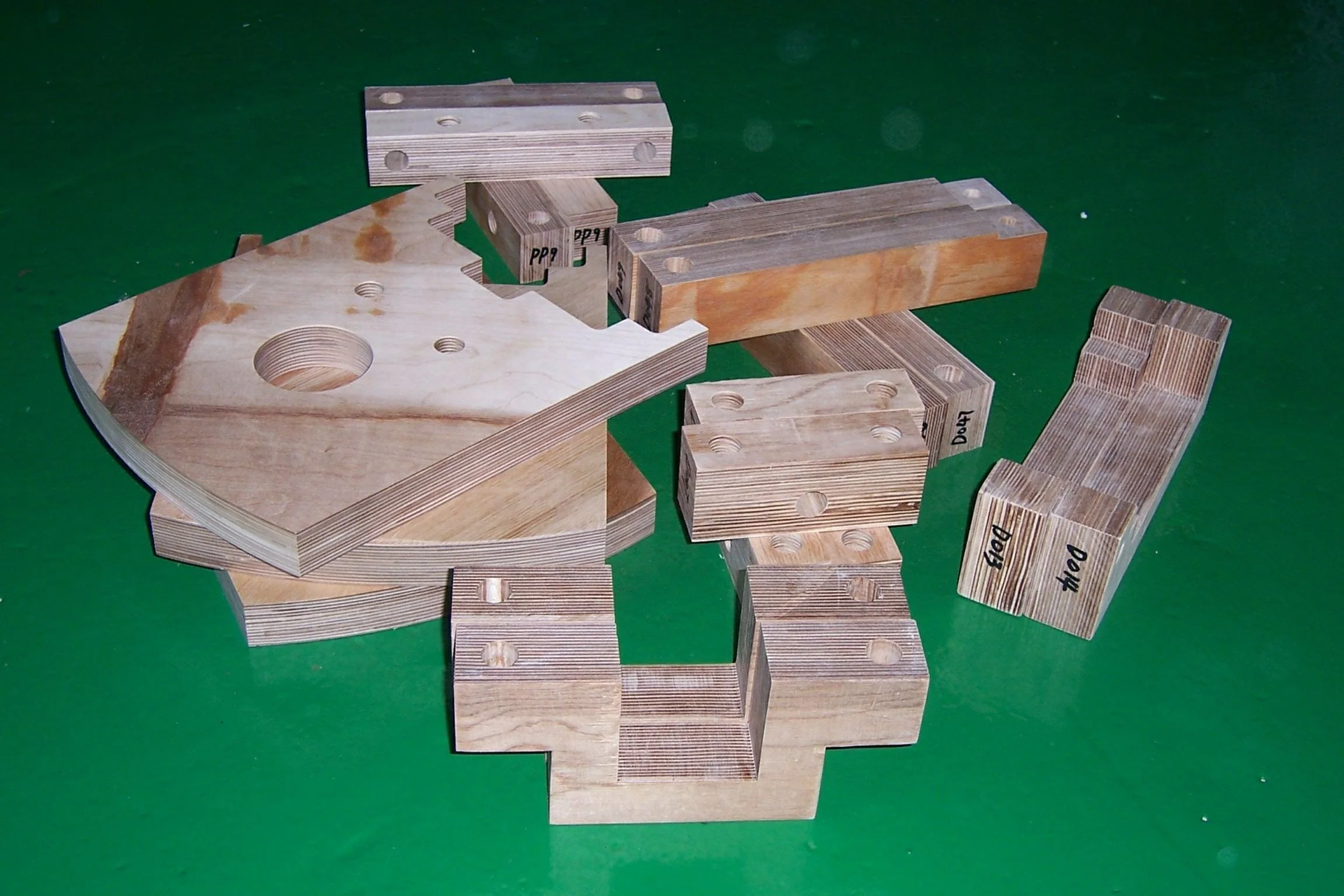

The product is mainly use in the electrical oil transformers applications as high electrical insulation material, like pressure
beams, step blocks, pressure spare parts, top and bottom support coils, potential rings, pressure rings , spacers, etc. For his
mechanical strength, laminated wood can be also use for many applications as abrasion resistance material under stress.

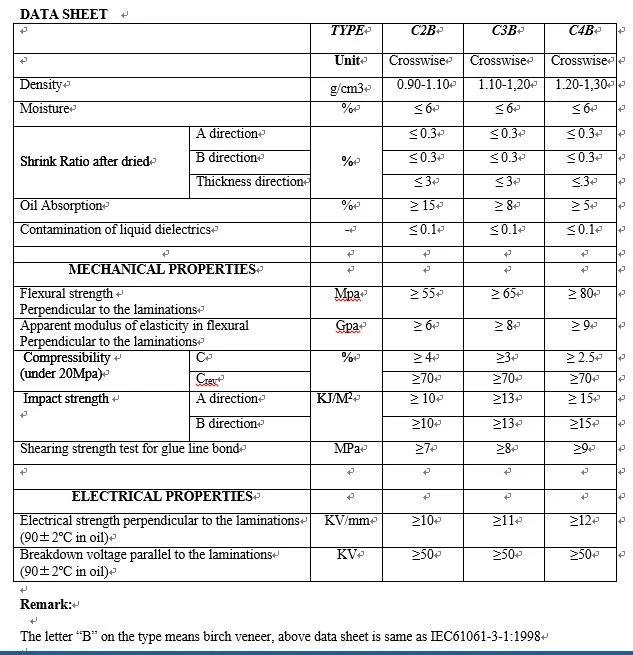

Standard Range of Production
The laminated wood is produced in 3 different densities,
Type : C2B , density between 0,90 to 1,10 g/cm3
Type : C3B, density between 1.10 to 1,20 g/m3
Type : C4B, density between 1,20 to 1,30 g/cm3

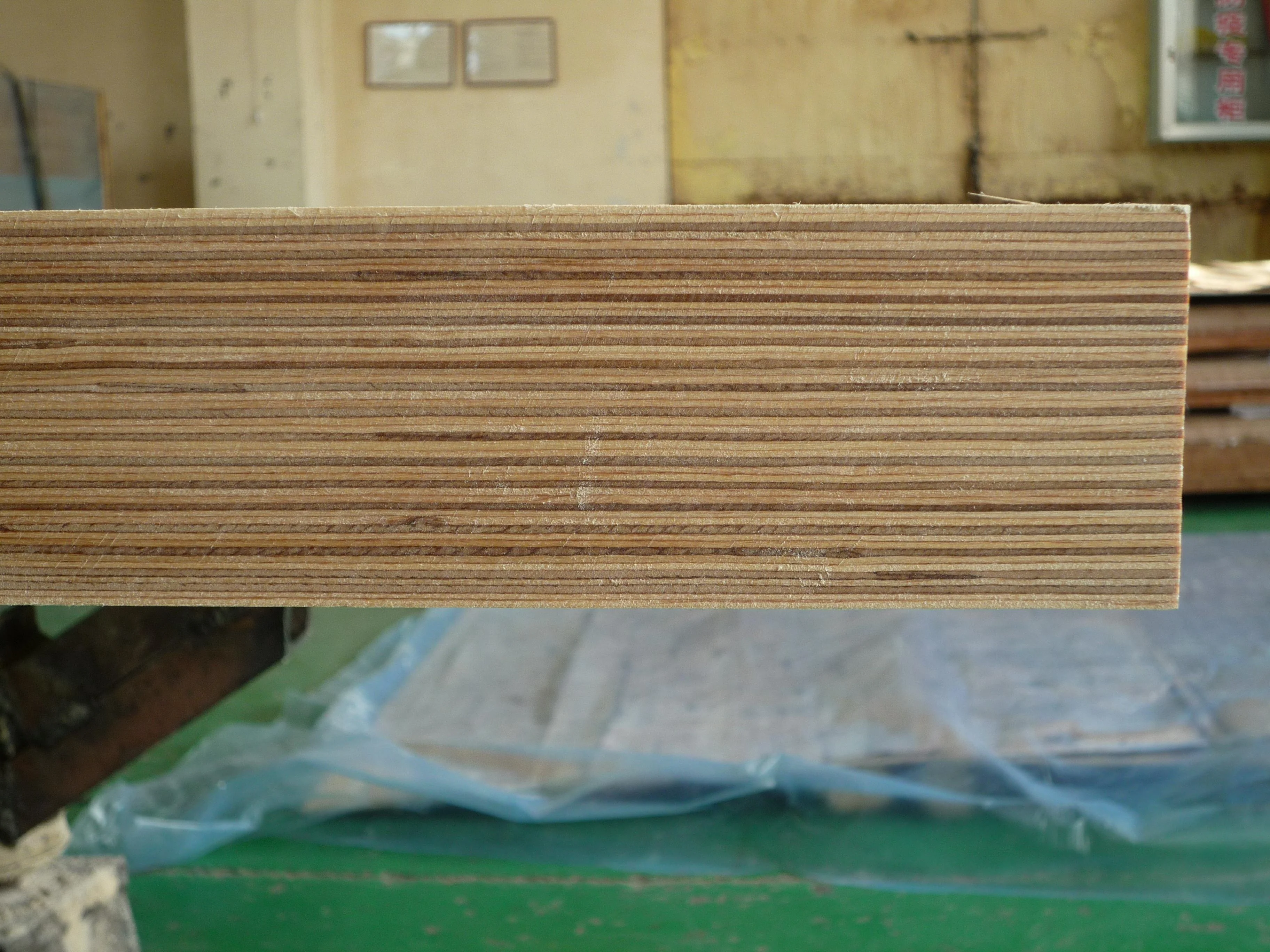

The lamination is made on crosswise veneers , and the standard thickness of the veneer is 2 mm. Under specification we can produce
from 1 mm , 1,2 mm and 1,5 mm thickness veneer too.
Thickness range , from 10 mm to 100 mm
Standard Sheet Sizes,
1000x2000mm, 1500 x 1000 mm, 1500 x 1500 mm, 1500 x 2000 mm, 1500x3000mm and 3000 x 3000 mm

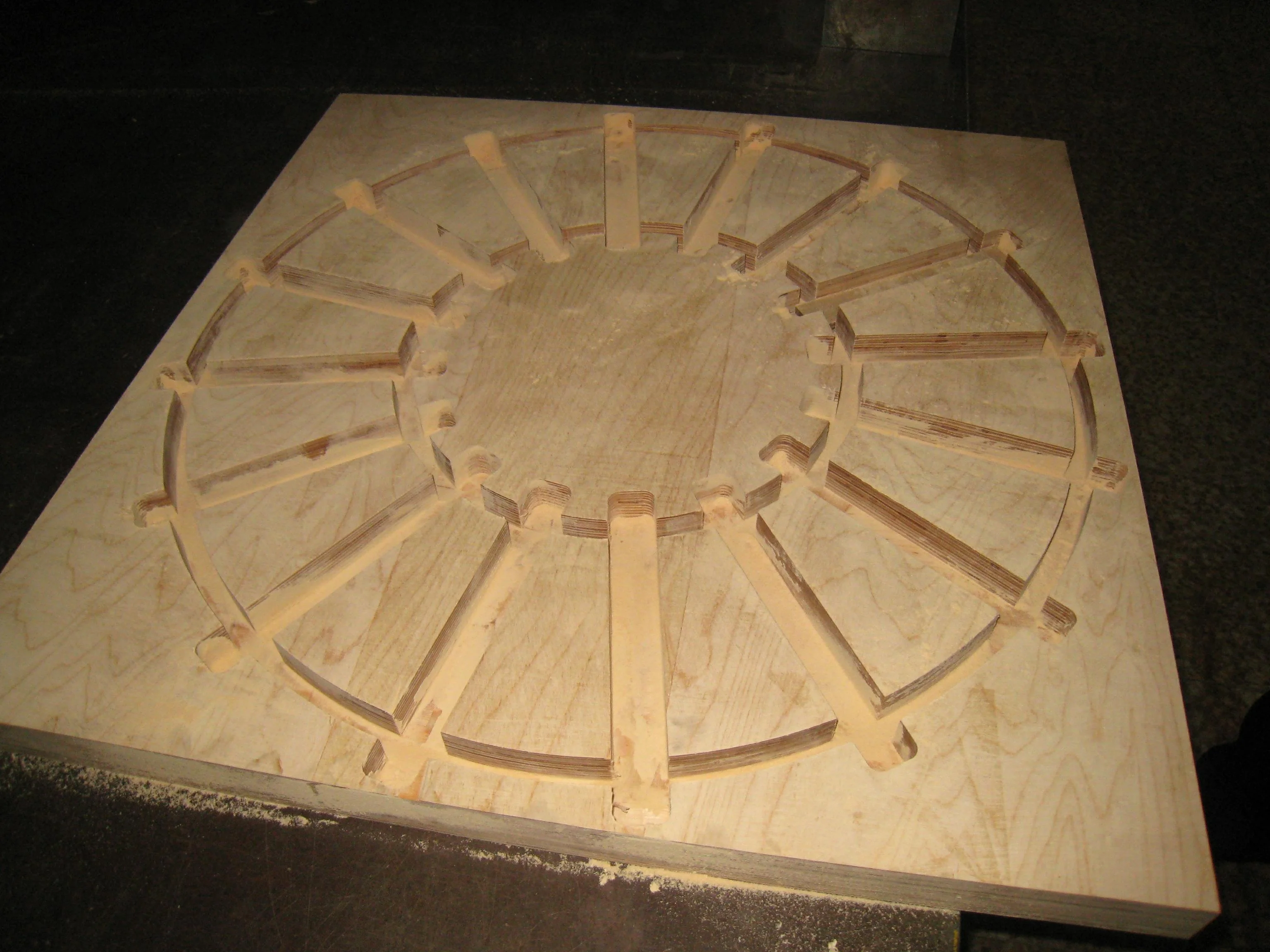

We can machine any kind of pieces produced with C.N.C equipments with sizes according sheets availability according costumers
drawings.
The product is mainly use in the electrical oil transformers applications as high electrical insulation material, like pressure
beams, step blocks, pressure spare parts, top and bottom support coils, potential rings, pressure rings , spacers, etc. For his
mechanical strength, laminated wood can be also use for many applications as abrasion resistance material under stress.
Standard Range of Production
The laminated wood is produced in 3 different densities,
Type : C2B , density between 0,90 to 1,10 g/cm3
Type : C3B, density between 1.10 to 1,20 g/m3
Type : C4B, density between 1,20 to 1,30 g/cm3
The lamination is made on crosswise veneers , and the standard thickness of the veneer is 2 mm. Under specification we can produce
from 1 mm , 1,2 mm and 1,5 mm thickness veneer too.
Thickness range , from 10 mm to 100 mm
Standard Sheet Sizes,
1000x2000mm, 1500 x 1000 mm, 1500 x 1500 mm, 1500 x 2000 mm, 1500x3000mm and 3000 x 3000 mm
We can machine any kind of pieces produced with C.N.C equipments with sizes according sheets availability according costumers
drawings.
