BYOND medical Chinese manufacturer instrument hospital clinical infusion pump
- Category: >>>
- Supplier: Jiangsu Pharmaceutical Co. Ltd.
Share on (1600437643879):
Product Overview
Description

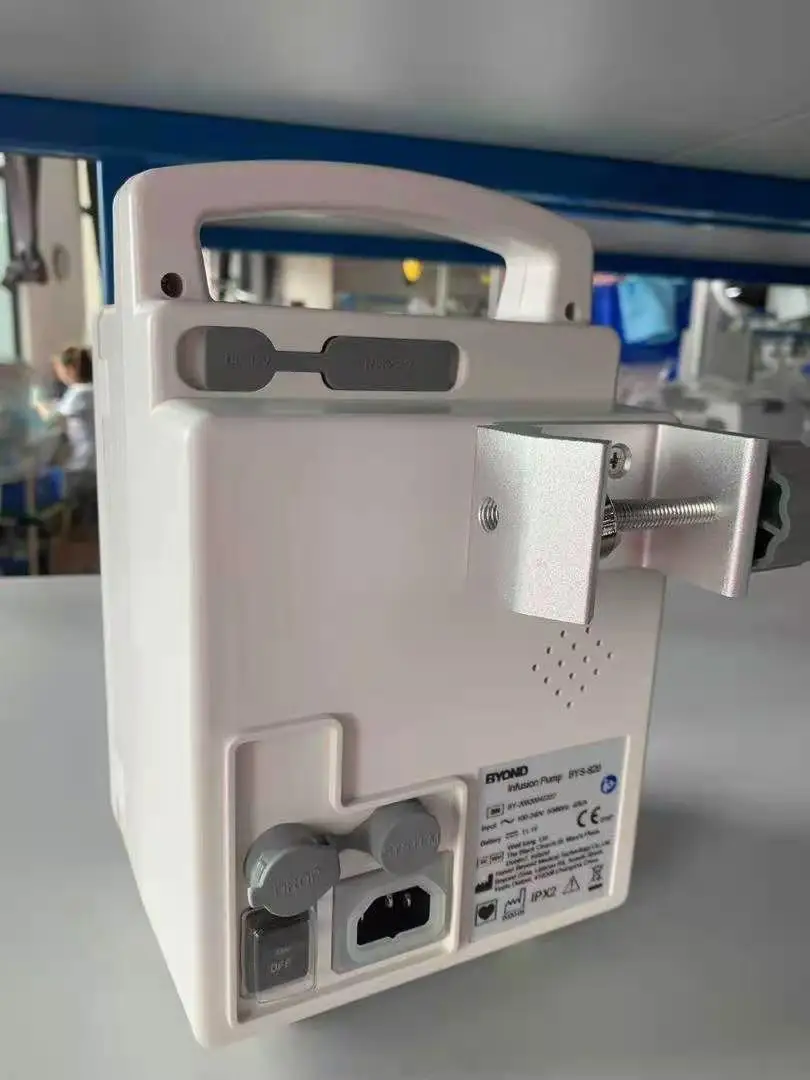

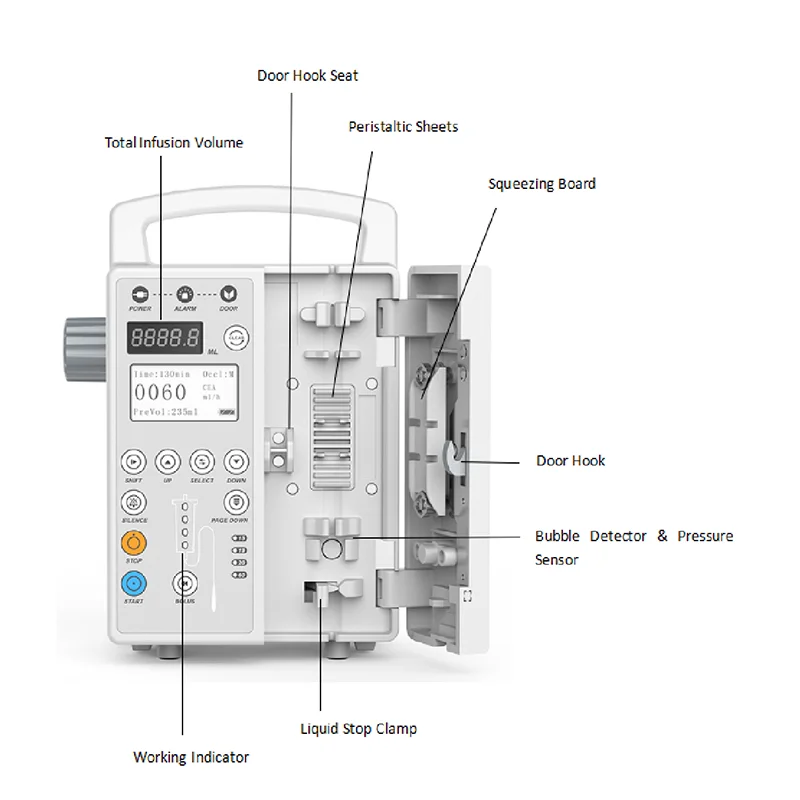

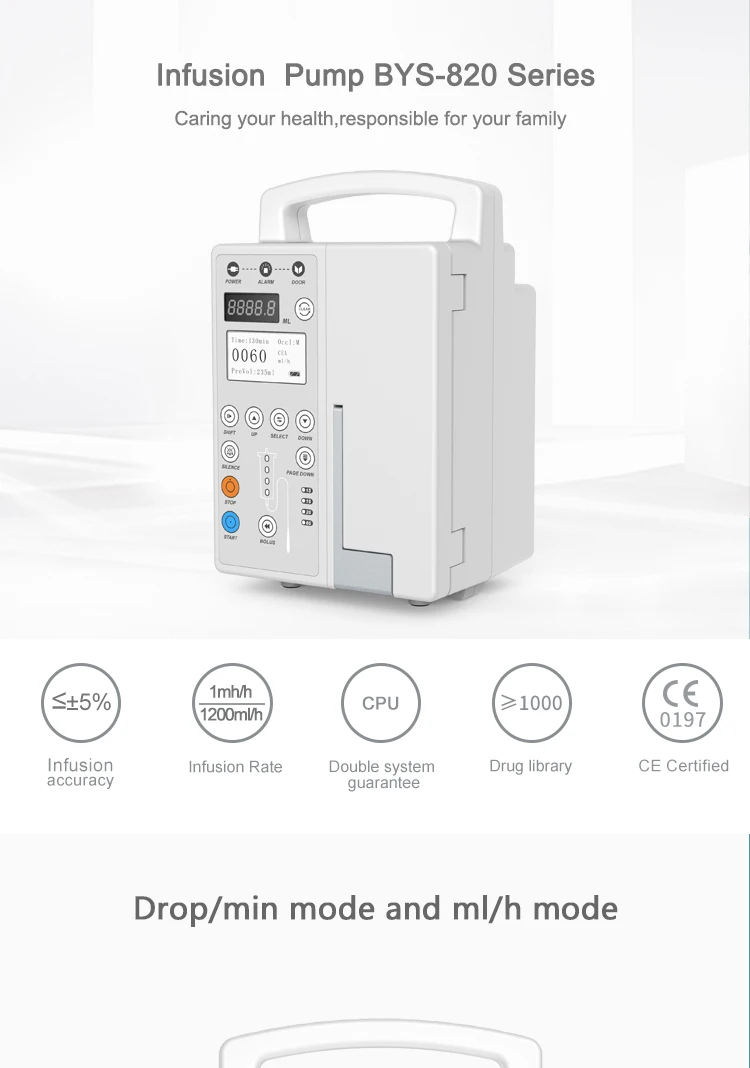

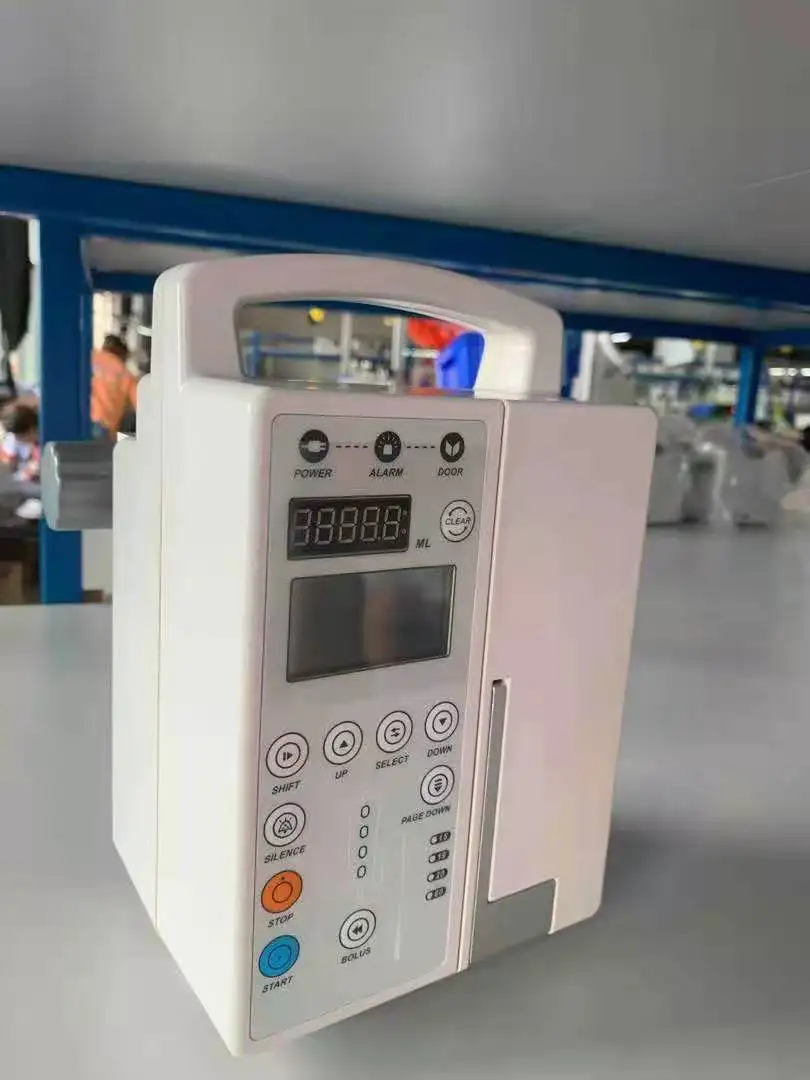

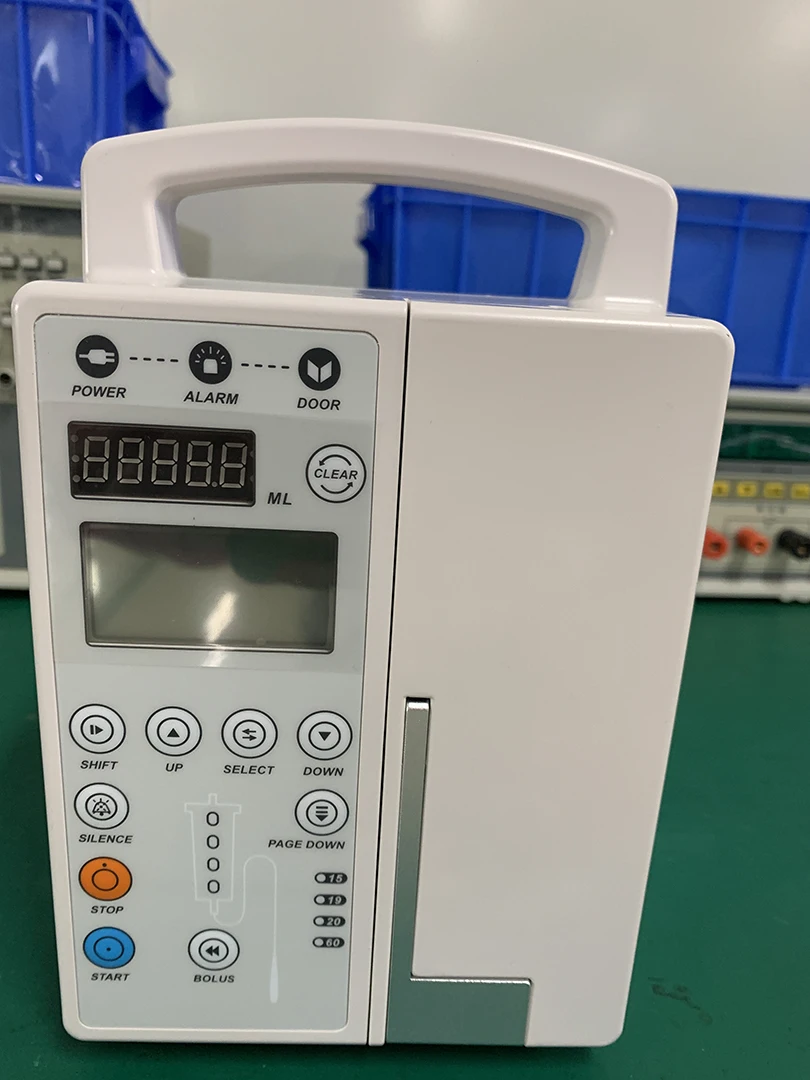

Chinese manufacturer medical instrument hospital clinical infusion pump
| Model | BYS-820& BYS-820D |

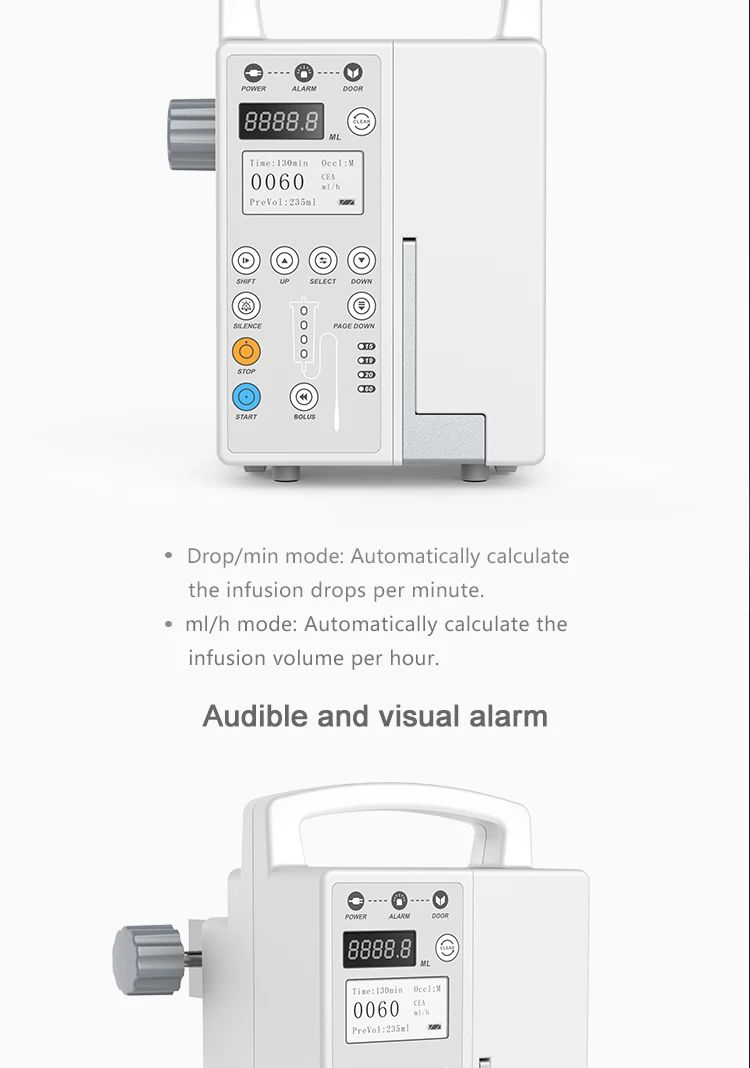

| Infusion Rate | ml/h mode:1~1200ml/h(1ml/h step) drop/min mode:1~266drop/min(1drop/min step) |
| Purge Rate | 100mh/h---1200ml/h(can be calibrated) |
| Flow Rate Accuracy | ml/h mode:Within±5%(after correct calibration) drop/min mode:Within±3%(after correct calibration) |
| Mechanical Precision | Within±2% |
| Maximum infusion pressure | 150kPa |
| Volume Limit | 1ml-9999ml |
| Total Infusion Volume | 0---9999.9ml |
| Alarm Pressure | High 800mmHg±200mmHg(106.7kPa±26.7kPa) Medium 500mmHg±100mmHg(66.7kPa±13.3kPa) Low 300mmHg±100mmHg(40.7kPa±13.3kPa) |

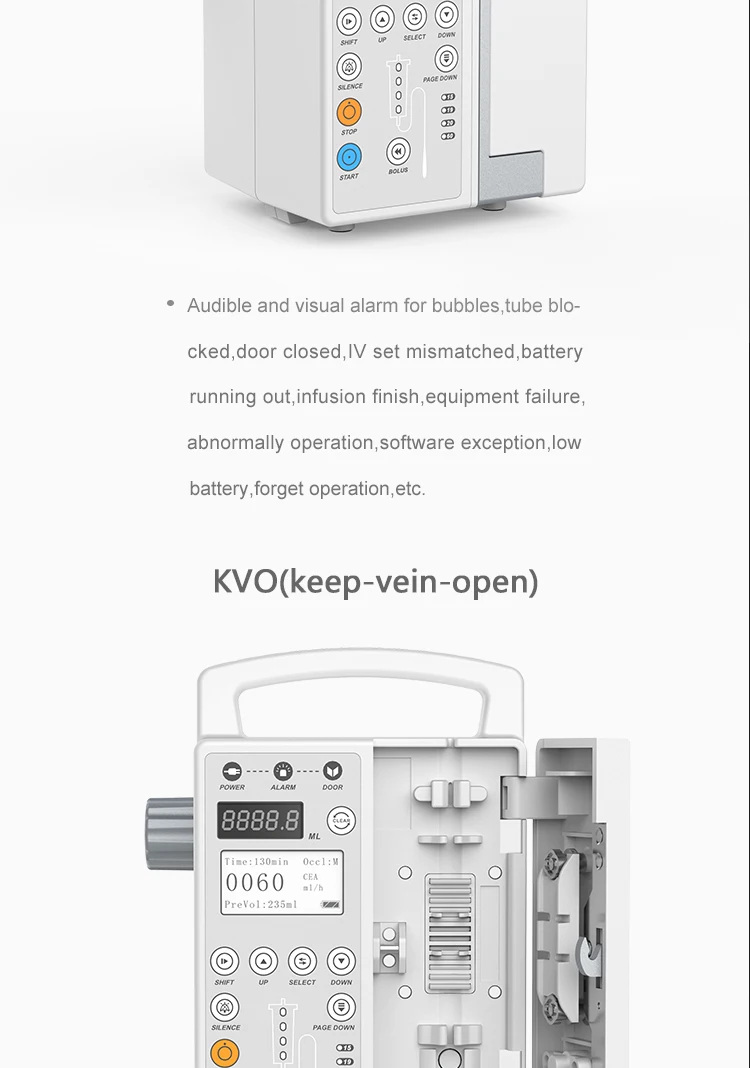

| Audible and Visible Alarms | There are bubbles,Tube is blocked,Close the door,IV set Mismatched,Battery running out,Infusion finish,Equipment failure,Abnormally Operation,Software Exception,Low battery, forget the operations etc |
| Power Source | 100-240Vac,50/60Hz;Internal rechargeable Li battery,capacity³1800mAh,voltage=11.1V,4 hours backup time at the rate of 25ml/h(appointed medium rate in IEC60601-2-24)for the new battery charged for 12 hours. |
| Bubble Detector | Ultrasonic ware detector;detecion sensitivity³25μL |

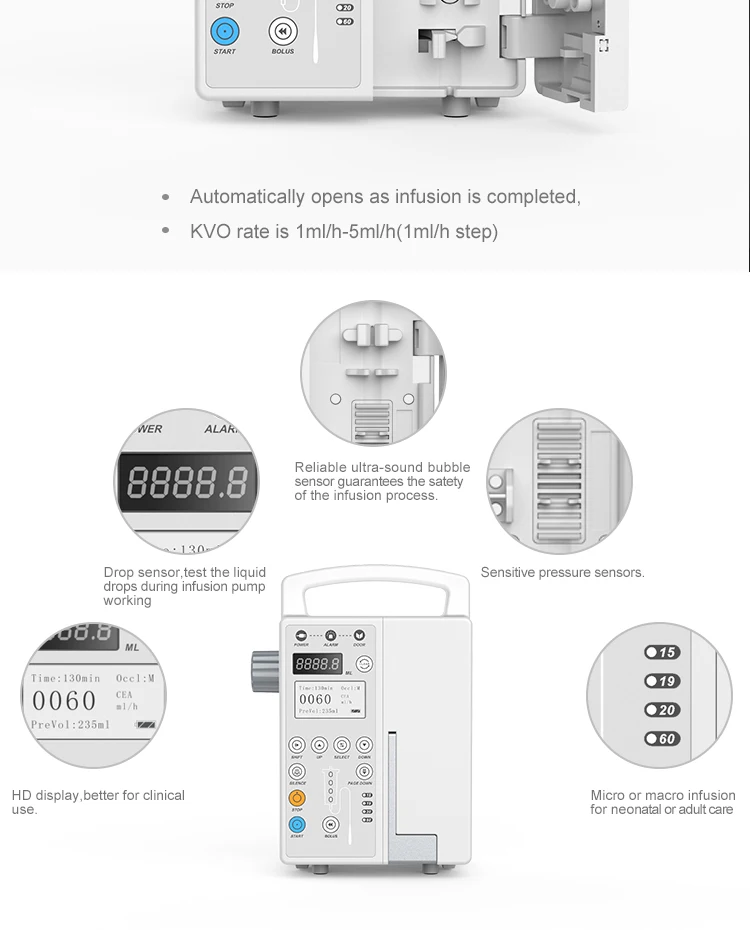

| KVO Speed | 1m/h---5ml/h(1ml/h step) |
| Power Consumption | 35VA |
| Fuse | T2AH/250V,2pcs installed |
| IP Classification | IPX2 |
| Equipment Classification | Class I,intermal power supply,Type CF |
| Operation Environment | Temperature +5---+40 degree Relative Humidity 20---90% |
| Transport&Storage Condition | Temperature -20℃~+55℃ Relative Humidity ≤95% Atmospheric Pressure 50.10KPa---106.0KPa |
| Infusion Set | Compatible with any brand of infusiong sets ater correct calibration The following brands of infusiong sets are recommended:GEA,Onemed,SHINVA |
| Infusion maximum value (under single fault condition) | 1ml |
| Forbidden | Not support blood Infusion |
| Dimension | 140mm(L)×157mm(W)×220mm(H) |
| Net Weight | 1.8kg |

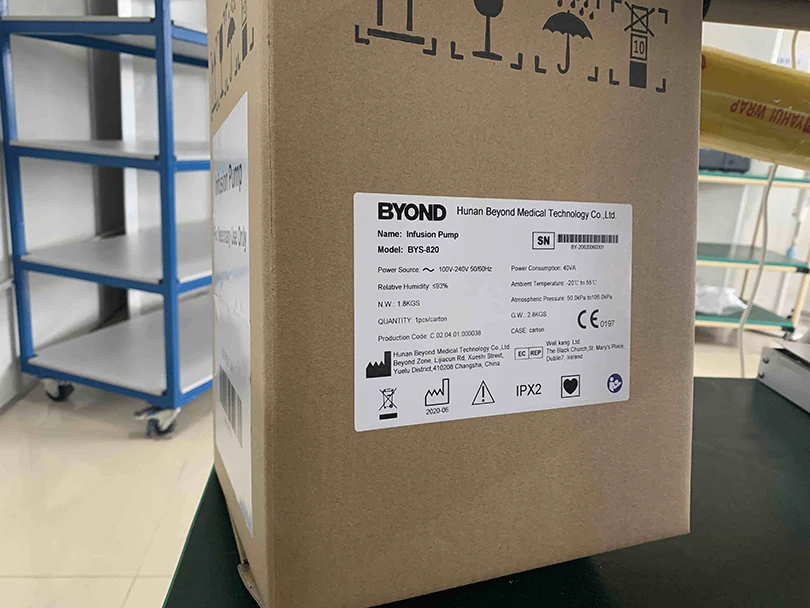

| Package Reference | 1pc Carton:2.8KG,33cm(L)×28cm(W)×26cm(H) 2pcs Carton:6.5KG,52cm(L)×30cm(W)×36cm(H) 3pcs Carton:9.6KG,76cm(L)×30cm(W)×36cm(H) |
