Professional Decoder 8 Tuners DVB-S2 ISDB-T DVB-C input ASI IP for Multiplexer CAM Ci Slot available RF Demodulator COL5881E

Input option:2 or 4* tuner inputs (DVB-C/T/ISDB-T switchable
or DVB-S/S2/S2X or ATSC optional), ASI/ IP for mux
Output option: ASI ,IP out(MPTS or 16*SPTS )


Outline

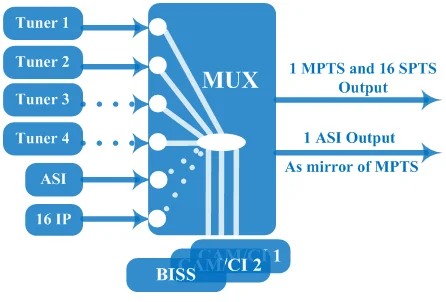

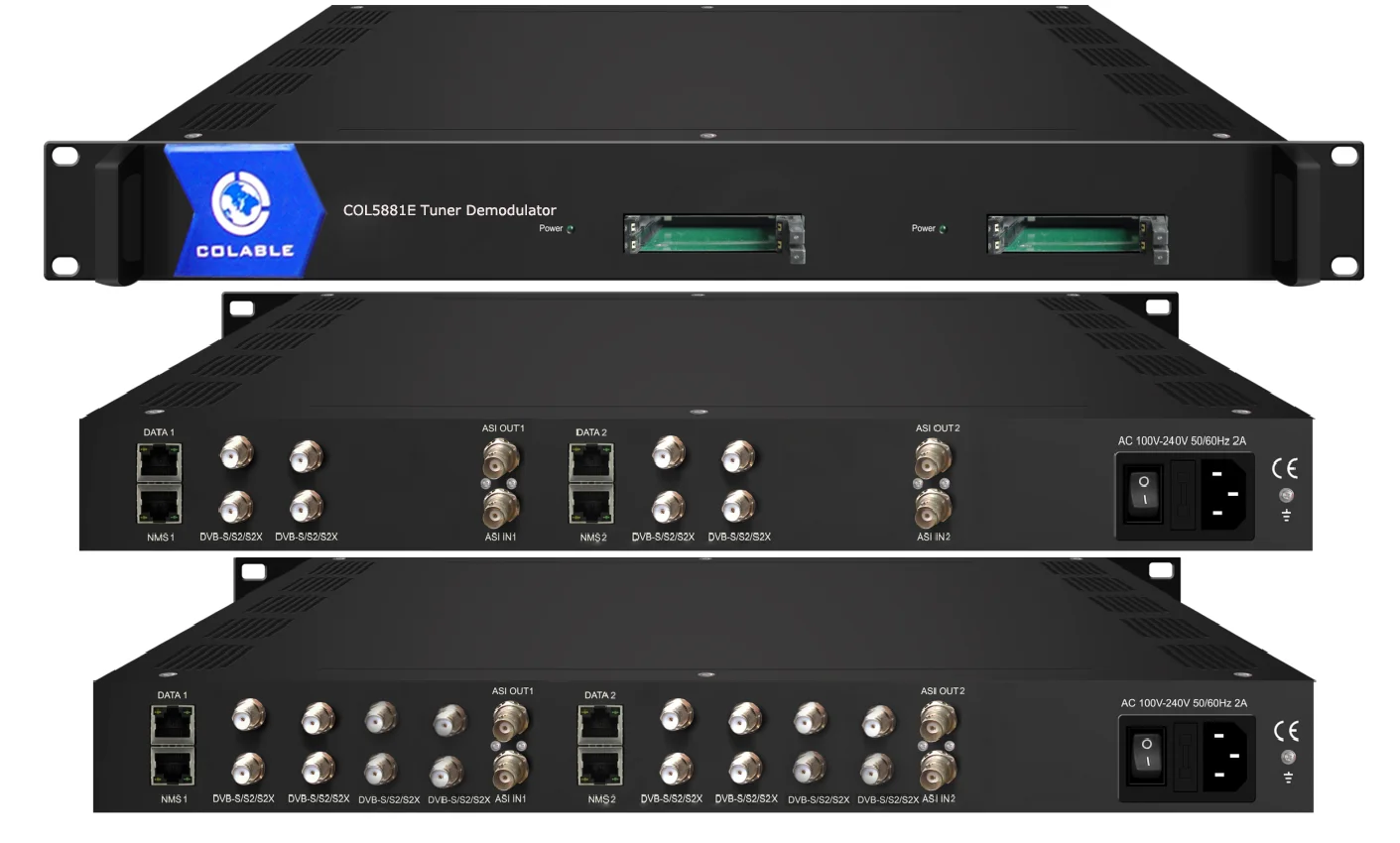

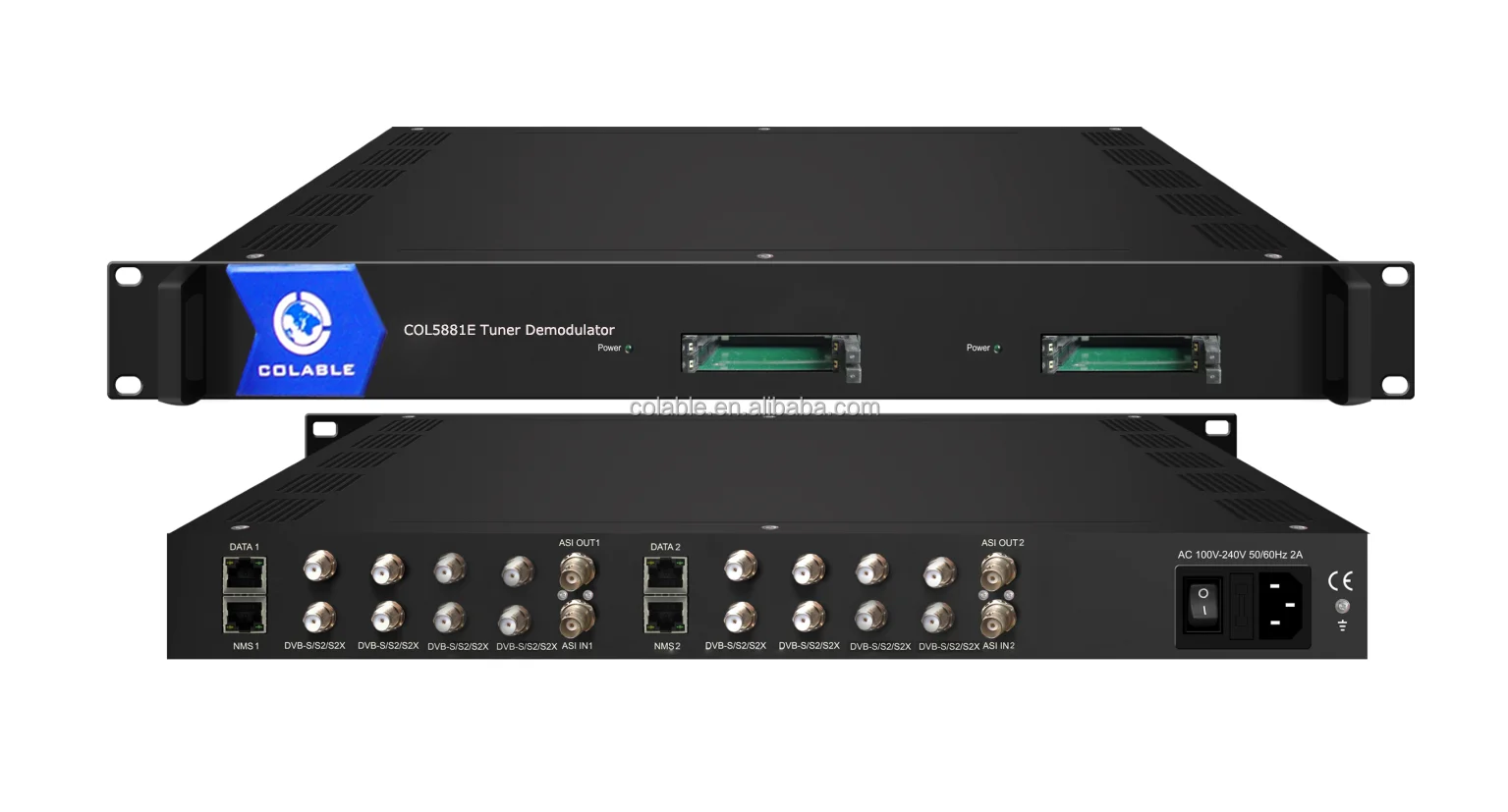

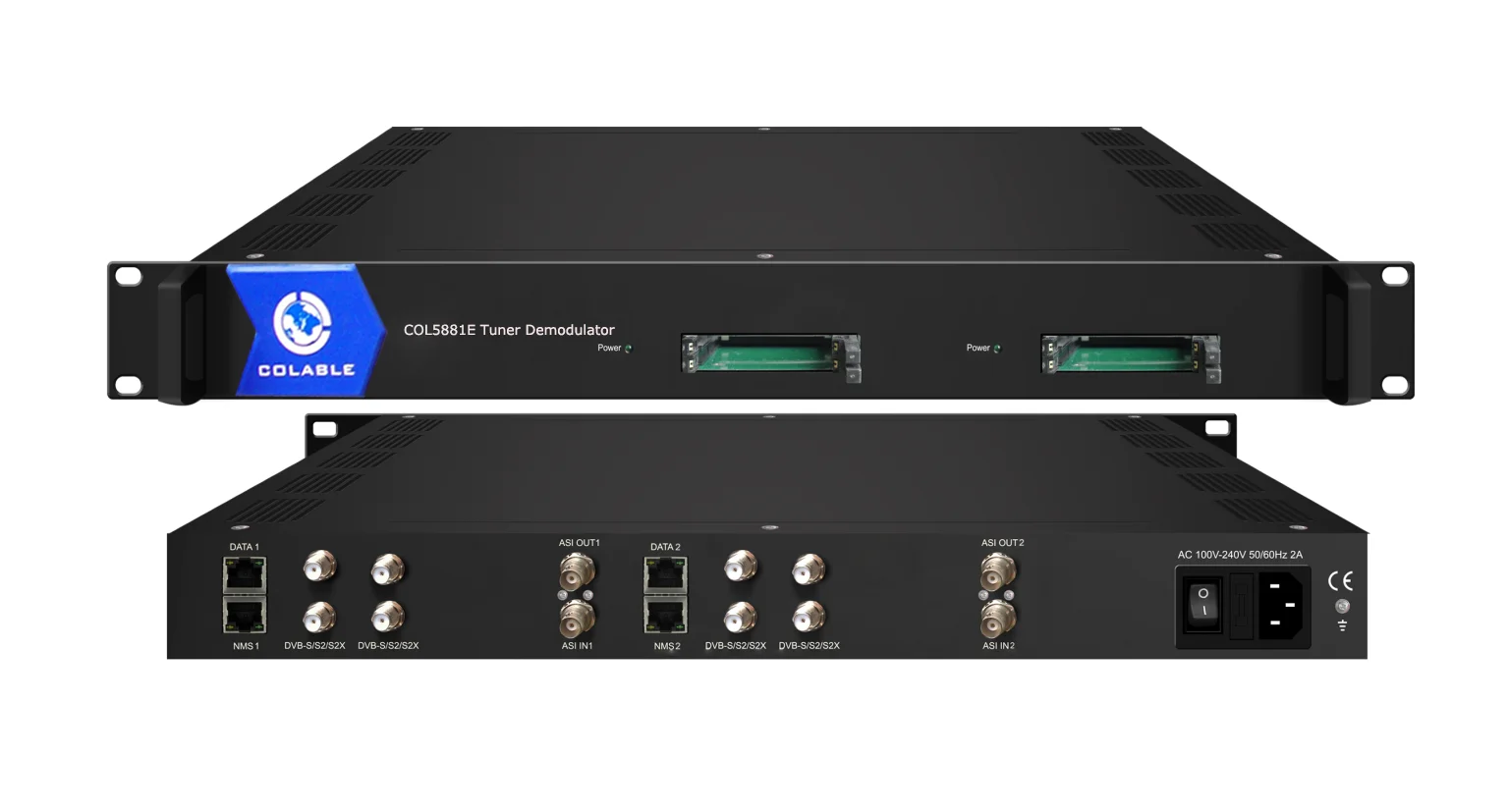

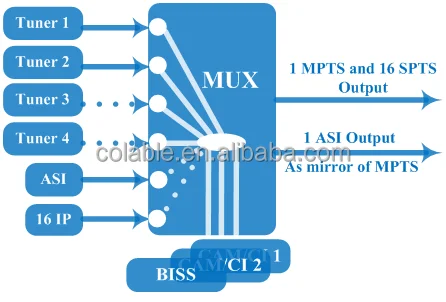

COL5881E Tuner demodulator is our new design which integrates demodulation and de-scrambler in one case to convert RF signals into TS output after re-mux.It is a 1-U case which supports Max 2 demodulation modules. The 2 CAMs/CIs accompanied in each demodulation module can decrypt programs inputting from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.
BISS function is also embedded to descramble programs from any input.
To meet customers’ various requirements, Each demodulation module is also equipped with 1 ASI in and 16 IP inputs for re-mux, and output 1 MPTS and 16 SPTS with 1 ASI out port and 1 data port.


Features
 * 2 or 4 Tuner (DVB-C/T/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional) inputs for each demodulation module
* 1 ASI & 16 IP (UDP/RTP) inputs for re-mux
* One CAM can decrypt multiple programs from Tuners/ASI/IP
* Support BISS descrambling
* IP (1 MPTS & 16 SPTS) over UDP and RTP output; ASI out for MPTS
* Support maximum 256 PID mapping
* Remote control and Firmware, web NMS management
* Updates via web
* Best quality and breakthrough price


Technical Specification


Input(per demodulation module)
2 or 4* tuner inputs (DVB-C/T/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional), F type
1*ASI input for re-mux, BNC interface
16*IP input for re-mux (UDP/RTP)
 Tuner Section
Multi-mode tuners switchable
(New)
DVB-C
Input Frequency
60 ~890 MHz
Standard
J.83A, J.83C
J.83B
Constellation
16/32/64/128/256 QAM
64/256 QAM
DVB-T
Input Frequency
60 ~890 MHz
Bandwidth
6/7/8 M
ISDB-T
Input Frequency
60 ~890 MHz






Satellite
DVB-S
Input Frequency
950~2150MHz
Symbol rate
0.5~45Msps
Signal Strength
- 65- -25dBm
FEC
1/2, 2/3, 3/4, 5/6, 7/8
Constellation
QPSK
Max input bitrate
≤170 Mbps
DVB-S2
Input Frequency
950~2150MHz
Symbol rate
QPSK/8PSK /16APSK :0.5~45 Msps
32APSK: 0.5~40Msps;
FEC
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
Constellation
QPSK, 8PSK, 16APSK, 32APSK
Max input bitrate
≤170 Mbps
DVB-S2X
Input Frequency
950~2150MHz
Symbol rate
QPSK/8PSK /16APSK :0.5~45 Msps
8APSK: 0.5~40Msps
32APSK: 0.5~40Msps
FEC
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9
Constellation
QPSK, 8PSK, 8APSK, 16APSK, 32APSK
Max input bitrate
≤170 Mbps
ATSC
ATSC
Input Frequency
54-858MHz
Bandwidth
6 M
Constellation
8 VSB
Descrambling
CAM/CI Quantity
2 (per demodulation module)
BISS Mode
Mode 1, Mode E
Output (per demodulation module)
1*MPTS & 16*SPTS over UDP, RTP.
1000 Base-T Ethernet interface (unicast / multicast)
1×ASI mirrored out of MPTS, BNC interface
System
Remote management
Web-server Management
Language
English
Upgrade
web management
Miscellaneous
Dimension
482*300*44mm (W×L×H)
Environment
0~45℃(work)；-20~80℃（Storage）
Power requirements
100~240VAC, 50/60Hz
Power consumption
15W
