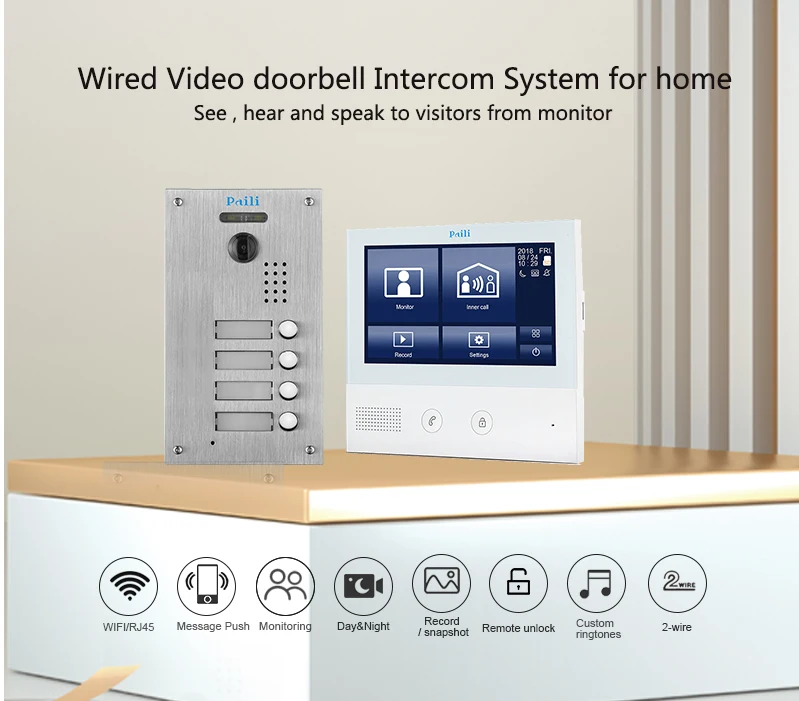

video intercom videophone 2 wire house villa door bell with night vision camera apartment wired intercom
- Category: >>>
- Supplier: Guangzhou Paili Technology Co. Ltd.
Share on (1600437655155):
Product Overview
Description
Product Description
Product performance description
The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable, non polarity,
central power supply. Use Plug -in connectors and DIP switchers for rapid installation.Integrated Multi functions with simple
operation makes the system more attractive, Flexible cable connection to wire, support in -out, branching and mixed mode.Dual
intercom communication between indoor units;inner picture memory and extended SD card recording, CCTV camera integrated, call
transfer via IP module to mobile phone.
central power supply. Use Plug -in connectors and DIP switchers for rapid installation.Integrated Multi functions with simple
operation makes the system more attractive, Flexible cable connection to wire, support in -out, branching and mixed mode.Dual
intercom communication between indoor units;inner picture memory and extended SD card recording, CCTV camera integrated, call
transfer via IP module to mobile phone.
Outdoor Station | Model | PL738-4 |
Material | Stainless steel panel | |
Power supply | DC 24V | |
Power consumption | Standby 20mA, working 110mA | |
Camera | CMOS wide angle fisheye lens | |
Visual angle | 170º | |
Button | 1/2/3/4/8 | |
Unlock power output | DC 12V, 300mA(Internal power) | |
Protection | IP 54 | |
Installation | Flush mounting | |
Working temperature | -25°C~55°C | |
Wiring | 2 wire (Non-polarity) | |
Dimension | 180*105*32mm |
Indoor Monitor | Model | PL771M Smart touch button |
Monitor | 7" TFT LCD video doorphone | |
Resolution | 800*480pixel | |
Intercom Mode | Hands-free dual-way communication | |
Conversation duration | 120s | |
Power Consumption | Standby 15mA, working 300mA Max. | |
Power Supply | Built-in power AC100-240V | |
Operation Temp | -10℃ +60℃ | |
Installation | Surface mount | |
Basic functions | Talk, Monitor, Alarm, Unlock,Internal intercom between monitors | |
Extra support | Connect the IP module can control by mobile phone APP | |
Ringtones | 9types for optional,support record ringtones by cusotmers | |
Languages | 9 languages for optional: English, German, Italian, Spanish, Greek, French, Russian, Turkish and Dutch. |
Related Products
FAQ
Q: What is the Minimum Order Quantity (MOQ)?
A: No MOQ for sample order.
Q: Could you put my brand name (logo) on the products?
A: Yes, of course. We have 9 years of OEM manufacturing experience.
Q: Payment
A: PayPal, T/T, Alibaba Trade Assurance, Western Union etc..
Q: Lead time
Sample order: 1~3 days
Regular order: 5~10 days
Mass productions: 10~30 days (Depend on the quantities)
Q: How will you deliver my goods to me?
A: We always ship sample order and MOQ order by Express ( Door To Door), such as DHL,UPS.
Q: How long do I need to wait before my goods arrive?
A: 5-7 days for air freight, 3-5 days for international express. 20-40 days for sea transportation.
Q: Product quality warranty
We provide one year factory quality warranty.
Q: What’s the furthest distance from door station to monitor?
For single family kit, the furthest distance is 160 meters. (Parallel cable 2 x 1.0 mm)
Q: Could I connect an extra camera on the door panel?
Yes, each door panel could connect with an analog camera.
Q: How many monitors could be connected in the system?
The 2 wire system could support maximum 4 door panels (With 4 extra cameras) with 32 monitors.
Q: What if I have 2 entrances with 8 apartments?
The 2 wire system could support maximum 4 door panels with 32 monitors. For this case, you could choose two 8 button door panels
with 8 monitors. All the door panels and monitors are compatible.
A: No MOQ for sample order.
Q: Could you put my brand name (logo) on the products?
A: Yes, of course. We have 9 years of OEM manufacturing experience.
Q: Payment
A: PayPal, T/T, Alibaba Trade Assurance, Western Union etc..
Q: Lead time
Sample order: 1~3 days
Regular order: 5~10 days
Mass productions: 10~30 days (Depend on the quantities)
Q: How will you deliver my goods to me?
A: We always ship sample order and MOQ order by Express ( Door To Door), such as DHL,UPS.
Q: How long do I need to wait before my goods arrive?
A: 5-7 days for air freight, 3-5 days for international express. 20-40 days for sea transportation.
Q: Product quality warranty
We provide one year factory quality warranty.
Q: What’s the furthest distance from door station to monitor?
For single family kit, the furthest distance is 160 meters. (Parallel cable 2 x 1.0 mm)
Q: Could I connect an extra camera on the door panel?
Yes, each door panel could connect with an analog camera.
Q: How many monitors could be connected in the system?
The 2 wire system could support maximum 4 door panels (With 4 extra cameras) with 32 monitors.
Q: What if I have 2 entrances with 8 apartments?
The 2 wire system could support maximum 4 door panels with 32 monitors. For this case, you could choose two 8 button door panels
with 8 monitors. All the door panels and monitors are compatible.
