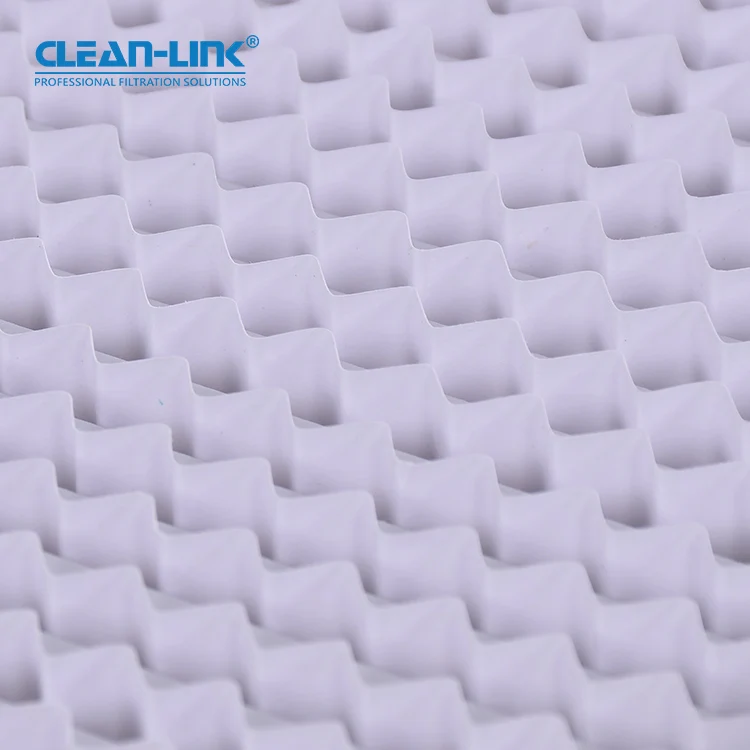

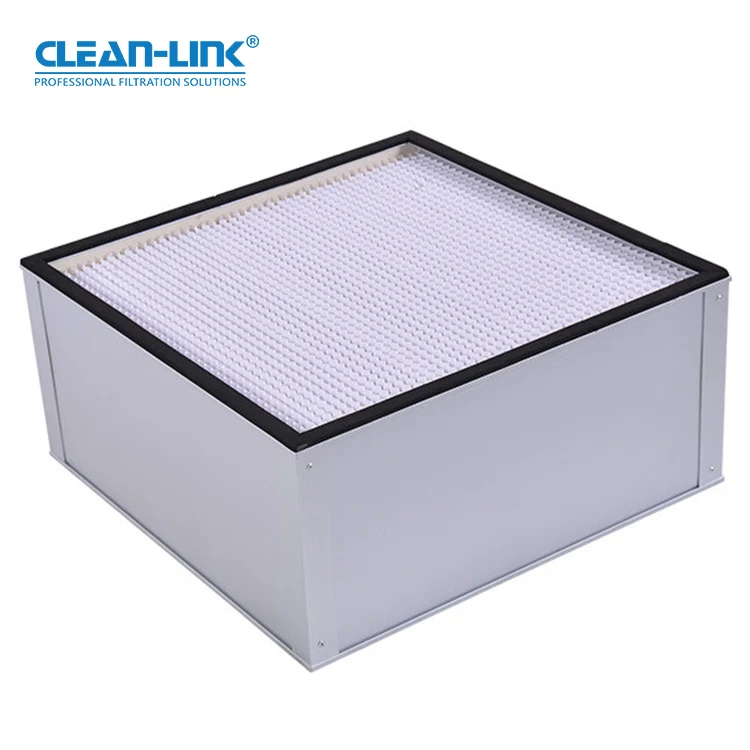

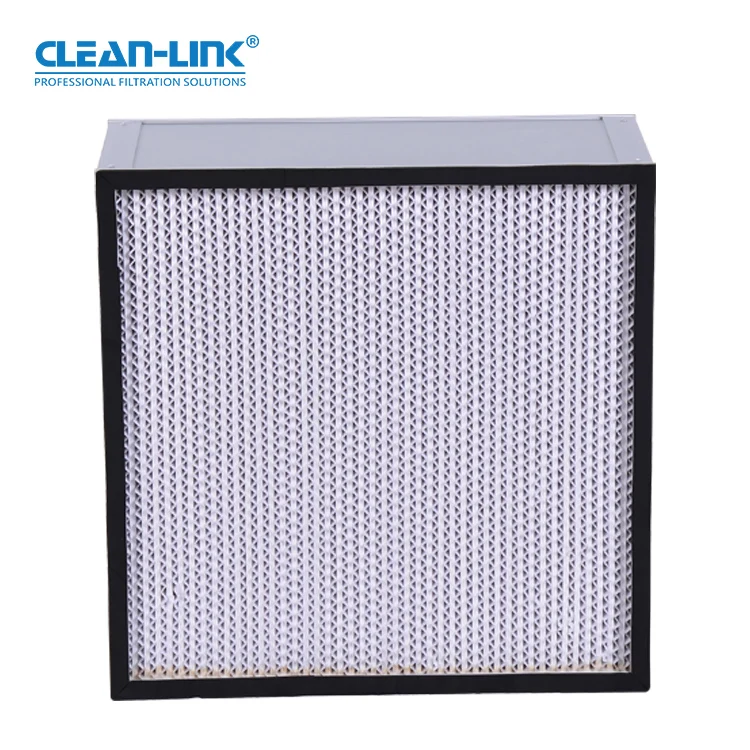

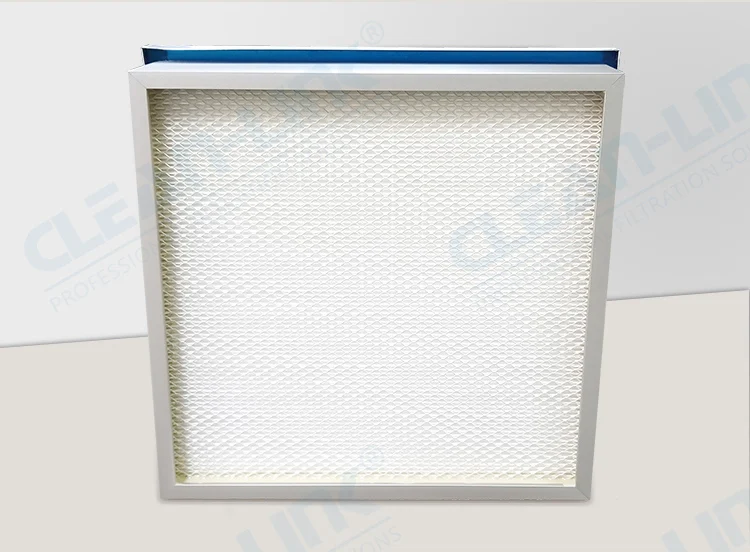

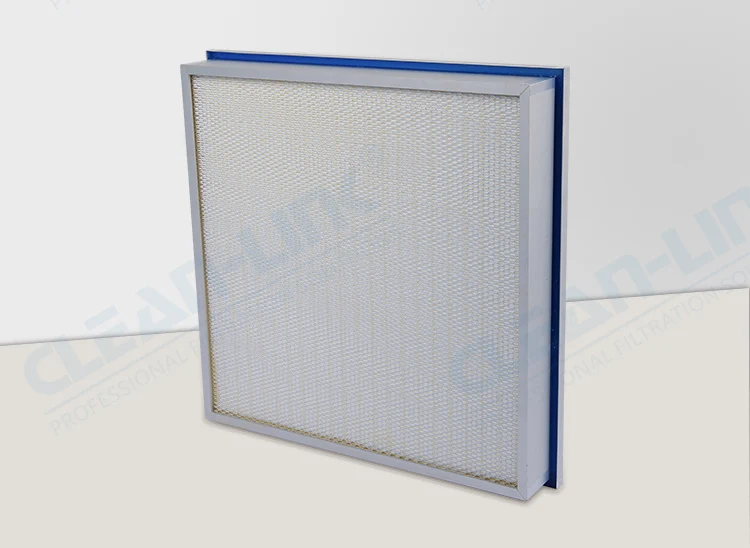

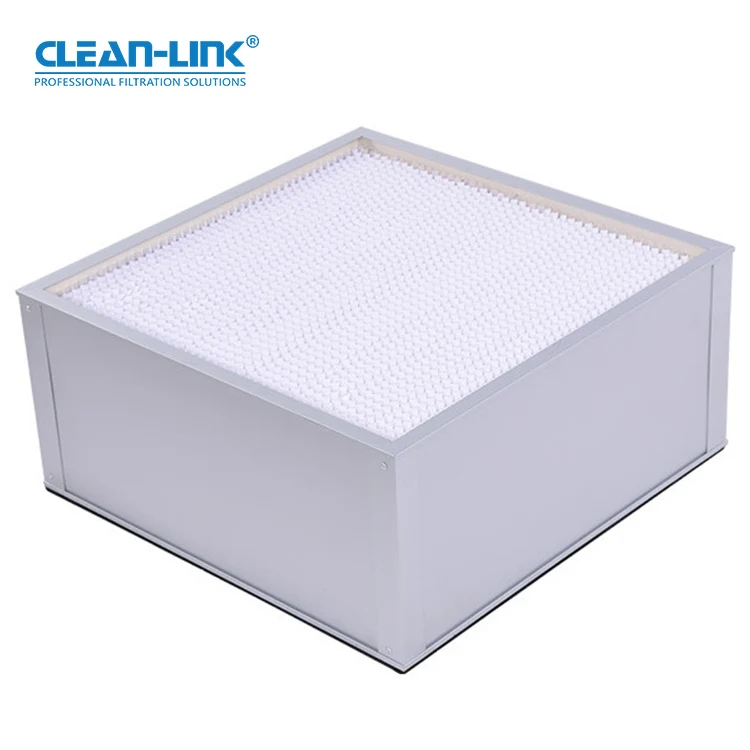

Industrial Galvanized Frame High Efficiency Pleated hepa h10 h11 h12 Air Filter
- Category: >>>
- Supplier: Guangzhou Clean-Link Filtration Technology Co. Ltd.
Share on (1600437655808):
Product Overview
Description
Products Description
Dimensions (W*H*D) | Air Flow | Initial Resistance | Filter Area | Filtration Grade | Tank Direction | |||||
346*346*69mm | 300m³/h | 190Pa | 2.80㎡ | H14 | Side | |||||
510*510*69mm | 650m³/h | 6.32㎡ | ||||||||
636*636*69mm | 1000m³/h | 10㎡ | ||||||||
636*941*69mm | 1500m³/h | 14.84㎡ | ||||||||
596*1196*69mm | 1800m³/h | 17.63㎡ | ||||||||
636*1246*69mm | 2000m³/h | 19.68㎡ | ||||||||
346*346*90mm | 500m³/h | 220Pa | 4.4㎡ | |||||||
510*510*90mm | 1000m³/h | 9.97㎡ | ||||||||
636*636*90mm | 1500m³/h | 15.77㎡ | ||||||||
636*941*90mm | 2000m³/h | 23.4㎡ | ||||||||
596*1196*90mm | 2500m³/h | 27.8㎡ | ||||||||
636*1246*90mm | 3000m³/h | 31.04㎡ | ||||||||
320*320*95mm | 350m³/h | 3.19㎡ | ||||||||
484*484*95mm | 700m³/h | 7.24㎡ | ||||||||
610*610*95mm | 1100m³/h | 11.45㎡ | ||||||||
610*1220*95mm | 2200m³/h | 22.55㎡ | ||||||||
*To make customized sizes and thicknesses is available. | ||||||||||

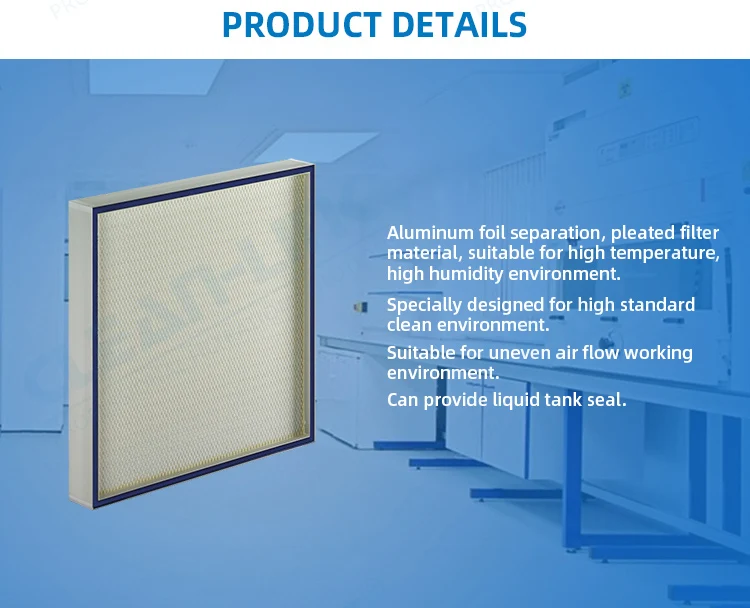

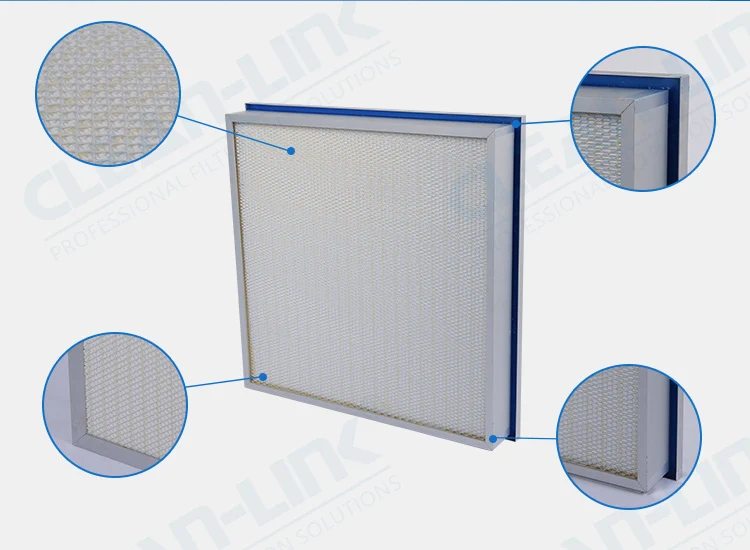

Products Details
Products Application
Our Advantages

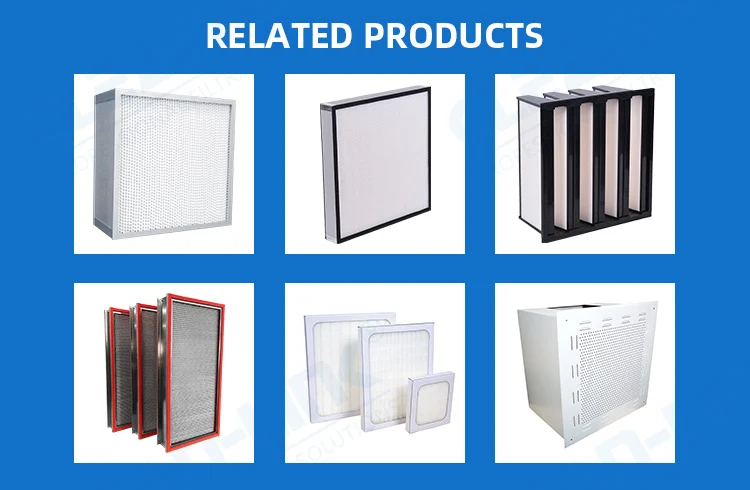

Related Products
Company Information
Exhibition&Certifications
FAQ
1. We have specialized in the export of air filters for over 11years.
2. We have our own factory and brand.
3. We provide OEM and ODM service ,sample production and service according to your demand
4. The dimension can be customized.
5. The products have passed ISO90012008 and SGS certification.
6. With independent R&D and design capablities.
2. We have our own factory and brand.
3. We provide OEM and ODM service ,sample production and service according to your demand
4. The dimension can be customized.
5. The products have passed ISO90012008 and SGS certification.
6. With independent R&D and design capablities.
