 7 inch Color Screen Displays 433 or 868 Mhz Wireless GSM and PSTN Security Burglar Alarms Systems For Smart Home Automation

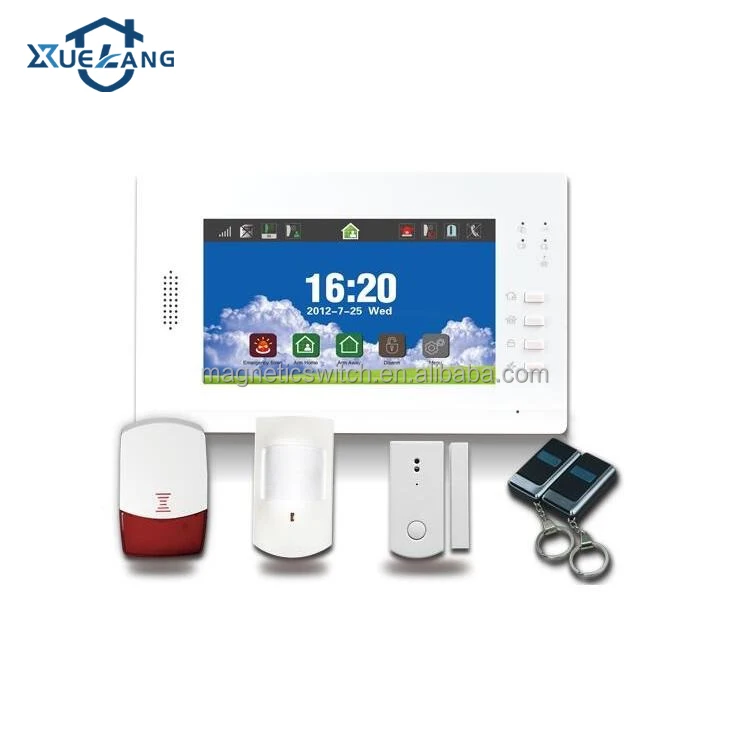

alarm systems (1).JPG

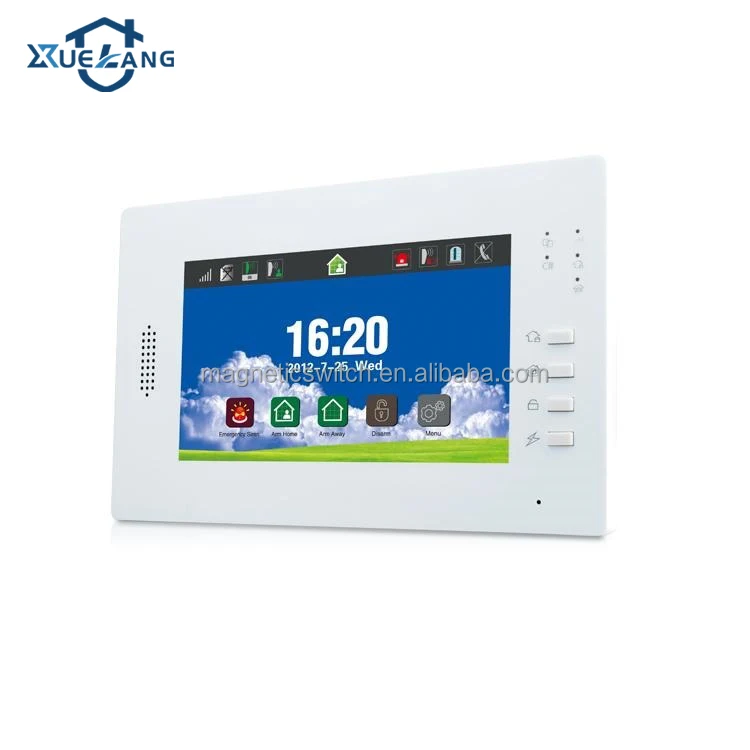

alarm systems (2).JPG



  • Full touch screen alarm system, friendly interface 7 inch color screen displays icons and words;

  • Preloaded multi-optional system languages: traditional\\simplified Chinese, English, German, French, Russian, Hebrew etc., which can meet different market requirements;

  • Alarm info transferring by GSM network (3 Bands or 4 Bands),or PSTN network, or dual-network in the form of phone call, SMS;

  • System has 31 wireless zones(each zone supports max 4 wireless sensors), compatible with optional wireless siren and 8 wired zones;

  • In system can preset max 5 groups phone numbers, alarm call will be in first priority if a normal call is going; GSM module will send alarm info once the landline cable is cut;

  • Every group telephone number can be individually set to transfer alarm info by SMS or phone call;

  • Zone detection notification in disarm status, system can monitor the kids track;

  • In system menu you can set Pass By ON/OFF, zone type, Entry Delay ON/OFF for each zone;

  • Smart-logical analysis technology, zone name, installation position and sensor name will be displayed when system alarms;

  • Learn sensors into alarm host by friendly interface;

  • System has non-volatile chip, information will be stored automatically if power is off;

  • Optional smart functions, including check door\\window status or voltage status automatically, low voltage of host or sensor alarm, uploads low voltage status to CMS;

  • Support optional wireless "ding-dong" doorbell;

  • Dual network and GSM network alarm host can send alarm info by SMS or phone call; PSTN network alarm host can only send alarm info by phone call;

  • Dual network and GSM alarm host can arm/disarm system by phone call, or SMS, or wireless remote controller, or host keypad, or wireless operation keypad;

  • PSTN alarm host can arm/disarm system by phone call, or wireless remote controller, or host keypad, or wireless operation keypad;

  • System works with AC\\DC power supply and built-in high energy lithium battery, system will give notification when low voltage, landline is cut and low power supply happen;

  • "Black Box" functions, system can store max 99 alarm records and 100 operation records

  • Host is compatible with Contact ID protocol, suitable to build CMS (Central Monitoring Station).

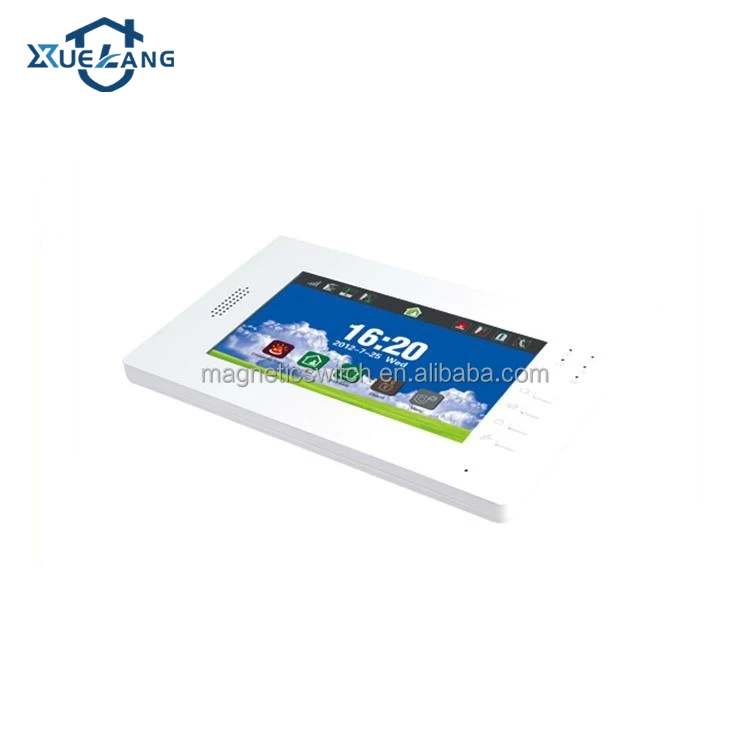

alarm systems (5).JPG

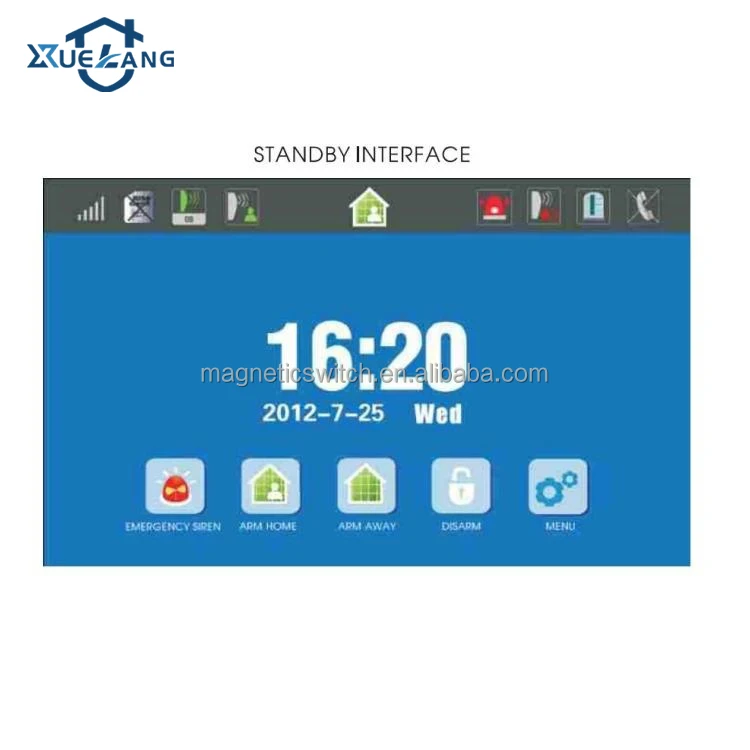

alarm systems (4).JPG

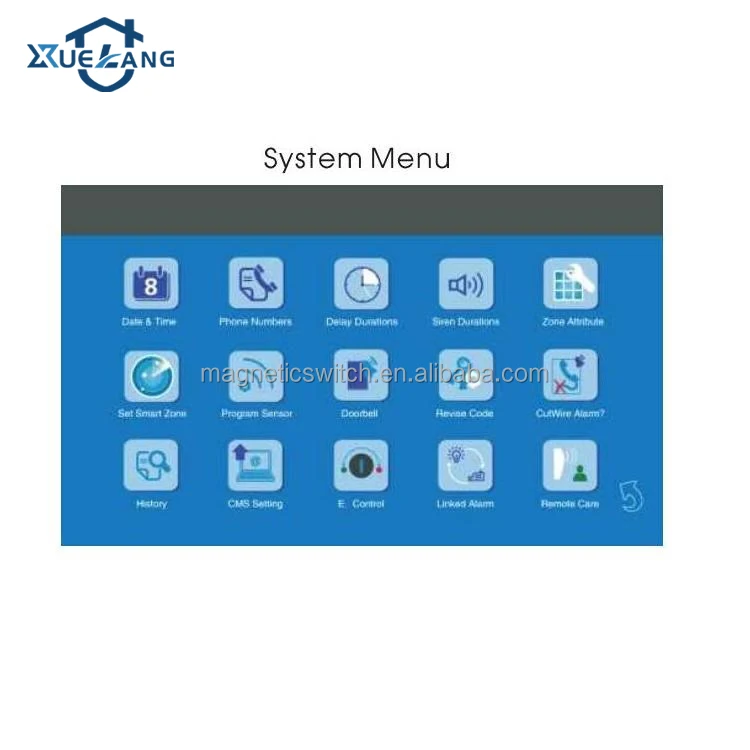

alarm systems (3).JPG





Specification




























































Product nameGSM and PSTN dual-network alarm panel
ModelHC-X6
Power supply100VAC~240VAC
Backup batteryrechargeable lithium battery 7.4V1200mAH
Dual-network3 Bands 900/1800/1900MHz or 4 Bands 850/900/1800/1900MHz
Static currentless than or equal to 140Ma
Alarm currentless than or equal to 500Ma
Temperature`-10Celsius to 50Celsius
Humidlyless-than 80%
Wireless remote controllersSupport max 8 PCS
Wireless sensorsSupport max 116 PCS
Wireless frequency433.92MHz or 868.35MHz
Product dimension220mm*190mm*28mm

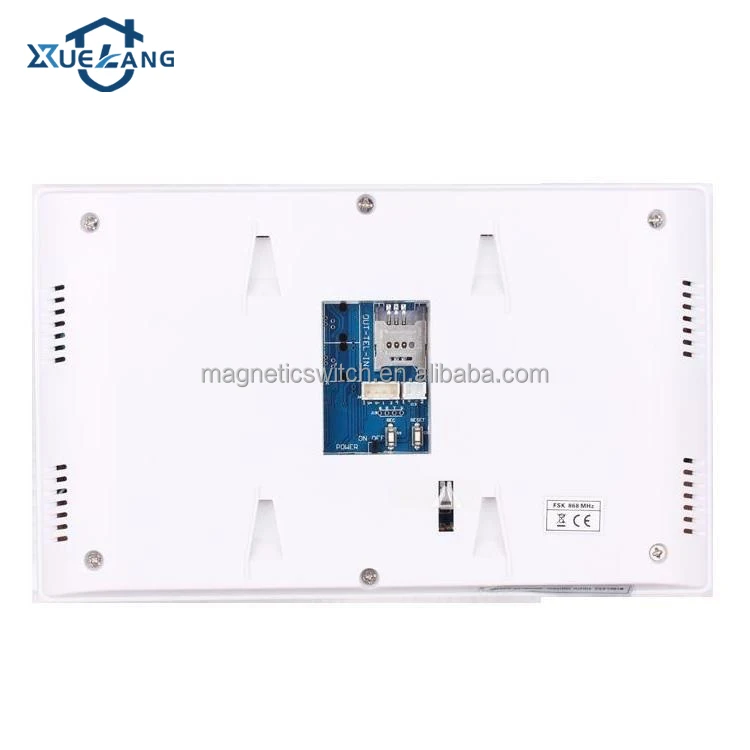

 alarm systems (6).JPG





How does it work?



  • This X6 is totally based on GSM cellular technology, after insert a valid SIM card, the system will connect into GSM wireless cellular network.

  • The entire system is ran by your phone (including normal GSM cellphone and smart phone with app). The app features with away arming/stay arming/Disarming,and phone number setting, entry/exit delay...etc.

  • Simply place your motion sensor interior your home, and door/window sensors for main entry points, and activate the system when any one of sensor is triggered, it will set off alarm. The alarm system will not only make voice phone call, but also sending text message for alarm notification.

  • Different from other traditional alarm panels, theX6 features no hand operation. The x6 alarm panel is the "brain" of your alarm system, it's equipped with Quad-band GSM frequency (8680/900/1800/1900MHz) GSM communicator, requires a valid SIM card for alarm connection to begin working. The Cubealarm is built-in loud 85 dB siren that can make deterrent intrusion effectively. All the setup and configuration are made by the smart phone and remote control. The plug-n-play features can allow user install the system with flexibility.

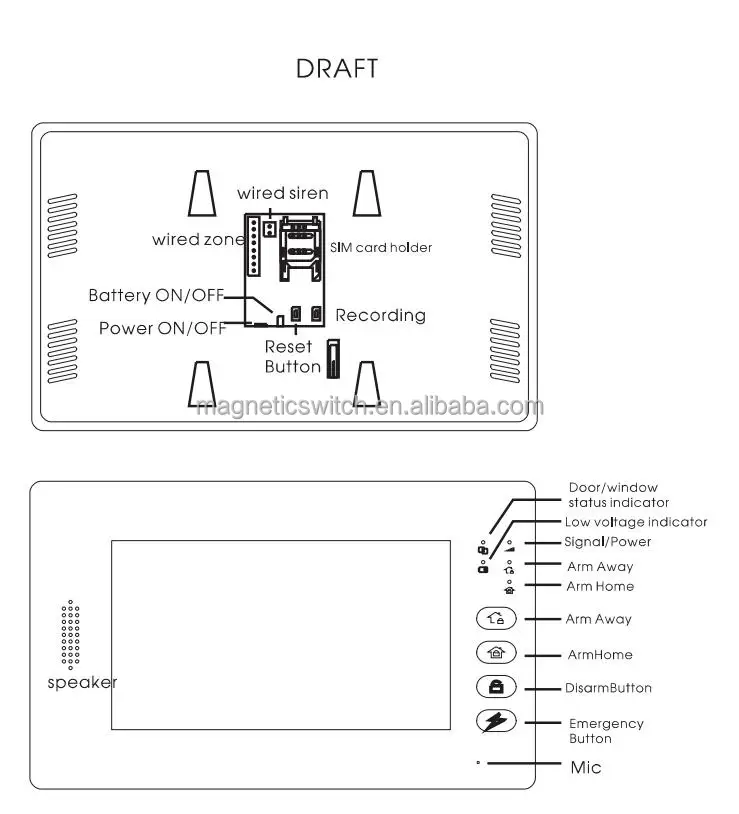

alarm systems (7).JPG


Accessories



  • As introduction mentioned, the standard alarm package includes one wireless door/window sensor which comes with 3M adhesive tape for surface installation,and one wireless motion sensor, and two wireless remote keyfobs.

  • All the sensors are programmed into X6 alarm panel already before the delivery.

  • All these sensors are included high rechargeable Li batteries which at least can provide 2-3 years service.
