  • Professional standard PA66 plastic medical sanitary clamp nylon tc clamp
Professional standard PA66 plastic medical sanitary clamp nylon tc clamp
Professional standard PA66 plastic medical sanitary clamp nylon tc clamp
Professional standard PA66 plastic medical sanitary clamp nylon tc clamp
Professional standard PA66 plastic medical sanitary clamp nylon tc clamp
Professional standard PA66 plastic medical sanitary clamp nylon tc clamp
Professional standard PA66 plastic medical sanitary clamp nylon tc clamp
Professional standard PA66 plastic medical sanitary clamp nylon tc clamp

Professional standard PA66 plastic medical sanitary clamp nylon tc clamp

Share on (1600437676711):


Price:$0.50 - $1.00

Quantity:


Product Overview

Description



Product Description

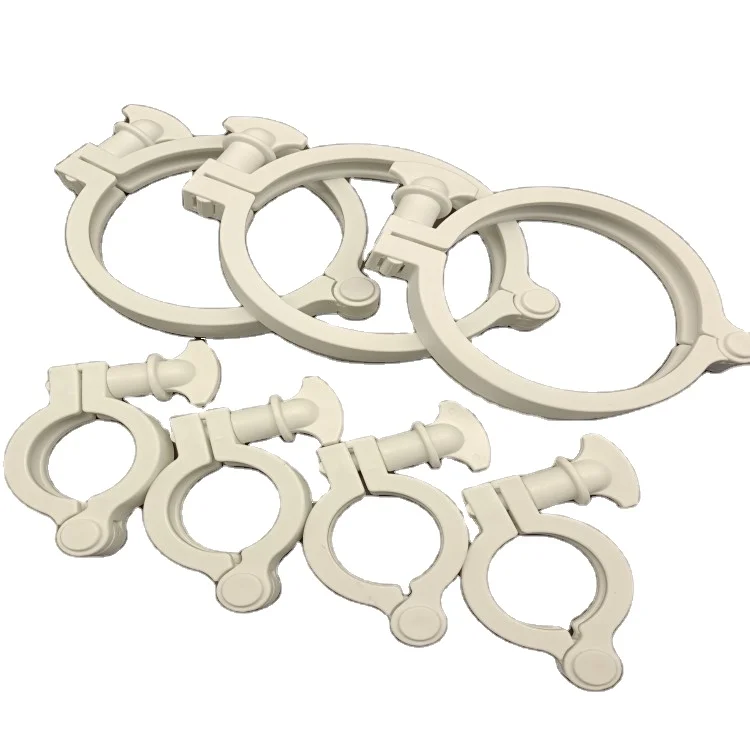

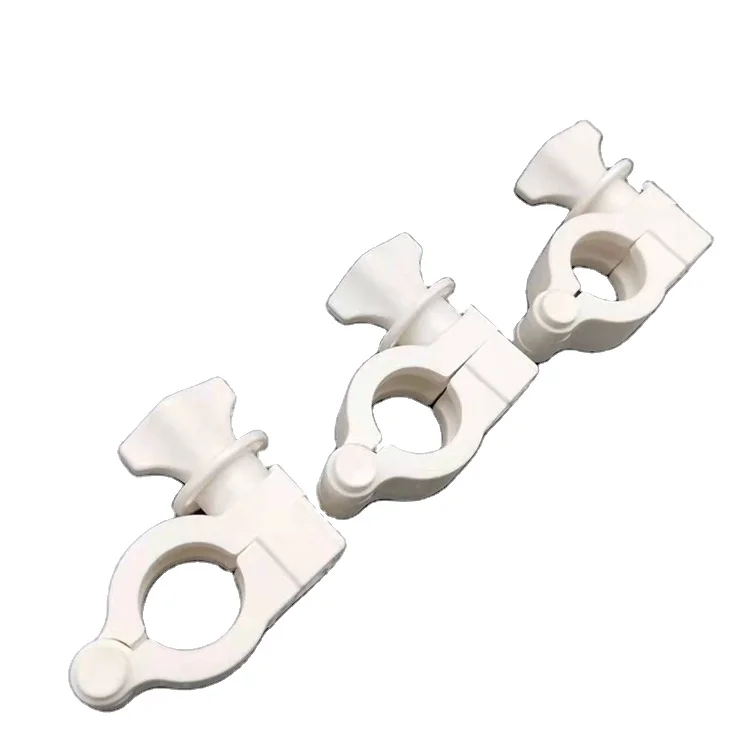

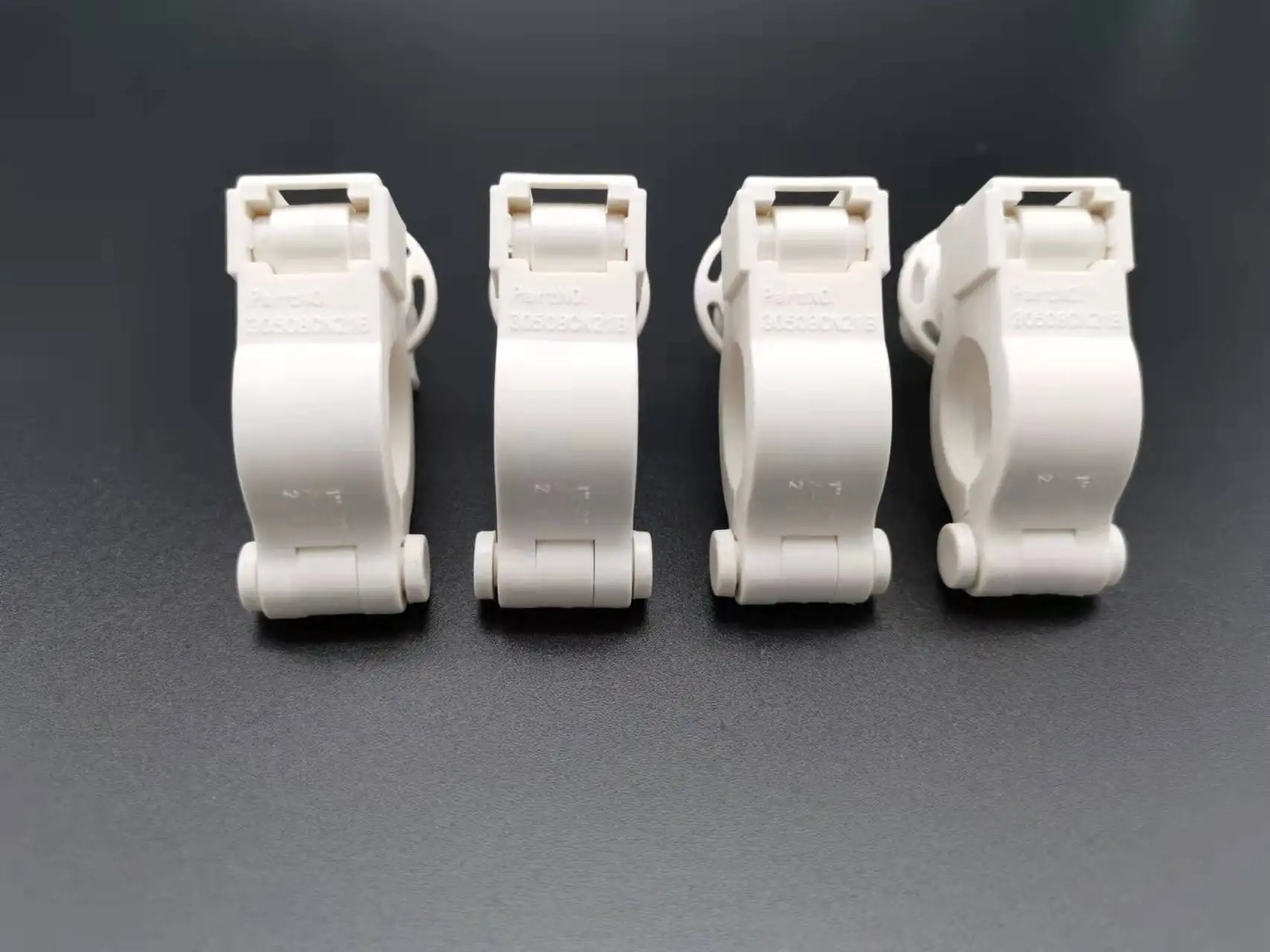

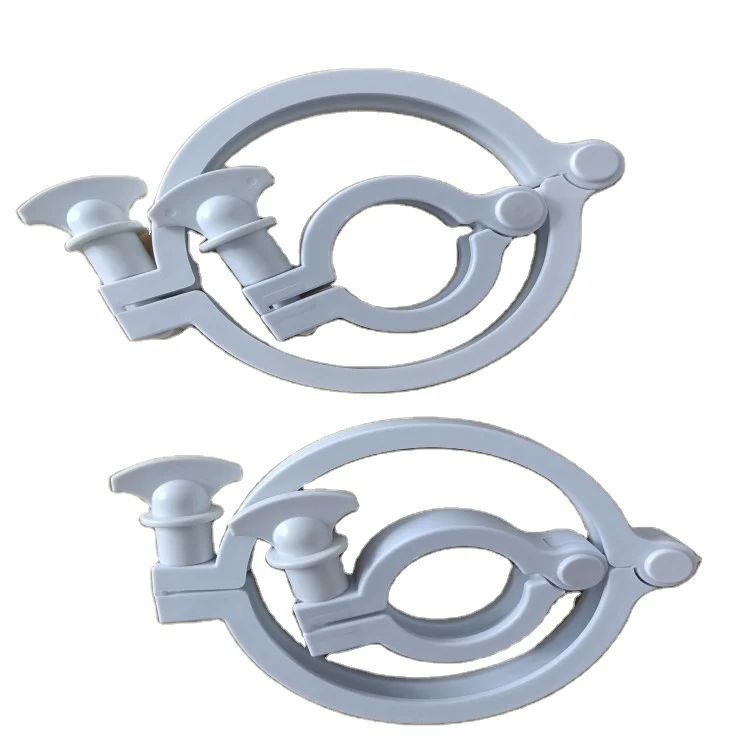

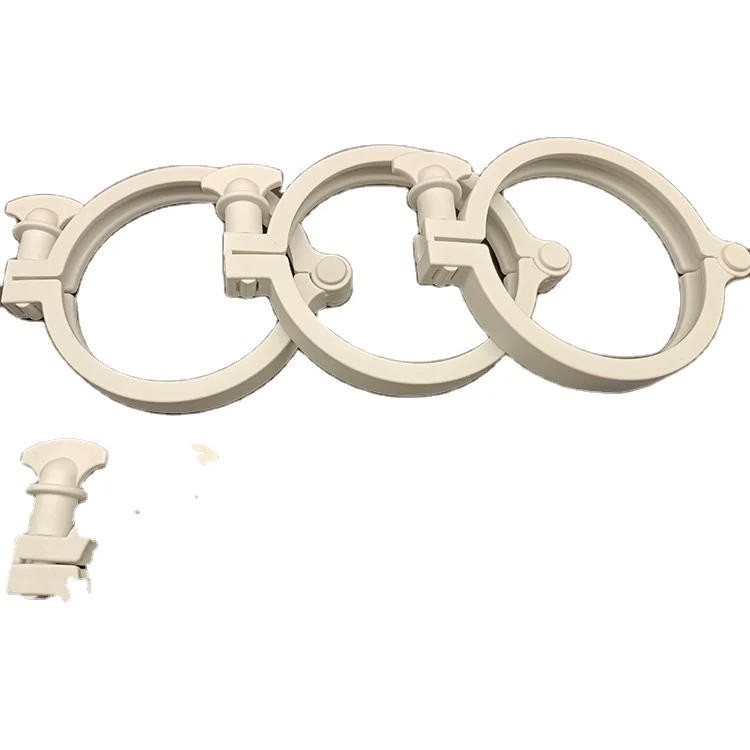

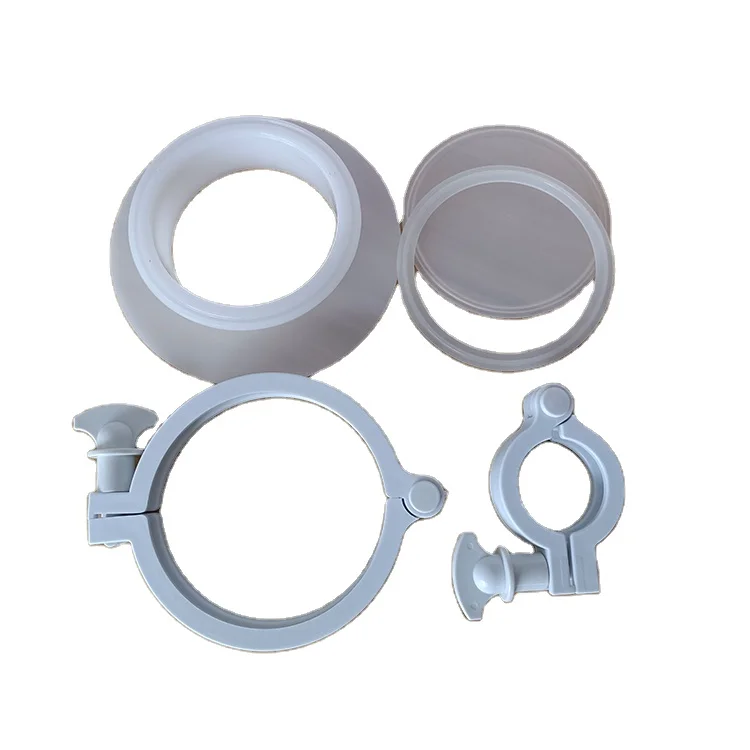

Sanitary Ferrule Clamp
* Constructed of Non-Metallic fiberglass reinforced nylon.
* Accepts sanitary ferrules according to BS 4825, ISO 2852 and Tri-Clover® Standards.
* Will not cause distortion in non-metallic fer-rules, as will stainless steel clamps during
high operating temperatures and sterilization. Less weight than stainless steel clamps.
* Use where reduction of weight and reduced thermal conductivity transfer is of importance.
* Use on non-metallic to non-metallic, non-metal-lic to metallic and metallic to metallic sanitary mechanical joints. Tests and Operating Capability
* For use in GMP Manufacturing.
* Gamma stable to 25-40 kGy.
* Maximum irradiaton dosage is 6 mega rads, this dosage is cumulative. Expect to see discol-
oration and the material to become brittle.
* Autoclave Sterilize to 275°F (135°C) After autoclave clamp may need to be retorqued
* Maximum recommended installation torque specification is 2nm.
* Recommended working pressure, 150 p.s.i. @ 70°F.
* The maximum recommended working temperature is 200°F but the material is
stable from -40°F to 200°F.
* PTFE gaskets are not to be used in conjuction with the non-metallic clamp. Cautions
* Maximum irradiation dosage is 6 mega rads, this dosage is cumulative. Expect to see discol-
oration and the material to become brittle.
* Do not over torque. Maximum recommended torque is 2nm.
* After autoclaving, clamps may need to bere-torqued.

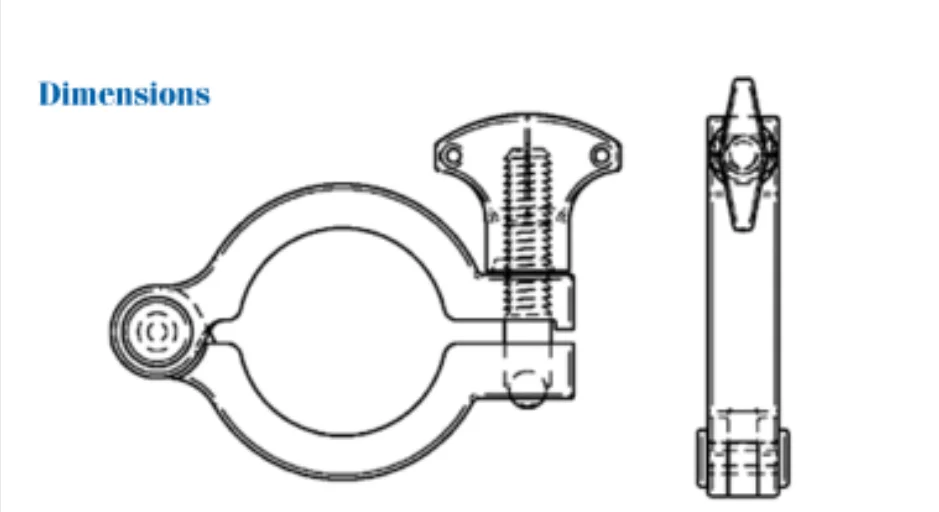

SIZE
PART NRUNBER
A DIN.
B DIN.
R DIM.
NAX P,S,I.
1/2"&3/4"
13MHM-NGW-050V075
2.17
.749
0.394
150
1"&1-1/2"
13MHHM-NGW-150
3.94
.749
0.886
150
2"
13MHHM-NGW-200
4.64
.749
1.260
150
2-1/2"
13MHHM-NGW-250
5.20
.749
1.497
150
3"
13MHHM-NGW-300
5.75
.749
1.773
150
4"
13MHHM-NGW-400
6.66
.749
2.250
150
6"
13MHHM-NGW-600
8.81
.962
3.135
150
8"
13MHHM-NGW-800
11.14
.962
4.316
150












Details Images






Packing & Delivery




In general,we use ziplock bag or bubble film plus cardboard boxes, and wooden pallets or wooden cases will be used if necessary.


Company Profile






We are a company specialising in customized rubber & plastic products ,CNC machined products for many years . Our workers are experienced and professional in international trade , and we will provide the best products at the best price. Even if you have no idea at all the procedures of international trade ,we will help you .We established a long-term business cooperation relationship with many experienced shipping agent to reduce the shipping costs. There are many experienced engineers, who make sure that we can meet all your requirements for the products.




FAQ


Q1: How about the quality?
A1. Quality is guaranteed, Henan Kejie Industrial Co, Ltd has more than 10 years industrial experience

Q2: If the price is solid?
A2: The price is negotialbe, it could change according to your order quantity

Q3: Can I have the sample for free?
A3. We can send a small piece to you for free, but need you to handle the freight cost.

Q4: How about the payment terms?
A4: The prefer payment terms is 30% TT against order, and balance before shipping
