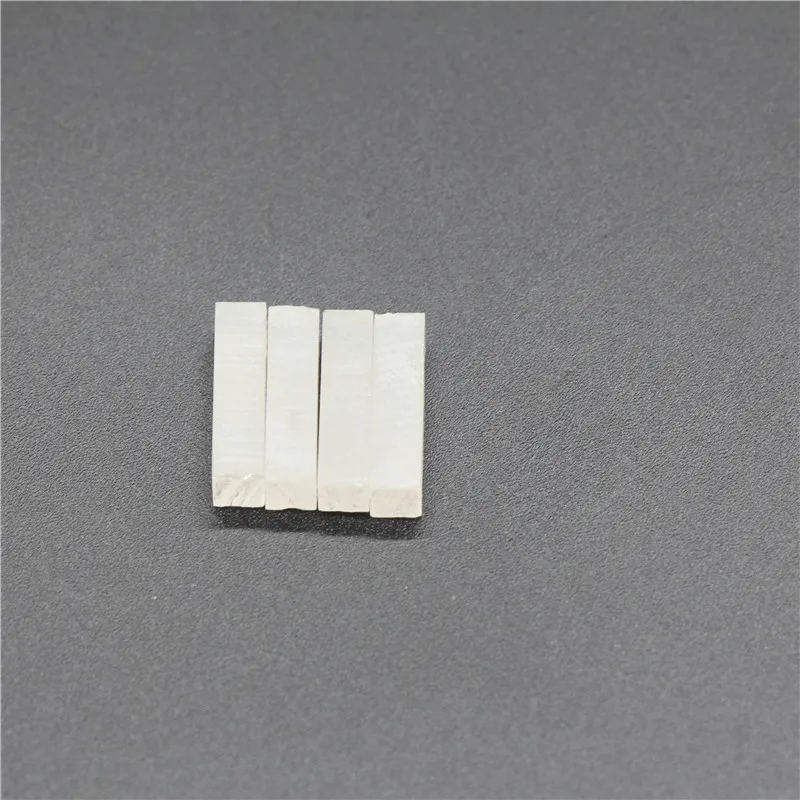

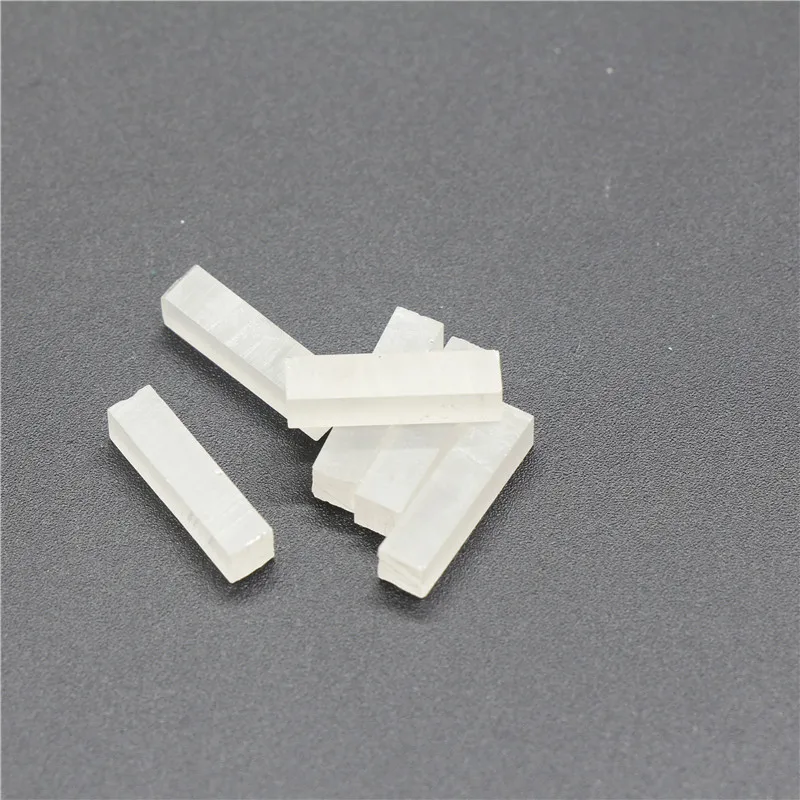

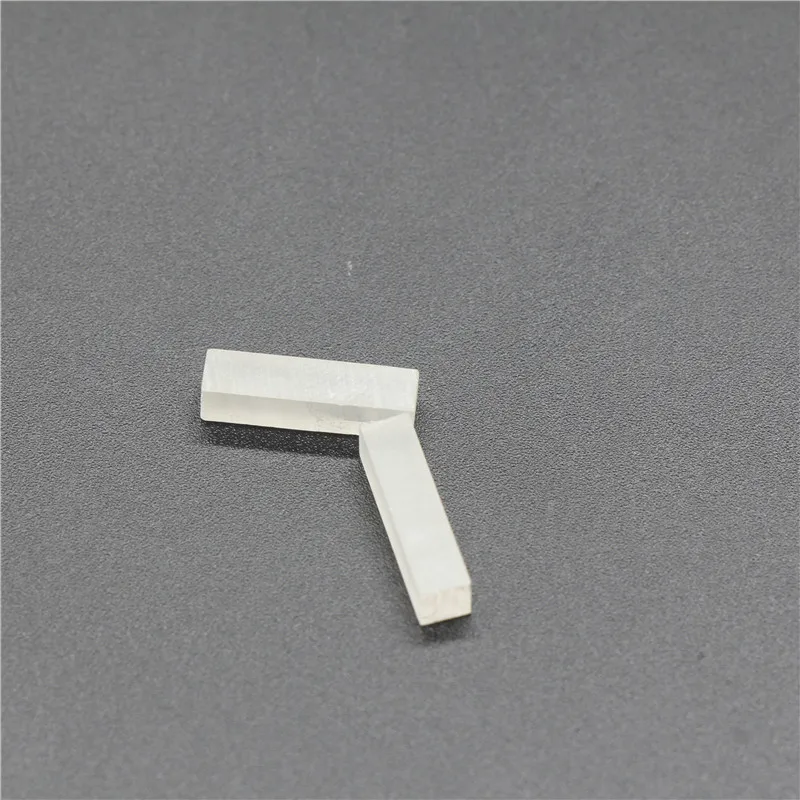

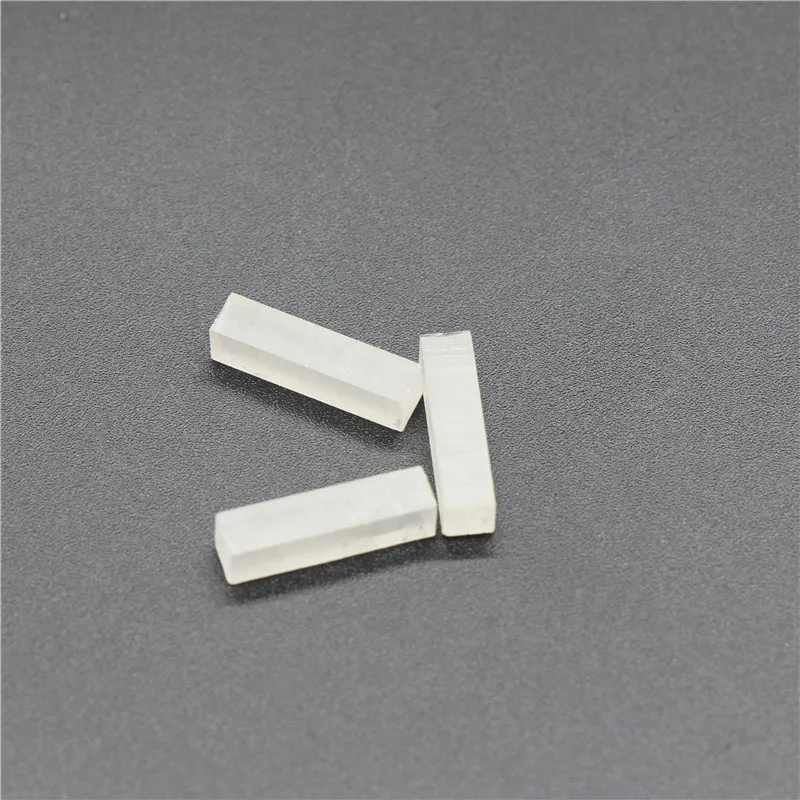

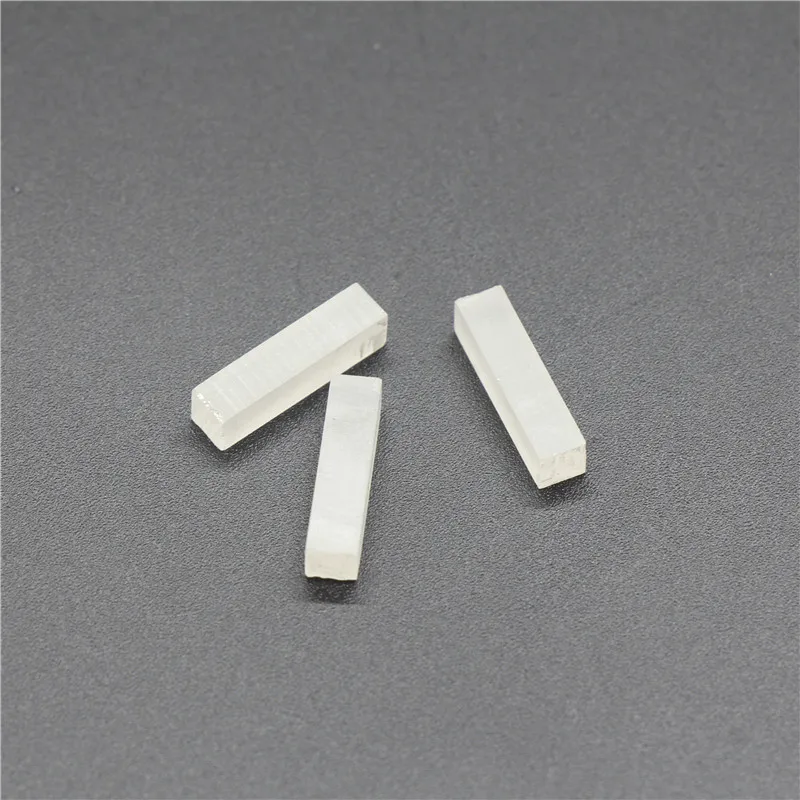

Optical Faraday devices parts Terbium Gallium Garnet (TGG) crystal rod
- Category: >>>
- Supplier: Anhui Crystro Crystal Materials Co. Ltd.
Share on (1600437690151):
Product Overview
Description
Product Description
Main Specifications | Physical and Chemical Properties | ||||
Directional accuracy | <111>within ±15 arc min | Chemical Formula | Tb3Ga5O12 | ||
Wave front distortion | <λ/8 wave total | Lattice constants | a=12.355 | ||
Extinction ratio | >30dB | Growth method | Czochralski method | ||
Diameter | +0.00mm/-0.05mm | Density | 7.13g/cm3 | ||
Length | +0.2mm/-0.2mm | Mohs hardness | 8 | ||
Chamfer | 0.2mm at 45° | Melting point | 1725℃ | ||
Flatness | <λ/10 wave at 633nm | Index of refraction | 1.954 at 1064nm | ||
Parallelism | <30 arc seconds | Thermal conductivity | 7.4 W·m-1·K-1 | ||
Verticality | <5 arc minutes | Size | According to your request | ||
Surface quality | 10/5 Scratch/Dig | ||||
AR coating | <0.2% | ||||
