low oil pressure life expectancy 60hz Epa 500kva 400kw Generator Set With Uk Engine 2506D E15TAG1
- Category: >>>
- Supplier: Taizhou Fengfa Power Equipment Co. Ltd.
Share on (1600437730624):
Product Overview
Description

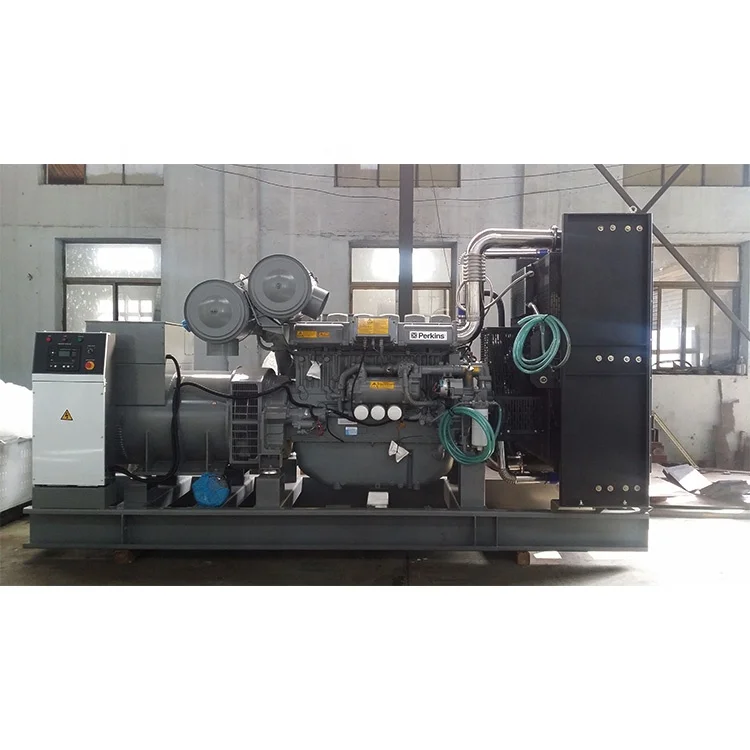

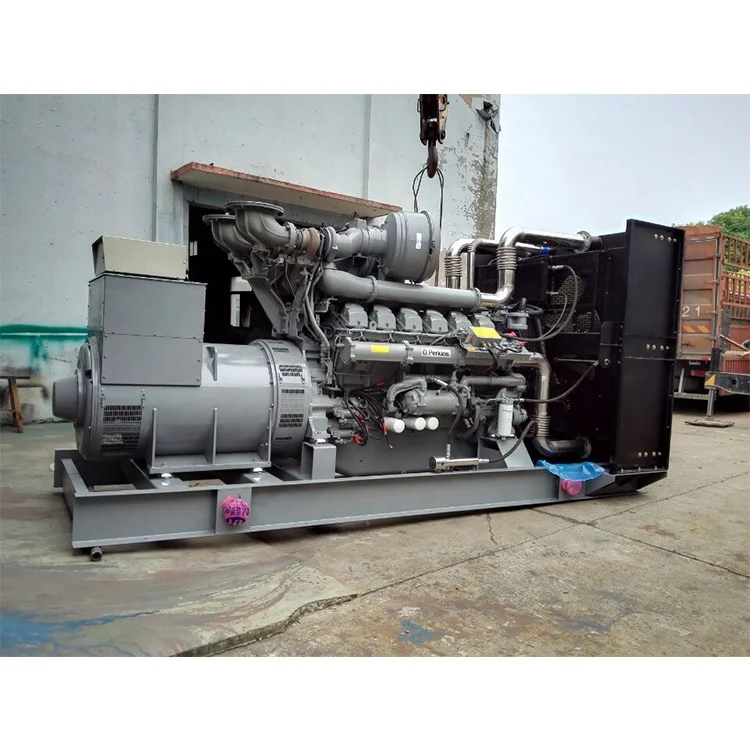

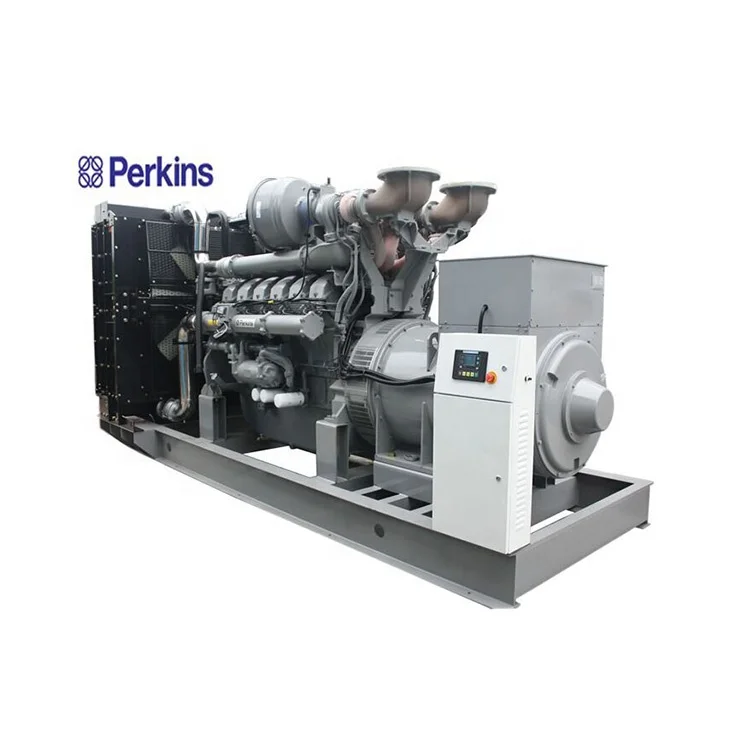

60hz Epa 500kva 400kw Generator Set With Uk Engine 2506d-e15tag1
Technical data | ||
Genset Model | FFDL-400GF | |
Prime Power | 400KW/500KVA | |
Rated Voltage | 400/230V | |
Frequency | 50/60Hz | |
Power Factor | 0.8(lagging) | |
The regulating rate of steady voltage | ≤±0.5% | |
The regulating rate of instantaneous voltage | ≤-15%/ +20% | |
The time of steady voltage | ≤1.5sec | |
The waving rate of voltage | ≤1.0% | |
The regulating rate of steady frequency | ≤3% | |
The regulating rate of instantaneous frequency | ≤±10% | |
The time of steady frequency | 3sec | |
Dimension (L×W×H) (mm) | 4050*1200*2100 | |
Genset weight (kg) | 3760 | |
Diesel Engine | ||
Brand | Perkins | |
Model | 2506D-E15TAG1 | |
Number of Cylinders | 4 | |
Rotating Speed | 1500/1800RPM | |
Cycle | Four stroke | |
Type | waste gas turbine boost,direct spurting type | |
Bore×Stroke(mm) | 137*171 | |
Displacement(L) | 15.2 | |
Lubricating Capacity(L) | 62 | |
Speed Governor | Electrical | |
Cooling System | Water-cooled | |
Speed Stability (%) | ≤5% | |
Fuel Consumption at 100% Load | 211g/kw.h | |
Starting Method | DC24V Electrical starting | |
Alternator | ||
Brand | Fengfa power | |
Model | FFDL-400 | |
Number of Phase | 3 | |
Connecting Type | Three Phase and Four Lines | |
Number of Bearing | 1 | |
Grading Protection | IP22 | |
Altitude | ≤1000m | |
Exciter Type | Brushless (AVR automatic voltage regulating) | |
Insulation Class | H degree | |
The components of the genset | ||
(1)Perkins Diesel Engine; (2)Hengsheng Alternator; (3) Control Panel with ATS | ||
Control Panel | ||
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. | ||
Taizhou Fengfa Power Equipment Co., Ltd. was founded in 2008, integrating the R&D and sale. Our company covers an area of above2000 square meters. With our abundant experience and industrious and hardworking staff members, we can meet various requirementsfrom different types of customers.
Our production capacity amounts to 1,000 sets per year. We are mainly engaged in diesel generator, Cummins generator, Volvo generator and our products sell well in Southwest Asia, the Middle East and Africa. We conductstrict quality inspections over each batch / product. We will try our best to serve you and hope to become one of yourfriends andbusiness partners.
Our production capacity amounts to 1,000 sets per year. We are mainly engaged in diesel generator, Cummins generator, Volvo generator and our products sell well in Southwest Asia, the Middle East and Africa. We conductstrict quality inspections over each batch / product. We will try our best to serve you and hope to become one of yourfriends andbusiness partners.
1. Who are we?
We are based in Jiangsu, China, start from 2008, sell to Domestic Market(10.00%),South Asia(10.00%),Central
America(10.00%),Eastern Asia(10.00%), Mid East(10.00%), Oceania(10.00%), Africa(10.00%), Southeast Asia(10.00%), North America(10.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Generator set, Diesel generator set, Generator, Cumins generator, Volvo generator.
4. Why should you buy from us not from other suppliers?
Taizhou Fengfa Power Equipment Co., Ltd. was founded in 2008, integrating the R&D and sale. Our company covers an area of above 20000 square meters. With our abundant experience and industrious and hardworking staff members, we can meet various requirements.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, PayPal, Western Union, Cash,Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese
We are based in Jiangsu, China, start from 2008, sell to Domestic Market(10.00%),South Asia(10.00%),Central
America(10.00%),Eastern Asia(10.00%), Mid East(10.00%), Oceania(10.00%), Africa(10.00%), Southeast Asia(10.00%), North America(10.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Generator set, Diesel generator set, Generator, Cumins generator, Volvo generator.
4. Why should you buy from us not from other suppliers?
Taizhou Fengfa Power Equipment Co., Ltd. was founded in 2008, integrating the R&D and sale. Our company covers an area of above 20000 square meters. With our abundant experience and industrious and hardworking staff members, we can meet various requirements.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, PayPal, Western Union, Cash,Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese
