New 20*4.0 Wheel e bike Bicicleta Electrica 48V 500W 750W 1000W Motor 12.5Ah Battery Fat Tire Electric Bicycle Manufacturer
- Category: >>>
- Supplier: Shenzhen Saibaike Co. Ltd.
Share on (1600437737129):
Product Overview
Description
Product Paramenters
Motor | 48V 500W/750W/1000W rear hub motor | Battery | 48V 10Ah/12.5Ah/17.5Ah Li-ion battery |

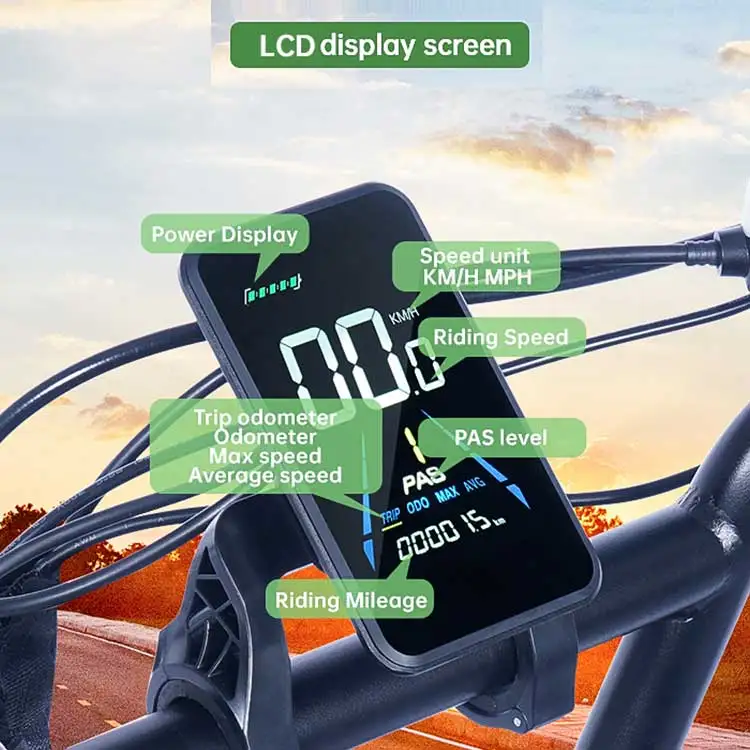

Display | LCD display | Charging time | 5 hours |
Controller | 48V Intelligent brushless controller | Maxed speed | 25Km/h （optional） |
Charger | AC 100V-220V,54.6V/2A | Speed gear | SHIMANO 7 speed gears |
Max load | 120KG | Range | 45-50km full electric 80km with PAS |
Frame and Handlebar | Alloy aluminum 6061,20inch | Brake | F/R disc brake |
Tyre | 20" x 4.0 | Fork | Suspension fork |
Unfolding size | 1650*670*1050mm | Packing size | 1450*300*820mm |
Net Weight | 30KG | Gross Weight | 33KG |
Cabinet | 20GQ:90PCS; 40HQ:200PCS | Content | E-bike body,User manual,Tools. |
Features:
1. Powerful 500/750/1000-watt rear hub motor in a smaller package..

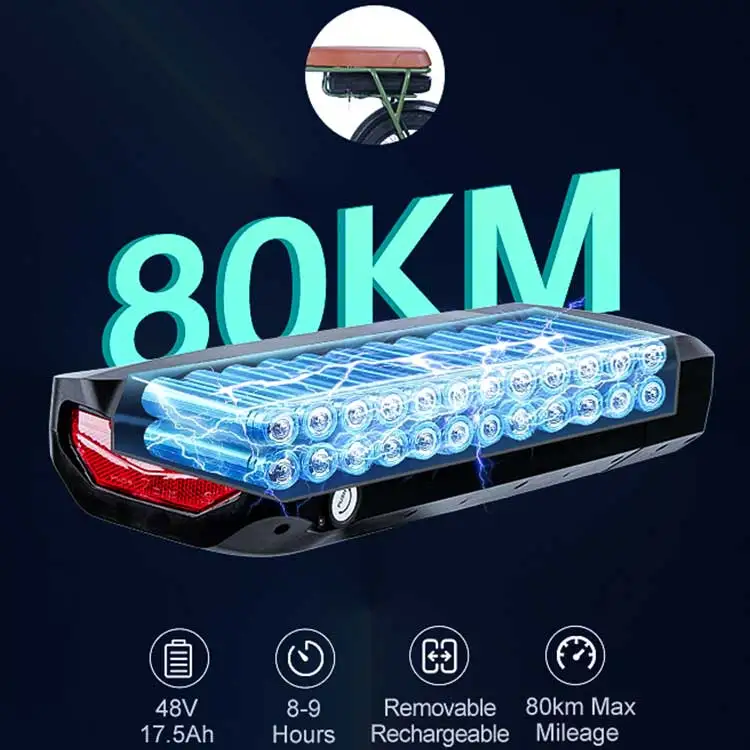

2. 10Ah/12.5Ah/17.5Ah long-lasting removable Li-ion battery.
3. 25 km/h top speed & 50 km max distance.
4. Excellent quality aluminum alloy frame, hydraulic suspension front fork and wear-resistant fat tires.
5. Waterproof in rain or snow.
6. Equipped with Torque sensing electric power technology.

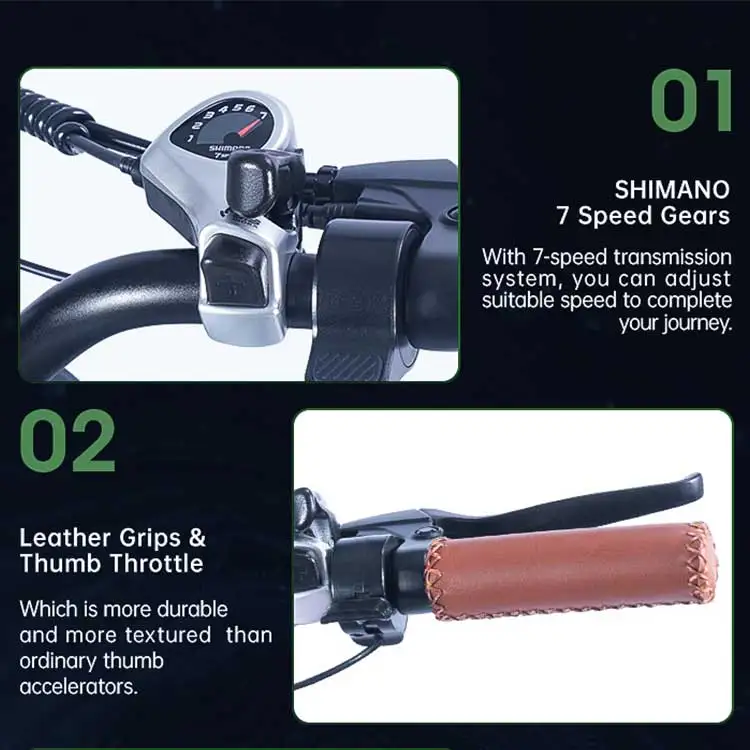

7. With Shimano 7-speed transmission system.
8.Mechanical disc brakes that any bike shop can easily service.
1. Powerful 500/750/1000-watt rear hub motor in a smaller package..
2. 10Ah/12.5Ah/17.5Ah long-lasting removable Li-ion battery.
3. 25 km/h top speed & 50 km max distance.
4. Excellent quality aluminum alloy frame, hydraulic suspension front fork and wear-resistant fat tires.
5. Waterproof in rain or snow.
6. Equipped with Torque sensing electric power technology.
7. With Shimano 7-speed transmission system.
8.Mechanical disc brakes that any bike shop can easily service.
Pedal Mode
No electricity, like ordinary bikes, suitable for fitness and cycling.
Power Assisted mode
Can support suitable electricity according to pedal power automatically, suitable for long-range aerobic exercise.
Full Electric Mode
In the electric state, experience the feeling of driving fast.
Products Description
Warranty
Project | Accessories | Warranty Period | Warranty Conditions | |||
Electrical Appliances | Brushless motor | 12 months | Performance Failure | |||
Charger | 12 months | Performance Failure | ||||
Lithium battery | 12 months | The battery is less than 60% of the original | ||||
Display | 12 months | Performance Failure | ||||
Frame and fork | 12 months | There are natural opening and desoldering | ||||
Controller | 12 months | Performance Failure | ||||
Basic Parts | Brake/Tires/Front light | 6 months | Performance Failure | |||
Handlebar/Saddle/Pedal | 6 months | Performance Failure | ||||
Seat post/Seat tube | 6 months | Performance Failure | ||||
Sensor | 6 months | Performance Failure | ||||
Remark | ||||||
5. 1. The time is half a year or 1 year from the receipt of the goods by the customer. 5. 2. If the damaged accessory is not in the above range, both parties need to confirm by communication and negotiate a solution; 5.3. The above warranty terms and conditions shall not apply if: • There is normal wear and tear of parts, or incorrect adjustment of e.g. tires, chain, brakes, cables, and/or derailleur set; • The damage caused by accident, abuse, misuse, misapplication, or non-Cyclebike products; • The damage caused by service performed by anyone other than Cyclebike; • The product or part that has been modified without the written permission of Cyclebike; • The bicycle continues to be used, despite damage and/or defects having been found, and this makes the damage worse. 5.4. Warranty does not cover any labor costs. 5.5. In the period of warranty, you should pay for sending faulty parts back to us,and we will pay for sending replacements to you. When complaining about a visual defect, you needn’t send us the faulty parts if you could provide us with enough photos or videos as requested. In case of no photos or invisible defect, you have to send back the faulty parts to us. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes Cyclebike’s property | ||||||
Company Profile
Shenzhen Cyclebike Vehicle Co., Ltd
Professional electric bike manufacturer , specializing in developing, producing&processing, and overseasbusiness. Mainly producing electric bike,electric scooter.lithium battery. which was established as own brand product sells oversea to United Kingdom , USA , Europe,Asia,and other international market,After 7 years of development and growth,
We have the warehouse in UK,USA,AU,Germany,CA,so that we can directly deliver the products to our customers on fast way .Cyclebike will focus on the electric bicyele,scooters,and will do best for outdoor bicycle driving and power .We warmly welcome domestic and foreign customer inquiries for OEM and ODM business cooperation.
Exhibitions and Certifications
Payment &shipping
FAQ
1 . Can I get sample for testing market?
A:Yes . Sample order is available for quality check and market test.
2 . Delivery time for sample orders?
A:It usually takes about 15 days for sample,35-45days for mass productions order based on specifications for your order and quantity.
3 . What's your payment terms?
A:T/T , L/C at sight , Western Union , Paypal , Trade Assurance .
4 .What's your warranty terms ?
A:We offer different warranty time for different components,please contact us for details
5 . Do you have the products in stock?
A:Yes,Hot selling models are in stock
6 . Can I mix different models in one container?
A: YES.different models can be mixed up in one fully container.
7.How does your factory do regarding the quality control?
A:Quality is priority.We always attract great importance to quality control from the very beginning to the end of production.Every product will be fully assembled and carefully tested before packing and shipping.
