Allwinner A20 wide range of interfaces and connectivity, including 4 CH CVBS in 4 CH CVBS out HDM I with HDCP VGA LVDS/RGB LC
- Category: >>>
- Supplier: Shenzhen Sochip Technology Co. Ltd.
Share on (1600437743775):
Product Overview
Description
Product Description
Item | Allwinne A20 |
CPU | Dual Cortex-A7 |
SDRAM | Support DDR3/DDR3L/DDR2 |
Memory | Internal BROM |
Product performance description

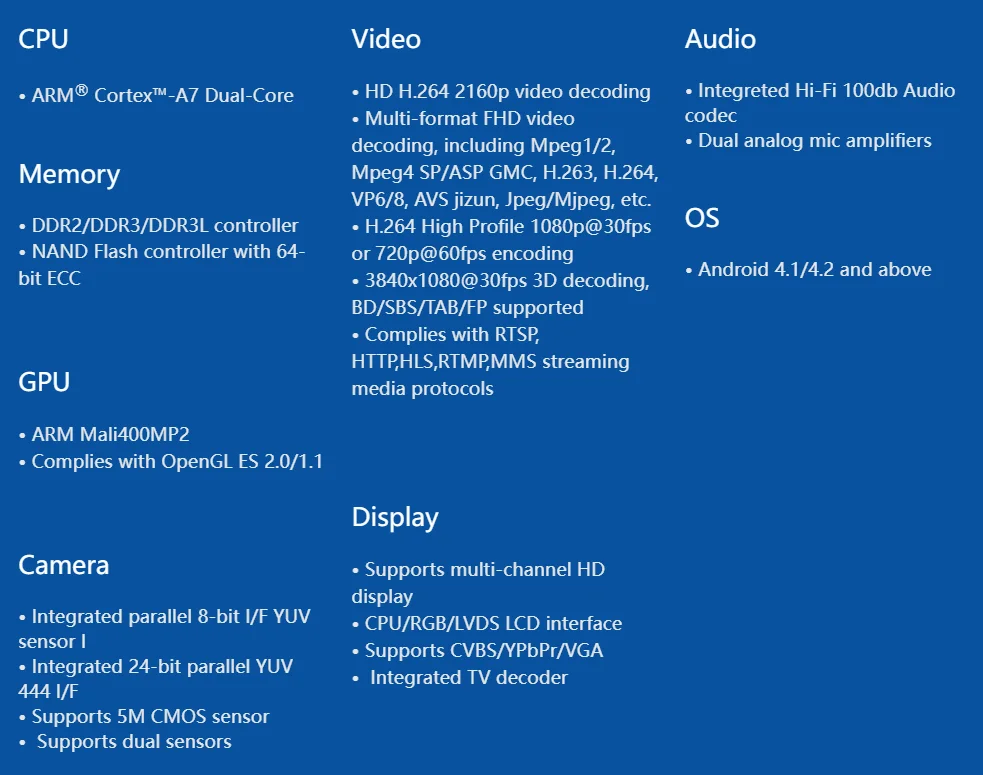

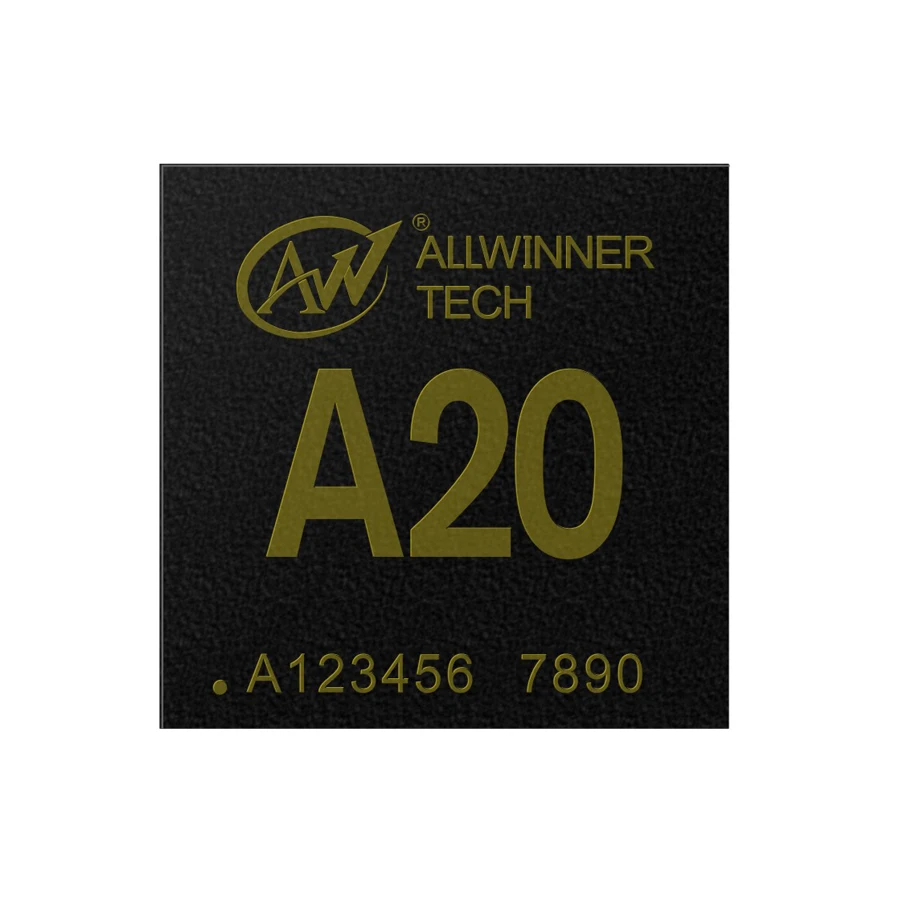

Allwinner A20 processor is a dual-core ARM Cortex-A7 mobile application solution designed for tablet and smart
TV applications.
A20 processor is based on a dual-core ARM Cortex-A7 CPU architecture, which is the most energy efficient ap-
plication processor from ARM so far and incorporates all the features of Cortex-A15. It also integrates the powerful
ARM Mali400 MP2 GPU, delivering a reliable system performance as well as good game compatibility. Besides,
A20 supports 2160p video decoding and H.264 HP 1080p video encoding.

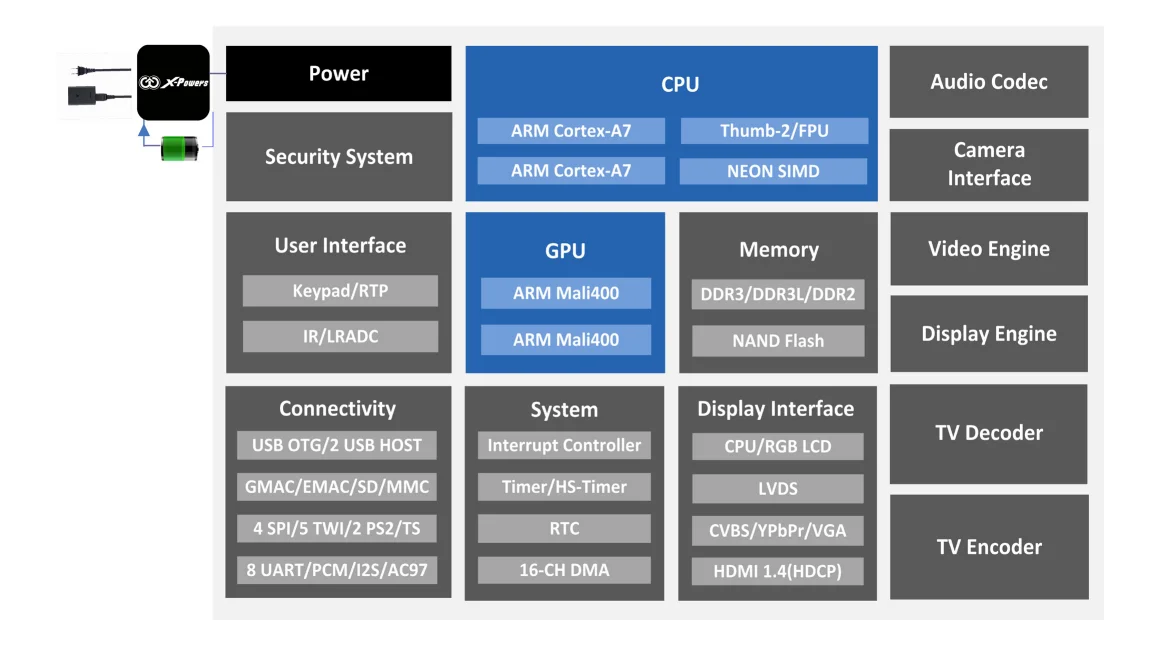

Additionally, A20 processor features a wide range of interfaces and connectivity, including 4-CH CVBS in, 4-CH
CVBS out, HDMI with HDCP, VGA, LVDS/RGB LCD, SATA, USB, and GMAC, etc. More importantly, A20 proces-
sor is pin-compatible with its predecessor A10, which greatly simplifies the product design process and makes the
upgrade of a design much easier.
TV applications.
A20 processor is based on a dual-core ARM Cortex-A7 CPU architecture, which is the most energy efficient ap-
plication processor from ARM so far and incorporates all the features of Cortex-A15. It also integrates the powerful
ARM Mali400 MP2 GPU, delivering a reliable system performance as well as good game compatibility. Besides,
A20 supports 2160p video decoding and H.264 HP 1080p video encoding.
Additionally, A20 processor features a wide range of interfaces and connectivity, including 4-CH CVBS in, 4-CH
CVBS out, HDMI with HDCP, VGA, LVDS/RGB LCD, SATA, USB, and GMAC, etc. More importantly, A20 proces-
sor is pin-compatible with its predecessor A10, which greatly simplifies the product design process and makes the
upgrade of a design much easier.
Product Description
Details Images
Related Products
Packing&Shipping
Sochip standard packing
