3mm Aluminum Copper Plate Panel Sheet Steel Roller Hydraulic Automatic CNC Metal Bender Machines
- Category: >>>
- Supplier: Nantong Hong Forging Machinery Technology Co. Ltd.
Share on (1600437747290):
Product Overview
Description
Technical description of W11 SERIES
* Main Function

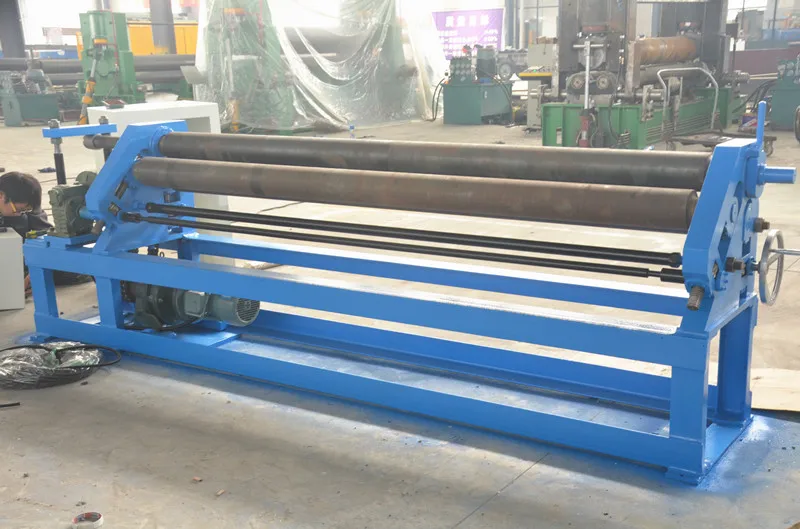

This machine is a mechanical three-roller bending machine which can be used to roll
the plate into round, cone and other shapes.
* The movement of upper roller and lower roller
1. top roller makes vertical movements (move from up to down)
2. Lower roller only makes rotation.
3. The top roller cannot move horizontally, so it cannot pre-bend the end of plate.
No | Item | W11-25×2000 | ||
1 | Maximum width of bending plate | 2000mm | ||
2 | Maximum thickness of bending plate | 25mm | ||
3 | Diameter of upper roller | 330mm | ||
4 | Diameter of bottom roller | Ф270 mm | ||
5 | Center distance of two bottom rollers | 440 mm | ||
6 | Yield strength of plate | 245 Mpa | ||
7 | Material of upper roller | 45# forged steel | ||
8 | Plate bending speed | 4m/min |
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30-40 days if the goods are
not in stock.
not in stock.
Q: What is your terms of payment ?
A: Payment 30% T/T in advance ,70%balance before shippment.
Q: Guarantee period
A: Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions is caused by customers' incorrect operation, we will provide spare parts at cost price. We can also offer flexible extended warranties according to the actual situation
A: Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions is caused by customers' incorrect operation, we will provide spare parts at cost price. We can also offer flexible extended warranties according to the actual situation
Q:After-sales services
A: Our engineer can go to your factory for installation and show operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.

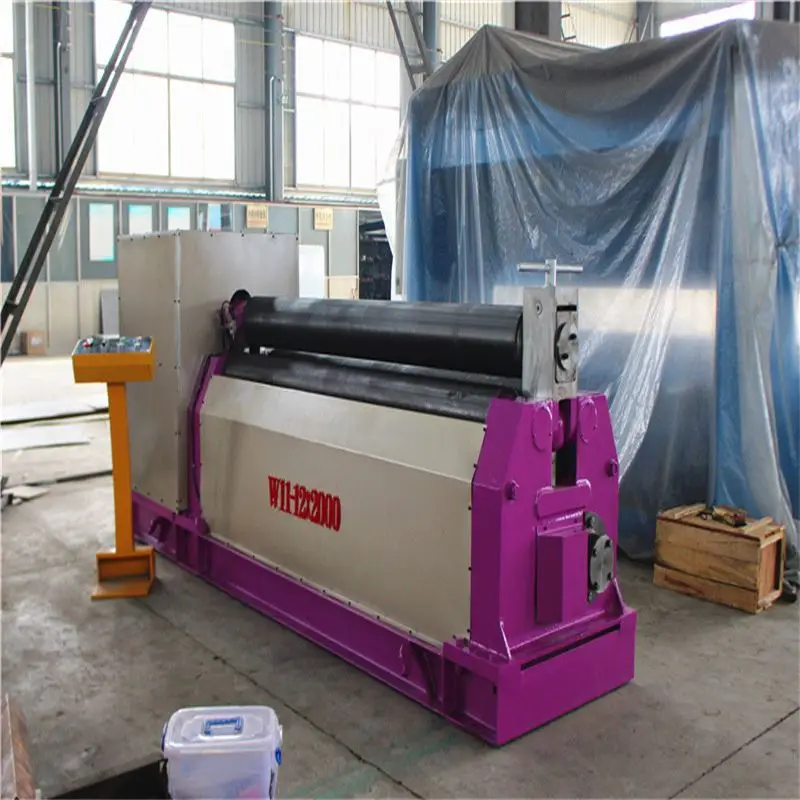

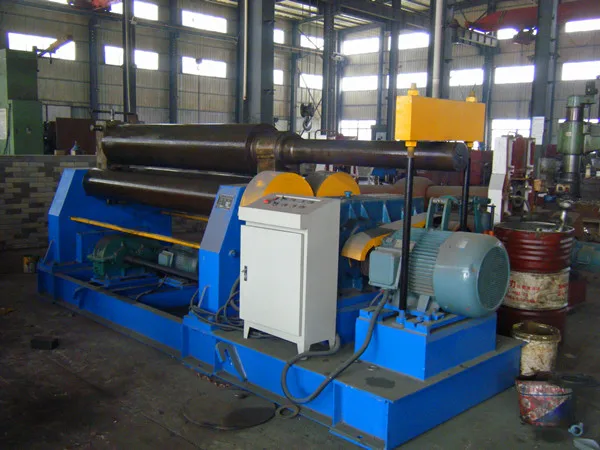

W11 type

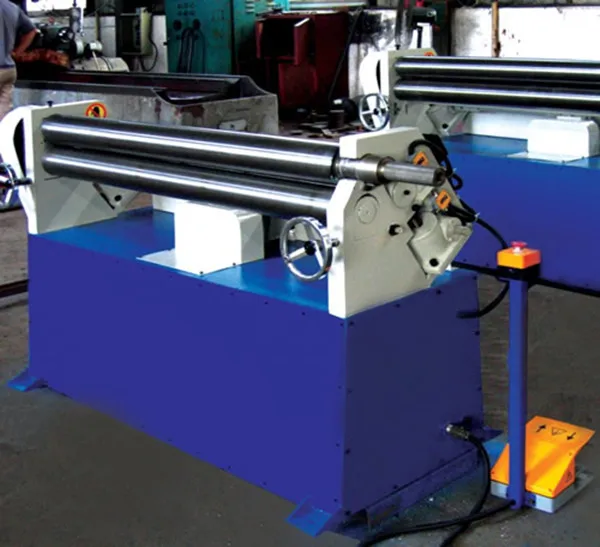

w11s type
Front elevation
PRODUCT CONFIGURATION
the roller
the support for the rolling machine

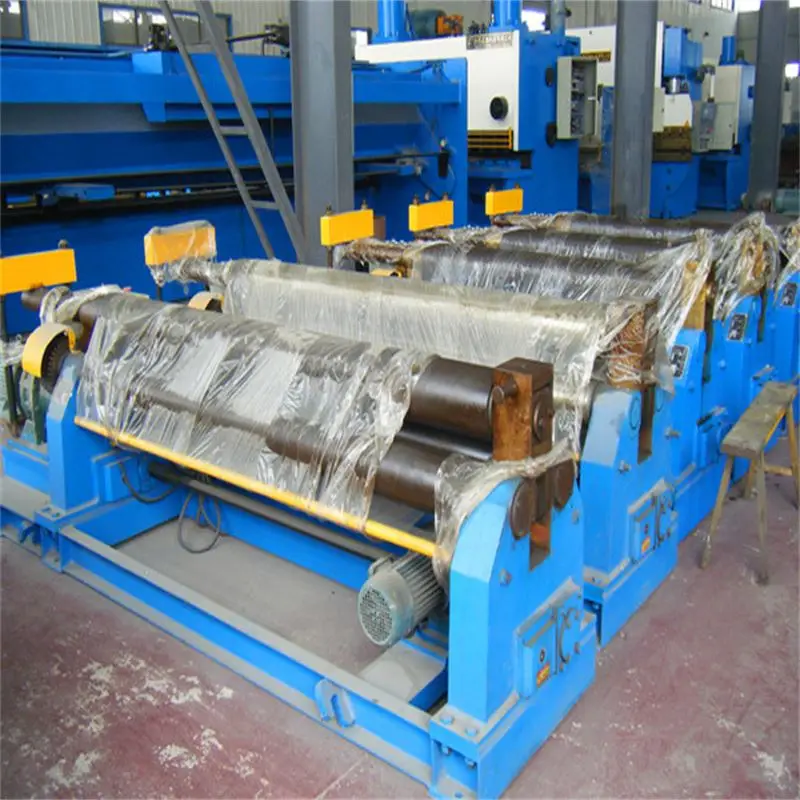

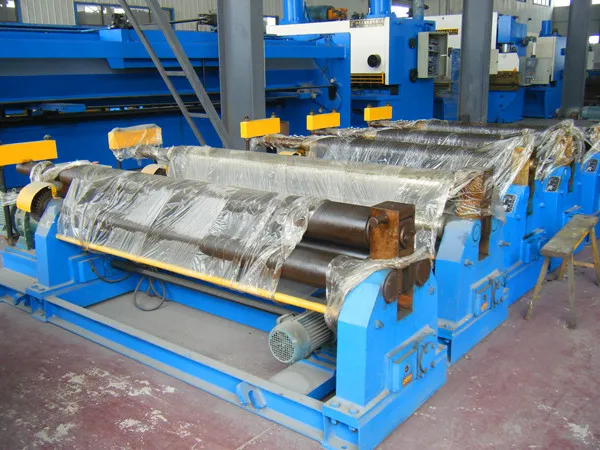

delivery of the machine
SALES AND SERVICE NETWORK

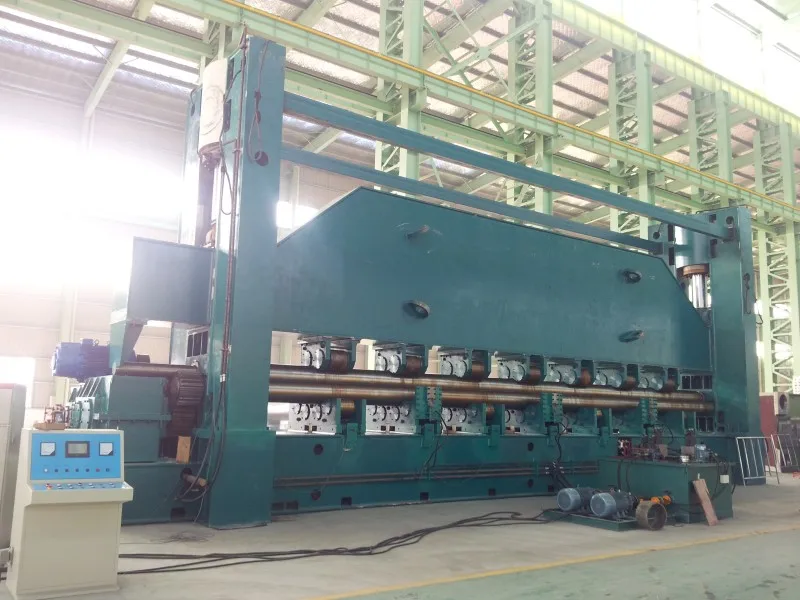

Successful Project
Project in Thailand
Project in India
Project in Russia
