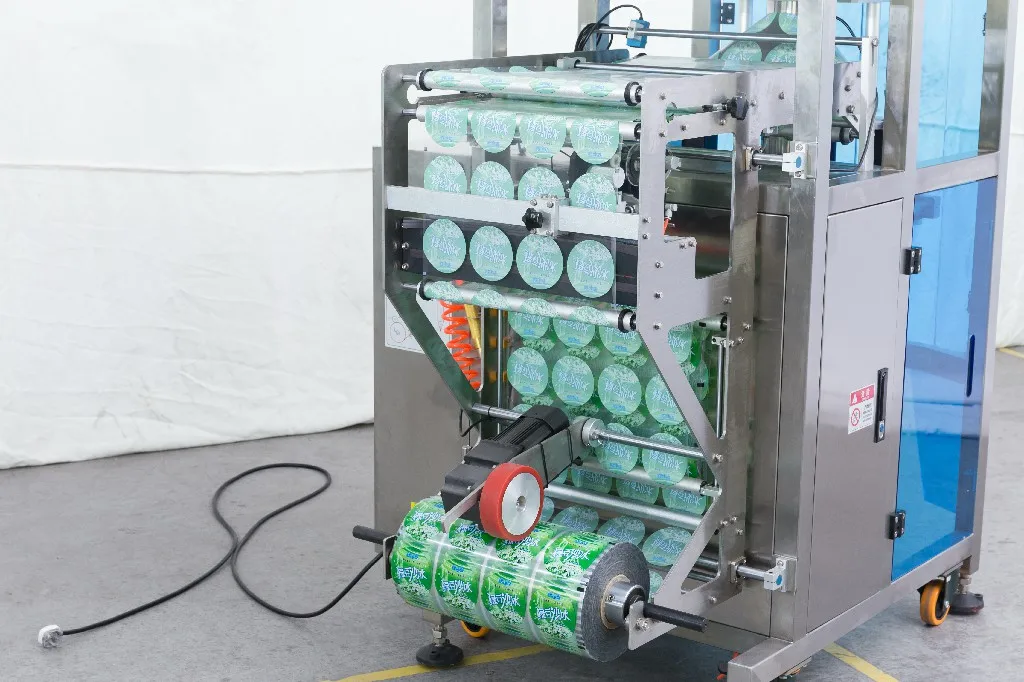

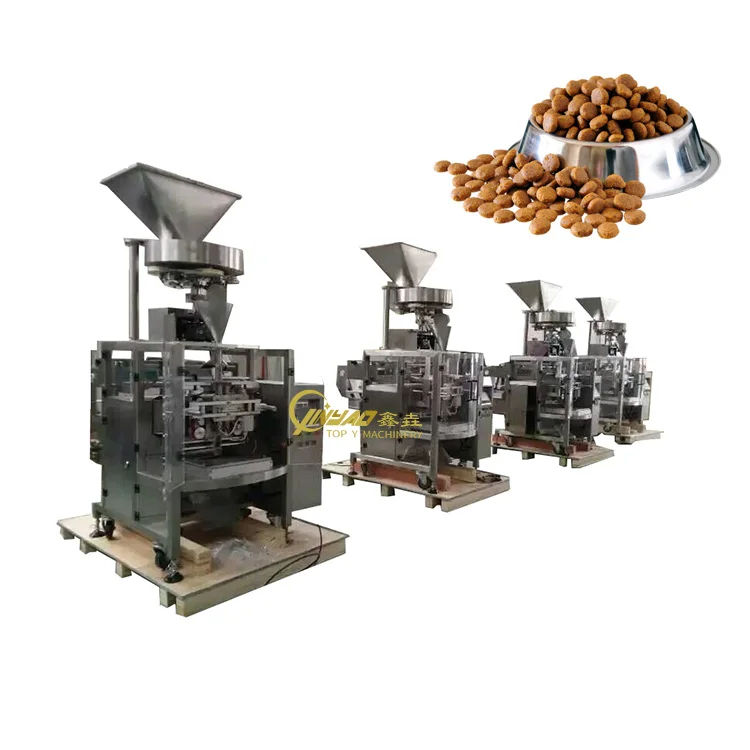

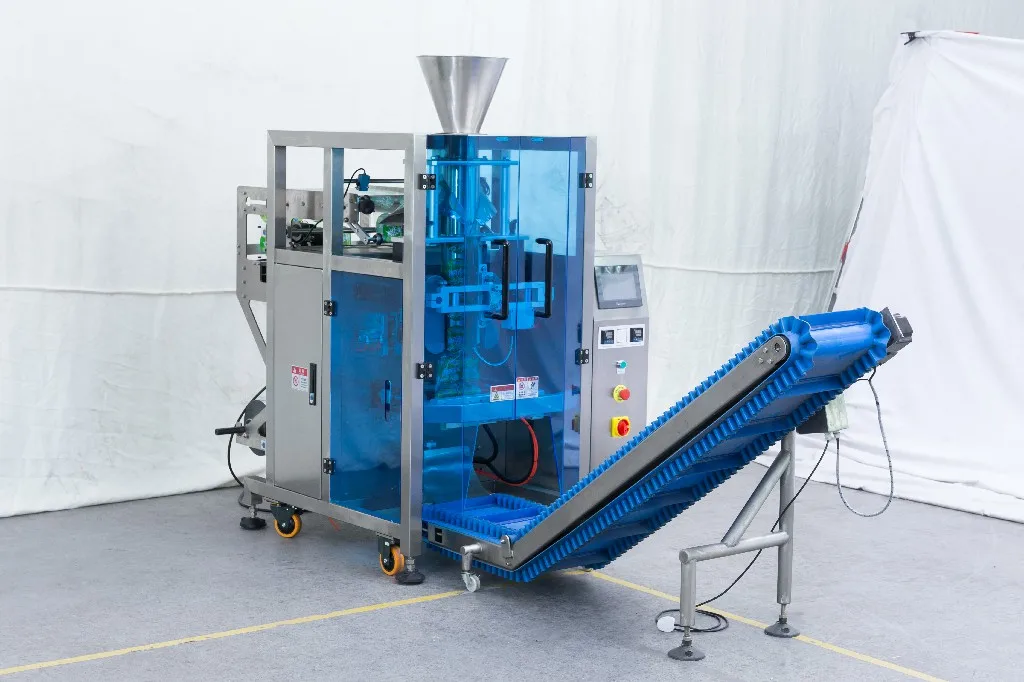

TOP Y Vertical automatic pet food fish feed animal food packaging machine combined with measuring cups
Specification of VFFS Packing Machine
Model | TOPY-VP420 | TOPY-VP520 | TOPY-VP620 | TOPY-VP730 | TOPY-VP800 | TOPY-VP1050 |
Bag Size | (L)70-300mm (W)60-200mm | (L)80-350mm (W)100-250mm | (L)80-350mm (W)100-250mm | (L)200-400mm (W)140-350mm | (L)150-500mm (W)250-400mm | (L)200-500mm (W)140-350mm |
Bag Speed | 10- 70bags/min | 15- 60bags/min | 15- 60bags/min | 10- 50bags/min | 5-30bags/min | 2-30bags/min |
Film width | 120-420mm | 220-520mm | 220-620mm | 300-720mm | 340-800mm | 300-1050mm |
Film thickness | 0.03-0.1mm | 0.04-0.10mm | 0.04-0.1mm | 0.05-0.12mm | 0.06-0.15mm | 0.07-0.20mm |
Air consumption | 0.7Mps 0.5m3/min | 0.8Mps 0.4m3/min | 0.8Mps 0.4m3/min | 0.8Mps 0.5m3/min | 0.6Mps 0.7m3/min | 0.8Mps 0.7m3/min |
Dimension | 1530*970*1600 | 1430*1200*1700 | 1430*1200*1700 | 1340*1580*1950 | 1500*1680*2100 | 1740*2080*2500 |
Weight | 450kg | 680kg | 700kg | 800kg | 1000kg | 1200 |
Power supply | 2.2kw, 220V 50/60HZ | 2.5kw, 220V 50/60HZ | 2.5kw, 220V 50/60HZ | 2.5kw, 220V 50/60HZ | 3.0kw, 220V 50/60HZ | 3.0kw, 220V 50/ |
Working Principle of VFFS packing machine:

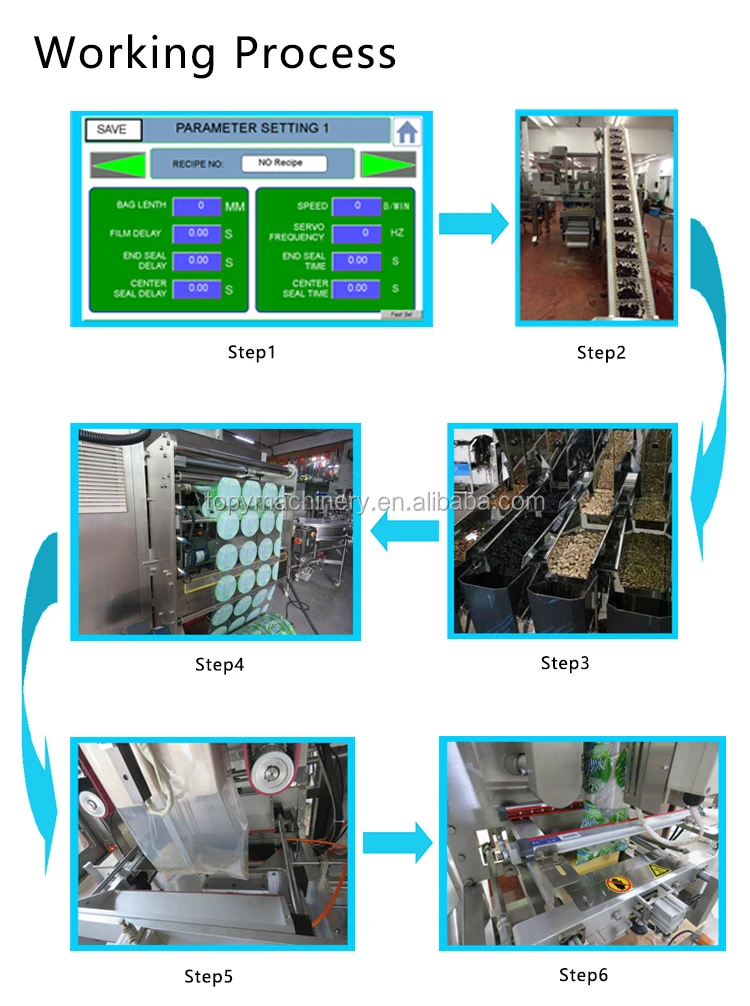

Working Process
Step1, set the parameters we need on HMI
Step2, pour bulk products into the storage hopper manually or automatically
Step3, multifunction weighing dosing machine will dose target weight we need
Step4, the packing machine finish the film unwind and bag making
Step5, the weighing machine fill dosed products to the made bags
Step6, the sealing jaws and cutting blade seal and cut the bags automatically
More Products:
Our Company Profile
TOP Y MACHINERY,Packing Solution,Always keep going.
TOP Y MACHINERY Co., LTD was founded in October 2011 in Lunjiao Town, Foshan City, and then we moved to Qide Industrial Park, Beijiao Town. We are integrated company with R&D, building, marketing and providing after-sale services backup. We are dedicated in
producing all packing machines:
1, VP vertical forming filling sealing machine for roll of film
2, Sachet packing machine for small bag
3, Powder packaging systems
4, Granule packaging systems
5, Liquid packaging systems
producing all packing machines:
1, VP vertical forming filling sealing machine for roll of film
2, Sachet packing machine for small bag
3, Powder packaging systems
4, Granule packaging systems
5, Liquid packaging systems
Welcome to our factory~~
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would liek to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placking the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q5. Can you explain me the whole transaction process?
1.Sign the Contact
2.Arrange 50% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
Tell us about your product details and packing requirements.
1. What kind of product you would liek to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placking the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q5. Can you explain me the whole transaction process?
1.Sign the Contact
2.Arrange 50% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
