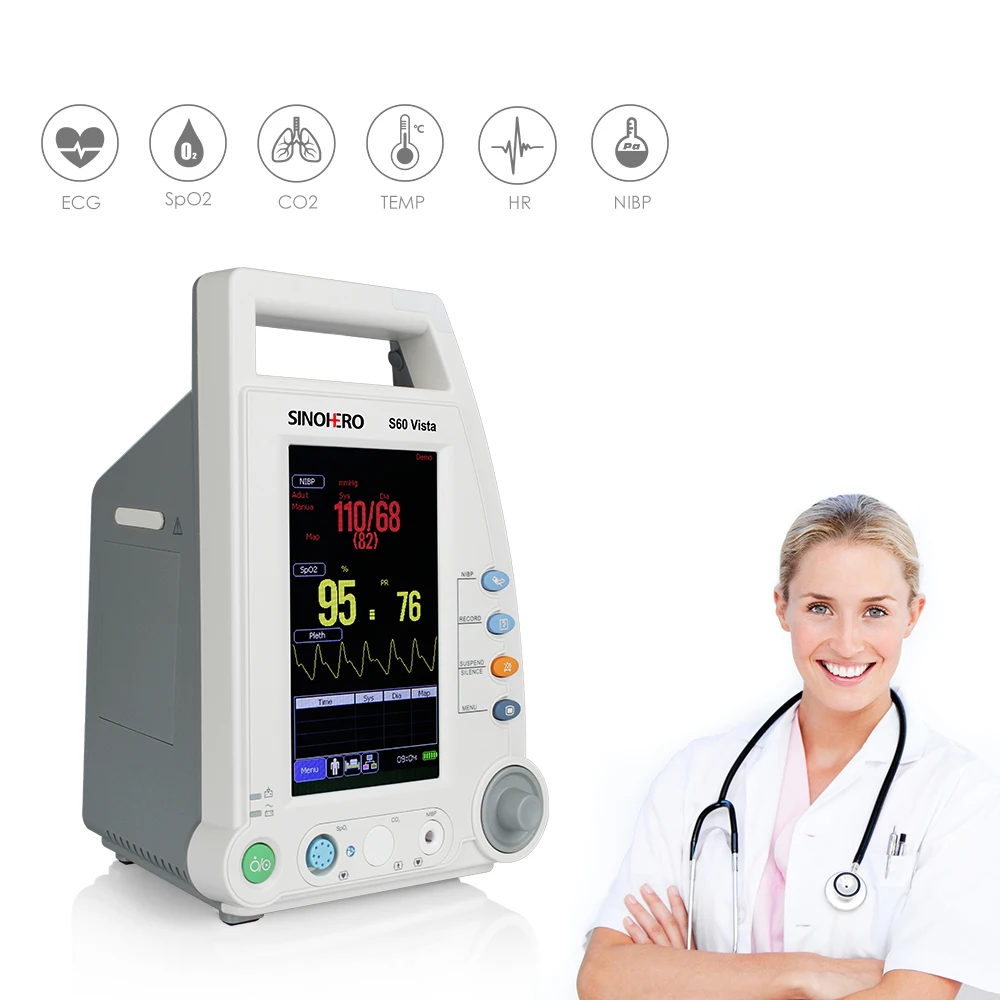

S60 Vista WiFi Monitoring Portable Patient Monitor Remote Vital Sign Monitor
- Category: >>>
- Supplier: Sinohero Changsha Meditech Co. Ltd.
Share on (1600437758923):
Product Overview
Description
Product Description

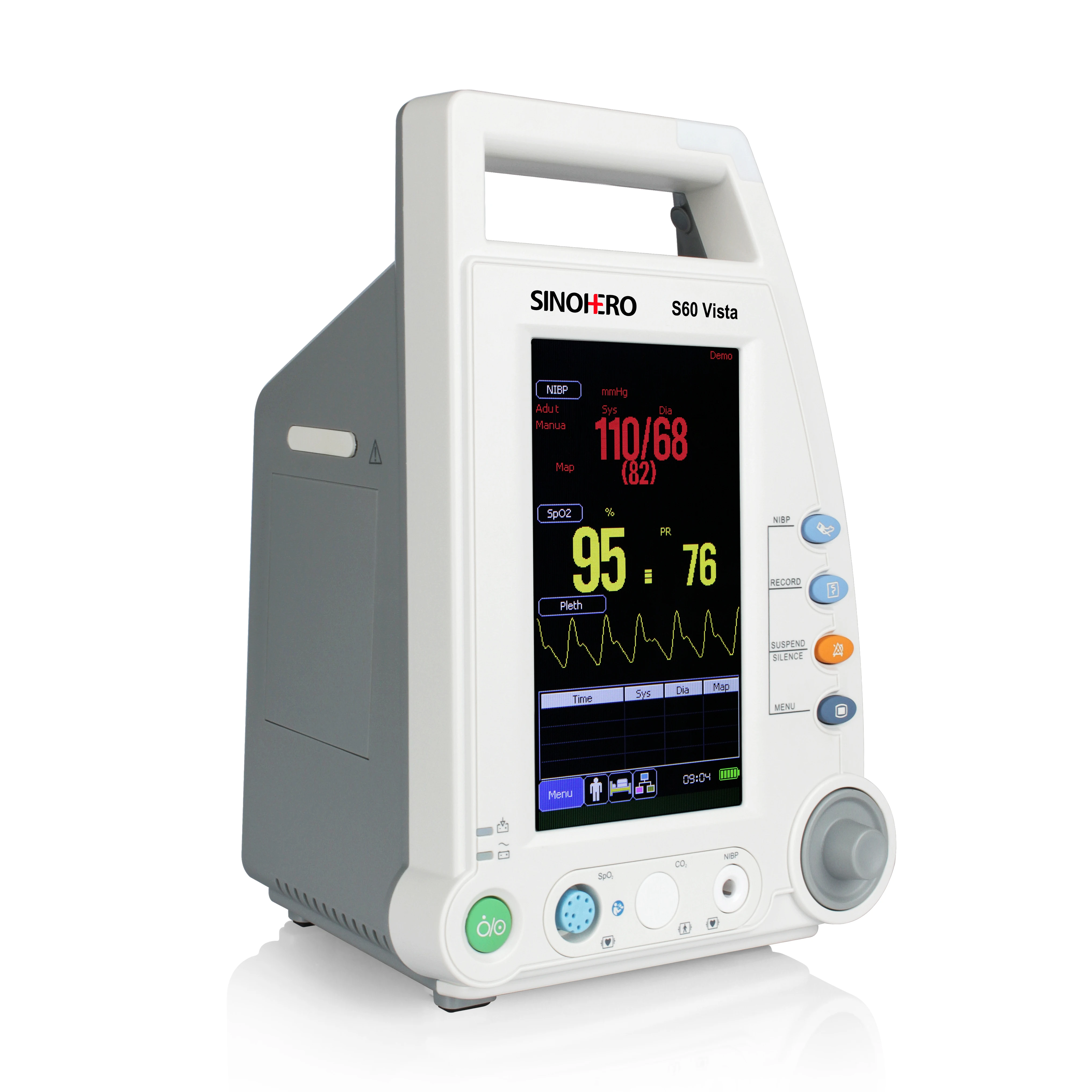

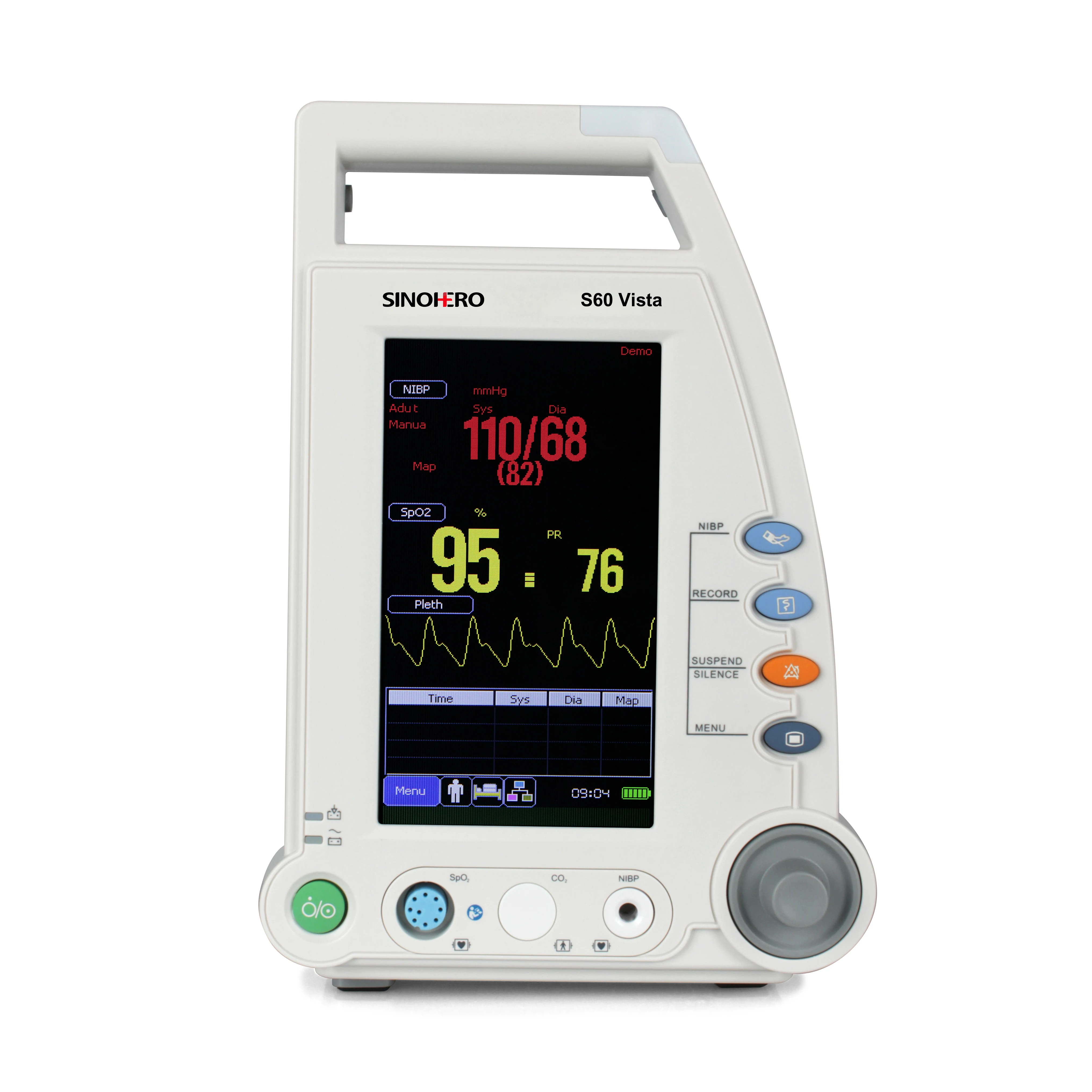

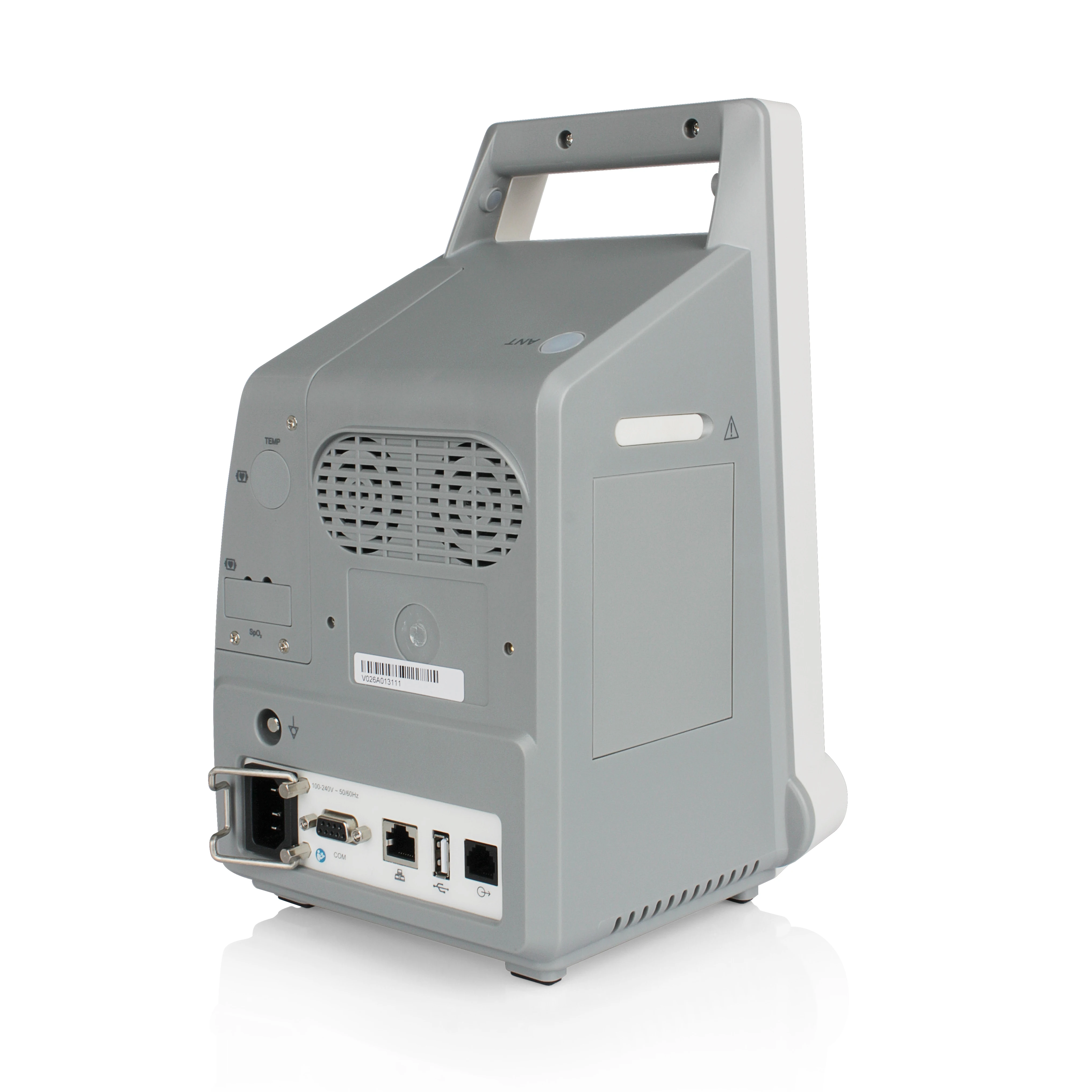

SINOHERO S60 Vista Medical Portable Multipara NIBP SPO2 Patient Monitor Vital Signs Monitor NIBP SPO2 monitor
● Introduction:
Application: It suitable for bedside, General Ward etc.
● Feature:
Vital Signs Patient Monitor
7" TFT high-resolution color display with sharp view
Parameters highlight: SpO2(Digital, Nellcor and Masimo selectable), NIBP, Quick TEMP, Microstream EtCO2, SD Memory
Super compact and lightweight design for instant availability
Exceptional data storage capacity both for continuous monitoring and spot check
Built-in Li-ion battery life last up to 8 hours
Wired & wireless networking for easy access at the point of care
Standard Configuration:
NIBP, Digital SpO2, PR, Lithium Battery
Optional Configuration:
Full-touch screen, Nellcor SpO2, Masimo SpO2, Quick TEMP, Microstream EtCO2, SD Memory, Thermal recorder
●Application:
It suitable for bedside, General Ward, operation room, ICU, CCU etc.
It suitable for bedside, General Ward, operation room, ICU, CCU etc.
Product name | S60 Vista patient monitor |
Display Type | 7" Color Anti-glare TFT-LCD |
Resolution | 234*480 pixels |
Size | 160*130*260mm(W * H * D) |
Weight | less than 2.5kg (including a lithium battery) |
Input voltage | AC: 100-240V, 50Hz/60Hz |
Input power | 70VA |
Fuse | T1.6AL/250V |
Battery | 11.1V 4000mAh rechargeable lithium battery |
Operating time | more than 8 hours |
● Performance:
-Size: 160×130×260mm(W * H * D)
-Weight: ≦2.5kg (including a lithium battery)
Display
-Type: 7" Color Anti-glare TFT-LCD
-Resolution: 234×480 pixels
Power supply
-Input voltage: AC: 100-240V, 50Hz/60Hz
-Input power: 70VA
-Fuse: T1.6AL/250V, 2φ5x20mm
Battery
-Type: 11.1V 4000mAh rechargeable lithium battery
-Operating time: >8 hours
-Charge time: 6h to 100% (Standby)
Data Storage
-Clinic Mode:
Patient quantity: 1000
Recording number: 16000
Single patient clinic record number: 1-16000
-Monitor Mode:
Patient quantity: 1
Trend data: resolution 1Min: can store 96 hours
resolution 5Min: can store 480 hours
resolution 10 Min: can store 960 hours
Alarm events: 1000
NIBP measurement record: 5000
Environmental Specifications
-Operating
Temperature: (5～40) ℃
Humidity: ≦85% (noncondensing)
Atmospheric Pressure: (860～1060) hPa
-Transportation and Storage
Temperature: (-20 ～ +55)
-Humidity: 93% (noncondensing)
-Atmospheric Pressure: (500～1060) hPa
PR
-Measurement Range: 20～250bpm
-Resolution: 1 bpm
-Accuracy: ±1% or ± 1 bpm, whichever is the greater
Digital SpO2
-Measurement Range: (0～100)%
-Resolution: 1%
-Accuracy: ±2% (70%～100%)
±3% (35%～69%)
-Unspecified: (0～34%)
Nellcor-SpO2 (Option)
-Measurement Range: (0-100)%
-Resolution: 1%
-Accuracy: ±2% (70%～100%) (adult)
±3% (70%～100%) (neonate)
±2% (70%～100%) (low perfusion)
-Unspecified: (0～69%)
NIBP
-Technique: Automatic Oscillometry
-Range: Adult: 10-270mmHg
Child: 10-235mmHg
Neonate: 10-135mmHg
- Accuracy: Static ± 3mmHg
-Clinic: Average error: ±5mmHg
-Standard Deviation: ≦8 mmHg
-Unit: mmHg. kPa
-Pulse rate range: 40-240 bpm
Microstream EtCO2 (Option)
-Measurement way: Infrared spectrum
-Measurement mode: Side stream
-Sample Flow Rate: 50ml/min ±10ml/min
-Measurement range: (0～19.7)%, (0～150mmHg)
-Resolution: 0.1% or 1 mmHg
-Unit: %, mmHg, kPa
-Accuracy: ±2 mmHg 0 mmHg to 40 mmHg,
±5% of reading 41 mmHg to 70 mmHg,
±8% of reading 71 mmHg to 100 mmHg,
±10% of reading 101 mmHg to 150 mmHg,
(760 mmHg, temperature is 25℃)
(When RR>80 rpm, all the range is ± 12% of reading)
Standard Configuration:
NIBP, Digital SpO2, PR, Lithium Battery
Option:
Nellcor SpO2, Instant Infra-Red Ear Thermometer（TEMP）, Micro Stream EtCO2, Thermal recorder, SD Memory Storage, Full Touch Screen
Size and Weight
-Size: 160×130×260mm(W * H * D)
-Weight: ≦2.5kg (including a lithium battery)
Display
-Type: 7" Color Anti-glare TFT-LCD
-Resolution: 234×480 pixels
Power supply
-Input voltage: AC: 100-240V, 50Hz/60Hz
-Input power: 70VA
-Fuse: T1.6AL/250V, 2φ5x20mm
Battery
-Type: 11.1V 4000mAh rechargeable lithium battery
-Operating time: >8 hours
-Charge time: 6h to 100% (Standby)
Data Storage
-Clinic Mode:
Patient quantity: 1000
Recording number: 16000
Single patient clinic record number: 1-16000
-Monitor Mode:
Patient quantity: 1
Trend data: resolution 1Min: can store 96 hours
resolution 5Min: can store 480 hours
resolution 10 Min: can store 960 hours
Alarm events: 1000
NIBP measurement record: 5000
Environmental Specifications
-Operating
Temperature: (5～40) ℃
Humidity: ≦85% (noncondensing)
Atmospheric Pressure: (860～1060) hPa
-Transportation and Storage
Temperature: (-20 ～ +55)
-Humidity: 93% (noncondensing)
-Atmospheric Pressure: (500～1060) hPa
PR
-Measurement Range: 20～250bpm
-Resolution: 1 bpm
-Accuracy: ±1% or ± 1 bpm, whichever is the greater
Digital SpO2
-Measurement Range: (0～100)%
-Resolution: 1%
-Accuracy: ±2% (70%～100%)
±3% (35%～69%)
-Unspecified: (0～34%)
Nellcor-SpO2 (Option)
-Measurement Range: (0-100)%
-Resolution: 1%
-Accuracy: ±2% (70%～100%) (adult)
±3% (70%～100%) (neonate)
±2% (70%～100%) (low perfusion)
-Unspecified: (0～69%)
NIBP
-Technique: Automatic Oscillometry
-Range: Adult: 10-270mmHg
Child: 10-235mmHg
Neonate: 10-135mmHg
- Accuracy: Static ± 3mmHg
-Clinic: Average error: ±5mmHg
-Standard Deviation: ≦8 mmHg
-Unit: mmHg. kPa
-Pulse rate range: 40-240 bpm
Microstream EtCO2 (Option)
-Measurement way: Infrared spectrum
-Measurement mode: Side stream
-Sample Flow Rate: 50ml/min ±10ml/min
-Measurement range: (0～19.7)%, (0～150mmHg)
-Resolution: 0.1% or 1 mmHg
-Unit: %, mmHg, kPa
-Accuracy: ±2 mmHg 0 mmHg to 40 mmHg,
±5% of reading 41 mmHg to 70 mmHg,
±8% of reading 71 mmHg to 100 mmHg,
±10% of reading 101 mmHg to 150 mmHg,
(760 mmHg, temperature is 25℃)
(When RR>80 rpm, all the range is ± 12% of reading)
Standard Configuration:
NIBP, Digital SpO2, PR, Lithium Battery
Option:
Nellcor SpO2, Instant Infra-Red Ear Thermometer（TEMP）, Micro Stream EtCO2, Thermal recorder, SD Memory Storage, Full Touch Screen
Packing & Delivery
Working Environment:
Temperature:
Temperature:
Operation:0ºC-50ºC
Storage/Transportation:-40ºC-70ºC
Humidity:
Operation:10ºC-95ºC,noncondensing
Storage/Transportation:0ºC-93ºC,noncondensing
Atmospheric Pressure:
Operation:700-1060hPa
Storage/Transportation:500-1060hPa
Storage/Transportation:-40ºC-70ºC
Humidity:
Operation:10ºC-95ºC,noncondensing
Storage/Transportation:0ºC-93ºC,noncondensing
Atmospheric Pressure:
Operation:700-1060hPa
Storage/Transportation:500-1060hPa
Physical Identity:
Size and Weight- Product size: 14.8x12x24.7cm
- Packing size: 38x33x28cm
- Net weight: <=1.7kg
- Gross weight: 3kg
Certification：
IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Standard Accessories:
1 Adult Reusable Finger clip SpO2 Sensor
1 Adult Reusable SpO2 Extension Cable
1 Adult Reusable NIBP Cuff
1 Adult Reusable NIBP Tube
1 Built-in Battery (Lithium batter.y)
1 Power cable
Optional Configuration:
Full-touch screen, Nellcor SpO2, Masimo SpO2, Quick TEMP, Microstream EtCO2, SD Memory, Thermal recorder
Full-touch screen, Nellcor SpO2, Masimo SpO2, Quick TEMP, Microstream EtCO2, SD Memory, Thermal recorder
