Wis networks WIS Q450 2km long range 5GHz Outdoor Wireless networking CPE Bridge Access Point for Ubiquiti NanoStation LOCO M5
- Category: >>>
- Supplier: WIS NETWORKS LIMITED
Share on (1600437829871):
Product Overview
Description
Products Description
WIS-Q450 is a 433Mbps 1*1 MIMO outdoor wireless CPE for point-to-point and point-to-multi-point solutions. It is the most
cost-effective and ultimate solution for WISP CPE,which provides incredible long range much better than any other vendors
solution.
cost-effective and ultimate solution for WISP CPE,which provides incredible long range much better than any other vendors
solution.
Features

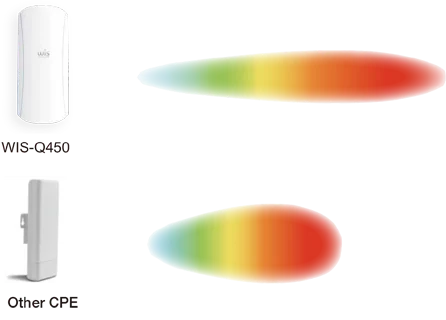

Incredible Long Range
● Up to 23dbm Tx Power
● 14dBi directional antenna
● Wireless Speed up to 433Mbps
● Narrower Beamwidth for noise immunity
● Wireless Speed up to 433Mbps
● Narrower Beamwidth for noise immunity

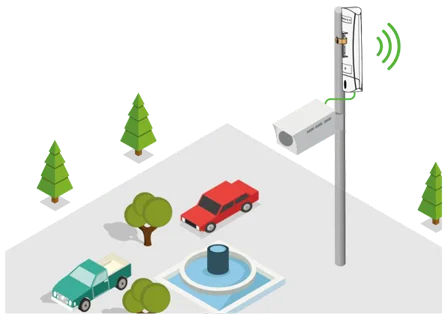

Wireless Solutions for Surveillance
● Cost-effective passive PoE
● IP65 Waterproof
● Multiple mounting methods
● Extremely Amazing Performance

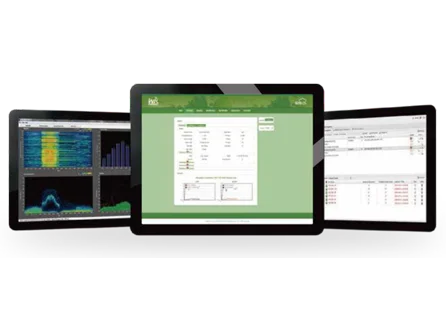

Full Feature & Performance
● Full WisOS Support
● Auto-Distance Adjust
● 2km+ Availability
● Fully Managed by WiController
● Auto-Distance Adjust
● 2km+ Availability
● Fully Managed by WiController
Features and Benefifits
- 14dBi panel antenna to build robust wireless PtP link
- Compliant with 802.11ac/n/a, Wireless speed up to 433Mbps
- Wireless Solutions for Surveillance
- 2 kilometers throughput 90+
- 40/20MHz selectable for channel bandwidth
- Easy deployment and adjustment with provided mounting kits
- Passive POE(24VDC) for flflexible deployment
- Weather-proof design for outdoor environment
- Up to16kV ESD protection
- Compliant with 802.11ac/n/a, Wireless speed up to 433Mbps
- Wireless Solutions for Surveillance
- 2 kilometers throughput 90+
- 40/20MHz selectable for channel bandwidth
- Easy deployment and adjustment with provided mounting kits
- Passive POE(24VDC) for flflexible deployment
- Weather-proof design for outdoor environment
- Up to16kV ESD protection

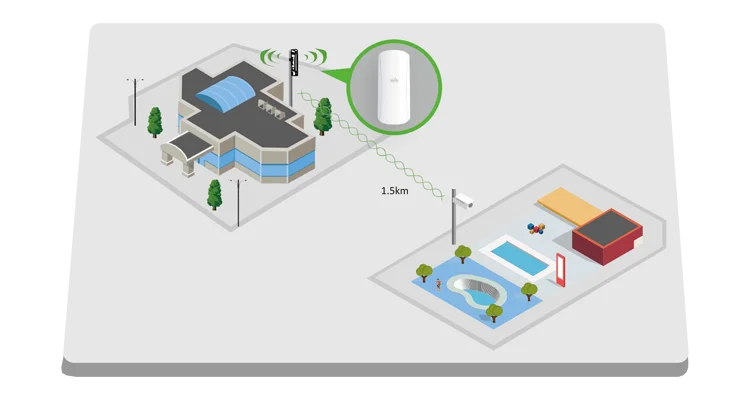

Network Diagram
Product Paramenters
Radio | - 802.11a/n/ac radio - Wireless Speed up to 433Mbps - Frequency Range - 5.150-5.250GHz - 5.250-5.350GHz（Support DFS） - 5.470-5.725GHz（Support DFS) - 5.725-5.825GHz - Tx Power up to 23dbm - Rx Sensitivity - 300M: -71dBm@10% PER - 54M: -75dBm@10% PER | ||||||
Antenna | - 14dBi panel antenna - Beamwidth(HPBW) Horizontal:45°，Vertical:45° - 1x 10/100Base-T Ethernet - Open space 1-3KM | ||||||
Physical Parameters | - Dimension:177mm*80mm*65mm - Weight:0.3kg - Enclosure: Weatherproof Plastic - ESD Protection：15kV - Lightning Protection：2kV - Working Temp：-40~65℃ - Storage Temp：-40~85℃ - Working Humidity：10%~95% non-condensing | ||||||
Security | - Integrated Firewall - WPA/WPA2;WPA-PSK/WPA2-PSK(AES/TKIP) - Encryption;64/128-bit WEP | ||||||
LED | - Power：On/Off - LAN:On/Off/Flashing - WLAN:On/Off/Flashing - RSSI Signal:1,2,3 | ||||||
Power | - 24VDC, 0.5A - Power Consuption: 6W | ||||||
Certifification | - CE, RoHS | ||||||
Package content | - WIS-Q450 - Quick Setup Guide - Power Adapter with Passive PoE - Mounting kits | ||||||
Antenna Information
VSWR
Vertical Azimuth
Vertical Elevation
